Evi Heat Pump, R290, 10KW, 16KW, 21KW

The evi heat pump listed here carries 380V 50HZ ~1Phase/3Phase, 20KW (A20W50) 14KW(A7W50), documented exactly as the manufacturer publishes it. Made by Nulite New Energy (guangzhou) Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Evi Heat Pump

• Model Number: NL-BKDX
• Power Source: Electric
• Voltage: 380V 50HZ ~1Phase/3Phase
• Heating Capacity: 20KW (A20W50) 14KW(A7W50)
• Housing Material: Galvanized Sheet
• Warranty: 2 Years

Technical Specifications

Product Details

Nulite 10KW 15KW 20KW 22KW 30KW 40KW DC inverter ERP A+++ Heat Pump for Heating Cooling DHW

1.Adopting R410A refrigerant and circulating heating method,is able to keep its energy efficiency high.
2.ASHP Heating Capacity: DC Inverter 10kw 15kw 20kw 22kw 30kw 40kw heat pump.

3.Best Selling Market: Global, especially in North & East Europe, North America,ect.
4.Ambient Temp of Using: Minus 25℃ ~ 43℃
5.Max water temperature: 60 degrees
6.Certification: ISO9001, CE, CB.ERP A+++
7.Use MitsubishI Inverter Compressor for DC Inverter Air Source Heat Pump
8.Wilo water pump,ACOL expansion tank .SWEP heat exchanger,3KW backup heater
FUNCTION : HEATING , COOLING , DHW , HEATING + DHW , COOLING +DHW
App : WI-FI control with all mobile system
Color : OEM all kinds of color

Specification

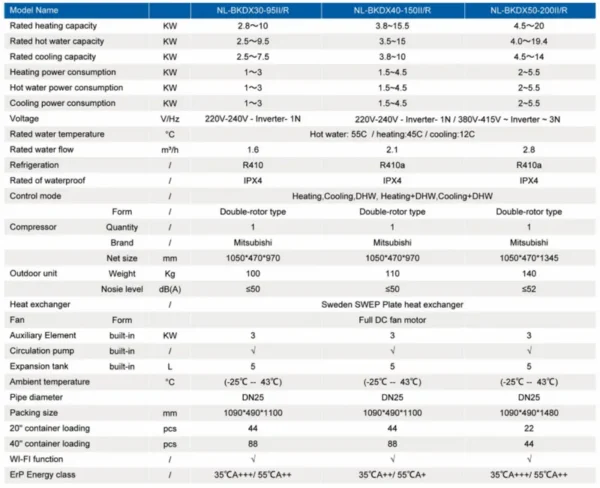

Model	NL-BKDX30-95II/R	NL-BKDX40-150II/R	NL-BKDX50-200II/R
Rated heating capacity	2.8~10KW	3.8~15.5KW	4.5~20KW
Rated cooling capacity	2.5~7.5KW	3.8~10KW	4.5~14KW
Rated hot water capacity	2.5~9.5KW	3.5~15KW	4.0~19.4KW
Voltage	220V~50HZ&60HZ	220V~50HZ&60HZ/ 380V ~50HZ
Rated outlte water temperature	Hot water: 55~60C / heating:40～45C / cooling:10～12C
Max water temperature	60℃
Rated water flow	1.7m³/h	2.7m³/h	3.5m³/h
Refrigerant	R410A
Control mode	Microcomputer central processor (linear control)
Compressor	Mitsubish inverter compressor
Ambient temperature	-25℃~43℃
Inlet and outlet pipe size	DN25	DN25	DN25
Packing size	1070*530*1130mm			1070*530*1530mm
Energy efficiency	ERP A++/A+++			ERP A+++(with certificates)

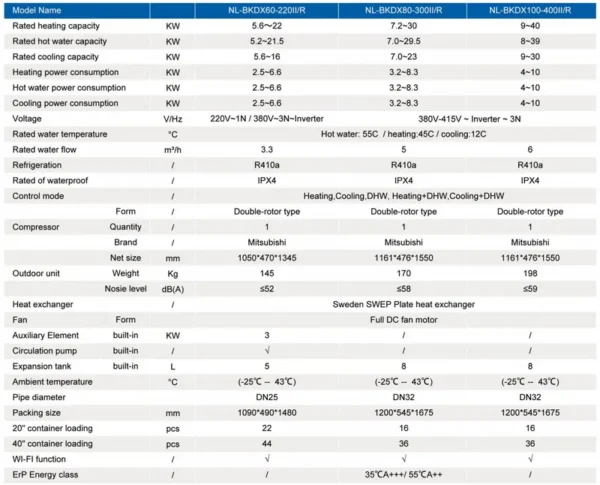

Model	NL-BKDX60-220II/R	NL-BKDX80-300II/R	NL-BKDX100-400II/R
Rated heating capacity	5.6~22KW	7.2~30KW	9~40KW
Rated cooling capacity	5.6~16KW	7.0~23KW	9~30KW
Rated hot water capacity	5.2~21.5KW	7.0~29.5kw	8~39KW
Voltage	220V~50HZ&60HZ/ 380V ~50HZ	380V~50HZ		380V~50HZ
Rated outlte water temperature	Hot water: 55~60C / heating:40～45C / cooling:10～12C
Max water temperature	60℃
Rated water flow	4m³/h	4.8m³/h	7m³/h
Refrigerant	R410A
Control mode	Microcomputer central processor (linear control)
Compressor	Mitsubish inverter compressor
Ambient temperature	-25℃~43℃
Inlet and outlet pipe size	DN25	DN40	DN40
Packing size	1070*530*1530mm	1260*630*1530mm	1260*630*1530mm
Energy efficiency	ERP A++/A+++			ERP A+++(with certificates)

Main components

R410A 10KW~40KW ERP 35℃ A+++/55℃ A++ DC Inverter Heat Pump Ddvantages

R410A 10KW~40KW ERP 35℃ A+++/55℃ A++ DC Inverter Heat Pump Advantages:
1.Function:heating + cooling + hot water with WI-FI;
2.Voltage:220V/1Phase or 380V/3Phase;
3.Using R410A green refrigerant;
4.Super low noise with DC fan motor;
5.Energy-saving 75%;
6.Anti-freezing work in -25 degrees low temperature;
7.Adopted twin-rotor Mitsubishu compressor;
8.Build-in 3kW electric heater for back up;
9.WILO water pump RS25/8;
10.ACOL expansion tank 5L capacity;
11.Sweden SWEP plate heat exchanger;
12.Welcome to OEM,ODM service;

13.Mitsubishl inverter dedicated compressor is stable running even the temperature is super low -25 degrees

14..Automatic System,which ensure constant shower hot water
15 .Short heating time hot water can be supplied in a short time within an hour

Detailed Feature

With CE & ERP Energy Efficiency Report

Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.Now NuLite brand heat pump has been exported to more than 100 countries, even well installed.

Connection Diagram

Feedback and Project

Company Profile

NuLite New Energy (Guangzhou) Co.,Ltd.

Nulite New Energy Heat Pump Group, based in Guangzhou and Foshan, is specialized in the R&D, manufacturing, sales and services for household & commercial high efficiency and energy-saving heat pump applications.

Our current product classification includes R290/R32/R410A/R134A refrigerant -25°C EVI DC Inverter Heat Pump, Spa Pool Heat Pump,Commercial Heating/Cooling/Hot Water Heat Pump, Geothermal Heat Pump, Fan Coil Unit and Water Tank. With five main modern manufacturing factories covering 200,000 square meters, which owns 12 automatic production lines and 15 high-standard certificated inspection laboratories. The annual production capacity is over 120,000 units and more than 100,000 units has been exported last year in 2022.

NuLite, owns more than 20 years experience of heat pumps manufacturing & exporting, with EU-erP, CE, CB, EMC, ISO9001
certificated. As a double five-star supplier verified by Alibaba, we offer full range of OEM & ODM heat pumps and related
products, now we sincerely recruit distributors worldwide.

Nulite, Be Your Right !

Our Team

Exhibition & Clients

Packing & Shipping

FAQ

Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturing factory. With 200,000 sq meters modern factory in Guangzhou City & Foshan City. with OEM/ODM service.

Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q: Do you also provide other kind of heat pump?
Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
*House heating/cooling/DHW heat pump
* Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)

Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.

For the most suitable Heating Cooling, Hot Water Solution!

More details to confirm, please feel free to contact us as below!

Ordering and Pricing

• Minimum order quantity: 5 unit
• Volume pricing:
  • 5–24 unit: US $1700 / unit
  • 25–499 unit: US $1650 / unit
  • 500+ unit: US $1600 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this evi heat pump?

The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the evi heat pump be supplied for my local voltage?

The standard configuration is 380V 50HZ ~1Phase/3Phase. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Nulite New Energy (guangzhou) Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Nulite New Energy (guangzhou) Co., Ltd. range on HVACR Nexus.
