External rotor ball bearing — 200V/240V/380V/420V, power source Electric. The complete factory specification follows. Made by Yueqing Fuji Import Export Co., Ltd. (7 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This External Rotor Ball Bearing
- Model Number: 350FZY2-D/200V/240V, 350FZY3-D/380V/420V, 350FZY4-D/380V/420V
- Power Source: Electric
- Voltage: 200V/240V/380V/420V
- Material: Aluminum Alloy
- Blade Material: Cast Iron
- Speed: 1360/1500
Technical Specifications
| Blade Diameter | 15.5 in |
|---|---|
| Voltage | 200V/240V/380V/420V |
| Speed | 1360/1500 |
| Type | ac axial fan |
| Material | Aluminum Alloy |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | DOSSY |
| Model Number | 350FZY2-D/200V/240V, 350FZY3-D/380V/420V, 350FZY4-D/380V/420V |
| Fan Size | 395*130mm |
| Frame | Metal |
| Motor: | Capactior-Run Induction Motor |
| Noise | 56-65dBA |
| Current | 0.7A/0.35A/0.4A |
| Perating Temperature | -10℃~+105℃ |
| Teminals | 0.5mm |
| Certification | ce/RoHS/CCC |
| Selling Units | Single item |
| Single Package Size | 55X55X18 cm |
| Single Gross Weight | 6.0 kg |
Product Details

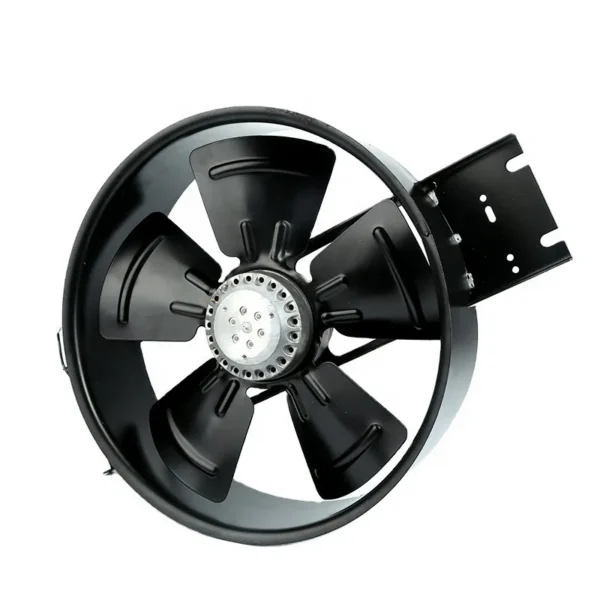

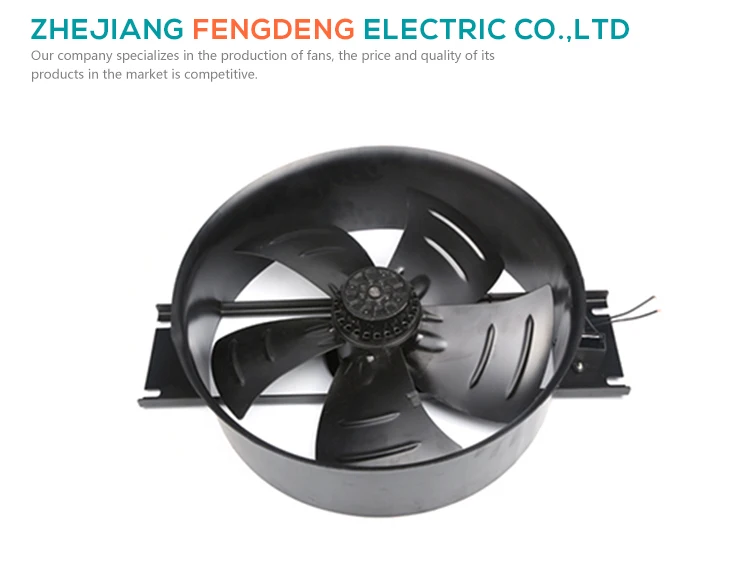

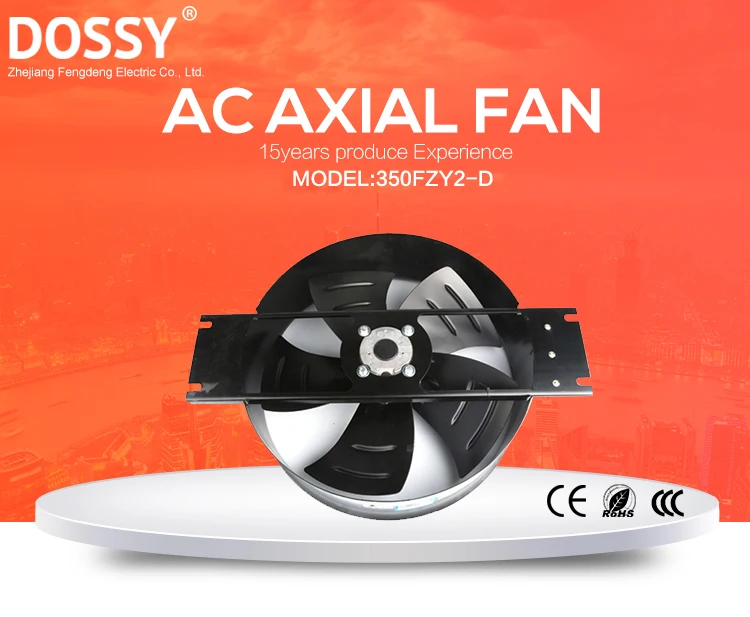

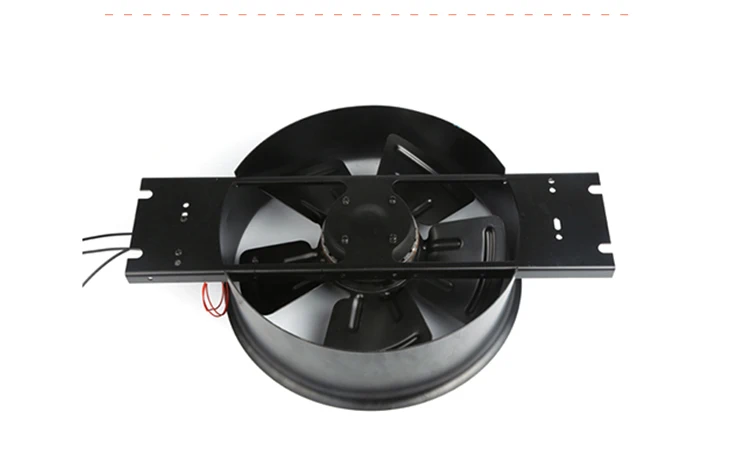

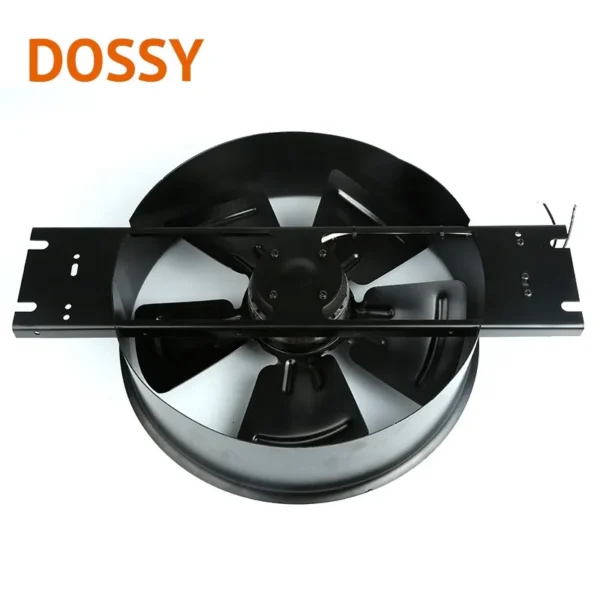

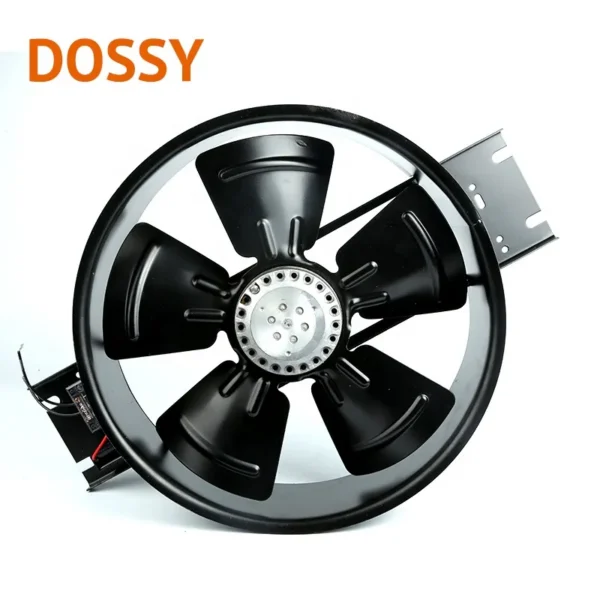

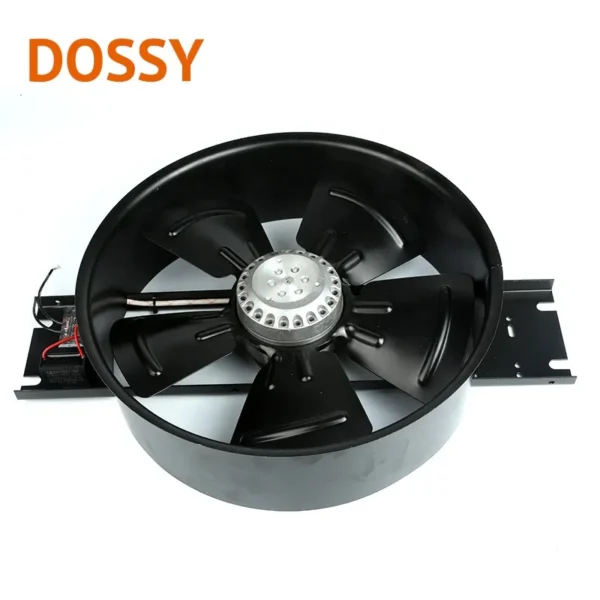

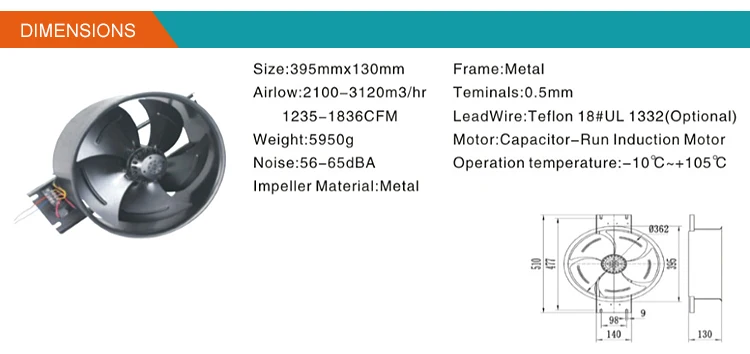

350FZY2-D 395mm diameter External Rotor Fan Ventilation fan 395x130mm
| Product name | Axial fan |
| Material | Aluminum Alloy Frame+Metal Impeller |
| Delivery time | Quantity |
| Packaging | 1pcs/carton |
| Size | 395*130mm |
| Weight | 5.95kg/ctn |
| OEM/ODM | Customization Service Provided |
| Model | Bearing System | Voltage VAC | Freq.Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capactior | |
| M3/hr | CFM | ||||||||||
| 350FZY2-D | Ball | 220/240 | 50/60 | 0.7 | 150 | 1360/1500 | 62/65 | 2880-3120 | 1659/1836 | 1 | 4.0uf/500v |
| 350FZY3-D | 380/420 | 50/60 | 0.35 | 150 | 1360/1500 | 62/65 | 2880-3120 | 1659/1836 | 3 | / | |
| 350FZY4-D | 380/420 | 50/60 | 0.4 | 150 | 1360/1500 | 62/65 | 2880-3120 | 1659/1836 | 1 | 2.2uf/630V | |
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6: 15*15*6mm 25*25*10mm 30*30*10mm 40*40*10mm 40*40*20mm 40*40*28mm 50*50*10mm 50*50*15mm 50*50*20mm 60*60*10mm 60*60*20mm 60*60*25mm 70*70*15mm 70*70*25mm 80*80*15mm 80*80*25mm 80*80*38mm 92*92*25mm
120*120*25mm 120*120*38mm 140*140*25mm 150*150*51mm 172*150*51mm
Q7: Can you tell me the normal AC fan Model?
A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $27 / piece
- 50–99 piece: US $26.5 / piece
- 100–499 piece: US $26 / piece
- 500+ piece: US $25.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor ball bearing?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this external rotor ball bearing carry?
It is supplied with ce/RoHS/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the external rotor ball bearing be supplied for my local voltage?
The standard configuration is 200V/240V/380V/420V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yueqing Fuji Import Export Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company. Browse the full Yueqing Fuji Import Export Co., Ltd. range on HVACR Nexus.
