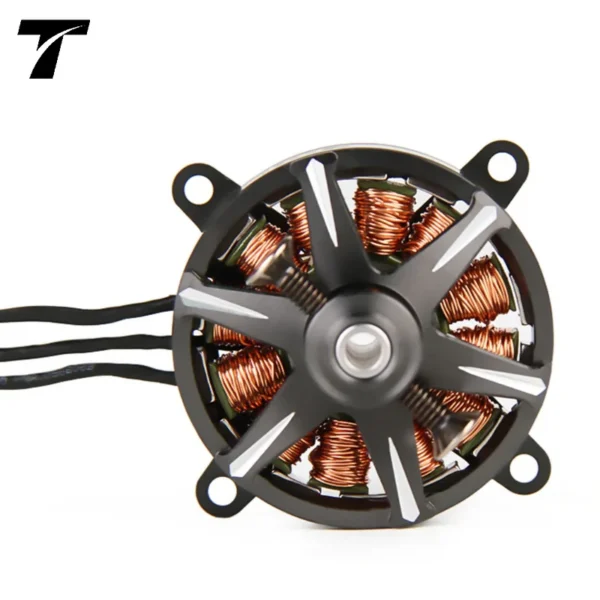

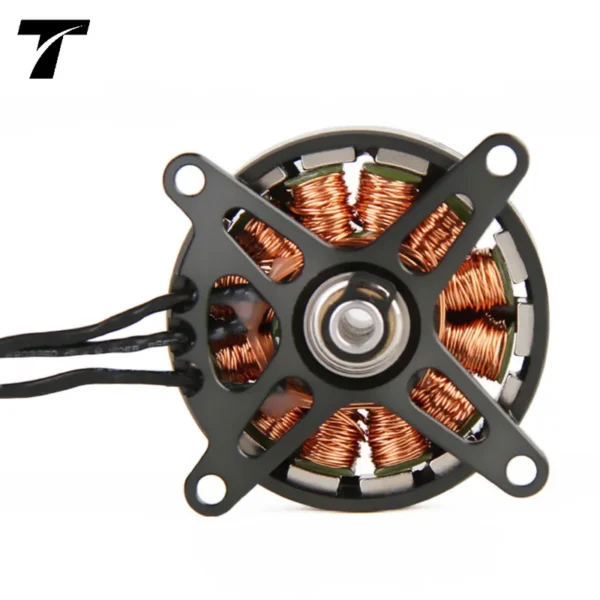

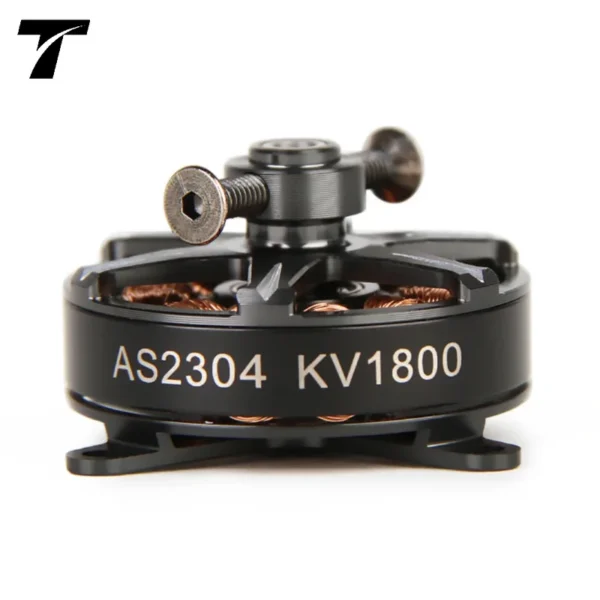

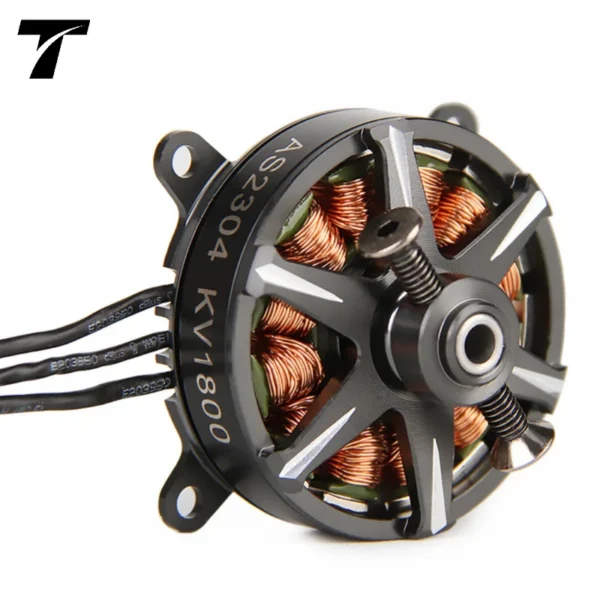

External rotor brushless motor — rated voltage 2-3S, type Brushless Motor. The complete factory specification follows. Made by Nanchang Ruiji Trading Co., Ltd (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This External Rotor Brushless Motor
- Model Number: AS2304
- Rated Power: 72W/168W/108W
- Rated Voltage(Lipo): 2-3S
- Speed Rpm: Max. 13304 rpm
- Speed(RPM): Max. 13304 rpm
- Warranty: 3 months ~ 1 year
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 72W/168W/108W |
| Speed Rpm | Max. 13304 rpm |
| Speed(RPM) | Max. 13304 rpm |
| IP Rating | IP55 |
| Efficiency | IE 4 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | Yes |
| Motor Mounting Type | Combination Mounting |
| Protect Feature | Waterproof |
| Usage | F3P, 3D, 4D and other acrobatic planes |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | Idle Current(10V): 0.35A/0.5A/0.75A |
| Model Number | AS2304 |
| Place Of Origin | Jiangxi, China |
| Brand Name | T-Hobby |
| Products Name | AS2304 |
| Rated Voltage(Lipo) | 2-3S |
| Size | 28*16.5mm |
| Weight (Incl. Cable) | 20g |
| Ldle Current(10v) | 0.35A/0.5A/0.75A |
| Shaft Diameter | 4mm |
| Configuration | 12N14P |
| Peak Current(180s) | 9A/16A |
| Certification | CE ROHS FCC ISO |

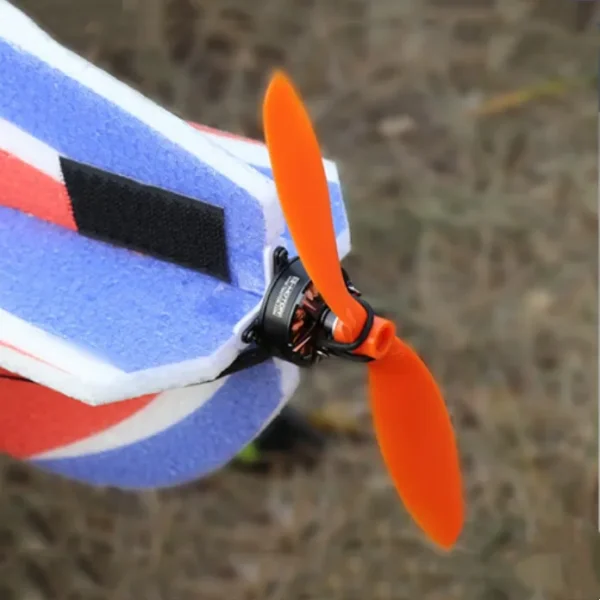

| Typical Applications | Indoor 150 to 320g F3P, 3D, 4D and other acrobatic plane |
| Selling Units | Single item |
| Single Package Size | 6X6X6 cm |
| Single Gross Weight | 0.5 kg |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $14.5 / piece
- 50–199 piece: US $13.5 / piece
- 200+ piece: US $12.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor brushless motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this external rotor brushless motor carry?
It is supplied with CE ROHS FCC ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the external rotor brushless motor be supplied for my local voltage?
The standard configuration is 2-3S. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nanchang Ruiji Trading Co., Ltd, based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nanchang Ruiji Trading Co., Ltd range on HVACR Nexus.
