External rotor brushless motor — type Asynchronous Motor, speed range Max 6200rpm (Customizable). The complete factory specification follows. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This External Rotor Brushless Motor
- Model Number: EC72
- AC Voltage: 200-270V, 12/24/48VDC
- Speed Range: Max 6200rpm (Customizable)
- Warranty: 1 year
- Place Of Origin: Zhejiang, China
- Application: tangential fan, axial fan, cross flow fan, centrifugal fan, etc
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | 200-270V, 12/24/48VDC |
| Type | Asynchronous Motor |
| Protect Feature | Totally Enclosed |
| Efficiency | IE 2 |
| Warranty | 1 year |
| Model Number | EC72 |
| Brand Name | GP |
| Place Of Origin | Zhejiang, China |
| Frequency | 50/60Hz |
| Sizes Available | 53mm/72mm/92mm/102mm |
| Magnet | Permanent magnet |
| Speed Range | Max 6200rpm (Customizable) |
| Control Type | Voltage or PWM |
| Working Temperature | -10~60℃ |
| Storeage Temperature | -20~70℃ |
| Life Time | 30000 hours (L10) at 40℃ room |
| Cerrificates | CCC, CE, ROHS |
| Application | tangential fan, axial fan, cross flow fan, centrifugal fan, etc |
| Packaging Details | Styrofoam or Inner box in firm carton, protected by pallets; Stand export packing,or OEM packing |
| Port Of Dispatch | Ningbo or Shanghai |
| Selling Units | Single item |
| Supply Ability | 10000 pieces per Month |
Product Details

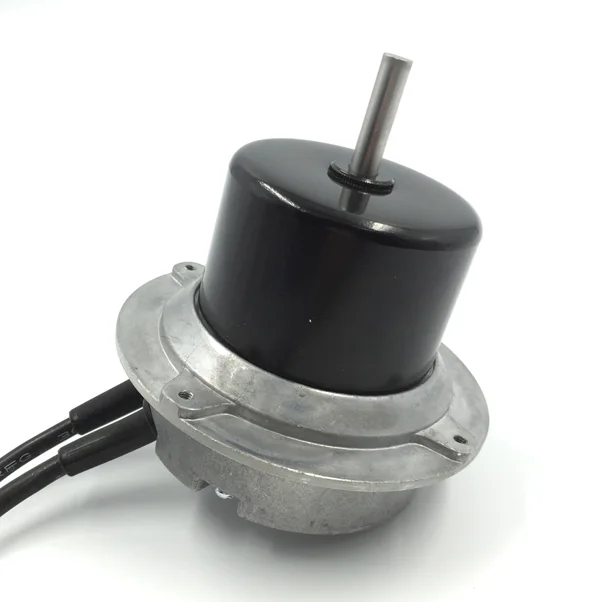

External Rotor Brushless Motor
| Product Name | EC External Rotor Motor |
| Model | EC72 |
| Voltage | 220~240V |
| Rated Power | 64W |
| Rated Speed | 2600rpm |
| Construction | Permanent Magnet |
| Motor Protection | Totally Enclosed |
| Commutation | Brushless |
| Efficiency | 35%~65% |
| Operating temperature/humidity | – 10 oC to + 60 oC / 5% to 95% RH |
| Life Time | 30,External Rotor Brushless Motor hours |
| Application | Tangential fan, axial fan, centrifugal fan |
| Specification | |||||||
| Item Code: BLR33ZS-12 | |||||||
| Voltage (V) | Rated Power (W) | Current (A) | Speed | Commutation | Control Type | Operation Life | Application |
| 230 | 64 | 0.5 | 2600 | Brushless | Voltage or PWM | 30,External Rotor Brushless Motor hours | Axial/ centrifugal fan |

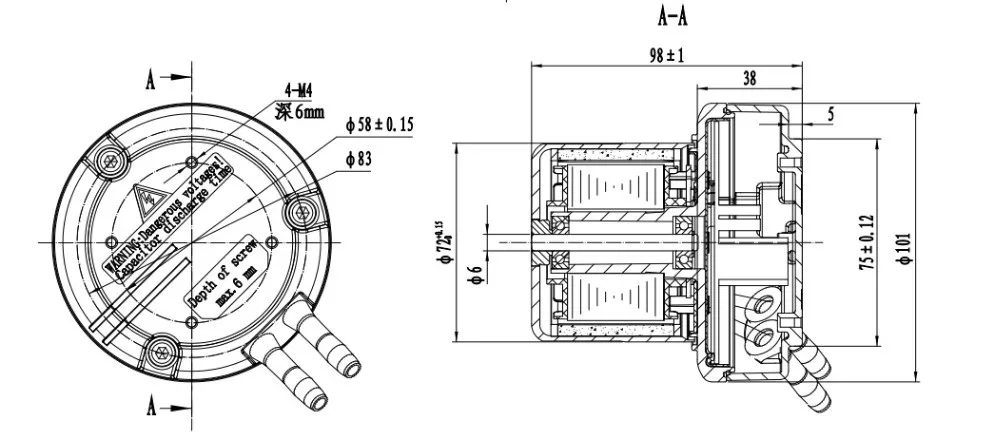

| Outline Drawing | |||||||||
|
|
| Customized Motor and Fan Solutions All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times. |
Since 1991, GP Motors has designed and manufactured the highest quality, OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components in the industry. All of our custom electric motors, fans and blowers, electromechanical motor assemblies and components are engineered and manufactured in our 120,External Rotor Brushless Motor square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
External Rotor Brushless Motor
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $19.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor brushless motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the external rotor brushless motor be supplied for my local voltage?
The standard configuration is 200-270V, 12/24/48VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Jigu Motor Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Jigu Motor Technology Co., Ltd. range on HVACR Nexus.
