The external rotor motor listed here carries voltage 230VAC, power source Electric, documented exactly as the manufacturer publishes it. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This External Rotor Motor
- Model Number: FJ4E-350.FGV
- Power Source: Electric
- Power Supply Connection: Wire or terminal box set
- Voltage: 230VAC
- Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
- Blade Material: Cast Iron
Technical Specifications
| Voltage | 230VAC |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jasonfan |
| Model Number | FJ4E-350.FGV |
| Motor Structure | External rotor motor 102mm |
| Safety | Thermally protected |
| Operation System | Dual high precise ball bearing |
| Dielectric Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Allowable Ambient Temperature Range | -25~+80 degree |
| Power Supply Connection | Wire or terminal box set |
| Insulation | F Class |
| Selling Units | Single item |
Product Details

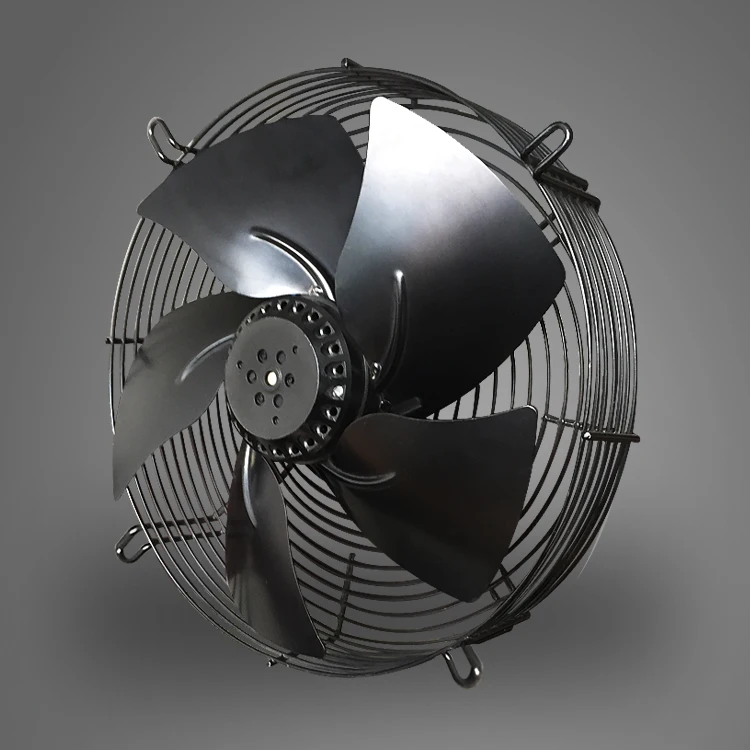

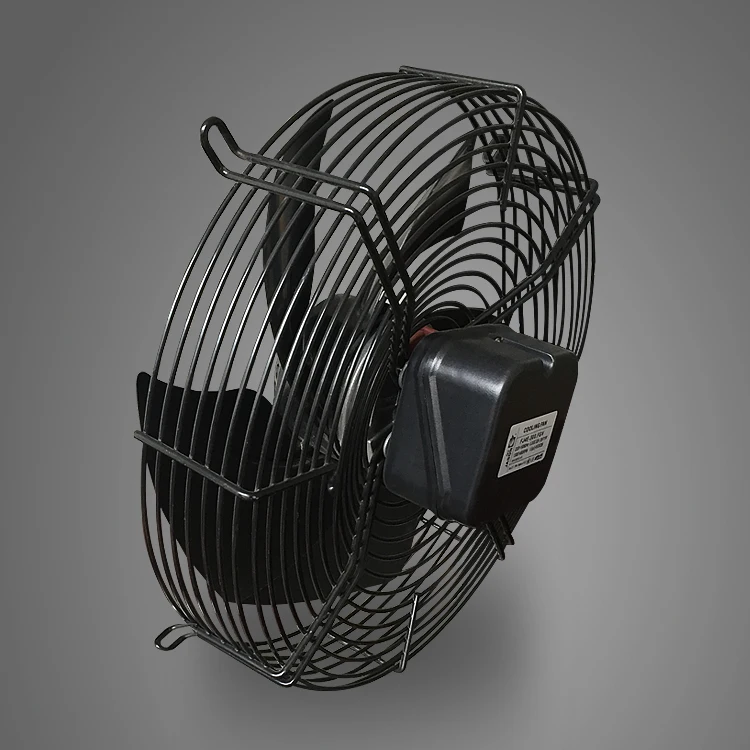

FJ4E-350.FG.V air flow suck 350mm 220V 230V AC EC external rotor motor fan for Evaporator condenser
| Type | Sickle Impeller Fan |
| Fix gurad | Steel |
| Impeller | Metal armor plate |
| Motor Structure | Cage tyoe capacitor start external rotor motor |
| Protection | Automatic recovery thermal protector |
| Temperature & Humidity | -40ºC ~ +80ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | Lead or Terminal connection |
| Protection Grade | IP44 |
| Insulation Systerm | F |
| Model Number | FJ4E-350.FGV |
| Voltage | 230VAC |
| Power: | 50/60Hz |
| Air Volume | 1942-2225CFM |
| Speed | 1400-1600RPM |
| Certification | CE, ROHS |
| Unit weight | 4.7KG |
| Color | Black and anti-corrosion |
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A: Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company's logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $46.7 / piece
- 100–299 piece: US $46.2 / piece
- 300+ piece: US $45.1 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this external rotor motor?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the external rotor motor be supplied for my local voltage?
The standard configuration is 230VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Jason Fan Manufacturer Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Jason Fan Manufacturer Co., Ltd. range on HVACR Nexus.
