The fan listed here carries 110V/ 120V/ 220V/ 240V, power source Electric, Solar, Vehicle Power Supply, documented exactly as the manufacturer publishes it. Made by Jinan Retek Industries Inc (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan
- Model Number: YZF5-YZF34
- Power Source: Electric, Solar, Vehicle Power Supply
- Power: 40-70W
- Voltage: 110V/ 120V/ 220V/ 240V
- Material: Stainless Steel+copper
- Warranty: 1 Year
Technical Specifications
| Power Source | Electric, Solar, Vehicle Power Supply |
|---|---|
| Application | RV, Outdoor, Commercial, Household |
| Warranty | 1 Year |
| After-Sales Service Provided | Return and Replacement |
| Type | Fan Parts |
| Place Of Origin | Zhejiang, China |
| Brand Name | RETEKOOL |
| Model Number | YZF5-YZF34 |

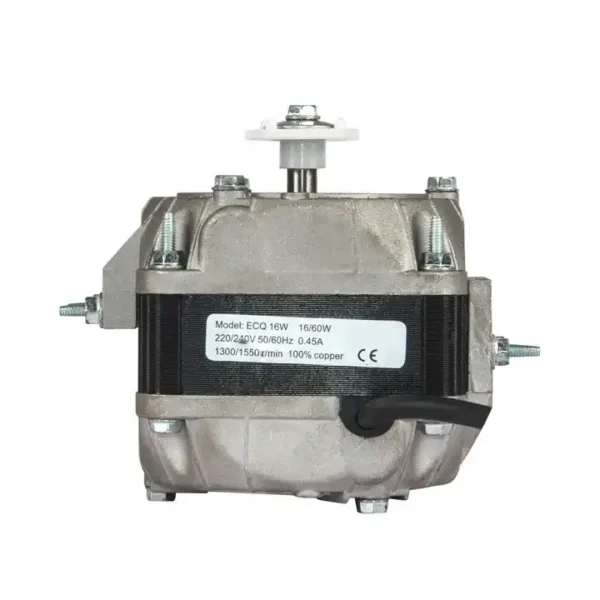

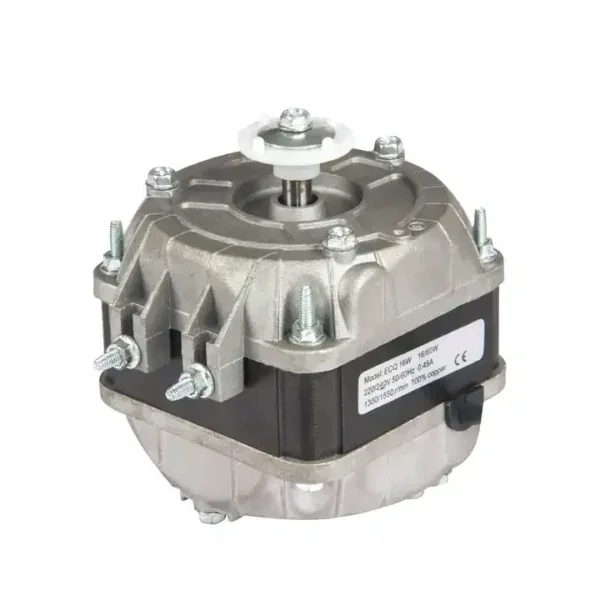

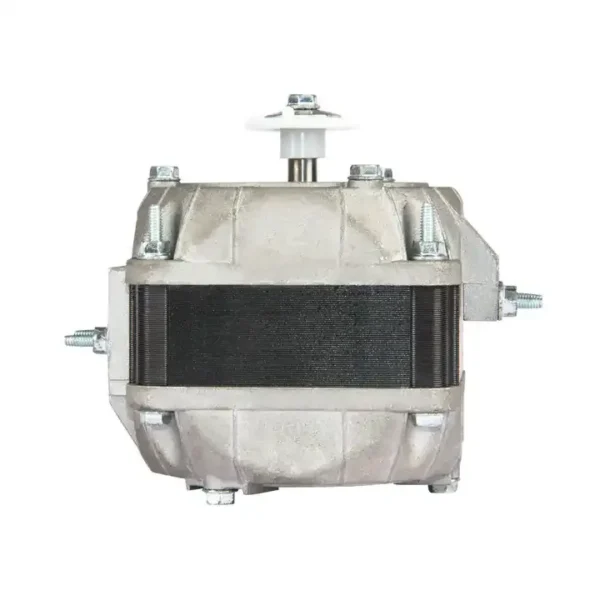

| Product Name | SHADED POLE MOTOR |
| Material | Stainless Steel+copper |
| Color | Silver |
| Size | Customized Size |
| Model | 5W-34W |
| Voltage | 110V/ 120V/ 220V/ 240V |
| Certificate | CE ROHS |
| Usage | High-speed Turbo Fan |
| MOQ | 10pcs |
| Power | 40-70W |
| Selling Units | Single item |
| Single Package Size | 80X50X60 cm |
| Single Gross Weight | 5.000 kg |
Product Details

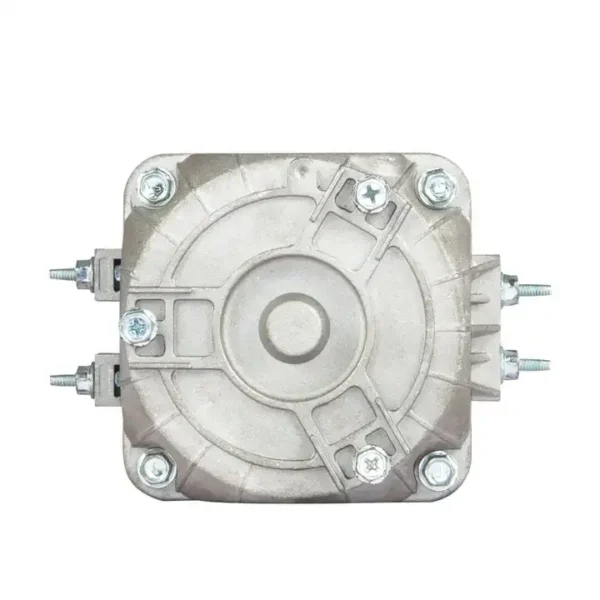

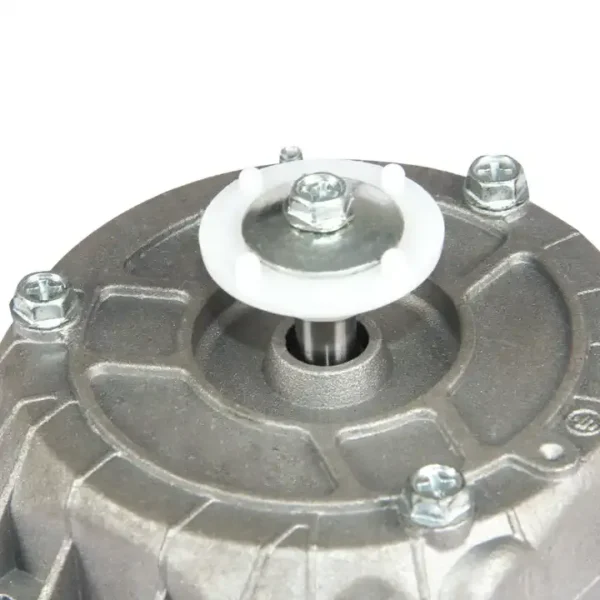

1) 4 shaded poles,single phase ,alternating current.

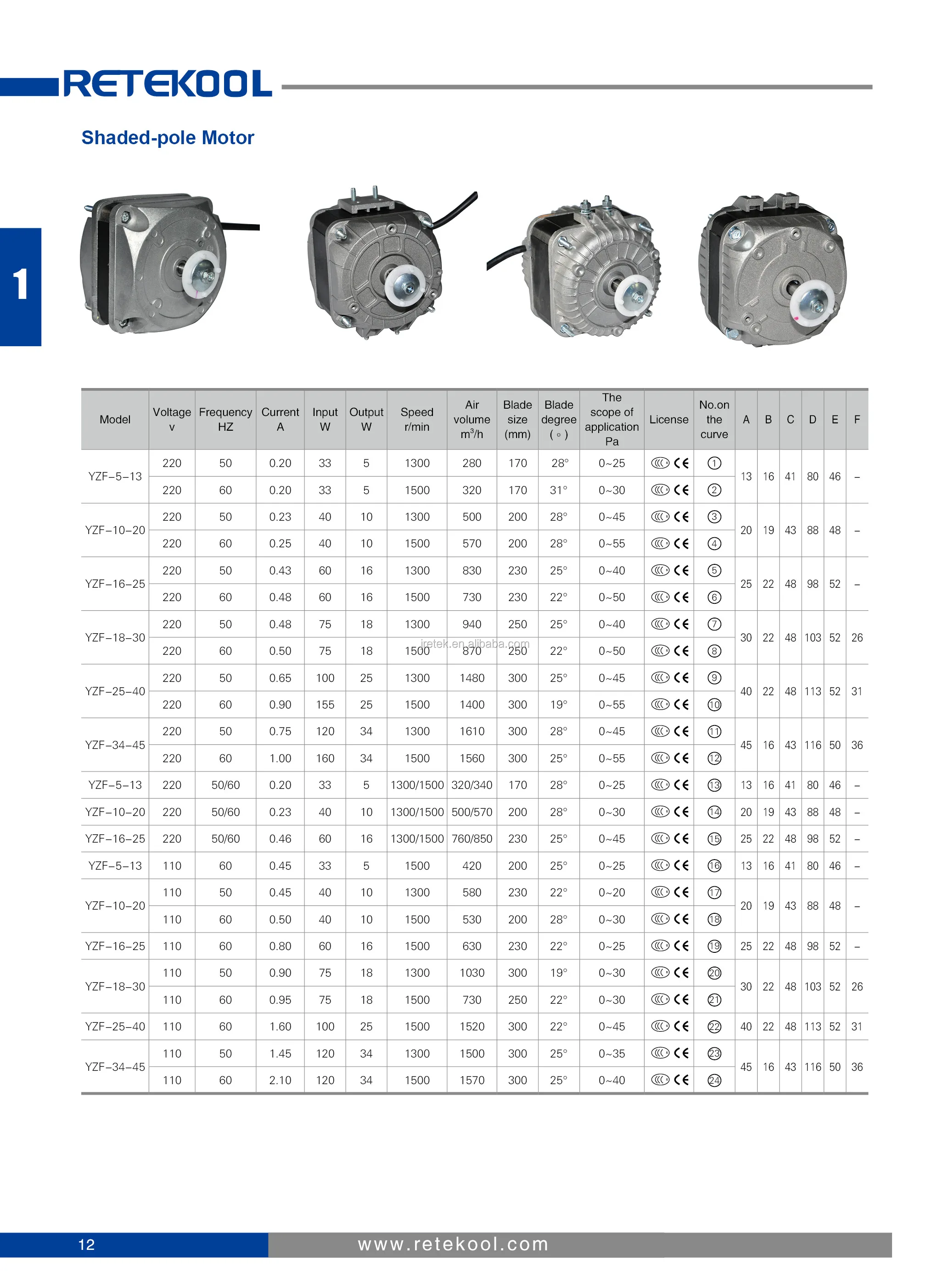

2)output power:5W, 6W,7W, 10W,12W,16W, 18W, 25W, 34W
3) Insulation class of motors is B with the protection class IP42.
IP44 is available.
4) Applicable ambient temperature is -30degree to 50 degree
5) Average service life is over 20000 hours
6) UL,CE,VDE,UL& CCC Approval
7)Accessories are decided by yourself.

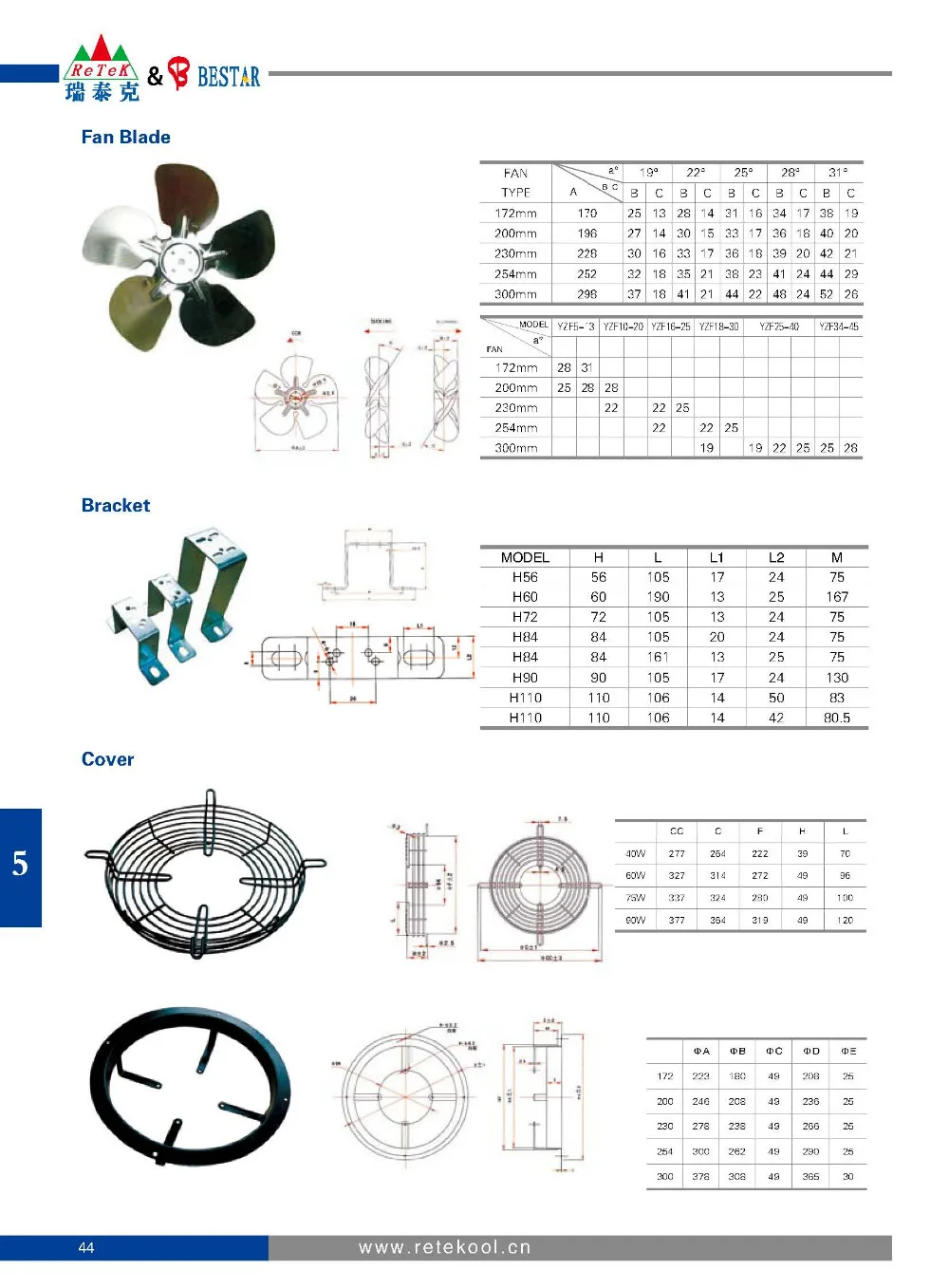

We have all kinds of motor cover.
Motor Type : | ECM Motor / Shaded Pole Motor with Holder , fan blades |
Mounting Dimensions | 100% Replacement of traditional shaded-pole motors |
Voltage | AC100V-120V;AC11OV-220V;AC160V-25OV;DC24V;DC48V |
Output Power ： | 7w, 12w, 15w |
Rotation | Single Rotation CCW & Reverse on start & Reverse on demand |
Speed | 1 speed,2 speeds, 3 speeds, Stepless Speeds |
Protect Feature | Totally Enclosed |
Working ambient temperature | -40 ~ 50 ℃ |
Mounting Option ： | Grid,Flange,Bracket |
Service life ： | 50000 Hours |

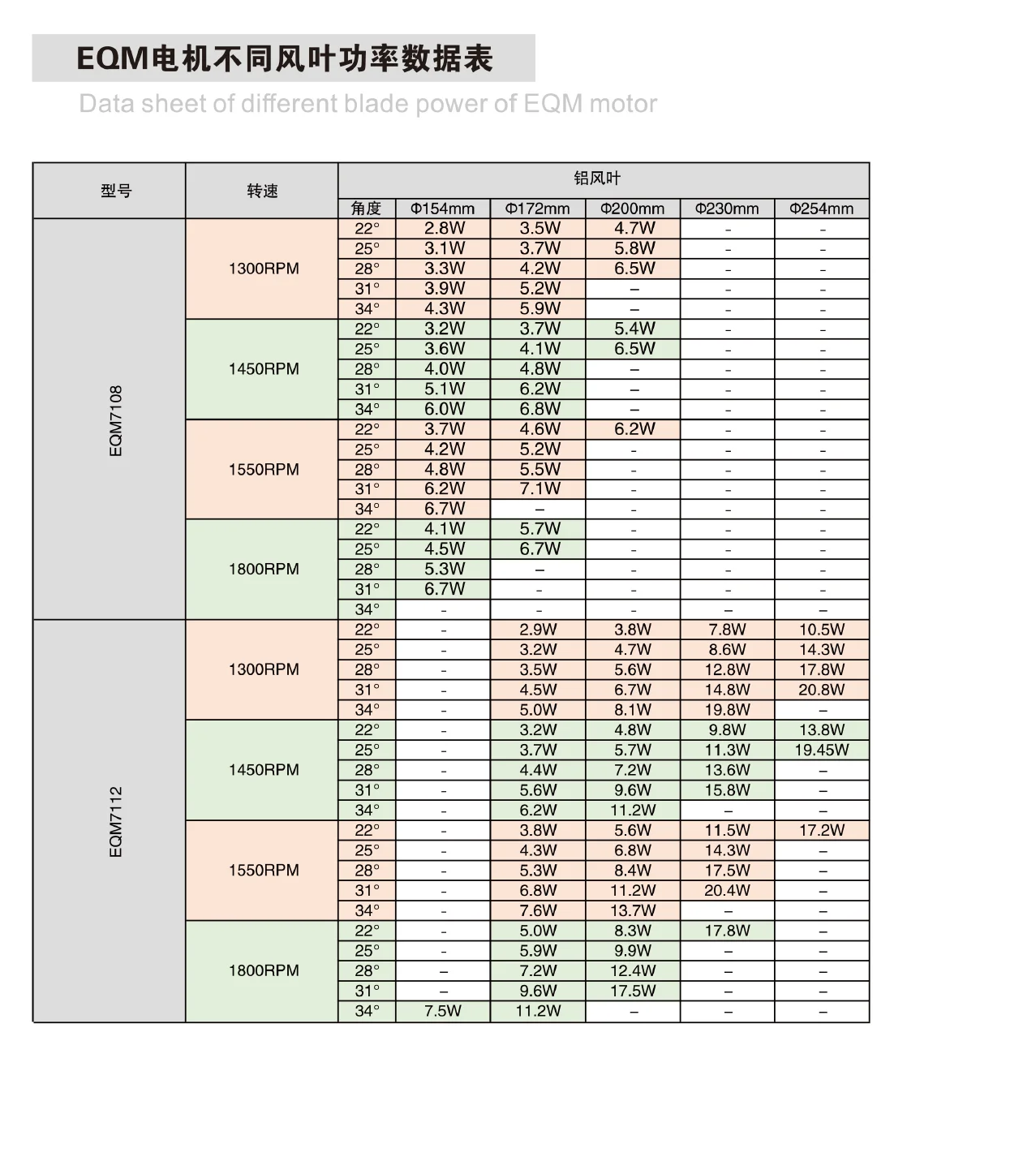

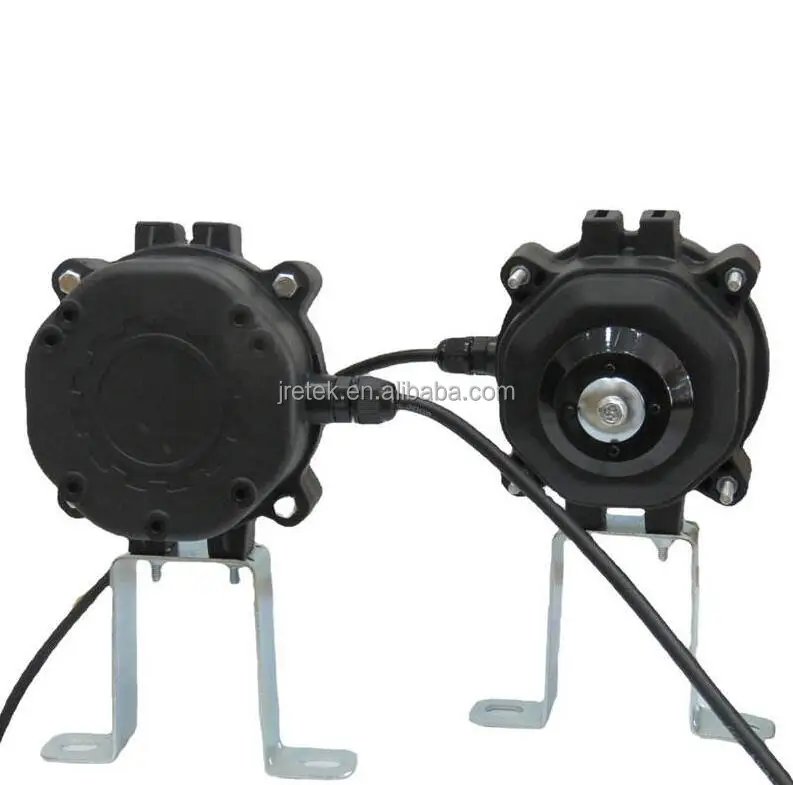

Features & Advantages : | Emphasizing on energy saving, environmental protection and high efficiency, EC shaded-pole motor (ECQ67 and ECM71 series) are designed with advanced electronic control unit. The electronic control technology increase the motor efficiency greatly, while it maintains the similar external dimensions as the original YZF Shaded-pole motor. The accessories such as grid, fan blades, flange and bracket are the same as original YZF series', therefore EC motor could completely replace YZF series without any changes.Compare with previous products, EC motor could be 70% more efficient, reduce the electric consumption greatly. Meanwhile, with help from electric control technology, the heating of EC motor itself is very low, it could help the entire refrigeration system works more efficient and stable. |
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–199 piece: US $6.9 / piece
- 200+ piece: US $4.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan carry?
It is supplied with CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the fan be supplied for my local voltage?
The standard configuration is 110V/ 120V/ 220V/ 240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Retek Industries Inc, based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jinan Retek Industries Inc range on HVACR Nexus.
