Product Details of the ADU Intelligent Temperature-Controlled Ventilated Floor with EC Fans

In data center computer rooms, efficient equipment operation depends on a stable and optimal temperature environment. With the increasing density of data center cabinets and the increasing variability of heat loads, traditional ventilation methods are increasingly unable to meet these demands. Against this backdrop, the ADU Intelligent Temperature-Controlled Ventilated Floor with EC Fans has emerged as an excellent solution for computer room cooling.

I. Product Overview

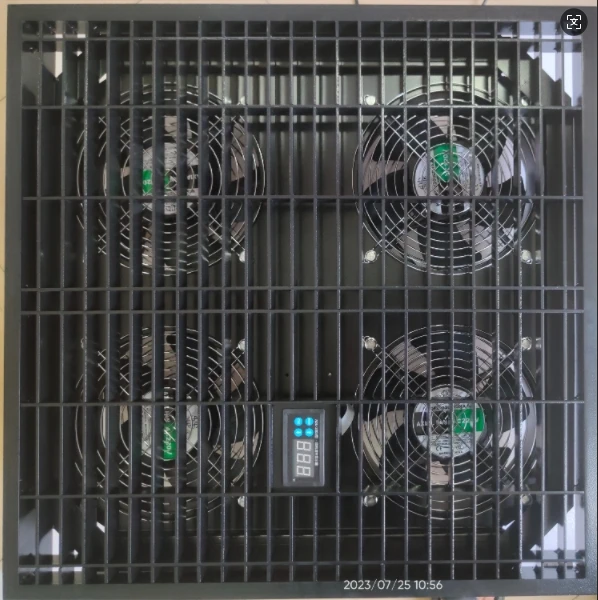

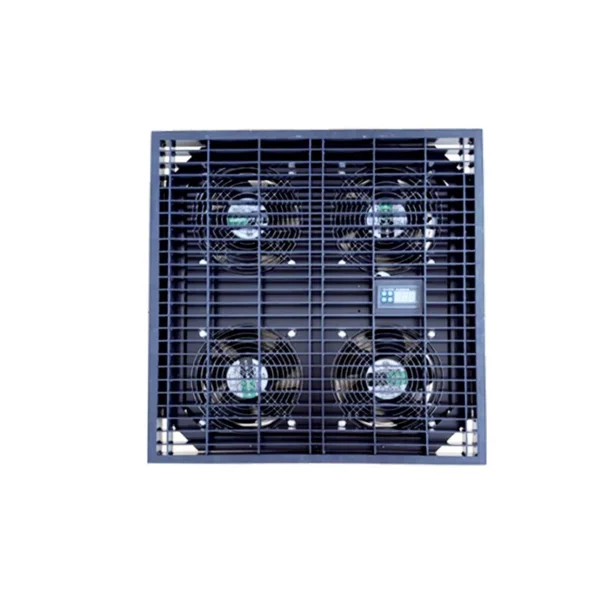

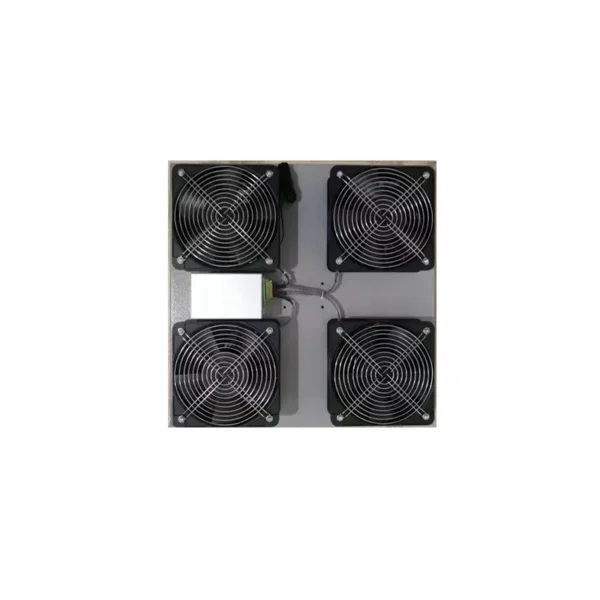

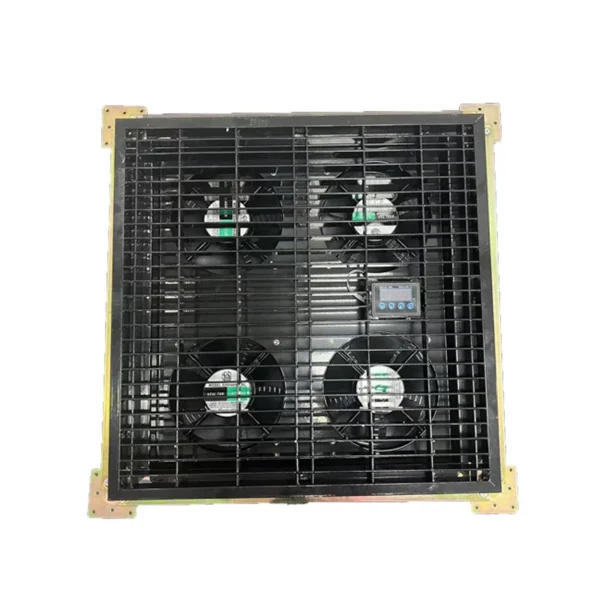

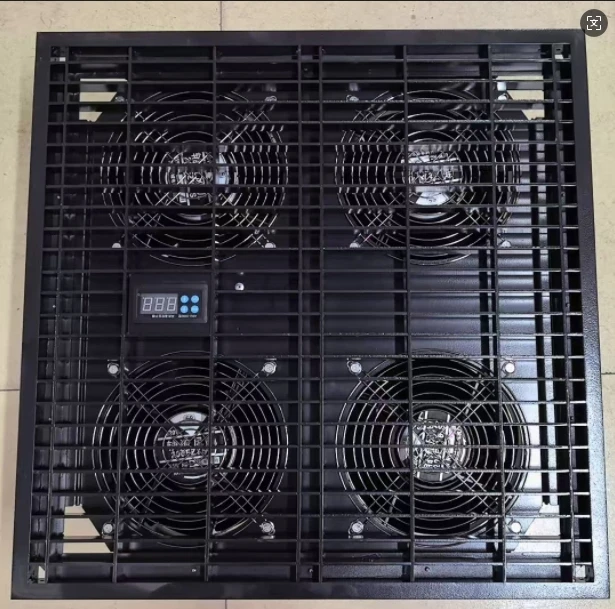

The ADU Intelligent Temperature-Controlled Ventilated Floor, also known as the Air Distribution Unit (ADU), is primarily used in computer rooms with raised floors, working in conjunction with downflow computer room air conditioners. Multiple small EC fans are installed within the floor, intelligently and automatically adjusting their operating status based on the real-time temperature conditions above the floor. This allows for precise control of airflow, effectively maintaining a relatively constant and controllable temperature above the floor, and ultimately delivering more cooling capacity on demand to high-load areas of the computer room.
II. Working Principle
Temperature Monitoring: The ADU intelligent temperature-controlled ventilated floor is equipped with an external, highly sensitive temperature sensor that continuously monitors the temperature above the floor twice per second.
Intelligent Control: When the temperature above the floor is below the user-set lower limit, the floor enters a natural ventilation mode, with the fans remaining stationary. Natural airflow from the computer room air conditioner is sufficient to meet cooling needs. However, if the temperature above the floor rises above the set lower limit, the EC fans within the floor activate rapidly, increasing airflow and delivering more cooling to the cabinets to lower their temperatures. Air speed adjustment utilizes an advanced stepless speed control method, automatically and precisely adjusting the air speed based on the actual temperature difference between the cabinet and the set temperature. This ensures constant cabinet temperature while minimizing energy consumption, significantly improving energy efficiency. For example, when a cabinet's temperature rises due to increased workload, sensors quickly detect the temperature change and provide feedback to the control system. The system then immediately instructs the fans on the corresponding ADU floor to increase speed, increasing airflow and rapidly cooling the cabinet. When the temperature returns to normal, the fan speed automatically decreases, reducing energy consumption.

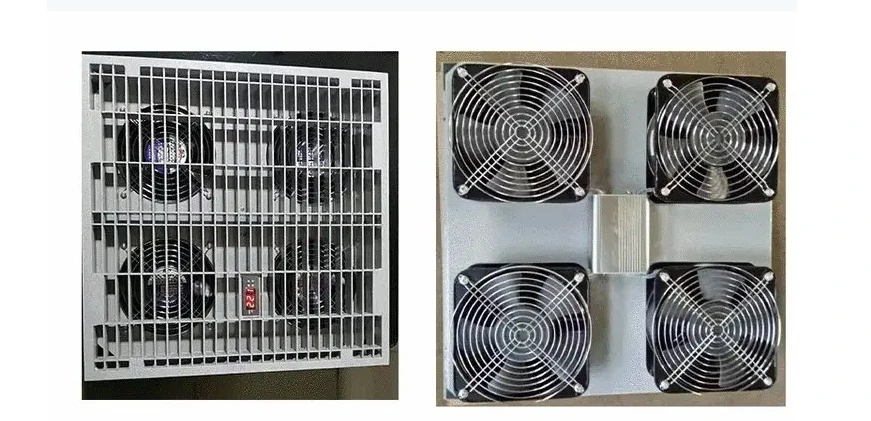

Fan Control: The system typically uses multiple fans (e.g., 12 fans are common). The control system gradually increases or decreases the number of fans activated based on the temperature fluctuations in the upper compartment. As the temperature gradually rises, more fans are activated until all fans are operating at full capacity, maintaining the upper compartment temperature within the set range.

III. Product Advantages

Efficient Heat Dissipation: Variable air volume EC fans precisely deliver cool air to the heat-loaded areas of the cabinet. Combined with a unique fan guide design, they virtually eliminate air bypass, significantly improving cooling efficiency and effectively addressing localized overheating. This ensures that servers and other equipment are always at the optimal operating temperature, reducing the risk of freezes and downtime due to overheating and ensuring stable data center operations. Intelligent Energy Saving: By monitoring temperature in real time and automatically adjusting fan speed and number of fans running, the ADU intelligent temperature-controlled ventilation floor achieves precise temperature control and on-demand cooling. While meeting the cooling needs of the data center, it minimizes energy consumption, significantly reducing data center operating costs compared to traditional ventilation methods. For example, at night or when the equipment load is low, the fan speed or number of fans running is automatically reduced, avoiding unnecessary energy waste.
Flexible Adaptability: The ADU intelligent temperature-controlled ventilation floor is easily adaptable to both new data center construction and renovations of existing raised access floors. This allows data center owners to address the cooling challenges of high-density cabinets without the need for large-scale floor infrastructure renovations, offering exceptional cost-effectiveness and flexibility. Users can also choose from a variety of designated brands and models of ventilation flooring, or customize specific designs. Each product is assembled and supplied in perfect harmony with the fan control unit to meet the individual needs of different data center environments. Stable and reliable: The product features a power-off auto-restart function. When the device recovers from a sudden power outage, it automatically resumes its pre-outage operating state upon power restoration, ensuring continuous cooling in the data center and preventing the risk of temperature runaway caused by power outages and restarts. Furthermore, the use of imported Swiss temperature sensors allows for fan speed adjustment with an accuracy of 1 rpm, ensuring highly accurate and stable temperature monitoring and control, providing a solid foundation for the reliable operation of data center equipment.

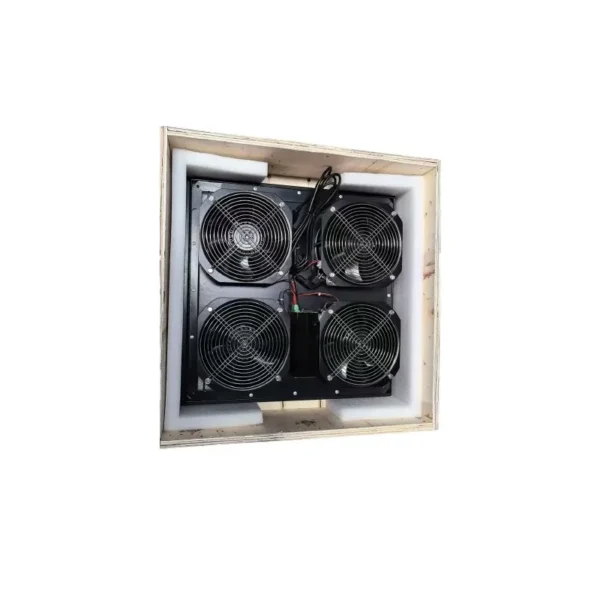

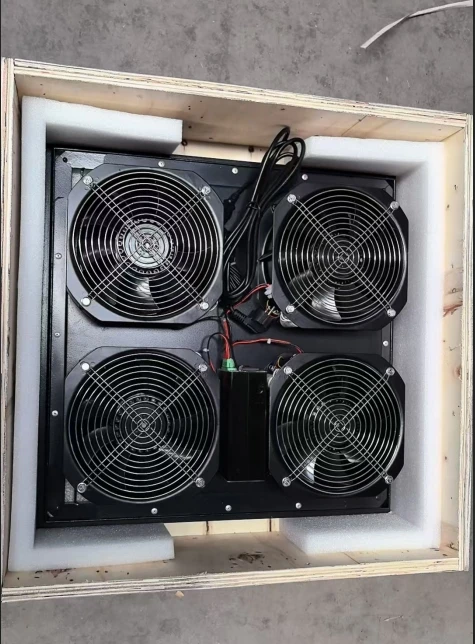

We use shockproof cotton and wooden boxes to pack the smart fans to ensure the safe arrival of the products around the world.

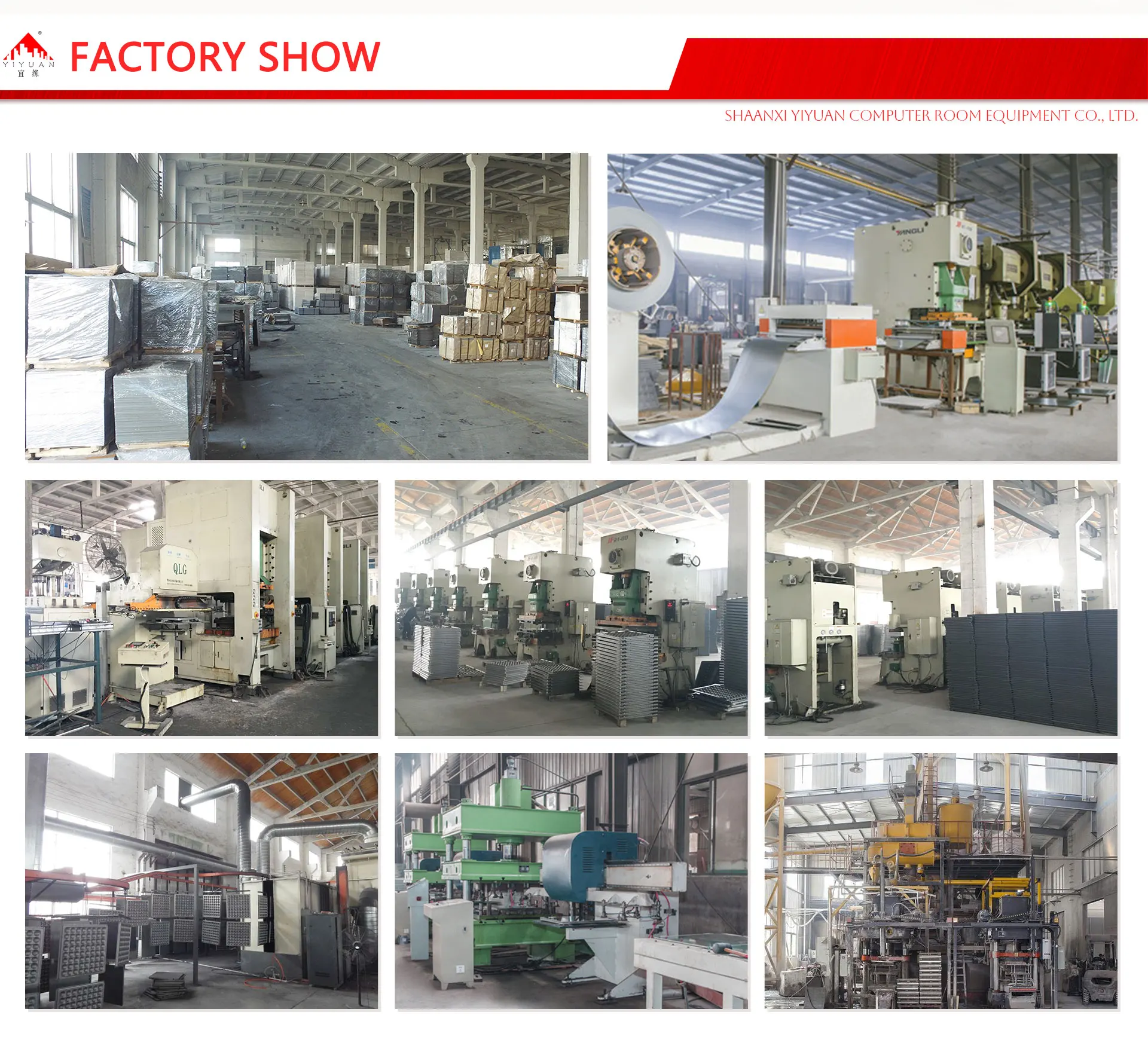

Q1. Are you a factory or a trading company?
A: We are a production plant.

Q2. What can you buy from us?
A: All steel anti-static floor tiles, Calcium sulfate anti-static floor tiles, Perforated ventilation floor tiles, Steel raised approach floor tiles, GRC raised floor tiles.

Q3. Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free but do not pay for the freight.

Q4. When is your delivery time?
A: 30 days after receiving the advance payment.

Q5. What is your package?
A: Packed in wooden pallet and covered with plastic paper.
