Fan — type Air Handling Unit. The complete factory specification follows. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Type: Air Handling Unit
- Mounting Type: Floor Standing
- Fan Motors Type: AC
- Single Package Size: 30X12X16 cm
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | as requested |
| Fan Motors Type | AC |
| Key Selling Points | constant temperature constant humidity control |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Bearing, condenser coil |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 500 |
| Brand Name | Telewin (AHU) |
| Dimension(L*W*H) | customized |
| Selling Units | Single item |
| Single Package Size | 30X12X16 cm |
| Single Gross Weight | 60.0 kg |
Product Details

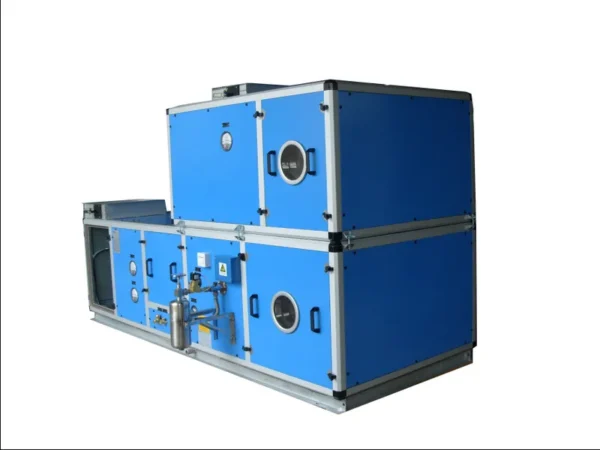

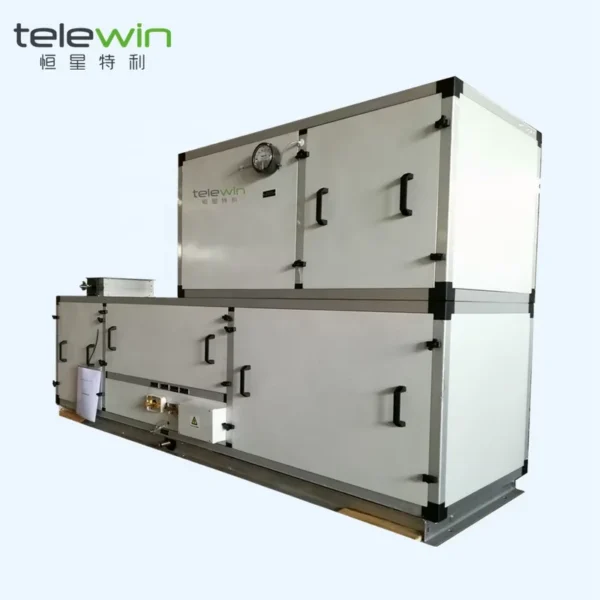

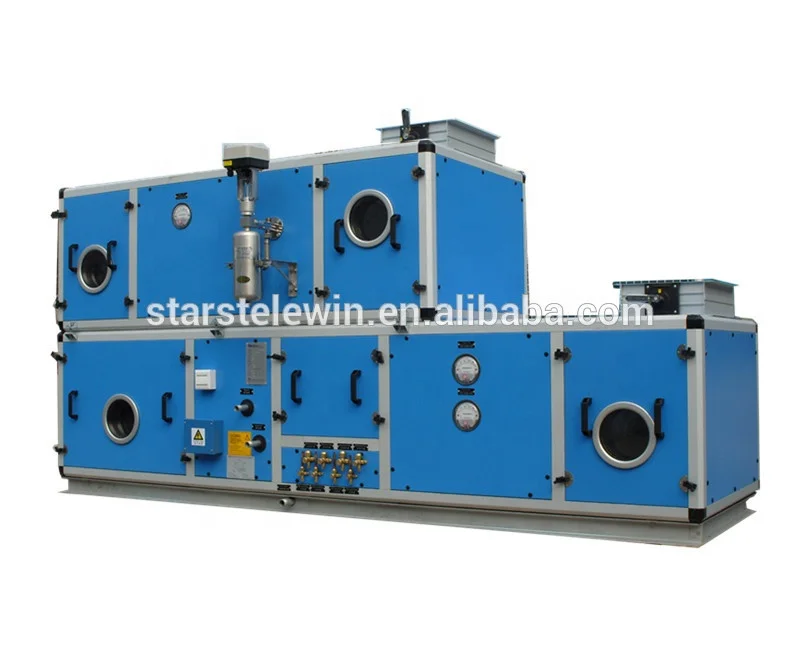

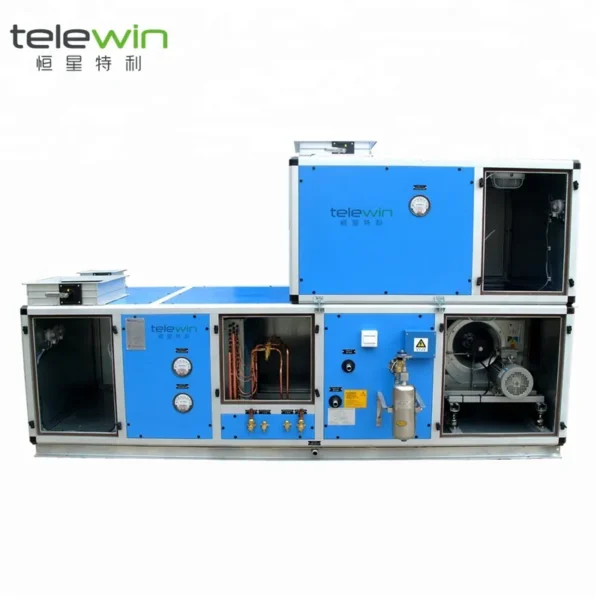

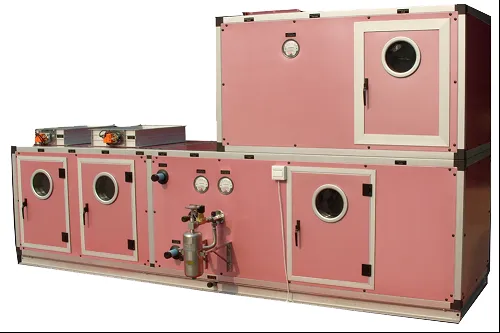

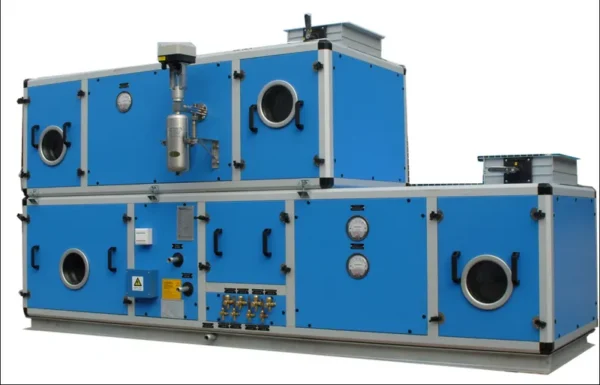

Custom made double layer modular ahu constant temperature constant humidity clean air handling unit oem manufacturing
Main Features
• Cold-bridge free aluminum casing frame, double-skinned pre-coated steel panel, 25mm /50mm polyurethane insulation.
• Floor stand unit, top air intake, top air supply in accordance with duct work installations.
• Easy maintenance
• Copper tube with hydrophilic aluminum fins
• Serviceable Energy Saving EC Fan or belt driven fan.
• Operation efficiency and energy saving
• Outstanding reliability and performance
• Configured flexibly, numerous options for customization
• Industrial cooling application, especially clean room with constant temperature and humidity control and dust control.
Fabrication | Indoor air control | functional design | functional design | functional design |
aluminum profile | temperatue | air mixing chamber | heating / reheating | air diffuser |
color steel panel | humidity | primary filter | humidifying | silencer |
PU insulation | cleanness | air cooling | medium filter | electric control |
Condenser Coil
•GI framework anti corrossion.
•4-roll, 6-roll, 8-roll copper tubes optional or cutomized.
•Mechanical expansion grouping tube and fin.
•Fin density 8/10/12 FPI or customized.
•Blue wave Hydrophilic fins anti corrossion.
•Air tightness check before shipment.
PTC Electric Heating
•Low electricity consumption and very low in cost
•No electrical noise
•The higher the temperature, the more electricity efficient
•Avoid burning when in contact with combustible materials
Electrode Humidifier
•Cylinder monitor system ensures more efficiency, better energy saving and stable result
•Drainage pump ensures the humidifying process accurate and stable
•Clog protection system ensures to avoid water overflow
•Water temperature control system makes sure the drainage pipe won't be damaged by hot water
•Anti-electric leakage system makes operation and maintenance safe and secure
Control Console
•According to the requirements and functions of the unit to design the control console
•Auto control each section of the unit to make sure the temperature, humidity and cleaness
•High quality and international brand electrical elements
•DDC and PLC available
High Efficiency Filter
• Excellent adsorption and purification on dust, smoke, formaldehyde, carbon dioxide, sulfur dioxide and other harmful gases in the air
• High efficiency, low resistance, stable, universality and washable
• Select and equip filters upon application
• Differential pressure gauge/ indicator available
• Type: VOC filter/ Zeolite filter/ Gas phase filter/ Carbon filter
Advantage: flexibility/ removable/ high efficiency
Independent Control Damper
•Variable discharge air volume
•Discharge damper with axial fan, independent control
•High efficiency
•Manual damper available
Hot-Dip Galvanized Base
Offer Rigid Base Channel protect unit and save installation cost
Stainless steel drain pan
Slope type design, no water drain
Telewin supplies Air Conditioning products to oversea and domestic markets
▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable
Solutions
Telewin offers One Stop Solutions for
•Pharmaceuticals industry
•Electronics industry
•Automobile industry
•Printing and food industry
•Commercial building
•VOC treatment and environment protection
•Indoor air quality
•Marine ventilation
Services
•Consultancy
•System Design
•Technical support
•Customized manufacturing
•General testing before delivery
•Spare parts supply according to order quantity
•Long warranty period
•OEM service available
Welcome co-operation of energy saving products development
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. range on HVACR Nexus.
