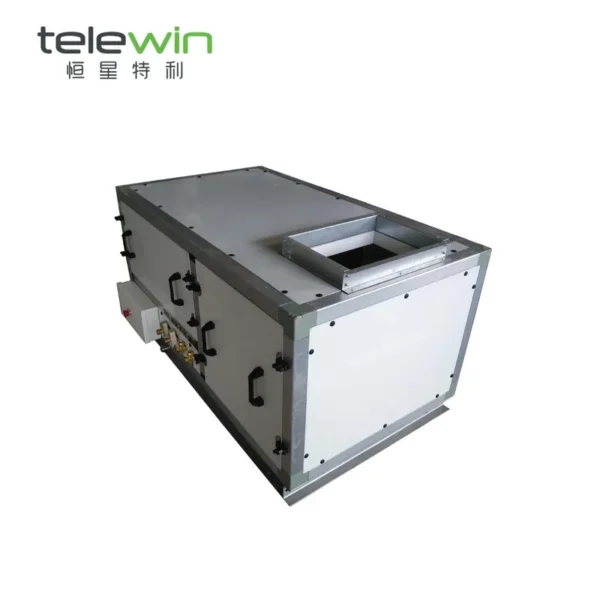

Ceiling-mounted ahu indoor unit — cooling capacity 10-200kW (Customized Cap.), refrigerant R407C/R410A/R134A. The complete factory specification follows. Made by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. (10 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling-Mounted Ahu Indoor Unit
- Cooling Capacity: 10-200kW (Customized Cap.)
- Heating Capacity: 9-180kW (Customized Cap.)
- Refrigerant: R407C/R410A/R134A
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Feature: Constant temperature Humidity ISO 7 Cleaness
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | as requested |
| Fan Motors Type | EC |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 400 |
| Brand Name | Telewin |
| Dimension(L*W*H) | 1600*700*600mm |
| Function | Cooling Heating Ventilation Dehumidification, Purification |
| Feature | Constant temperature Humidity ISO 7 Cleaness |
| Cooling Capacity | 10-200kW (Customized Cap.) |
| Heating Capacity | 9-180kW (Customized Cap.) |
| Total Static Pressure | 350-1800Pa (Customized Cap.) |
| Refrigerant | R407C/R410A/R134A |
| Fan Type | EC Fan |
| Electric Heater Regulator | SCR Control |
| Installation | split indoor and outdoor units |
| Electric Control | PLC |
| Selling Units | Single item |
| Single Package Size | 520X150X130 cm |
| Single Gross Weight | 800.0 kg |
Product Details
Ceiling mounted AHU indoor units evaporator cooling air conditioning with belt driven centrifugal blower fan
Application: Office Building, Commercial Center, Market Place, Hotel, Restaurant, etc.
What Telewin specialises in…
Fresh Air Intake | Primary Filter | Cooling Coil | Fan and Motor | Air Diffusing Chamber |
1. Manual Air damper | 1. G4 Plate Type, Non-Woven Fabrics. | 1. Copper Tubes hydrophilic Aluminum Fins | 1. International Brand and Chinese Brand | 1. Air Diffuser (Galvanised Iron or stainless steel Optional) |
2. Motor-Driven Proportional Air Damper (Optional) | 2. Carbon Filter (Optional) | 2. DX Type or Chiller water type Cooling Coil (Optional) | 2. Belt-Driven Centrifugal Fan, EC fan (Optional) | 2. Custom Design Acceptable |
3. Aluminum Grille Coarse Filter Optional. | 3. Electrostatic Precipitator (Optional) | 3. Copper tubes copper fins (Optional) | 3. VFD Motor (Optional) | 3. Access Door |
Medium Filter | HEPA Filter | Casing Frame | Base Frame | condensate Drain Pan |
1. Bag Type F7/F8 Medium Filter, Non-Woven Fabrics | 1. Box Type H13 Hepa Filter | 1. Cold Bridge Effect Free Aluminum Frame | 1. Hot-Dipped Galvanised Channel Steel | 1. Inclined drain line design |
2. Internaltional Brand or Chinese Brand | 2. International Brand or Chinese Brand | 2. Thermal Insulation Panel (Double Steel skin with foam PU core) | 2. Maintenance Free | 2. Stainless Steel or Anti-Microbial Drain Pan (Optional) |
3. Differential Pressure Gauge | 3. Differential Pressure Gauge | 3. Anti-leakage Plastic Strip insulation | 3. Special Vibration-Adsoption Design | 3. Foam PU Insulation beneath |
Intelligent Control Console
• Auto control each section of the unit to make sure the temperature, humidity and cleaness
• High quality and international brand electrical elements to ensure the unit operate more stable and energy-saving
• Each circuit with corresponding number to mark, to facilitate follow-up circuit repair and maintenance
• Screen touch panel, with setting, display and memory function
• DDC and PLC available
Energy Saving Refrigerating System
• DANFOSS scroll hermetic compressor
• Advanced design, low running noise, energy saving, safety and long service life
• Multi-circuits design, running reliably and energy-saving
• COPELAND, DAIKIN compressor available
Frame
• Penta-post extra heavy gauge aluminium profiles and strong fiber-reinforced PE corner connection forming the structural frame
• Superior mechanical strength and rigidity to the unit frame and to prevent any buckling or deformation• Thermal bridge free design, the profiles filled with polyurethane foam for insulation
• Anodizing surface treatment for profiles, corrosion-resistant
• Stainless steel frame available
Casing Panel and Insulation
• Double skin construction is provided by sandwich type panels comprising inner and outer painted steel skins and polyurethane foam with minimum 48kg/m3 density, providing a good thermal and acoustical performance
• The gasket liner between the panels and frame ensures the air leakage rate to comply with GB/T 14294 clean air conditioning requirement
• The factory painted steel sheet covered with 6 insulation coatings, complies to 500h salt spray testing, showing an excellent corrosion protection performance

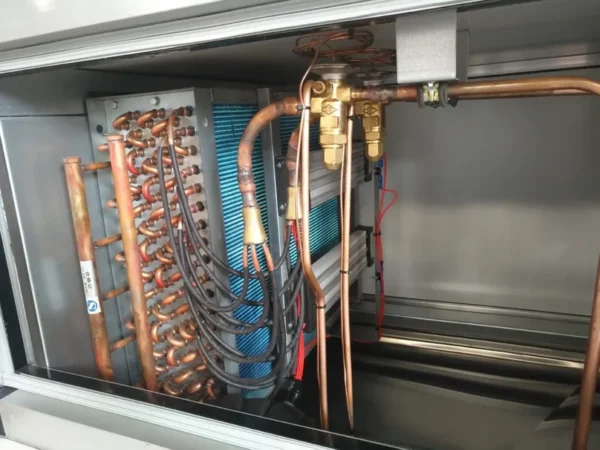

High Efficiency Cooling and Heating Coil
• All coils calculation and selection is done by selection software to match the required conditions
• Large coil face area ensures maximum heat transfer rate
• All coils tested at 30bar pressure underwater 24 hours
• Various corrosion resistance coils for option:
-Cooper tube with cooper fins coil
-Epoxy coated fins coil
-Electrophoresis fins coil
-Heresite coated coil
Safety Electric Heater
• Stable electric heating capacity
• Three stages intelligent control, energy saving and safety
• Anti-corrosion
Electrode Humidifier
• Cylinder monitor system ensures more efficiency, better energy saving and stable result
• Drainage pump ensures the humidifying process accurate and stable
• Clog protection system ensures to avoid water overflow
• Water temperature control system makes sure the drainage pipe won't be damaged by hot water
• Anti-electric leakage system makes operation and maintenance safe and secure
Famous Brand Blower and Motor
• Fan selection based on the air flow and air static requirement is done by fan selection software
• Direct driven/ belt driven, forward curve/ backward curve centrifugal fans, and EC fan is available for option
• Nicotra, Kruger, Deton, Yilida is offered as option
• Motor is TEFC type, class F insulation and IP54 or IP55 protection, energy saving and stable operation
• Mounted on an adjustable slide for belt tension adjustment
• Variable frequency drive (VFD) motor is available
• Siemens, ABB, WEG, TECO is offered as option
Vibration Eliminator
• To reduce the transmission of vibration and noise, fan and motor are installed on an independent complete base frame
• The complete base frame is isolated by deflection type spring isolators
• This unique structure not only reduce the vibration and noise, but also protect fan and motor during transportation
Stainless Steel Drain Pan
•Slop type design, no drain water carryover
•Avoid the micro-organisms growth inside the drain pan
Antimicrobial Drain Pan available upon application
•SteriTouch technology Dust Free Drip Pan Coating
•Antimicrobial surface
•Good exterior durability and corrosion resistance
•Non-toxic, comply with BS476 part 7
Telewin supplies Air Conditioning products to oversea and domestic markets
▲Stable and timely supply guaranteed
▲Carton box and wooden case packing available
▲Customized packing acceptable
1.Are you a factory?
— Yes, we are a professional AHU manufacturer for more than 20 years.
2.How do you check the goods?
— We inspect all the materials when they arrive, and have spot inspection during production process. All goods will be tested and double inspected before delivery, providing 100% guarantee for clients.
3. How to select the suitable models?
—The parameters above is just for your reference. We need you to provide us the air flow, ESP or TSP, cooling capacity, heating capacity or application for our team to design the suitable unit for you.
4.How and when can I get the quotation?
— Send us the inquiry or leave us message. We will get back to you within 1 hour during the working time. All messages will be replied whenever they comes.
5.What's your payment terms?
— Usually we accept T/T or LC. 30% deposit. Other payment terms can be discussed when orders confirmed.
6.Where is your factory Located? How can I visit there?
— We located in Foshan, Guangdong Province, which is near Guangzhou Baiyun International Airport and Guangzhou South Railway Station. We can pick you up from the airport or railway station. You are warmly welcome to visit us!
7.Do you provide OEM service?
— Yes! We provide OEM and ODM service.
8.What's the lead time for your goods?
— Normally 25 workdays. For urgent orders, we can make special arrangement to fulfill your request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling-mounted ahu indoor unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shunde Hstars Telewin Air Conditioning Equipment Co., Ltd. range on HVACR Nexus.
