The fan listed here carries power supply 95~240VAC, 50/60Hz, material ABS Plastic, documented exactly as the manufacturer publishes it. Made by Hotowell Technology (xiamen) Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan
- Model Number: HTW-WF02-FC-2N/4N
- Power Supply: 95~240VAC, 50/60Hz
- Power Consumption: < 1.5W
- Material: ABS Plastic
- Housing Material: PC +ABS (Fireproof)
- Warranty: 2 Years
Technical Specifications
| Application | Hotel, Apartment |
|---|---|

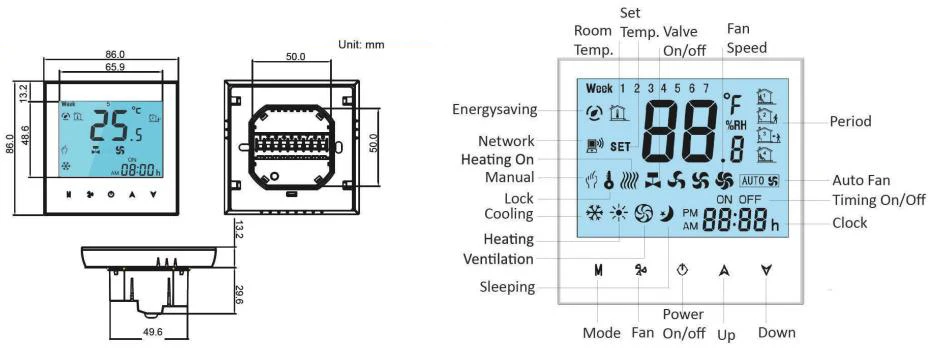

| Product Dimension | 86mm x 86mm |
| Material | ABS Plastic |
| Current Rating | Fan relay 5A |
| Control Signal | ON/OFF |
| Installation | Wall-mounted |
| Shape | Square |
| Feature | Energy Saving, Easy Install |
| Design Style | Modern |
| Warranty | 2 Years |
| After-Sale Service | Online Technical Support, Repair |
| Project Solution Capability | total solution for projects |
| Model Number | HTW-WF02-FC-2N/4N |
| Place Of Origin | Fujian, China |
| Brand Name | Neutral; Customised logo |
| Power Supply | 95~240VAC, 50/60Hz |
| Current Load | Fan Relay 5A(3A-inductive),Valve Relay 3A(1A-inductive) |
| Power Consumption | < 1.5W |
| Storage Temp. | -5 ~ 45 °C |
| Set-Point Range | 5 ~35 °C |
| Temperature Accuracy | ±0.5°C or ±1℉ |
| Housing Material | PC +ABS (Fireproof) |

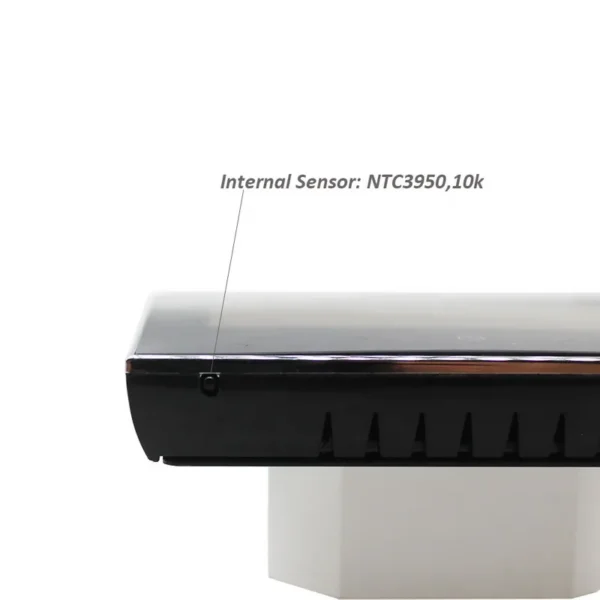

| Sensor | NTC3950, 10K |
| Installation Box | EU or Standard Electric Box |
| Protection Class | IP20 |
| Selling Units | Single item |
| Single Package Size | 25X12X12 cm |
| Single Gross Weight | 1.0 kg |
Product Details
>> General

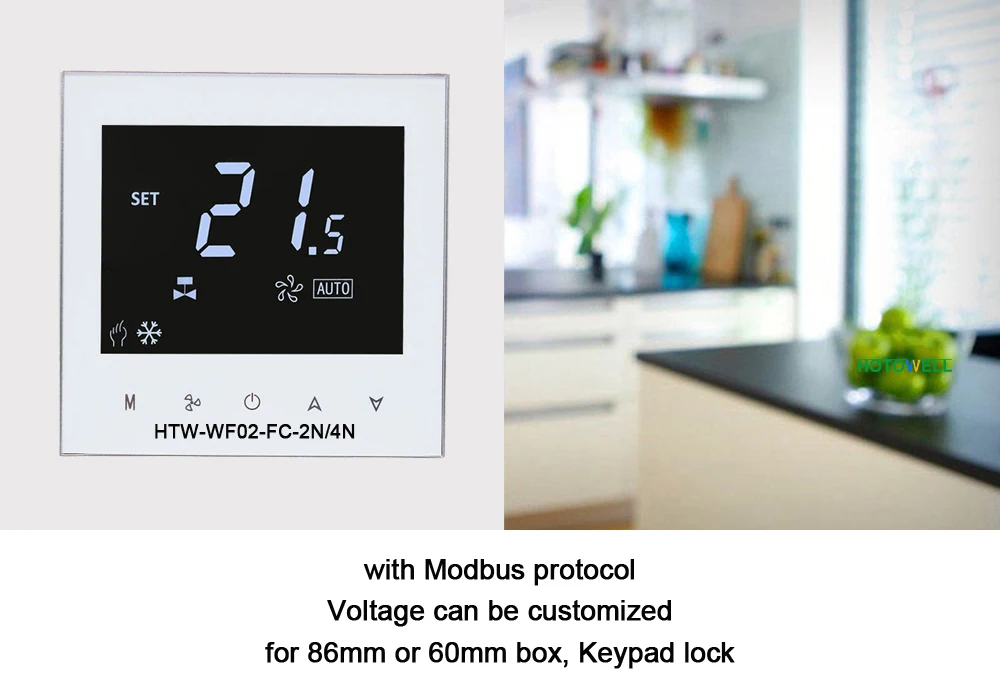

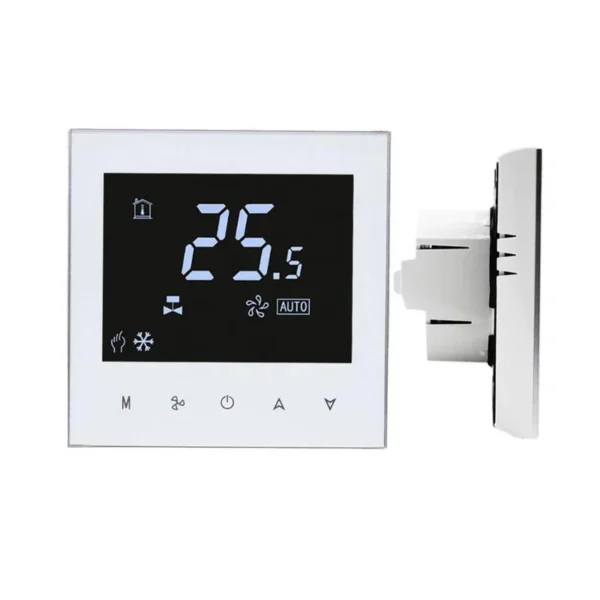

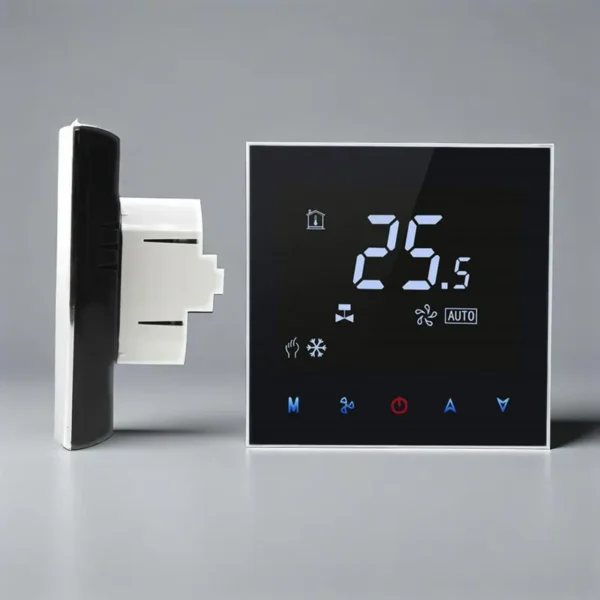

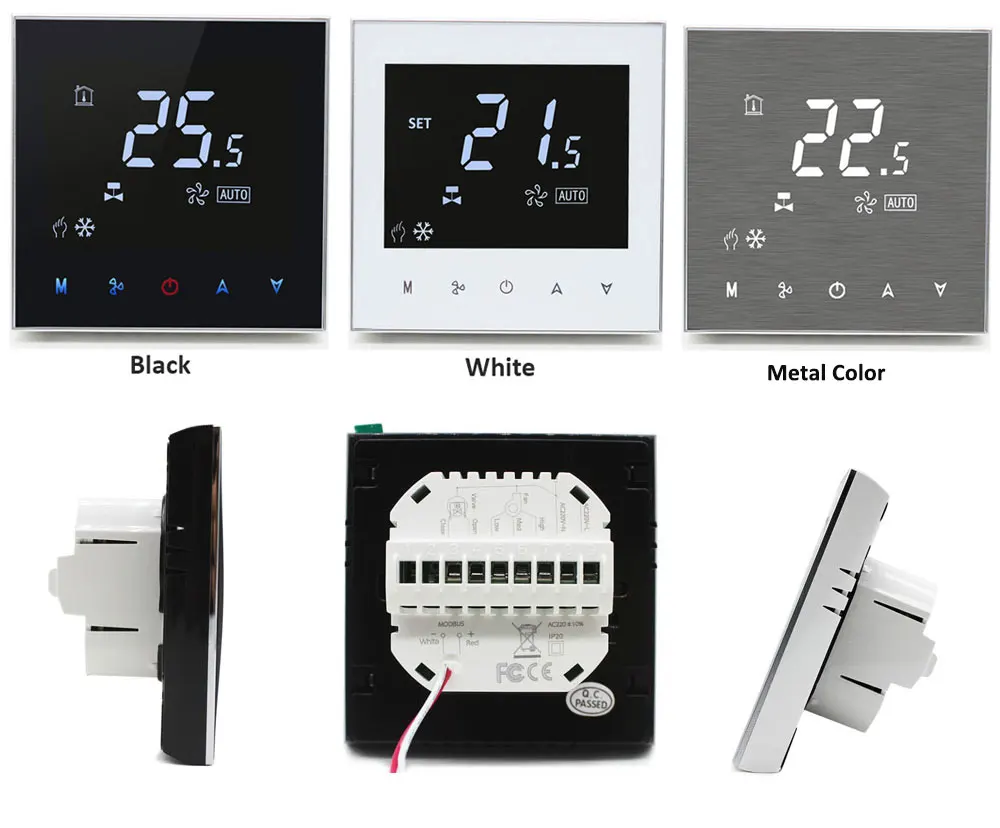

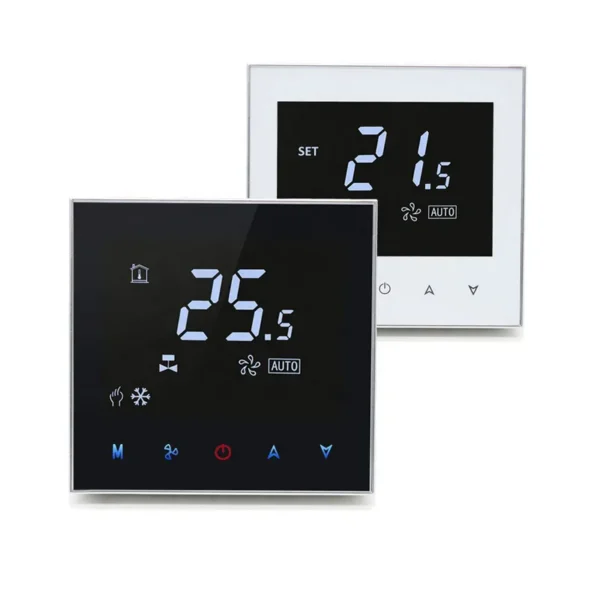

HTW-WF02-FC-2N/4N. HTW-WF02-FC series smart fan coil thermostat is widely used in environments like Homes, Residential buildings, Schools, Hotels, Hospitals, Offices, etc. to maintain an ideal room temperature.

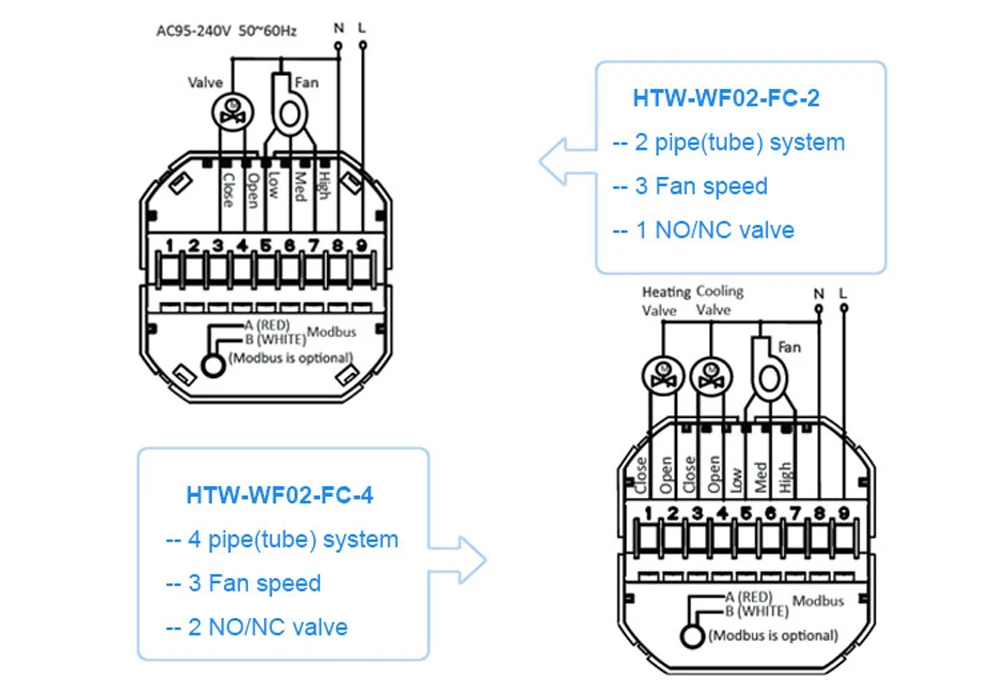

HTW-WF02- FC-** | -2 | 2 pipe(tube) system | -W | Wi-Fi | ||||
Smart Fan Coil Thermostat | -4 | 4 pipe(tube) system | -N | Modbus | ||||
-M | Modulating output | -E | External Sensor | |||||
-K | Key Card occupancy input | -24v | Power Supply with 24Vac | |||||
e.g. HTW-WF02-FC-2N refers to application: 2 pipe(tube) system, 3 fan speed + 1 H/C valve, with Modbus | ||||||||
Power Supply | 95~240Vac, 50/60Hz | Sensor | NTC3950, 10K |
Current Load | Fan Relay 5A (3A-inductive) | Temperature Accuracy | ±0.5°C or ±1℉ |
Valve Relay 3A (1A-inductive) | Set-Point Range | 5~35°C | |
Storage Temp. | -5 ~ 45 °C | Display Temp. Range | 5 ~ 99°C |
Power Consumption | < 1.5W | Timing Error | < 1% |
Housing Material | PC +ABS ( Fireproof) | Installation Box | EU or Standard Electric Box |
Protection Class | IP20 | Operating Buttons | Capacitive Touch Buttons |
Our product range contains:
Thermostats, Motorized Zone Valves, Ball Valves, Valve Actuators, Damper Actuators, Controllers, Radiator valves, and etc. covering industrial, commercial and residential temperature controls.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the fan be supplied for my local voltage?
The standard configuration is 95~240VAC, 50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hotowell Technology (xiamen) Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Hotowell Technology (xiamen) Co., Ltd. range on HVACR Nexus.
