F5-td-h-e modbus fan — power supply AC85V-AC260V 50-60HZ, model number F5-TD-H-E. The complete factory specification follows. Made by Beijing Gaobiao IoT Technology Co., Ltd. (12 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This F5-Td-H-E Modbus Fan
- Model Number: F5-TD-H-E
- Power Supply: AC85V-AC260V 50-60HZ
- Warranty: 1 Year
- Place Of Origin: Beijing, China
- Application: Hotel, Apartment, Office Building, Hospital, Bathroom, Home Office, Living Room, Bedroom, Hall, Gym
- Single Package Size: 15X15X10 cm
Technical Specifications
| Application | Hotel, Apartment, Office Building, Hospital, Bathroom, Home Office, Living Room, Bedroom, Hall, Gym |
|---|---|
| Design Style | Contemporary, Traditional, Modern, Midcentury, Mediterranean, European, Asian, Tropical, Victorian, Japanese, Chinese, French |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Return and Replacement |
| Project Solution Capability | graphic design |
| Model Number | F5-TD-H-E |
| Place Of Origin | Beijing, China |
| Brand Name | Gaobiao |
| Color | White/Black |
| Product Name | Thermostat |
| Installation | Wall Mounted |
| RS485 Communication Interface | Optional |
| Hole Pitch | 60mm |
| Power Supply | AC85V-AC260V 50-60HZ |
| Control | FCU |
| Dimensions | 86*86mm |
| Selling Units | Single item |
| Single Package Size | 15X15X10 cm |
| Single Gross Weight | 0.7 kg |
Product Details

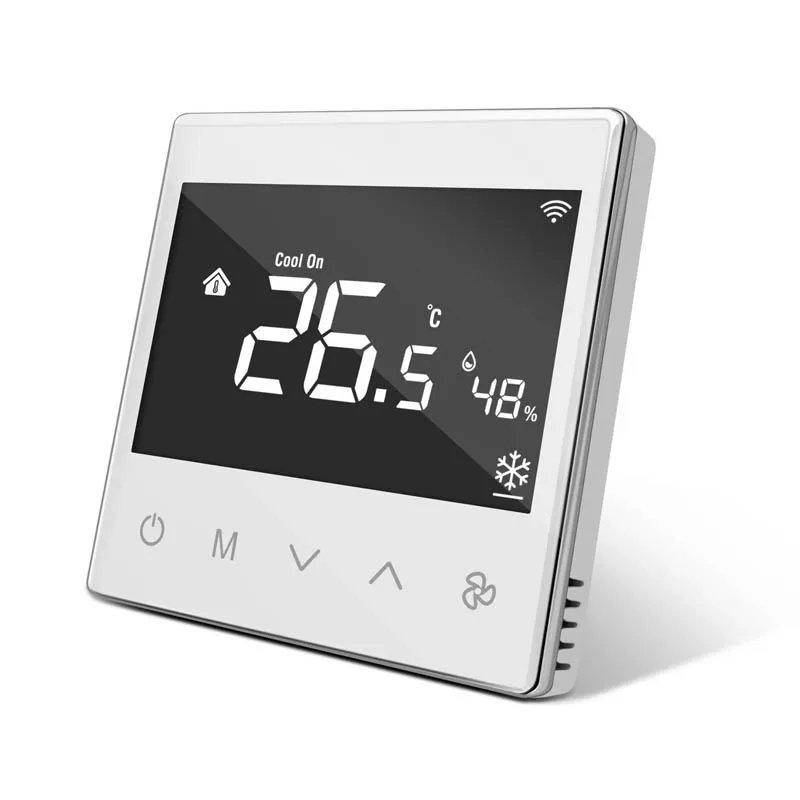

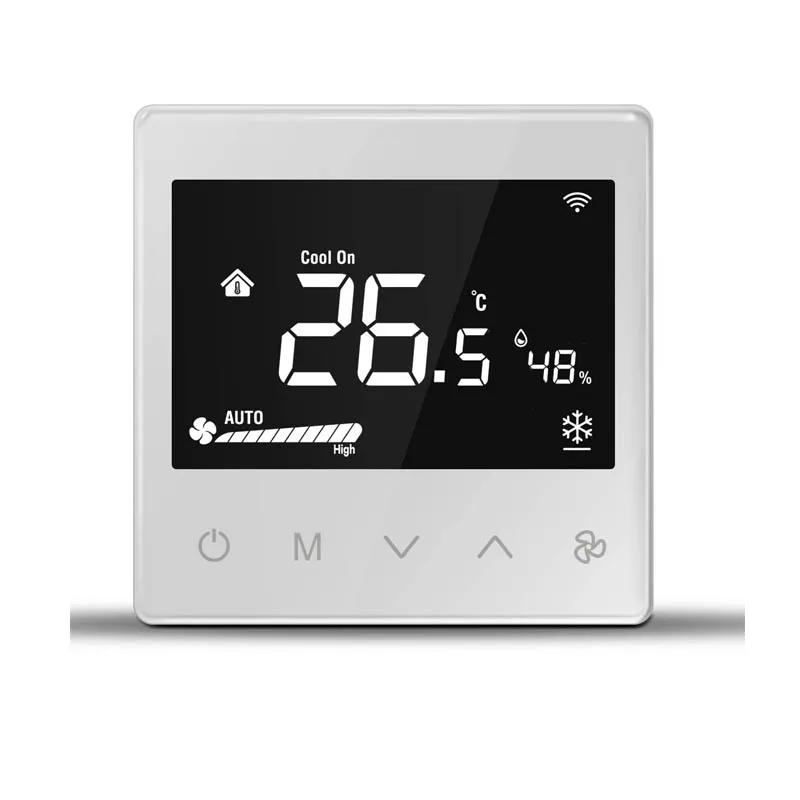

F5-TD-H-E MODbus Fan Coil Thermostat to Control 0-10V Fan and 2 3-wire Valves
Fan Coil thermostat is mainly applied to the 2/4 pipes 0-10V fan coil central air conditioning system. Through the difference from indoor temperature and set temperature to control the fan coil unit, then reach the purpose that adjust the room temperature andsave energy, make you feel comfortable.While each products has its unique advantages and charm,will meet your individual needs.

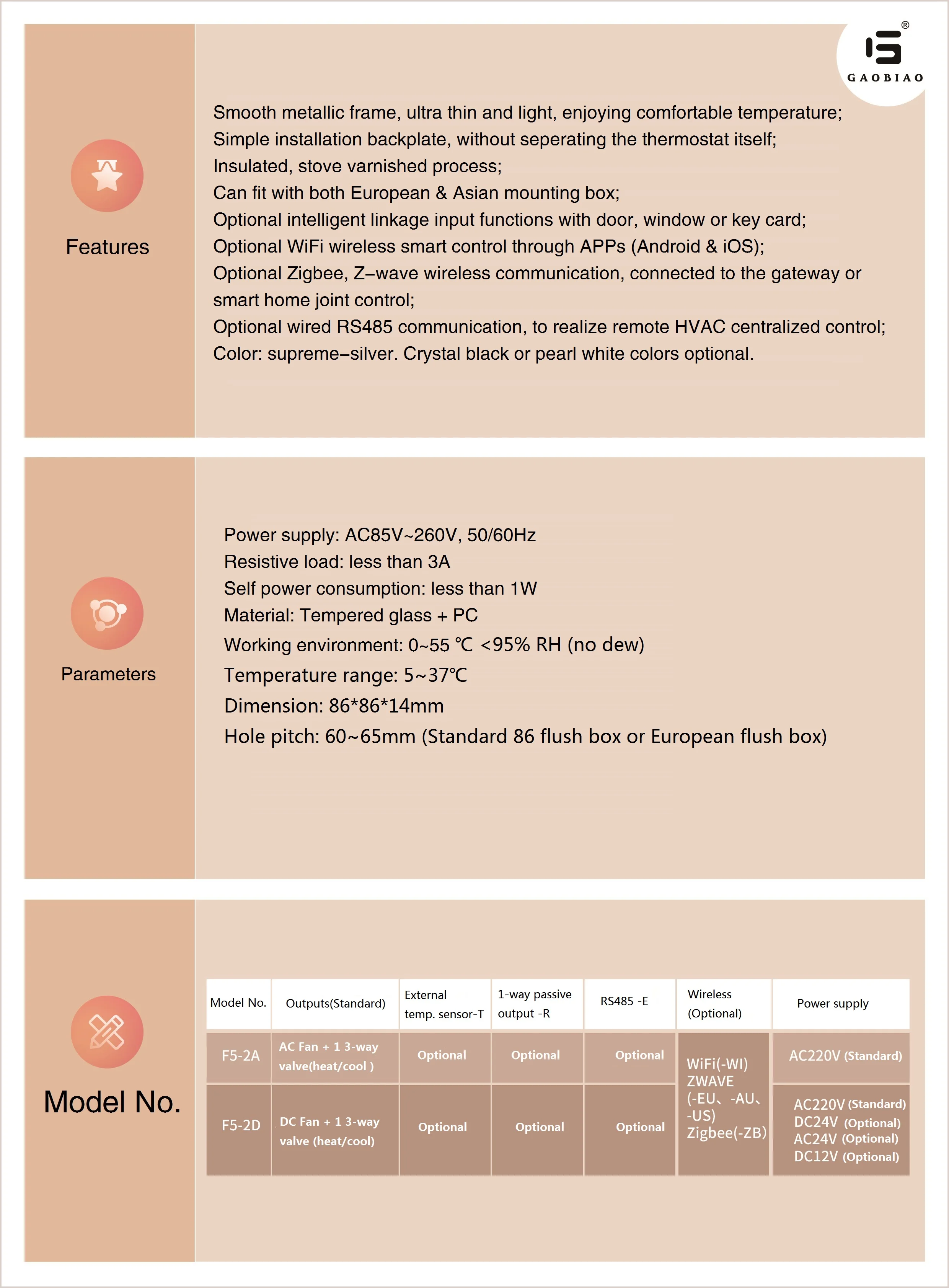

Features:
- Capacitive touch buttons
- Toughened silver mirror style glass panel
- Precise temperature calibration function
- Black/White panel can be optional
- Free selection of Auto/ Manual mode
- Easily steel frame back plate installation
- Intelligent control the on/off of fan-coil, electrical ball valve or air valve
- Wired Communication:RS485(Optional)
- Wireless Communication:WiFi(Optional)
| Power Supply | AC85V~AC260V / AC24V 50/60Hz |
| Self Consumption | < 1W |
| Display Temperature | ±0.5℃ |
| Temperature Setting | 0~99 ℃(Adjustable) |
| Button Way | Capacitive touch button |
| Outer Shell | Toughened glass and PC+ alloy |
| Dimensions | 86* 86mm |
| Hole Pitch | 60-65mm(Standard 86 box) |
| Load Current | 2 A(Resistive),1 A(Perceptive) |
| Working Environment | 0~50℃; <95% RH(Non-condensation) |
| 1.Why choose Gaupu? |
|
| 2.F&Q |
|
Q: Can I place sample order first?
For bulk OEM orders, usually15~20 working days and it depends on your design. products.We can do the ODM/OEM as your requirements |
| 3.Contact information |
|
Beijing Gaobiao IoT Technology Co., Ltd.
|
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $22 / piece
- 100–499 piece: US $20 / piece
- 500+ piece: US $18 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this f5-td-h-e modbus fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the f5-td-h-e modbus fan be supplied for my local voltage?
The standard configuration is AC85V-AC260V 50-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Gaobiao IoT Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Beijing Gaobiao IoT Technology Co., Ltd. range on HVACR Nexus.
