This fan coil unit is published with the manufacturer’s full specification — air flow 265-630, refrigerant Water. Made by Yuexin (tianjin) Artificial Environment Engineering Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit

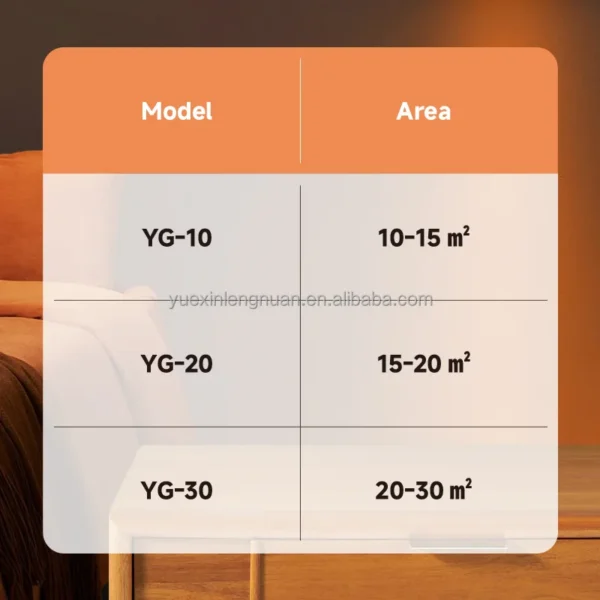

- Model Number: YG-10, YG-20, YG-30
- Air Flow(M³/H): 265-630
- Refrigerant: Water
- Warranty: 3 Years
- Place Of Origin: Hebei, China

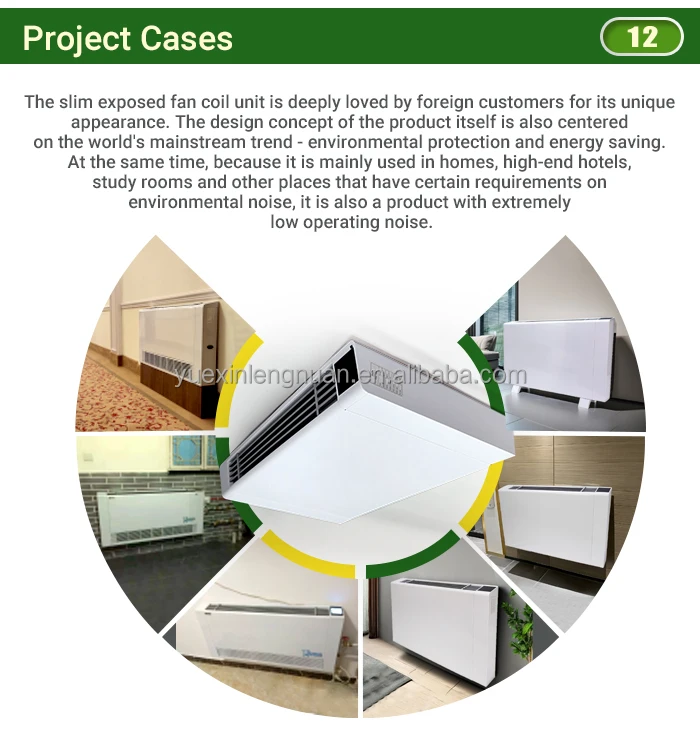

- Application: Hotel, Home, School, Office, Apartment, Mall
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Floor Standing/wall mounted/horizontal |
| Compressor Brand | none |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Filter Type | Regular Filter |
| Application | Hotel, Home, School, Office, Apartment, Mall |

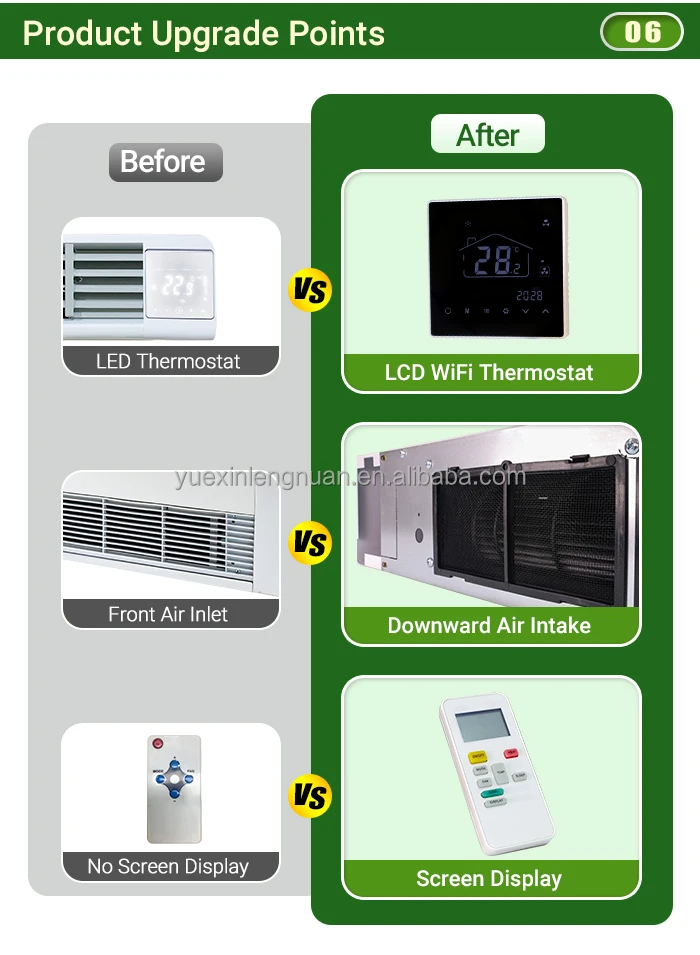

| Key Selling Points | Ultra-thin body designt, timer on and off, WIFI control |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

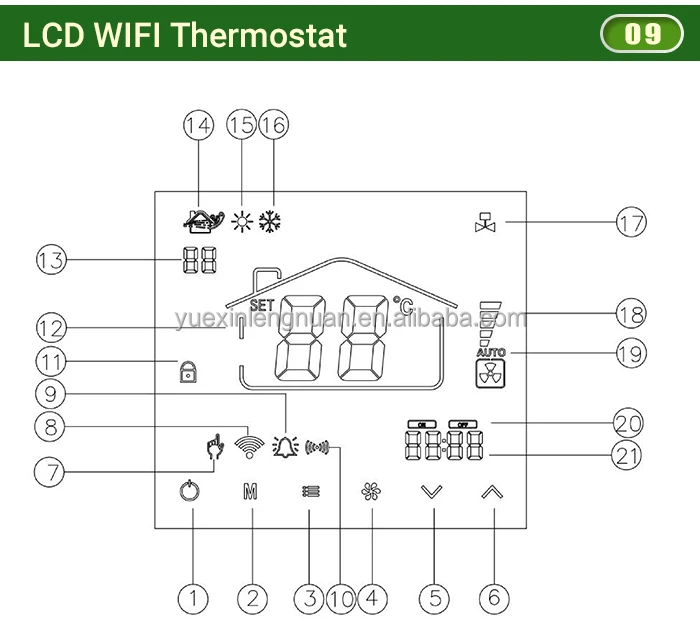

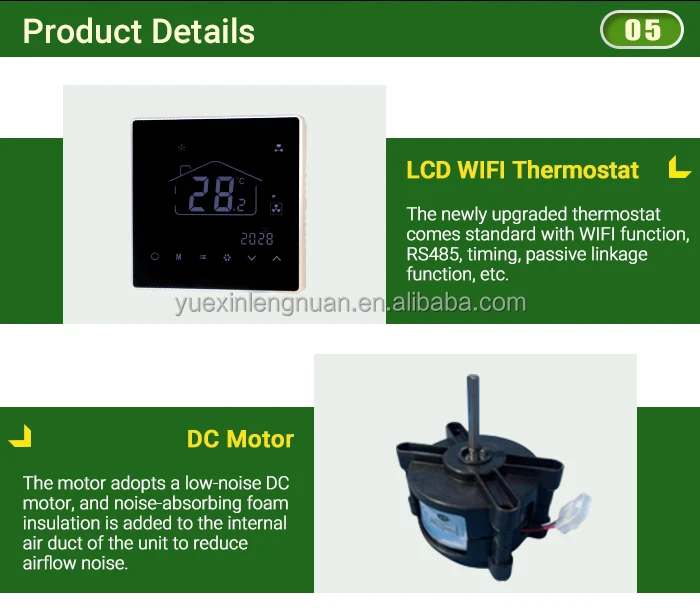

| Core Components | Brushless DC motor, ABS cross-flow wind wheel, Condenser with 3 rows and 42 copper tubes, Four in and four out water collection heads, Hot dip galvanized sheet metal, Anti-corrosion drain pan, Full touch screen thermostat |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 22.8 |
| Brand Name | YESNCER or OEM |
| Model Number | YG-10, YG-20, YG-30 |

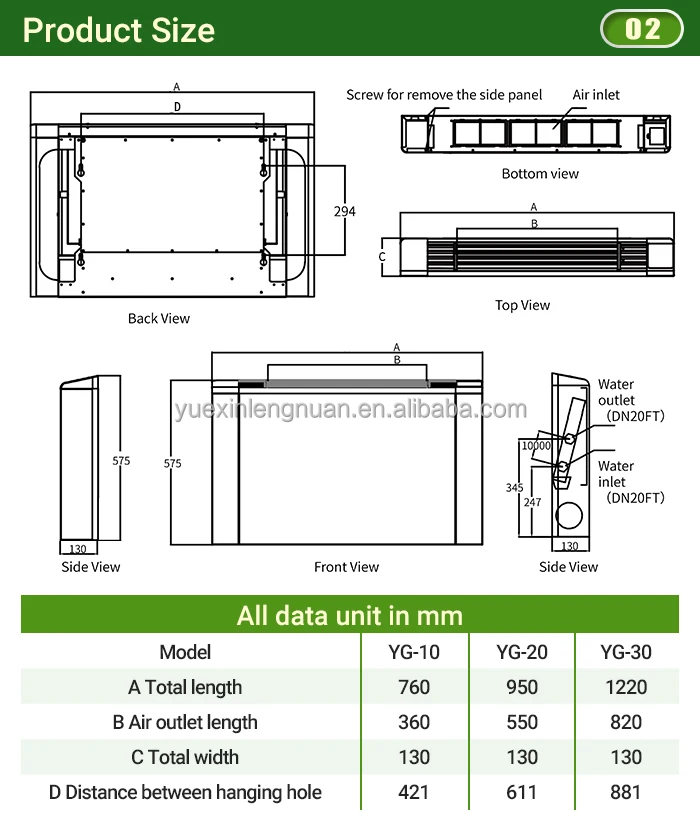

| Dimension(L*W*H) | 950mm*130mm*575mm-1220mm*130mm*575mm |
| Name | 130mm slim fan coil |

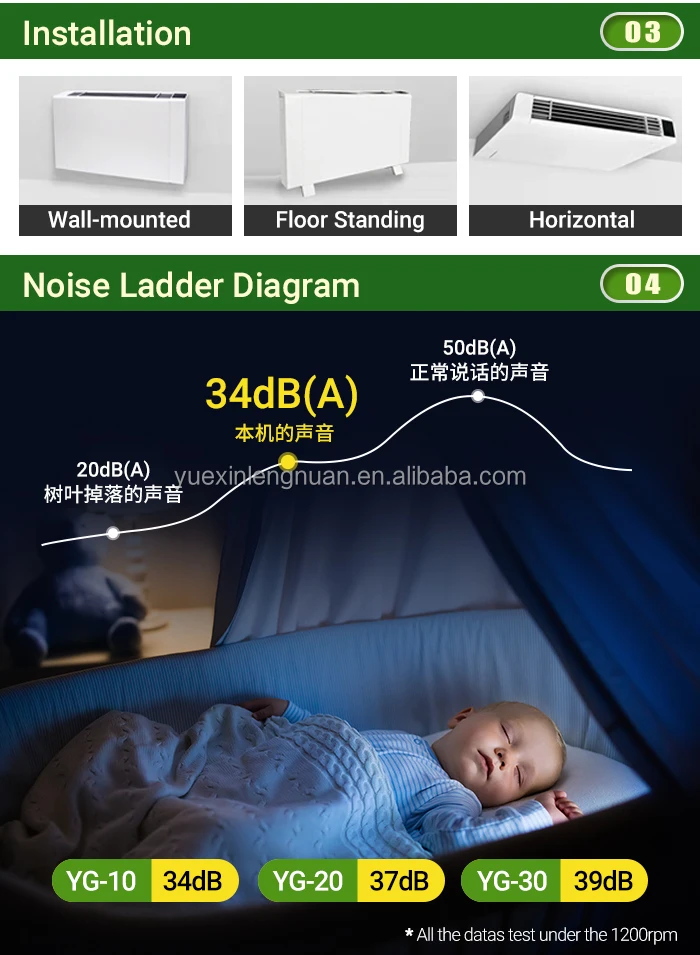

| Installation Method | Floor standing,Wall-mounted,Horizontal installation |
| Cooling Ca. (Kw)(Water In 7°C) | 0.9-3.36 |
| Heating Ca. (Kw)(Water In 45°C) | 0.99-3.45 |
| Heating Ca. (Kw)(Water In 60°C) | 1.56-5.65 |
| Air Flow(M³/H) | 265-630 |
| Noise(DB) | 34-39 |
| Weight(Kg) | 20.2-22.8 |
| Selling Units | Single item |
| Single Package Size | 82.0X18.5X67.0 cm |
| Single Gross Weight | 18.0 kg |
Product Details

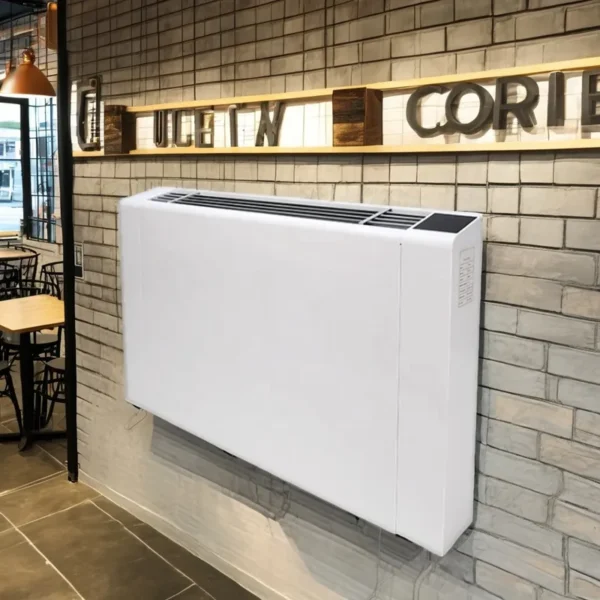

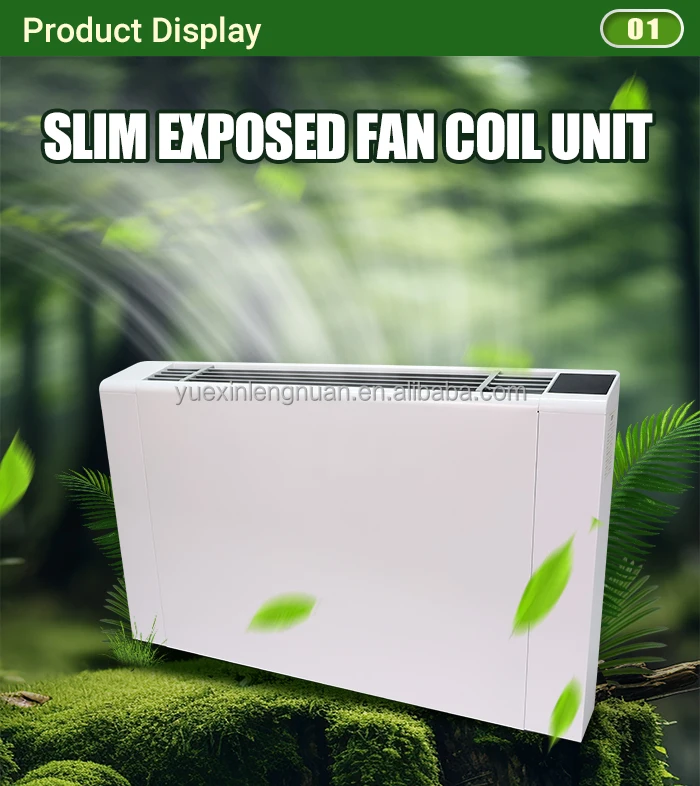

130mm Slim Exposed Fan Coil Unit
130mm Slim Exposed Fan coil is composed of condenser and wind turbine motor, indoor fan coil part and no compressor to participate in the work, fan coil internal copper pipe circulated by the heat pump to provide cold water or hot water, through the wind turbine motor operation, will produce the cold and heat blown indoors, so as to achieve the effect of refrigeration and heating, such a way of working is more energy-saving and environmentally friendly, in full compliance with the modern low-carbon energy saving trend, at the same time, the water system working principle, on the one hand, to ensure that meet the cold and heat under the premise, humidity can also be a good complement to make the living environment more comfortable. At the same time, due to the working principle of the water system, on the one hand, under the premise of ensuring that meets the cooling and heating, humidity can also be a good supplement, so that the living environment is more comfortable. Slim Exposed Fan coil thickness of only 130 mm, support for WIFI module, support for RS485 protocol, taking into account the product needs of a variety of people and different projects, we also support private customization (according to the demand for confidentiality agreements), if you have a relevant interest, welcome to consult, large quantities at a good price.
Welcome to YESNCER
Company Profile
YUEXIN (TIANJIN) ARTIFICIAL ENVIRONMENT ENGINEERING TECHNOLOGY CO., LTD.
is a professional manufacturer of cooling and heating equipment integrating R&D,manufacturing, sales and after-sales service. It mainly produces fan coil units, water temperature air conditioners,The hot air blower, water conservancy module and air source heat pump cover an area of more than 26,600 square meters (40 acres) and a construction area of 17,000 square meters. The company takes "energy saving and environmental protection" as its mission and is committed to Use technology to save energy in our world, save money and reduce expenses for our customers.
National Comprehensive Enthalpy Difference Performance Laboratory of Air Conditioning Units
The company's local factory has a national standard laboratory. Every data indicator of the products sold is accurate data obtained through rigorous testing to ensure that the products can meet national standards and meet customer needs, and truly achieve Let the data speak for itself and don’t make false propaganda.
Semi-anechoic laboratory
The purpose of the experiment is to detect the actual noise value of the product in a quiet environment. In order to ensure a good user comfort experience, all data are true and valid, and are controlled within the noise decibel suitable for human body
acceptance, in line with national standards.
acceptance, in line with national standards.
Operating power monitoring wall
The purpose of the construction is to run the machine 24 hours a day without interruption for one year to obtain actual power and electricity consumption data, provide real and effective data, and reflect the excellent characteristics of energy saving.
Salt spray testing laboratory
The purpose of this laboratory is to test the corrosion resistance of the outer surface of the product. Put the product to be tested into the machine, add prepared salt water to simulate the salt spray environment, and adjust the anti-corrosion treatment of the product appearance after a week of observation.

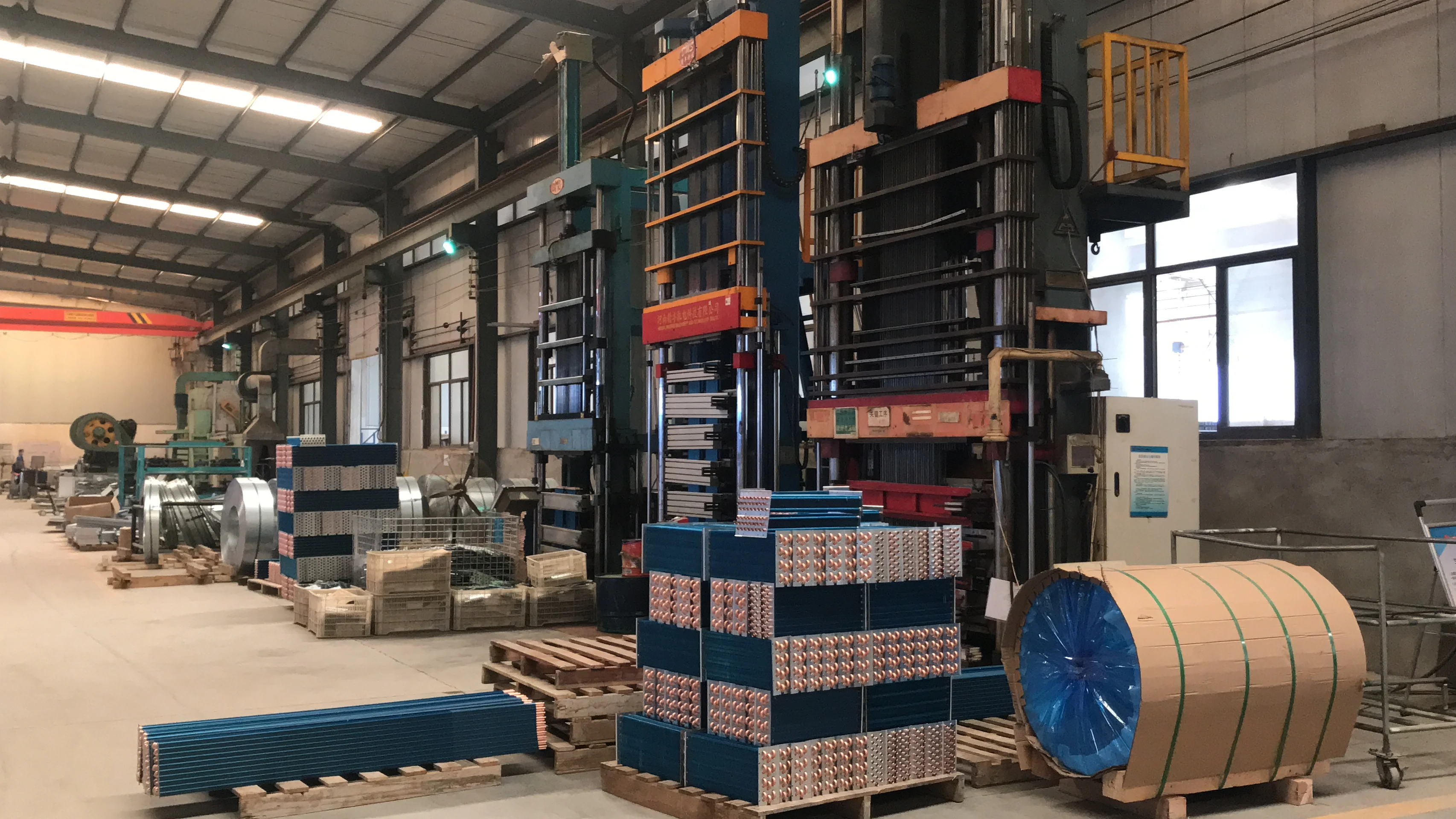

Production workshop environment

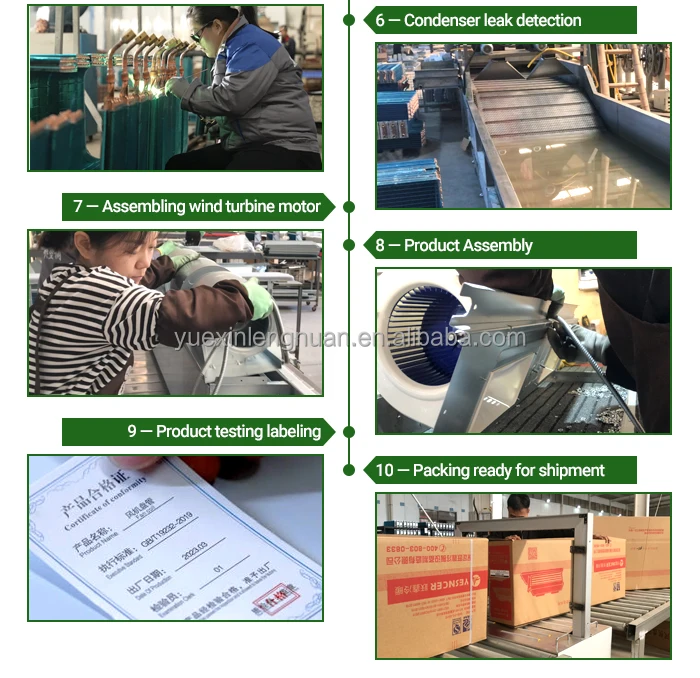

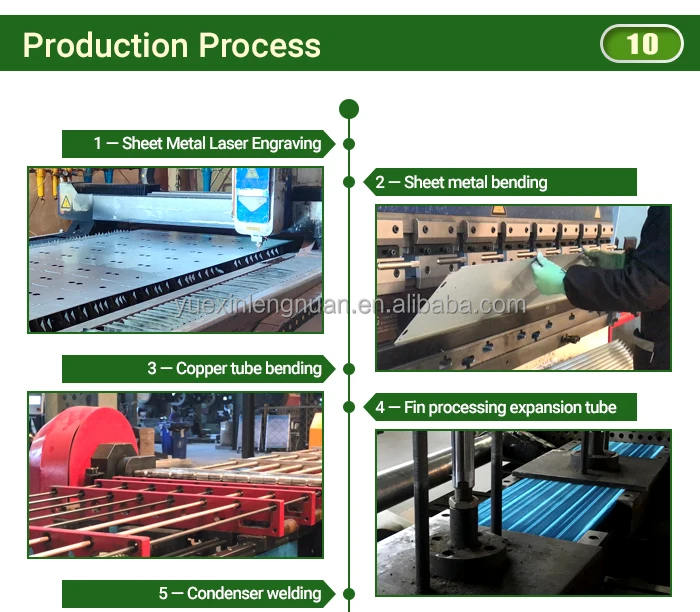

The company's local factory has more than 100 workers. Each worker undergoes strict professional skills training and assessment before taking up the job to ensure that they can complete production work skillfully and conscientiously, and that they can complete production tasks on time while ensuring the quantity of products. The factory also has professional automation equipmentfor producing various components of fan coil units, which greatly improves production efficiency. It can produce an average of20W+ fan coil units per year, which can fully meet the needs of major projects.

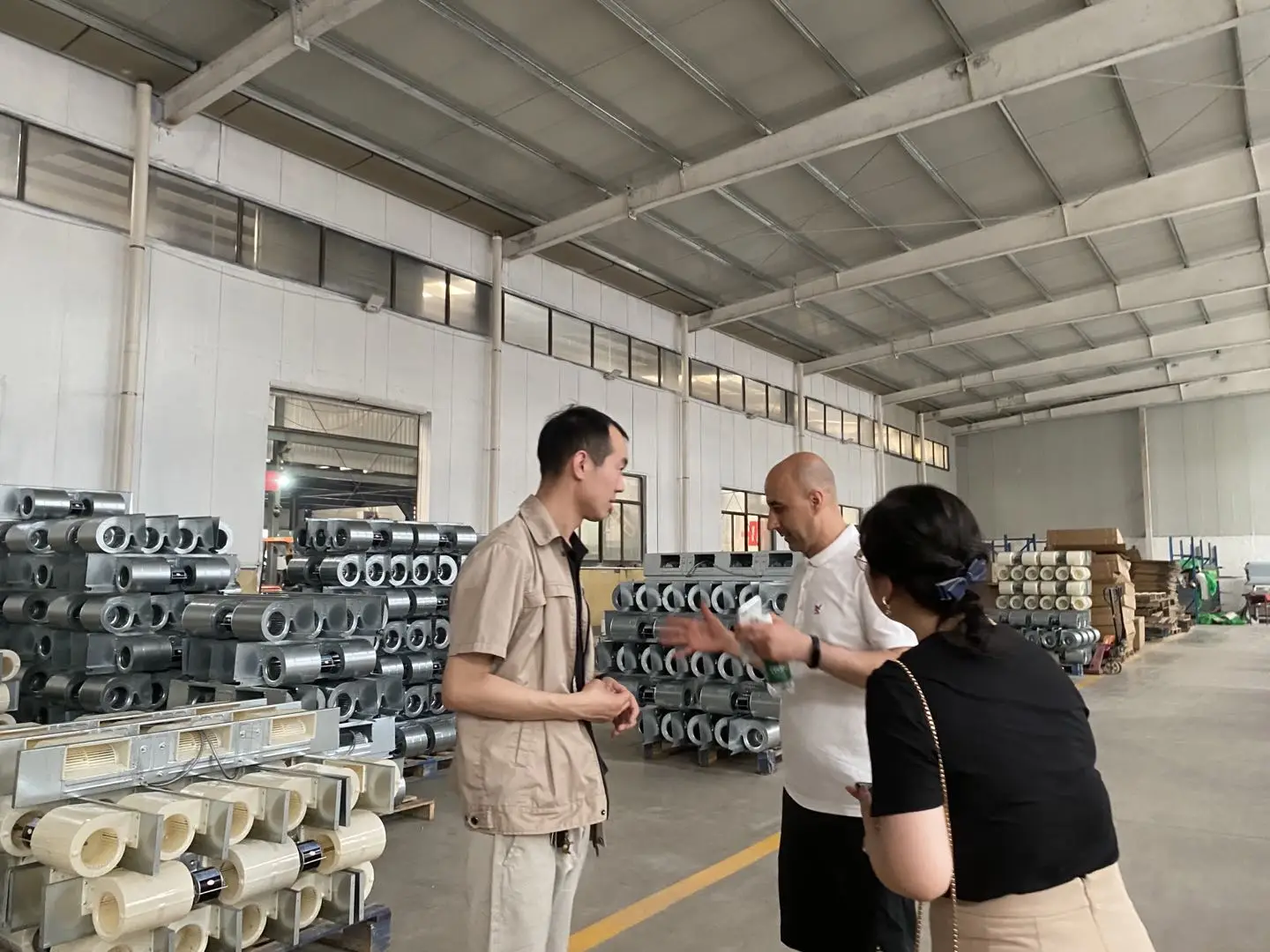

Partial display in the factory
We welcome friends from all over the world who have engineering needs to visit the factory. I believe we can become a good partner.

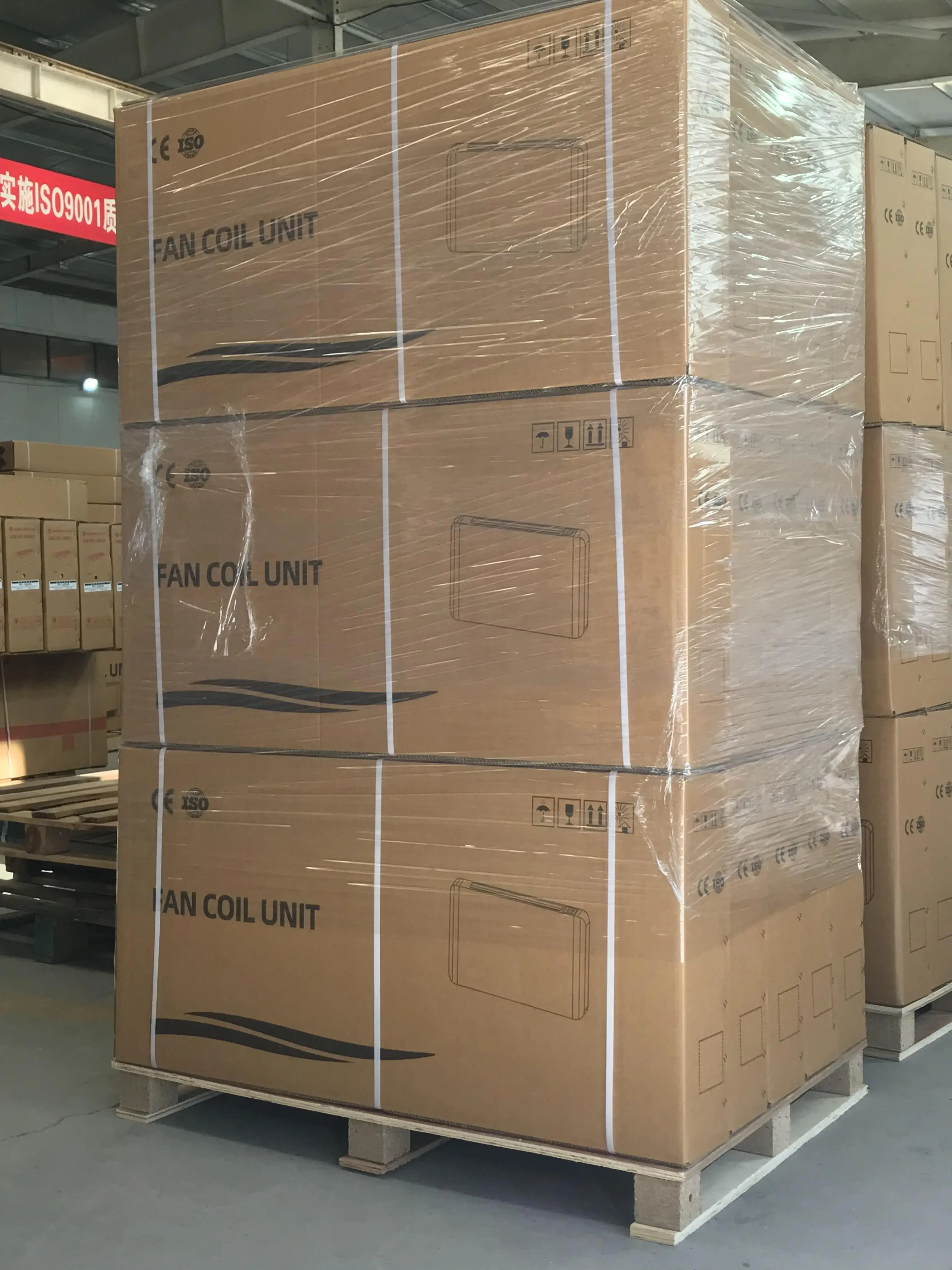

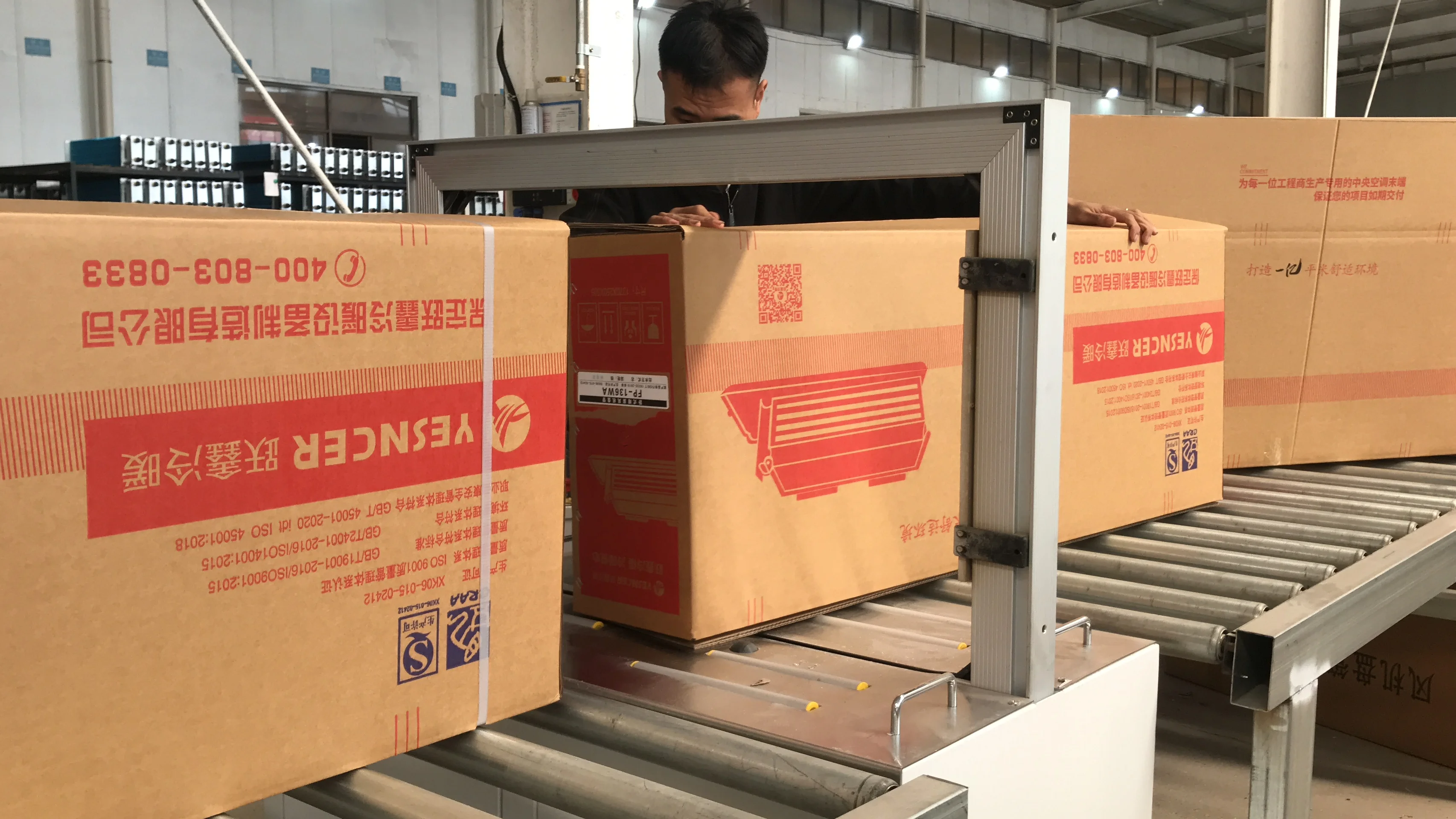

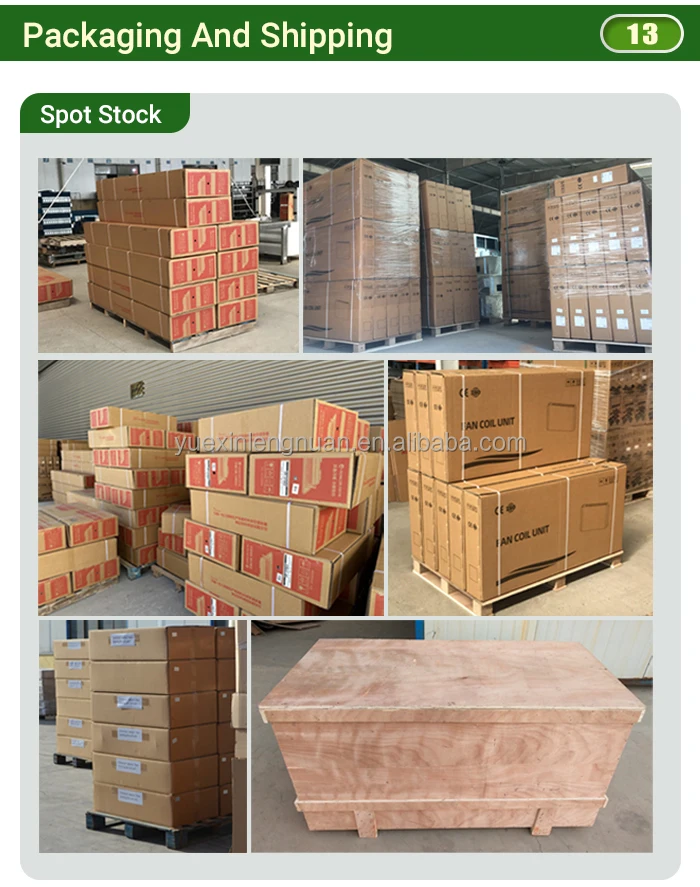

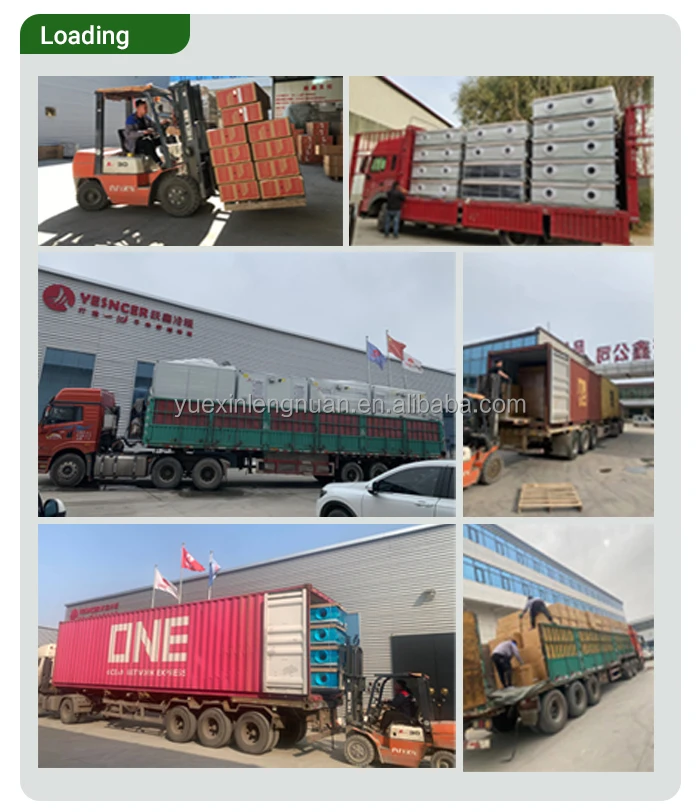

Packing & Transportation method

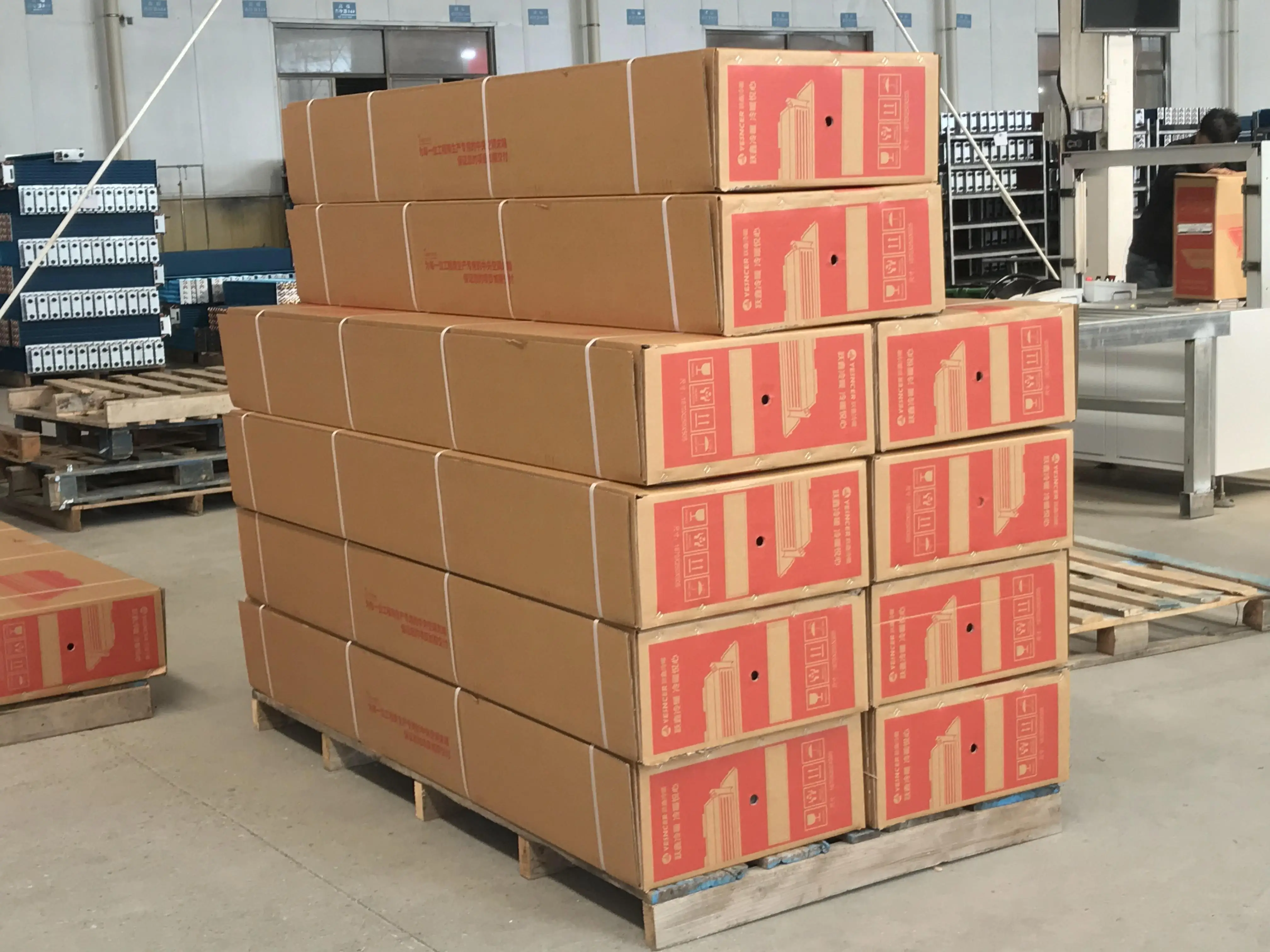

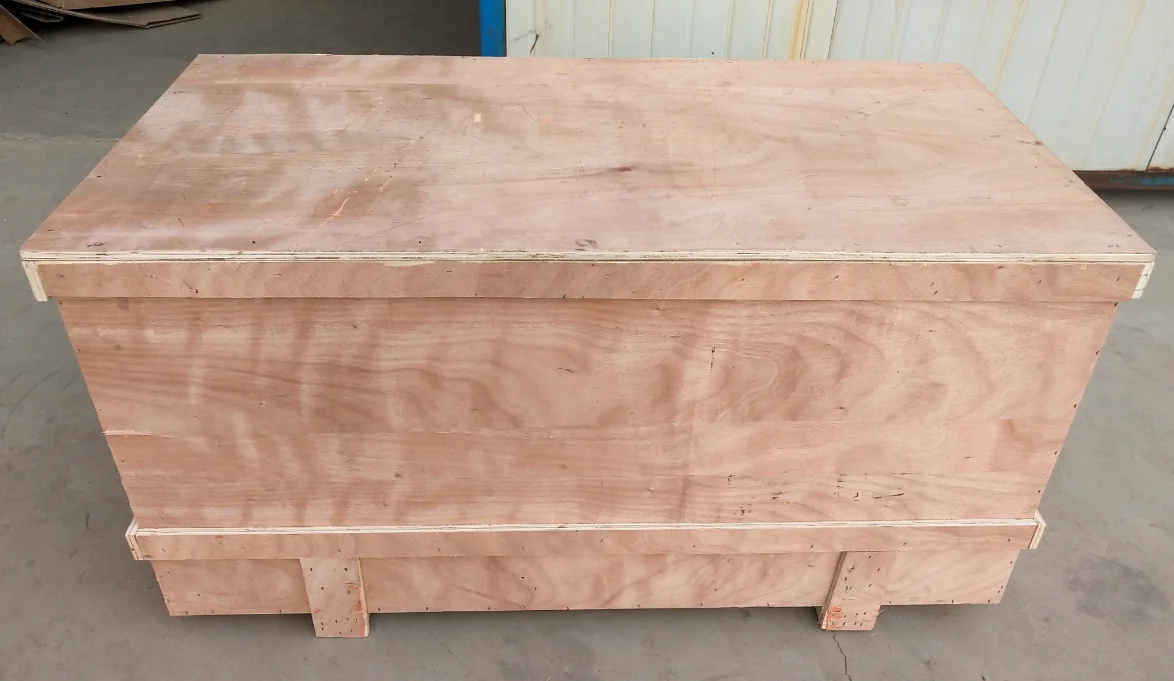

We support product packaging in cartons, wooden pallets, wooden boxes, foam filling, etc. to ensure the integrity of the product.

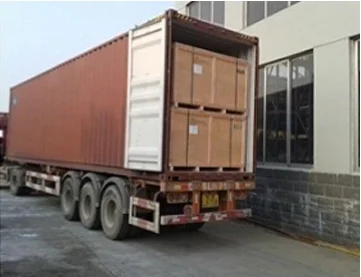

Before transportation, we will also conduct seismic testing of product transportation to ensure that the current packaging method of the product is safe and stable. Regarding product transportation, we support multiple methods such as sea transportation, air transportation, truck, and express delivery. Depending on the destination, you can choose port-to-port or door-to-door service.
Before transportation, we will also conduct seismic testing of product transportation to ensure that the current packaging method of the product is safe and stable. Regarding product transportation, we support multiple methods such as sea transportation, air transportation, truck, and express delivery. Depending on the destination, you can choose port-to-port or door-to-door service.
Certifications
Core Team
We have a strong foreign trade team that can help you solve product problems you encounter. At the same time, our team is young and energetic, with excellent professional skills. I believe we will become good friends.
Many foreign customers and friends who don’t know us have tried to communicate with us, and they all found that their decision was correct. Maybe we only need one face-to-face communication. We welcome you to our beautiful China and our factory , I believe you will be very impressed by us
In April 2023, we will have our own booth at the Shanghai International Refrigeration Exhibition. I believe friends who have been there have seen us. We brought our newly developed products and our best-selling products to this exhibition, and many customers came here because of it. Come, we will participate in more exhibitions in the future and bring more of our more creative products.
I hope you can come then, my friend.
I hope you can come then, my friend.
FAQ
END
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $135 / piece
- 5–9 piece: US $130 / piece
- 10+ piece: US $125 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
