The fan coil unit listed here carries 174W, industry certification CE,ISO9001, documented exactly as the manufacturer publishes it. Made by Shandong Aikesen Energy-Saving Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan Coil Unit
- Power: 174W
- Warranty: 1 Year
- Industry Certification: CE,ISO9001
- Place Of Origin: shandong
- Application Area: Hotels, offices, shopping malls, factories, breeding greenhouses
- Size: 1650x460x230
Technical Specifications
| Core Components | Fan, motor, surface cooler, condensed water plate |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 32 |
| Place Of Origin | shandong |
| Brand Name | aikesen |
| Goods Number | FCU |
| Product Name | fan coil |
| Function | cooling and heating |
| Size | 1650x460x230 |
| Air Quantity | 1700m³/h(1000CFM) |
| Cold Quantity | 9.0kW(30000BTU) |
| Industry Certification | CE,ISO9001 |
| Application Area | Hotels, offices, shopping malls, factories, breeding greenhouses |
| Power | 174W |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
(Principle introduction)
Fan coil system is the ideal terminal equipment for the central air conditioning system.It consists of heat exchangers, filters, fans, water discs, exhaust valves, and frames. The need for cooling, heating or humidification is met by constantly exchanging central heating or making cold air with indoor air.
（Product Introduction）
Reliable and durable: the entrance and exit are forged brass structure, the shell is made of high quality cold rolled steel plate, coated plastic or hot dip galvanized steel plate, reliable and durable, in the core parts of the 2-year warranty support, the user can rest assured to use.
High performance, high efficiency: the heat exchanger adopts seamless purple copper tube string, high efficiency corrugated aluminum wing structure, integrated through mechanical expansion. Tight combination to ensure a higher heat transfer efficiency.
Advanced technology with low noise: the fan impeller has no welding point, and the wheel frame ring is closely combined, never deformation. The generation of cyclone air reduces the noise generated by air friction, and the unit runs more smoothly and quietly.
Fan coil unit is available in a variety of models. With a cooling capacity of 1800~12600W,it effectively cools the space while minimizing energy consumption.

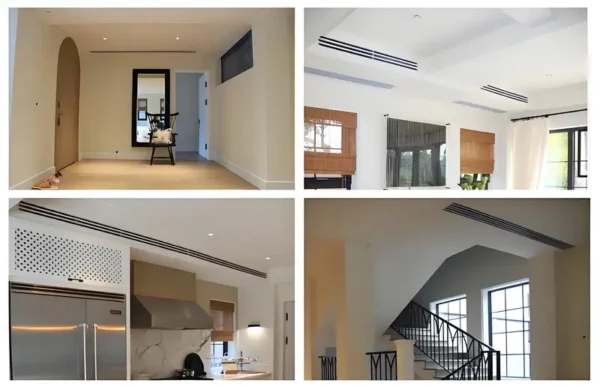

（application scenarios） To down or heat the living environment of hotels and office buildings.

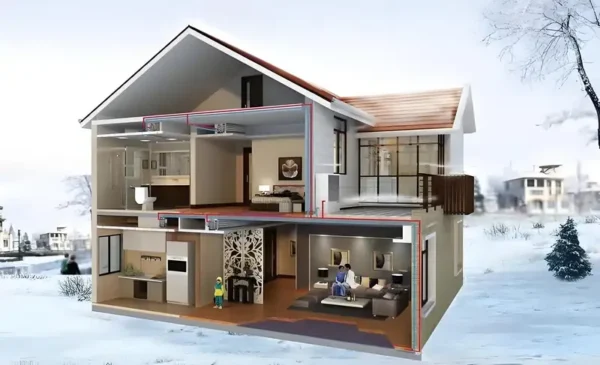

（position of assembly）

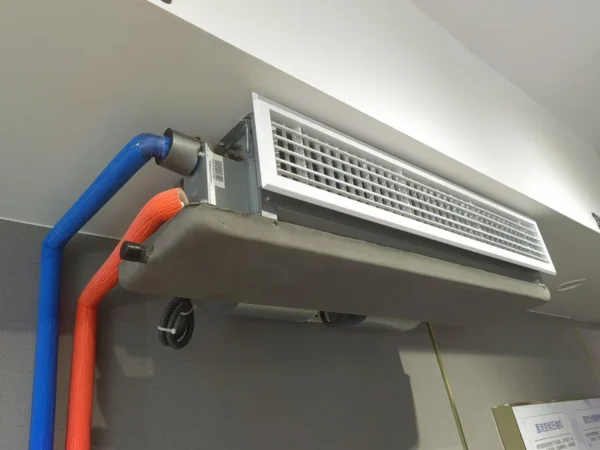

The equipment is placed in the room. Through the air through the fan coil pipe circulation, to achieve the effect of cooling or heating. It can be hoisted and installed vertically.

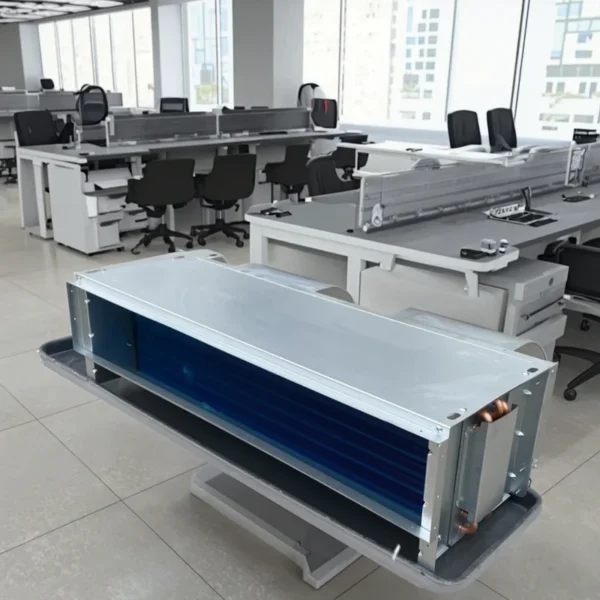

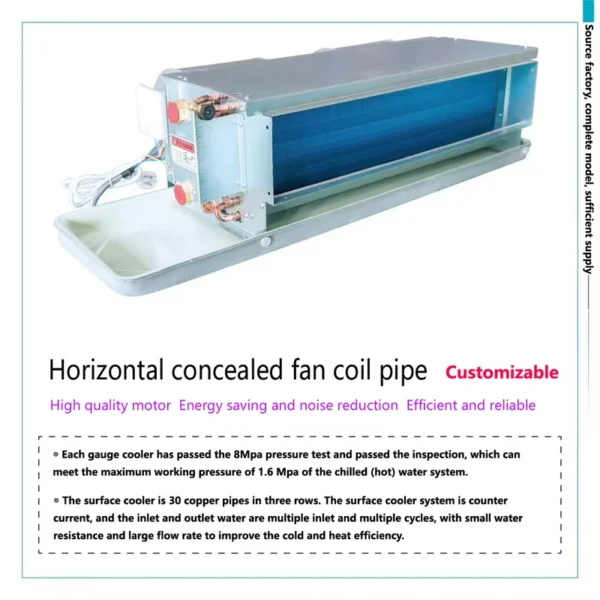

Horizontal concealed fan coil pipe
parameter table
Integrated fuselage design, firm, beautiful, easy for long-distance transportation.
High performance, high efficiency: the heat exchanger adopts seamless purple copper tube string, high efficiency corrugated aluminum wing structure, integrated through mechanical expansion. Tight combination to ensure a higher heat transfer efficiency.
1.Electrical accessories use international famous brands to ensure the quality. 2.Clear line, easy for maintenance and repair.
The whole process of production quality tracking, each link inspection.
Why Choose Us
1. Strong technical team and many years of design experience. Non-standard design can be provided according to customer needs and the actual situation on site. 2. Mature production lines and production workers. Adopt domestic advanced technology, including assembly line and robot, etc. Production workers are highly experienced. 3, the national inspection desk, to ensure that each factory equipment passes the inspection. 4. Timely late service, 24 hours on call, to solve customer feedback problems at any time.
Shandong Aikesen Energy – saving Equipment Co., Ltd. is located in Weifang, Shandong, China. The company provides global customers with high – efficiency energy – saving cooling and heating equipment, overall solutions, and a one – stop procurement service platform for cost – effective products. The company's products are widely used in various industries, including commercial and civil buildings, machinery, electric power, metallurgy, chemical industry, pharmaceuticals, food, subways, tunnels, papermaking, cold storage, drying, mushroom cultivation, and poultry farming. We will explore, innovate and be realistic together with you. Through practical actions, we will continuously promote the improvement of the global environment, including energy conservation, consumption reduction and emission reduction. We will make our utmost efforts for our shared homeland!
Production Line
Certifications
Customer Photos

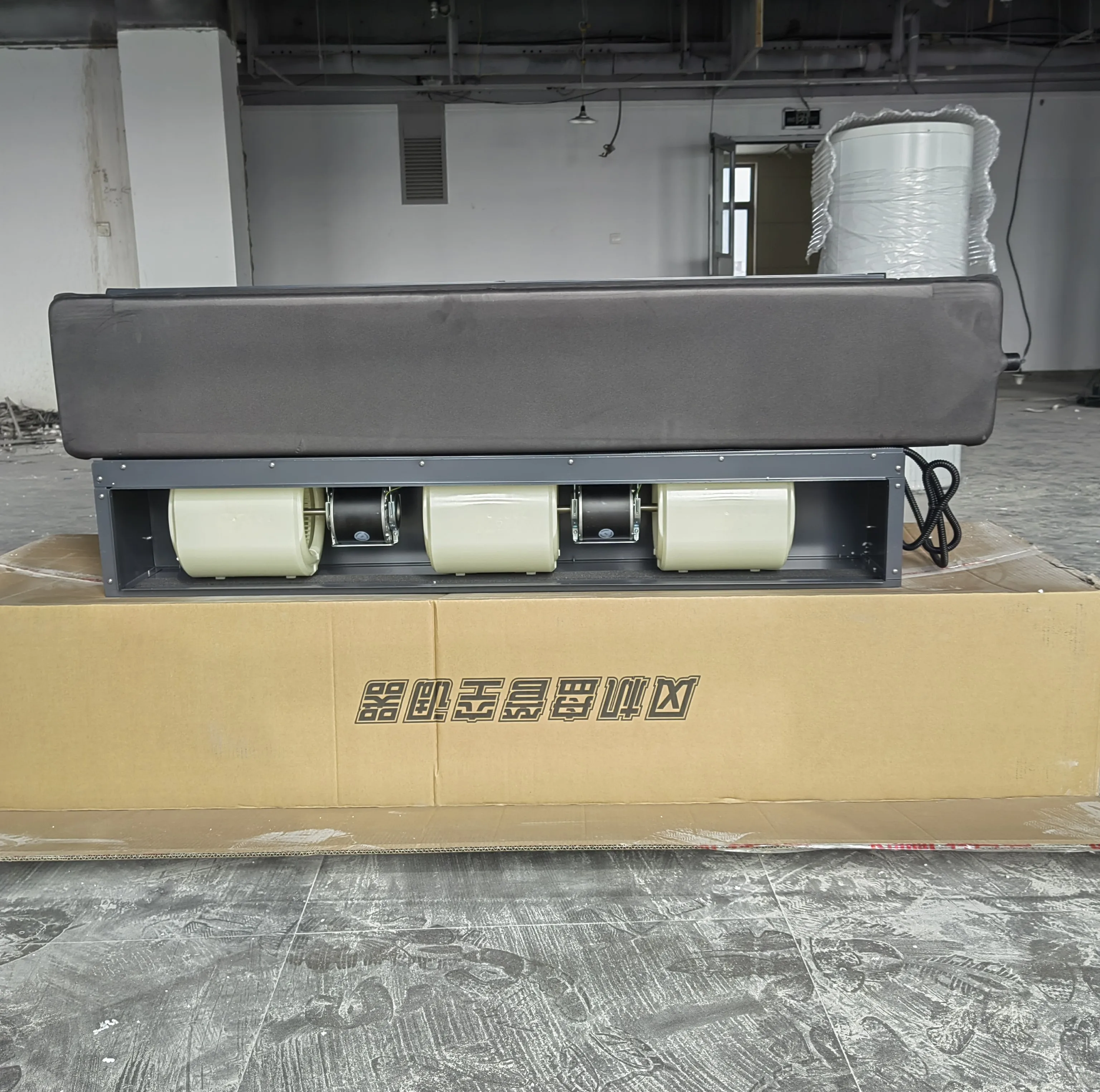

Product packaging
FAQ
Q1：What advantages does your company have? A1：Have a professional technical team and a perfect production line. Q2：Why did choose your product? A1：Our products are practical, have many years of application cases, and high quality and low price. Q3：How to ensure the quality of your products? A3：1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured. Q4：What other good service does your company have? A4：Can be customized according to the actual needs of customers, special customization.
Contact Us |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan coil unit carry?
It is supplied with CE,ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Aikesen Energy-Saving Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Aikesen Energy-Saving Equipment Co., Ltd. range on HVACR Nexus.
