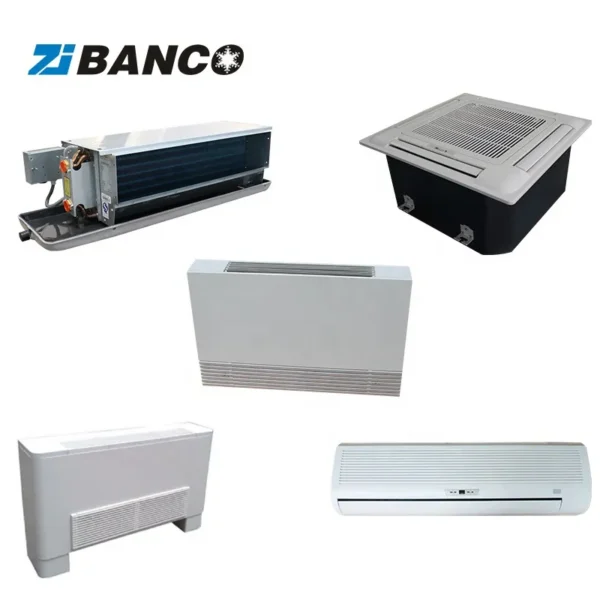

Fan Coil Unit, BC~

Product Application: Hotel, Commercial office, School, Hospital, Shopping mall, Villa, Sauna room,Subway station, Apartment etc.

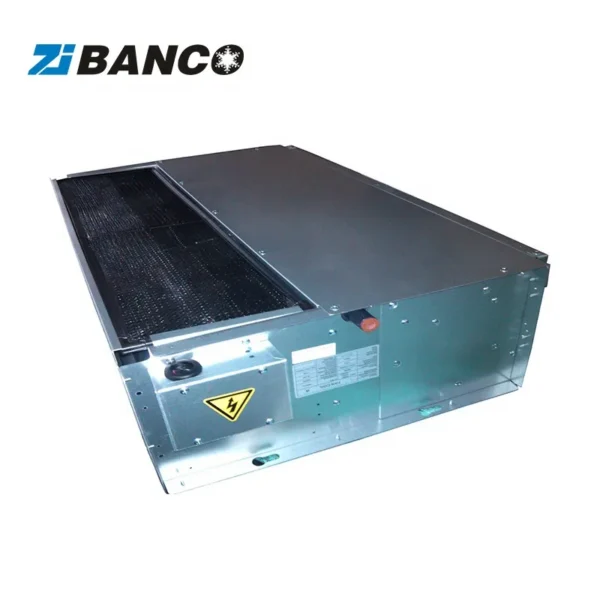

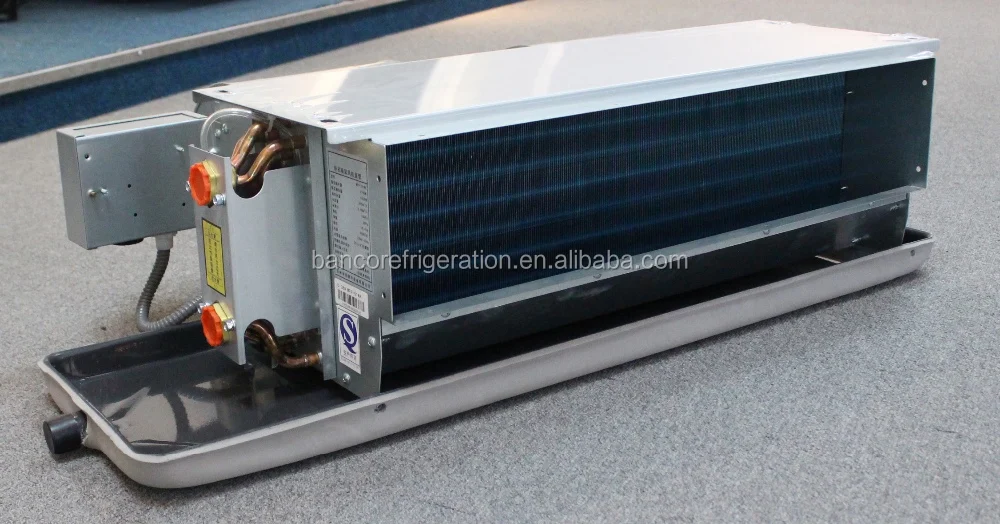

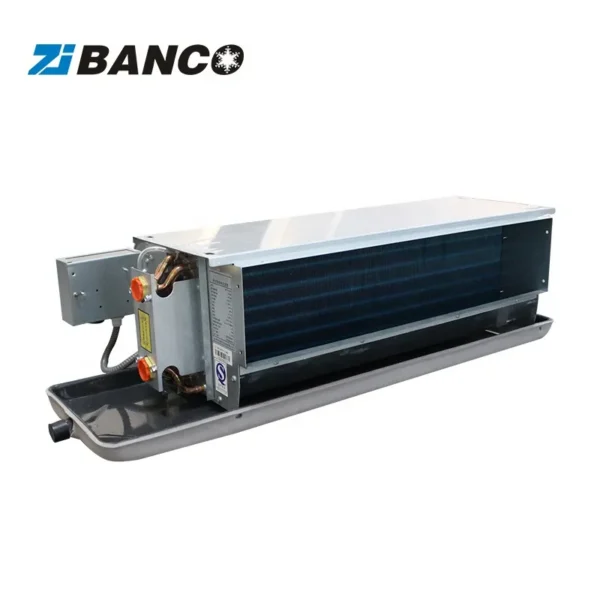

1. Horizontal concealed fan coil unit:

Air flow: 340-2380m³/h, 200-1400CFM;
Cooling capacity: 2.2KW to 13.9KW;
Heating capacity: 3.2KW to 22KW;

1) Compact structure design with thickness of 260mm only to save space;
2) Low noise with stable running;
3) The motor can be dismantled from the return outlet for maintains at the season changing period;
4) Fresh air intake can be pre-made in return air box;
5) Condensed water tray can be extended, if required, to ensure collecting the water and it can be made of stainless steel or galvanization steel plate;
6) Four-pipe type is available for consideration.

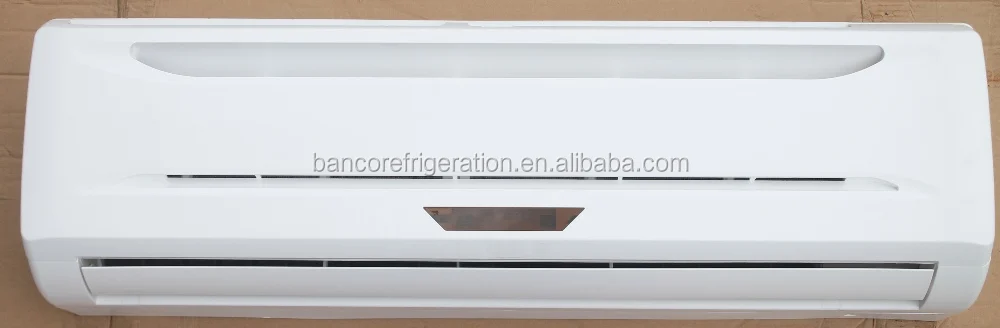

2. Wall mounted fan coil unit:

Air flow: 510-1020m³/h, 300-600CFM
Coling capacity: 2.8KW to 5.6KW;
Heating capacity: 4.2KW to 8.2KW;

1) Easy and intelligent operation. With intelligent timer, automatic temperature setting, 3 speed airflow, auto-swing function;
2) Auto‐swing capability with 100°airflow pattern distributes comfortable airflow;
3) Easy discharged air filters for cleaning, Remote controller provided as standard.
4) Optional wired controller;
5) Condensate try and pipe;
6) Quality ABS cabinet. Efficiently avoid yellowing, keep the same color after years;
7) Coil. 0.35mm thickness seamless copper tube bonded to the hydrophilic aluminum fin packs > common use 0.3mm seamless copper tube in this industry;

8) Branded fan motor. Equipped with oil-impregnated bearing, automatic lubricating, it has the advantage of high efficiency, noiseless, long lifetime;
Quiet operation as low as 37 dB (A).

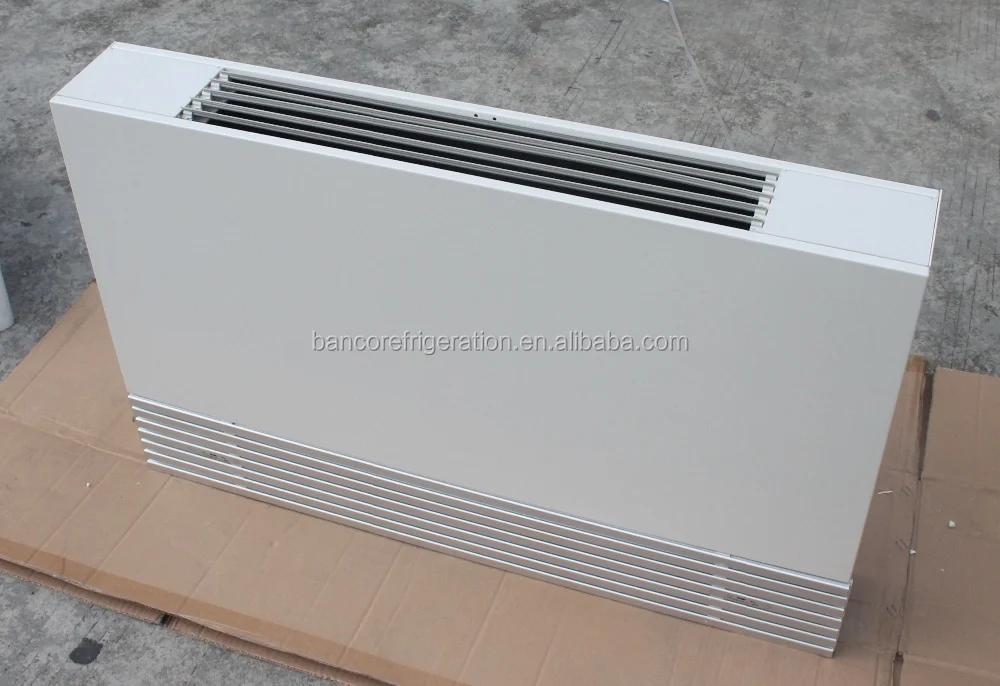

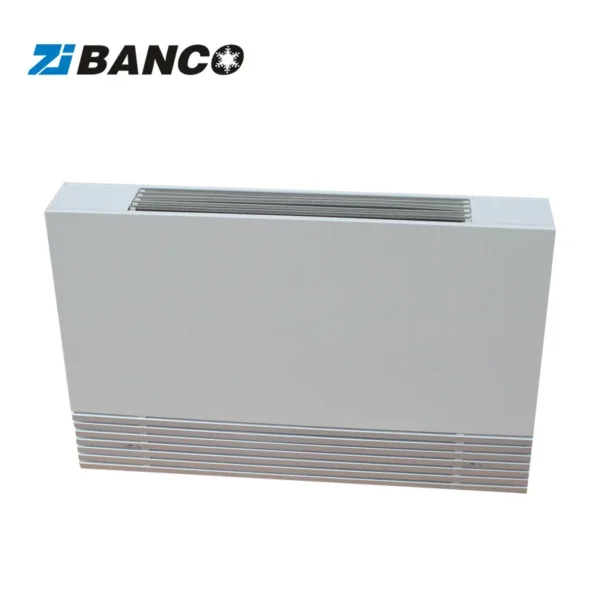

3.Ultra-thin vertical fan coil unit:

Air flow: 200-600m³/h, 117-353CFM
Cooling capacity range: 1KW ~4KW
Heating capacity range: 2KW~8KW

1) Ultra thin design, the thickness of fcu is only 130m;

2) Air return direction is optional, both side re-turning and bottom re-turning is optional, adjust to fit different environment, inner LED thermostat(temperature controller) is optional

3) Left/right water connecting direction can be selected;

4) Wind amount could be controlled in a breeze status, very quiet, it is the best alternative to the radiator;

4.1 Radiators only offer heating, but our ultra-thin FCU can offer both heating and cooling.

4.2 Heating speed of radiators is slow and radiation of radiators is narrow, inefficient air convection. FCU have higher speed of heat exchange.

5) Using metal cross flow fan, not only decrease operating noise,but also increase air pressure;

6) Auto swing is optional and also manual adjusting to air flowing is optional;

7) Left and right side panels can be removed independently. It is easy for installation and maintenance;

8) AC motor is standard, DC motor is optional;

9) 2-way(3-way)water valve can be build-in, which is benifit to the cost saving of installation;

10) Easy-removable and washable filter was built-in, Touch screen controller is optional for DC type fan coil units. The appearance is very fashionable and technically.

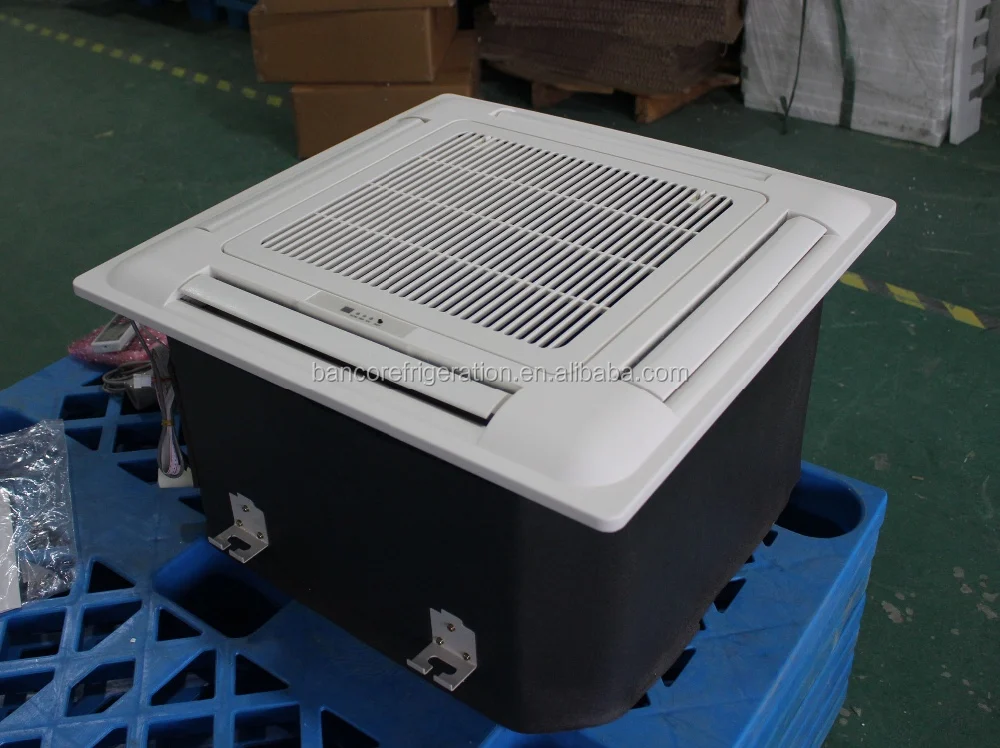

4. Cassette fan coil unit:

Air flow: 340-2380m³/h, 200-1400CFM

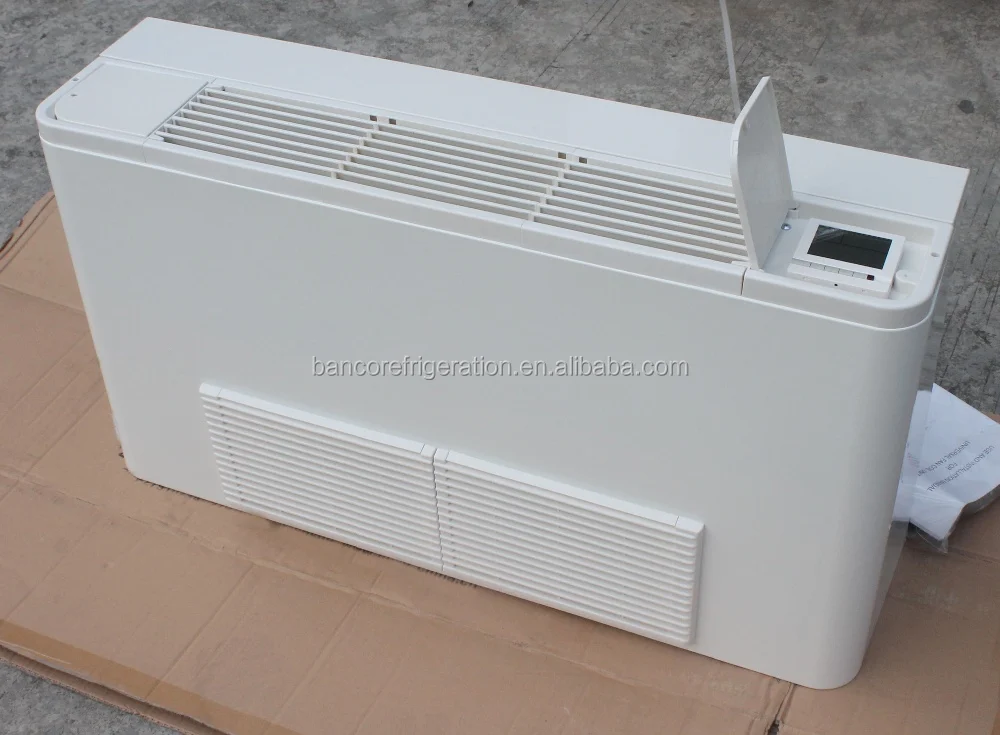

5. Ceiling/Floor fan coil unit:

Air flow: 340-2380m³/h, 200-1400CFM;
Cooling capacity range: 1.8KW ~ 12.6KW
Heating capacity range: 2.7KW ~ 18.9KW

1. Universal design, the unit can be installed by vertical or horizontal;

2. Inner LED thermostat(temperature controller) is optional;

3. Left-right water pipe connection can be changed freely; two tube or four tube are optional;

4. The appearance is classical elegant, which is cater for the decoration of home;

5. Using PVC drain pump with 2 water outlet, hollow structure design can enhance the thermal insulation properties, at the same time to prevent from leaking.

Warranty
1) One year warranty: non-artificial free exchange damaged parts along with the shipment in warranty
2) Per your special requests are welcome for discussion.
3) After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.

Payment Terms
1. Total mount less than 10,000USD should be paid 100% in advance.
2. Total amount more than 10,000USD is 30%T/T in advance, 70% should be paid before shipment.
3. L/C is also acceptable.
4. Per your special requests are welcome for discussion.
