Condensing unit — 220V-50Hz/60Hz-1Ph, 380V-50Hz-3Ph, 0.75HP~4HP. The complete factory specification follows. Made by Taizhou Zjbanco Refrigeration Equipment Co., Ltd (11 years on the platform, typical reply ≤11h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Model Number: BC Series
- Voltage: 220V-50Hz/60Hz-1Ph, 380V-50Hz-3Ph
- Cooling Capacity: 0.75HP~4HP
- Refrigerant: R404A/R410A/R507C etc
- Warranty: 18 months
- Place Of Origin: Zhejiang, China

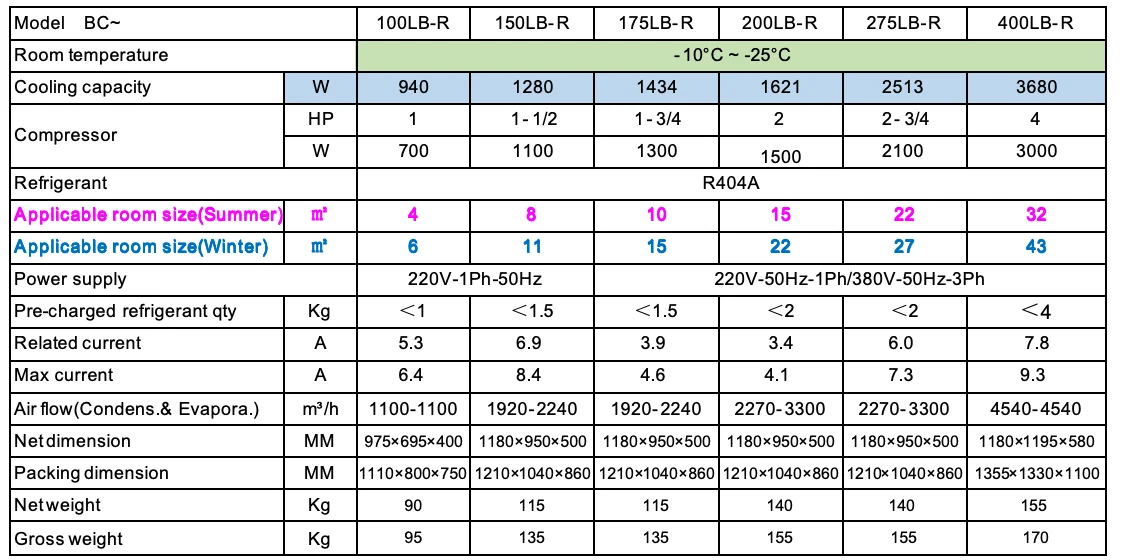

Technical Specifications
| Cooling Capacity | 0.75HP~4HP |
|---|---|
| Temperature | -25℃~10℃ |
| Voltage | 220V-50Hz/60Hz-1Ph, 380V-50Hz-3Ph |
| Compressor Type | Hermetic, Screw |
| Refrigerant | R404A/R410A/R507C etc |
| Compressor Brand | Embraco, Tecumseh etc |
| Core Components | Compressor, Condenser, Evaporator, Thermostat, Expansion valve, Sight glass, Solenoid valve, Filter |
| Warranty | 18 months |
| Key Selling Points | High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Long Service Life, Energy Saving, Low Maintenance Cost, Accurate Temperature Control |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 60 |
| Model Number | BC Series |
| Dimension(L*W*H) | Up to different models |
| Applicable Room Temp. | -5~5℃/-15~-25℃ |
| Defrosting Type | Hot gas defrosting |
| Installation Type | Wall mounted/Roof mounted |
| Temp. Controller | Wired type or build-in type |
| Selling Units | Single item |
| Single Package Size | 120X80X75 cm |
| Single Gross Weight | 120.0 kg |
Product Details

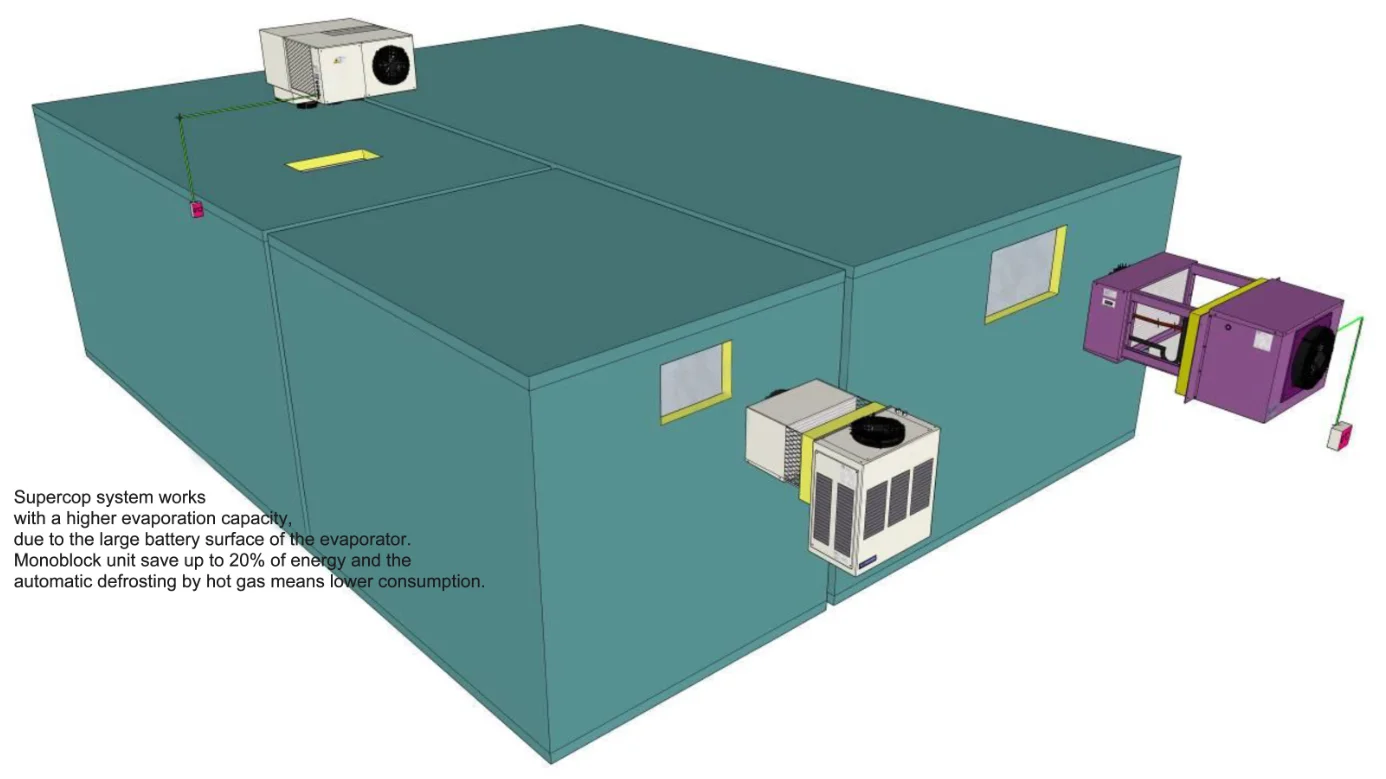

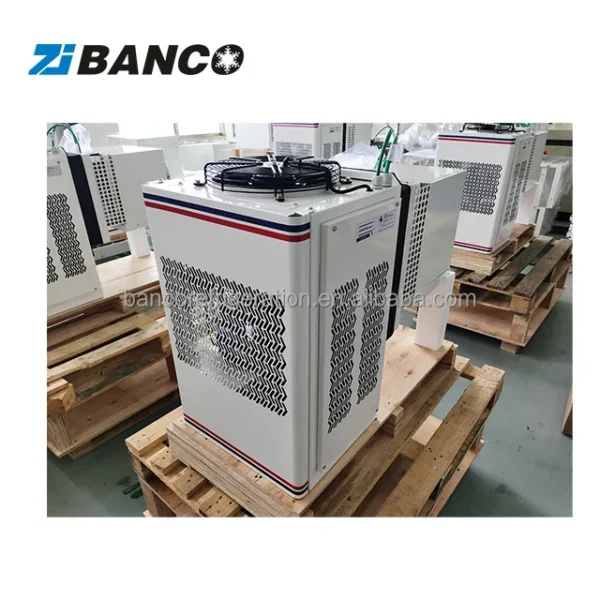

The BC series of machine, called Integrated machine for cold room, that integrate evaporator, condenser, compressor, electrical control units into one compact body.
It can be widely used for small cooled and cold storage room of Temperature of -5°C ~ +10°C or -10°C ~ -25°C, in hotels, restaurants, medicines, agricultural, chemicals industries all other place where cold room is needed.

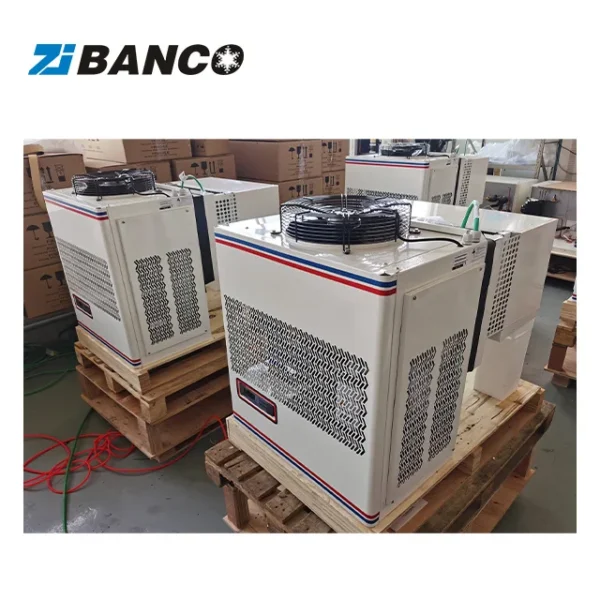

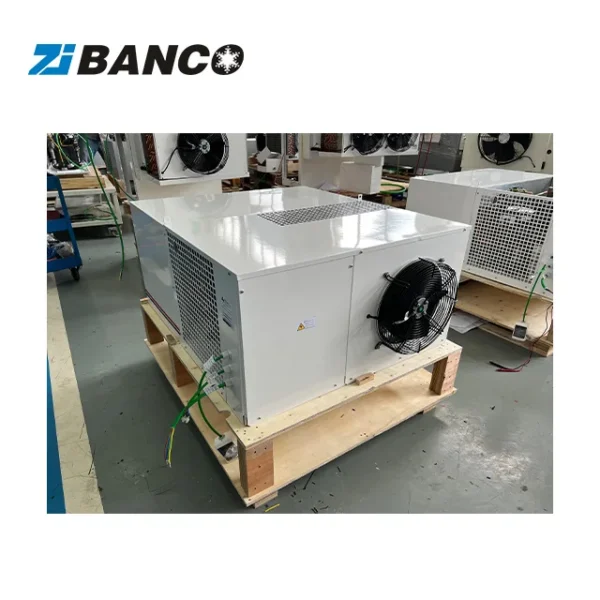

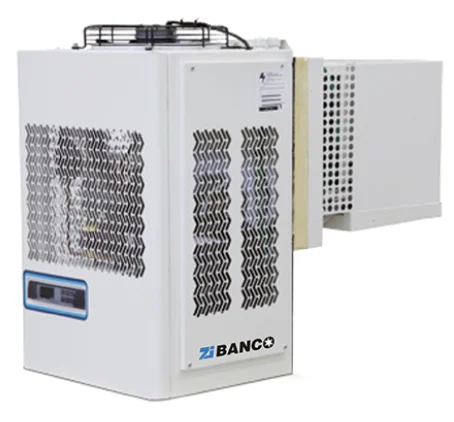

Wall Mounted

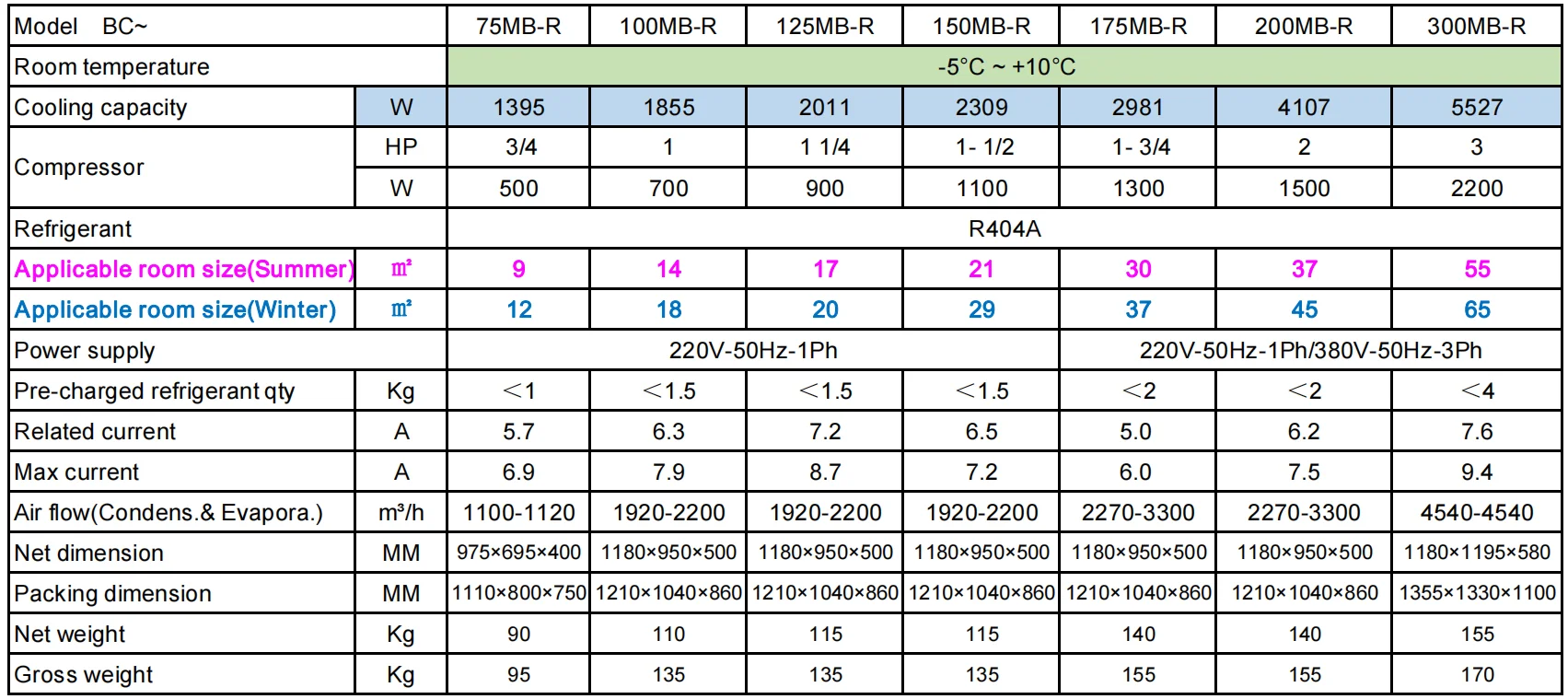

Mid temperature series:

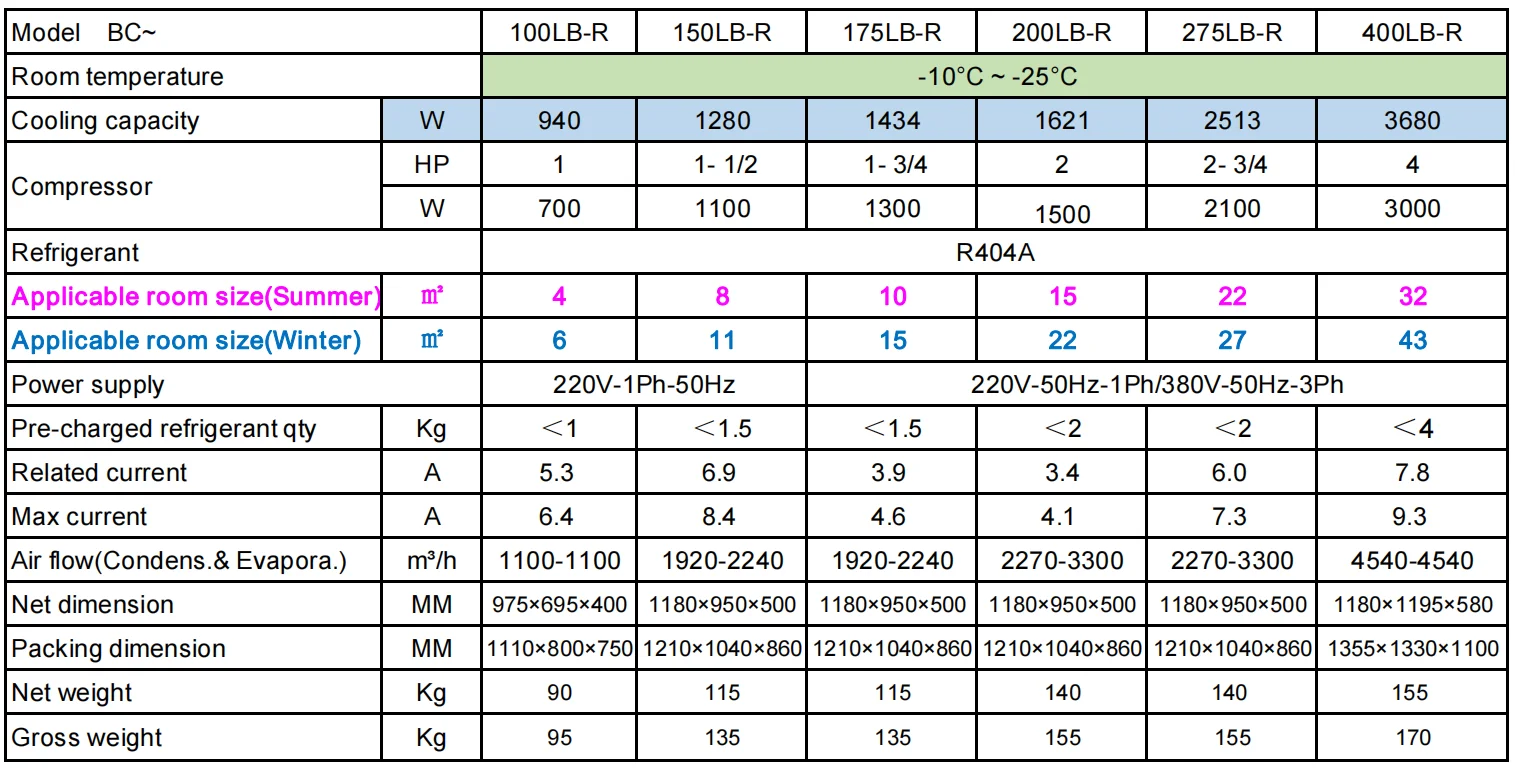

Low temperature series:

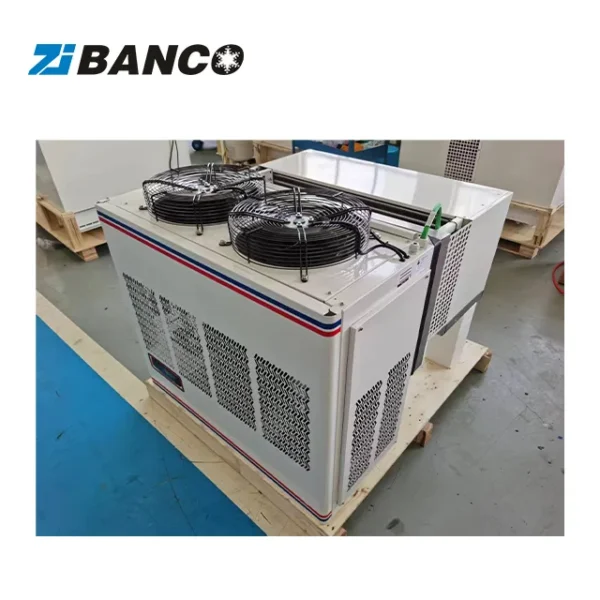

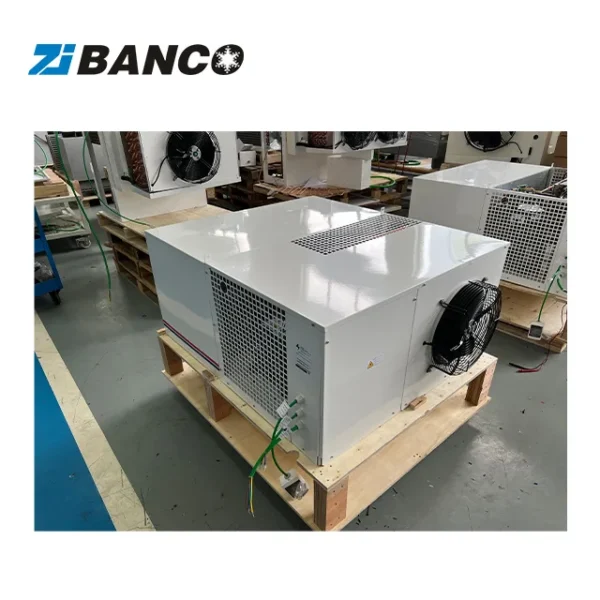

Rooftop Mounted

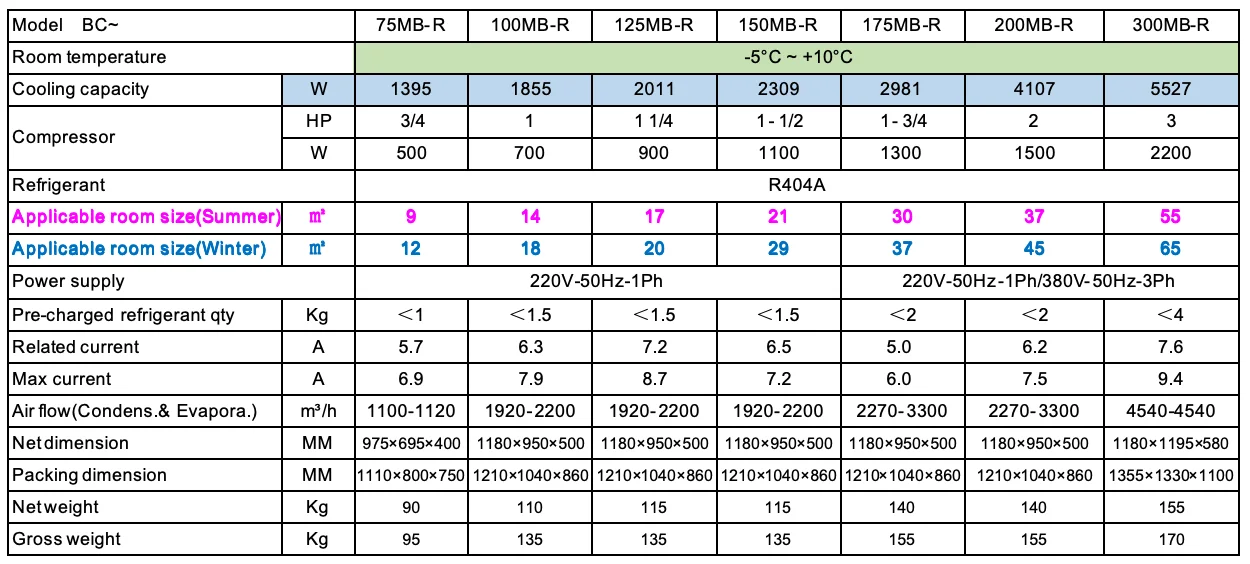

Mid temperature series:
Low temperature series:
World famous brand refrigeration parts are employed for all products;
Embraco or Tecumseh compressor;
Heat exchanger with high efficient in grooved copper tube and aluminum fin;

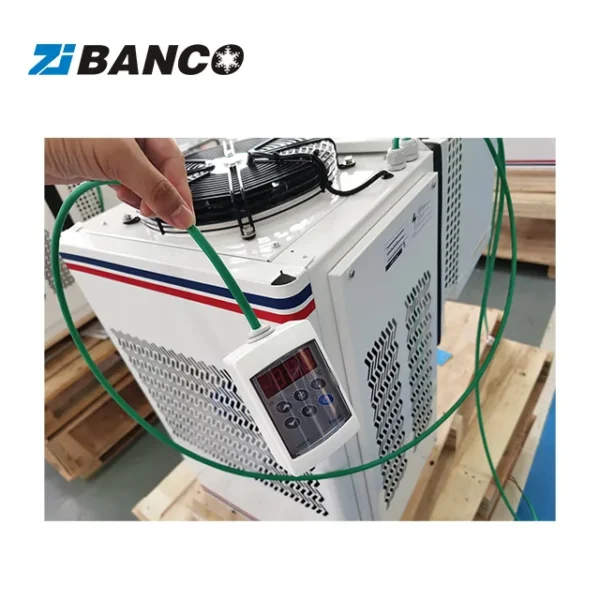

Electronic control board with functions of automatic temperature set, control, and hot gas defrosting;
Protection devices for over loading, sub-heating, lack of phase, high & low pressure etc;
Eeasy installation.
Q: What information is needed to provide the quotation?
A: Generally, for Monoblock Unit(Condensing Unit) we'd like to know the following information to recommend model and provide quotation.
1) Cold room temperature or evaprating temperature of condensing unit.
2) Cooling Capacity.
3) Power Supply.
4) Refrigerant.
5) Working place. Such as restaurant, farm, cold chain logistics central etc.
6) Order Quantity etc.
Q: What is the warranty of Monoblock Unit(Condensing Unit)?
A:
1) One year warranty: non-artificial free exchange damaged parts along with the shipment in warranty
2) Per your special requests are welcome for discussion.
3) After-sale: Salesmen phone 24 hours a day, if you meet any question, we will serve you at any time.
Q: What is the Payment Terms?
A:
1) Total mount less than 10,000USD should be paid 100% in advance.
2) Total amount more than 10,000USD is 30%T/T in advance, 70% should be paid before shipment.
3) L/C is also acceptable.
4) Per your special requests are welcome for discussion.
Q: What is the package of Monoblock Unit(Condensing Unit)?
A: Plywood pallet.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $800 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 18 months warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220V-50Hz/60Hz-1Ph, 380V-50Hz-3Ph. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Zjbanco Refrigeration Equipment Co., Ltd, based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Zjbanco Refrigeration Equipment Co., Ltd range on HVACR Nexus.
