The fan coil unit listed here carries power supply AC 220v/50-60Hz, 4050W-18900W, documented exactly as the manufacturer publishes it. Made by Shenzhen Olyair Electric Appliances Co.,Ltd. (14 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Power Supply: AC 220v/50-60Hz
- Heating Capacity: 4050W-18900W
- Warranty: 5 year
- Place Of Origin: Guangdong, China
- Type: Fan Coil Unit
- Mounting Type: Ceiling Mount
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Ceiling Mount |
| Compressor Brand | Sanyo |
| Fan Motors Type | DC |
| Key Selling Points | Eco-Friendly |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 35 |
| Brand Name | OlyAir |
| Heating Capacity | 4050W-18900W |
| Water Supply | 324-2178kg/h |
| High Static Pressure | 30 or 50pa |
| Noise | less than 37db |
| Power Supply | AC 220v/50-60Hz |
| Control Way | Remote or wall pad |
| Selling Units | Single item |
Product Details
Introduction of OlyAir Fan Coil Unit
The OlyAir Chilled Water Fan Coil Unit is designed and manufactured on the base of advanced technology, and utilize qualified galvanized iron as structure material. Due to its super-thin design, it has such advantages: beautiful outlook, space-saving, easy installation, etc. And the most obvious advantage is that it can decrease the outlet air temperature difference as low as possible to make the room more comfortable, as well as don’t decrease cooling capacity output. For the large airflow volume design, it can increase room ventilation frequency, supply more fresh air, and balance room temperature distribution. Benefiting from the adoption of advanced material and technology, it can effectively reduce the running noise and keep running smoothly. With the advantages above, it can be widely applied in the market, hospital, office building, hotel airport, etc..
Features:
Coling capacity: 2.7KW to 12.6KW(9215btu-43004btu);
Heating capacity: 4KW to 18.9KW(13820-64506btu);
1) Compact structure design with a thickness of 260mm only to save space;
2) Airflow maybe 340 to 2380 stere per hour;
3) Low noise with stable running;
4) The motor can be dismantled from the return outlet for maintains at the season changing period;
5) Fresh air intake can be pre-made in return air box;
6) Condensed water tray can be extended, if required, to ensure collecting the water and it can be made of stainless steel or galvanization steel plate;
7) Four-pipe type is available for consideration;
Specs:
| Model LC~ | 51F | 68F | 85F | 102F | 136F | 170F | 204F | 238F | |
| Cooling capacity | W | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| BTU | 9215 | 12287 | 15359 | 18430 | 24574 | 30717 | 36860 | 43004 | |
| Heating capacity | W | 4050 | 5400 | 6750 | 8100 | 10800 | 14500 | 16200 | 18900 |
| 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.61 | 1.50 | 1.50 | ||
| BTU | 13823 | 18430 | 23038 | 27645 | 36860 | 49489 | 55291 | 64506 | |
| Input power | W | 50 | 58 | 72 | 110 | 126 | 150 | 170 | 198 |
| Current | A | 0.225 | 0.258 | 0.32 | 0.49 | 0.561 | 0.68 | 0.82 | 0.882 |
| Power supply | V/P/Hz | 220-240V/1/50-60Hz | |||||||
| Fan motor QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Airflow volume | m3/h | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| Noise | dB(A) | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
| Control way | Remote or wall pad | ||||||||
| Cooling Water flow | m3/h | 0.52 | 0.62 | 0.86 | 0.98 | 1.22 | 1.58 | 1.92 | 2.1 |
| Cooling Water resistance | Kpa | 14 | 16 | 18 | 22 | 25 | 39 | 44 | 44 |
| Drainpipe size | mm | 26 | |||||||
| Connecting pipe (in) | ZG3/4" | ||||||||
| Connecting pipe (out) | ZG3/4" | ||||||||
| Connecting way | Socket | ||||||||
| Dimensions | mm | 917*671*240 | 1289*671*240 | 1689*671*240 | |||||
| Weight | kg | 31 | 31 | 31 | 41 | 41 | 46 | 46 | 46 |

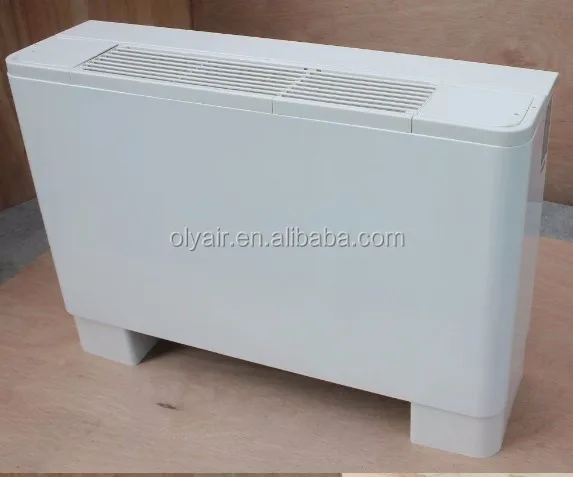

Below is some other model of horizontal concealed Fan coil unit:

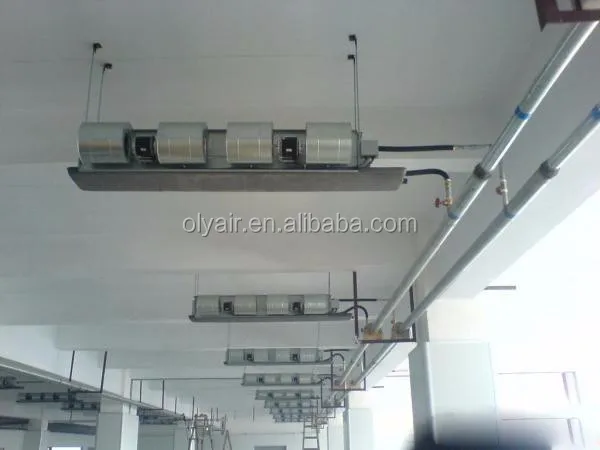

Install of horizontal concealed Fan Coil Unit

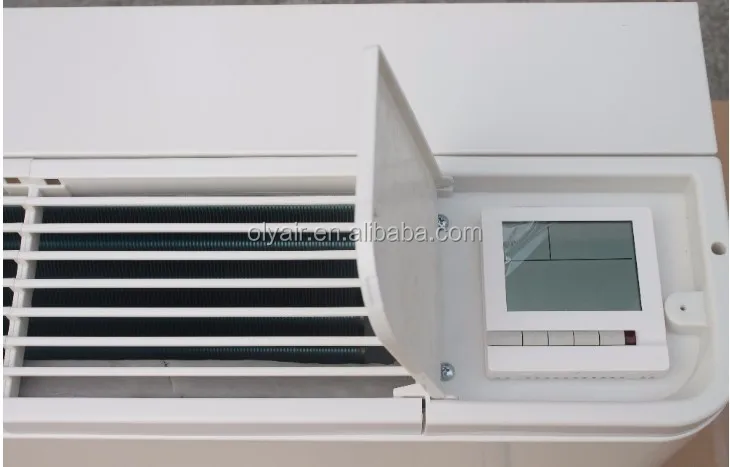

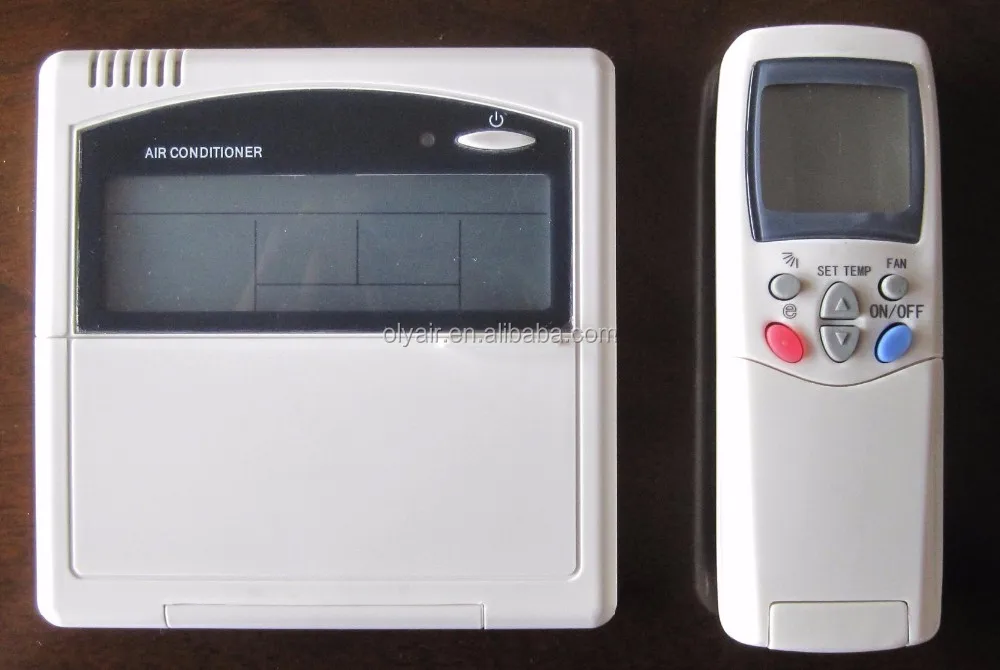

Mechanical control or remote control, wire control optional.

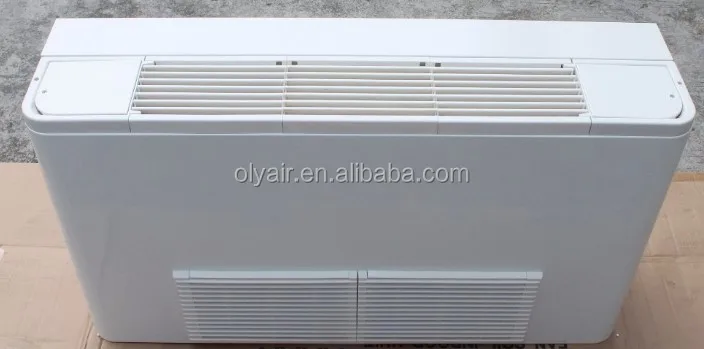

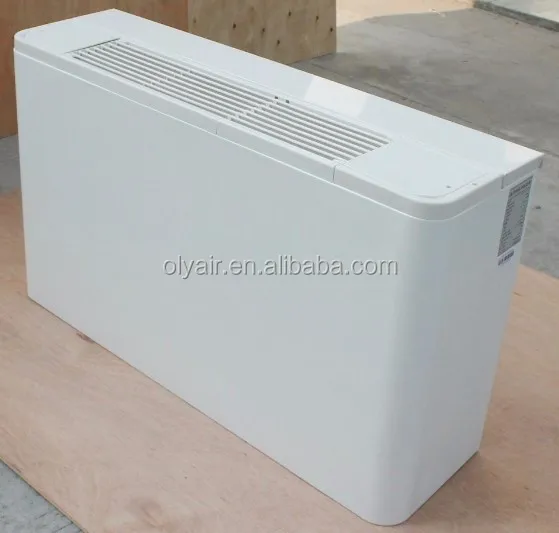

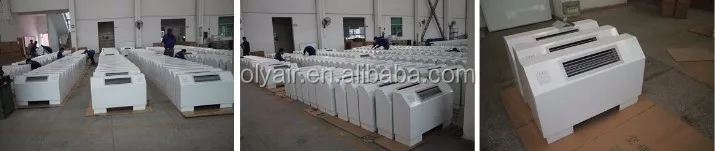

Some local shoot picture of our concealed fan coil unit
Welcome to contact us for a price !
Ordering and Pricing
- Minimum order quantity: 30 set
- Volume pricing:
- 30+ set: US $215 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 30 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is AC 220v/50-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Olyair Electric Appliances Co.,Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Olyair Electric Appliances Co.,Ltd. range on HVACR Nexus.
