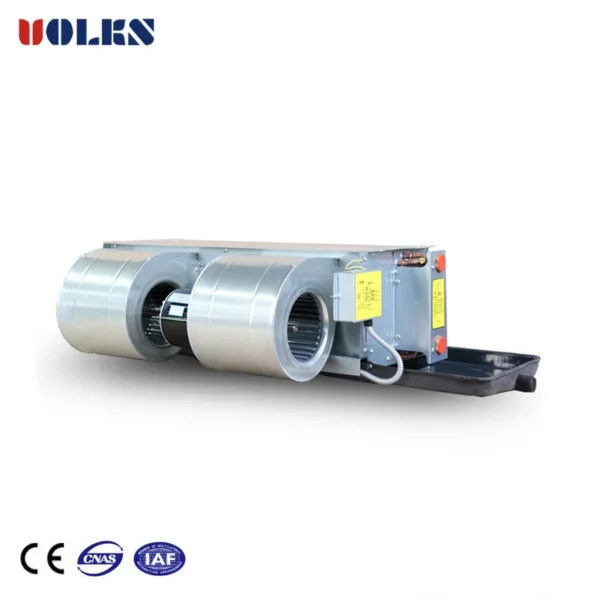

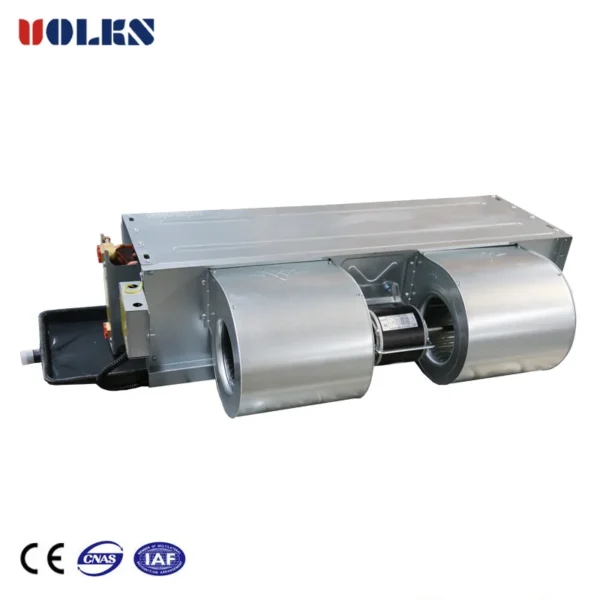

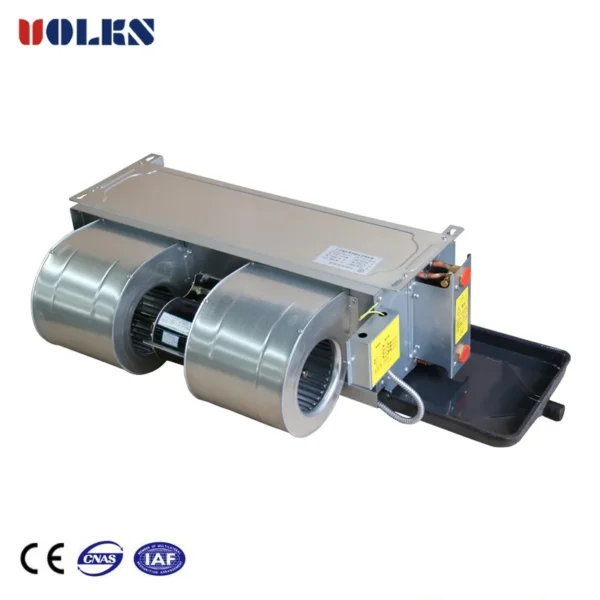

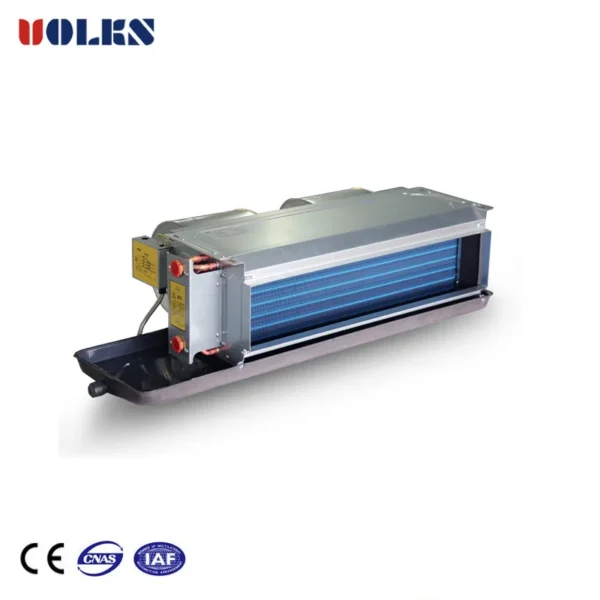

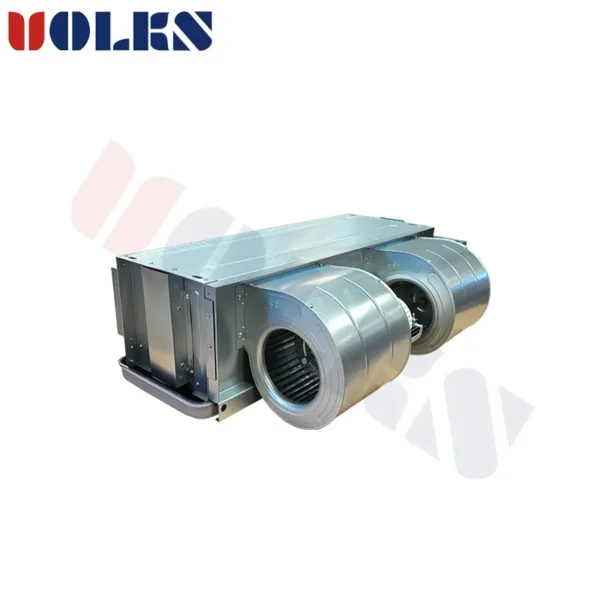

Fan Coil Unit, HVAC, FP-238WA

This fan coil unit is published with the manufacturer’s full specification — type Fan Coil Unit, model number FP-238WA. Made by Shandong Volks Air Conditioner Group Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fan Coil Unit

• Model Number: FP-238WA
• Warranty: 2 Years
• Warranty Of Core Components: 1 Year
• Place Of Origin: Shandong, China
• Type: Fan Coil Unit
• Mounting Type: Ceiling Mount

Technical Specifications

Product Details

Product Description

Features of fan coil unit More security, more reliable, and more service life Each fan-coil heat exchanger will be undergone pressure leak detection. The inlet and outlet are of forged brass structure, which is reliable and durable. All materials are well fireproof. The motors are with overheating and power failure protection devices. With free- maintenance Ultra-low noise rolling bearings, the service life can reach up to 35,000 hours. The shaft of the motor is specially treated without rust. The casing is made of high-quality cold-rolled steel plate, sprayed plastic or hot-dip galvanized steel plate, which is mechanically bitten into the shape, which is strong and anti-corrosive.

High performance, high efficiency The coil are equipped with seamless red copper tube string with high-efficiency corrugated aluminum fin structure, which is integrated by mechanical expansion. The combination is tight enough to make sure a higher heat transfer efficiency , a more sufficient heating efficiency , and a dust free surface . Advanced technology with lower noise The fan impeller has no welding points as a whole, and the wheel frame ring is tightly integrated and never deformed. The double-inlet forward-leaning airfoil centrifugal galvanized steel wind wheel has undergone strict dynamic and static balance tests. The air is transmitted in a streamlined manner to reduce vortexes. The generation of swirling air reduces the noise generated during air friction, and the unit runs more smoothly and quietly. Beautiful appearance, easy maintenance The unit is with humanized design for easily maintain and repair. The unit filter can also be cleaned at any time.

Model Name			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Power Supply			1 phase, 220-240V, 50
Air Flow(M3/H)	H	340	510	680	850	1020	1360	1700	2040
		M	255	383	510	638	765	1020	1275	1530
		L	170	255	340	425	510	680	850	1020
Cooling(W)	H	1800	2700	3600	4500	5400	7200	9000	10800
		M	1440	2160	2880	3600	4320	5760	7200	8640
		L	1170	1755	2340	2925	3510	4680	5850	7020
Heating(W)	H	2700	4050	5400	6750	8100	10800	13500	16200
		M	2160	3240	4320	5400	6480	8640	10800	12960
		L	1755	2633	3510	4388	5265	7020	8775	10530
Power Input(W)	12Pa	37	52	62	76	96	134	152	189
		30Pa	44	59	72	87	108	156	174	212
		50Pa	49	66	84	100	118	174	212	189
Noise dB(A)	12Pa	37	39	41	43	45	46	48	50
		30Pa	40	42	44	46	47	48	50	52
		50Pa	42	44	46	47	49	50	52	54
Fan	Type	Forward multi – wing centrifugal double suction fan
		Qty	1	2	2	2	2	3	4	4
Motor	Type	Permanent capacitive three-speed motor
		Qty	1	1	1	1	1	2	2	2
Heat Exchanger		Copper tube and aluminum fin
Water Flow()	m3/h	0.39	0.55	0.7	0.82	0.91	1.34	1.59	1.8
Pressure Drop	kPa	12	16	20	23	26	28	32	38
Pipe Size		DN20 Internal thread
Drain pipe		3/4’’ External thread
Net Weight
without plemun		14	15	17	19	20	27	32	35
with plemun		17	19	20	22	25	31	37	42

product dimensions

Horizontal concealed fan coil

Horizontal concealed fan coil(3+1 row)

Details Images

Installation Instructions

1. Unit installation:

◆ In the process of handling and lifting should comply with the unit, so as to avoid personnel injury and equipment damage.relevant safety regulations, shall not hold the impeller or volute to move the

◆ Pay attention to keep all parts of the unit intact and preven ◆ The main body of the unit must be set horizontally, and the dtforeign matter from entering the volute or surface cooler. rainage pipe must maintain sufficient slope, otherwise it will affect the drainage of condensate and cause water leakage. ◆ The unit can only bear its own weight, can not bear other external forces such as water pipes, and the installation position should leave enough maintenance space.

◆ In order to eliminate accidents that may be caused during handling, a leak detection test (1.6MPa) should be conducted on the fan coil.

2. Pipeline configuration:
◆ The connecting water pipe is the bottom into the top out, the much force during operation. inlet and outlet water pipes should be flexible connection, do not exert too
◆ Water inlet and outlet pipes, condensate pipes and valves mus thermal insulation material should be carefully treated to avoid condensation water penetrating into the interior of the t be strictly dew proof construction. At the same time, the end thermal insulation of the material.

3.Electrical wiring:

◆ Power supply: 220V± 10%, 50/60Hz. ◆ When wiring the unit, please strictly follow the electrical schematic. Running the unit under the wrong wiring state will damage the motor.

◆ It is strictly prohibited for multiple units to share a switc power line, otherwise the following situations will occur.

A. The internal loop current is generated, and the motor temperature increases and the load increases, thus burning the motor.

B. When a motor burns, then burn other parallel motors.

C. Motor speed is not normal.

4.Water supply requirements:

◆The cooling water temperature of the unit in summer operation is not less than 5'C, the heating water temperature in winterlshould not be higher than 75C, the water quality is required to be clean and softened, and the PH value is 6.8- 8 when the watertemperature is 25°C (refer to: GB50050-2007).

It is forbidden to use steam and hot water above 80 C, otherwise the supply air temperature is too high, which will lead to thedeformation of the supply air grid or other failure hazards.

◆When the system is running in summer, if the fan coil unit is stopped, the water circulation should be automatically stopped,otherwise the surface of the unit may condensation. The design can use electric valve and temperature control switch interlock,or use frozen water bypass Measures, otherwise can only be taken to manually close the inlet valve to avoid.

◆The maximum water flow of each type of unit shall not exceed the sample data range, and the water quality shall be clean andsofte ned.

Company Profile

Shandong Volks Air Conditioning Group co.,ltd., established in 2011, as a professional central air conditioning manufacturer in China, we are engaged in the research, development, sale and after sale service of modular chiller and heat pump, water/air cooled screw chiller, water source heat pump, packaged rooftop unit, duct split unit, fan coil unit, air handling unit, etc. All kinds of products have passed the inspection of the National Air Conditioning Testing Center; We also established our owner major labs: national standard central air conditioning laboratory, and heat pump dryer laboratory. Our factory is located in Dezhou city, Shandong province, it is more near Beijing with about 75 minutes by high speed train. We have more than 100,000m3 workshop, and total more than 260 employees till now. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained CRAA, ISO9001, ISO14001 and ISO45001 system, AAA credit rating certificates. Selling well in all cities and provinces around China, and also exported to oversea market with many countries. We also welcome OEM and ODM orders.

Certifications

Packing & Delivery

FAQ

Q1. What is the advantage about your company? A1. Our company has professional team and professional production line. Q2. Why should I choose your products? A2. Our products are high quality and low price. Q3. Any other good service your company can provide? A3. Yes,we can provide good after-sale and fast delivery

Ordering and Pricing

• Minimum order quantity: 10 unit
• Volume pricing:
  • 10–99 unit: US $120 / unit
  • 100+ unit: US $115 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Volks Air Conditioner Group Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong Volks Air Conditioner Group Co., Ltd. range on HVACR Nexus.
