Air Handling Unit, HVAC, Air Purifier Filter

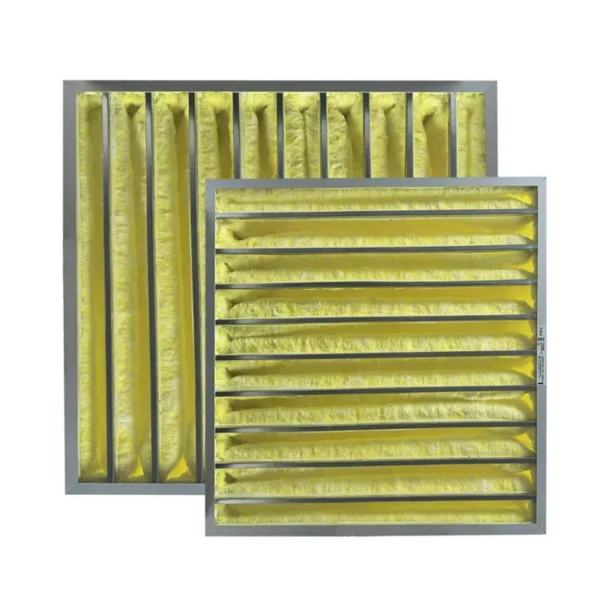

Air handling unit — material Glass fiber filter bag, type Air Purifier Filter. The complete factory specification follows. Made by Dawei Purification Technology (Hebei) Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Air Handling Unit

• Material: Glass fiber filter bag
• Warranty: 1 Year
• Place Of Origin: Hebei, China
• Type: Air Purifier Filter
• Single Package Size: 20X20X20 cm
• Weight: 1

Technical Specifications

Product Details

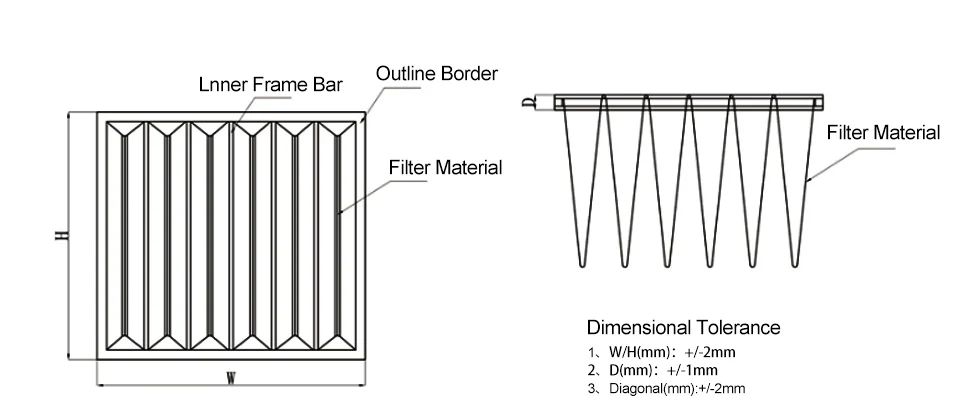

Outline Border	Aluminum frame (Optional galvanized frame, stainless steel frame, plastic frame, etc.)
Filter Material	Glass fiber filter bag
Filtration Efficiency	M6/F7/F8
Continuous Operating Temperature	≤80℃

Product Features

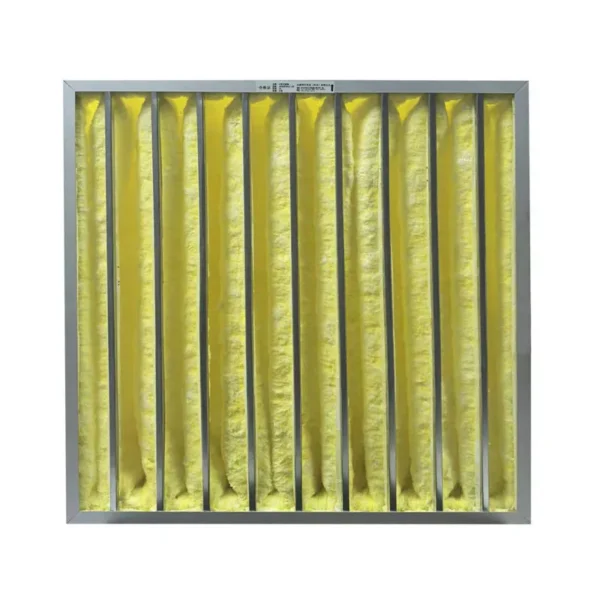

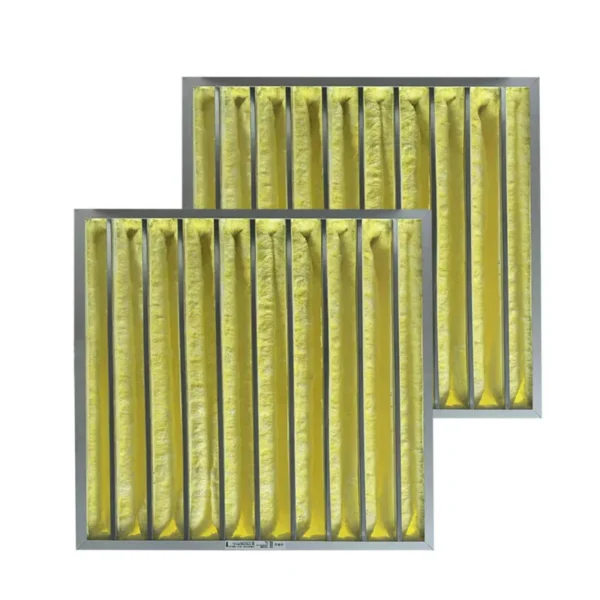

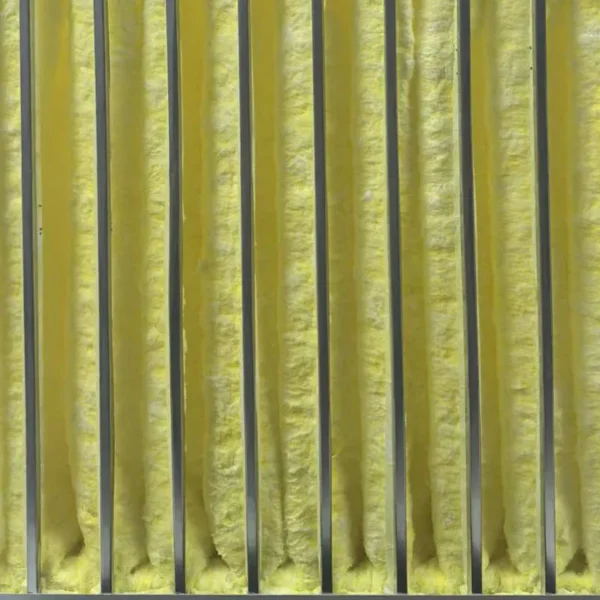

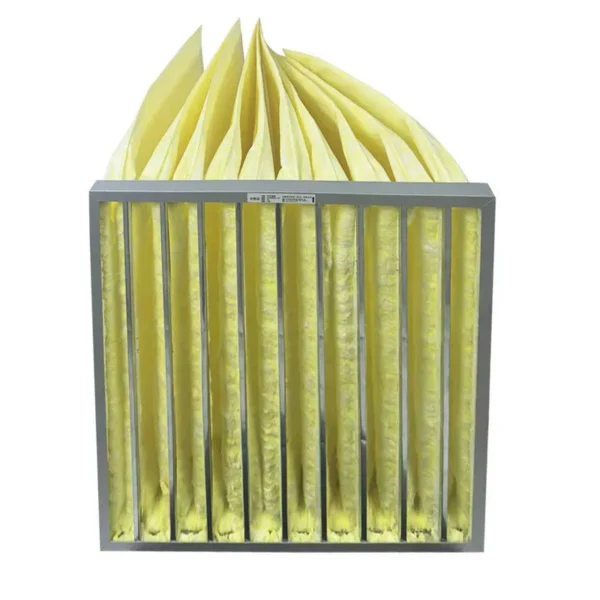

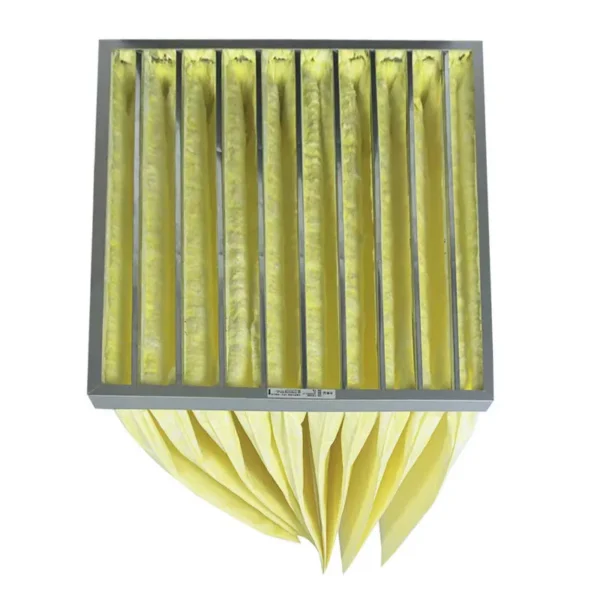

● Sturdy all metal frame structure ●Optimized V-shaped filter bag structure with low resistance and long service life ●Ultra fine glass fiber filter material, with stable efficiency throughout its entire service life

Material List

Frame: Aluminum alloy frame/Stainless steel frame/Galvanized frame Frame optional thickness: 21mm, 25mm, 46mm Filter Material: Glass Fiber Filter Bag Inner Frame Connection Process: Buckle Strip Connection angle: sturdy, heat-resistant ABS plastic angle/aluminum alloy angle

Efficiency

●M6, F7,F8, F9 (EN779)

Applicable conditions

● Maximum temperature: 150 ℃ (302 °F)

Product Application

●M6 is the main filter for commercial and industrial ventilation and air conditioning systems, and the pre filter for clean room ventilation and air conditioning systems; ●F7 and F8 are the main filters for commercial, industrial, and cleanroom ventilation and air conditioning systems

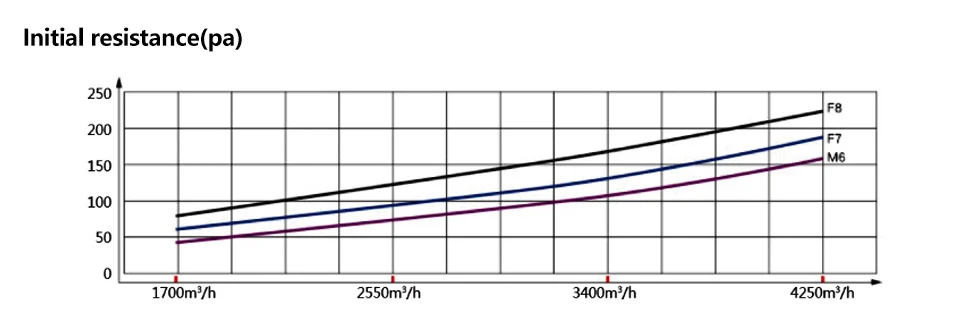

Initial resistance air flow relationship curve graph

Actual dimensions W * H * D (mm)	Number of bags (pieces)	Filter material area (m ²)	Rated air volume (m ³/h)	Efficiency
592*592*600	8	6	3400	M6
490*592*600	6	4.5	2800	M6
287*592*600	4	3.1	1700	M6
490*490*600	6	3.8	2380	M6
592*592*600	8	6	3400	F7
490*592*600	6	4.5	2800	F7
287*592*600	4	3.1	1700	F7
490*490*600	6	3.8	2380	F7
592*592*600	8	6	3400	F8
490*592*600	6	4.5	2800	F8
287*592*600	4	3.1	1700	F8
490*490*600	6	3.8	2380	F8

Initial resistance at different air volumes (Pa)
50%	75%	100%	125%
43	72	110	154
43	72	110	154
43	72	110	154
43	72	110	154
58	93	138	191
58	93	138	191
58	93	138	191
58	93	138	191
80	120	169	224
80	120	169	224
80	120	169	224
80	120	169	224

Remarks: ① The initial resistance tolerance for performance is ± 10%. ② Special dimensions can be provided for production

Q: What is your delivery time?

A:(1) Under normal circumstances, if the goods are in stock, the samples will be sent by courier
immediately within 3-7 days.

(2) Usually within 30 days, please confirm with us before ordering!

Q: What are the payment terms?

A: Generally, customers need to pay 30% as a deposit; 70% before shipment;

Q: Can you produce according to samples?

A: Yes, we can produce according to your samples or technical drawings. We will make molds and fixtures.

Q: What is your sample policy?

A: If we have stock, we can provide samples, but the customer must pay the sample fee and express delivery fee.

Q: Do you test all goods before delivery?

A: Yes, we undergo 100% professional testing before shipment.

Q: How do you make our business build a long-term good relationship?

A: We maintain good quality and competitive prices to ensure that our customers benefit.

Q: Are you a manufacturer or a trading company?

A: We are a real factory. We have internationally advanced equipment, first-class product testing methods, quality certification system and modern lean production management team. Products have undergone strict supervision and inspection.

Ordering and Pricing

• Minimum order quantity: 50 piece
• Volume pricing:
  • 50–119 piece: US $8.9 / piece
  • 120–399 piece: US $7.8 / piece
  • 400+ piece: US $6.7 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dawei Purification Technology (Hebei) Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dawei Purification Technology (Hebei) Co., Ltd. range on HVACR Nexus.
