Key specification for this all-in-one condensing unit: 220 V, 380 V, refrigerant R507, R-404A, R448. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.

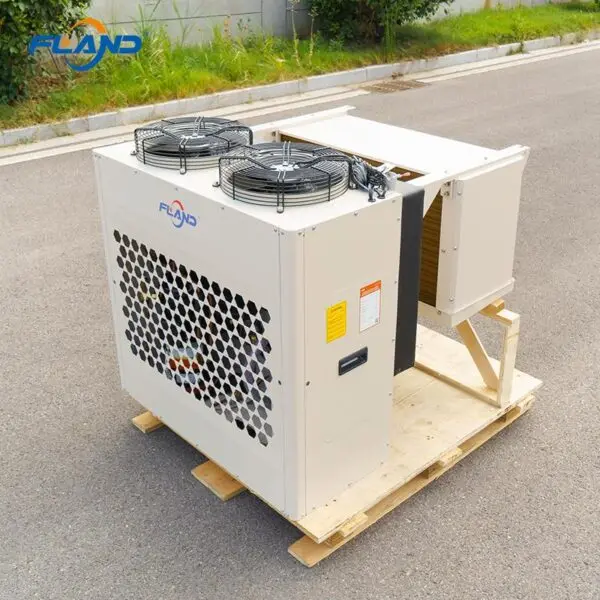

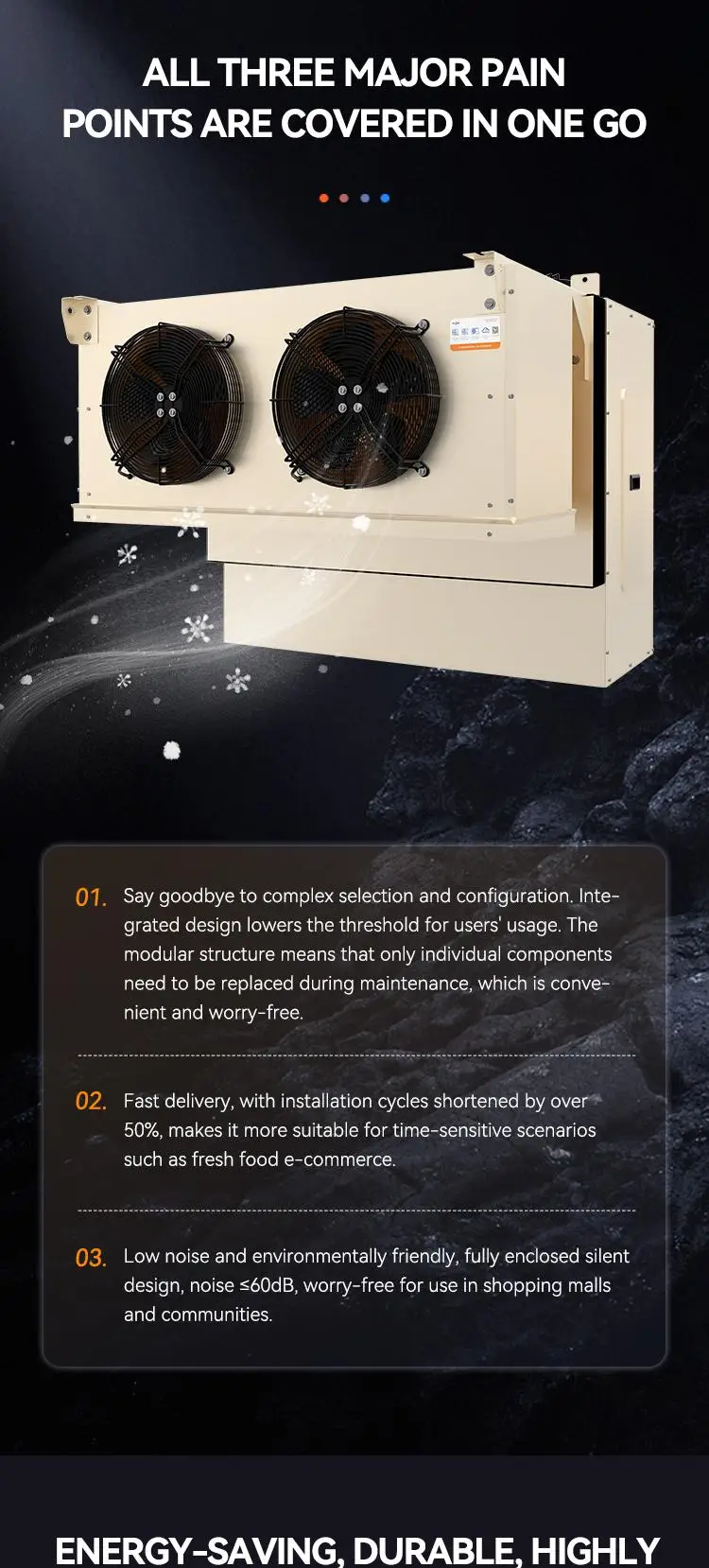

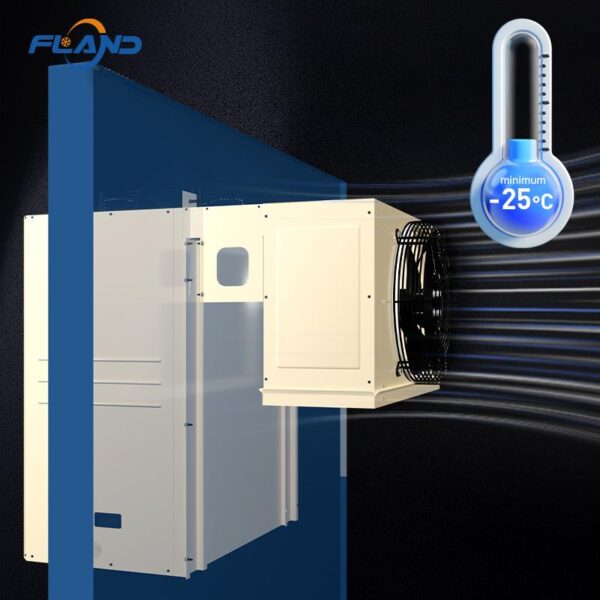

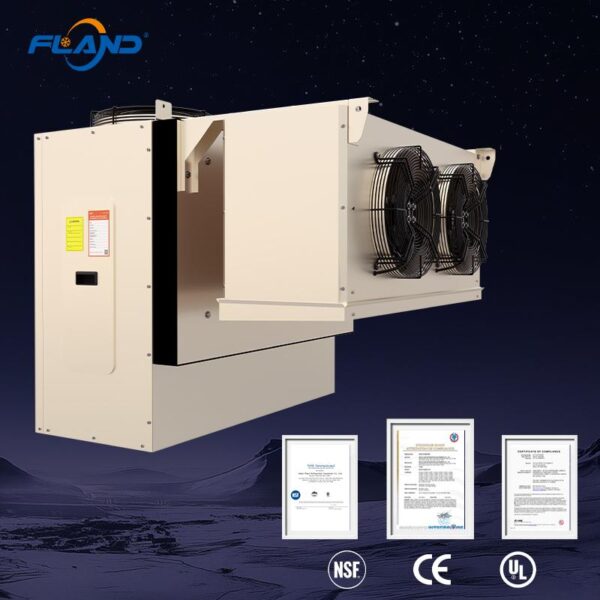

A screw compressor in a compact all-in-one condensing unit is unusual — screws normally appear only at much larger capacities — and it is where the quiet running comes from, since a screw has no reciprocating mass to generate vibration. Invotech screw covering -25C to 20C on R507, R-404A or R448, at 220V or 380V, designed for straightforward installation without specialist plant.
Key Features of This All-In-One Condensing Unit
- Voltage: 220 V, 380 V
- Refrigerant: R507, R-404A, R448
- Warranty: 1 Year
- Place Of Origin: Anhui, China
- Compressor Type: Screw
- Single Package Size: 91X103X95 cm
Technical Specifications
| Temperature | -25~20℃ |
|---|---|
| Compressor Brand | Invotech |
| Compressor Type | Screw |
| Key Selling Points | Eco-Friendly, Automatic, Easy To Operate, High-Accuracy, Competitive Price, High Productivity, Remote Monitoring, Long Service Life, Remote Control |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Pump |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R507, R-404A, R448 |
| Place Of Origin | Anhui, China |
| Weight (KG) | 150 |
| Dimension(L*W*H) | 1200X230X230 cm |
| Selling Units | Single item |
| Single Package Size | 91X103X95 cm |
| Single Gross Weight | 150.000 kg |
Specifications
requirements.It applies to different products from 1 Tons to 2,500 Tons or more. The temperature can be customized from-60°C~+20℃
|
Customized Service
|
||||||
|
Application
|
Products
|
Temperature
|
Power Supply
|
|||
|
Ripening
|
Banana,Mango,Mushroom,etc.
|
5～15°℃
|
220V-1Phase-50HZ,
380V-3Phase-50HZ,220V-1Phase-60HZ, 220V-3Phase-60HZ, 440/480V-3Phase-60Hz. |
|||
|
Fresh Keeping
|
Fruits,Vegetables,etc.
|
0~-5℃
|
||||
|
Cooling
|
Meat,fish,ice,etc.
|
-10~-20℃
|
||||
|
Freezing
|
Meat,Fish,etc.
|
-18~-25℃
|
||||

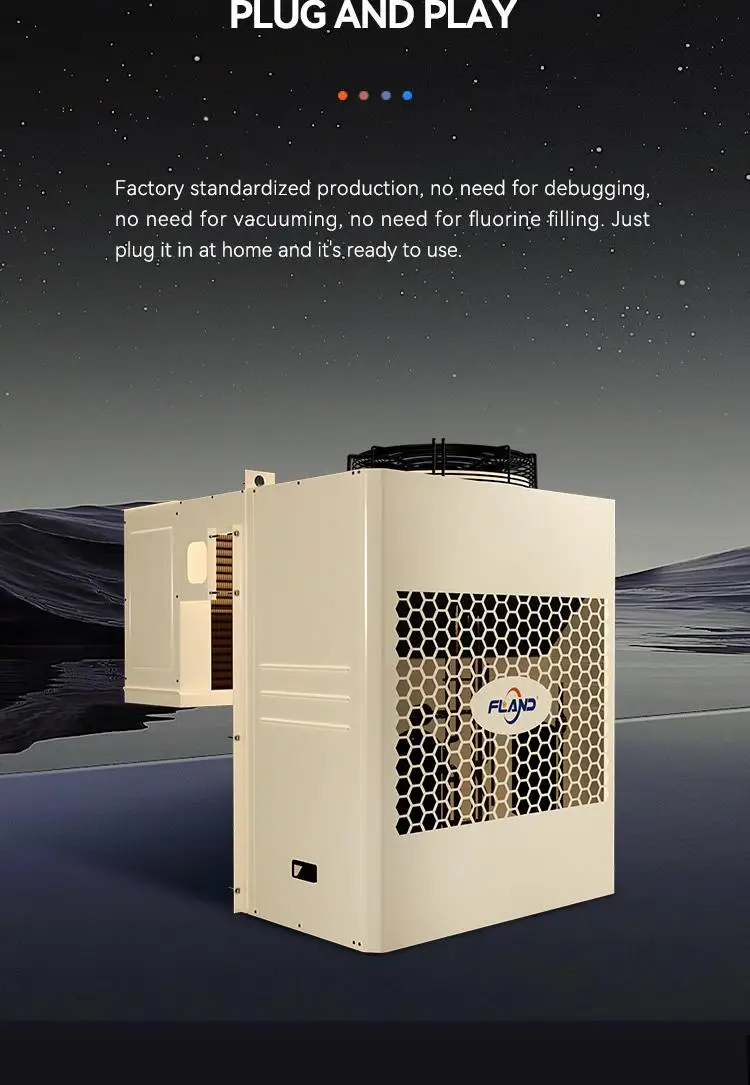

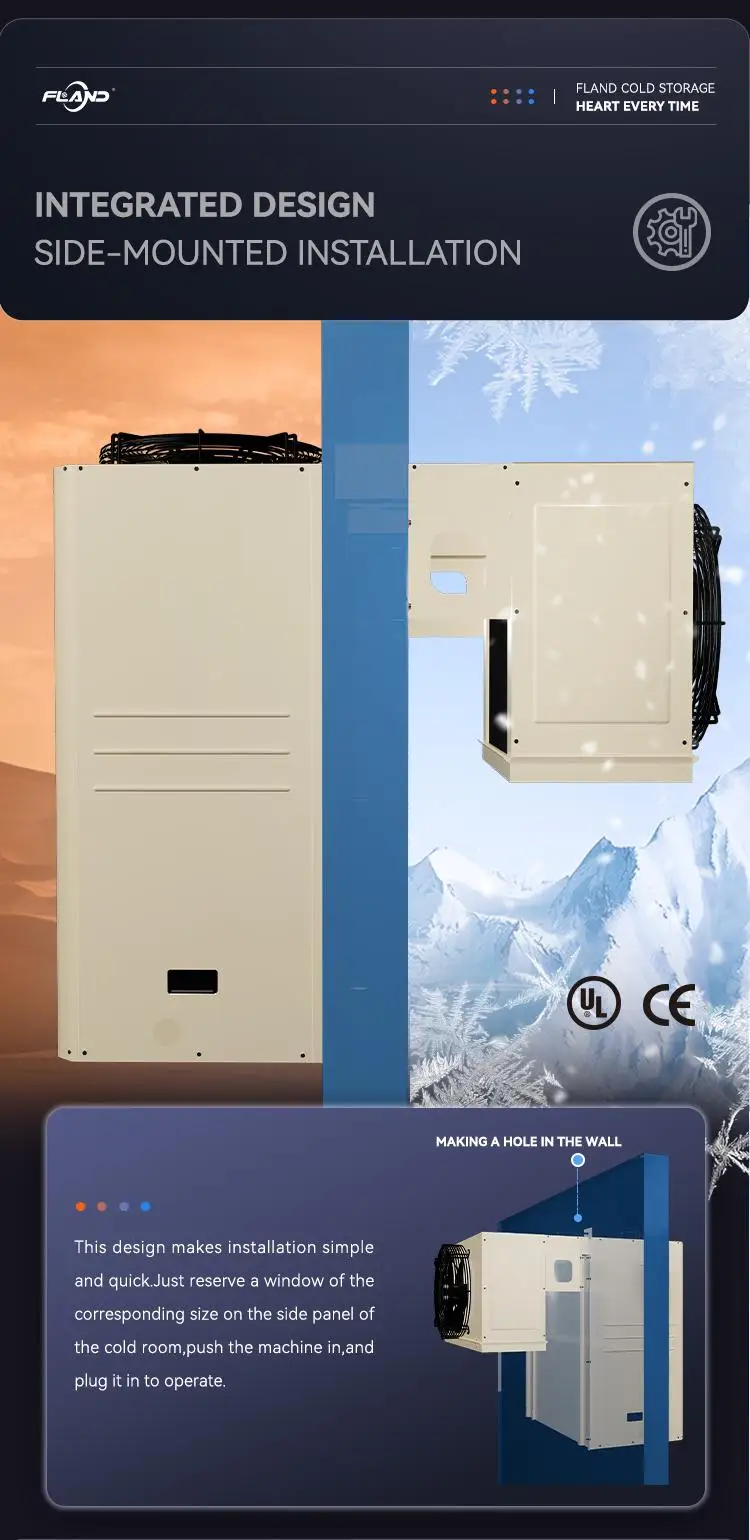

*Intergrated modular assembly, factory pre-equipped refrigeration parts and electrical components, etc.
*Compacted structure, easy to install and maintain.

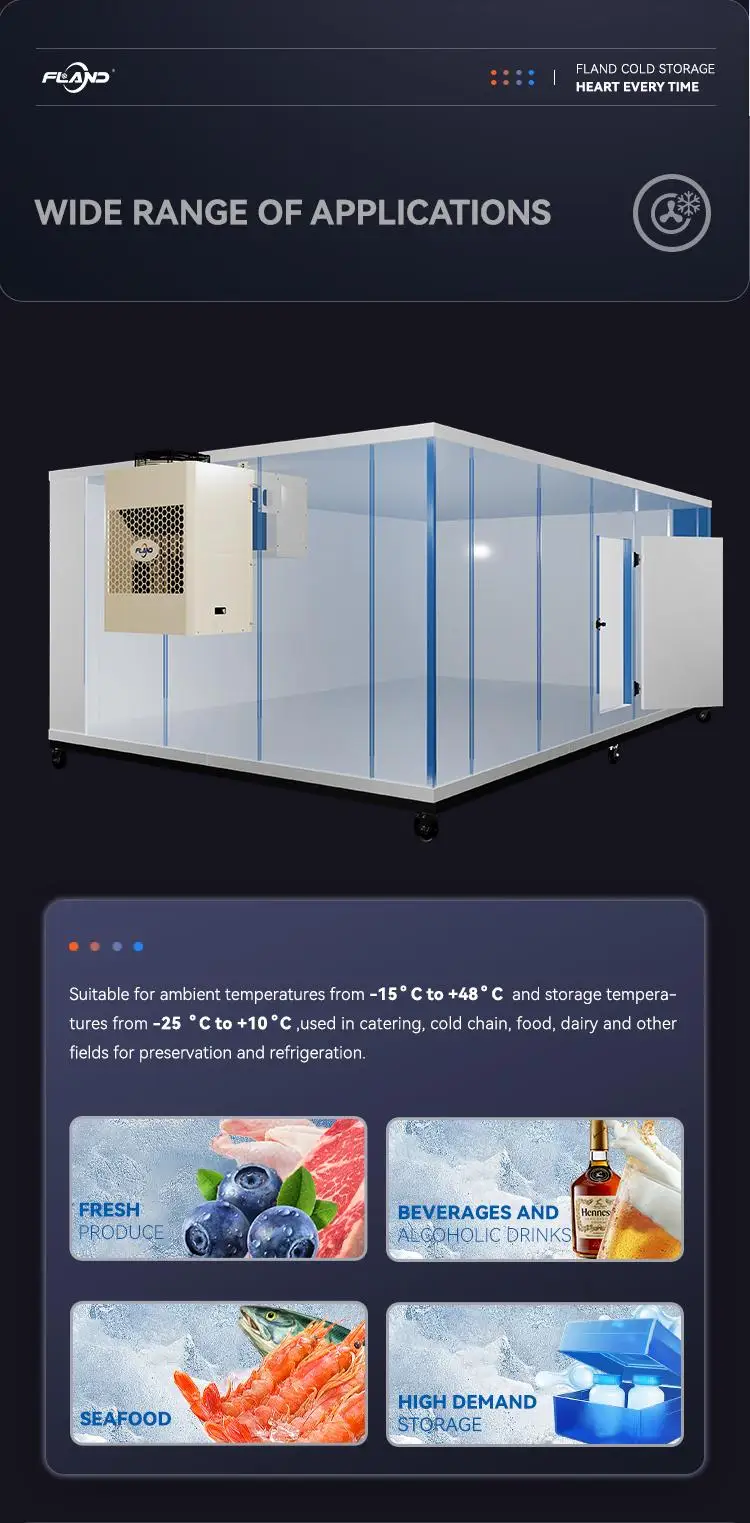

*Widely used in Restaurants, shops, shopping malls, cold storage and other place.
*Whole unit needs to install in a shell for accessories protection.
Configuration:
*Compressor, Condenser, Axial fan with external rotor, liquid receiver, HP/LP controller, HP/LP gauge, dry filter, solenoid valve,sight glass, check valve, junction box, etc.
*All unit based on evaporating temperature -25℃, condensing unit temperature 40℃.
*Compressor and accessories brand depends on customers inquiry.
*Compressor refrigerant: R404a.
*1.5hp to 40hp for low temperature;
*1.5hp to 40hp for high temperature.
*Bitzer semi-hermetic two stage compressor
Cold Room Condenser
We have H type, V type and W type with different width/length and different air direction to meet your different needs.Condenser
can be used in different kinds of compressor; Different alternative condensing units available
Refrigeration Machine package : Plywood Box / Hard Carton
FAQ
A: Original new Bitzer , Copeland etc.
2. Q: What is your cold storage size cold room freezer?
A: Our cold room dimension can be customized according to your requirements , kindly tell us your requirements ,or tell us the
total amount , our designer will design it for you.
3. Q: What is your delivery time of cold room freezer?
A: Our delivery time is around 7~25 work days.
4. Q: How long is the warranty period of cold room freezer?
A: Our warranty is 1 year . But if you have any problems even more than 1 year , please kindly let us know , we will try our best to solve the problems for you. We have exported our products to many countries , we are confidence of our product.
Frequently Asked Questions
What is the minimum order quantity for this all-in-one condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this all-in-one condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220 V, 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
