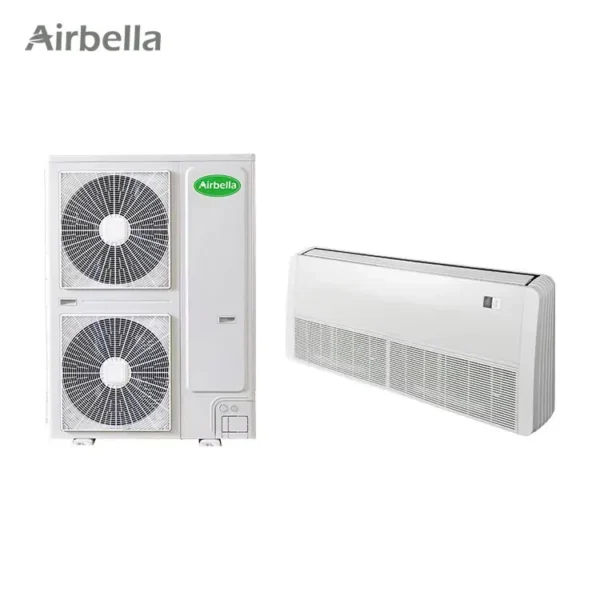

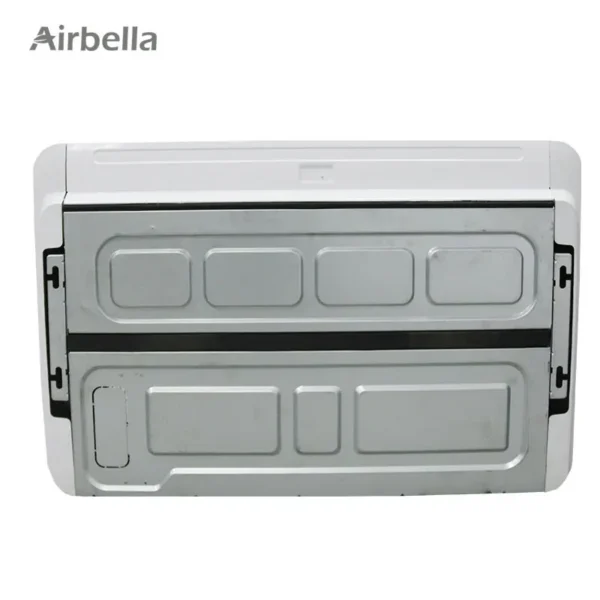

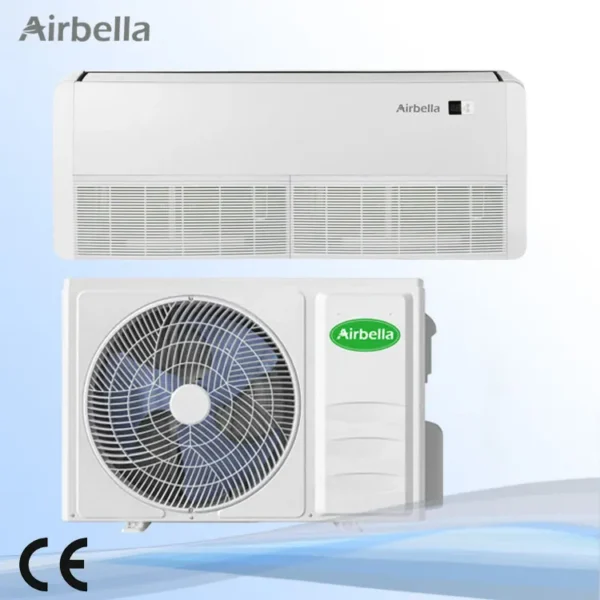

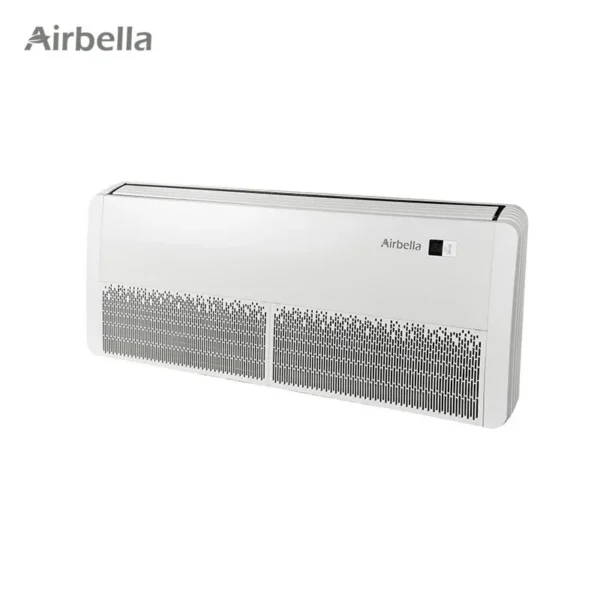

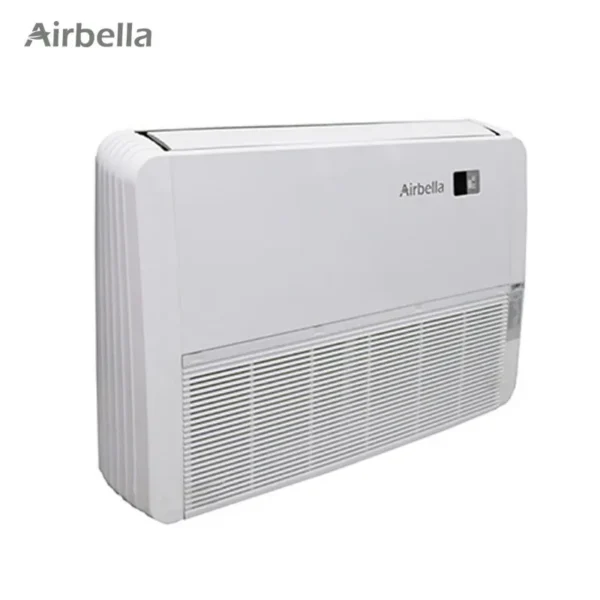

Floor Ceiling Air Conditioner, 36000, 50hz

Floor ceiling air conditioner — power supply 220~240V/50Hz, capacity 36000. The complete factory specification follows. Made by Foshan Peile Engineering Technology Co., Ltd. (3 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Floor Ceiling Air Conditioner

• Power Type: AC
• Power Source: Electric
• Power (W): 36000
• Power Supply: 220~240V/50Hz
• Capacity (Btu): 36000
• Refrigerant: R410A

Technical Specifications

Product Details

Model					AOSN-12HA1XG	AOSN-18HA1XG	ACRN-24HA1XG	ACRN-36HA1XG	AOSN-36HB3XG	AOSN-48HB3XG	AOSN-60HB3XG
Outdoor power supply			V/Ph/Hz	220~240/1/50	220~240/1/50	220~240/1/50	220~240V/1Ph/50Hz	380~415/3/50	380~415/3/50	380~415/3/50
Cooling	Capacity	Btu/h	12000	18000	24000	36000	36000	48000	60000
				KW	3.5	5.3	7.1	10.5	10.5	14	16
		Power Input	W	1290	1900	2400	3600	3800	5000	5700
		Rated current	A	5.5	8.26	10.6	16	6.9	8.2	10
Heating	Capacity	Btu/h	13200	20000	26000	39000	39000	52000	60000
				KW	3.9	5.9	7.7	11.4	11.5	15.2	16
		Power Input	W	1270	1690	2100	3400	3600	5100	5800
		Rated current	A	5.5	7.35	9.2	15	6.5	8.4	10.2
Max. input consumption			W	1610	2500	2700	4900	4900	6000	6600
Max. current			A	8.7	12.6	13.9	26.5	10.3	10.5	11.8
Starting current			A	35	48	60	/	42	72	85
Compressor	Model			QXA-B15E030	WHP06800ASV-C7EQ	QXAH-E25H050A	QXAS-F356N450	QXAS-F356SN450	LN51Y	QXAS-H59SN345B
		Type			ROTARY	ROTARY	ROTARY	Rotary	ROTARY	ROTARY	ROTARY
		Brand			Landa	HIGHLY	Landa	Landa	Landa	MITSUBISHI	Landa
		Capacity	Btu/h	12000	17201	21510	30000	30000	42720	51860
		Input	W	1270	1750	2063	2980	2910	4125	4900
		Rated current	A	5.94	8.2	9.1	13	5.3	7.2	9.0
		Locked rotor Amp	A	33.5	45	56	67	45	32	72
		Thermal protector			Internal	Internal	Internal	Internal	Internal	Internal	Internal
		Capacitor	μF	35	60	60	60	/	/	/
		Refrigerant oil	ml	320	480	600	1050	1050	900	1700
Outdoor fan motor	Model			YDK-40-6P3-AL-01	YDK-40-6P3-AL-01	YDK-75-6P3-AL	YDK-90-6P3-1	YDK-90-6P3-1	YDK-60-6P3-2*2	YDK-60-6P3-2*2
		Output	W	40	40	75	90	90	60*2	60*2
		Capacitor	μF	3	3	3	5	5	4	4
		Speed	r/min	890	890	890	820	820	780	780
Outdoor coil	Number of rows			1	1	1	2	2	1	1
		Tube pitch(a)x row pitch(b)	mm	21	25	25	21*15.75	21×19.4	25	25
		Fin spacing	mm	1.5	1.4	1.4	1.6	1.6	1.6	1.6
		Fin type			Hydrophilic	Hydrophilic	Hydrophilic	Hydrophilic	Hydrophilic	Hydrophilic	Hydrophilic
		Tube outside dia. and type	mm	φ7	φ9.52	φ9.52	Ф7	φ7	φ9.52	φ9.52
						inner grooved	inner grooved	inner grooved	inner grooved	inner grooved	inner grooved	inner grooved
		Coil length×height×width	mm	760×504×13.37	760×500×22	785×650×21.65	1002*756*38.8	1002×756×38.8	810×1275×21.65	810×1275×21.65
		Number of circuits			2	2	2	5	5	6	6
Outdoor air flow			m3/h	2000	2200	3400	3800	3800	6100	6100
Outdoor noise level			dB(A)	55	55	56	56	56	60	60
Outdoor unit	Dimension(W*H*D)	mm	850×555×345	850×555×345	914×702×382	1015×810×445	1015×810×445	911×1330×400	911×1330×400
		Packing(W*H*D)	mm	915×600×380	915×600×380	975×770×435	1075*890*495	1075×875×495	964×1445×402	964×1445×402
		Net/Gross weight	kg	31/34	36/38.5	52/55	65/70	67/71	83/92	91/100
Refrigerant type/quantity			g	R410A/800	R410A/1000	R410A/1400	R410A/2300	R410A/2300	R410A/2700	R410A/2700
Throttle part			capillary	capillary	capillary	capillary	capillary	capillary	capillary
Design pressure		MPa	4.0/1.2	4.0/1.2	4.5/1.5	4.9/1.5	4.9/1.5	4.2/1.2	4.2/1.2
Max pressure		MPa	4.0	4.0	4.5	4.9	4.9	4.5	4.5
Connection wiring	Outdoor Power Supply		From indoor unit	From indoor unit	Power supply individually for indoor and outdoor
		Power wiring	mm2	3×1.5	3×2.5	3×2.5/3×1.0	3×2.5/3×1.0	5×1.5/3×1.0	5×2.5/3×1.0	5×2.5/3×1.0
		Signal wiring	mm2	5×1.5	5×1.5	RS485 twisted shielded wire pair 2×0.5
Refrigerant piping	Liquid side/Gas side	mm	6.35/12.7	6.35/12.7	9.52/15.88	9.52/19.05	9.52/19.05	9.52/19.05	9.52/19.05
		Max. pipe length	m	15	15	20	20	20	20	20
		Max. high drop	m	8	8	10	10	10	10	10
Ambient temp.	Cooling	°C	18～50	18～50	18～50	18～50	18～50	18～50	18～50
		Heating	°C	-7～24	-7～24	-7～24	-7～24	-7～24	-7～24	-7～24

Q:Are you a manufacturer or trading company? A:We are a manufacturer that specialized in refrigeration equipment. And we will do our best to show you the best quality, fastest delivery and highest credit to you.

Q: How about the delivery time? It depends on your quantity. Generally, it takes 45-60 days after receiving your deposit.

Q:How is your afer-sales service? A: We provide 1 year warranty, and 3 years for compressor, and we always provide 1% spare parts For Free.And we will supply the technical supportafer the warranty time. You can contact us 24 hours each day online.

Q:How can l get some samples? A: We welcome sample order to test and check quality. We can't offer free sample.please pay the sample and express fee.

Q: How about the packing? A: packed in carton, can customized different logo according to customers' requirements.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–1 piece: US $763 / piece
  • 2+ piece: US $691 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this floor ceiling air conditioner?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the floor ceiling air conditioner be supplied for my local voltage?

The standard configuration is 220~240V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Peile Engineering Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Foshan Peile Engineering Technology Co., Ltd. range on HVACR Nexus.
