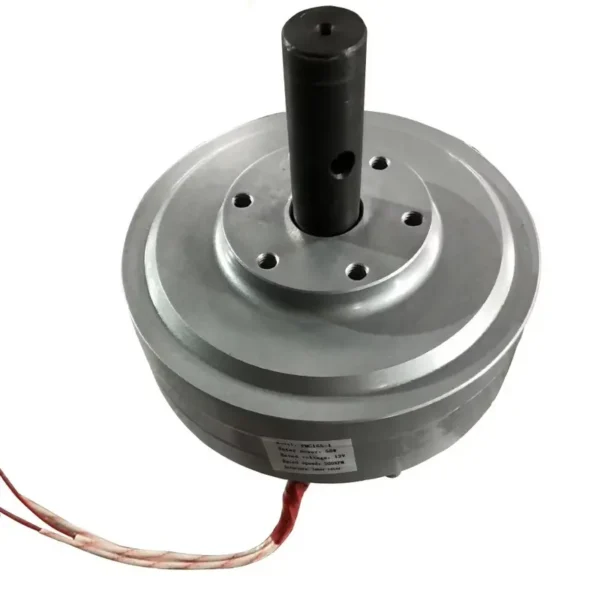

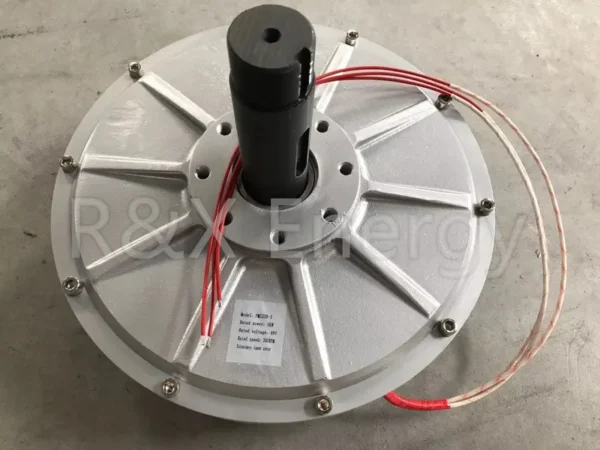

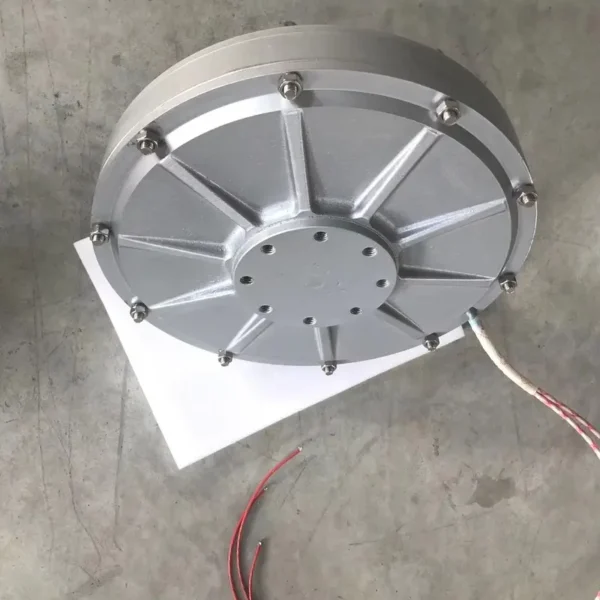

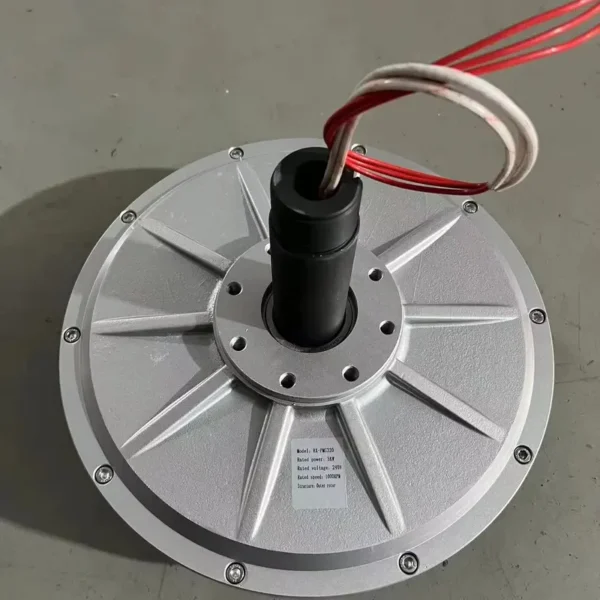

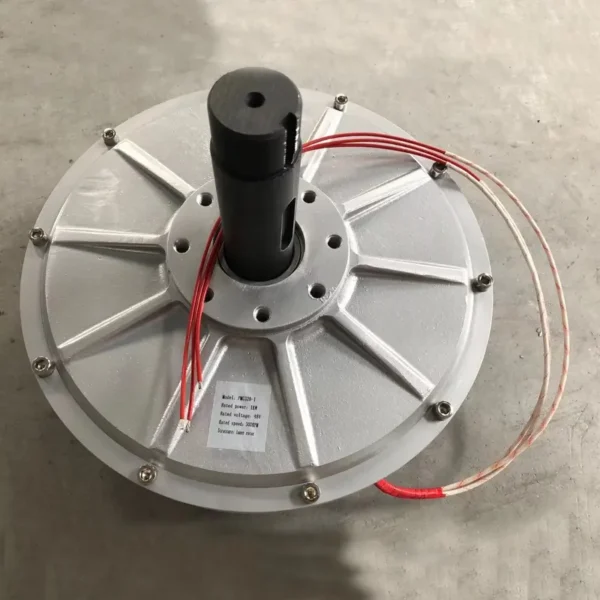

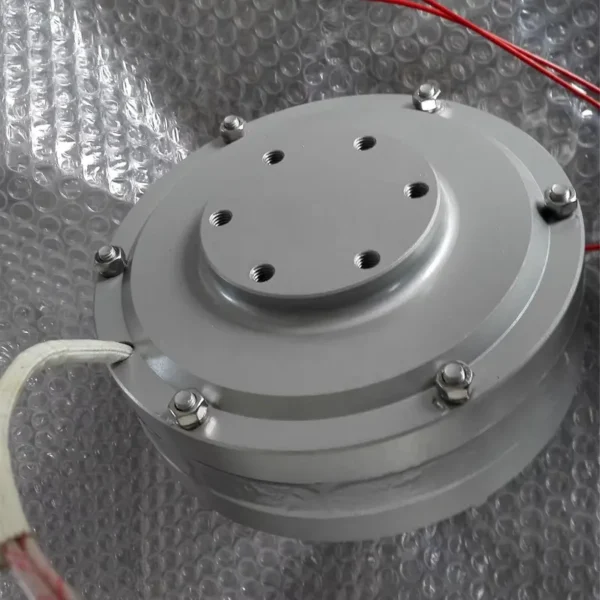

Flux permanent magnet generator — 12V 24V, 500RPM. The complete factory specification follows. Made by Wuxi Smaraad New Energy Technology Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Flux Permanent Magnet Generator
- Rated Power: 100W
- Rated Voltage: 12V 24V
- Speed: 500RPM
- Warranty: 5 Years, 5years
- Certification: CE
- Place Of Origin: China
Technical Specifications
| Place Of Origin | China |
|---|---|
| Brand Name | SMARAAD |
| Rated Voltage | 12V 24V |
| Speed | 500RPM |
| Frequency | 50 |
| Rated Power | 100W |
| Application | Electricity Generation |
| Generator Type | Disc Coreless Permanent Magnent Generator |
| Warranty | 5 Years, 5years |
| Customized | Yes |
| Certification | CE |
| Selling Units | Single item |
| Single Package Size | 18X18X18 cm |
| Single Gross Weight | 4.2 kg |
Product Details
Rated Power | 100W |
Rated RPM | 500 |
Rated Voltage | 24V |
Rated Current | 7.2A |
Efficiency | >95% |
Resistance (Line-Line) | – |
Winding type | Y |
Insulation Resistance | 100Mohm Min(500V DC) |
Leakage level | <5 ma |
Start torque | <0.1NM |
Phase | Three Phase |
Structure | Inner rotor |
Stator | Coreless |
Rotor | Permanent magnet type (outer rotor) |
Permanent magnet type (outer rotor) | 165mm |
Gen. Length | 154mm |
Gen. Weight | 5.0kg |
Shaft. Diameter | 20mm |
Housing Material | Aluminum ( Alloy ) |
Shaft Material | Steel |
Note | We can customize any voltage and any rpm according to customers' requirement |
2、Our factory was established in 2015, more than 10 years experiences in manufacturing products can help you solve the difficulties in the production process.
3、We have a professional quality inspection department, strict production of each product.
Quality service
1、We provide you with one-stop purchasing service, matching the most suitable system products for you, so as to solve your energy problems.
2、Provide professional technical consultation.
3、We have multiple overseas warehouses to supply your goods nearby.
4、Respond online 24 hours a day.
Rich experience
1、More than 10 years experience in export department.
2、Offer the most competitive price for large purchase orders.
3、We have our own R&D team to provide customization service and new arrival per each 3 month.
600w wind turbine
1kw wind turbine
1kw demo sample in AU
3kw VAWT in Anhui
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $185 / piece
- 50–99 piece: US $165 / piece
- 100+ piece: US $155 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this flux permanent magnet generator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 Years, 5years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this flux permanent magnet generator carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the flux permanent magnet generator be supplied for my local voltage?
The standard configuration is 12V 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Smaraad New Energy Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Smaraad New Energy Technology Co., Ltd. range on HVACR Nexus.
