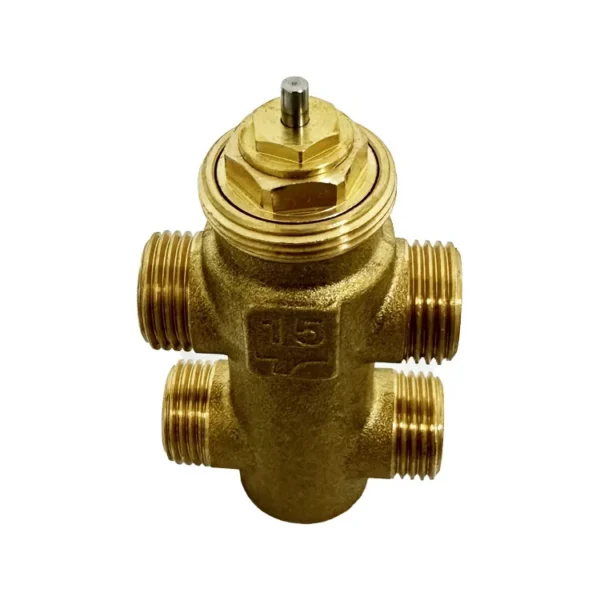

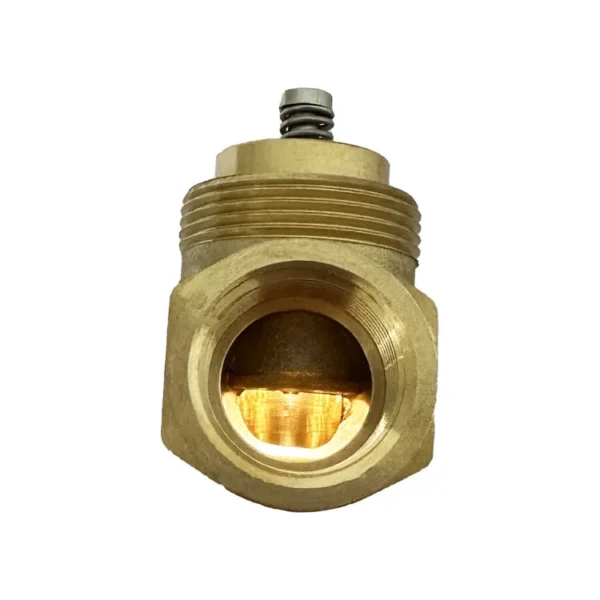

Four Outlet Fan, 3-way, 230VAC, Electric

The four outlet fan listed here carries voltage 230VAC, power Electric, documented exactly as the manufacturer publishes it. Made by Navarch (Jinan) Intelligent Equipment Co., Ltd. (4 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Four Outlet Fan

• Model Number: 300 Series
• Power: Electric
• Voltage: 230VAC
• Ball Material: Bronze
• Body Material: Forging brass
• Warranty: 1 years

Technical Specifications

Product Details

Product Parameter

MATERIALS AND TECHNICAL DATA
Maximum pressure,constant Kv models	16 bar
Maximum pressure,variable Kv models	10 bar
Minimun fluid temperature	4℃
Maximum fluid temperature	110℃
Usable fluids	Water (with glycol ≤50%)
Disc stroke	2.5 mm
Bypass leakage	<0.02% Kvs
Actuator connection	M30x1.5
Body	Forging brass
Stem	Stainless steel
Spring	Stainless steel
Disc rubber	EPDM

SPECIFICATION AND TECHNICAL DATA

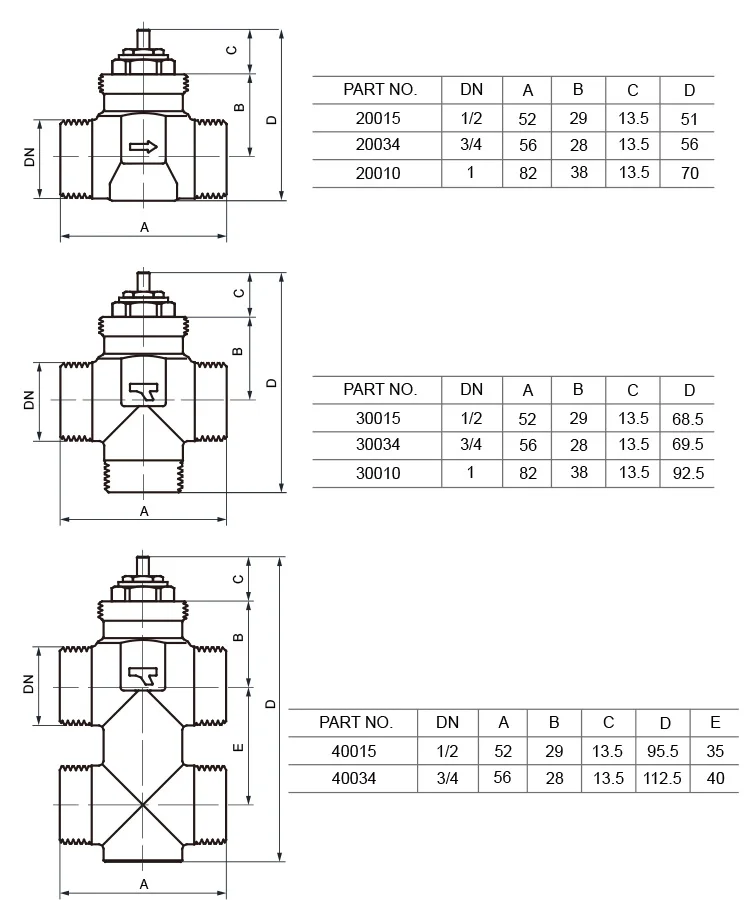

MODEL	VALVE TYPE	FLOWRATE (Kvs) DIRECT WAY	FLOW RATE(Kvs) BYPASS	CLOSING-OFF PRESSURE(bar)	CONNECTIING SIZE
20015	2-way valve	1.7	/	2.5	G1/2
20034			2.8	/	1.5	G3/4
20010			4.5	/	0.7	G1
30015	3-way valve	1.7	1.3	2.5	G1/2
30020			2.8	1.8	1.5	G3/4
30025			4.5	3.1	0.7	G1

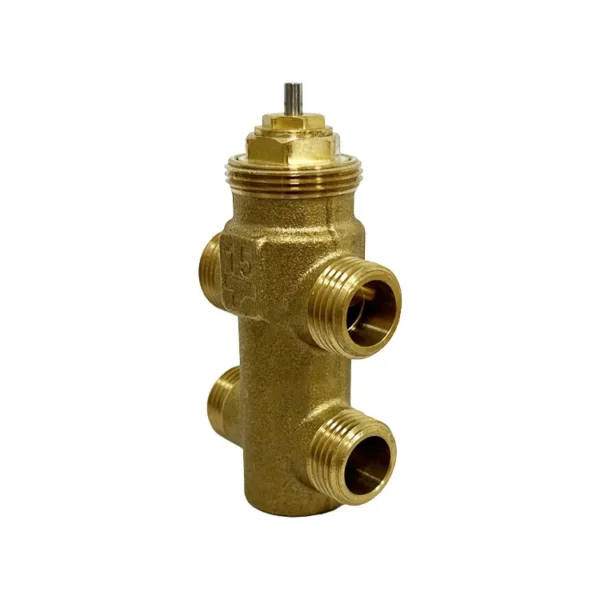

40015	3-way with bypass valve(4 outlet)	1.7	1.3	2.5	G1/2
40020			2.8	1.8	1.5	G3/4

Product advantages：

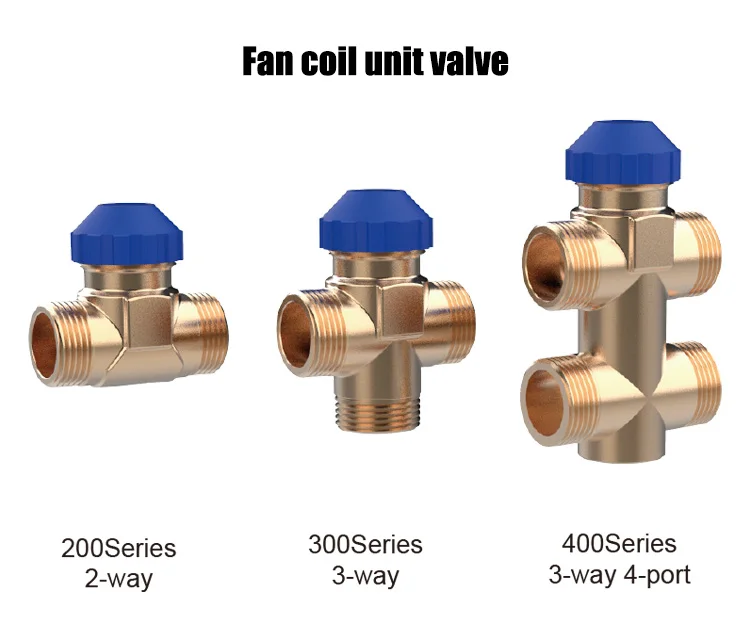

1. Application Used to control the flow of hot or cold water in heating and air conditioning systems. Effective stroke -2.5mm(matched with electric heating actuator) 2. Standard configuration: External thread: 200 series 2-way; 300 series three-way connectors The 400 series features 3 channels and 4 ports with built-in bypass. 3. The valve disc is operated by an electric heating actuator and comes in the following models: · No (normally open), 2-wire (standard) or 4-wire (with auxiliary microswitch contacts); · NC (normally closed), 2-wire (standard) or 4-wire (with auxiliary microswitch contacts). Note: All actuators can be easily fixed on the valve body through threaded ring nuts (m30 × 1.5)

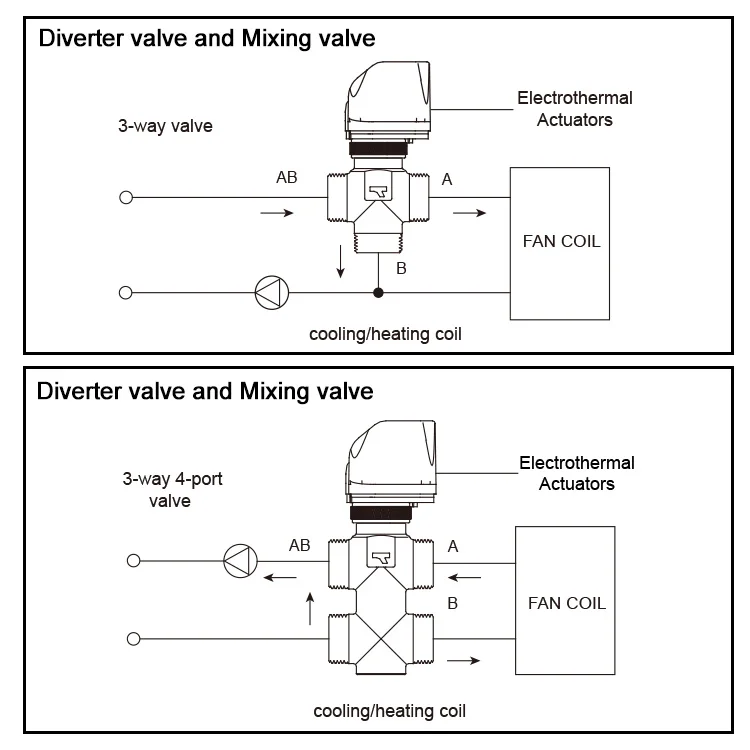

Installation direction diagram

Usage operation

The valves are of Normally Open type and can be adjusted or fully closed by manually turning the threaded plastic cap,which controls the valve stem. When used in conjunction with NC actuators, in rest conditions (actuator not energised), the valve becomes normally closed (NC) (straight way closed and bypass open if 3-way type): if the actuator is energised, the valve opens. When used in conjunction withNO actuators, in rest conditions (actuator not energised), the valve remains normally open (NO)(straight way open and bypass closed if 3-way type): if the actuator is energised, the valve closes. The fluid flow rate and pressure drop of the valves can be determined from the flow curves. In conjunction with ON/OFF actuators, however, they assume the characteristics of the device in question. The 3-way (or 3-way 4-port) valves are designed and manufactured for use as either diverter valves (one inlet and two outlets) or mixing valves (two inlets and one outlet). Observe the maximum operating pressure shown in the table to avoid possible malfunctions and/or noise. The reliability of the 200, 300 and 400 Series fan coil control valves is guaranteed by the fact that every single product is tested to ensure the outward pressure tightness of the valve body and its components, and the pressure tightness of the disc when it shuts off the flow.

Our Advantages

Product Application

Related Products

Company Profile

Packing&Shipping

Q: Are you a trading company or a source factory?

A: We are a factory with our own R&D team and processing plant.

Q: Can you customize the product according to my requirements?

A. Yes. We can customize products for you.

Q: Can we accept small sample orders?

A: Of course.

Q: Do you have more valve products?

A: Our factory produces all kinds of electric valves, control valves, ball valves, butterfly valves and so on.

Q: Can we visit your factory?

A: Of course, we sincerely invite you to visit our factory.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this four outlet fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.

Can the four outlet fan be supplied for my local voltage?

The standard configuration is 230VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
