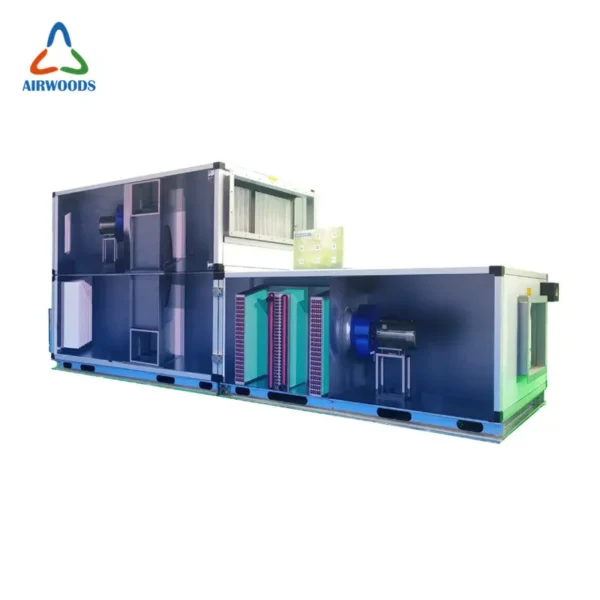

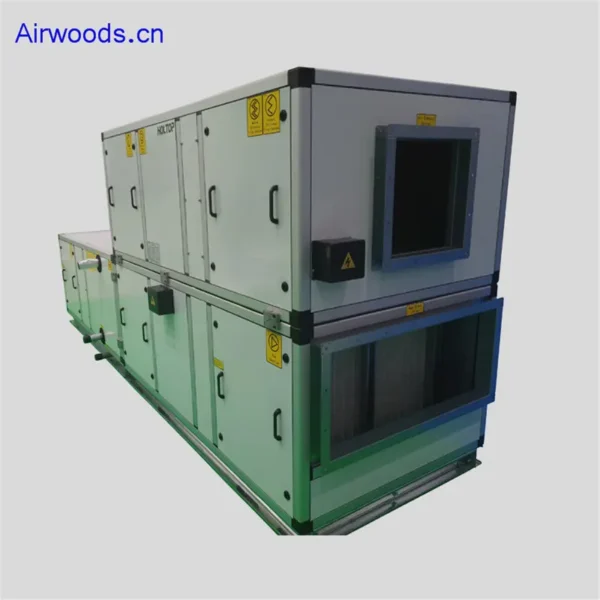

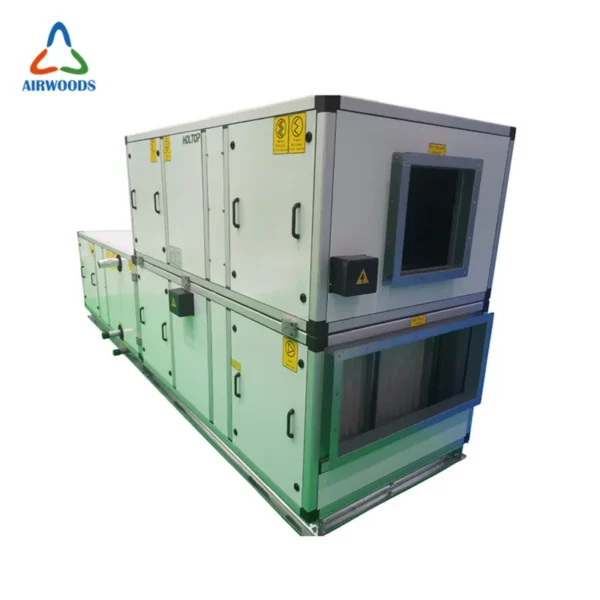

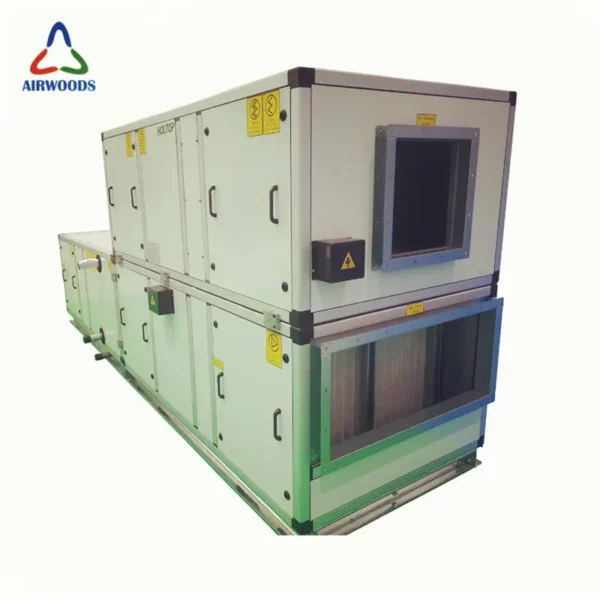

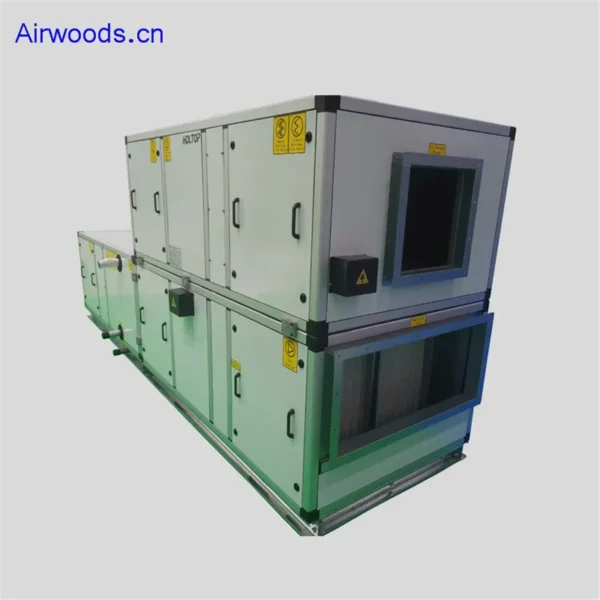

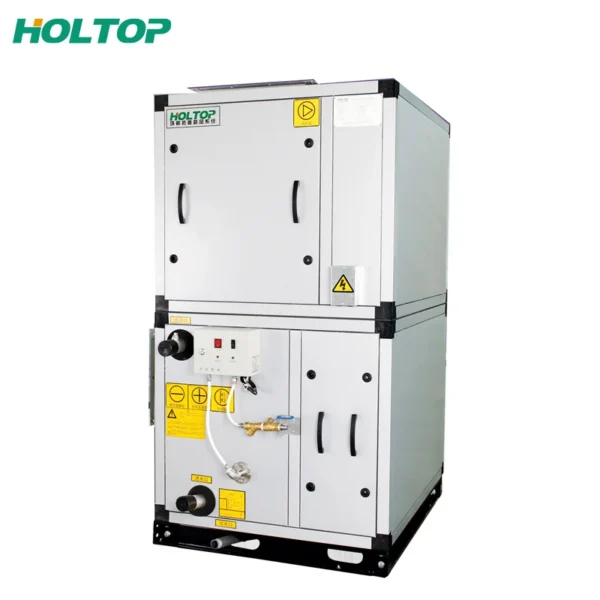

The air handling unit listed here carries airflow 2000~50000m3/h, type Air Handling Unit, documented exactly as the manufacturer publishes it. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Handling Unit
- Cooling Capacity Range: 27.4~605.1Kw
- Heating Capacity Range: 30.7~663.9Kw
- Airflow: 2000~50000m3/h
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Ceiling mounted or floor standing |
| Fan Motors Type | AC |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, PLC |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1000 |
| Brand Name | Airwoods / Benclimate / Holtop |
| Dimension(L*W*H) | customized size |
| Airflow | 2000~50000m3/h |
| Cooling Capacity Range | 27.4~605.1Kw |
| Heating Capacity Range | 30.7~663.9Kw |
| Humidifier Type | Wet film/dry steam/double gasified/electrode/electricity heating |
| Filter Class | G4+F7+H10+H13 |
| Key Word | hygienic ahu |
| Fan Type | direct driven/belt driven/AC/EC plug fan |
| Insulation Thickness | 25/50mm |
| Air To Air Heat Recovery Device | Sensible/Enthaply heat wheel |
| Application | Printing factory/cinema/supper marekt/restaurant/Offfice/Kindergarten |
| Selling Units | Single item |
| Single Package Size | 200X100X80 cm |
| Single Gross Weight | 800.0 kg |
Product Details
Cheap Price Hygienic Ahu Modular Customized Air Handling Unit
We are BAQ (Building Air Quality)Integrated Solutioner Specialist
Mainly cover below sectors:
Turn-Key Engineering Project
Building HVAC solution (residential & commercial)
Manufacturing Process HVAC Solution
Clean Room Solution (pharmaceutical, electric, food process, laboratory, etc.)
VOCs Solution (volatile organic compounds)
Modern Agriculture (Mushroom, Hatchery, etc.)
Product name | Air handling unit chiller refrigerator | ||||
Material | Stainless steel | ||||
Function | Heat recovery,adjust cold/heat/humidity | ||||
Application | Home,office,factory,plaza,toilets and other house | ||||
Filter class | G4+F7+H10 | ||||
Place of origin | Beijing,China | ||||
Air Handling Units AHU
Air handling units’ condition and distribute air within a building. They take fresh ambient air from outside, clean it, heat it or
cool it, maybe humidify it and then force it through some ductwork around to the designed areas within a building.We preserve increasing and perfecting our solutions and service. At the same time, we function actively to do research and growth for OEM Customized Air Handling Unit Ventilation.ahu unit dimensionshygienic (modular) air handling unit
Working principle:
● Both supply fan and exhaust fan are built inside to bring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.
● Built-in heat exchanger (rotary heat exchanger or
plate heat exchanger) transfers energy contained in
the outgoing indoor air to the coming fresh air, thus fresh air is precooled or preheated.
● Various functional sections such as filter section, cooling/heating section, humidifying section etc. can be combined together to meet different air treatment requirements.
Main Combination:
ahu unit dimensionshygienic (modular) air handling unit
Different type of heat exchangers for option
FAN SECTION
We offer different types of fans such as direct driven centrifugal fan, belt driven DIDW forward centrifugal fan, and belt driven DIDW backward centrifugal fan etc..
Air filter
In order to ensure heat exchanging efficiency and cleanness, combination of G3 coarse filter and F5 medium filter is selected as standard configuration in HJK AHU.
What we can do for you?
1) We produce high quality AHU based on clients' need and help clients doing project design.
2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc.
3) We are especially professionl and strong in cleanroom HVAC engineering.
What kind of HVAC job that we can do?
1) Medical, Pharmaceutical, Hygienic, Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.
AIRWOODS is a leading global provider of innovative energy efficient heating, ventilating and air conditioning (HVAC) products and complete HVAC solutions to the commercial and industrial markets. AIRWOODS also offer comprehensive range of solutions for the cleanroom industry, VOC recycling system. AIRWOODS has been in business since 2007 and has continued to grow over the years. Our professional sales and engineers work for your building based on your needs, requirements etc. Whether you are looking for a standard building or indoor air quality equipmentor something completely customized HVAC solution, cleanroom design or VOCs recovery system, we have the resources to provide them. www.airwoods.cn
ErP2018 ERV DMTH series
Eco Design ERV DCTP series
Wall Mounted Ductlesss ERV
Wall Fresh Air Heat Pump
Cheaper energy recovery ventilator
Air Handling Unit
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $16666 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air handling unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
