Key specification for this fp-68 ceiling-mounted water fan: 220V, refrigerant NOINE. Everything below is reproduced from the factory data sheet. Made by Hebei Langri Heating And Cooling Equipment Co., Ltd. (3 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

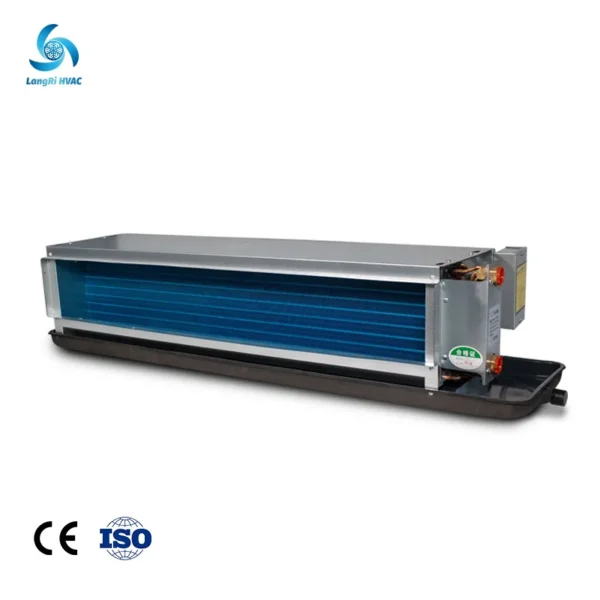

Key Features of This Fp-68 Ceiling-Mounted Water Fan
- Model Number: FP-85
- Power Supply: 220V
- Motor Power: 25w
- Refrigerant: NOINE
- Warranty: 1 Year
- Place Of Origin: Hebei, China
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Refrigerant | NOINE |
| Mounting Type | DUCT |
| Fan Motors Type | AC |
| Motor Type | AC Motor, DC Motor |
| Application | Office, Warehouse, Plant, School, Home, Hotel, Hospital |
| Key Selling Points | Low Maintenance Cost |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Other |
| Place Of Origin | Hebei, China |
| Weight (Kg) | 20 |
| Brand Name | LangRi |
| Model Number | FP-85 |
| Dimension(L*W*H) | 1060*480*245 |
| Product Name | horizontal concealed fan coil unit |
| Function | CoolingHeating |
| Noise | Low Noise |
| Water Resistance | 30 |
| Air Volume | 680 |
| Power Supply | 220V |
| Usable Area | 20㎡ |
| Motor Power | 25w |
| Dimensions | 9600*480*245 |
| Hanging Hole Spacing | 680 |
| Selling Units | Single item |
| Single Package Size | 85X85X30 cm |
| Single Gross Weight | 20.0 kg |

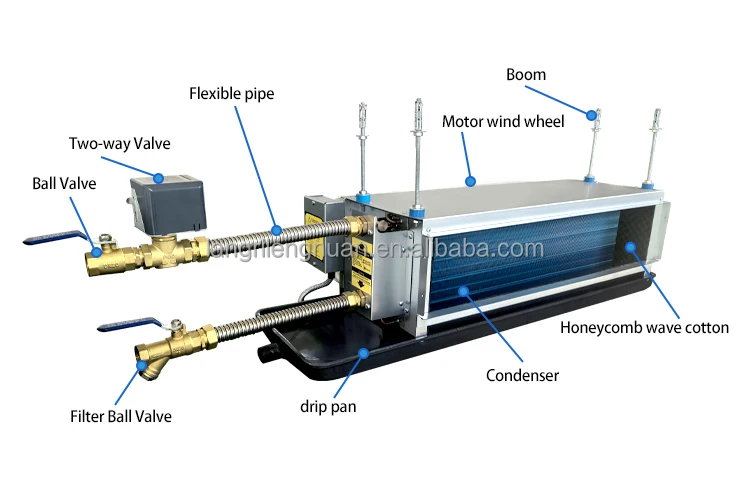

Product Details

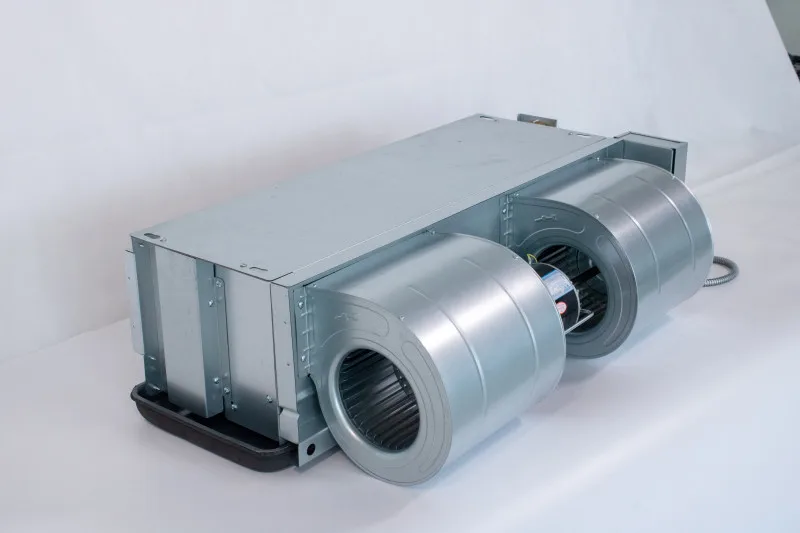

Ducted Fan Coil Unit
1.Low noise operation
2.Energy conservation
3.Efficient multi sided air outlet
4.Automatic swing function High quality motor Gree of the same quality

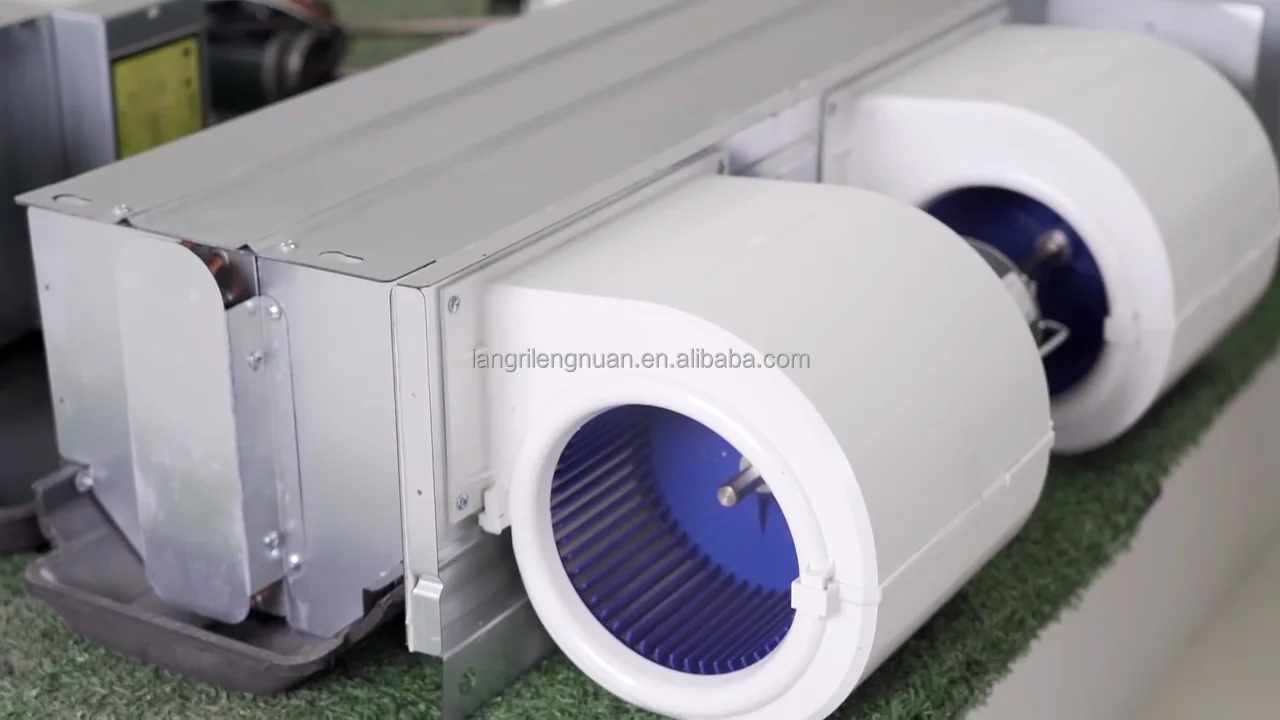

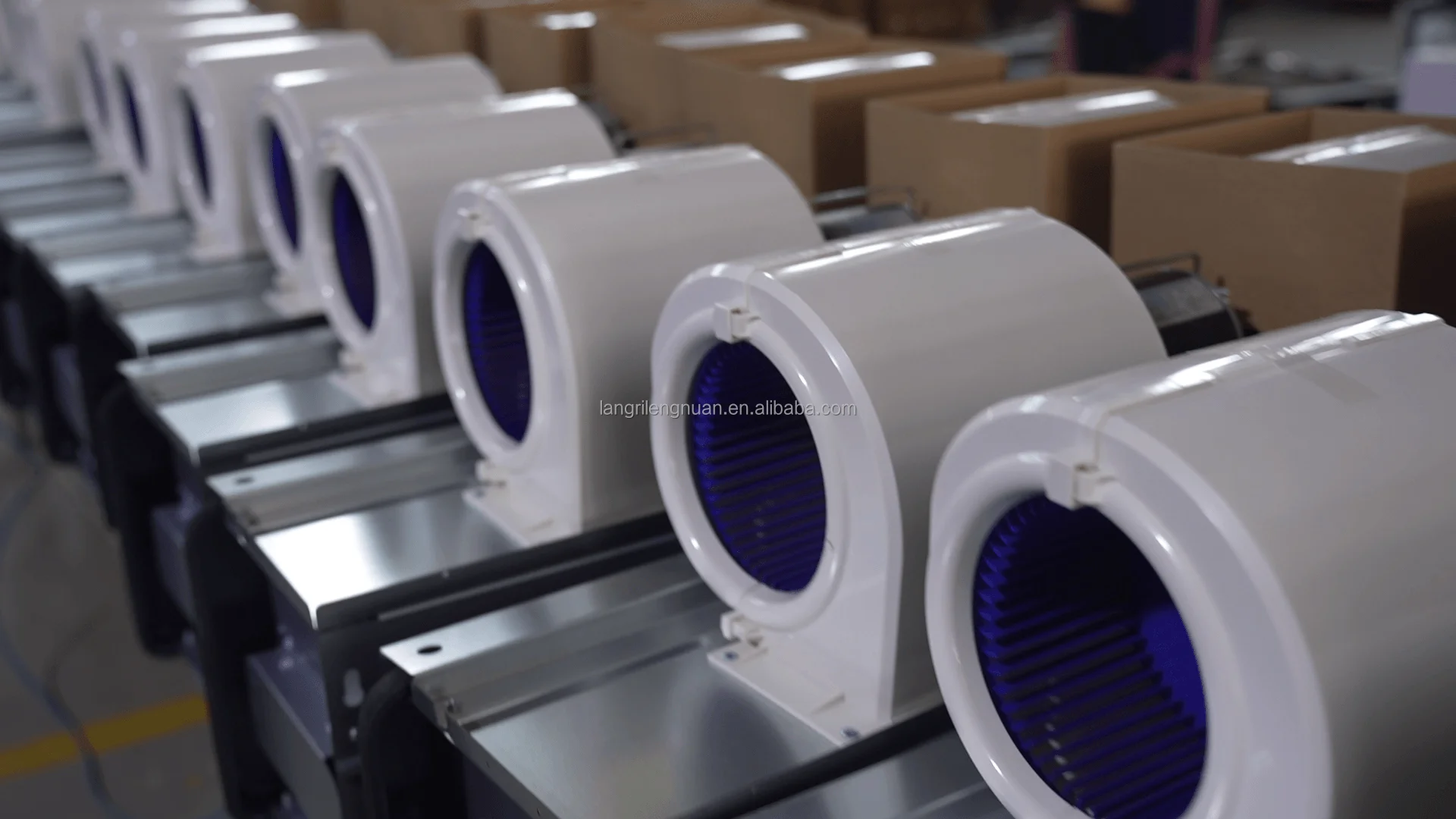

Wind wheel
ABS fan wheel with low operational noise, corrosion-resistant, weather-resistant, long lifespan, lightweight, energy-efficient and durable.Iron engineering fan wheels are optional, offering fire-resistant safety

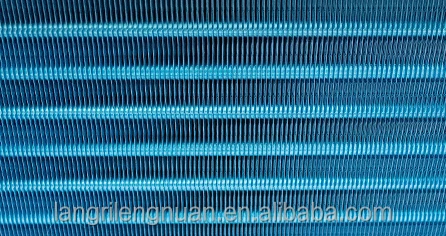

Surface cooler
Hydrophilic aluminum foil, with a thickness of 0.105MM.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.
Multiple inlet and outlet collection heads can accelerate water circulation and increase water flow.
Efficient heat transfer with a spacing of 1.6-1.8mm.
Copper water head
Pure brass collector head with high corrosion resistance and pressure resistance, 0.3mm thick copper tube, 7mm diameter for optimal heat transfer efficiency
Water tray
The steel water tray adopts high gloss spray coating,with a smooth surface that does not stick to dust and is corrosion-resistant.
It is equipped with insulation cotton to isolate condensed water.
It is equipped with insulation cotton to isolate condensed water.
Motor
Copper-wound motor, powerful performance, low noise, stable operation.DC motors can be equipped with variable frequency drives for better energy efficiency
Model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | ||||||||
Air Volume(m³/H) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | ||||||||
Cooling Capacity (KW/H) | 1.98 | 2.73 | 3.6 | 4.5 | 5.45 | 7.2 | 9 | 10.8 | 12.6 | ||||||||
Heating Capacity (KW/H) | 3.16 | 4.36 | 5.76 | 7.2 | 8.72 | 11.52 | 14.4 | 17.28 | 20.16 | ||||||||
Net Weight (KG) | 11 | 12.25 | 13 | 14.4 | 15.85 | 22.5 | 26 | 27.5 | 30 | ||||||||
Packing Weight (KG) | 12.5 | 14.25 | 15.3 | 16.8 | 18.25 | 25 | 29.35 | 31 | 34 | ||||||||
Power Supply | 220V 50Hz | ||||||||||||||||

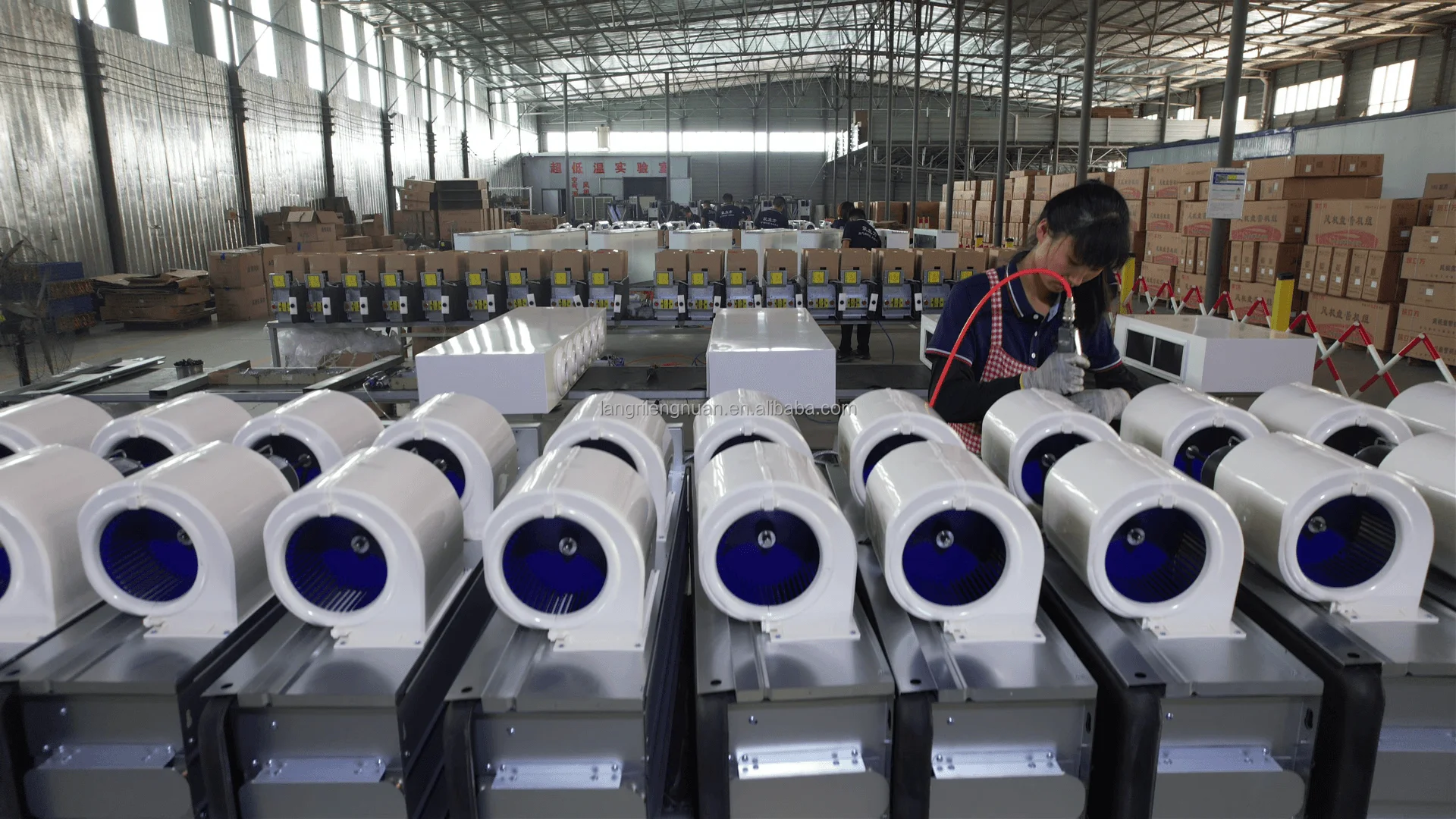

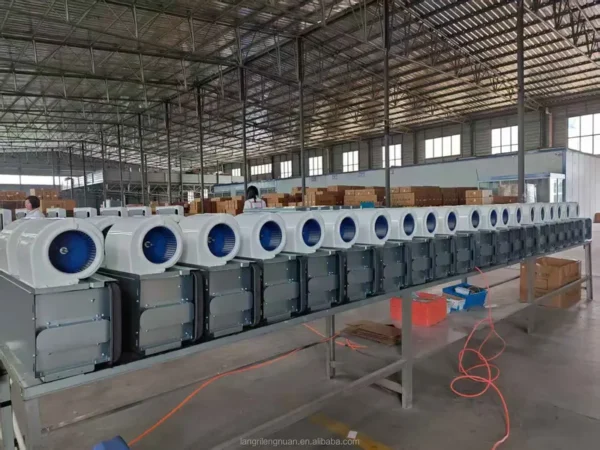

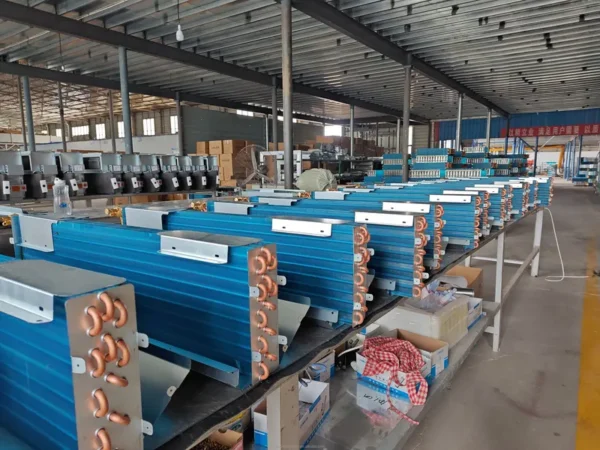

Manufacturing Technique
1.Fin stamping
2.Fin collection
3.Copper pipe cutting
4.Copper tube bending
5.Copper tube expansion link fins
6.Welding water inlet
7.Air pressure and water leakage testing
8.Collect and stack
9.Laser cutting shell
10.Machine bending shell
11.Assemble the outer shell and inner unit
12.Power on test
13.Airflow testing
14.Packaged products
15.Warehouse shipment
Certifications
Customer Photos
Company Profile
Hebei Langri Heating And Cooling Equipment Co., Ltd
Hebei Langri Refrigeration Equipment Co., Ltd. is a manufacturer integrating design, manufacturing, production, and sales. The company primarily supplies HVAC equipment including fan coil units, air handling units, heat pump units, air-cooled chiller units, air source systems, and energy recovery ventilators. Continuously focused on the development of the HVAC industry, Langri actively incorporates advanced technologies and representative case studies from various projects.
Experienced and professional HVAC solution provider |
Floor plan piping design |
One-stop service. we could not only provide the unit, but also all installation materials |
We could send out our engineer to you if needed |
24*7 online service |
Deep and strong connection with Gree which ensures us a competitve factory price for you |
Q:Are you a manufacturer or a distributor? A:I'm Langri, a manufacturer.
Q:What is your price term? A:Ex-factory, FOB, CIF
Q:What is the minimum order quantity? A:The MOQ is 5pcs/model, We accept lpc as sample order for testing.
Q:What is the term of payment?
A:T/T or L/C. Also, we accept the order to be placed via Alibaba
Q:How long is the lead time? A:25-30 days for sample order For smaller models under 8KW, 25 days for containerorder For models 9KW and above, 35 days for container order, We have stocks for popluarmodels,which can be dellvered at once.
Q:How long warranty does Langri provide?
A:24 months since delivery date warranty for every heat pump, and 18 months sincedelivery date warranty for every water tank For agency/distributor or any other kind oflong-term cooperation, we can offer longer and better warranty as discussed and con-firmed by both sides.
Q:lf we have a new design of a heat pump, can Langri produce for us? What is the MOQ? A:Yes of course, we offer OEM service for customers, You only need to provide us the technical nformation. Our engineers will design the whole heat pump according to the techni.cal information you provide, and at the same time control the cost and the price. As to the MOQ, it depends on how difficult the OEM project, as well as the possibility this OEMheat pump would be promising.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $79 / piece
- 50–99 piece: US $69 / piece
- 100+ piece: US $59 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fp-68 ceiling-mounted water fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fp-68 ceiling-mounted water fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
