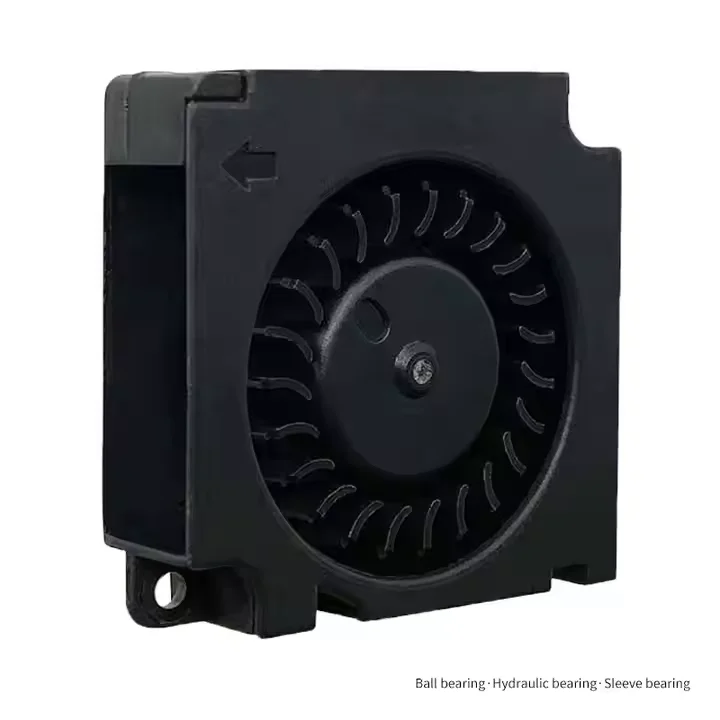

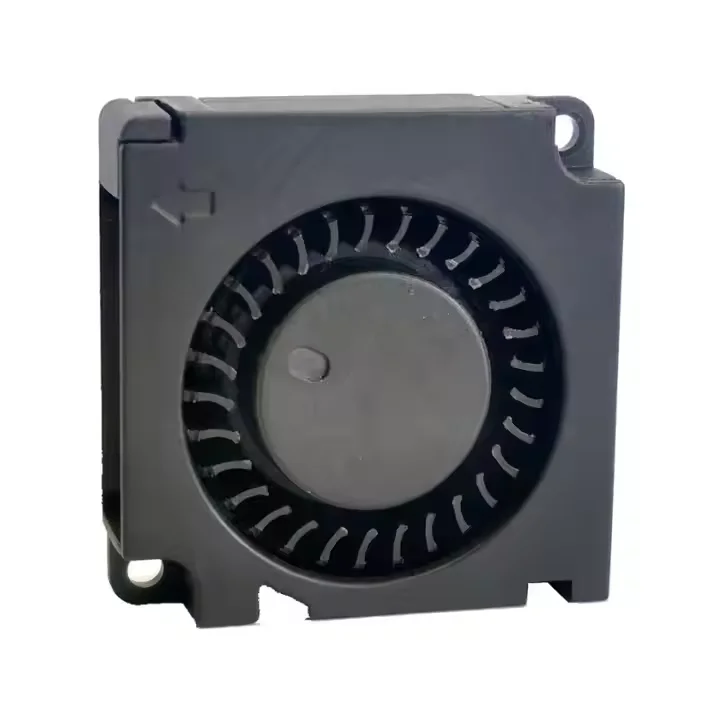

The free sample high-performance blower listed here carries 12 V, 5 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Yofolon Electronic Co.,ltd. (13 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Free Sample High-Performance Blower
- Power Source: Electric
- Power Interface: power interface
- Voltage: 12 V, 5 V
- Material: Plastic Aluminum
- Blade Material: Aluminum
- Speed: 5500-8500rpm
Technical Specifications
| Voltage | 12 V, 5 V |
|---|---|
| Type | Adjustable Blade Axial Fan |
| Material | Plastic Aluminum |
| Blade Material | Aluminum |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YOFOLON |
| Product Name | DC Cooling Fan 35x35x10mm |
| Attachment Method | Welding |
| Weight | 10.5g |
| Usage | High Pressure Blowing |
| Speed | 5500-8500rpm |
| Function | Customer’s Requirement |
| Power Interface | power interface |
| Fan Life | 30000 Hrs |
| Selling Units | Single item |
| Single Package Size | 10X10X4 cm |
| Single Gross Weight | 0.500 kg |

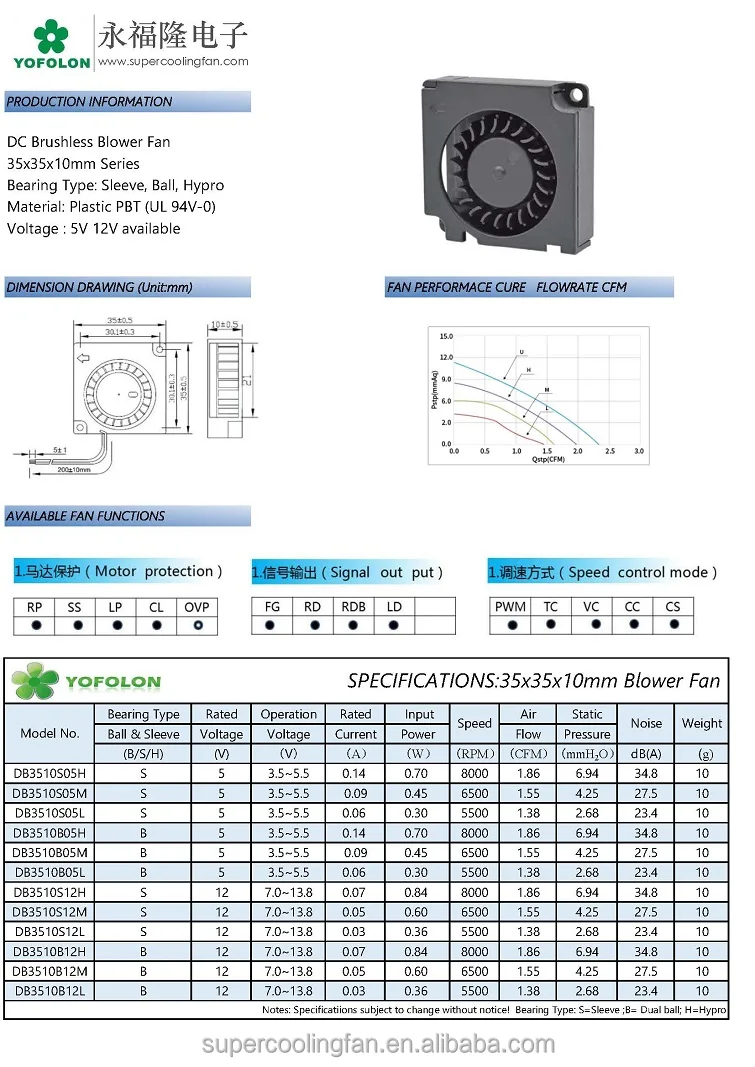

Product Details
35x35x10mm mini blower fan low noise 5V 12V dc blower cooling fan | 40x40x20mm 12V DC BLOWER FAN | |
Size | 35x35x10mm | |
Frame | Plastic Impeller: Plastic P. B. T. | |
Voltage | 5V, 12V | |
Power | 0.30W~0.84W | |
Current | 0.03~0.14A | |
Speed | 5500~8000RPM | |
Air flow | 1.38~1.86CFM | |
Pressure | 2.68~6.94(mmH2O) | |
Noise | 23.4~34.8dBA | |
Bear type | Ball, Sleeve | |
Weight | 10.5G | |
Motor | Brushless DC, auto restart Impedance & polarity protected | |
Operation temperature | -20° C~80° C | |
Insulation Resistance | 10 At 500VDC between lead and frame | |
Dielectric Strength | 1 min at 500VAC/50-60Hz, current min 5mA Operation Humidity: 20%~85% | |
Working voltage | Rated voltage± 15% | |
Life at 25oC | Ball bearing 50, 000hrs and sleeve bearing 30, 000hrs | |
Specification
regulation, EC: Ac to DC, VCC: (Voltage control/Automatic control) function.
Additional protection: Automatic lock/start function of AS, Slow start function, Overcurrent protection, Reverse connection
protection, Overvoltage protection, dustproof waterproof IP54 IP55, IP67.
Why Choose Us?
2.We support product customization and a series of technical discussions. We can cooperate with the development or provide corresponding improvement and optimization suggestions during the customer's product development stage or improvement and optimization projects.
3.High response rate and fast response speed, less 8hours.
4.We have a series of test equipment, like Wind tester, fan blade balance machine, high and low temperature tester, etc.
A: We are a combination of manufacturers and agents, with the Top Professional Team, serving dc brushless fan and motor, dc axial fan, dc blower fan, dc centrifugal fan, high speed fan, high pressure fan, low noise fan.
Q2: What's your products MOQ?
A: We will provide you small MOQ for each item, it depends your specific order!
Q3: How about your delivery time?
A: Generally, our stock products would be shipped in 2-3days after payment received, finally depends on order quantities.
Q4: What's your warranty?
Q5: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,It's not something that can be replaced.
Q6: Do you also support quote BOM list? then Shipment to us together?
A: Yes, we also can support quote BOM and shipment all components together. Please send list to us for check.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Volume pricing:
- 20–99 piece: US $3.5 / piece
- 100–499 piece: US $2.5 / piece
- 500+ piece: US $2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this free sample high-performance blower?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the free sample high-performance blower be supplied for my local voltage?
The standard configuration is 12 V, 5 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yofolon Electronic Co.,ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yofolon Electronic Co.,ltd. range on HVACR Nexus.
