This gas heater is listed with the manufacturer’s full published specification — power source Natural Gas/LPG, material iron, type Infrared Heater. It is produced by Chongqing Haodong Technology Co., Ltd., a verified supplier of 18 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Gas Heater
- Power Source: Natural Gas/LPG
- Power(NG): 1960Kcal
- Power(LPG): 2116Kcal
- Voltage: Other
- Material: iron
- Warranty: 1 Year
Technical Specifications
| Type | Infrared Heater |
|---|---|
| Power Source | Natural Gas/LPG |
| Voltage | Other |
| Material | iron |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Place Of Origin | Chongqing, China |
| Weight (Kg) | 1 |
| Dimension(L*W*H) | 260*240*280 |

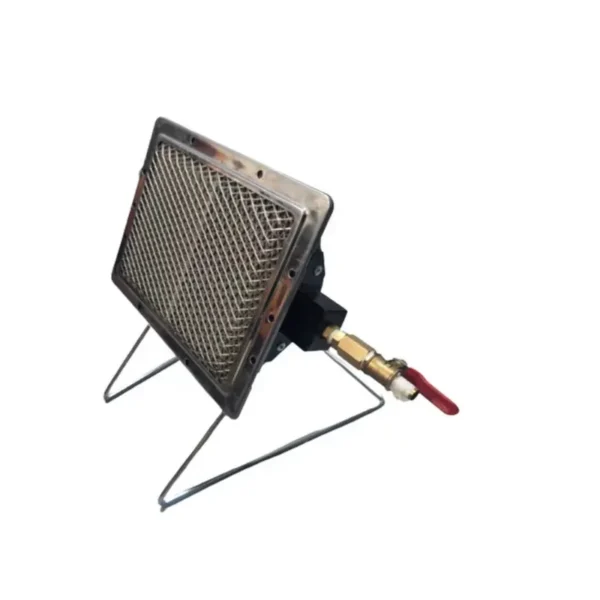

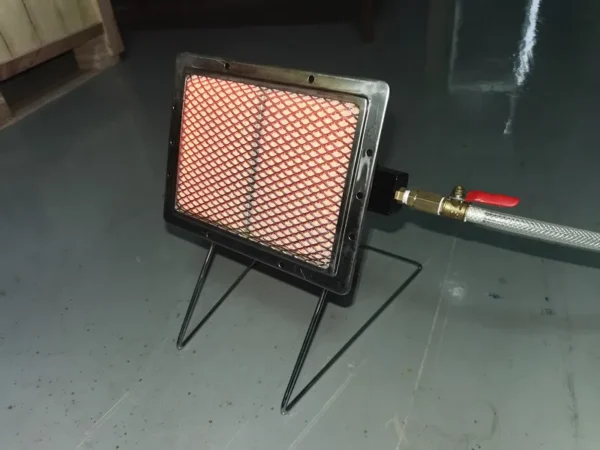

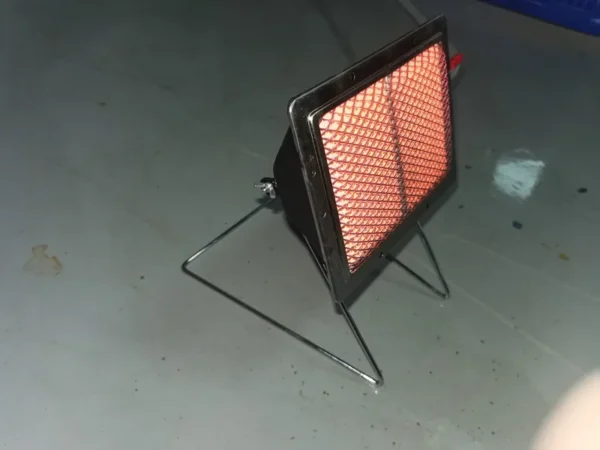

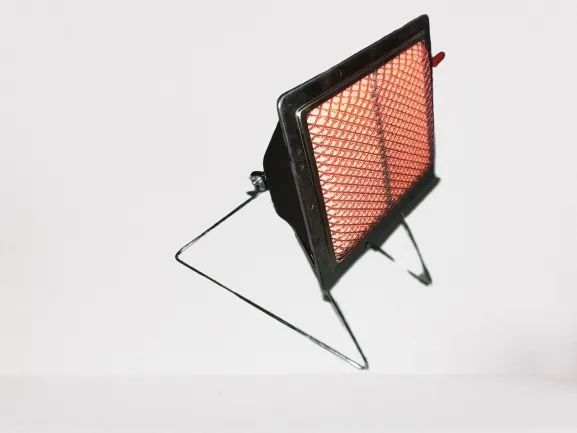

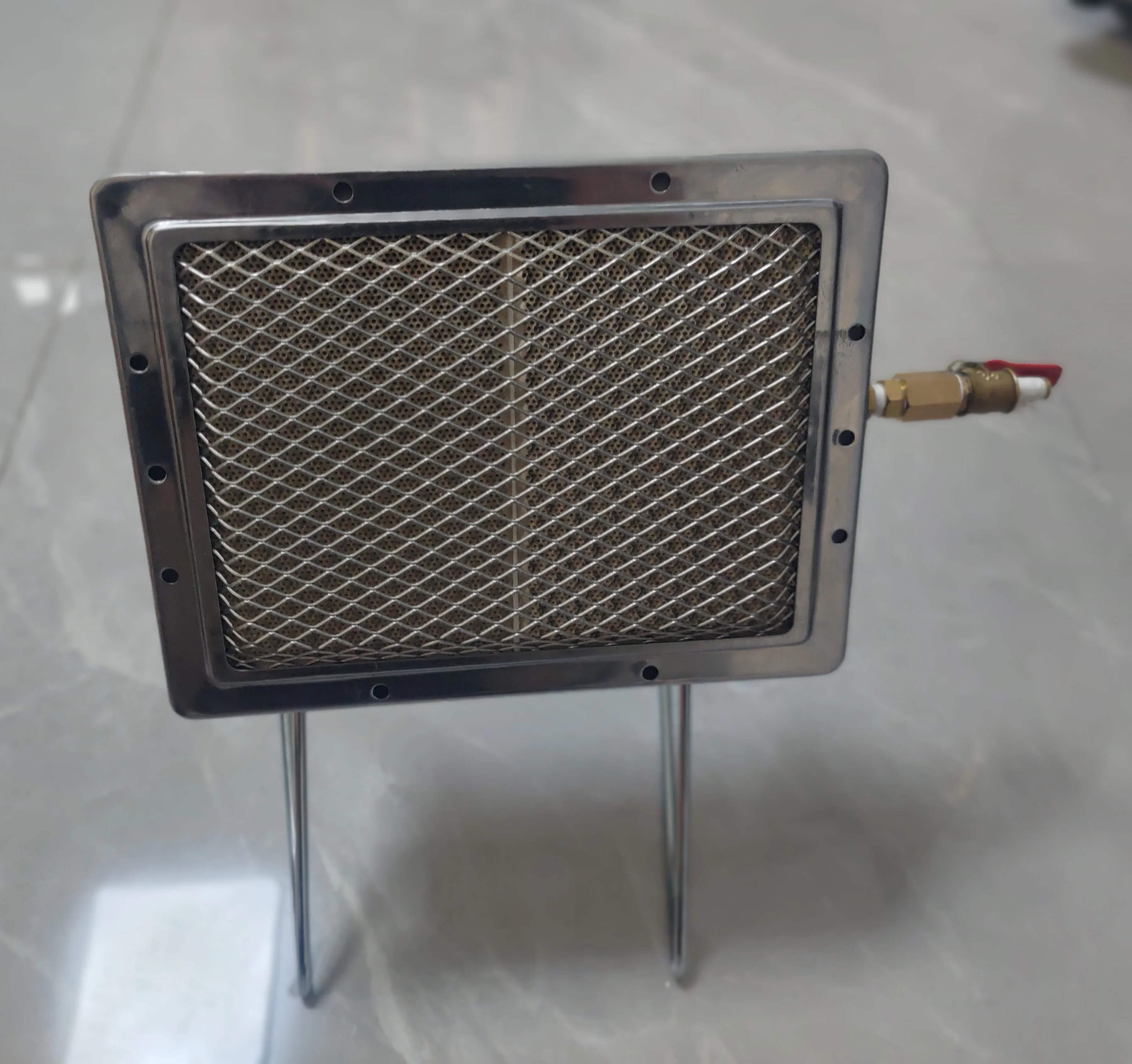

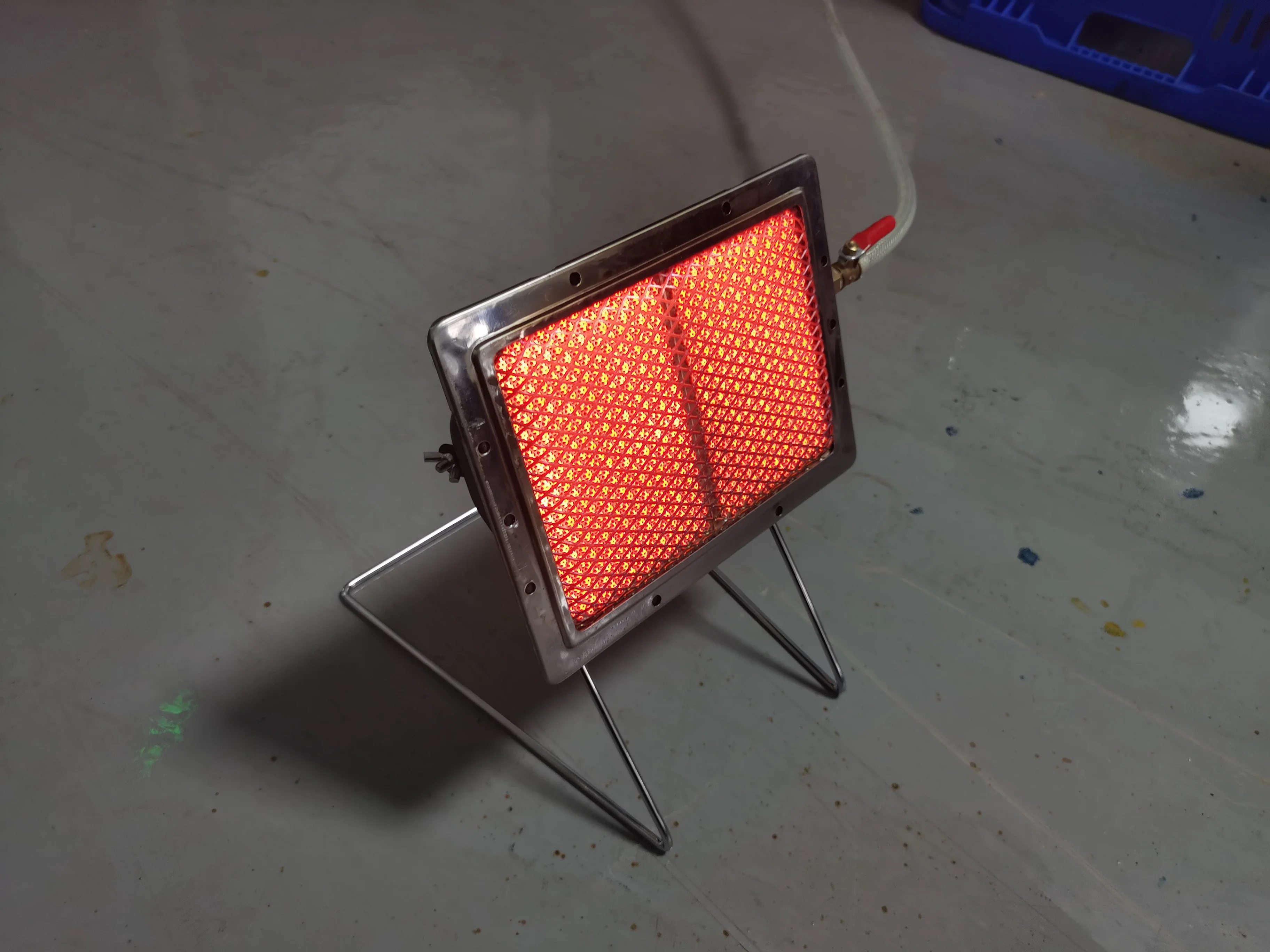

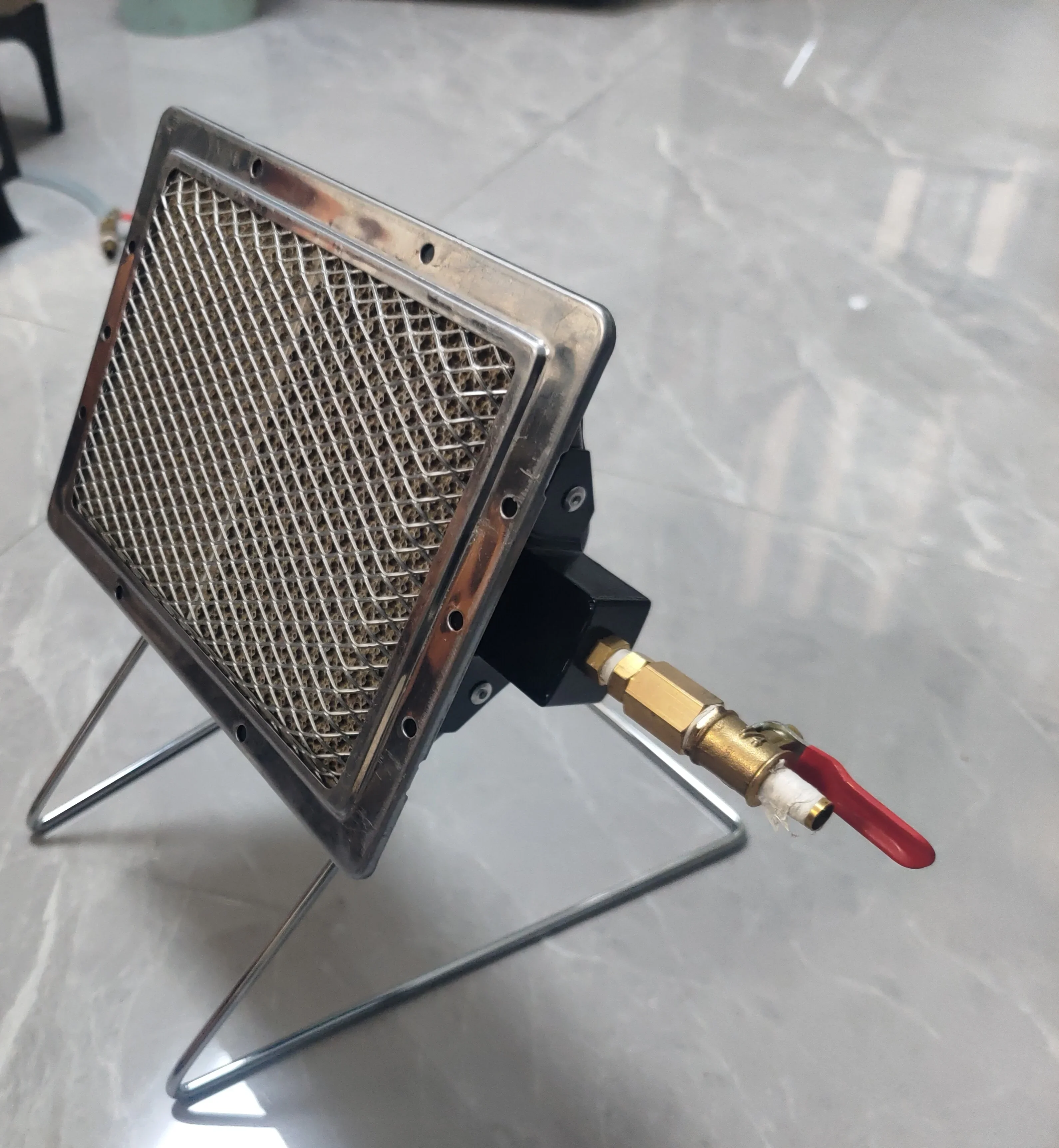

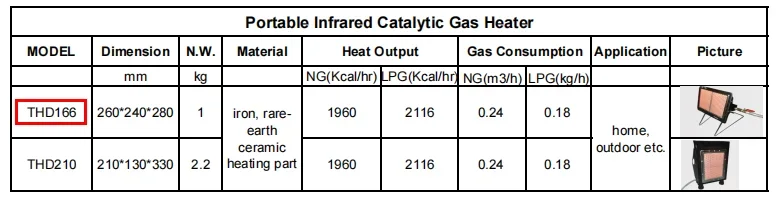

| Product Name | Portable Infrared Heating Gas heater THD166 |
| Net Weight | 1 kg |
| Dimension | 26*24*28cm |
| Working Gas | Natural Gas/LPG/Propane/Butane |
| NG Consumption | 0.24m³/h |
| LPG Consumption | 0.18kg/h |
| Power(NG) | 1960Kcal |
| Power(LPG) | 2116Kcal |
| Advantage 1 | Easy to clean |
| Advantage 2 | Save above 20% energy |
| Selling Units | Single item |
| Single Package Size | 27X22X19 cm |
| Single Gross Weight | 2.5 kg |
Product Details
Cheap Price Portable Infrared Heating Natural Gas/LPG Room Heater Gas Heater Indoor THD166
Chongqing Haodong Infrared Gas Burners cover a process rare earth as catalyst, which make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than other common ceramic burner.
SN | Items | Technical Parameters |
1 | Kinds of Gas | NG/LPG/Oil Field Gas/Artificial Gas |
2 | Perfect Combustion Temperature | ≤380℃ |
3 | Heat Source Temperature | 850℃ |
4 | Heating-up Temperature Range | 35℃-500℃ |
5 | Wavelength Range | 4 um -15 um |
6 | Working Pressure | 2000pa(NG)~~5000pa 2800pa(LPG)~~5000pa |
7 | Lifetime | more than 11000hrs |
8 | Waste Gas Emission | CO≤80ppm;NOx≤10ppm;CHx≤50ppm |
9 | Conversion Rate | > 90% |
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.
Gas BBQ Burner

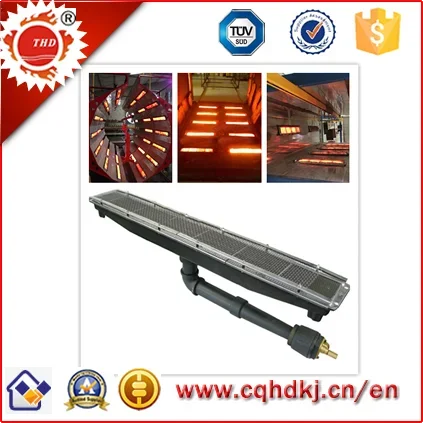

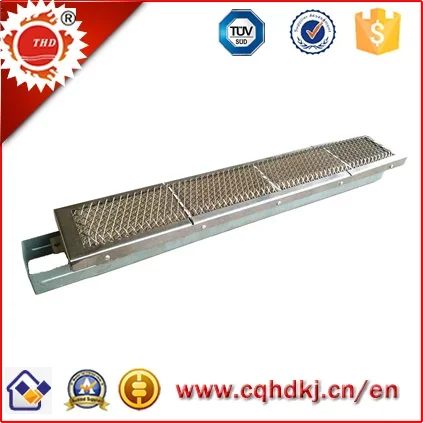

Gas Industrial Burner

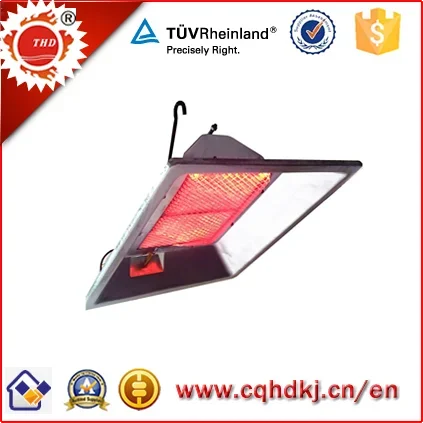

Poultry Gas Heater
Chongqing Haodong Technology Co., Ltd which is found in 2005, is a professional manufacturer of Infrared Catalytic Gas Burner,BBQGrill Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.

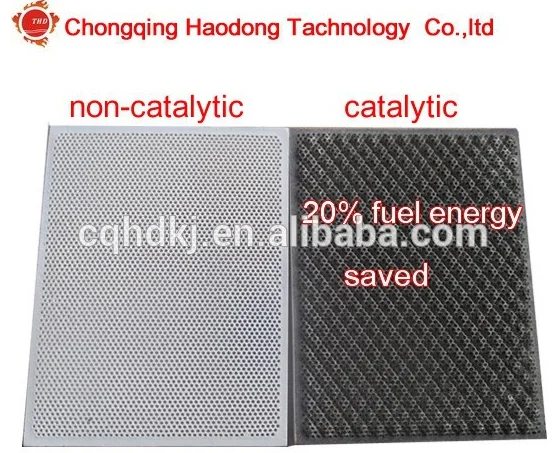

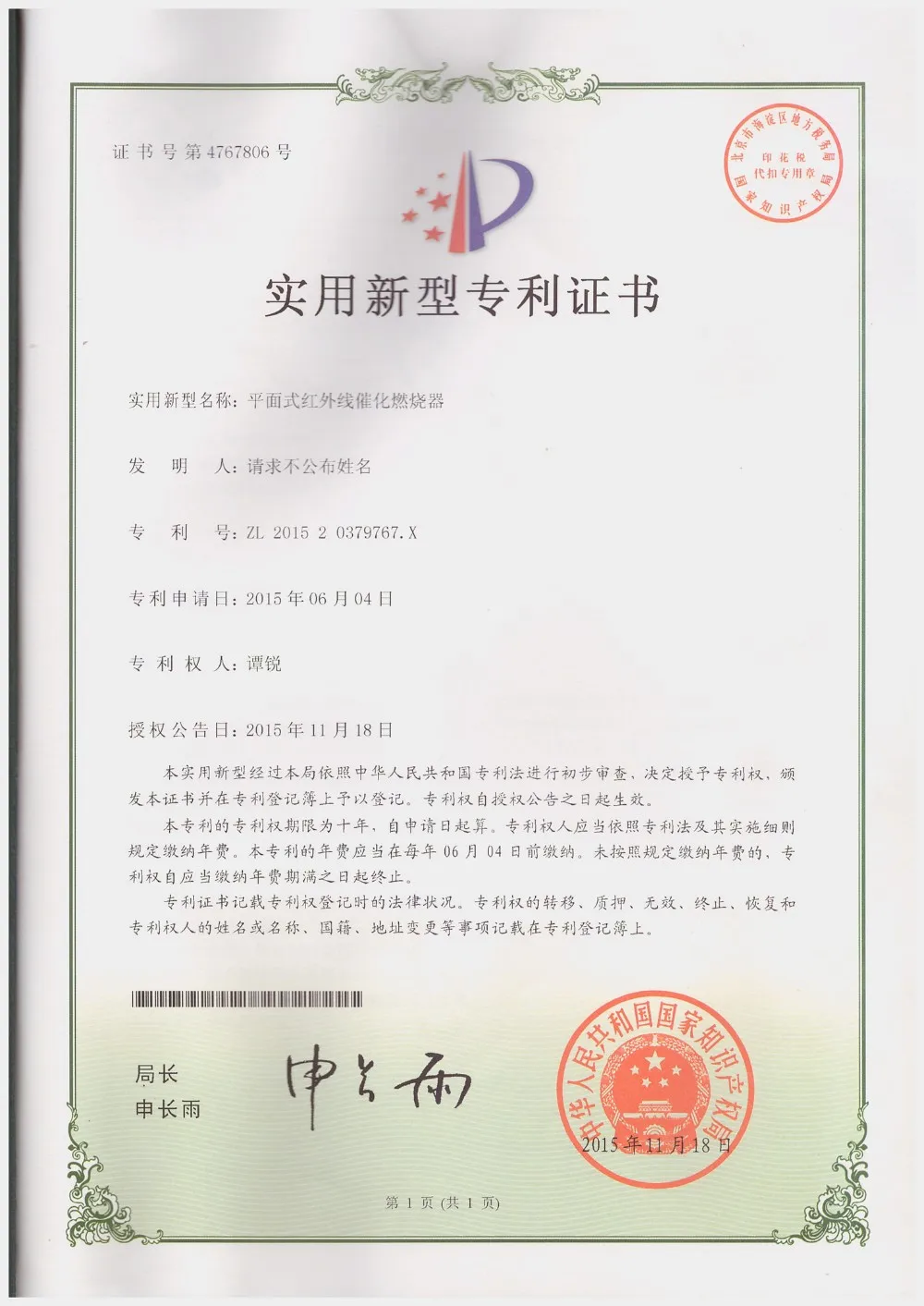

Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy than non-catalytic type.Located in Chongqing City, southwest of China.

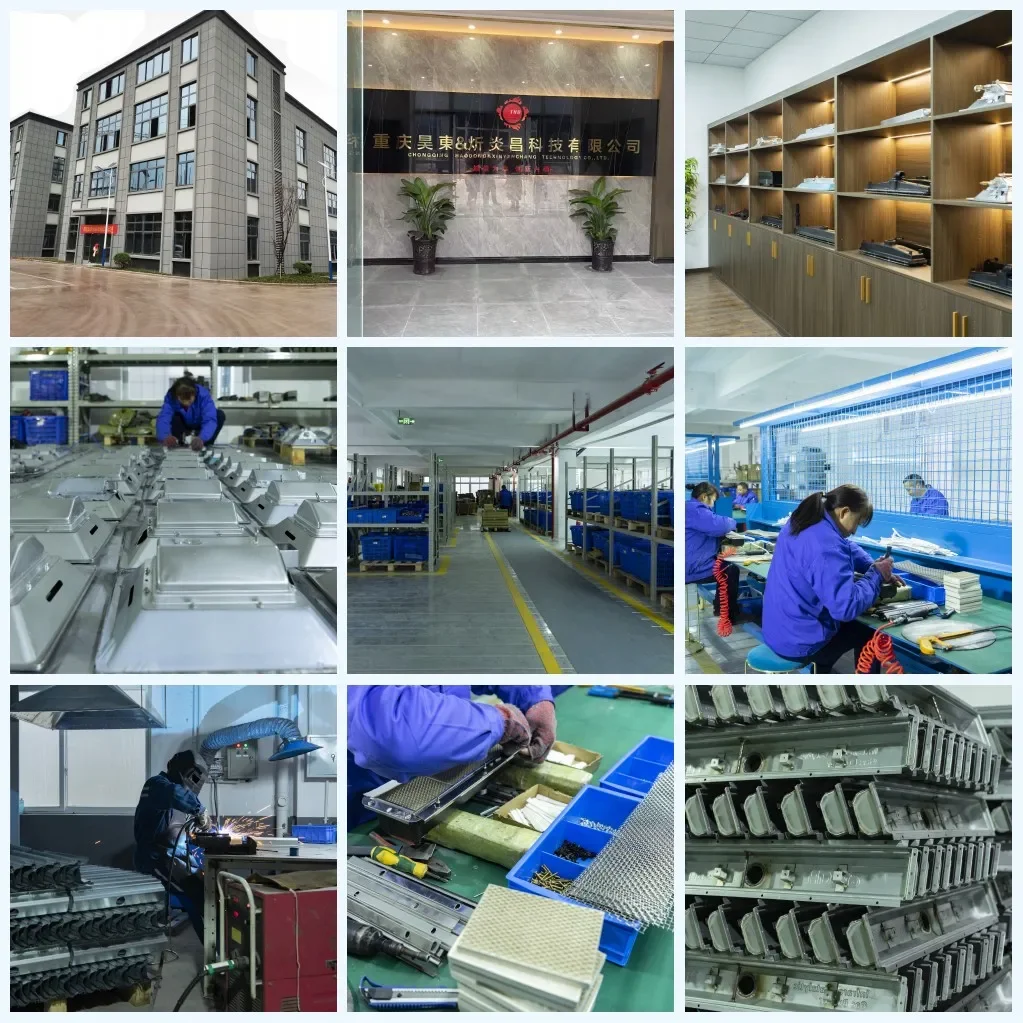

We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
Packing Details | ||
Carton Size | 575*420*470mm | |
Weight/Carton | 10.5Kg | |
Qty/Carton | 8PCS | |
Wechat&Whatsapp No:+86 199 2279 3577
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $14 / piece
- 50+ piece: US $12 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heater?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the gas heater be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Chongqing Haodong Technology Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Chongqing Haodong Technology Co., Ltd. range on HVACR Nexus.
