The gas heaters listed here carries material Cordierite, type Heating Elements, documented exactly as the manufacturer publishes it. Made by Ningbo Etdz Huixing Trade Co., Ltd. (21 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Gas Heaters
- Material: Cordierite
- Warranty: One Year
- Place Of Origin: Zhejiang, China
- Feature: Safty High Quality
- Type: Heating Elements
- Size: 275mm x 140mm
Technical Specifications
| Type | Heating Elements |
|---|---|
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Weight (Kg) | 1 |
| Place Of Origin | Zhejiang, China |
| Brand Name | HXIB275X140 |
| Product Name | Infrared Burners |
| Usage | Gas stove / cooker /Roaster/Gas room heater |
| Material | Cordierite |
| Warranty | One Year |
| Keywords | infrared gas burner |
| Size | 275mm x 140mm |
| Feature | Safty High Quality |
| Packaging Details | box |
| Port Of Dispatch | ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100000 pieces per Month |

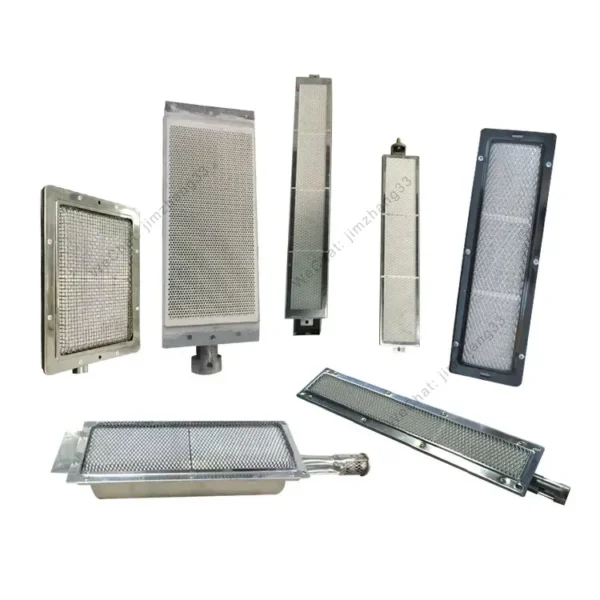

Product Details
| MODEL | Dimension(mm) | Size(inch) | Ceramic plate | Fuel | Network | House Type |
| HXIB220X170 | 220X170 | 8.66 6.69 | Cordierite | NG/LPG | SUS 304 | enamel Aluminum plate Electrolysis board Galvanized sheet |
| HXIB405X50 | 405X50 | 15.94 3.15 | Cordierite | NG/LPG | SUS 304 | |
| HXIB295X120 | 295X120 | 11.61 4.72 | Cordierite | NG/LPG | SUS 304 | |
| HXIB240X178 | 240X178 | 9.45 7.01 | Cordierite | NG/LPG | SUS 304 | |
| HXIB170X80 | 170X80 | 6.69 3.15 | Cordierite | NG/LPG | SUS 304 | |
| HXIB325X80 | 325X80 | 12.80 3.15 | Cordierite | NG/LPG | SUS 304 | |
| HXIB190X80 | 190X80 | 7.48 3.15 | Cordierite | NG/LPG | SUS 304 | |
| HXIB337X103 | 337X103 | 13.27 4.06 | Cordierite | NG/LPG | SUS 304 | |
| HXIB275X140 | 275X140 | 10.83 5.51 | Cordierite | NG/LPG | SUS 304 | |
| HXIB430X90 | 430X90 | 16.93 3.54 | Cordierite | NG/LPG | SUS 304 | |
| HXIB530X85 | 530X85 | 20.87 3.35 | Cordierite | NG/LPG | SUS 304 | |
| HXIB395X85 | 395X85 | 15.55 3.35 | Cordierite | NG/LPG | SUS 304 | |
| HXIB575X92 | 575X92 | 22.64 3.62 | Cordierite | NG/LPG | SUS 304 |
Technical parameters
| ITEM | PARAMETER |
| Materials | Cordierite |
| Water absorption (%) | ≥ 50.4 |
| Porosity (%) | ≥ 61 |
| Specific gravity (g/cm3) | 0.6-0.9 |
| Thermal expansion coefficient (10-6/K) | 1.5-3 |
| Temperature softening (°C) | >1280 |
| Surface burning temperature (°C) | 1000-1200 |
Application: 69
1. Gas stove / cooker /Roaster 2. Gas room heater 3. Barbecue furnace 4. Industrial baking equipment
Advantage & features:
1. Energy saving up to 30-50%
2. Balanced and well-distributed heating
3. No flame burning, No noise burning
4. Reduce harmful exhaust gas
5. Strong mechanical strength & thermal shock resistance
The gas combustion is occurred inside the holes of the burn plates; and the heat energy is radiated high-efficiently in the means of ultra-red rays, avoiding energy loss through visible light. For the advantages of high combustion efficiency, well distributed heating and low exhaust gas emission, Ceramic Combustion Plate is proved to be an environmentally friendly heating technology, and it is the idea technology to replace the traditional gas combustion technology.

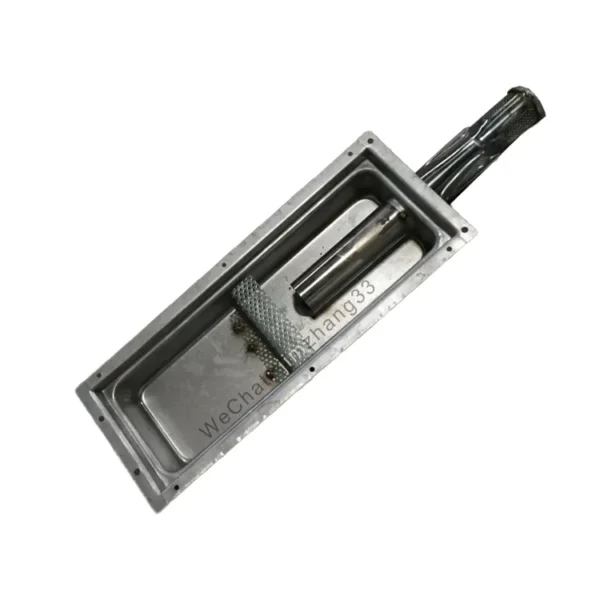

Infrared gas burner Material.
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated, our burner is catalytic type, it will save 20% gas consumption than other usual burner.
3. Nozzle: brass
4. Up cover: stamped stainless iron
5.Working pressure: NG:2000~5000pa;LPG:2800~5000pa
Ordering and Pricing
- Minimum order quantity: 3000 piece
- Volume pricing:
- 3000–3999 piece: US $5 / piece
- 4000–4999 piece: US $4 / piece
- 5000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heaters?
The standard minimum order quantity is 3000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a One Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Etdz Huixing Trade Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Etdz Huixing Trade Co., Ltd. range on HVACR Nexus.
