The gear motor listed here carries voltage 12VDC, 24VDC,90VDC, power Power range is from 40W to 70W, documented exactly as the manufacturer publishes it. Made by Ningbo Current Motor And Machinery Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Gear Motor
- Model Number: VDM08
- Rated Power: 40W-70W
- Power: Power range is from 40W to 70W
- Voltage: 12VDC, 24VDC,90VDC
- Speed Rpm: 1800rpm- 3200rpm
- Speed(RPM): 1800rpm- 3200rpm

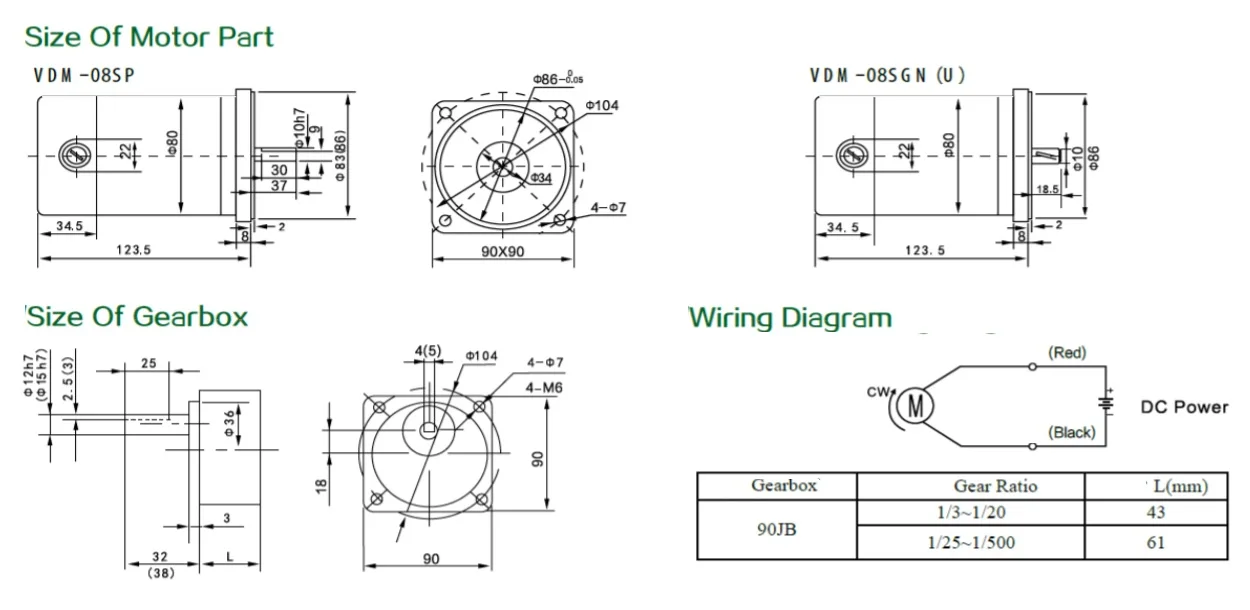

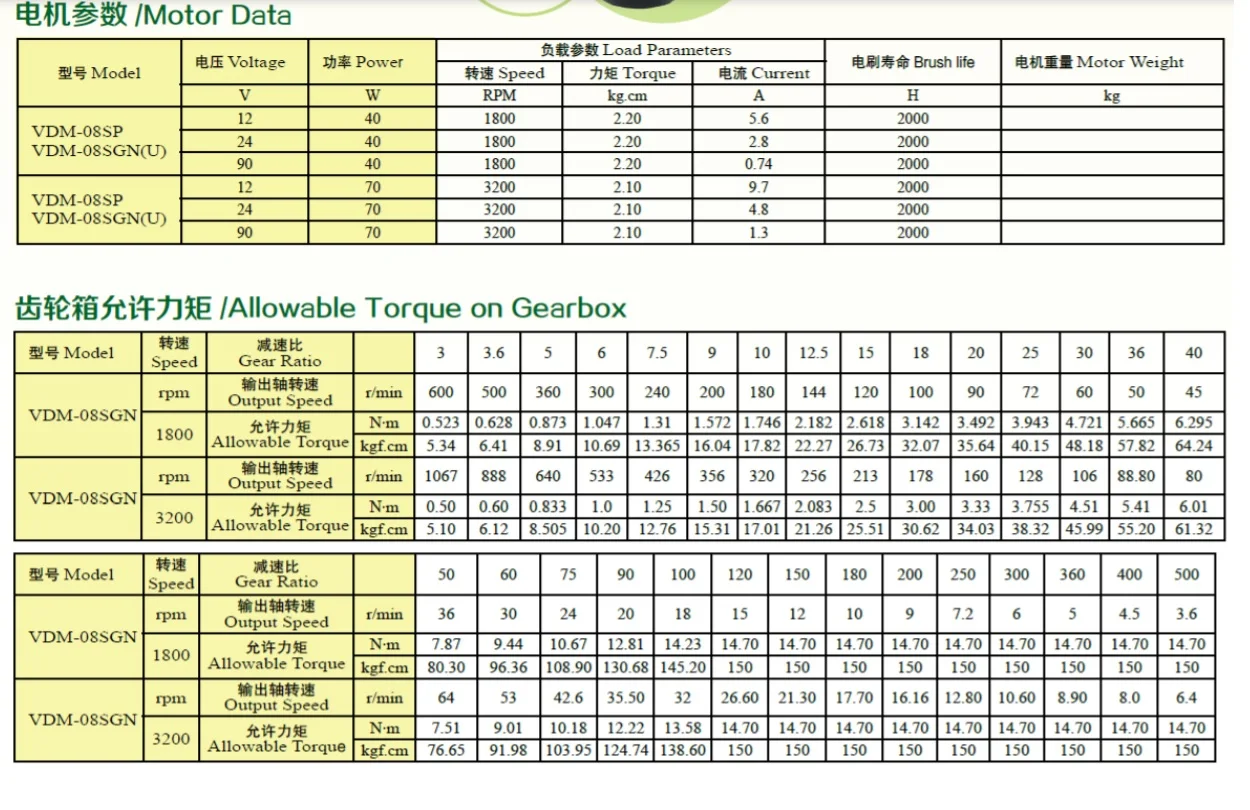

Technical Specifications
| Rated Power | 40W-70W |
|---|---|
| Speed Rpm | 1800rpm- 3200rpm |
| Speed(RPM) | 1800rpm- 3200rpm |
| Efficiency | IE 2 |
| Type | Micro Motor |
| Frame | 90 mm(3.54in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | IP44 |
| Usage | Boat, Car, Fan, Home Appliance |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 0.74-9.7A |
| Model Number | VDM08 |
| Torque | 14.70N.M(10.84lb.ft) |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM |
| Voltage | 12VDC, 24VDC,90VDC |
| Power | Power range is from 40W to 70W |
| Rated Speed | 1800rpm- 3200rpm |
| Gear Ratio | 1:3 to 1:500 |
| Size | Dia. is 90mm |
| Insulation Class | Class B |
| M.O.Q | Our Minimum quantity is 50pcs |
| OEM Service | Yes! We offer OEM service. |
| Selling Units | Single item |
| Single Package Size | 27X23X21 cm |
| Single Gross Weight | 5.7 kg |
Product Details
- High Efficiency Motor: Operates at IE 2 efficiency level for energy savings.
- Wide Voltage Range: Works with 12VDC, 24VDC, or 90VDC for versatile applications.
- Compact Design: Measures 80mm in diameter, ideal for space-constrained areas.
- Durable Construction: Built with Permanent Magnet for long-lasting performance.
- OEM Service Available: Custom solutions tailored to specific needs.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $56 / piece
- 50–99 piece: US $54.2 / piece
- 100+ piece: US $50.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gear motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the gear motor be supplied for my local voltage?
The standard configuration is 12VDC, 24VDC,90VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

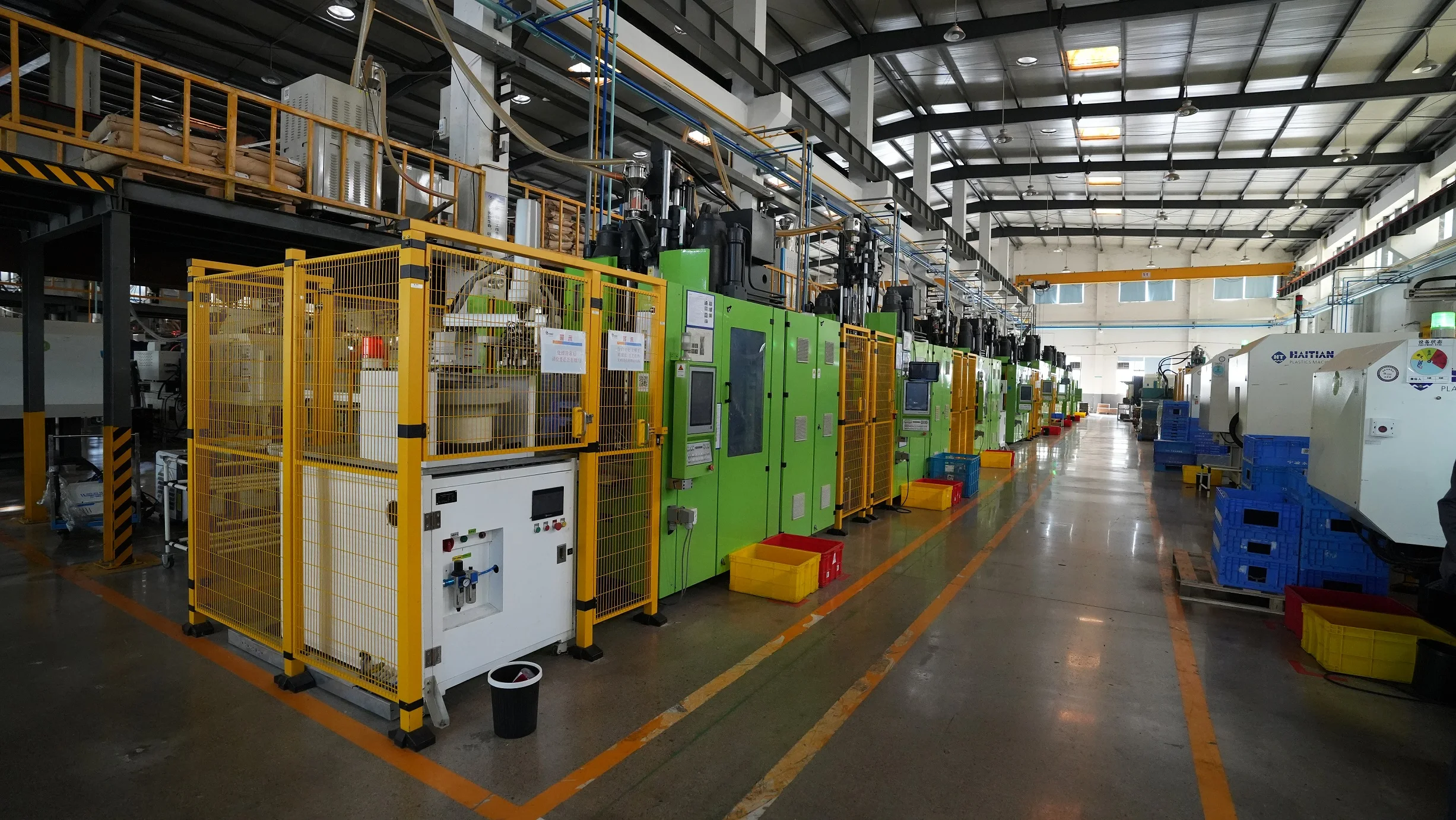

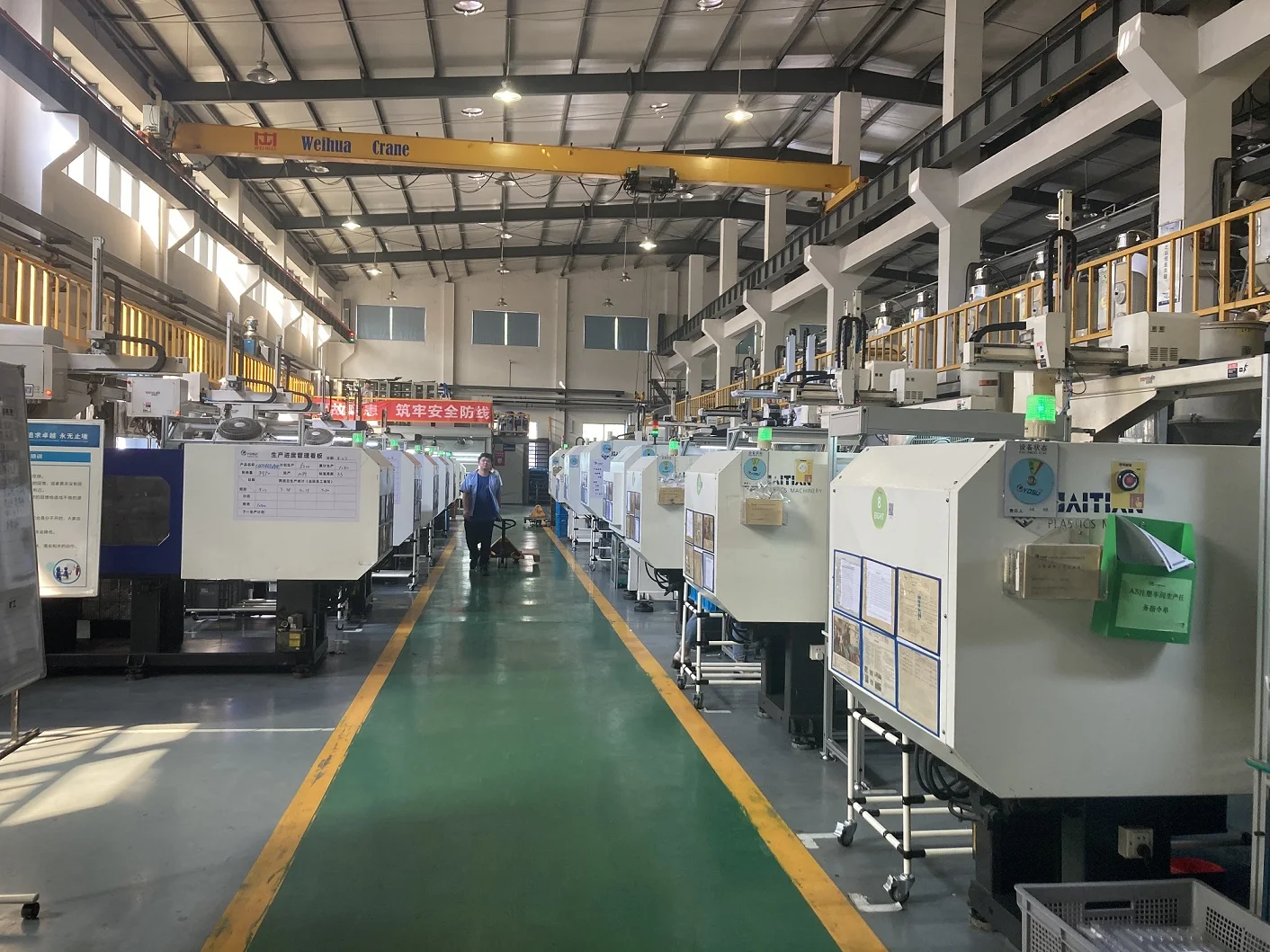

About the Manufacturer
This product is produced by Ningbo Current Motor And Machinery Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Current Motor And Machinery Co., Ltd. range on HVACR Nexus.
