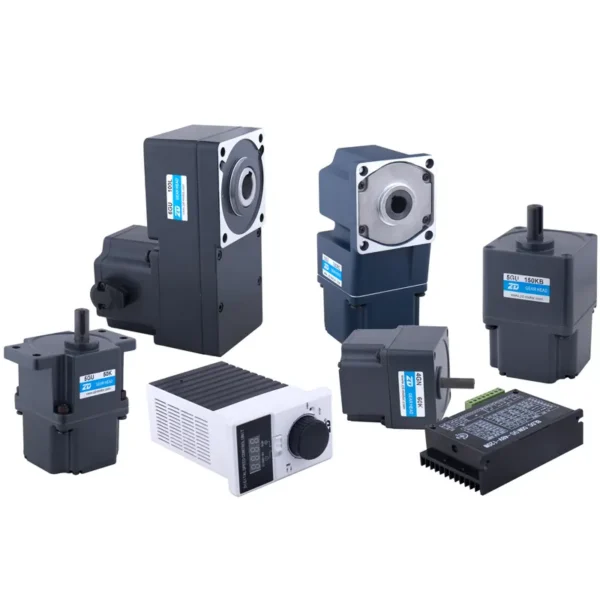

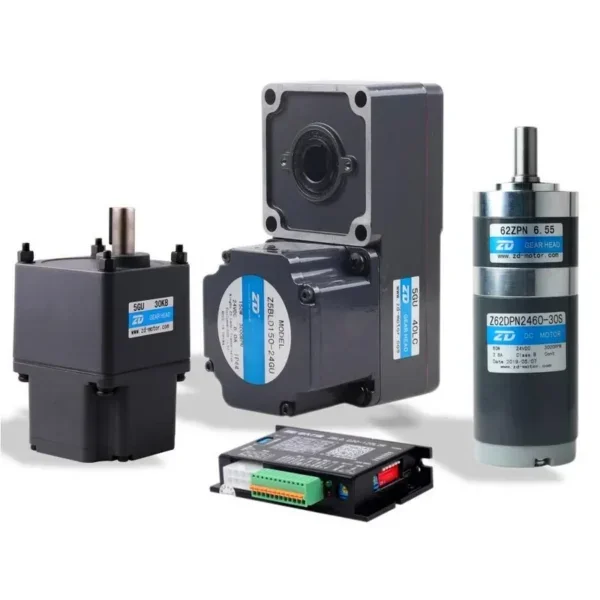

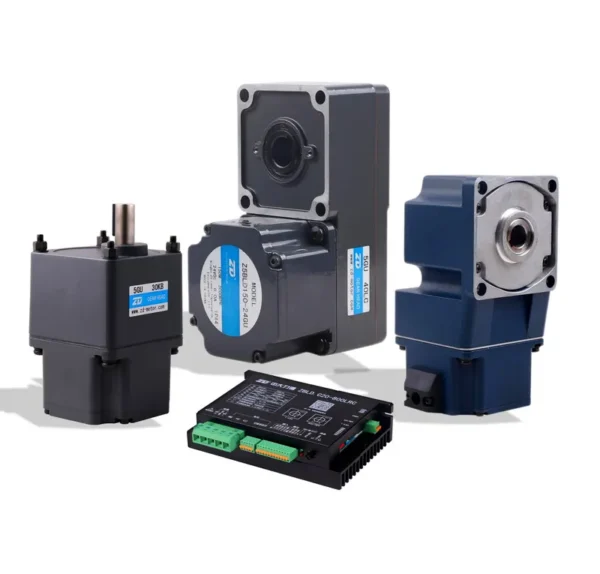

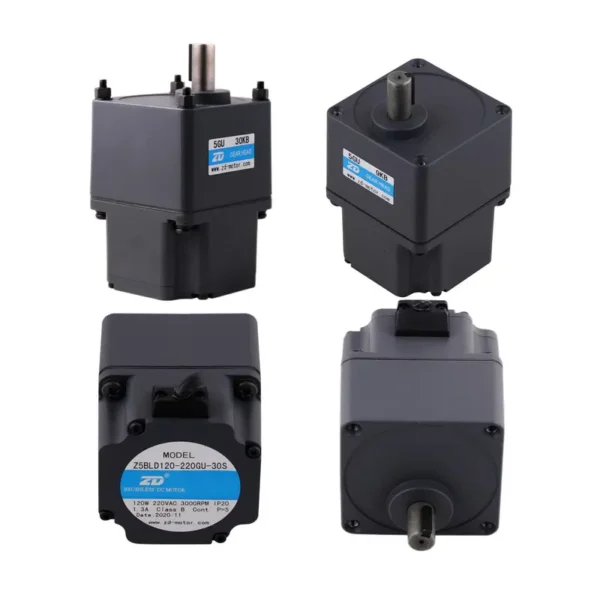

Geared motor — 24V 48V 110V 220V, power Low Noise Level. The complete factory specification follows. Made by Ningbo Mito Intelligent Tech Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Geared Motor
- Model Number: Z2BLD/Z4BLD/Z5BLD/Z6BLD
- Rated Power: 10w 25w 40w 60w 90w 120w 200w 400w 500w 750w
- Power: Low Noise Level
- Voltage: 24V 48V 110V 220V
- Speed Rpm: 3 000 RPM
- Speed(RPM): 3000 r/min
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 10w 25w 40w 60w 90w 120w 200w 400w 500w 750w |
| Speed Rpm | 3 000 RPM |
| Speed(RPM) | 3000 r/min |
| IP Rating | IP20/IP54 |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Shunt Wound |
| Frame | 60mm 70mm 80mm 90mm 104mm |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Other |
| Usage | Boat, Car, Cosmetic Instrument, Electric Bicycle, Fan, Home Appliance, Other |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 1-3.7 A |
| Model Number | Z2BLD/Z4BLD/Z5BLD/Z6BLD |
| Torque | Up to 120+N.m |
| Place Of Origin | Zhejiang, China |
| Brand Name | ZD |
| Voltage | 24V 48V 110V 220V |
| Motor Size | 60, 70, 80, 90, 104mm |
| Power | Low Noise Level |
| Reduction Ratio | 3-200K |
| Speed Controller | Available |
| Application | Conveyor/AGV/AMR |
| Overall Dimension | Compact |
| Weight | Light |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
* AC or DC Input
* Speed Control/Motor Driver Available
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $50 / piece
- 10–49 piece: US $45 / piece
- 50+ piece: US $40 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this geared motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the geared motor be supplied for my local voltage?
The standard configuration is 24V 48V 110V 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Mito Intelligent Tech Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Mito Intelligent Tech Co., Ltd. range on HVACR Nexus.
