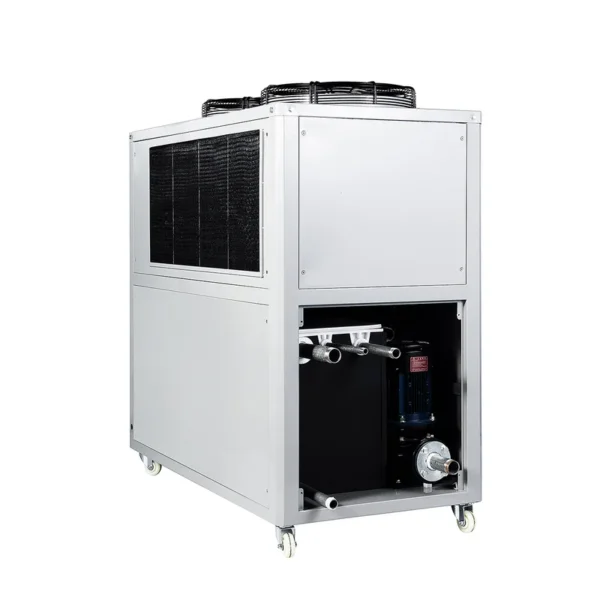

This glycol water chiller is published with the manufacturer’s full specification — 380 V, 13.95KW @ 7℃ / 8.5KW @ -10℃. Made by Huizhou Yijun Machinery Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Glycol Water Chiller
- Model Number: MO-05A
- Power: 4.86kw
- Cooling Fan Power: 0.36kw
- Pump Power: 0.75kw
- Compressor Power: 5HP / 4.86KW
- Voltage: 380 V
Technical Specifications
| Voltage | 380 V |
|---|---|
| Power | 4.86kw |
| Refrigerant | R-410A, R-404A |
| Compressor Brand | Sanyo, Copeland |
| Pump Type | Other |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate, Good cooling performance, Excellent heat dissipation |
| Core Components | Compressor, evaporator, condenser, water pump, exp |
| Container Volume | 30Liters |
| Model Number | MO-05A |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 390 |
| Brand Name | Machine Mori |
| Dimension(L*W*H) | 150x72x158cm |
| Working Temperature Range | 3~26℃ |
| Cooling Fan Power | 0.36kw |
| Condenser | Efficient brass sets corrugated aluminum fin |
| Evaporator Type | Stainless Steel Tank and coils |
| Water Tank Capacity | 30Liters |
| Pump Power | 0.75kw |
| Color | Gray(can be customer) |
| Remote Control | 531,532 PUNP panels |
| MOQ | 1Set |
| Cooling Capacity | 13.95KW @ 7℃ / 8.5KW @ -10℃ |
| Compressor Power | 5HP / 4.86KW |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Feature:
1.Glycol Low-Temperature Cooling — Reaches -15°C without freezing, perfect for fermentation, brewing and chemical processes.

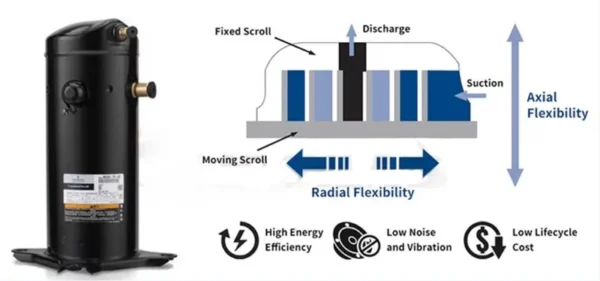

2. 5HP Copeland Compressor — Brand-name compressor with R404A refrigerant, designed specifically for low-temp operation.
3. Dual-System Reliability — Independent refrigeration circuits ensure stable cooling and backup safety.
4. 304 Stainless Steel Cabinet — Corrosion-resistant, food & pharmaceutical grade housing.
5. Smart Touch Control — Precise ±0.5°C digital control with intelligent display panel.
Cooling capacity at different outlet temperatures
| Outlet Temp | Cooling Capacity | Power |
|---|---|---|
| +7°C | 13.95 KW | 4.86 KW |
| 0°C | ~10.5 KW | 4.86 KW |
| -5℃ | ~8.5 KW | 4.86 KW |
| -10°C | ~7.1KW | 4.86 KW |
| -15°C | ~5.8 KW | 4.86 KW |
| Item | Specification |
|---|---|
| Model | MO-05A |
| Compressor | Copeland Scroll 5HP |
| Refrigerant | R404A |
| Power Supply | 380V/415V 3PH 50/60Hz |
| Temp Range | -15°C ~ +25°C |
| Pump | Multistage centrifugal |
| Cabinet | 304 Stainless Steel |
| Weight | ~390 KG |

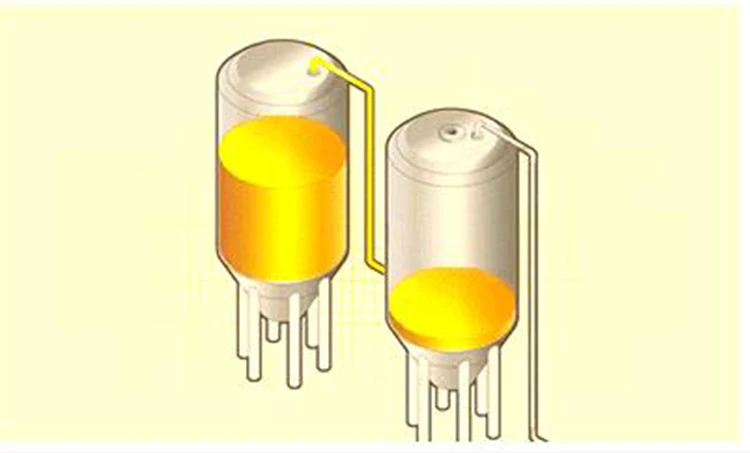

Beer brewing is mainly based on malt, rice as raw materials, hops as auxiliary materials, in the production process, after the raw materials are boiled, they need to be quickly cooled to the set temperature to ensure the taste of beer, as well as shorten the process time, the wort after saccharification and filtration, after boiling in the boiling pot, hops are added to form the beer flavor, the wort temperature at this time is very high, it needs to be cooled down quickly, usually it needs to be cooled down to 5~8 degrees, Glycol Chiller comes in handy, Glycol Chiller is used as a cooling and cooling equipment, It can be used for Cooling Wort, Cooling Fermentation tanks, and wine storage tanks. Glycol Chiller can accurately control the temperature, save energy and protect the environment, and can be controlled intelligently.
Beer brewing, which starts from malt and rice, takes hops as the guide, and goes through a complex process of careful processing, saccharification, fermentation and packaging, every link is inseparable from the precise control of temperature. Rapid and precise cooling to a specific temperature after the raw material has been boiled is key to ensuring the flavor of the beer and shortening the process cycle. However, if the cooling measures in the "saccharification" and "fermentation" stages are not in place, it may lead to the formation of dimethyl sulfide (DMS), which in turn leads to oxidative damage and aroma loss, and ultimately damages the taste of beer. For this reason, the application of Glycol Chiller in beer brewing production lines is particularly important.
In the beer brewing process, Glycol Chiller have become indispensable equipment due to their efficient and precise cooling capacity. Through the application of Glycol Chiller, the temperature in the beer brewing process can be effectively controlled to ensure that each link achieves the ideal cooling effect. Next, we will take a closer look at the application of Glycol Chiller in beer brewing production lines through specific cases.

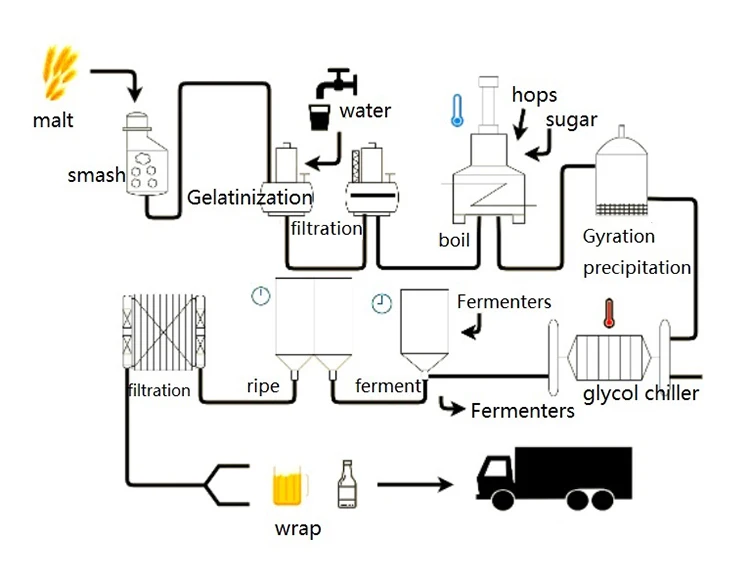

The brewing process of beer involves many steps up to the final product.
Application scenarios (exclusive for low temperature):
· Beer Brewing
· Wine Fermentation
· Laboratory
· Pharmaceutical
· Chemical Reactor
· Low-Temp Electroplating
· Cold Storage Test
About MACHINE MORI — 13 Years Professional Chiller Manufacturer
Established in 2013, MACHINE MORI specializes in industrial chiller manufacturing
with over 13 years of experience. Our factory covers complete production lines including
welding, vacuum pumping, refrigerant charging, and full performance testing.
13 Years Manufacturing Experience
CE Certified Products
Strict 8-Step Quality Control
Imported Components: Copeland / Sanyo Compressor, Schneider & Omron Electrics
OEM / ODM Service Available
Export to Worldwide Markets

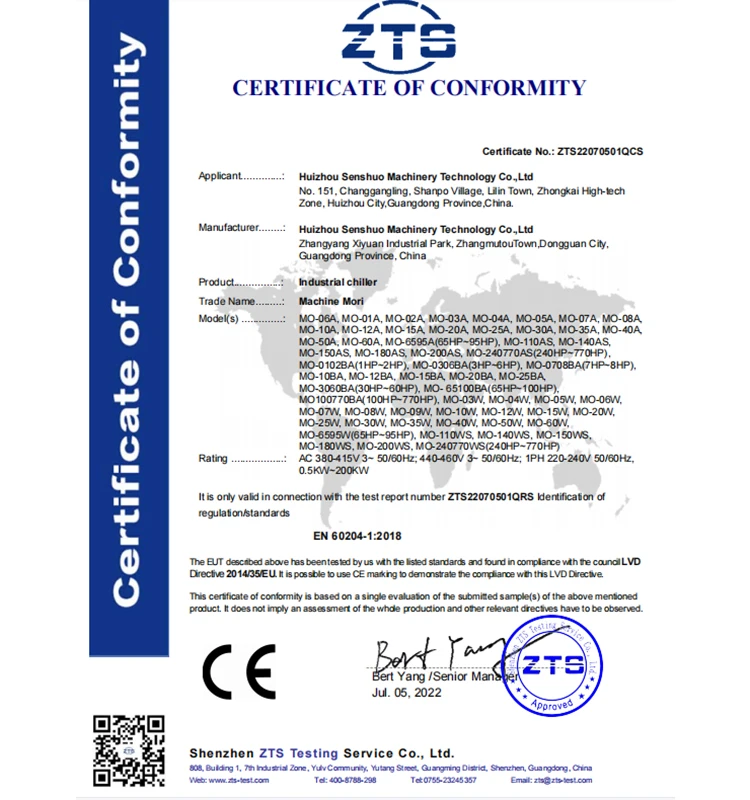

CE Certification
Frequently Asked Questions:
Q1: Can you customize the cooling capacity / voltage?
A1: Yes. We provide OEM/ODM service and can customize capacity, voltage (220V/380V/415V, 50/60Hz) and refrigerant type to fit your equipment.
Q2: What is the delivery time?
A2: 7-15 days for standard models after order confirmation. Customized models depend on specifications.
Q3: Do you provide CE certificate?
A3: Yes. Full CE documentation is provided with every order.
Q4: What is the warranty?
A4: 1 year warranty with lifetime technical support.
Q5: What is your MOQ?
A5:MOQ is 1 set.
Q6: What temperature can this chiller reach?
A6: Down to -15°C with glycol coolant. We can customize the temperature range and capacity to your process needs.
Send your target temperature and flow rate
— our engineers will recommend the right low-temp chiller for you.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–3 set: US $1600 / set
- 4+ set: US $1580 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this glycol water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the glycol water chiller be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
