The industrial chiller listed here carries 3HP/380V/50HZ, 18KW/6HP, documented exactly as the manufacturer publishes it. Made by Huizhou Yijun Machinery Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Industrial Chiller
- Model Number: MO-06A
- Power: 5.68KW
- Cooling Fan Power: 0.36kw
- Pump Power: 0.75kw
- Compressor Power: 6HP /4.5KW
- Voltage: 3HP/380V/50HZ
Technical Specifications
| Voltage | 3HP/380V/50HZ |
|---|---|
| Power | 5.68KW |
| Refrigerant | R22/R404a/R407c/R134a(customized) |
| Compressor Brand | Sanyo |
| Pump Type | Other |
| Warranty | Unavailable |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate, Good cooling performance, Excellent heat dissipation |
| Core Components | Compressor, evaporator, condenser, water pump, exp |
| Container Volume | 30Liters |
| Model Number | MO-06A |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 294 |
| Brand Name | MACIHNE MORI |
| Dimension(L*W*H) | 136x63x145cm |
| Working Temperature Range | 3~26℃ |
| Cooling Fan Power | 0.36kw |

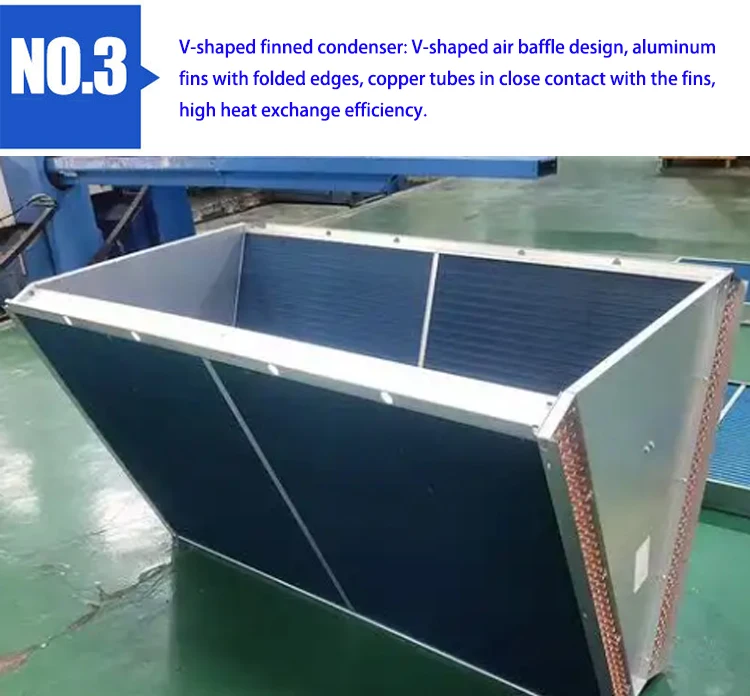

| Condenser | Efficient brass sets corrugated aluminum fin |
| Evaporator Type | Tank and coils |
| Water Tank Capacity | 30Liters |
| Pump Power | 0.75kw |
| Color | Gray(can be customer) |
| Remote Control | Kanglong |
| MOQ | 1Set |
| Cooling Capacity | 18KW/6HP |
| Compressor Power | 6HP /4.5KW |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Industrial Chillers, which are divided into Air Cooled Chiller and Water Cooled Chillers, they have the same thing in common as the use of Evaporators. But evaporators come in two forms. Today we will learn about the evaporator.
The main function of the Evaporator is to absorb heat through the evaporation of liquid refrigerant at low pressure, so as to achieve refrigeration. The form of evaporator can be divided into two types: Shell And Tube Type And Water Tank Coil Type.

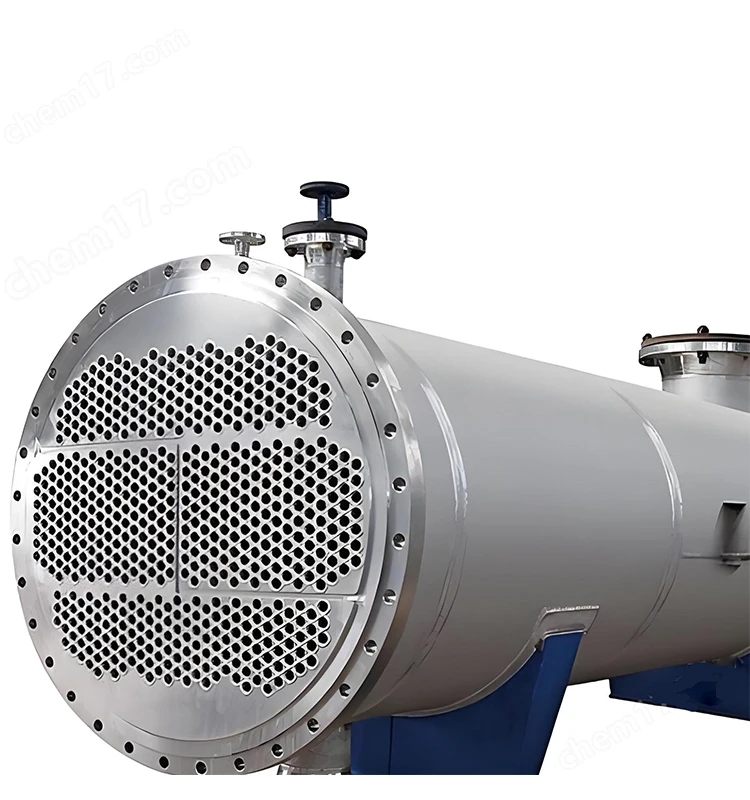

The first is the Shell And Tube Evaporator, which is mainly composed of a tube bundle and a shell, where the refrigerant evaporates inside the tube and the refrigerant (such as water or brine) flows outside the tube.

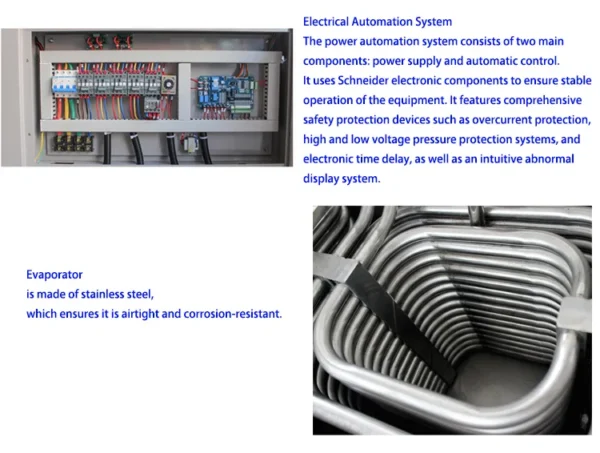

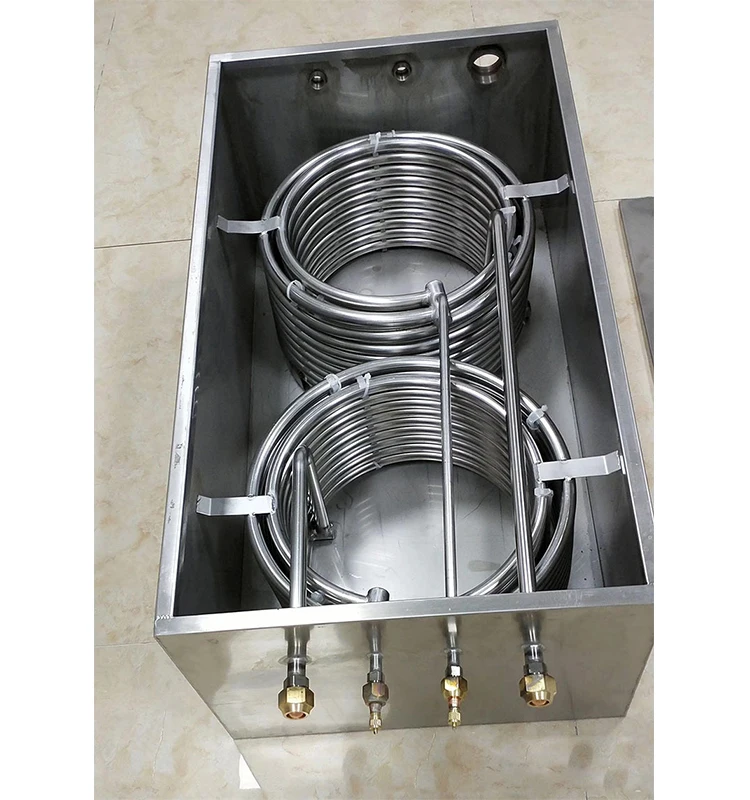

The second is the Water Tank Coil Type, as shown in the figure below, the stainless steel pipe or copper pipe is bent into a coils type, and then placed in the stainless steel water tank to form an internal circulation system, when the water is put into the water tank, the coil in the water tank will be refrigerated. The refrigerant runs inside the coil and the liquid circulates in the tank.
So when we choose a Chiller, we must know what kind of Evaporator we need. A lot of my clients don't know much about this. Today we will teach you a simple method:
1. We need to decide what we need to cool, for example, you need to cool your water tank, then the chiller should choose shell and tube Evaporator.
2. If you need to cool the interlayer or the pipes in your equipment, then you have to choose the Water Tank Coil Type Evaporator.
Next, we will introduce the internal structure of Air Cooled Water Chiller:

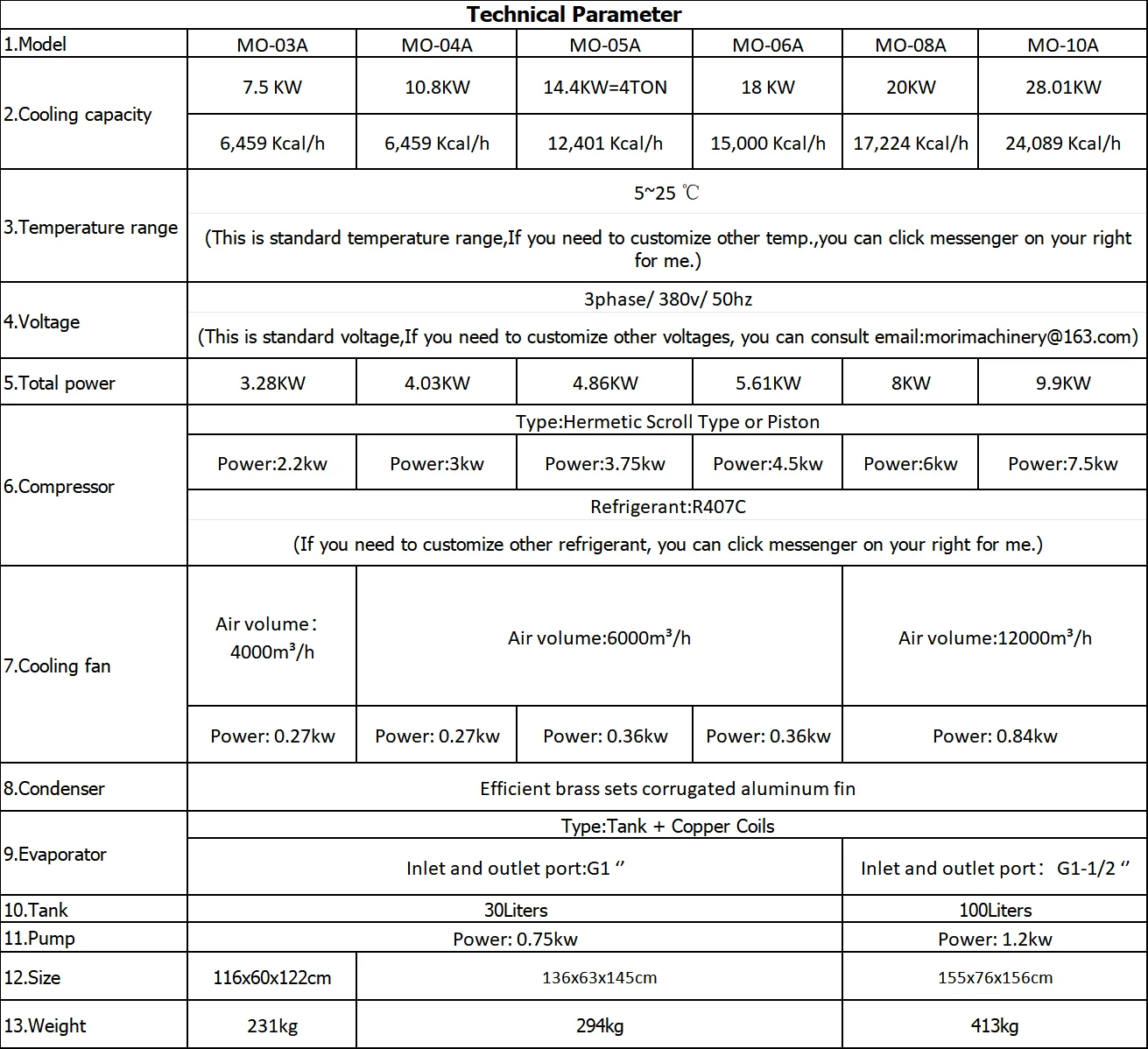

Below is the Air-Cooled Water Chiller parameter table. You can choose one to ask me about:
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $1500 / set
- 2+ set: US $1494 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial chiller be supplied for my local voltage?
The standard configuration is 3HP/380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
