Goods solar attic fan — 40W(0.05hp), material Galvanization steel. The complete factory specification follows. Made by Jiangmen Sunny Photoelectricity Technology Limited (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Goods Solar Attic Fan
- Model Number: SN2014008
- Power (W): 40W(0.05hp)
- Power Source: Solar
- Material: Galvanization steel
- Fan Blade Material: Nylon+Fiber+Aluminum
- Fan Case Material: Galvanization steel
Technical Specifications
| Power (W) | 40W(0.05hp) |
|---|---|
| Place Of Origin | Guangdong, China |
| Brand Name | SIPL |
| Model Number | SN2014008 |
| Material | Galvanization steel |
| Dimensions | 600*600*255mm(23.62*23.62*10.04in) |
| Size | 600*600*255mm(23.62*23.62*10.04in) |
| Housing Cap Shape | Round |
| Adjustable Solar Panel | 40W (415X495X25mm) |
| Motor | 24V IP68 Brushless DC Motor |
| Fan Blade Size | 14inch(air duct dia.368mm) |
| Fan Blade Material | Nylon+Fiber+Aluminum |
| Fan Case Material | Galvanization steel |
| Product Size | 600*600*255mm |
| Working Time | As long as sunshine |
| Color | Black/ Green/ Orange/ White |
| Power Source | Solar |
| Selling Units | Single item |
| Single Package Size | 66X66X34 cm |
| Single Gross Weight | 15.5 kg |
Product Details

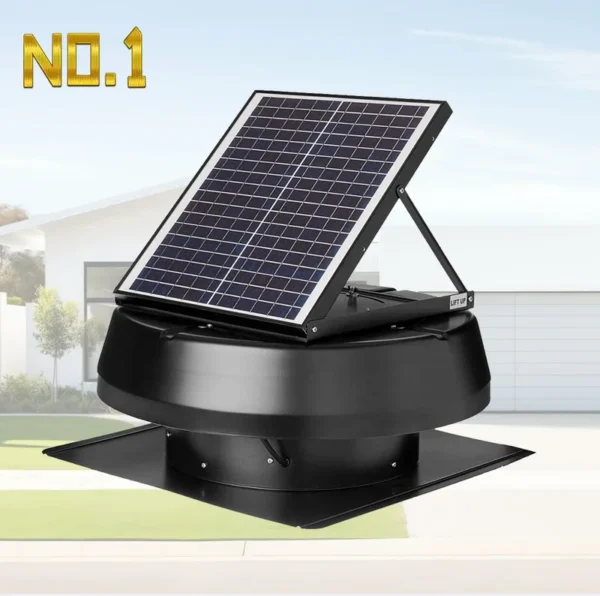

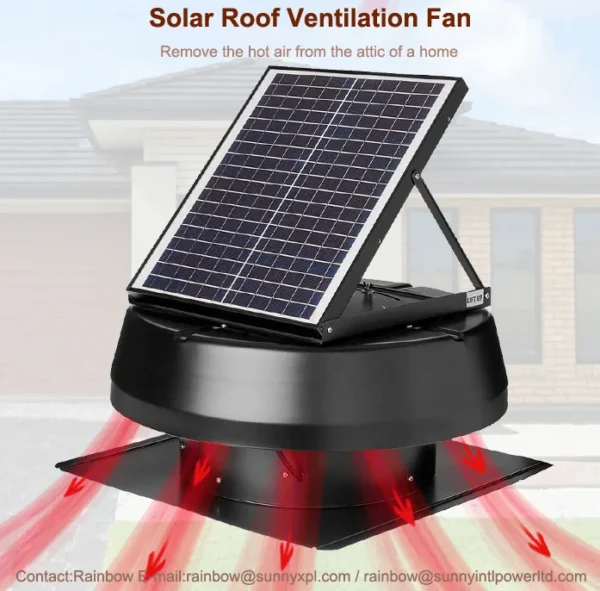

1.Solar Panel: Mounted on the fan housing, this panel captures sunlight and converts it into electrical energy to power the fan.
2.Fan Housing:The fan case in strong galvanization steel, square flashing seamlessly connected with air duct; fan housing is rust-proof and finished with anti-UV powder coating.

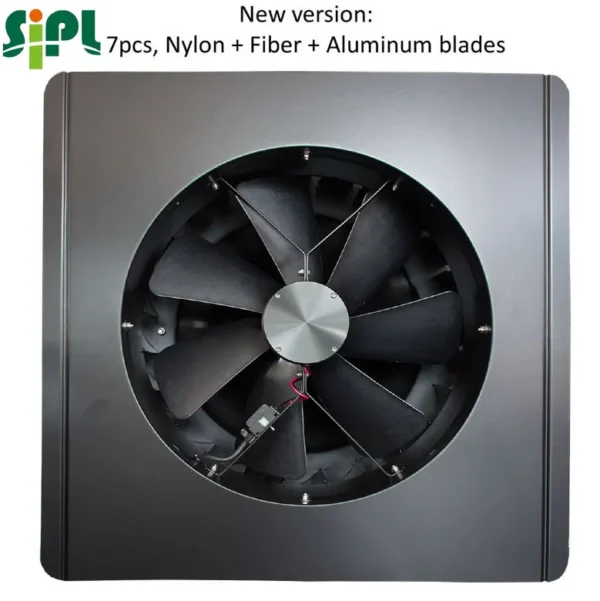

3.Fan Blades: These are located inside the housing and are powered by the solar panel. When the fan operates, it pulls hot air out of the attic.
4.The fan “self adjusts” speed based on the solar panel’s sun exposure. The more intense sun and heat, the stronger the fan will run!
1.Patented Air Draft Design, for a Higher Efficiency!
Our patent-designed wind guide cone with 24pcs turbine wind guide blades structure is adopted in this ventilator. Following a 360-degree swirl ventilation mode and being free from outside air stream interferes,it can work efficiently in sunny days to exhaust out the indoor heat &smell and not let any exterior air going in, so as to keep the living &working environment always clean& fresh. In raining windy days , this air draft design can also efficiently prevent the rains or winds from flowing backward.

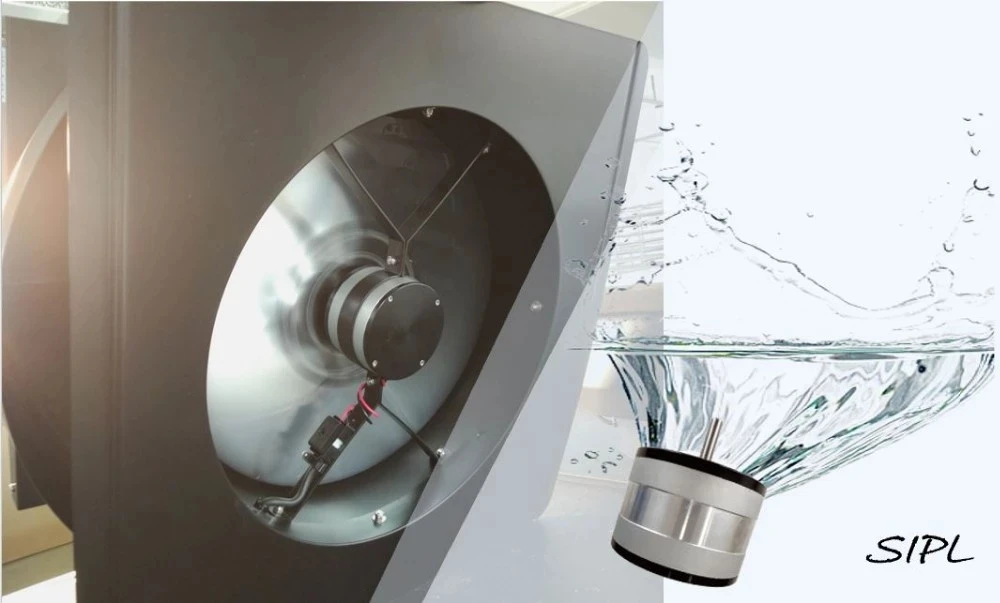

2.Most Advancing Technology for IP68 Motor
To assist our solar exhaust fans be working excellent also in special environments like greenhouse / water tank where its surrounding is very humid, we've self-developed a brushless dc motor that is IP68 waterproof, and its quality can be guaranteed even by dipping it into water for tests!

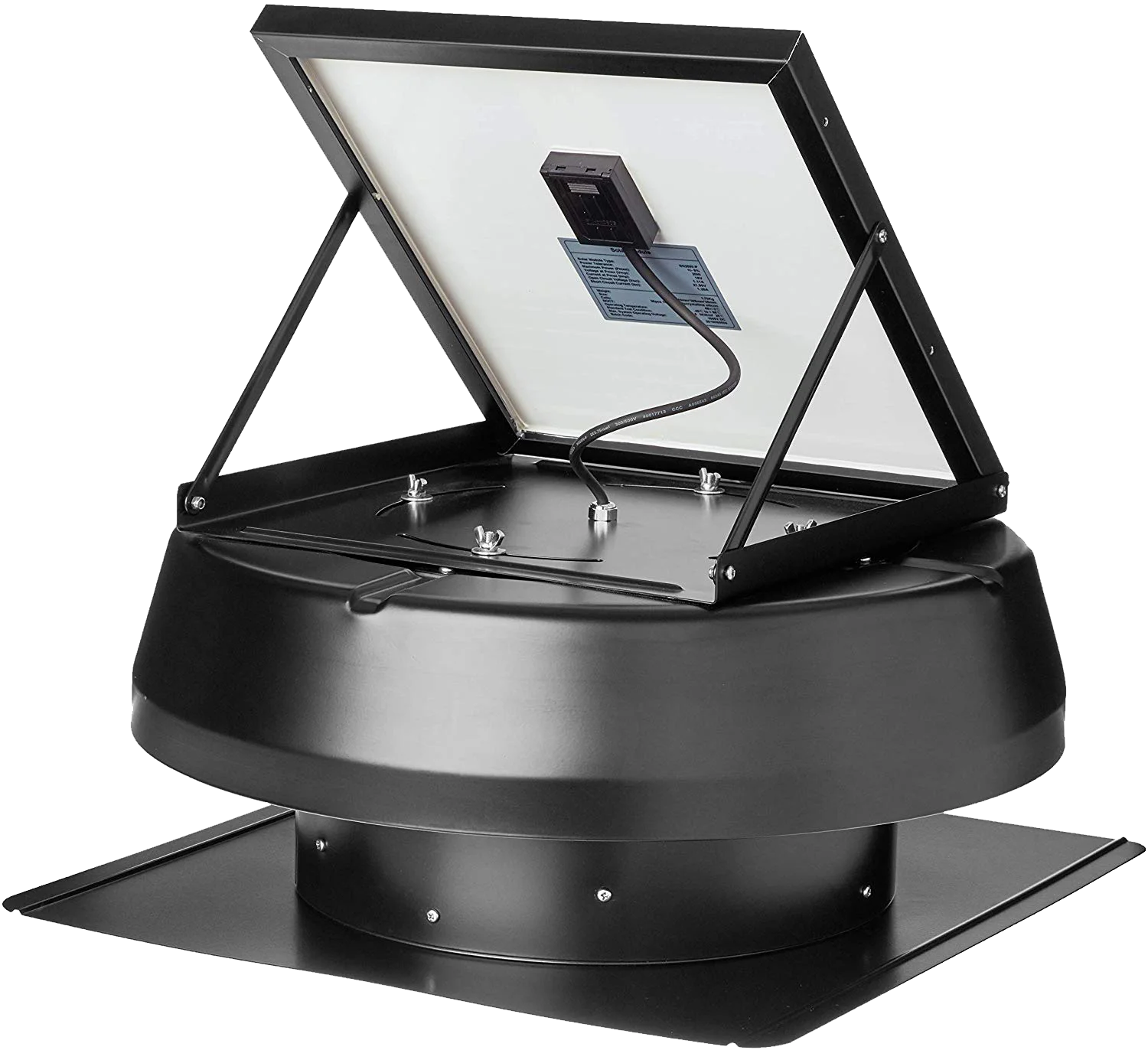

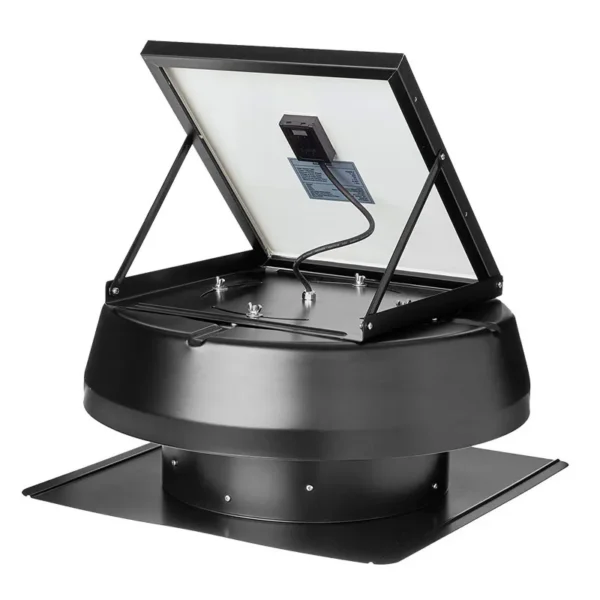

3.Adjust Angle
1.Attaching thermostat to have the fan work/stop at preset temperature.
if 25 Celsius, on: 25ºC +/- 3ºC; off: 18ºC +/- 5ºC, if 28 Celsius, on: 28ºC +/- 3ºC; off: 21ºC +/- 5ºC
2.Remote controller:This is a 4-in-1 smart remote controller for your solar fan, covering multiple functions of Temperature control, Humidity control, Speed adjustment and Time setting.
3.AC/DC power adapter: support the fan runs nonstop in sunless periods under grid supply,an inbuilt Controller will smartly take care of power switch between solar panel & grid electricity
4.Solar battery system : support the fan runs nonstop in sunless periods under battery supply.
Metal Casing: service life 20 Years, warranty 15 Years
Solar Panel: service life 25 Years, warranty 15 Years
Battery: service life 5 Years, warranty 2 Years
Brushless DC Motor: service life more than 10 Years, warranty 5 Years
Contact:
E-mail: rainbow@sunnyxpl.com / rainbow@sunnyintlpowerltd.comTel: 0086-0750-6613338 Fax: 0086-0750-6663464
Mob/Whatsapp: 0086-13556902321
Skype: 963784748@qq.com
Besides Solar Attic Fan, our other solar fan series are also selling well:
(You may click the below images to view more of those selections, thanks!)

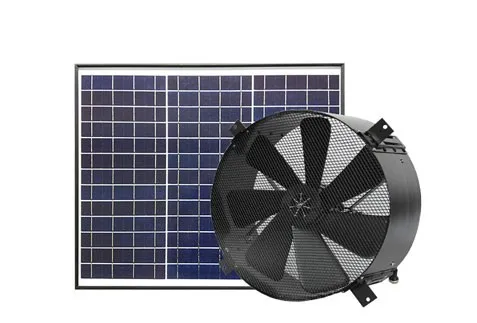

Solar Gable Fan
(12 inch & 14 inch, day & night use)
US $85-125/ Set
Solar Ceiling Fan
(60 inch, day & night use)
US $165-375/ Set

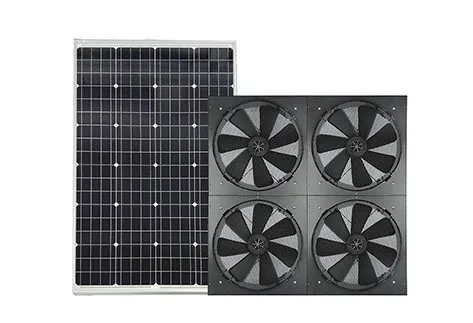

4 pcs 14'' Combined Wall Fan
200W Solar Panel & Adapter
(new conceptual quality, day & night)
US $800-950/ Set
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $163.5 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this goods solar attic fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangmen Sunny Photoelectricity Technology Limited, based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangmen Sunny Photoelectricity Technology Limited range on HVACR Nexus.
