Heat pump — 380 V, material SUS304, SUS304L, SUS316, SUS316L. The complete factory specification follows. Made by Jiangsu TENESUN Electrical Appliance Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Heat Pump
- Voltage: 380 V
- Material: SUS304, SUS304L, SUS316, SUS316L
- Refrigerant: R134A
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: sludge processing
Technical Specifications
| Type | Heat Pump Dryer |
|---|---|
| Voltage | 380 V |
| Heating Method | Heat Pump, Electric Heating |
| Material | SUS304, SUS304L, SUS316, SUS316L |
| Application | sludge processing |
| Core Components | Pump, Motor, Gearbox, PLC |
| Key Selling Points | Competitive Price, Eco-Friendly, Long Service Life |
| Warranty | 1 Year |
| Operating System Language | English |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2200 |
| Brand Name | TENESUN |
| Dimension(L*W*H) | 3.31*1.86*2.286m |
| Refrigerant | R134A |
| Selling Units | Single item |
| Single Package Size | 336X191X233.6 cm |
| Single Gross Weight | 2230.0 kg |
Product Details
PRODUCT HIGHLIGHTS

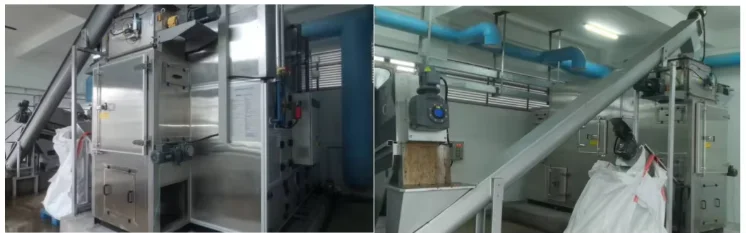

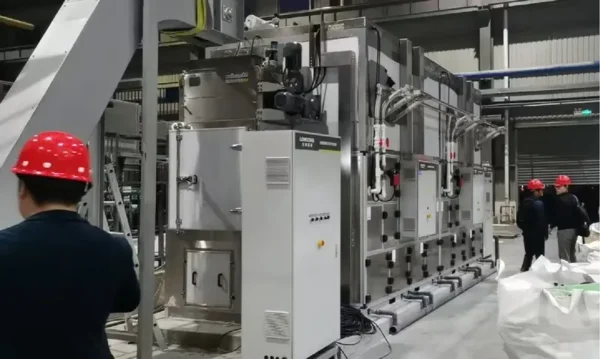

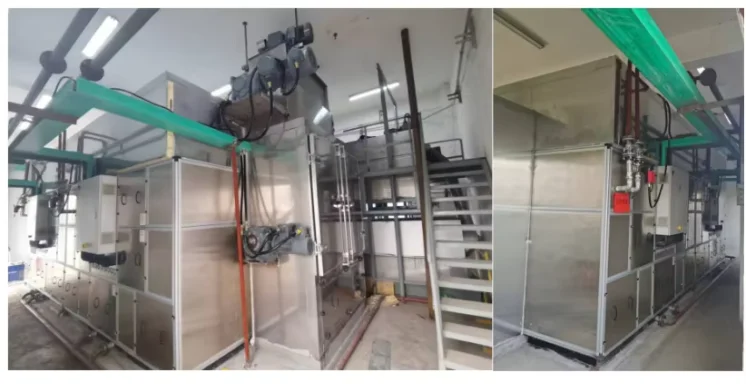

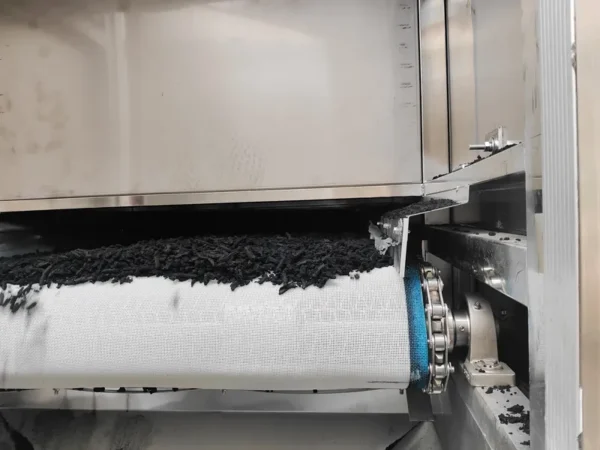

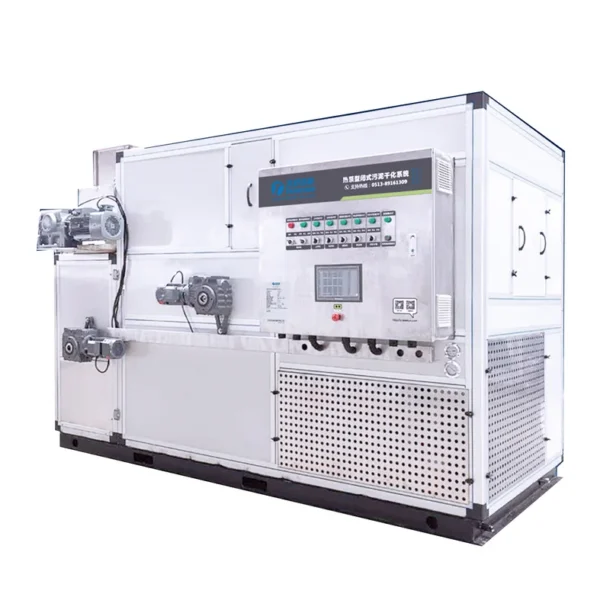

- Heat Pump Closed Belt-Type Sludge Dryer
- TENESUN innovatively integrates cooling and ventilation system technologies to launch a low-temperature sludge drying system. The system can dry wet sludge with a moisture content of 83% to below 30%.The system operates fully automatically and intelligently, with low energy consumption and zero pollution.It is specifically designed for sludge drying reduction projects in different fields such as municipal engineering, printing&dyeing, paper-making, electroplating, chemical industry, leather processing, pharmacy,kitchen waste and so on. It helps to take the advantage of the harmless material for subsequent incineration, composting and building materials, breaking through the limitations of traditional drying technologies.
- Remote Monitoring System-Customers can remotely monitor and control machines and deeply excavate data by the operating system then to achieve high efficiency and high speed and create greater value for the enterprises.
- Pulse Dust Removal System-The system automatically controls the compressed air valve for automatic cleaning. The filter cartridge adopts a high-density polyester fiber filter for excellent filtration, ensuring stable system operation while facilitating installation and maintenance.
- Anti-Corrosion Isolation-TENESUN low-temperature sludge drying system utilizes a combination of corrosion protection methods, including refrigerant component isolation protection, anti-corrosion materials and coatings with anti-corrosion paint. With its superior corrosion resistance, it provides a reliable product upgrade solution for the industry and customers.
- PLC + Electronic Expansion Valve-Digital fuzzy recognition of the real-time sludge status and precise control of the cooling capacity distribution pattern through the electronic expansion valve's operation logic, optimizing the heat pump system's circulation flow and ensuring continuous, efficient and stable operation of the drying environment.
- Heat Pump Closed Belt-Type Sludge Dryer.Using a heat pump system, humid air from the drying cabinet is cooled and dehumidified through the evaporator, and then reheated by the condenser into dry&hot air. This air is sent into the dryer,and the process repeats continuously.The moisture in the sludge is drained as condensate into the sewage tank.
- Electric-Powered, Highly Adaptable.Fully electric-driven, suitable for a wide range of industrial sludge treatment scenes.
- Continuous Operation, High-Volume Processing.Supports round-the-clock, uninterrupted operation, easily handling high-volume sludge processing needs.
- Low-Temperature Technology, Safe And Clean.Operating under low-temperature conditions, without high-temperature risks; the closed structure meets both discharge reduction and ecological needs.
- Intelligent Control For Worry-Free Mass Production.Equipped with an automated control system, it operates stably and is suitable for large-scale mass production.
Model | SC-25IIJ4dX | SC-50IIJ4dX | SC-100IIJ4dX | SC-100IIJ4dX×2 | |||
Standard Water Removal Capacity（kg/24h） | 600 | 1200 | 2400 | 4800 | |||
Operation Power（kW） | 11 | 19 | 36 | 68 | |||
Installed Power（kW） | 17 | 25 | 42 | 80 | |||
Quantity of Heat Pump Module（set） | 1 | 1 | 1 | 2 | |||
Quantity of Compressor（set） | 1 | 1 | 4 | 8 | |||
Cooling Water Flow （△t=10ºC）（m³/h） | 0.7 | 1.4 | 2.7 | 5.4 | |||
Diameter of Cooling Water Pipe | DN20 | DN32 | DN32 | DN40 | |||
Structure Type | Whole Package | Whole Package | Whole Package | Assembled Package | |||
Refrigerant | R134a | ||||||
Power Supply | 380V/3N ~ 50Hz | ||||||
Dry Temperature | 48~56℃（return air）/65~80℃（supply air） | ||||||
Control System | Touch screen+PLC Programmable Controller | ||||||
Wet Sludge Application Scope | Moisture Content（40%~82%）(Different moisture content has different adaptability.) | ||||||
Dry Sludge Moisture Content | Frequency conversion adjustment, moisture content (10%-60%) ( Dry sludge moisture content's adjustment range is according to the moisture content of the inlet wet sludge.) | ||||||
Forming Method | Cutting strip and squeezing strip (selection is according to different moisture content and sludge properties.) | ||||||
FAQs
Are you trading company or manufacture?
We are professional manufacturer with 20+ years experiences.
Where is your factory located?
Nantong City, which is very close to Shanghai with only less than 2 hours' driving.
Do you provide OEM service?
Yes. Any required logos is available.
How about the production capacity of your company?

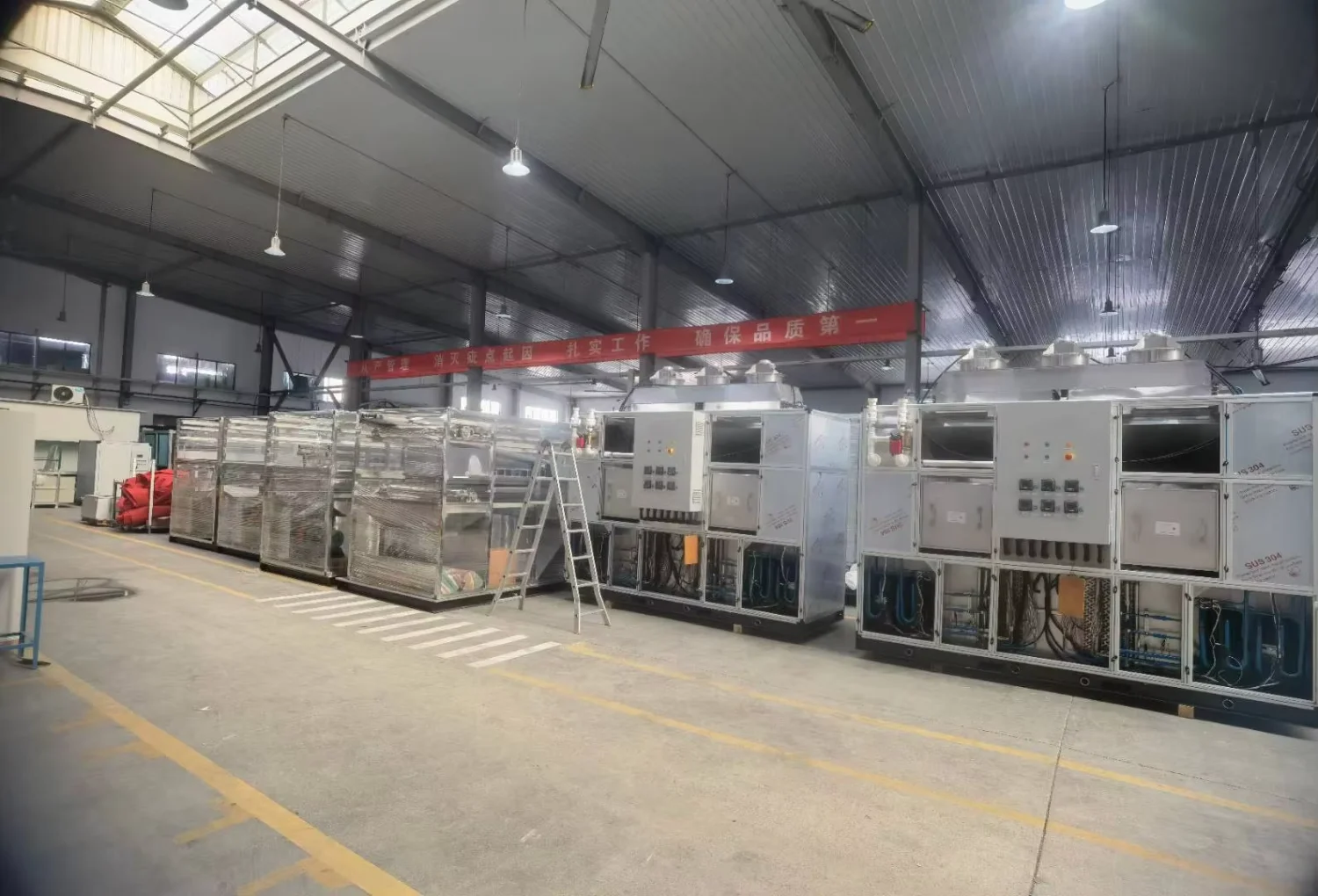

Our factory covers area over 60,000 m² and produces machines 6000 sets per year.
How could we trust you and your company? This is first time transaction?
Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 15 countries all over the world. Welcome to our company and check our plant production condition any time.
Do you offer after-sales service?
Yes. Engineers available.
What kind of payment do you accept?
T/T, L/C, PAYPAL, Cash, D/P, D/A
What kind of transportation do you offer?
Customers decide freight mode, Air, Land & Sea
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $51840 / set
- 5+ set: US $50300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heat pump be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu TENESUN Electrical Appliance Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu TENESUN Electrical Appliance Co., Ltd. range on HVACR Nexus.
