Key specification for this air source heat pump: 380 V, material Metal. Everything below is reproduced from the factory data sheet. Made by Jiangsu TENESUN Electrical Appliance Co., Ltd. (1 year on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Source Heat Pump
- Model Number: KSR-570 E BP/A1
- Voltage: 380 V
- Material: Metal
- Refrigerant: R-32
- Noise Level: 60-70dB
- Warranty: 1 Year
Technical Specifications
| Working Temperature Range | -20°C-30°C |
|---|---|
| Voltage | 380 V |
| Refrigerant | R-32 |
| Material | Metal |
| Warranty | 1 Year |
| Noise Level | 60-70dB |
| Key Selling Points | High-Accuracy, Eco-Friendly, Competitive Price, Easy To Operate |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2940 |
| Brand Name | Tenesun |
| Model Number | KSR-570 E BP/A1 |
| Dimension(L*W*H) | 2400*4600*2236mm |
| Selling Units | Single item |
| Single Package Size | 245X465X228.6 cm |
| Single Gross Weight | 2970.0 kg |
Product Details
PRODUCT HIGHLIGHTS
- Core Product Advantage: This commercial air source heat pump represents the next generation of energy efficient HVAC solutions for large scale projects. Engineered with advanced EVI technology and DC inverter compressors, it delivers stable heating and cooling performance even in extreme ambient temperatures as low as -25°C. The centralized integration significantly reduces carbon footprints, helping developers meet environmental standards while drastically cutting operational costs. Its high coefficient of performance ensures maximum thermal output with minimal input for long term infrastructure investments.

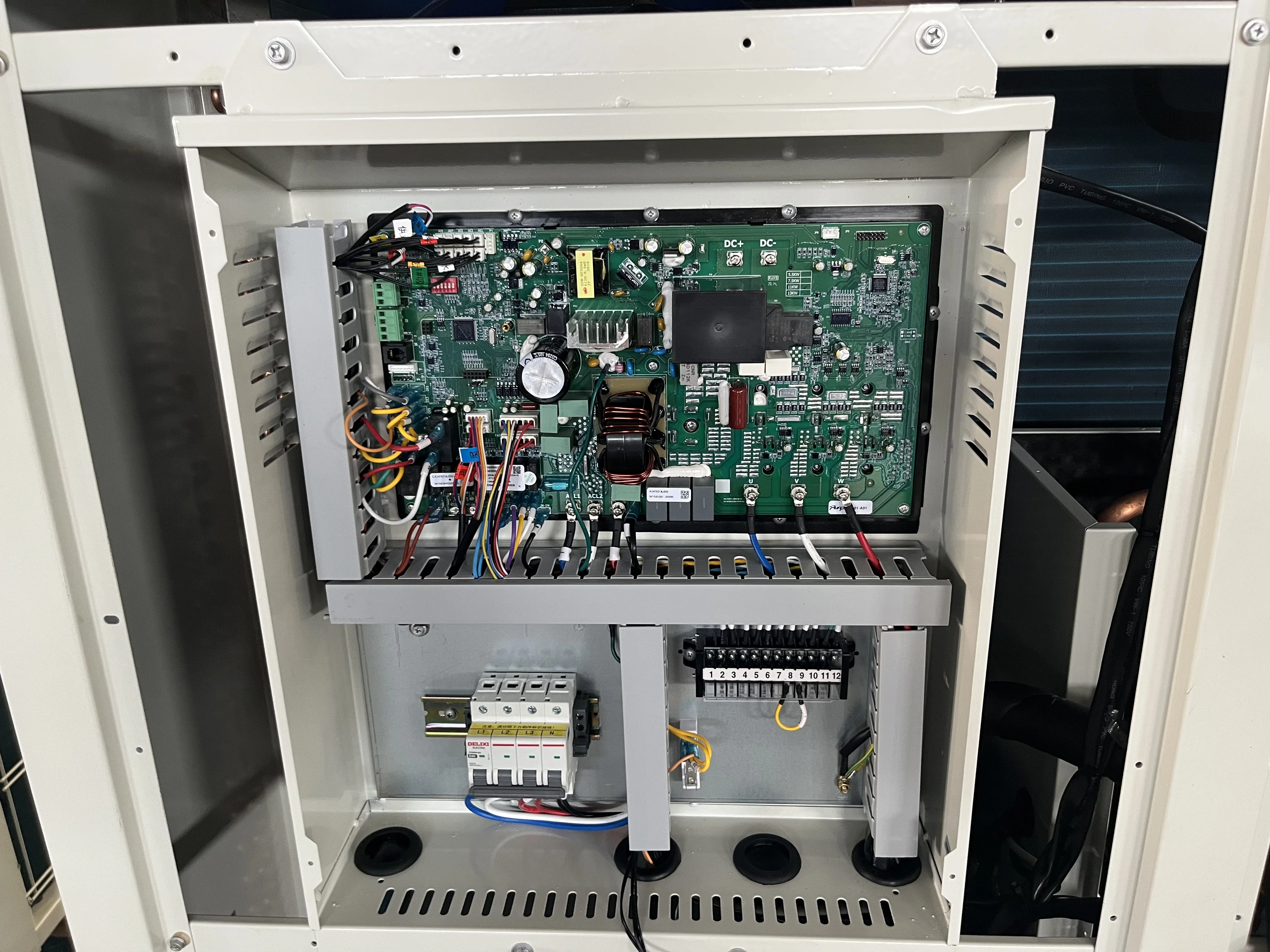

- Practical Function Design: Featuring an intelligent control module, the system automatically adjusts compressor frequency based on real time load demands. This precise modulation prevents frequent start stop cycles, extending component lifespan and maintaining consistent indoor environments. The multi functional design supports floor heating and fan coil units simultaneously, providing comprehensive climate control. Integrated defrosting algorithms ensure reliable operation during winter months and guarantee supply safety.

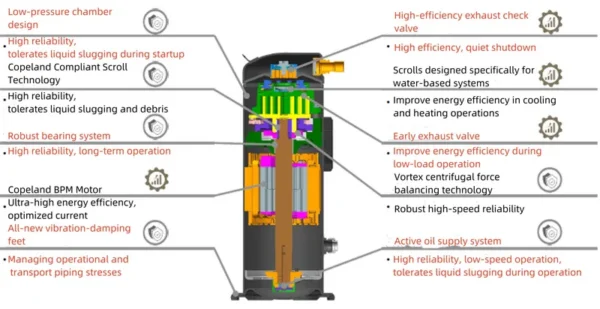

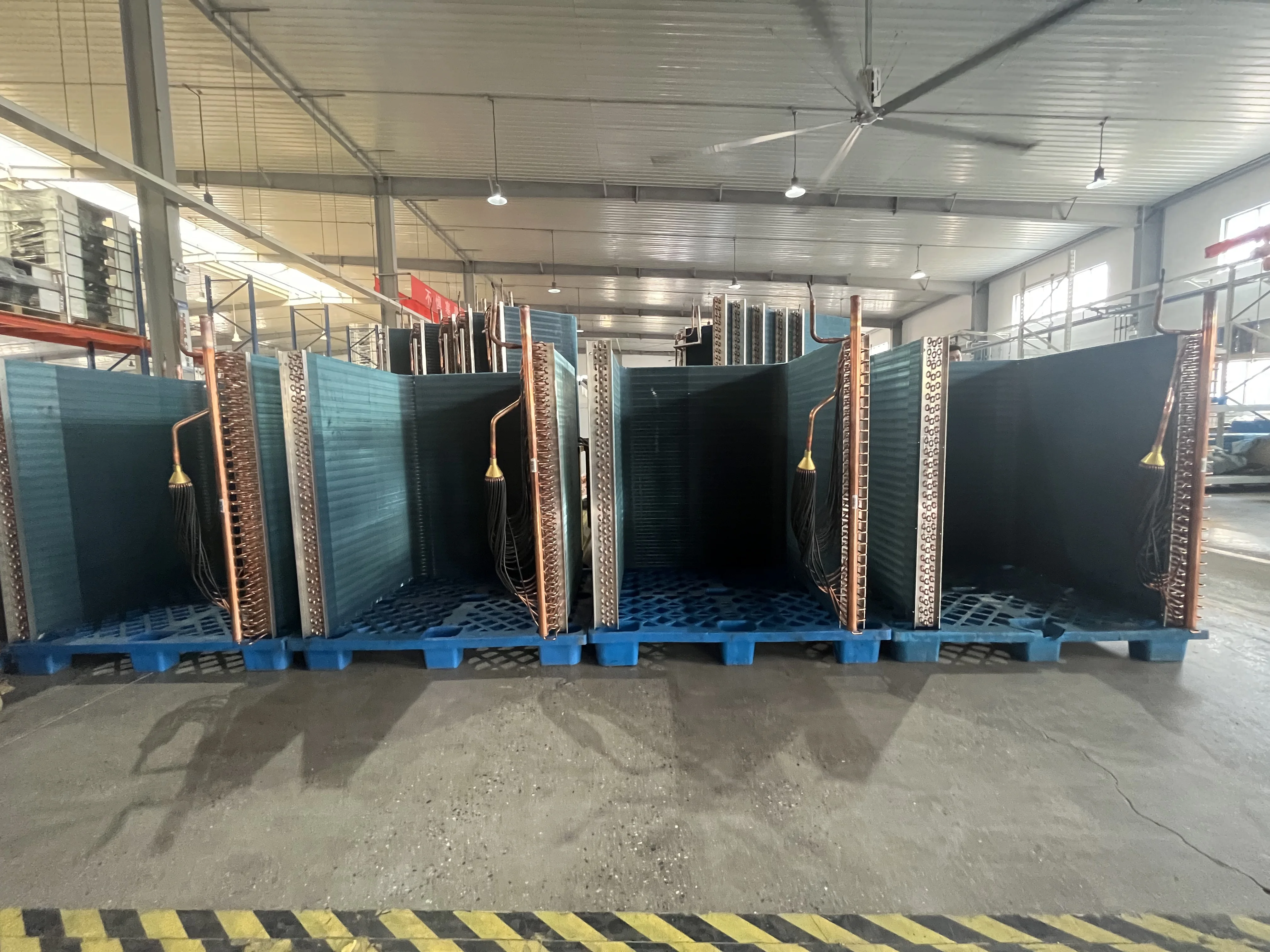

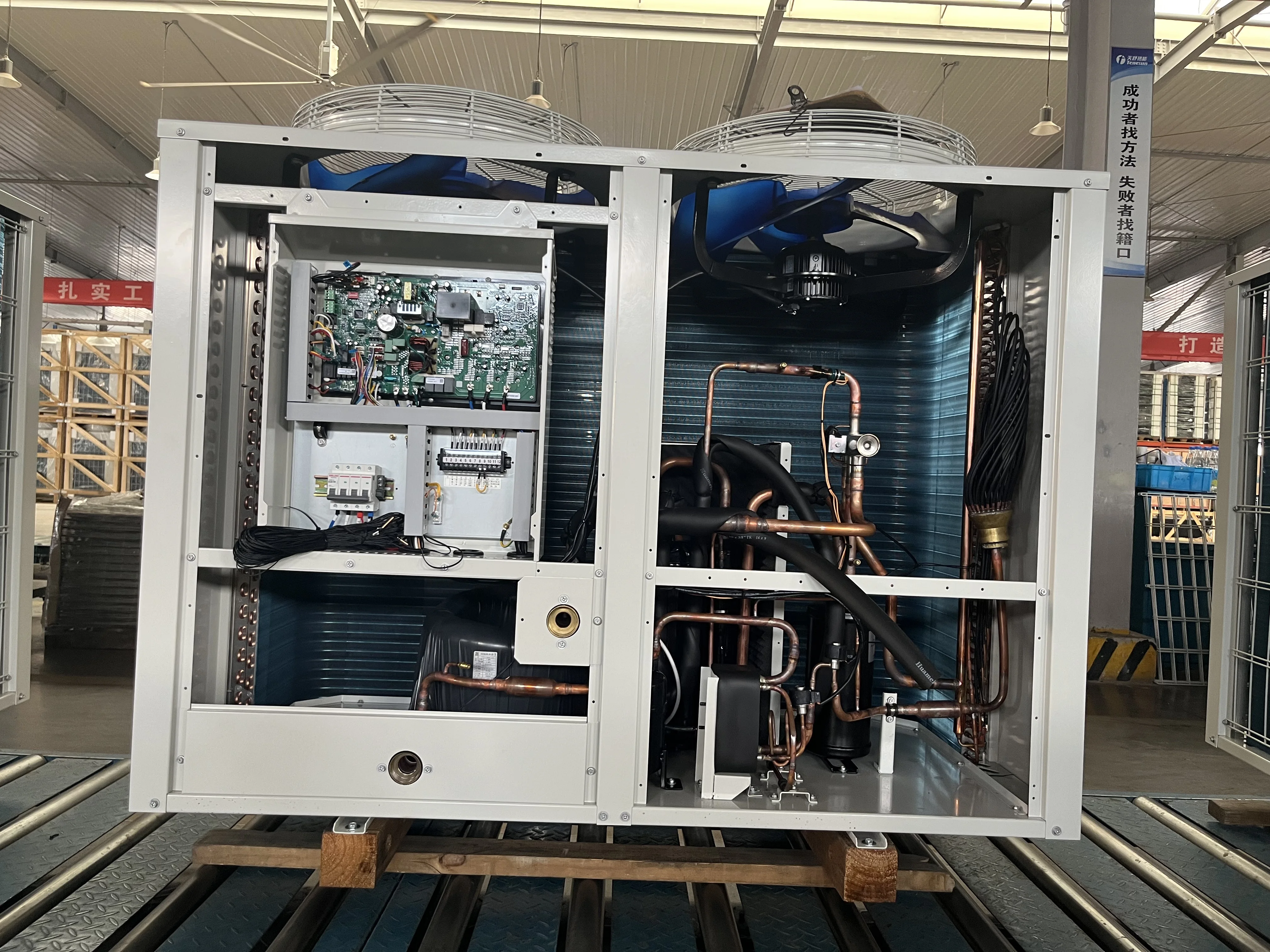

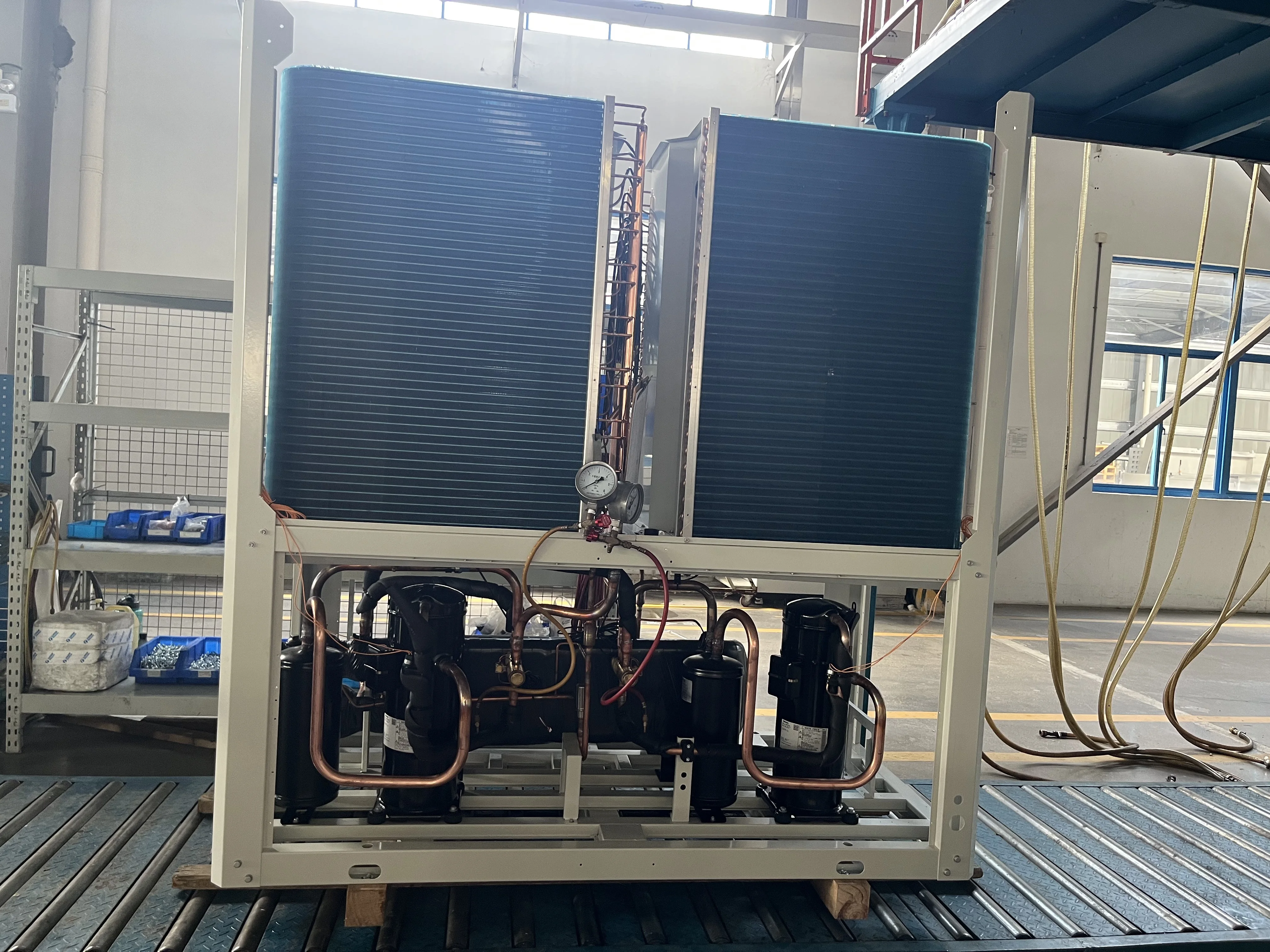

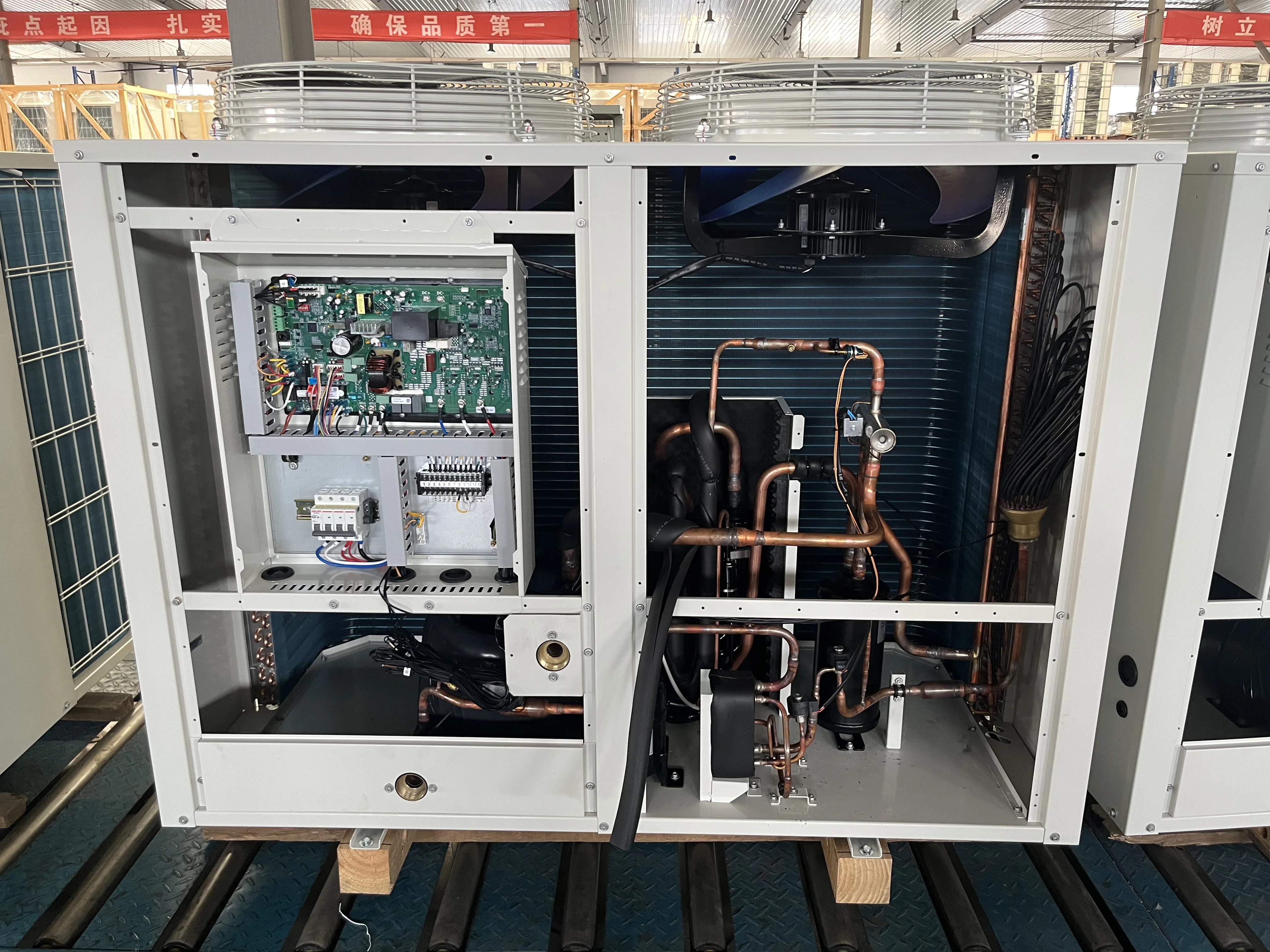

- Material And Specification Details: Constructed with a heavy duty galvanized steel frame and anti corrosive coating, this unit withstands diverse outdoor climates. It utilizes premium components including high efficiency heat exchangers and scroll compressors optimized for industrial loads. The monoblock design simplifies installation by integrating core components into a single outdoor housing, reducing on site plumbing complexity and labor costs. Various capacity specifications are available to meet unique project needs and durability.
- Application Scenarios: This centralized solution is ideal for residential communities, large hotels, and medical facilities where reliable year round climate control is critical. It provides an efficient alternative for shopping malls and office buildings requiring flexible zone management. Furthermore, it is suitable for industrial applications like factory heating and large pools, allowing property managers to achieve better aesthetic results and simplified maintenance across building complexes and hotels.

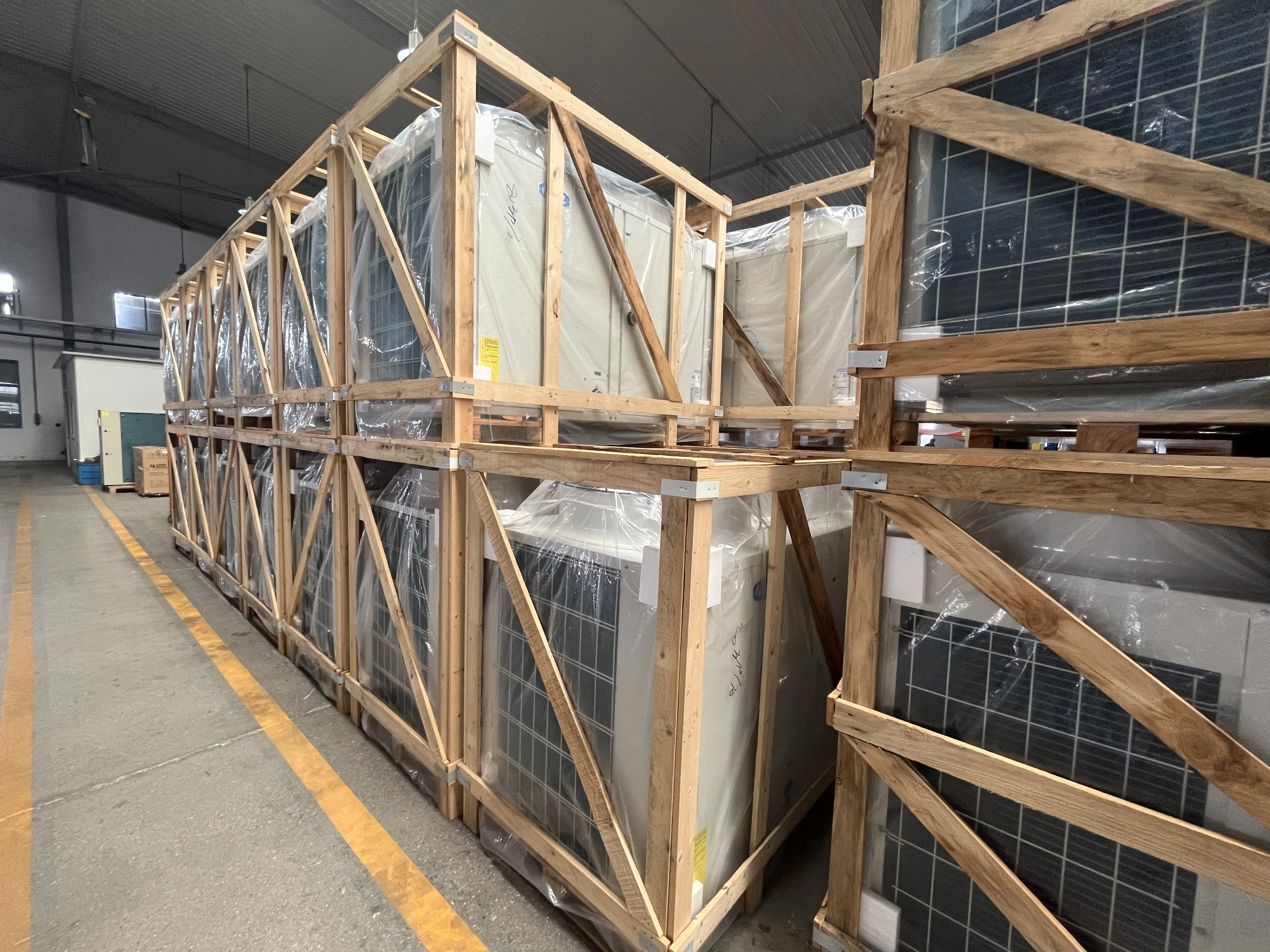

- Packaging And Supply Support: Each unit undergoes rigorous factory testing before being securely packaged in reinforced wooden crates for international shipping. We provide full technical documentation including installation manuals and performance charts. Our factory offers robust OEM and ODM customization services for volume orders. With a dedicated support team available for consultations, we ensure a smooth procurement process from inquiry to commissioning, helping you deliver superior HVAC results to your clients.
Model | KSR-190 E BP/A1 | KSR-380 E BP/A1 | KSR-570 E BP/A1 | |||
Customized Thermal Conditions（A7 W45） | Heating Capacity（kW） | 190(57~209) | 380(114~418) | 570(171~627) | ||
Power Input(kW) | 53.6(13.6~65.5) | 107.1(27.2~130.9) | 160.7(40.9~196.4) | |||
COP(W/W) | 3.55(3.19~4.19) | 3.55(3.19~4.19) | 3.55(3.19~4.19) | |||
Nominal Refrigeration Conditions （A35 W7） | Cooling Capacity（kW） | 150(45~165) | 300(90~333.3) | 450(135~500) | ||
Power Input(kW) | 49.4(13.5~60.3) | 98.7(26.9~121.8) | 148.1(40.4~182.8) | |||
COP(W/W) | 3.04(2.74~3.34) | 3.04(2.74~3.34) | 3.04(2.74~3.34) | |||
Customized Thermal Conditions（A-12 W41） | Heating Capacity（kW） | 123.6(37.1~136) | 247.3(74.2~272) | 370.9(111.3~408) | ||
Power Input(kW) | 46.9(12.8~57.3) | 93.7(25.6~114.6) | 140.6(38.4~171.9) | |||
COP(W/W) | 2.64(2.37~2.9) | 2.64(2.37~2.9) | 2.64(2.37~2.9) | |||
HSPF 35℃/50℃ | 3.62/2.66 | 3.62/2.66 | 3.62/2.66 | |||
APF | 3.42 | 3.42 | 3.42 | |||
CSPF | 4.33 | 4.33 | 4.33 | |||
Power Supply | 380V 3N~50Hz | |||||
Max. Power Input/Current | kW/A | 72.3/130.0 | 144.6/260.0 | 216.9/390.0 | ||
Rated Water Flow | m3/h | 25.8 | 51.6 | 77.4 | ||
Water Pressure Drop | kPa | 80 | ||||
Operation Ambient Temperature | ℃ | -38～50 | ||||
Max Water Output Temperaure | ℃ | 60 | ||||
Refrigerant | R32 | |||||

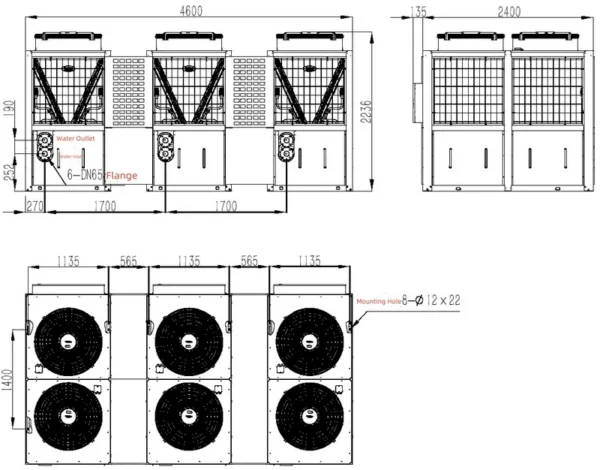

Body size(L×W×H) | mm | 2400×1200×2236 | 2400×2900×2236 | 2400×4600×2236 | ||
Noise | dB(A) | 64~74 | ||||
Circular Water Pipe | Diameter | DN65 | 4-DN65 | 6-DN65 | ||
Connecting Way | Flange | |||||
Net Weight | kg | 980 | 1960 | 2940 | ||
FAQs
Are you trading company or manufacture?
We are professional manufacturer with 20+ years experiences.
Which products that we produce?
We manufacture sludge dryer,home-use air source heat pump,commercial heat pump with heating and cooling,heat pump water heater,swimming pool dehumidification and constant temperature heat pump.
Where is your factory located?
Nantong City, which is very close to Shanghai with only less than 2 hours' driving.
Do you provide OEM service?
Yes. Any required logos is available.
How about the production capacity of your company?

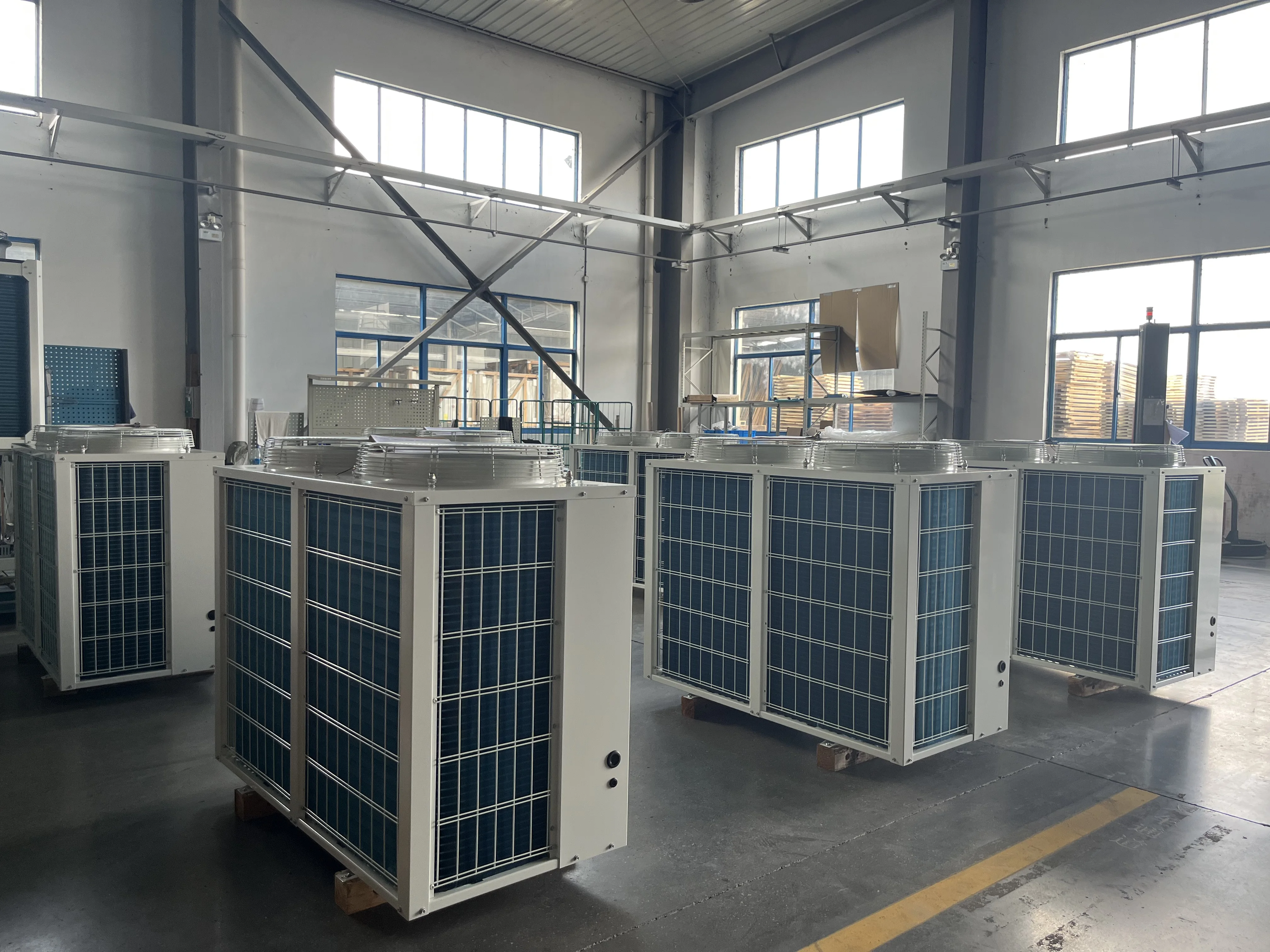

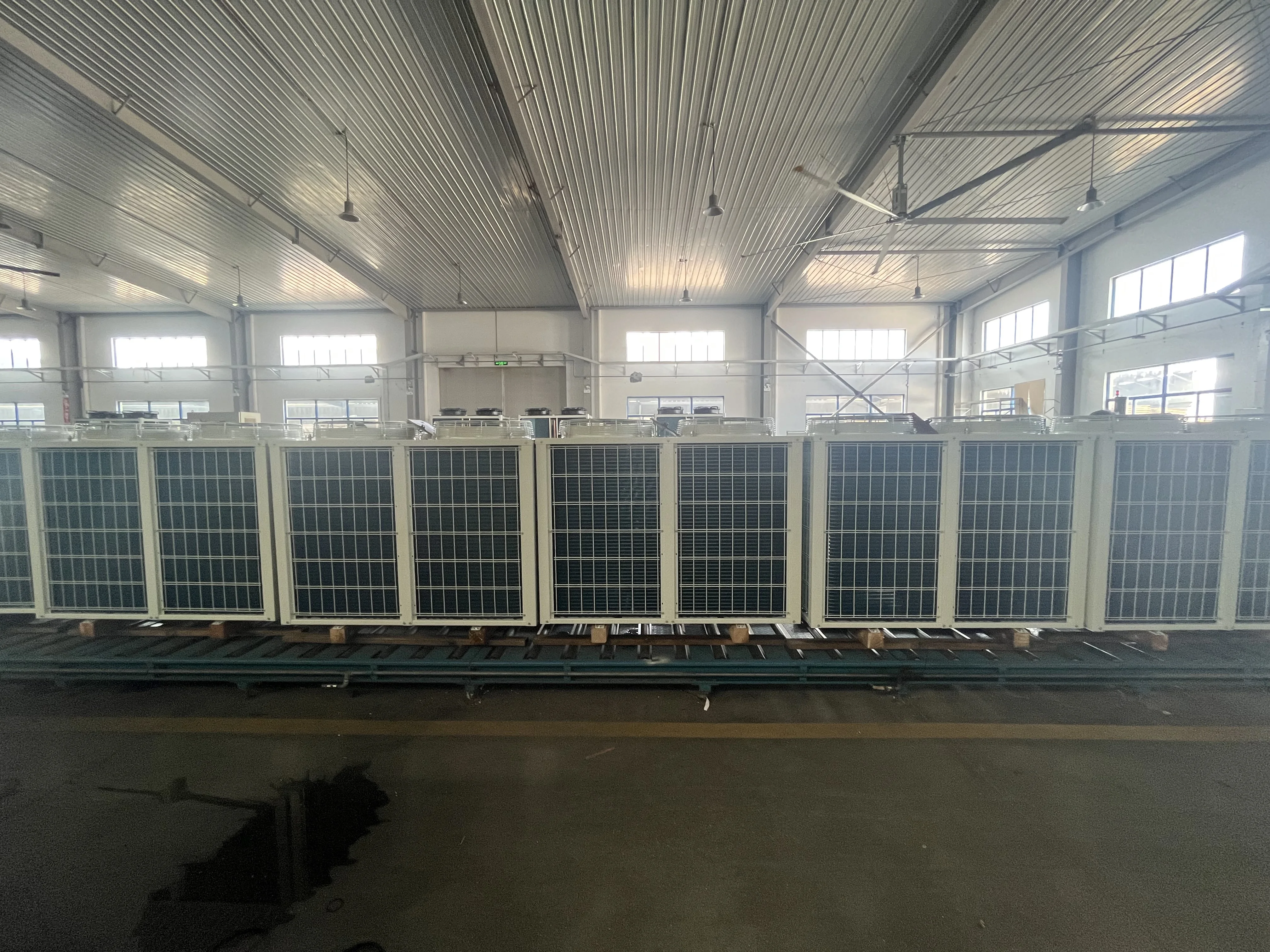

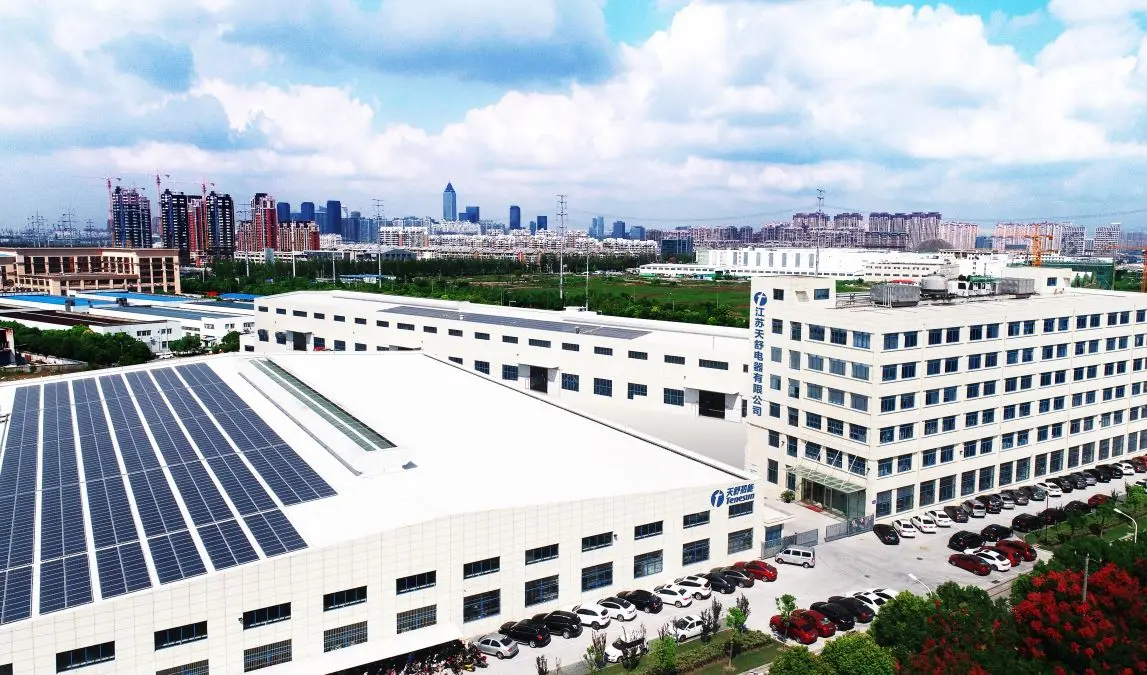

Our factory covers area over 60,000 m² and produces machines 6000 sets per year.
How could we trust you and your company? This is first time transaction?
Our company has more than 20 years professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 15 countries all over the world. Welcome to our company and check our plant production condition any time.
Do you offer after-sales service?
Yes. Engineers available.
What kind of payment do you accept?
T/T, L/C, PAYPAL, Cash, D/P, D/A
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $29610 / set
- 5+ set: US $28730 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air source heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air source heat pump be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
