The high-airflow ventilation axial fan listed here carries 230 V, 380 V, 110 V, power source Electric, documented exactly as the manufacturer publishes it. Made by Xuchang Wonderful Electric Co., Ltd. (8 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This High-Airflow Ventilation Axial Fan
- Model Number: WDF22580 HB 220V-7P, WDF22580 HB 110V-7P, WDF22580 HB 380V-7P
- Power Source: Electric
- Voltage: 230 V, 380 V, 110 V
- Blade Material: Plastic
- Frame Material: Aluminum Alloy
- Speed: 2700 RPM
Technical Specifications
| Voltage | 230 V, 380 V, 110 V |
|---|---|
| Speed | 2700 RPM |
| Type | dc cooling fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | TWO BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Henan, China |
| Brand Name | Anne Well |
| Model Number | WDF22580 HB 220V-7P, WDF22580 HB 110V-7P, WDF22580 HB 380V-7P |
| Product Name | AC Axial Cooling Fan |
| Size | 225*225*80 mm Industrial Exhaust Fans |
| Rated Current | 0.16~0.68 A |
| Frame Material | Aluminum Alloy |
| Motor | Capacitor-Run and External Rotor Induction Motor |
| Sample | Can be available |
| Weight | 2112 g |
| Application | Cabinet Panel Rittal Fan |
| Operating Temperature | -10~+105 Celsius Degree |
| Selling Units | Single item |
| Single Package Size | 30X30X15 cm |
| Single Gross Weight | 3.0 kg |
Product Details

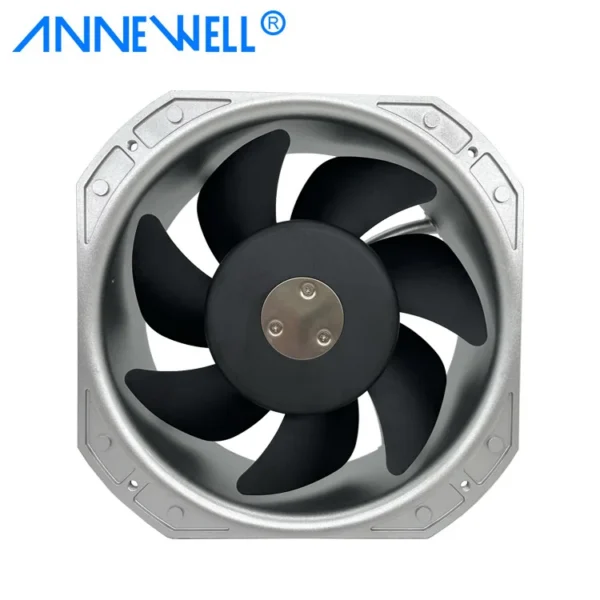

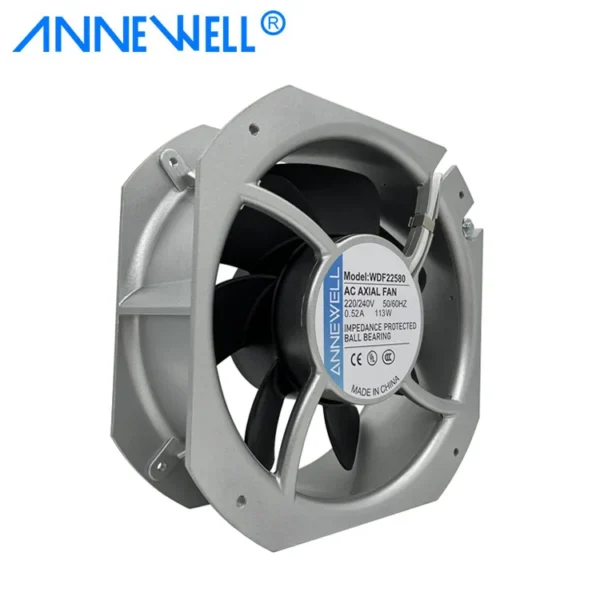

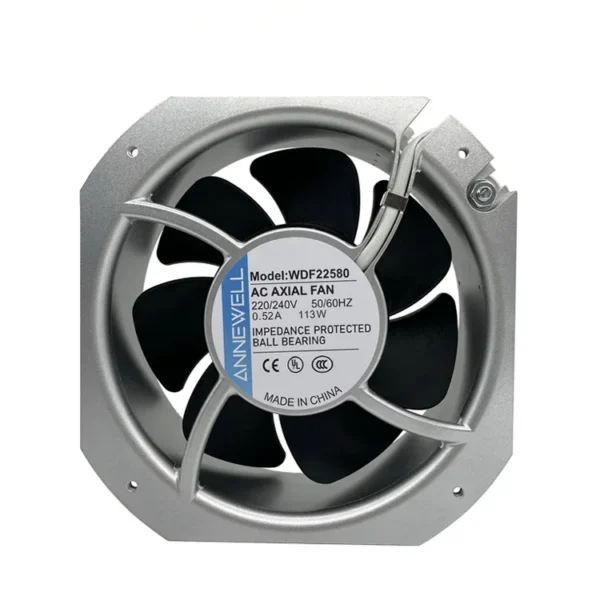

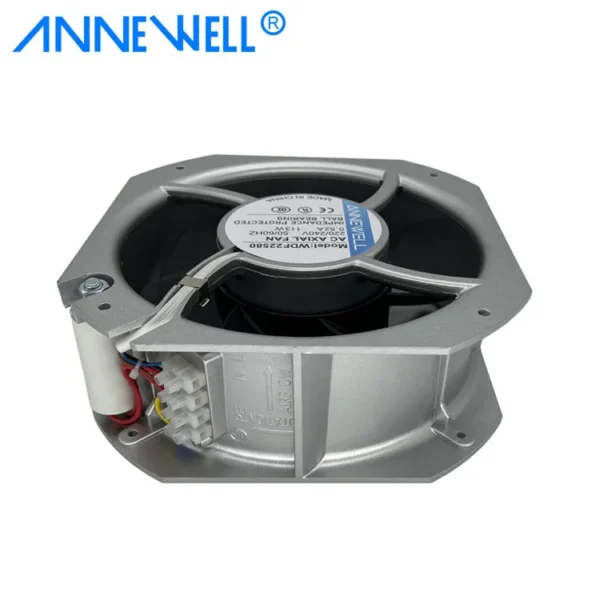

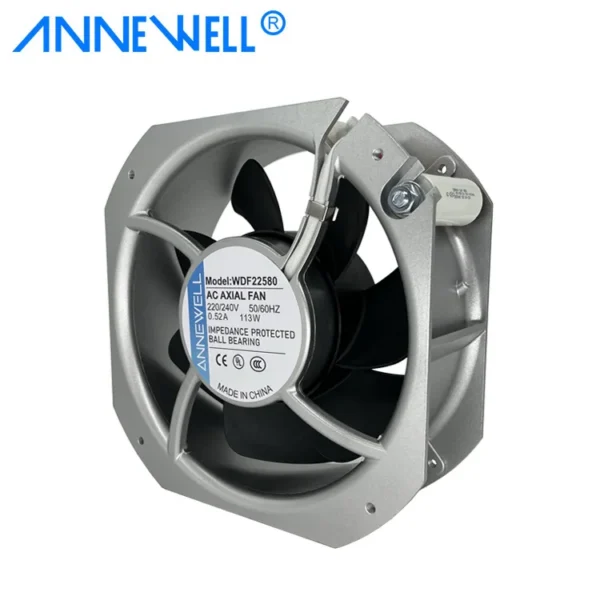

Customized 200FZY 22580 AC220V/380V High-AirFlow Ventilation Axial Fan 225mm 225*225*80mm Welding Machine Chassis AC Cooling Fan
| Listed Model | Bearing System | Voltage (VAC) | Freq. (HZ) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Air Pressure (mm-H2O) | Noise (dBA) | Phase | Capacitor (µF/V) | Weight (G) |
| WDF22580H-7P | Ball | 380~420 | 50/60 | 0.20 | 65 | 2700/3100 | 597/634 | 18.8/16.9 | 59/61 | 1 | 1/630 | 2112 |
| WDF22580H-7P | 380~420 | 0.25 | 65 | 2700/3100 | 597/634 | 18.8/16.9 | 59/61 | 3 | Null | |||
| WDF22580H-7P | 220~240 | 0.35/0.28 | 62/80 | 2700/3100 | 597/634 | 18.8/16.9 | 59/61 | 1 | 2.2/400 | |||
| WDF22580H-7P | 100~125 | 0.68/0.65 | 67/77 | 2700/3100 | 597/634 | 18.8/16.9 | 59/61 | 1 | 4/250 |
1. Manufactory Profile:
We sincerely look forward to working with you to build long-term stable partnership, and for provide your company with quality products and excellent service.
2. Quality Management:
We are strictly adopting "On-Site Quanlity Control" meathod. Our cooling fans are 100% inspected by our experienced staffs and our advanced proffessional testing equipment, from material, production process, and also with the 3rd party certification when required.
We installed the advanced testing equipment in Taiwan and Japan, like wind tunnel testing machine, pulse pressure machine, micro-computer balance testing machine, vibration testing, temperature and humidity chamber, package drop testing machine, Salt Fog Testing Machine, Noise Test Facility (Anechoic Chamber).
3. WONDERFUL R&D Center:
Our R&D team will make sure our cooling fans will comply with all safety certification at design stage. To make sure the fans is stable, reliable and safe. Also, we will proceed all kinds of test, to verify our fans will pass the requirement.
We are researching and developing several EC environmental fans.
We have invested the profession design software and hardware for designing to satisfy every customer's OEM or ODM demand.
For volume inquires, we are willing to design and manufacture special motors or fans to suit your requirements.
4. OEM And ODM:
OEM/ODM orders are welcome on our products. Our experienced engineering team is capable of walking through the design stage with our customers' design. We accept buyers' labels or logos. Our quality standards are available based on customers' demand.
PACKAGING: Brown carton or according to customer requirement.
SHIPPING:
1.Samples delivery time is 1-3 working days. Bulk order delivery time is 1~3 weeks and is according to the order quantity.
2.Fans can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
3.Fans could be delivered by express ( FedEx, DHL, UPS, TNT, EMS or SF ) for under 100 kg, our shipping agent have discount with these express company.
4.Large Measure are shipped by sea or air as customer's requirements.
1. What is a AC Axial Fan?
A AC fan is usually powered by AC 110/120V, 220/240V, 380/420V voltage, and dual voltage models are also available. AC fan runs 50 times per sec. to provide stable and continually air-flow. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard AC axial fan sizes include 60mm, 80mm, 92mm, 110mm, 120mm, 130mm, 140mm, 150mm, 172mm, 180mm, 200mm, 225mm, 254mm and 280mm.
2. How to choose a AC fan?
You should consider the points of blow:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)

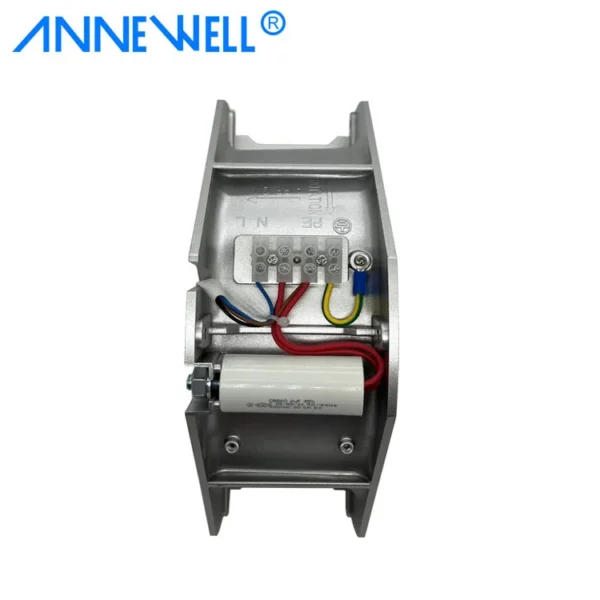

-Connection: Lead Wire or Terminal
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
4. Are you a factory or a trading company?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team membe: 15
-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL,TUV,CE,CCC,SGS,ISO:9001-2008
-Main Customers: SAMSUNG, LG, ANTMINER, Thermavance, ODERCO, ARRiS, Midea, BYD, ZTE, etc.
5. What is the delivery time?
Sample lead time: 3~5 business days. Mass production delivery lead time: 1~3 weeks,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
6. What is the payment terms?
The payment terms can be 100% T/T, 30% deposite 70% balance before shipment, etc.
We can offer FOB, CIF, EXW, C&F, etc.
7. Can you provide any sample? Is it free or extra?
Yes, we can offer the samples for free charge, but you are suggested taking charge of the relative freight cost.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high-airflow ventilation axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the high-airflow ventilation axial fan be supplied for my local voltage?
The standard configuration is 230 V, 380 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xuchang Wonderful Electric Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Xuchang Wonderful Electric Co., Ltd. range on HVACR Nexus.
