Key specification for this brushless dc blower: voltage DC 12V/24V, power source DC Power Supply and Battery. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
This brushless DC blower is specified into medical devices and vibration therapy vests, applications where acoustic noise is not a comfort issue but a clinical one — patients wear the equipment for extended sessions. Brushless construction also removes the carbon dust and periodic brush replacement that rule out brushed motors in a medical setting. Available at 12V and 24V from either DC supply or battery, with an 18-month warranty and OEM or ODM options.
Key Features of This Brushless Dc Blower
- Model Number: WM13075-12V/24V
- Power Source: DC Power Supply and Battery
- Power: 90-150W
- Voltage: DC 12V/24V
- Warranty: 18 Months
- Place Of Origin: Zhejiang, China

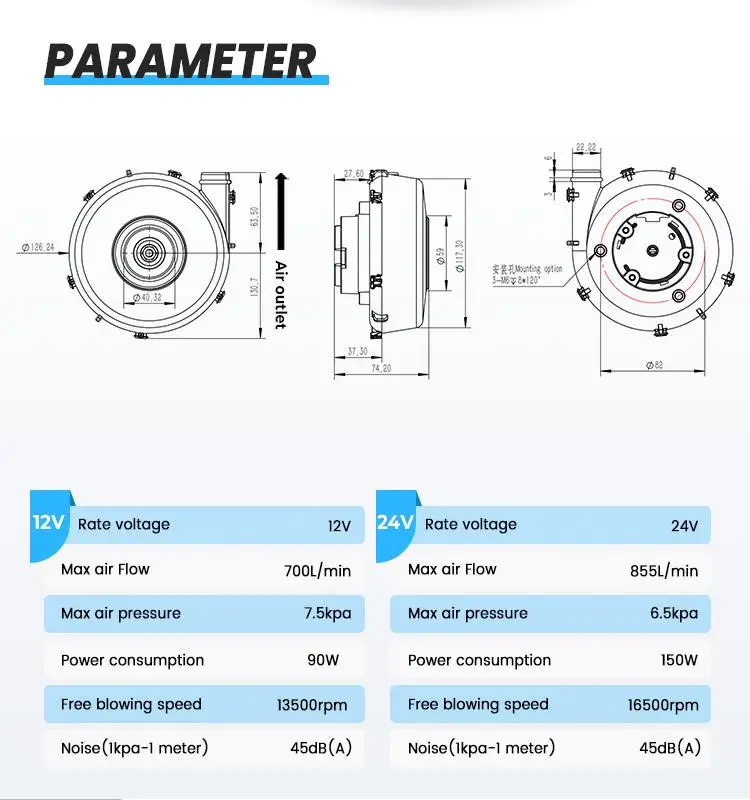

Technical Specifications
| Grade | Industrial |
|---|---|
| Power Source | DC Power Supply and Battery |
| Motor Type | Brushless Motor |
| Place Of Origin | Zhejiang, China |
| Fuel | Electric |
| Warranty | 18 Months |
| Customized Support | OEM, ODM |
| Brand Name | SteadyMotor |
| Model Number | WM13075-12V/24V |
| Product Name | Blower |
| Voltage | DC 12V/24V |
| Power | 90-150W |
| Selling Units | Single item |
| Single Package Size | 14X13X7.5 cm |
| Single Gross Weight | 0.300 kg |

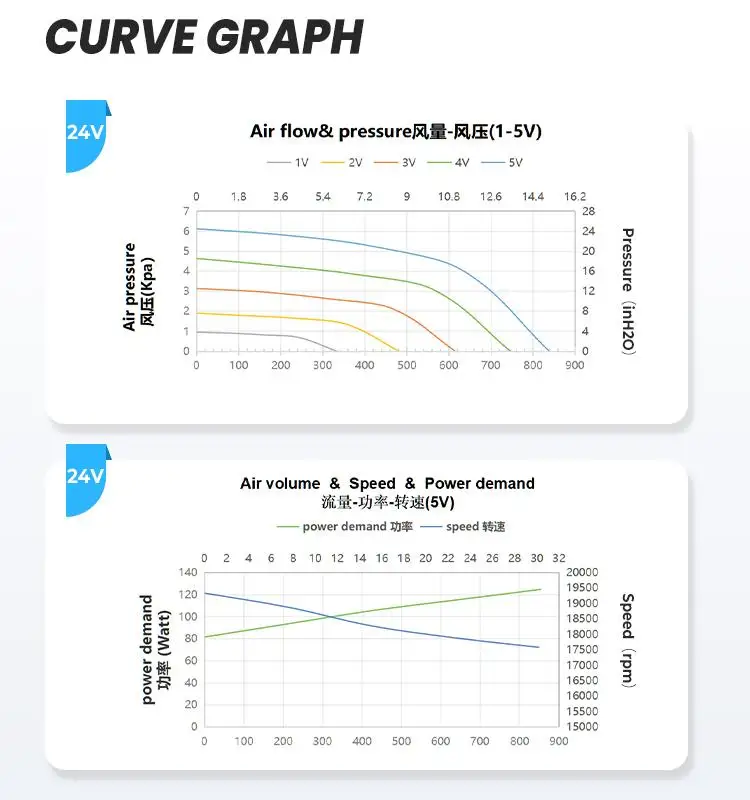

| Series | Max Flow (L/min) |
Max Pressure (kPa) |
Suction Pressure (kPa) |
Speed | Power | controller |
| WM13075-12V | 700 | 4.5 | -4.8 | 13500 | 90 | 12V-200W |
| WM13075-24V | 855 | 6.5 | -6.8 | 16500 | 150 | 24V-250W |

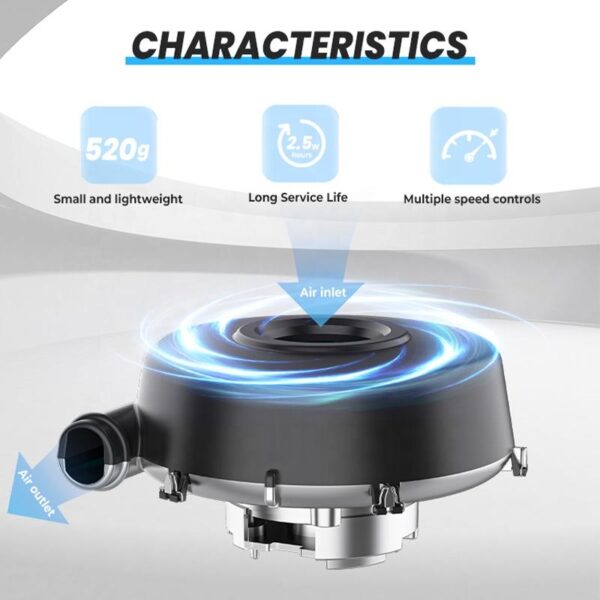

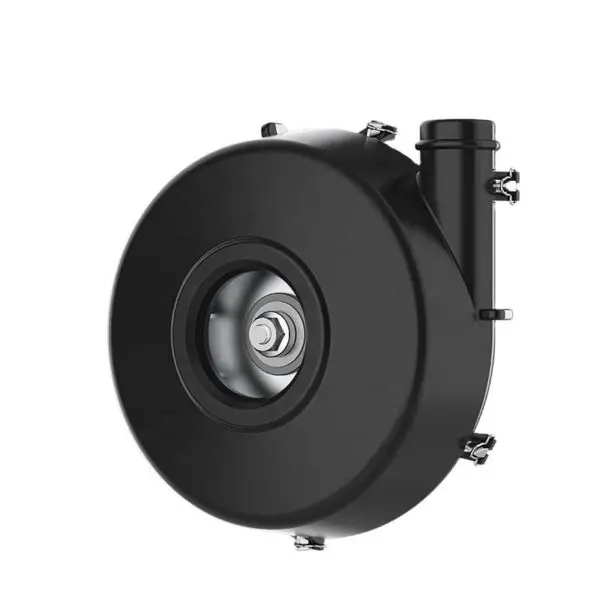

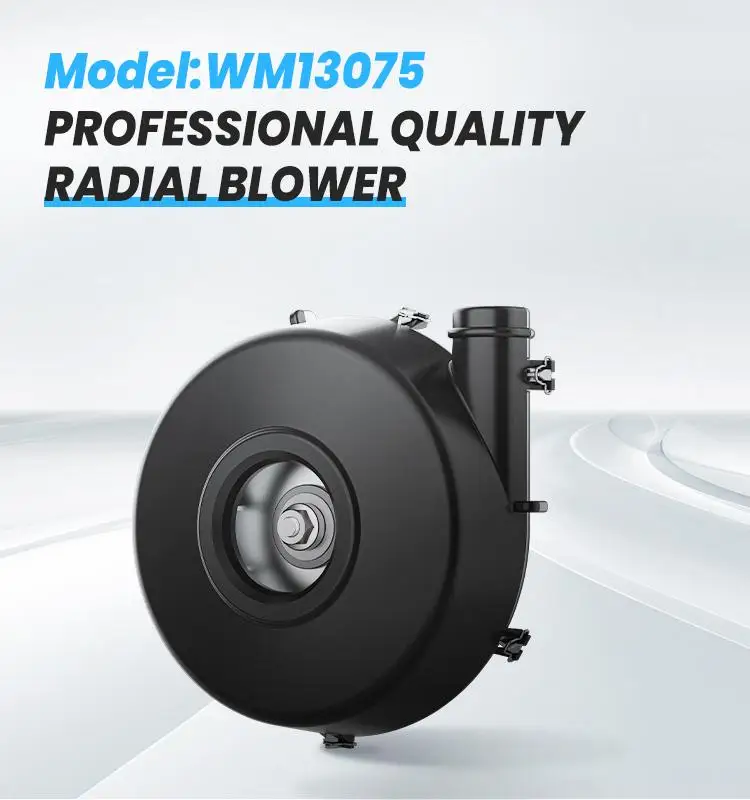

This WM13075 is a high-performance blower produced by SteadyMotor.
It combines high airflow and low power consumption to meet a variety of applications, helps customers meet airflow requirements and improves the service life of the product at the same time.

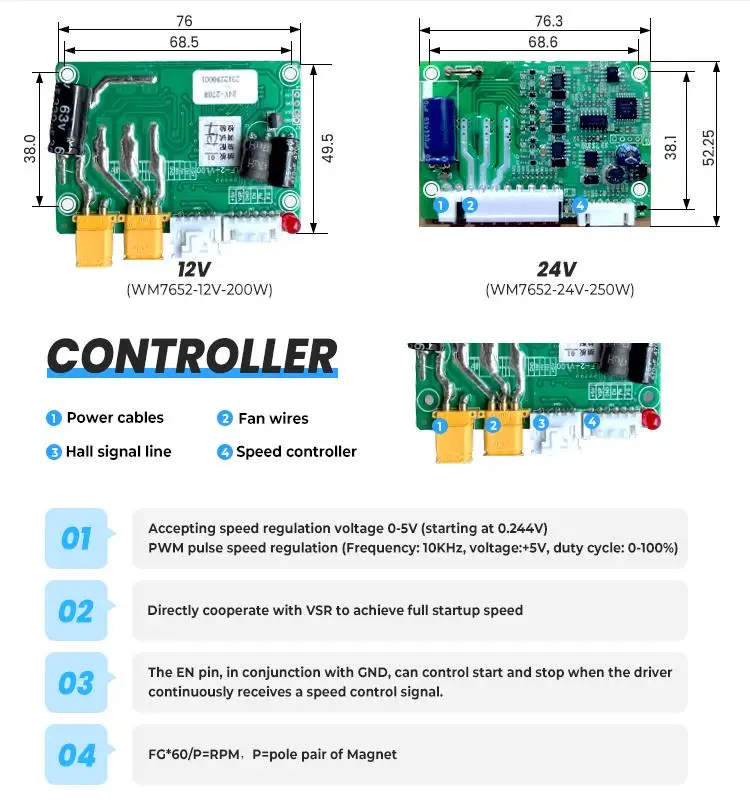

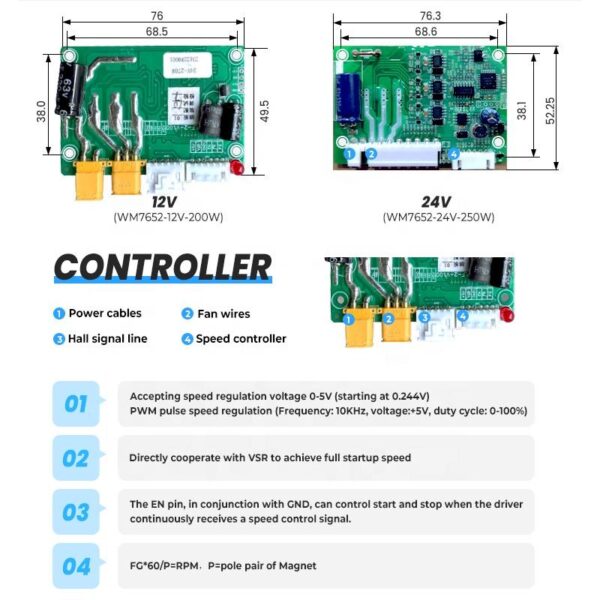

The driver is compatible with 0-5V and PWM modulation, and the wind speed can be more accurately adjusted according to demand.
This WM13075 can be mainly used in various types of ventilators(clinical and domestic), vibrating expectorant vests, and so on.
DC blower; Cpap blower; Low noise blower; Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.
The parts that come into contact with the air are not harmful to respiratory physiology.
The products have passed CE, ROHS, ISO10993, and other product certifications.
Our company provides customized services for customers.
Ningbo Wanhoo Motor Co., Ltd (STEADY MOTOR) . was established on August 1, 2014 in Fenghua District, Ningbo, Zhejiang, China. With its own production plant covering an area of 4.5 acres. It is a high-tech manufacturing enterprise that integrates the research and development, production, and sales of micro high-speed turbine blowers, brushless DC motors, and hollow cup motors.
Frequently Asked Questions
What is the minimum order quantity for this brushless dc blower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this brushless dc blower?
A 18 Months warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is DC 12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
