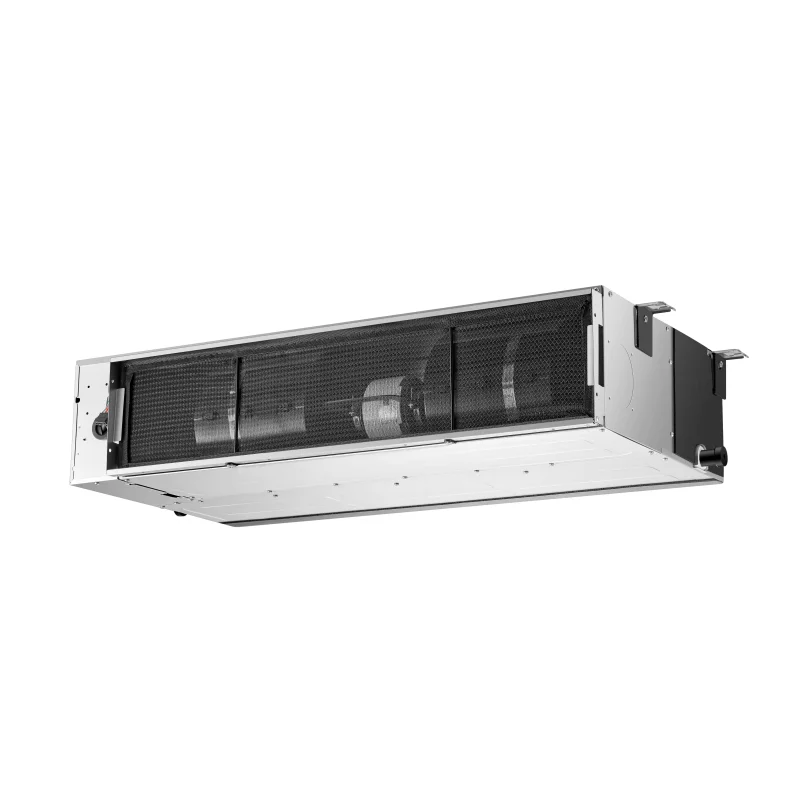

Household air conditioner — power supply 220-240V~50Hz, capacity 18000, 24000, 36000, 48000, 55000. The complete factory specification follows. Made by Foshan Iclima Technology Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Household Air Conditioner
- Power Type: AC
- Power Source: Electric
- Power (W): 5200-17731
- Power Supply: 220-240V~50Hz
- Capacity (Btu): 18000, 24000, 36000, 48000, 55000
- Refrigerant: R410A
Technical Specifications
| Application | Hotel, Household, Commercial |
|---|---|
| Capacity (Btu) | 18000, 24000, 36000, 48000, 55000 |
| Cooling/Heating | Cooling/Heating |
| Refrigerant | R410A |
| Energy Efficiency Rating | Class A |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | up to 298 sq. ft |
| Eer | 2-4 |
| Feature | Energy Saving, Dehumidifier, Air Purification, Self-Cleaning, Quiet Mode |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts, Field Maintenance and Repair Service, Onsite Installation, Return and Replacement |
| Power Type | AC |
| App-Controlled | Yes |
| Remote Control | Yes |
| Timer | Yes |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Power Source | Electric |
| Packaging Types | Color Box |
| Place Of Origin | Guangdong, China |
| Brand Name | iClimaair |
| Cop | 3.61 |
| Power (W) | 5200-17731 |
| Power Supply | 220-240V~50Hz |
| NOISE LEVEL | 32-47dB |
| MOQ | 100 sets |
| Service | OEM/ODM |

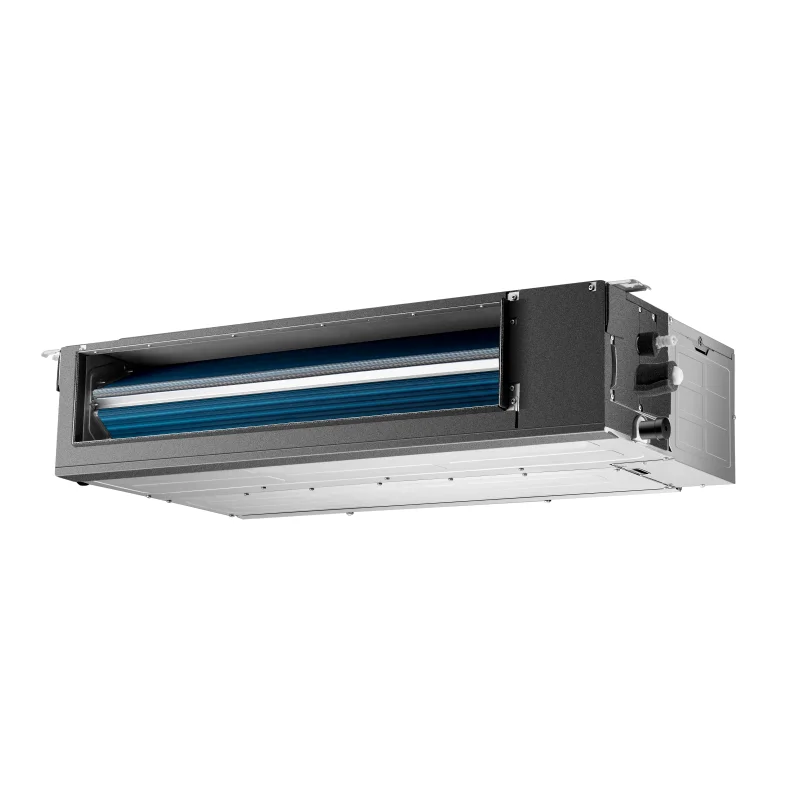

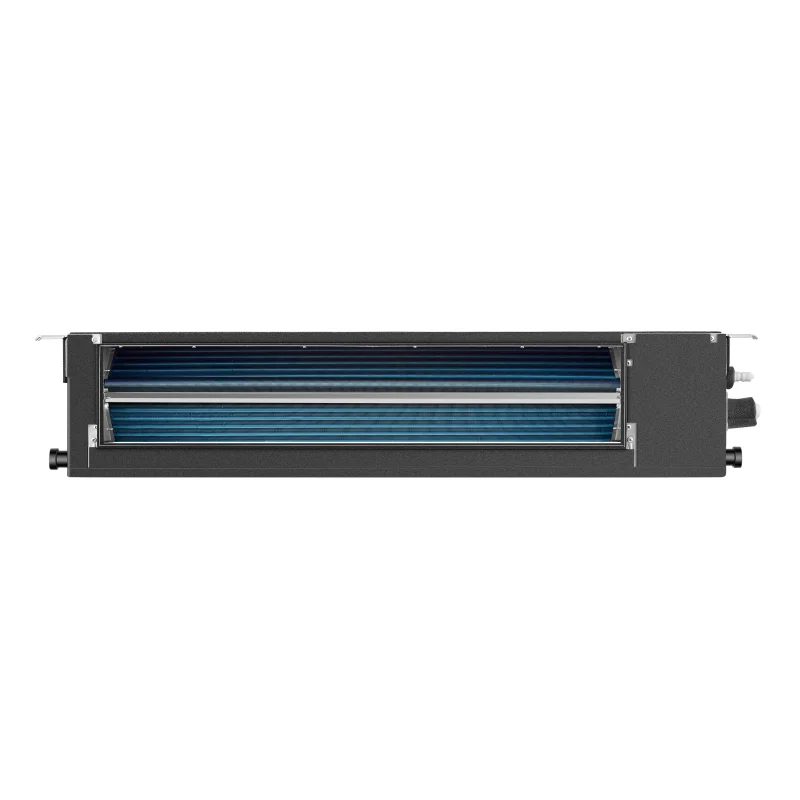

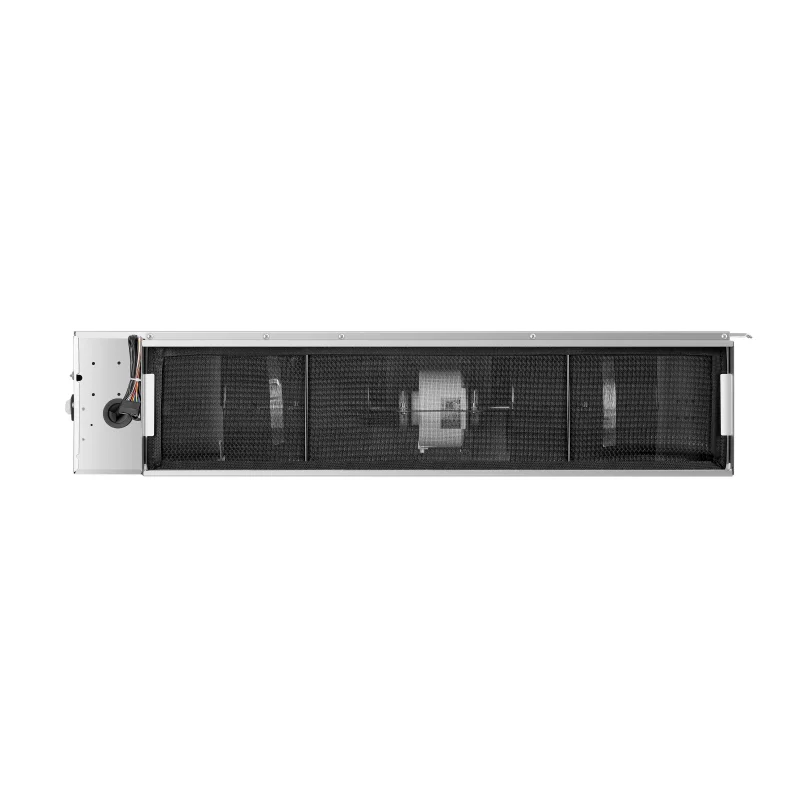

| Keyword | 18000-55000btu Fan Coil Ceiling Mount Concealed air Conditioning |
| Warranty Of Core Components | 1 year warranty, 3 years compressor components |
| Compressor | GMCC – HIGHLY – SANYO |
| Selling Units | Single item |
| Single Package Size | 1115X280X690 cm |
| Single Gross Weight | 22.0 kg |
Product Details
Power supply | V//Hz/Ph | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | 220-240V~/50Hz/1P | ||
Cooling | Capacity | Btu/h | 18000 | 24000 | 36000 | 48000 | 55000 | |
Capacity | W | 5200 | 7000 | 10500 | 14000 | 16119 | ||
Input | W | 1761 | 2050 | 3850 | 4560 | 5694 | ||
Rated current | A | 8.00 | 8.70 | 17.00 | 9.30 | 12.00 | ||
EER | W/W | 2.95 | 3.41 | 2.73 | 3.07 | 2.83 | ||
Heating | Capacity | Btu/h | 18000 | 24000 | 40000 | 50000 | 60500 | |
Capacity | W | 5200 | 7000 | 12000 | 14650 | 17731 | ||
Input | W | 1513 | 1850 | 3650 | 4446 | 4845 | ||
Rated current | A | 6.87 | 8.0 | 16.50 | 9.50 | 12.40 | ||
COP | W/W | 3.90 | 3.78 | 3.29 | 3.30 | 3.66 | ||
Indoor coil | Number of row | 3 | 3 | 3 | 3 | 3 | ||
Fin spacing | mm | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | ||
Fin material | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | Hydrophilic & Louver Fin | |||
Tube outside diameter | mm | φ7 | φ7 | φ7 | φ7 | φ7 | ||
Tube material | Innergroover tube type | Innergroover tube type | Innergroover tube type | Innergroover tube type | Innergroover tube type | |||
Coil length x height x width | mm | 734×252×38.1 | 734×252×38.1 | 977×336×38.1 | 1030×378×38.1 | 1030×378×38.1 | ||
Number of circuit | 6 | 6 | 8 | 9 | 9 | |||
Indoor fan motor | Brand | Match-well | Match-well | Match-well | Match-well | Match-well | ||
Model | YSK68-4P-5 | YSK74-4P-5 | YSK140-4P-5 | YSK170-4P-2 | YSK170-4P-2 | |||
Input | W | 98/86/72/66 | 190/136/104/82 | 268/218/156/128 | 326/248/182/138 | 326/248/182/138 | ||
Running current | A | 0.45/0.48/0.37/0.30 | 0.88/0.63/0.49/0.39 | 1.25/1.00/1.08/0.582 | 1.49/1.21/108/0.63 | 1.49/1.21/108/0.63 | ||
Capacitor | uF | 4 | 5 | 10 | 10 | 10 | ||
Speed (Hi/Me/Lo) | rpm | 1140/1000/775/660 | 990/830/720/640 | 1055/920/750/665 | 1060/890/740/630 | 1060/890/740/630 | ||
Indoor air flow (Hi/Me/Lo) | m3/h | 1170/770/650 | 1400/950/800 | 1800/1500/1350 | 2100/1750/1550 | 2200/1800/1600 | ||
Indoor external static pressure (Hi) | Pa | 70 | 70 | 80 | 100 | 100 | ||
Indoor noise level (Hi/Me/Lo) | dB(A) | 43/35/32 | 46/43/41 | 46/44/42 | 47/44/42 | 47/45/43 | ||
Indoor dimension（with filter） | Unit (WxHxD) | mm | 920x210x605 | 920x270x605 | 1140x270x745 | 1200x300x835 | 1200x300x835 | |
Packing (WxHxD) | mm | 1115x280x690 | 1115×340×690 | 1345x345x830 | 1405x375x925 | 1405x375x925 | ||
Indoor weight | Net | kg | 22 | 28 | 35 | 43 | 43 | |
Gross | kg | 27 | 32 | 42 | 50 | 50 | ||
Refrigerant | Type | R410A | R410A | R410A | R410A | R410A | ||
Refrigerant pipe | Liquid side | mm | 6.35 | 9.52 | 9.52 | 9.52 | 9.52 | |
Gas side | mm | 12.70 | 15.88 | 15.88 | 19.05 | 19.05 | ||
Drainage water pipe diameter | mm | OD25 | OD25 | OD25 | OD25 | OD25 | ||
Ambient temperature range | Cooling | ℃ | 21～43 | 21～43 | 21～43 | 21～43 | 21～43 | |
Heating | ℃ | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | -7 ~ 24 | ||
Operation Control | Remote controller | Remote controller | Remote controller | Remote controller | Remote controller | |||
Q1: Are you a manufacturer or trading company? How can I trust your company?
A: We are one of the best professional AC solutions manufacturers and suppliers in China with more than 15 years of experience.
Q2: Can you provide drawing design services?
A: Yes, we have a professional AC engineering team to design your project and optimize the solution, and we can also provide professional AC drawings.
Q3: Do you have technical support?
A: We have a professional technical team available 7*24 hours to answer technical questions. After the goods arrive, we can also guide installation and debugging via online video or phone call. If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4: Can you help me calculate the best logistics and transportation price in my country?
A: Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5: What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6: Can you provide mounting accessories with the equipment?
A: Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require. Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.
Q7: How about the packaging?
A: Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T payment method.
Ordering and Pricing
- Minimum order quantity: 20 set
- Volume pricing:
- 20–49 set: US $1210 / set
- 50–99 set: US $1190 / set
- 100–499 set: US $1158 / set
- 500+ set: US $1095 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this household air conditioner?
The standard minimum order quantity is 20 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the household air conditioner be supplied for my local voltage?
The standard configuration is 220-240V~50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
