Hydroponics water cooling chiller — type Air-Cooled. The complete factory specification follows. Made by Ningbo Sonly Machinery Industry & Trade Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Hydroponics Water Cooling Chiller
- Warranty: 1 Year
- After Warranty Service1: Video technical support
- After Warranty Service2: Online support
- After Warranty Service3: Spare parts
- Place Of Origin: China
- Type: Air-Cooled
Technical Specifications
| Type | Air-Cooled |
|---|---|
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Core Components | Engine, Gearbox |
| Place Of Origin | China |
| Brand Name | SONLY |
| Inlet And Outlet Pipe | 3 |
| After Warranty Service1 | Video technical support |
| After Warranty Service2 | Online support |
| After Warranty Service3 | Spare parts |
| Local Service Location1 | TurkeyPeruIndonesiaMexicoRussia |
| Local Service Location2 | ArgentinaSouth KoreaColombiaAlgeriaBangladeshSouth Africa |
| After-Sales Service Provided1 | Free spare parts |
| After-Sales Service Provided2 | Video technical support |
| After-Sales Service Provided3 | Online support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

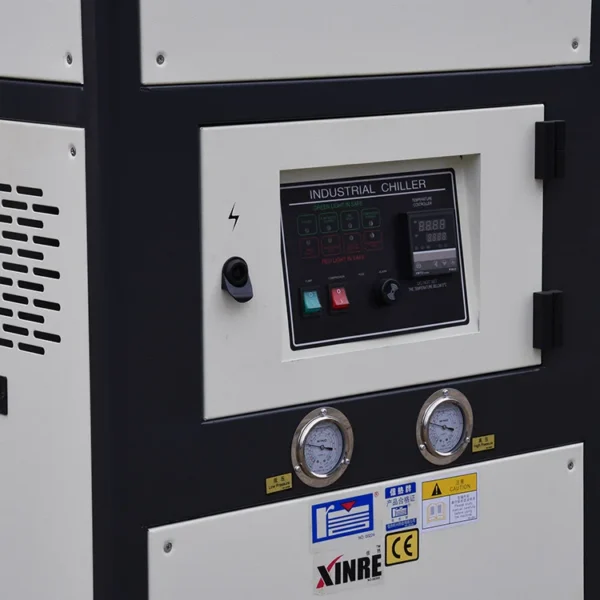

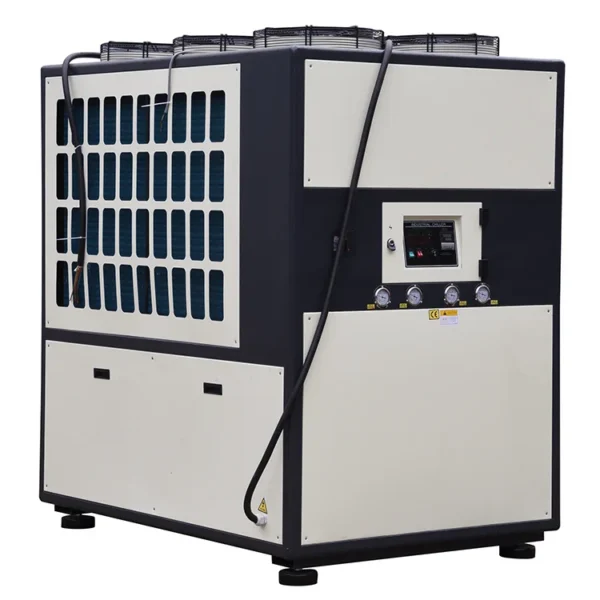

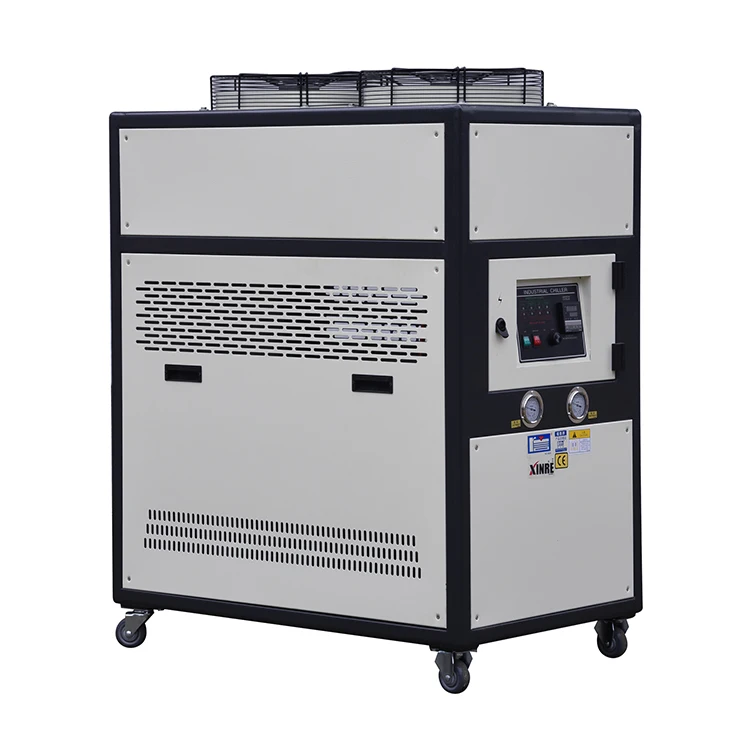

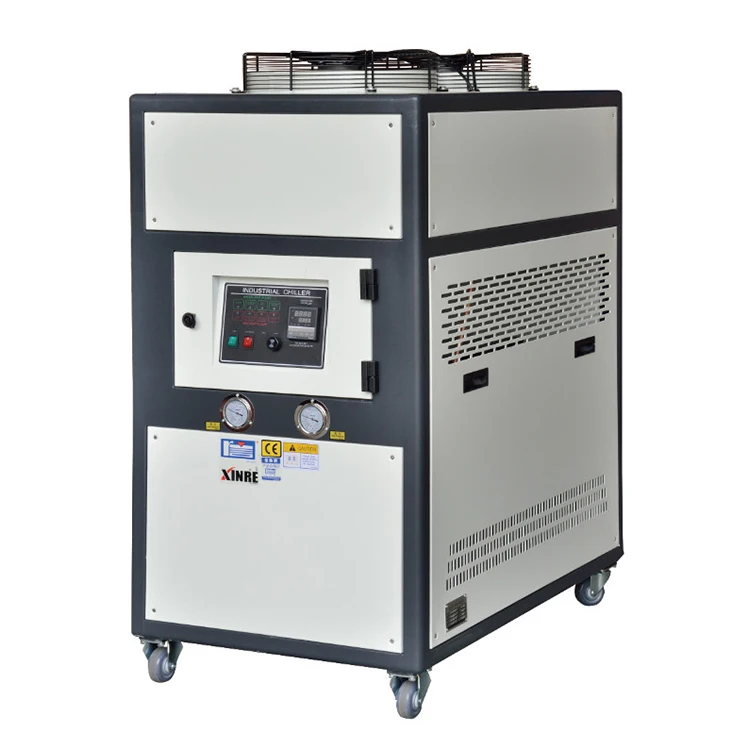

XC-ACI Air Cooled Cased Industrial Chiller XC-ACI series of industrial chillers are capable of controlling precisely the mold temperature in plastic molding process as so to shorten molding cycle and speed product formalization. The principle of heat exchange is adopted for cooling. They can achieve rapid cooling, stable temperature controlling, and will be little effected by the surounding factors. Therefore they are necessary good equipments in modern industry. Features: Compressor is used "COPELAND" brand which made in the USA. The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA, Mexico. Denmark and Japan. Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained. Equipped with automatic water supply device in the water- tank. Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality. Larger than model XC-20 are assembled 2 sets or 4 sets of compressors, so they are able to used as separate or together to reduce the resource waste. Complete with safety protection and error indication system, including compressor over load protection, pump over load protection, high pressure and low pressure protection and phase failure protection, Air cooled chiller Equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5C-35C. Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery. Cooling System of injection molding machinery. Cooling system of blow molding machinery. Cooling system of extruder. Additional equipment for option: 1. Starter of timer switch. 2. Large type of water filter. 3. Protection switch for prove the electric leakage. 4. Cooling tower and pump.
Specification
Model | Cooling capacity | Compressor power | Refrigerant | Inlet and Outlet Pipe | Chilled water pump power | External size L×W×H | Water tank capacity | Weight |
Kcal/h | kw | inch | kw | mm | L | Kg | ||
XC-01ACI | 2300 | 0.8 | R22 （R407） | 1 | 0.37 | 680×460×840 | 20 | 35 |
XC-03ACI | 7660 | 2.5 | 1 | 0.37 | 1030×680×1270 | 53 | 210 | |
XC-05ACI | 12560 | 4.4 | 1.5 | 0.75 | 1100×700×1400 | 88 | 290 | |
XC-08ACI | 19730 | 7 | 1.5 | 0.75 | 1220×800×1450 | 120 | 400 | |
XC-10ACI | 26000 | 9 | 1.5 | 0.75 | 1220×930×1600 | 200 | 450 | |
XC-12ACI | 29870 | 10.2 | 1.5 | 1.5 | 1220×930×1600 | 200 | 500 | |
XC-15ACI | 38860 | 13.4 | 1.5 | 1.5 | 1220×1050×1600 | 240 | 550 | |
XC-20ACI | 52400 | 18 | 1.5 | 2.2 | 1700×1100×1920 | 380 | 700 | |
XC-25ACI | 59740 | 20.4 | 1.5 | 2.2 | 1980×1160×1800 | 380 | 750 | |
XC-30ACI | 77700 | 26.8 | 2.5 | 4 | 1900×1200×2000 | / | 820 | |
XC-40ACI | 103200 | 35 | 3 | 7.5 | 2000×1200×2100 | / | 980 | |
XC-50ACI | 127280 | 40 | 3 | 7.5 | 2100×1300×2100 | / | 1600 | |
Recommend Products

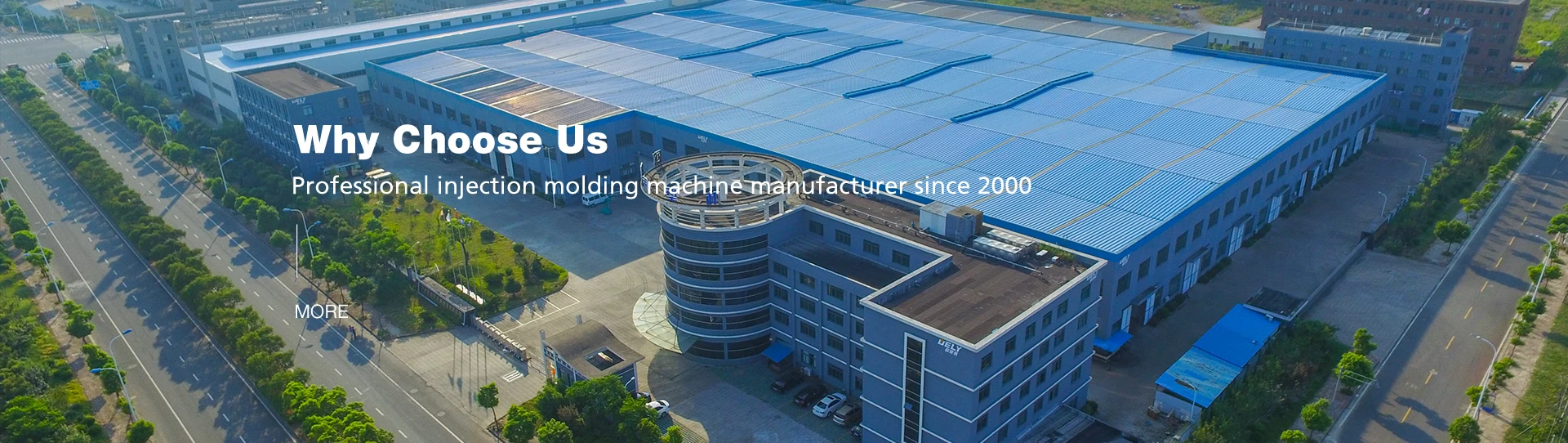

Why Choose Us

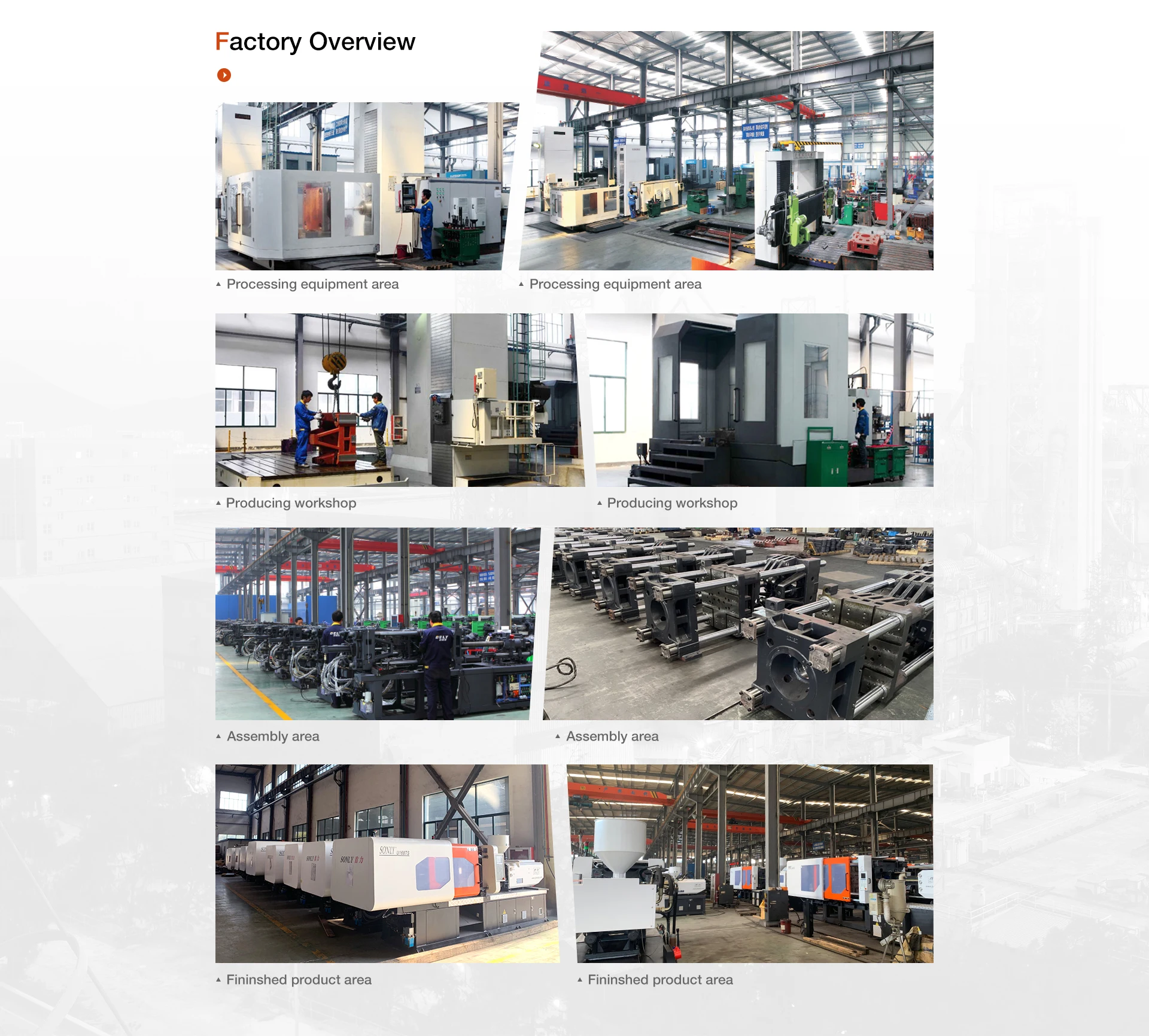

About us
Our company is a high-tech enterprise intergrate development, manufacturing, and sales.
· Since 2000
· Factory area: 60000㎡
· Annual production: 3000 sets precision injection molding machine
· BSCI & ISO 9001:2008 certified manufacture
· The member unit of China Plastics Machinery Industry Association
Our company produce:
· SONLY U-TS high-grade precision injection molding machine
· 50T to 3400T servo injection molding machine
· Customized PET bottle injection molding machine
· PP-R coupler injection molding machine
· PVC pipe fitting injection molding machine
· Fruit basket injection molding machine
· Double colored plastic injection machine
We provide customerized service according to customer's requirements, please feel free to contact with us!

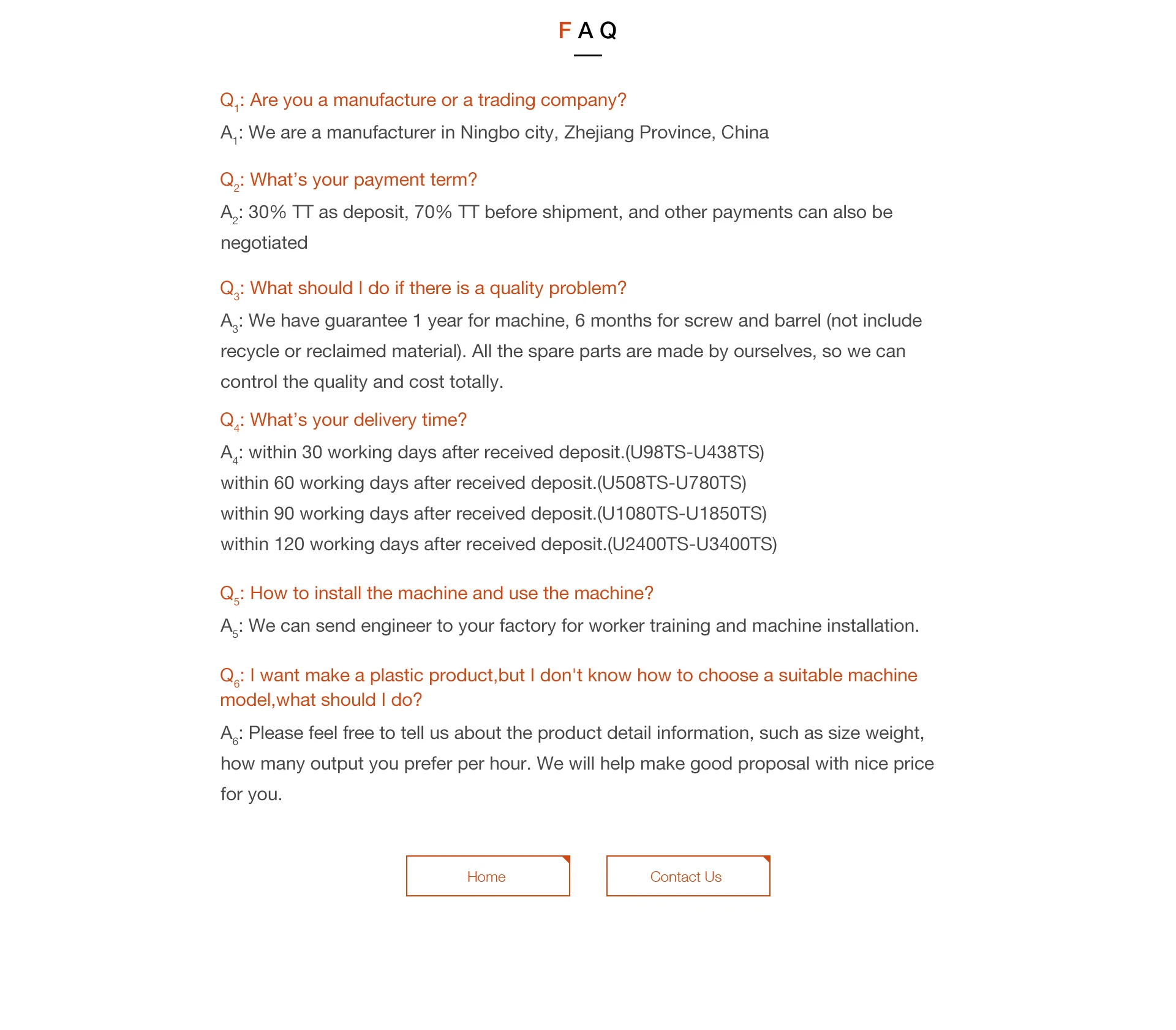

FAQ
Q1: Are you a manufacture or a trading company? A1: We are a manufacturer in Ningbo city, Zhejiang Province, China Q2: What's your payment term? A2: 30% TT as deposit, 70% TT before shipment, and other payments can also be negotiated Q3: What should I do if there is a quality problem? A3: We have guarantee 1 year for machine, 6 months for screw and barrel (not include recycle or reclaimed material). All the spare parts are made by ourselves, so we can control the quality and cost totally. Q4: What's your delivery time? A4: within 30 working days after received deposit. (U98TS – U438TS) within 60 working days after received deposit. (U508TS – U780TS) within 90 working days after received deposit. (U1080TS – U1850TS) within 120 working days after received deposit. (U2400TS – U3400TS) Q5; How to install the machine and use the machine? A5: We can send engineer to your factory for worker training and machine installation. Q6: I want to make a plastic product, but I don't know how to choose a suitable machine model, what should I do? A6: Please feel free to tell us about the product detail information, such as size and weight, how many output you prefer per hour. We will help you to make good proposal with nice price.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $1000 / set
- 10+ set: US $900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this hydroponics water cooling chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Sonly Machinery Industry & Trade Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Sonly Machinery Industry & Trade Co., Ltd. range on HVACR Nexus.
