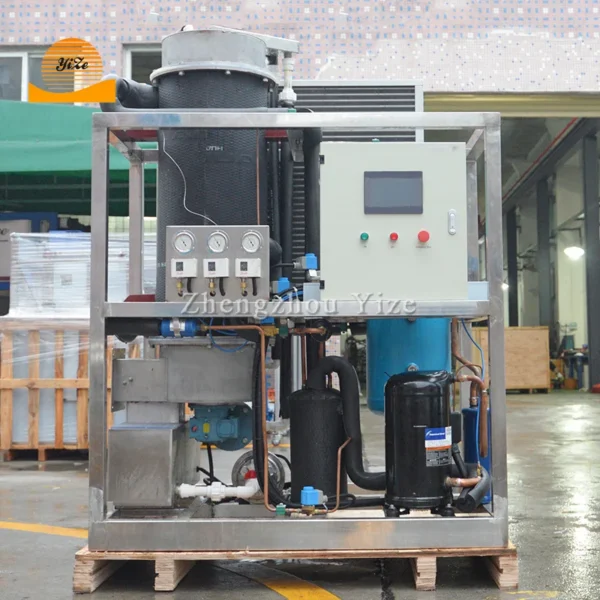

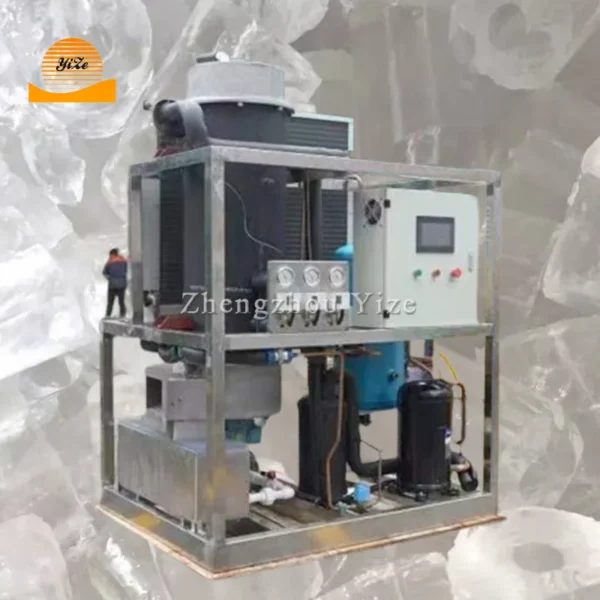

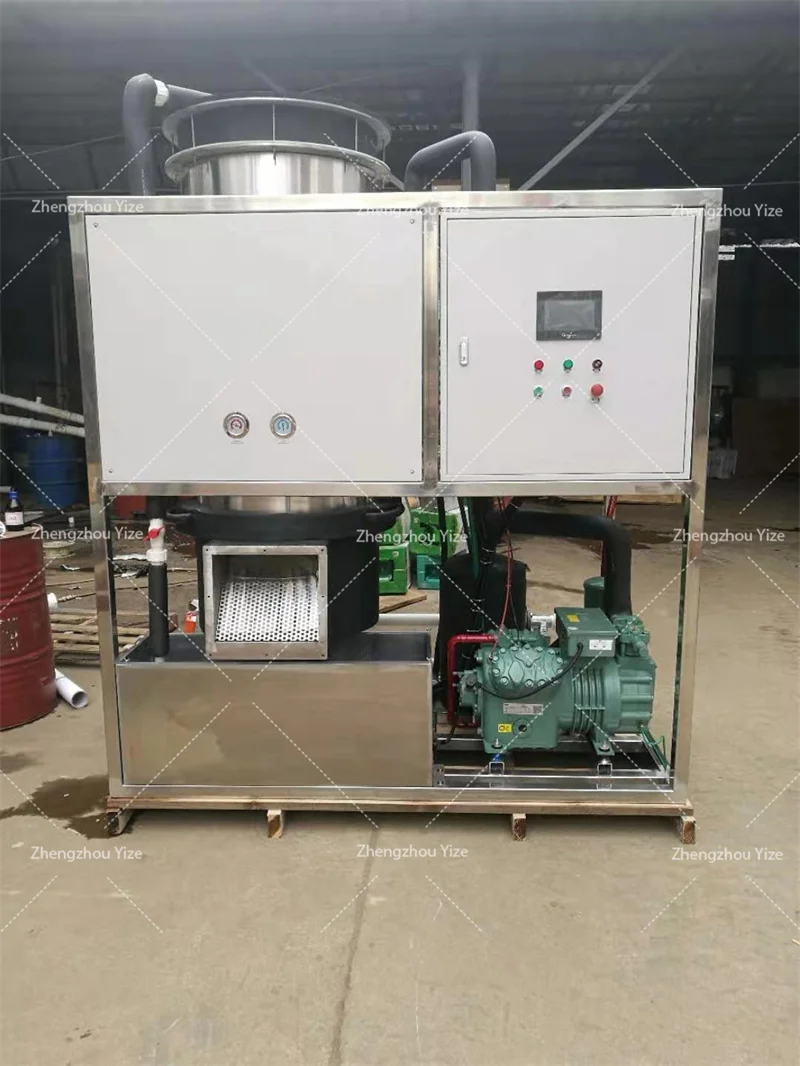

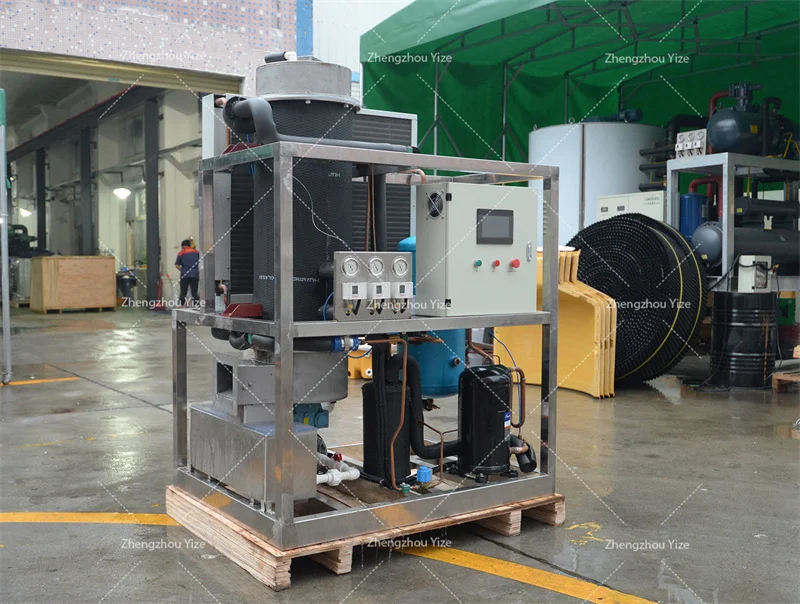

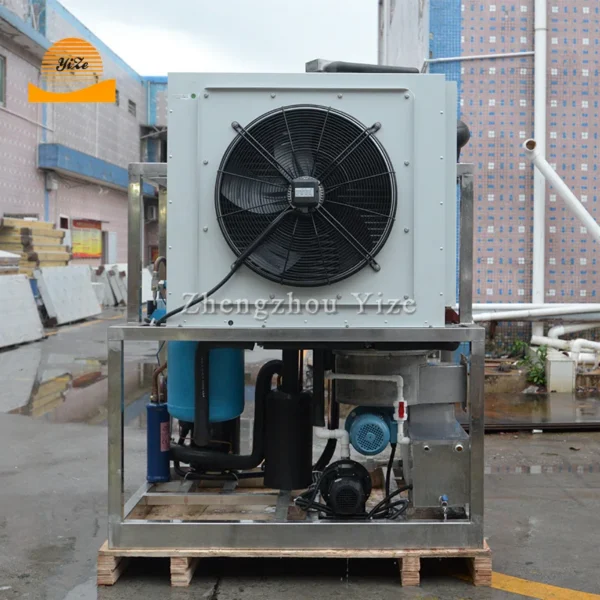

Key specification for this ice machine: 380 V, 5.3KW. Everything below is reproduced from the factory data sheet. Made by Zhengzhou Yize Machinery Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Machine
- Power: 5.3KW
- Voltage: 380 V
- Ice Storage Capacity: 1000 kg
- Refrigerant: R404A
- Warranty: 1 Year
- Certification: CE
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Storage Capacity | 1000 kg |
| Voltage | 380 V |
| Power | 5.3KW |
| Refrigerant | R404A |
| Compressor Brand | Other |
| Key Selling Points | High-Accuracy |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Motor |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 1000 |
| Brand Name | YIZE |
| Dimension(L*W*H) | 1320x1000x1660 mm |
| Model | NO. YZGB |
| Ice Temperature | 0℃~-5℃ |
| Certification | CE |
| Core Selling Points | Easy to Operate |
| Transport Package | Wood Case |
| Automation | Automation |
| Tube Ice Diameter | 28mm to 35mm |
| Tube Ice Length | 30mm to 50mm |
| Tube Ice Thickness | Adjustable |
| Ice Formation | Refrigerant flow |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
tube, widely used in various fields such as fisheries, railway refrigerated transportation, food processing, dye chemical
industry, etc.

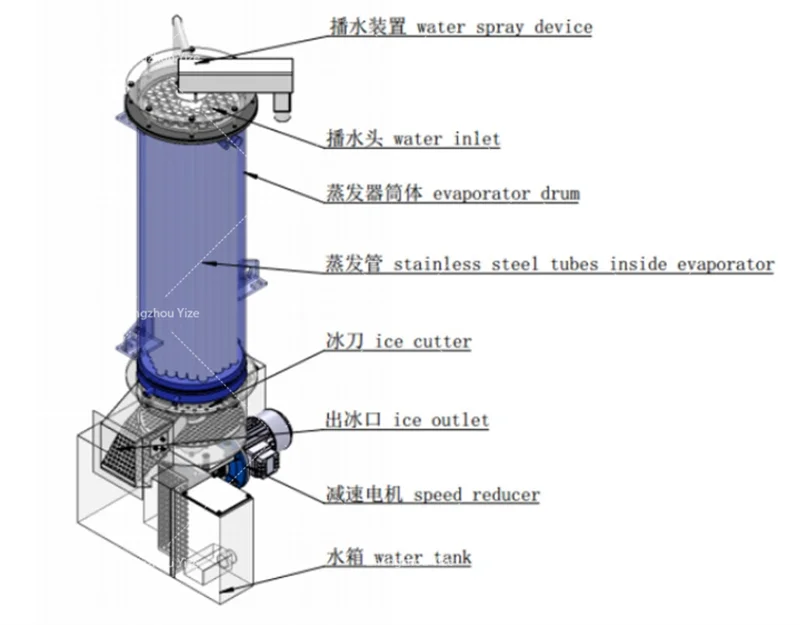

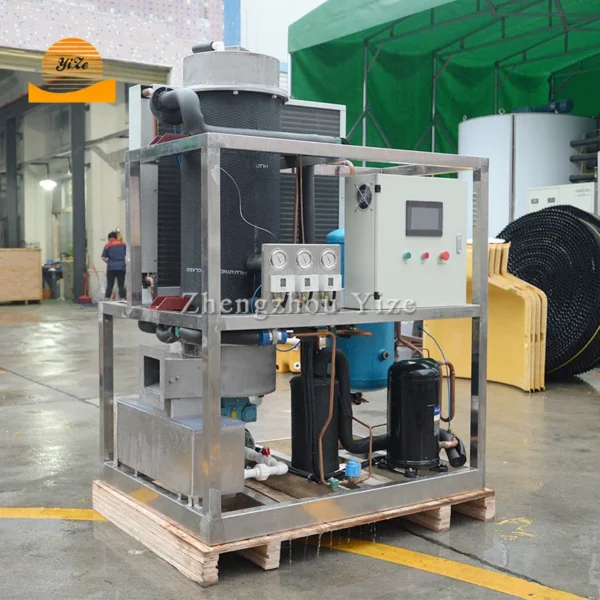

etc. Among them, the evaporator is the core component of the tube ice machine and is responsible for the ice making process. Its
shell is usually rolled and welded from alloy steel plates, and contains a group of seamless steel tube clusters with a small thermal expansion coefficient inside. These tubes serve as channels for the refrigerant, causing water to freeze into ice on the inner wall of the tubes.
Capacity | 1000kg/24h | Total Power | 5.62kw |
Voltage | 380V/3Phase/50Hz | Rated current | 9.7A |

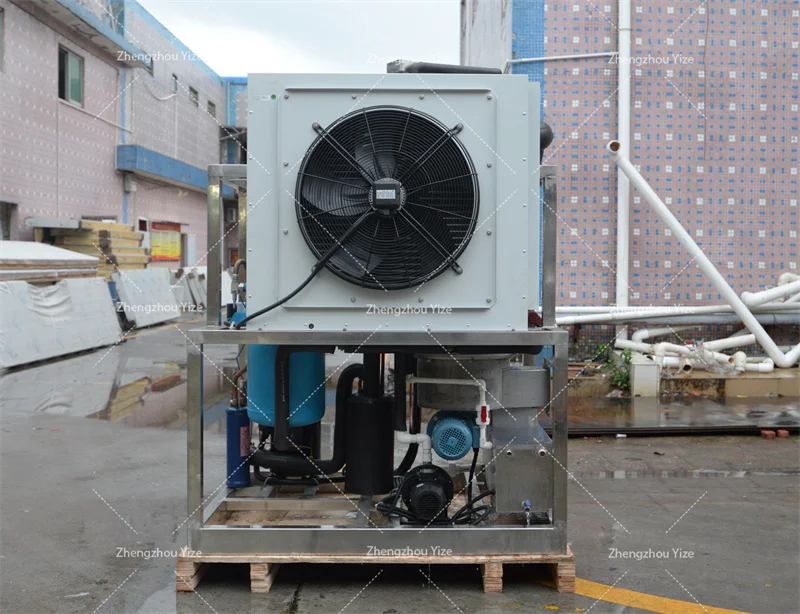

Condenser type | air cooling | Ice bucket structure | flooded |
Evaporation temperature | -15°C | Condensation temperature | 45°C |
Tube ice temperature | -5°C | Tube ice diameter | Φ22/Φ28 |
Water supply pressure | 0.1-0.5Mpa | Water supply pipe diameter | 1/2" |
Standard ambient temperature | 25°C | Noise (within 2m) | 58dBA |
Dimension | 1320×1000×1660 mm | Weight | 1000kg |

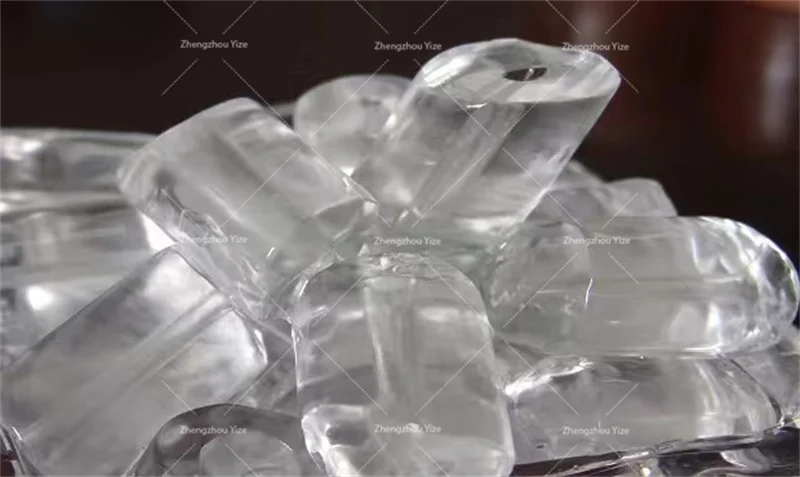

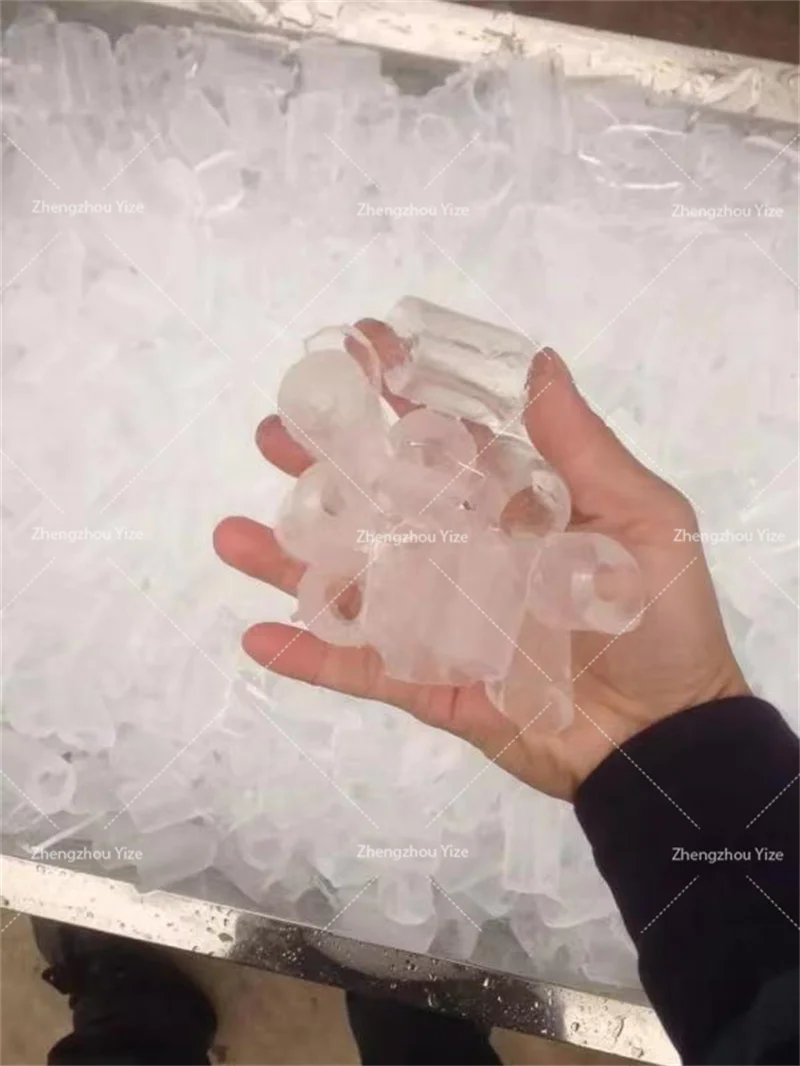

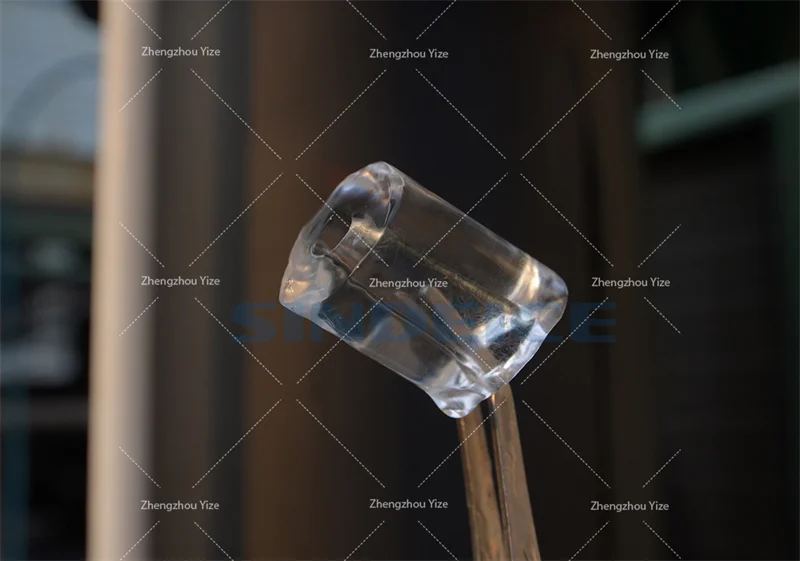

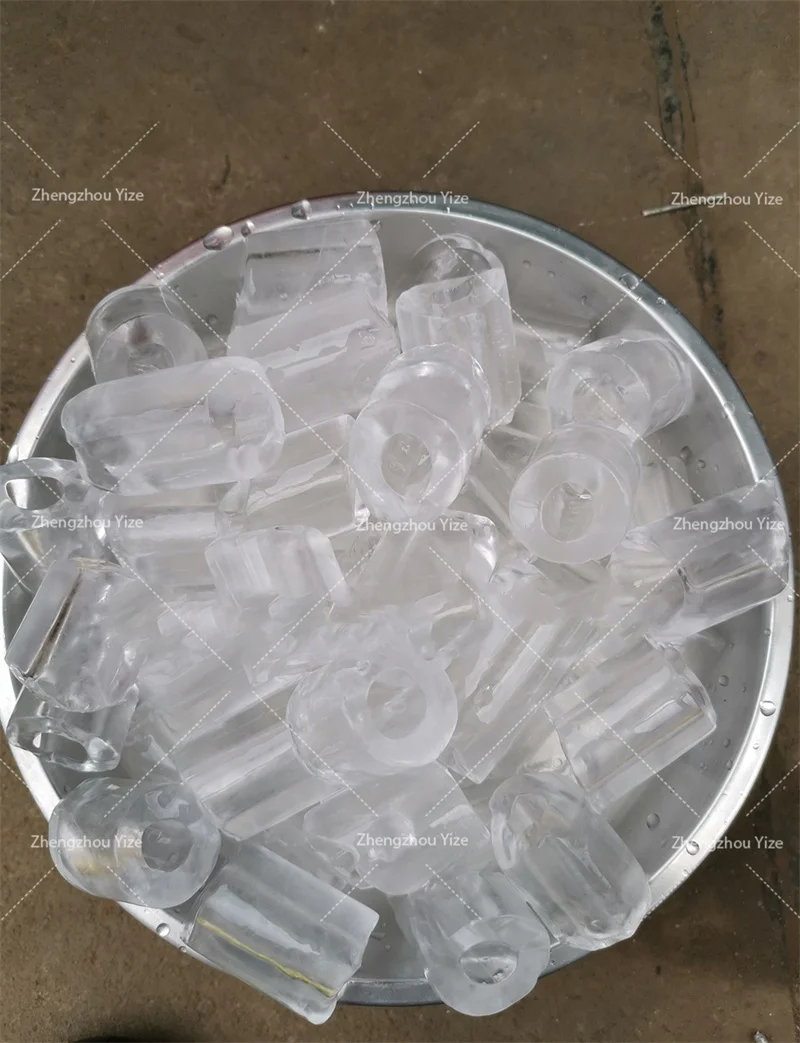

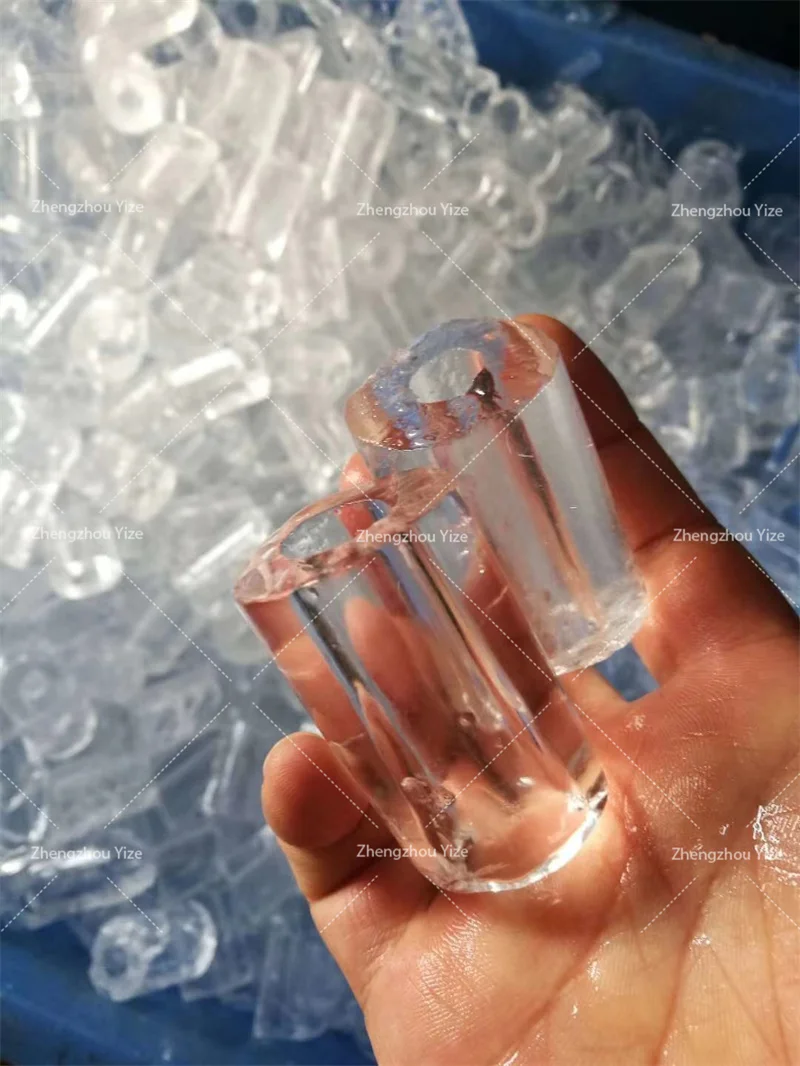

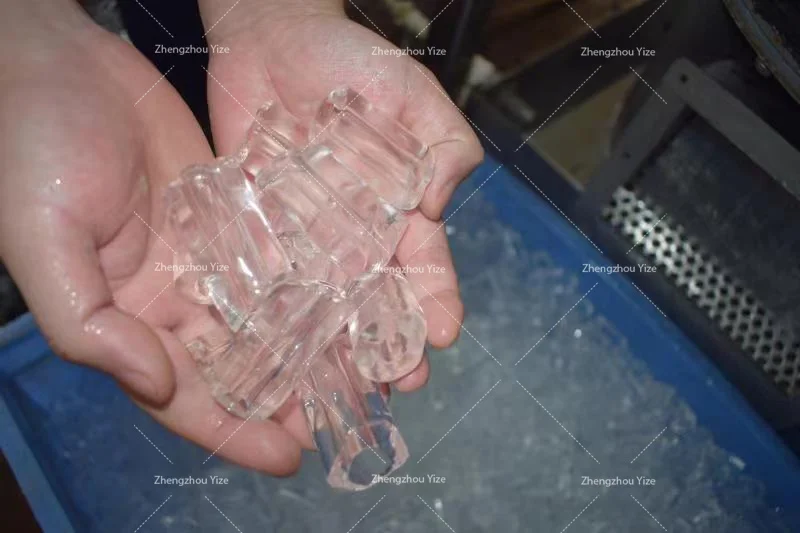

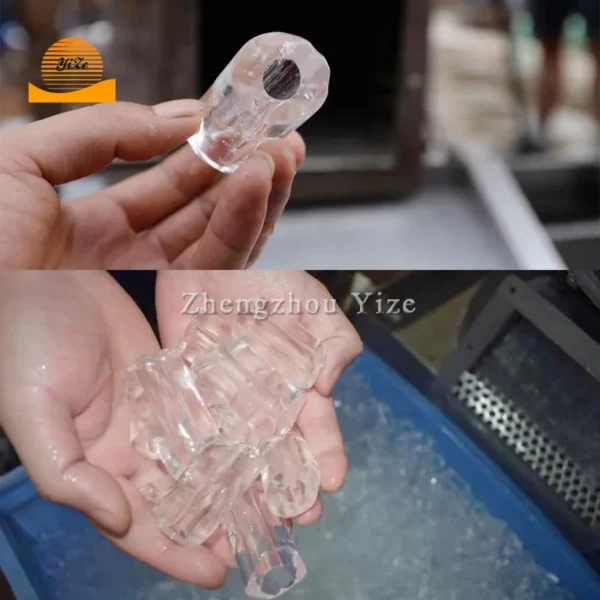

1. The prepared tube ice is in the shape of a small tube, with an outer diameter and height of about 50 mm, and an ice thickness of 10 to 12 mm. This shape of ice is loose and difficult to condense, making it easy to use on fishing boats and reducing the labor intensity of ice pouring operations.
2. The tube ice machine can be matched with ice storage, ice rake, ice conveyor, electronic measuring scale and other equipment to form a fully automatic production line to improve production efficiency.

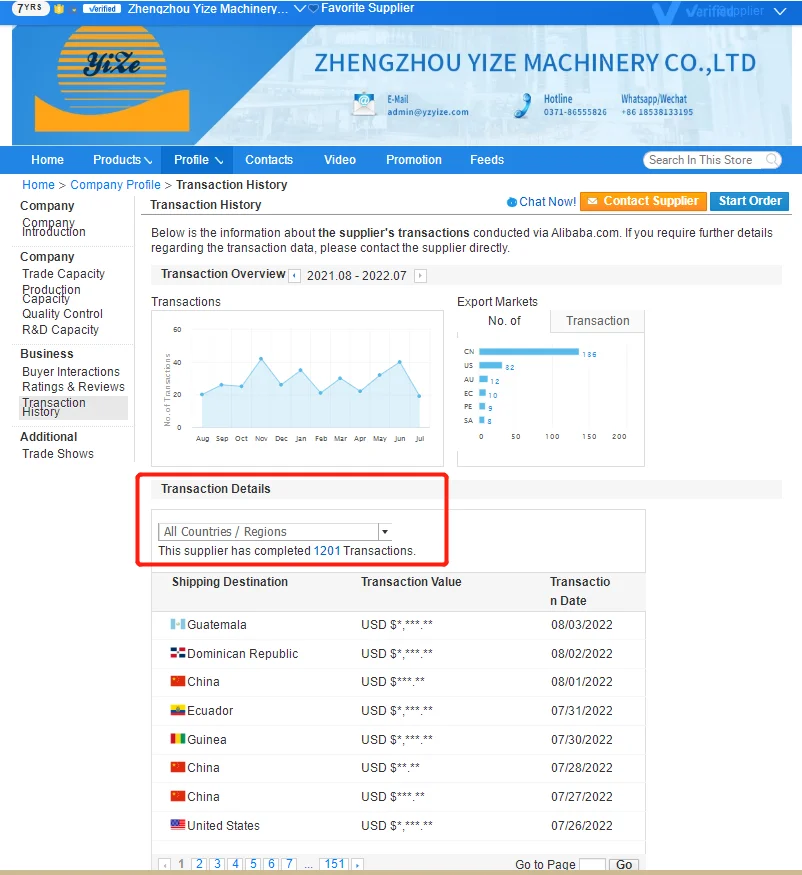

We are the supplier of the Trade Assurance amount guaranteed by Alibaba, your payment will be 100% protected, the following is our Trade Assurance Transaction History:
Zhengzhou Yize engaged in a wide range of machine business, We are in this line for more than 11 years. We provide best quality machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single machine to the automatic product line, From china to the whole world. Zhengzhou Yize committed to machine manufacturing and high efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
MOQ | Usually 1 set, or based your order, Preferential wholesale price. |
Voltage | 110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage. |
Guarantee | Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply. |
Payment term | T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc. |
Documents offer | By express:express waybill By air:airway bill By sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request. |
How to install and maintain the machine | we can teach you install or maintain the machine by video, email ,pictures…..if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost. |
Assignment of engineers and training | we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users. |
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $7599 / set
- 3+ set: US $7250 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ice machine carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
