Key specification for this ice machine: 380V/3P/50Hz or others, material Aluminum Alloy. Everything below is reproduced from the factory data sheet. Made by Shenzhen Zhongxue Refrigeration Equipment Co., Ltd. (16 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Power Supply: 380V/3P/50Hz or others
- Daily Capacity: 30 tons per day
- Material: Aluminum Alloy
- Refrigerant: R22/R404/R507
- Warranty: 1 Year
- Place Of Origin: Shenzhen, China
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Cooler |
| Material | Aluminum Alloy |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Weight (Kg) | 8000 |
| Place Of Origin | Shenzhen, China |
| Brand Name | ZXshare |
| Refrigerant | R22/R404/R507 |
| Compressor Type | Bitzer ,Hanbell |
| Cooling Method | Evaporative Cooling |
| Control System | PLC & Touch screen |
| Power Supply | 380V/3P/50Hz or others |
| Daily Capacity | 30 tons per day |
| Refrigeration Type | Direct cooling |
| Expansion Valve | Denmark Brand |
| Electrical Components | France brand Schneider |
| Selling Units | Single item |
Product Details
Product Description:

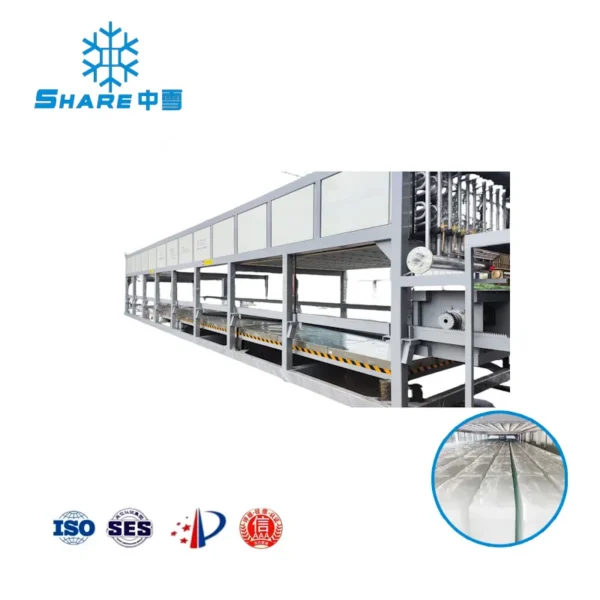

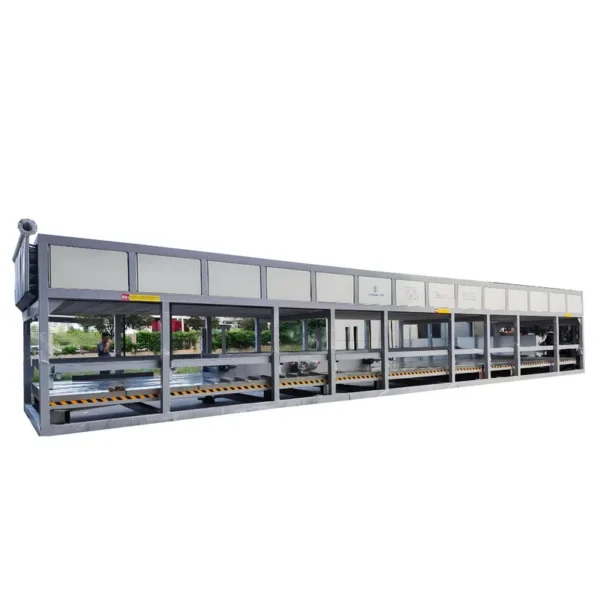

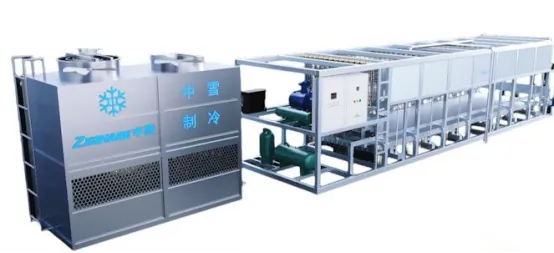

ZXSHARE direct cooling block ice machine is highly automatic control operation, The direct cooling ice machine does not need to use brine water. The ice mold does not need to be replaced after long time service. The equipment is safe and environmentally friendly, and the block is clean and hygienic, which can meet the food standard. Modular design, simple operation, small area occupation, easy installation; Remote monitoring can be realized, and the machine operation status can be checked at any time! The direct cooling ice machine evaporatior adopts high-efficiency heat-conducting aluminum alloy material, which directly exchanges heat with the refrigerant, fast ice making speed; and the harvesting ice time short; Save time, electricity and labor, and create more value for you!
Product Feature:
1. Capacity: 1 ton to several hundred tons
2. Machine power supply: 3 phase industrial power supply
3. PLC control with remote system, very easy to use.
4. Automatic operation to save your labor work
5. Compact desigh to save your area need
6. The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. It is direct refrigeration, ice is hygienic, clean and edible.
7. The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice, the water and electricity are only needed to make ice.
Product Details
Product Paramete
|
Ice weight | Dimension | Freezing time | ||
| L ( m m ) | W ( m m ) | H ( m m ) | Shifts/D | |
| 10kg | 220 | 100 | 600 | 3shifts |
| 20kg | 300 | 120 | 700 | 3shifts |
| 25kg | 380 | 120 | 700 | 3 shifts |
| 50kg | 400 | 160 | 900 | 2 shifts |
| 100kg | 550 | 200 | 1100 | 1.5 shifts or 1shift |
| Note: The above are the standard ice mold . If you have special requirements, please contact the company's technical instructions for modification.. | ||||
Application Industrial
The block ice will be used for fishing ports and docks, distance transportation, refresh for aquatic products, cooling fishery, food preservation, special areas of cooling, ice sculpture;
Auxiliary Equipment
Crusher ice unit:
The ic crusher is an ice-breaking device specially designed for the block ice, which can crush 5kg-120kg of block ice. The ice crushing speed is fast, it onlhy takes3-4 seconds to crush 1 piece ice; The whole ice crusher is made of 304 stainless steel, which has strong anti-corrosion properties and has a service life of more than 10 years.
Convey ice system:
Inorder to provide customers wth the greatest convenience, our technical team has continuously developed various convenient supporting devices, which can automatically convey the ice to the supporting container or ice storage.
Packaging & Shipping
Company information
Shenzhen Zhongxue(ZXSHARE) Refrigeration Equipment Co.,Ltd. was established in October, 2009; and mainly produce direct cooling block ice machine, brine type block ice machine, flake ice machine, tube ice machine, cube ice machine, cold room and other refrigeraion equipment; the boss was engaged in the refrigeration industrial in 2004, and has about more than 20 years experience for that. We always adhere to the "quality first, service first, reputation first"business philosophy; Integrity creates quality, innovation leads the future. Hope to crreate the greatest benefits for your customers and realize the social value of our company through our products and services.
Certification
Project Case
Customers visit the factory
Our Service
Carry out technical training and improve products in time.
Resolutely implement the product"after-sales timely" service policy.
Immediately process and reply to customer calls and letters,
and service engineers are on call 24 hours a day
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $120000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V/3P/50Hz or others. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
