This ice machine is published with the manufacturer’s full specification — 380V,50HZ,3P/customized, capacity 3tons per 24hours. Made by Guangzhou Kingwell Heat Transfer Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Machine
- Voltage: 380V,50HZ,3P/customized
- Ice Storage Capacity: 2.5 kg
- Capacity: 3tons per 24hours
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Commercial
Technical Specifications
| Ice Shape | ICE BLOCK |
|---|---|
| Ice Storage Capacity | 2.5 kg |
| Voltage | 380V,50HZ,3P/customized |
| Key Selling Points | Patented Product |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Motor, Engine |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Brand Name | Kingwell |
| Dimension(L*W*H) | 4900mm(L)*1100mm(W)*2000mm(H) |
| After-Sales Service Provided | Online support |
| Name | Clear block ice machine |
| Keyword | Transparent block ice |
| Capacity | 3tons per 24hours |
| Cooling Way | Air Cooling Water Cooling |
| Packaging Details | Standard wooden case for packing main frame. Containerized designs no need packing. |
| Port Of Dispatch | Huangpu,Guangzhou |
| Selling Units | Single item |
| Single Package Size | 450X300X300 cm |
| Single Gross Weight | 58.0 kg |
| Supply Ability | 30 sets per Month |
Product Details

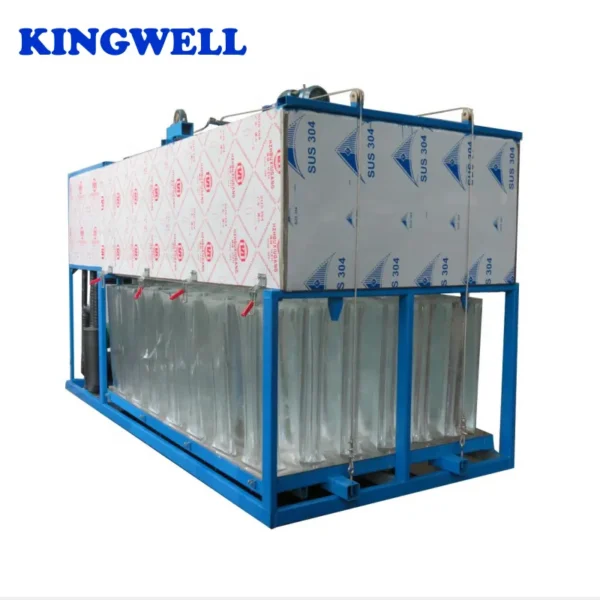

Directly cooling aluminum plate block ice machine produces clear & transparent block ice (KW-DB 3)
Direct cooling block ice machine is adopting a new technology and using aluminum plate as evaporator for direct block ice making. The block ice is clean and sanitary, with food grade standard.
SPECIFICATIONS FOR 3 TON DIRECT COOLING BLOCK ICE MACHINE | ||||||
Compressor | Brand | Bitzer, Germany | ||||
Horse Power | 18HP | |||||
Net Power | Semi-hermetic compressor | |||||
Technical specification | Supply Power | 380V, 50Hz, 3Phase / Customized | ||||
Input Water Temp. | 21℃ | |||||
Condensing Temp. | 40℃ | |||||
Measurement | Machinery unit | 4900mm(L)*1100mm(W)*2000mm(H) | ||||
Cooling tower | 1400mm(L)*1400mm(W)*1600mm(H) | |||||
Main Features
1). Sanitary and food grade block ice: Using aluminum plate evaporated directly, the ice can eat directly if the ice making water is clean enough;
2). Automatic ice making and harvest under control of PLC micro computer system, easy operation;
3). Anti-rust and anti-corrosive material: the aluminum ice cans is a good material anti-rust and anti-corrosive, it means the lifespan will be longer;
4). All-in-One refrigeration system, less space is required, easier for installation;
5). Shorter freezing and harvesting cycle, save labor cost.
Compressor
Brand: Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
PLC Program controller
Name: SIEMENS
Brand: Germany brand
This PLC is just as the brain for a human being, it controls all the electrical parts of the machine, to guide all part when to work and stop, so the whole ice making and ice falling process are totally automatic. SiEMENS brand is also widely used over the world.
Touch Screen
Name: Weicon
Brand: Taiwan brand
This touch screen can adjust some datas and ice thickness, all the working states and working histories can be seen clearly on the screen, so when there is some error of the machine, you can show the video and picture to the factory, problems can be judged quickly.
Aluminum plate ice can
Name: Kingwell
Material: aluminum plate
Function: for block ice freezing
The ice can is totally matched food-grade standard, we can make different sizes for your choice.

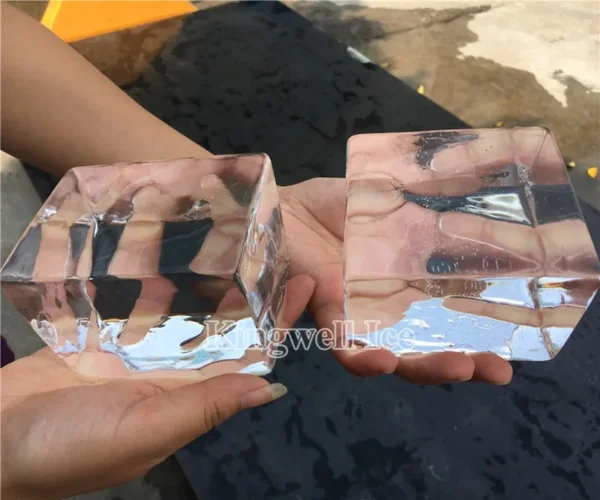

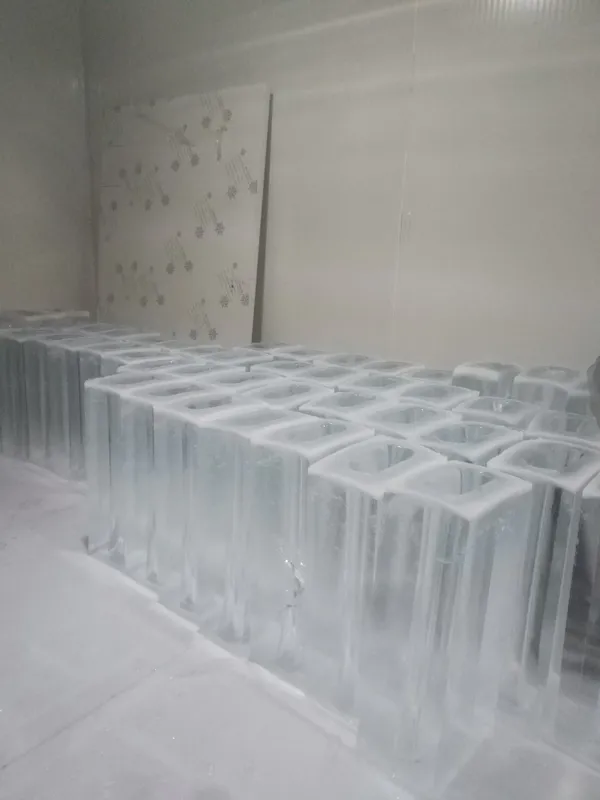

Crystal and transparent block ice , mostly used for human consumption or ice sculpture.
We have below standard sizes for your choice, if you need other size, we can made as per your demand!
Block ice weight (KG) | Ice size (thickness*width*height, mm) | Freezing time (hours) | Frequency of ice making per day (times) |
5KG | 80*120*600 | 6 | 4 |
10KG | 80*250*600 | 6 | 4 |
15KG | 100*300*600 | 8 | 3 |
20KG | 100*400*600 | 8 | 3 |
25KG | 150*330*600 | 12 | 2 |
30KG | 150*400*600 | 12 | 2 |
50KG | 150*500*800 | 12 | 2 |

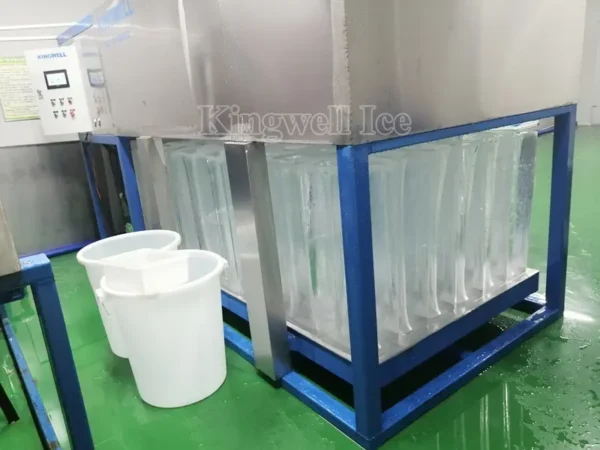

Clear block ice machine tested in our factory

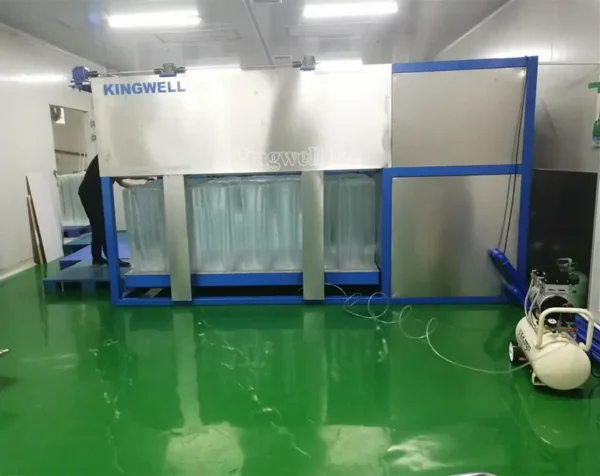

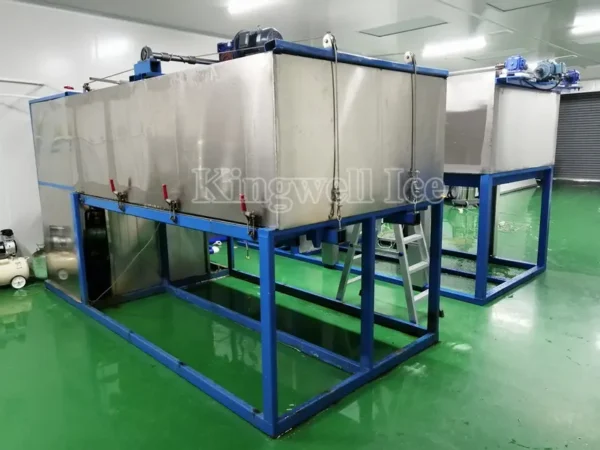

Clear block ice machine tested in client's factory
Loading

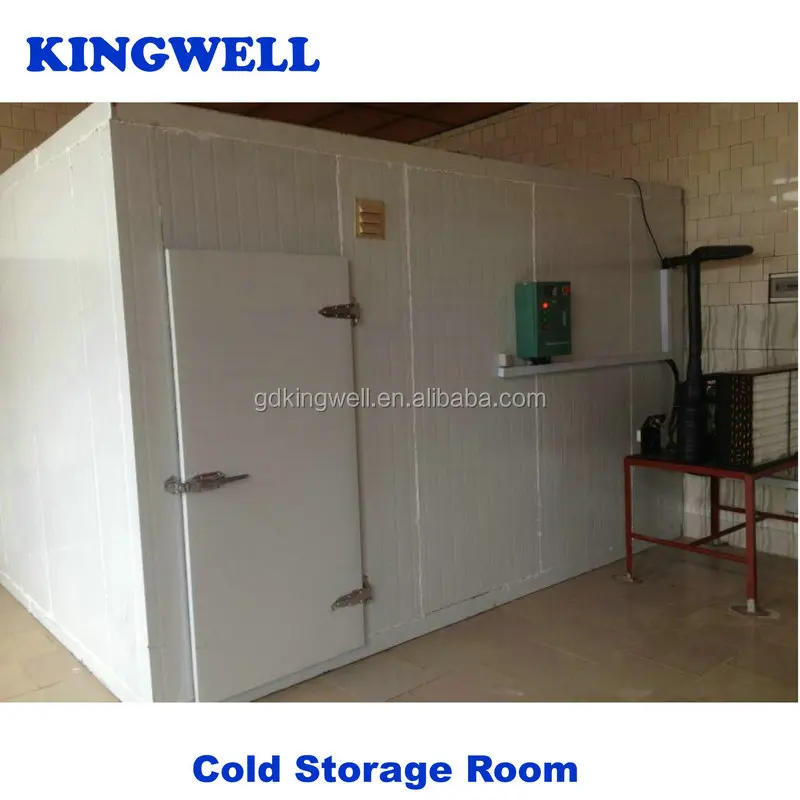

Cold room
91.8% Response Rate

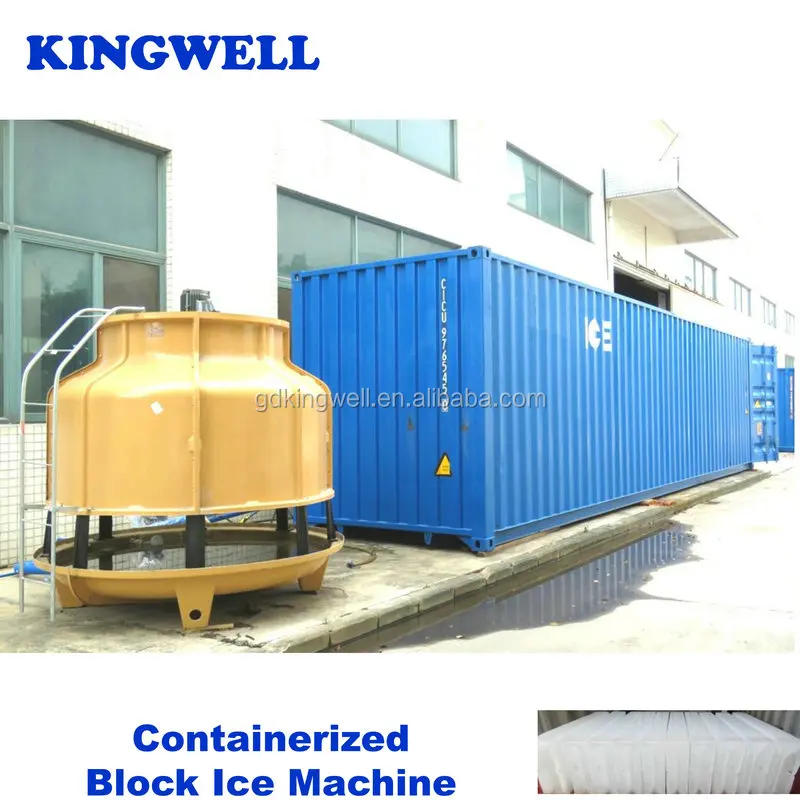

Containerized block ice machine
91.8% Response Rate

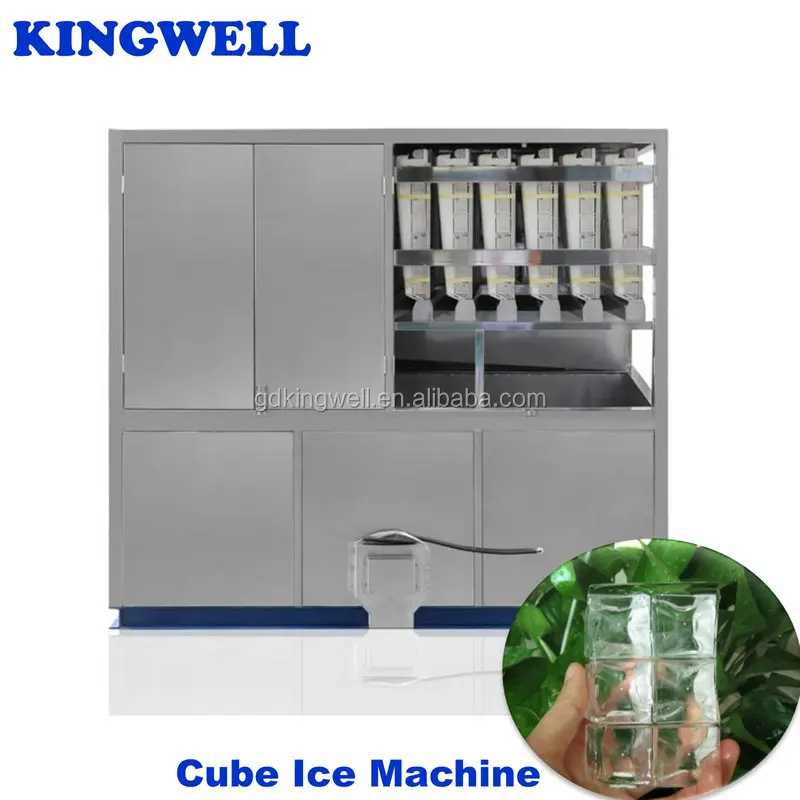

Ice cube machine
91.8% Response Rate
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $30000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V,50HZ,3P/customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kingwell Heat Transfer Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kingwell Heat Transfer Technology Co., Ltd. range on HVACR Nexus.
