Ice machines — voltage 3N380V, power 1860. The complete factory specification follows. Made by Zhengzhou Beyonder Machinery Co., Ltd. (6 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Ice Machines
- Power: 1860
- Voltage: 3N380V
- Rated Voltage: 220V/50hz, or 110V/60hz
- Ice Storage Capacity: 250kg
- Raw Material: Water
- Refrigerant: R401, R404, etc.
Technical Specifications
| Application Fields | Snack Food Factory, Beverage Factory, Frozen Food Factory, Meat Processing Plants, Dairy Products Factory, Fruit Processing Plant |
|---|---|
| Raw Material | Water |
| Warranty | 3 Years |
| Condition | New |
| Key Selling Points | Long Service Life |
| Place Of Origin | Henan, China |
| Machinery Function | To produce ice cubes |
| Weight | 276 KG |
| Power | 1860 |
| Brand Name | Beyonder |
| Dimension(L*W*H) | 76*83*190cm |
| Output Product Name | Ice cube |
| Voltage | 3N380V |
| Product Name | Italian industrial ice making machine 500kg/h |
| Ice Shape | ice cube |
| Cube Size | 22*22*22mm |
| Refrigerant | R401, R404, etc. |
| Rated Voltage | 220V/50hz, or 110V/60hz |
| Input Water Type | Tap water |
| Ice Storage Capacity | 250kg |
| Cube Size Adjustable | yes |
| Ice Output/24 Hours | 460kg |
| Whats App/Wechat | 0086-19138027012 |
| Packaging Details | 1pc carton or as per requests. |
| Port Of Dispatch | Guangzhou, Shenzhen, etc. |
| Selling Units | Single item |
| Single Package Size | 78X85X195 cm |
| Single Gross Weight | 276.0 kg |
| Supply Ability | 560 sets per Month |
Product Details
Product Description

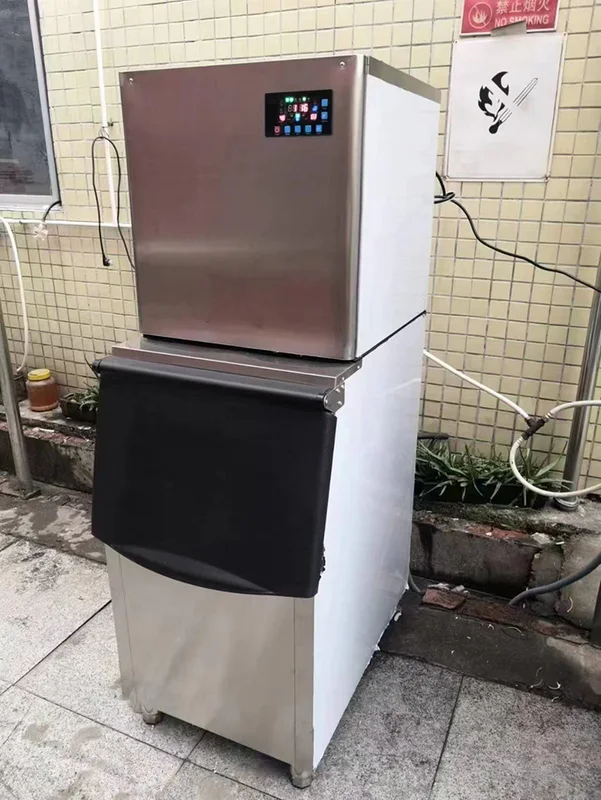

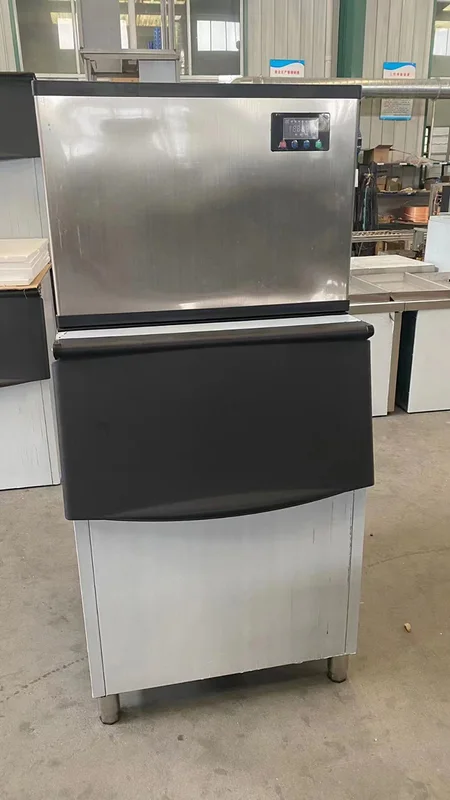

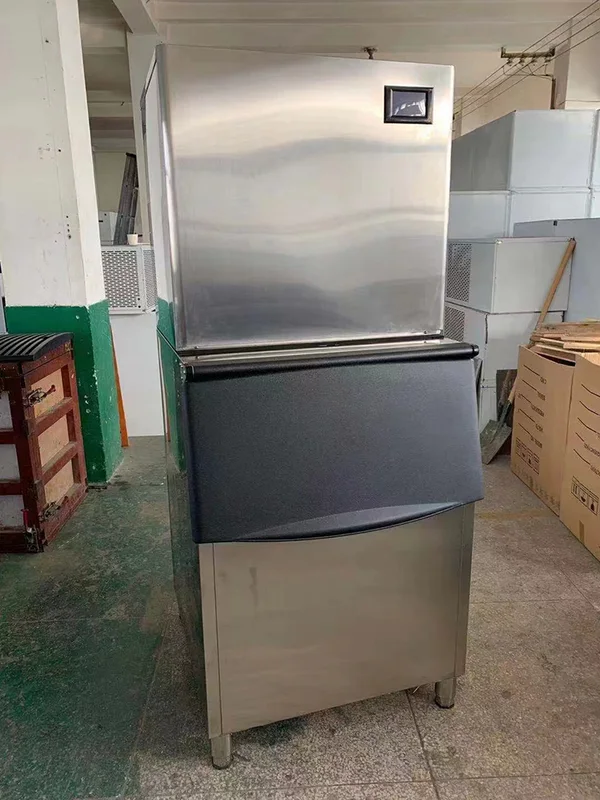

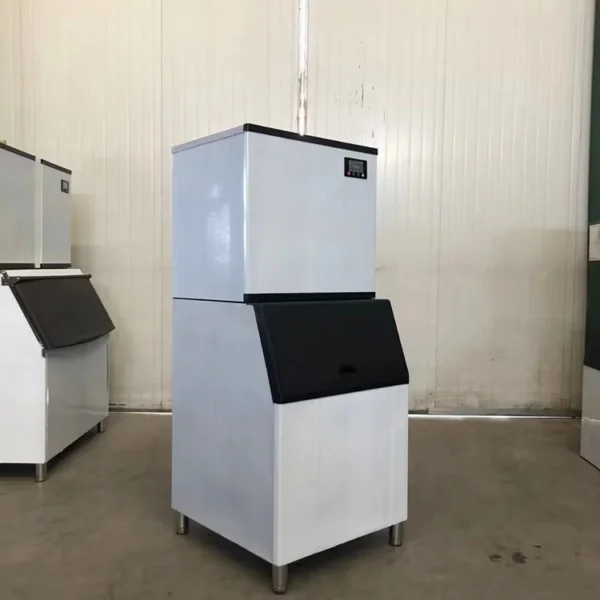

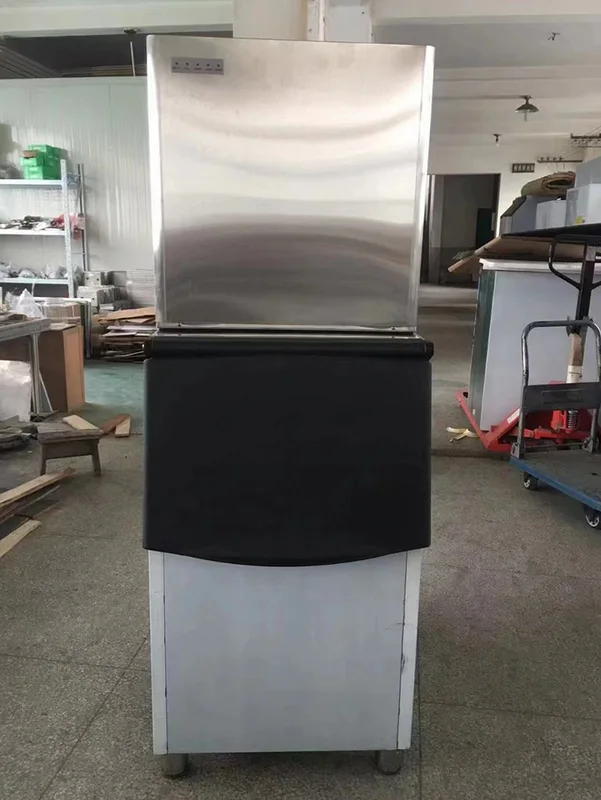

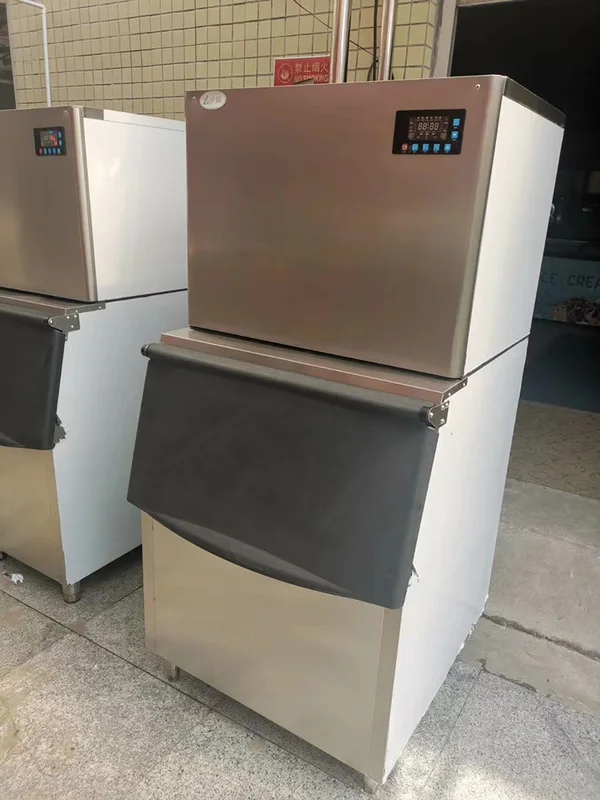

Italian industrial ice making machine 500kg/h commercial cube maker
Italian industrial ice making machine 500kg/h commercial cube maker, is specially proper for small size bubble tea shop. We offer different models, that can produce 120-500kg/Day. Commonly, it can serve a big size beverage shop with capacity about 400-1000 cups of cold drink (calculated as 8-12 cubes in 1 cup).
Ice maker is "MUST" Equipment for bubble tea/beverage shops. Usually we suggest you buy ice maker as per your business scales. If you are interested, or have doubt on which capacity to choose, just feel free to contact with us.
Specification
According to different working capacity, a middle size ice cube maker will be recommended in below 3 different ranges, from 120-130KG/D until 450-500KG/D:
Model | Work capacity | Storage Capacity | Power | Ice Tray | Dimension |
IM300P | 136KG/D | 150kg | 750W | 12*13 | 560*830*1520mm |
IM400P | 180KG/D | 150kg | 750W | 13*14 | 560*830*1520mm |
IM500P | 225KG/D | 250kg | 1180W | 11*18 | 760*830*1650mm |
IM600P | 270KG/D | 250kg | 12800W | 11*18 | 760*830*1650mm |
IM700P | 320KG/D | 250kg | 1350W | 13*18 | 760*830*1770mm |
IM800P | 360KG/D | 250kg | 1450W | 13*18 | 760*830*1770mm |
IM1000P | 460KG/D | 250kg | 1860W | 18*19 | 760*830*1900mm |
***Above settings and configurations may slightly change for different batch of equipment!
Products Description
Durable Condenser
All of our ice maker equipment adopts
branded condensors to make sure of
heat exhaustion. Durable Condensers
can lengthen shelf life of the equipment.
Strong Commpressor
A good compressor is the key part for ice makers. Strong and durable compressors
fasten ice production, to improve working
efficiency.
Other details below:
Ice Maker Advantages:
Tap water / Bottled Water for your choice!
Tap water, or Bottled water can both be connected to this small size ice makers.
You may choose the model you like!
1 button for easy Clean!
1 Button for self-cleaning!
No need to wipe the ice tray cube by cube!
You can get different thick cubes!
By changing the working time, you can get different thickness of ice cubes.
And different ice cubes could be used for different beverages / drinks to get better effects!
We suggest:
And different ice cubes could be used for different beverages / drinks to get better effects!
We suggest:
10-12 minutes, for thin cubes;
12-15 minutes, for middle cubes;
15-20 minutes, for thick cubes.
12-15 minutes, for middle cubes;
15-20 minutes, for thick cubes.
Secrets for Ice Tubes
How to get more transparent Cubes:
Some buyers claims that the cubes they get from the ice makers are not so transparent as imagined. Someone even say the cubes are "dirty"！
Anyhow, ice cube quality is closely related to the water you used.
Usually, if connection bottled water to the ice makers, the cubes you get could be better!
In fact, if the connected water TDS value is low, the cubes could be more transparent!
Is there any way to improve the situation if we connect tap water to the ice maker?
YES!
We suggest you to add water filters between taps and ice makers! In this way, the water has been simply filtered before going into ice makers. Filtering can low down the TDS of water.
If you use tap water, please tell us so that we could attach the indicated filter to the ice makers you buy from us!
THIS IS FOR FREE!
Meanwhile, you need not watch the working process. This ice maker is LCD Smart control! This means, when the icing process finishes, the ice maker will go to STARTUP Automatically!
Production & Packing
As true producer and supplier, we could offer better in and after sales service, such as:
1. Revising voltage (110V/60HZ, 220V/60HZ);
2. Changing electrical plug (Euro Standard, USA Standard, etc.);
3. Online course on installation/usage;
4. Spare parts if needed (Contact with us for more spare parts policy)
Packing and Transport:
Common packing: Paper Carton
Can add: Wood Frame to ensure the safty
Delivery can be made:
By Air (Fast but expensive);
By Sea (Competitive while longer time)
Contact with us for proper transportation!
Contacts
Contact with us here:
Contact: Mr. Damon Lu
Land phone: 0086-371-6329 5636
Mobile: 0086-19138027012
Whats app/wechat:
0086-19138027012
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–4 piece: US $1950 / piece
- 5–19 piece: US $1850 / piece
- 20+ piece: US $1750 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machines?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machines be supplied for my local voltage?
The standard configuration is 3N380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
