Key specification for this impellers fan blades: voltage 220/230V, power source type Electric. Everything below is reproduced from the factory data sheet. Made by Hangzhou Beron Motor Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Impellers Fan Blades
- Model Number: YWFG2E-160-070-BT1
- Power Source Type: Electric
- Voltage: 220/230V
- Material: Galvanized Steel
- Blade Material: Galvanised Sheet Steel
- Noise Level: 61dbA
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220/230V |
| Motor Type | AC Motor |
| Speed | 1800/1300/1000RPM |
| Material | Galvanized Steel |
| Blade Material | Galvanised Sheet Steel |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 61dbA |
| Place Of Origin | Zhejiang, China |
| Brand Name | BERON |
| Model Number | YWFG2E-160-070-BT1 |
| Protection Class | IP44 |
| Approvals | CCC,CE |
| Insulation Class | F |
| Feature | Low Noise,Long Life,Energy Saving |
| Bearing Type | Ball |
| Temperature | -30/+60℃ |

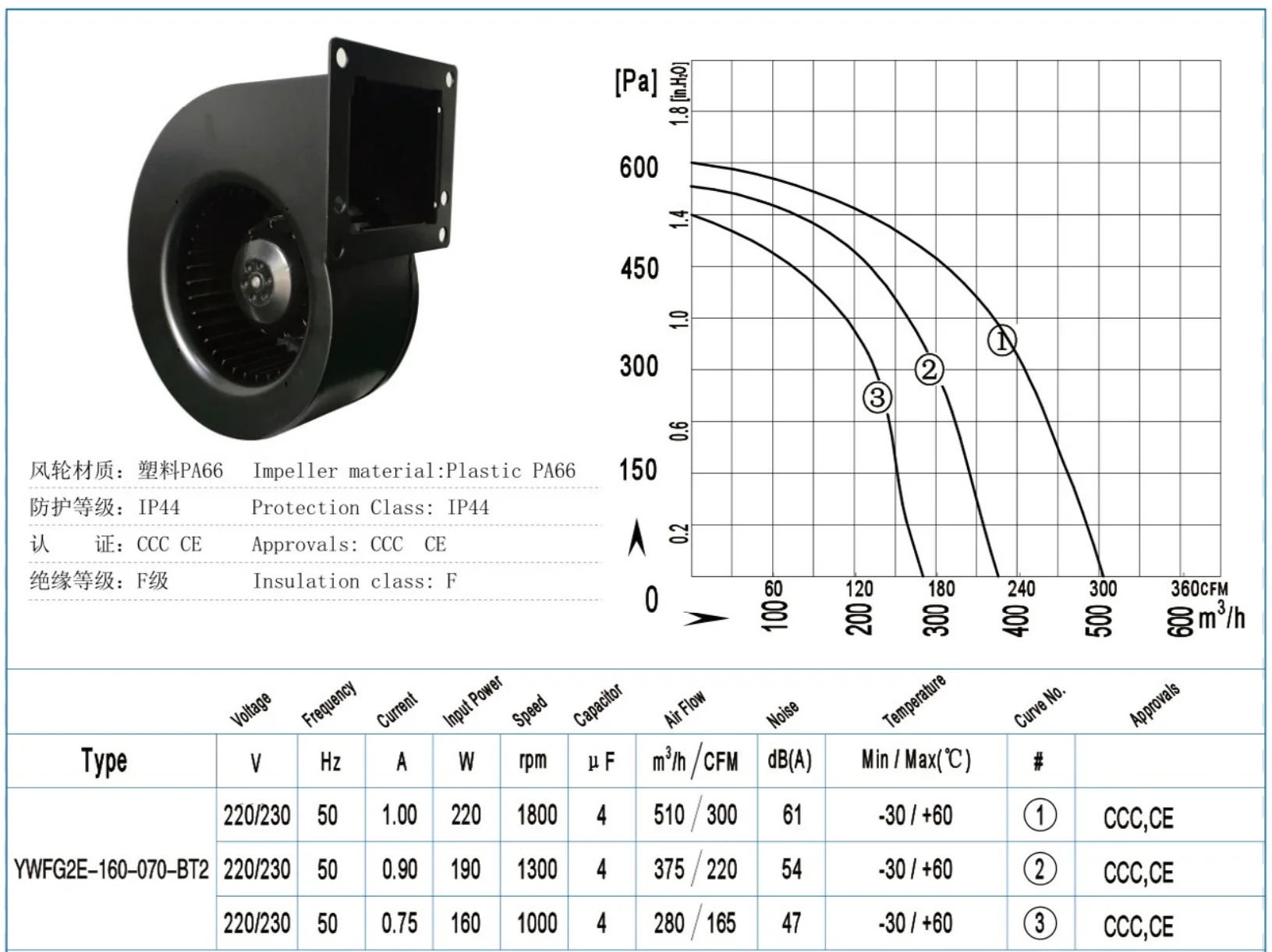

| Air Volume (M3 /H) | 510/375/280 |
| Frequency | 50/60HZ |
| Current | 1.00/0.90/0.75 |
| Selling Units | Single item |
| Single Package Size | 45X45X30 cm |
| Single Gross Weight | 4.0 kg |
Product Details
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops,Advertising Company Other. | ||||||
Customized support | OEM, ODM, OBM | ||||||
Electric Current Type | AC/DC/EC | ||||||
Voltage | 220/230V | ||||||
Warranty | 1 year | ||||||
After-sales Service Provided | |||||||
Core Components | Motor, Bearing, electric, mounting plate, copper wire, propeller, rotor, impeller, stator | ||||||

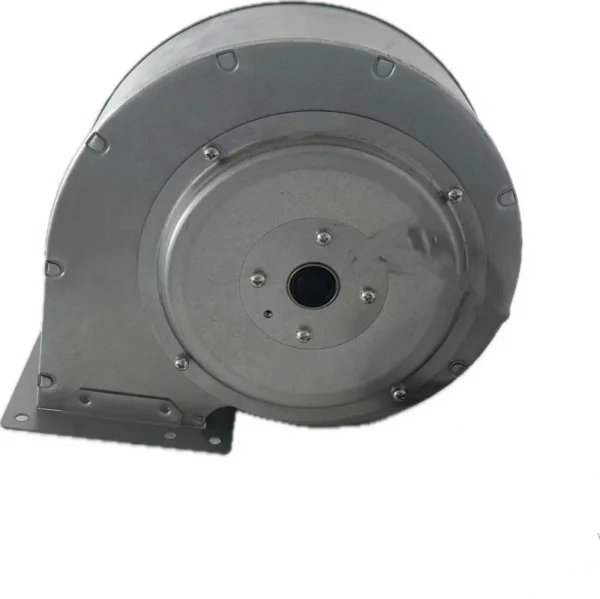

Product name | Forward Centrifugal Blower | ||||||
Bearing | Ball Bearing | ||||||
Packing | Foam Box | ||||||
Protection Class | IP44 | ||||||
Insulation Class | F | ||||||
Motor | AC Motor/DC motor/EC fan motor/BLDC motor fan | ||||||
Application | HVAC (Heating, Ventilation and Air Conditioning) systems, industrial exhaust systems, clean rooms, ventilation equipment, and household appliances used for cooling and air exchange,gas model inflatable. | ||||||
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $24.44 / piece
- 100–999 piece: US $22.76 / piece
- 1000+ piece: US $22.07 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this impellers fan blades?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this impellers fan blades carry?
It is supplied with CCC,CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the impellers fan blades be supplied for my local voltage?
The standard configuration is 220/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Beron Motor Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Hangzhou Beron Motor Co., Ltd. range on HVACR Nexus.
