Key specification for this industrial desiccant dehumidifier: refrigerant Water, type Air Handling Unit. Everything below is reproduced from the factory data sheet. Made by Guangzhou Jetex -Lloyd`s Machinery Limited (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Desiccant Dehumidifier
- Model Number: DCW Series
- Panel Material: galvanized steel sheet ,color coated steel sheet ,stainless sheet
- Refrigerant: Water
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Plant, Hospital, Warehouse, Cleanroom
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Refrigerant | Water |
| Mounting Type | Floor Standing |
| Fan Motors Type | Brushless |
| Motor Type | Brushless Motor |
| Filter Type | High-Efficiency Particulate Air Filter, Regular Filter, Activated Carbon Filter, Electrostatic Filter |
| Application | Plant, Hospital, Warehouse, Cleanroom |
| Key Selling Points | Long Service Life, Accurate Temperature Control, High air speed and high air capacity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1500 |
| Brand Name | Jetex |
| Model Number | DCW Series |
| Dimension(L*W*H) | customized |
| Frame | Thermal break aluminum alloy frame with high-density sealing gasket |
| Casing Structure & Insulation | double-skin with Polyurethane foam insulation |
| Panel Material | galvanized steel sheet ,color coated steel sheet ,stainless sheet |
| Panel Thickness | 50mm ,80mm,etc,customizable |
| Cooling/Heating Coil | High-quality copper tubes with blue-wave aluminum fins |
| Filters | G4 panel-type filters, F5~F9 bag-type,H11 sub-high efficiency filters |
| Other Functions | customization is available based on customer requirements |
| Residual Pressure (Pa) | 500pa,customizable |
| Dehumidification Components | Rotary wheel,etc |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description

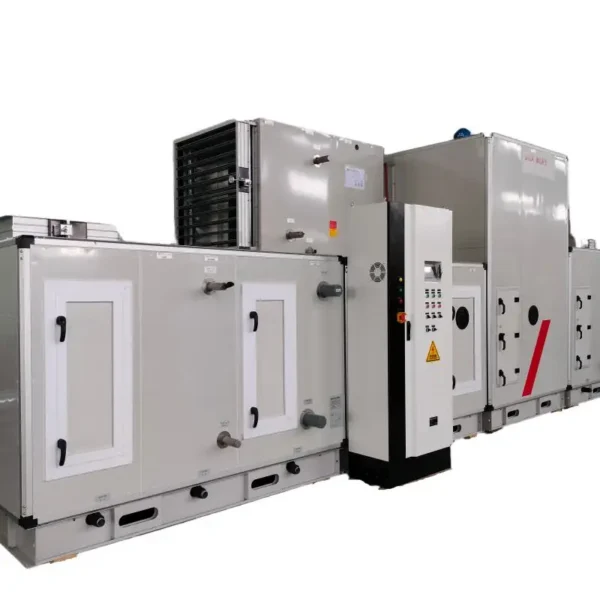

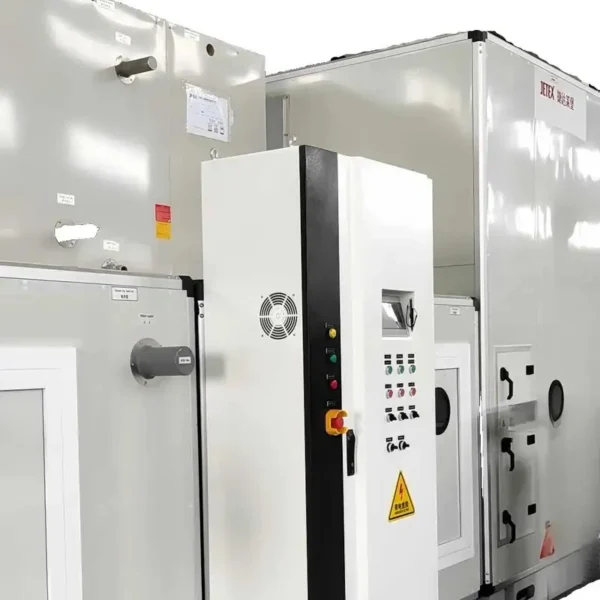

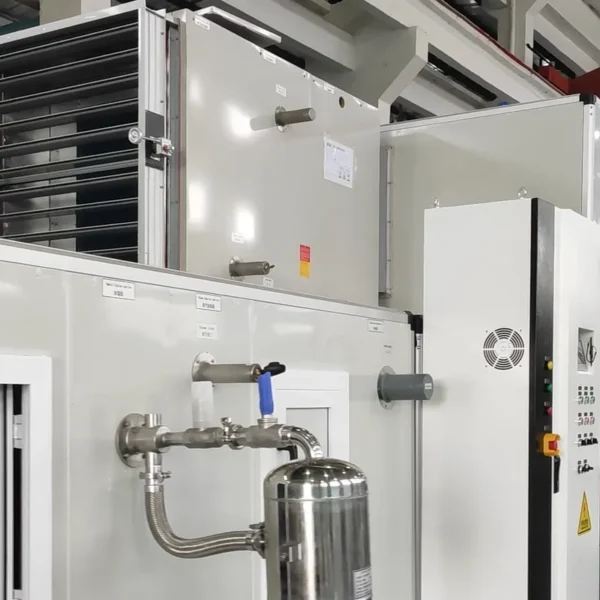

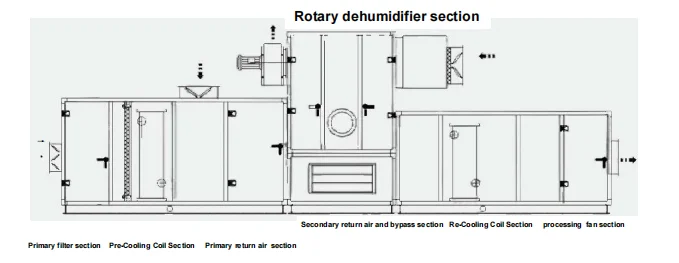

Low Dew Point Rotary Desiccant Dehumidifier

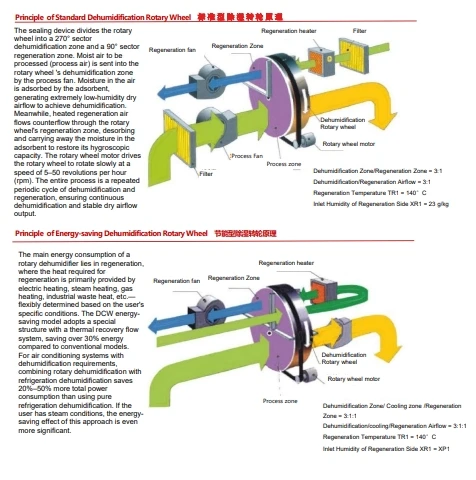

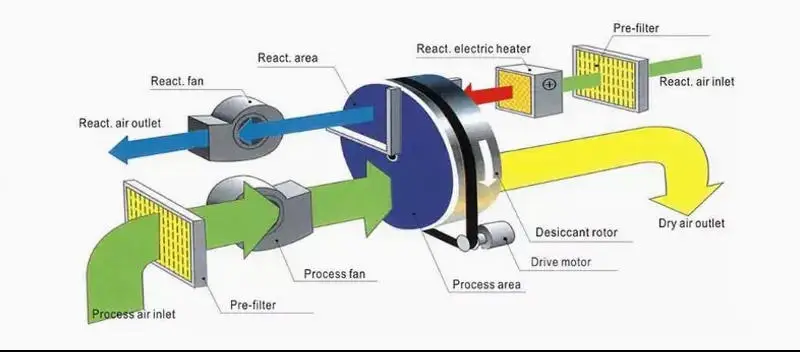

Our Low Dew Point Rotary Desiccant Dehumidifier is designed for applications requiring precise temperature and humidity control, especially in industries like lithium battery production, semiconductor manufacturing, cleanrooms, and pharmaceutical facilities. This dehumidifier provides reliable performance in environments where maintaining a low dew point is critical for operational efficiency and product quality. Key Features: Low Dew Point Control: Achieves dew points as low as -20°C (or lower), ideal for environments with strict humidity requirements. Energy-Efficient Design: Utilizes rotary desiccant technology for superior energy efficiency compared to traditional refrigerant-based systems. Continuous Operation: Designed for continuous operation, offering stable dehumidification performance even under fluctuating environmental conditions. Compact & Modular: Space-saving design with a modular structure for easy installation and maintenance. High Capacity & Performance: Capable of handling large air volumes, making it suitable for industrial applications with high humidity loads. Customizable: Available in various sizes and configurations to meet the specific needs of your environment.
Applications:
Lithium Battery and Energy Industries
Electronics & semiconductor
Pharmaceutical Workshops
Specification
Product | Low Dew Point Rotary Desiccant Dehumidifier | Application | biomedicine, Lab， semiconductors, electronic chips, lithium batteries |
Brand | Jetex | place of origin | Guangzhou, China |
Model | DCW Series | Airflow | 500~50000 CMH |
Mounting Type | Floor standing or ceiling mounted | core components | belt drive motor or EC fan motor |
Frame | Thermal break aluminum alloy frame with high-density sealing gasket | Casing Structure & Insulation | double-skin with Polyurethane foam insulation |
Filters | G4 panel-type primary filters, F5~F9 bag-type medium-efficiency filters,H11 filters etc. | Cooling/Heating coil | High-quality copper tubes with blue-wave aluminum fins |
Humidifier type | Wet film/dry steam / high pressure micro mist | Other functions | customization is available based on customer requirements |
unit dehumidification capacity | 2.5（23°C,20%)~374 kg/h（23°C,40%) | Supply air condition | DB 15 °C/T,d -40 °C |
Rows | 2-8 rows | Warranty | 1 year |
Company Profile
Guangzhou Jetex-Lloyd’s Machinery Ltd. is a professional manufacturer specializing in the R&D, production and engineering solutions of air handling equipment for over 30 years. With a 10,000+ m2 factory, advanced manufacturing facilities and an experienced technical team, we provide high-quality HVAC terminal products widely used in pharmaceutical plants, cleanrooms, laboratories, electronics, lithium battery production, commercial buildings, hotels and shopping malls.
We are also a long-term supplier of Foxconn for more than 20 years, serving multiple Fortune 500 companies and international partners.

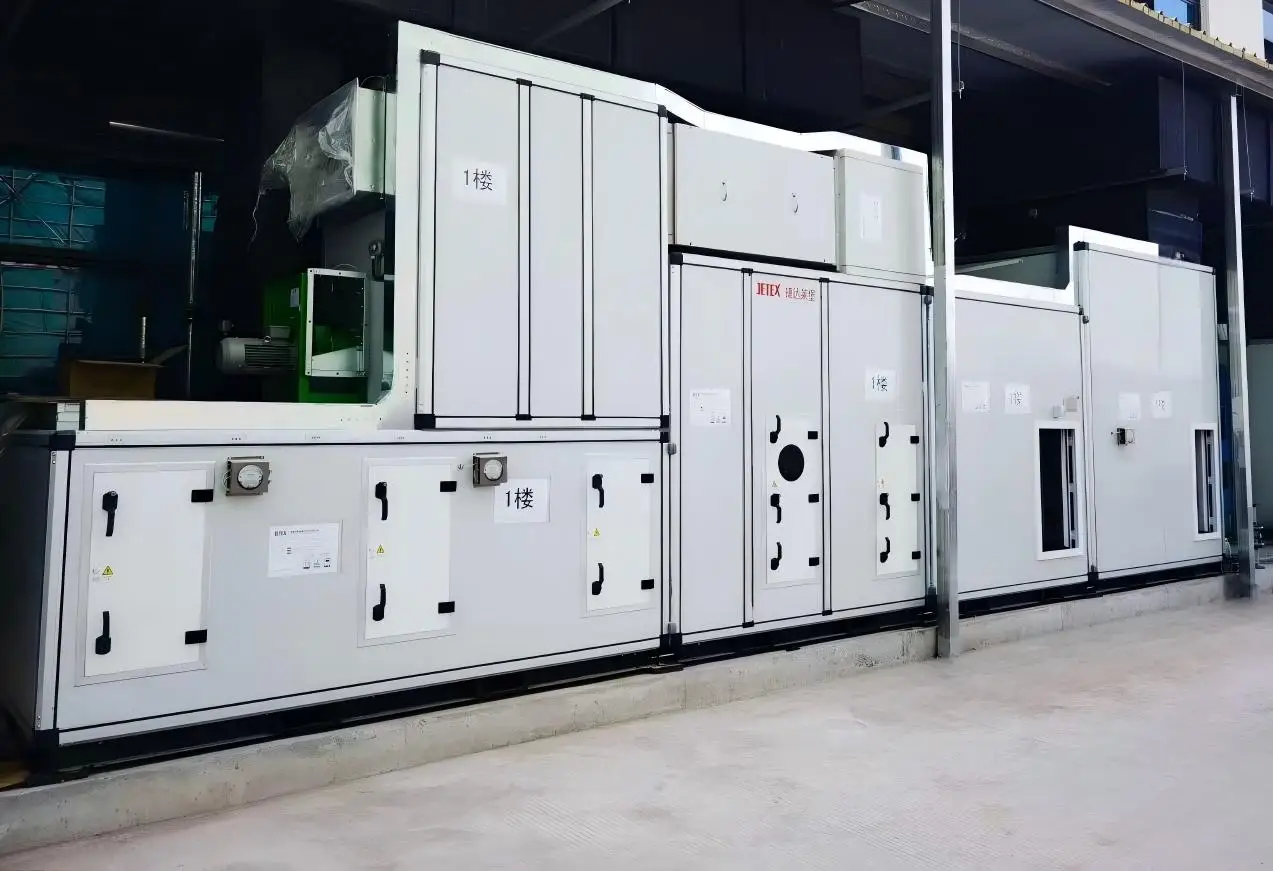

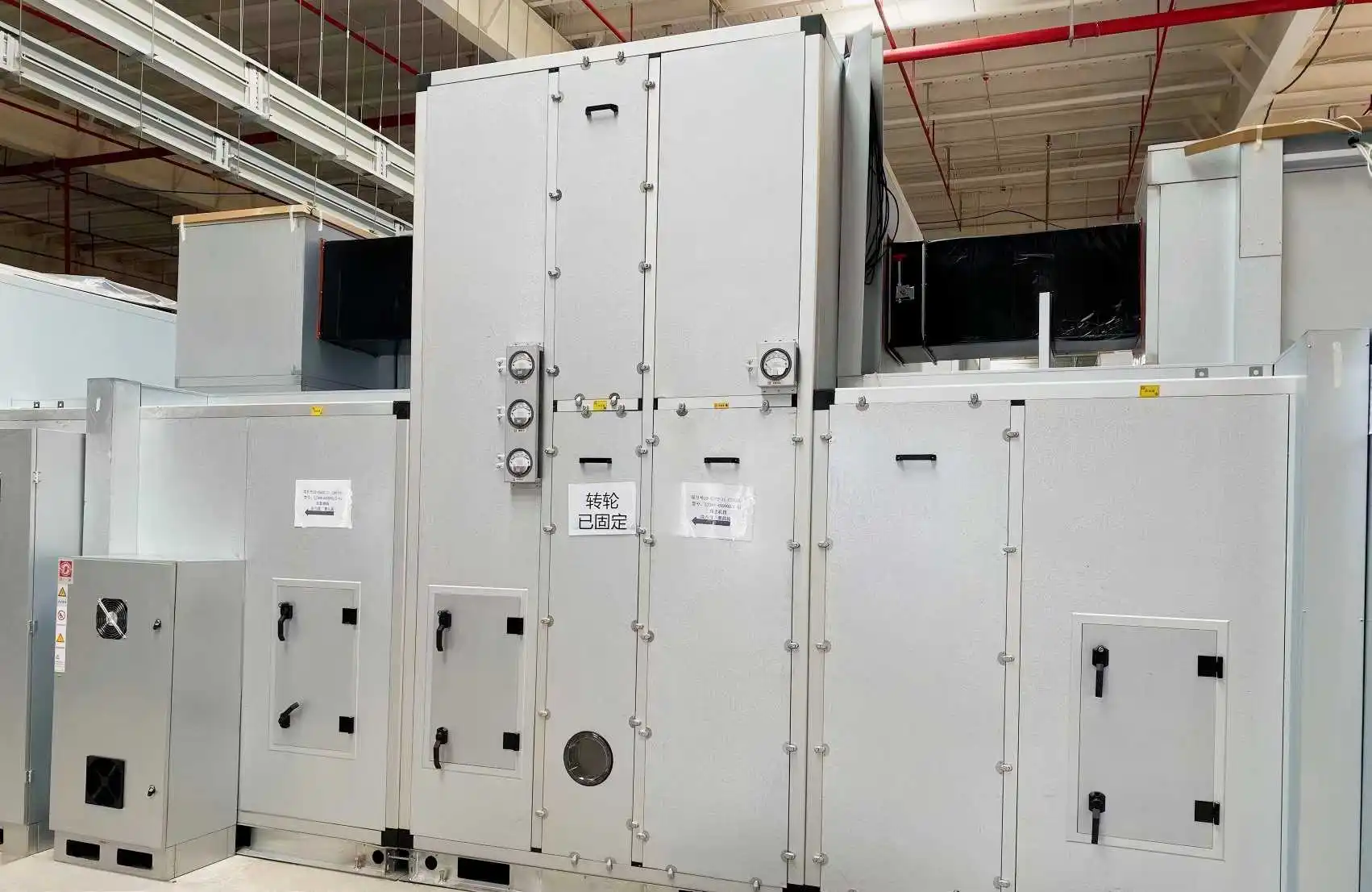

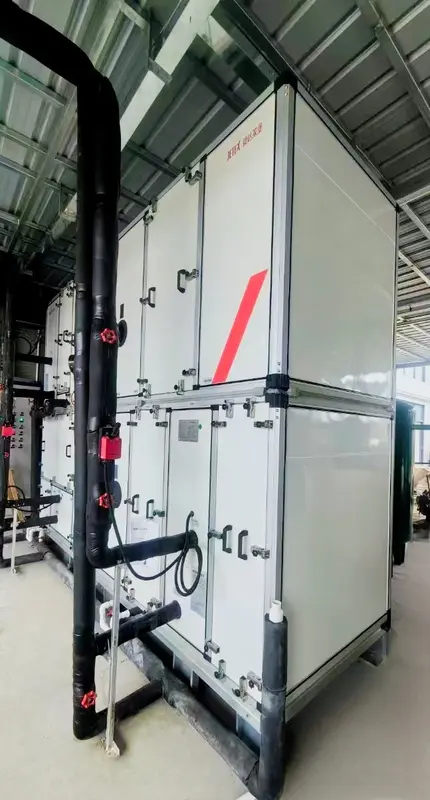

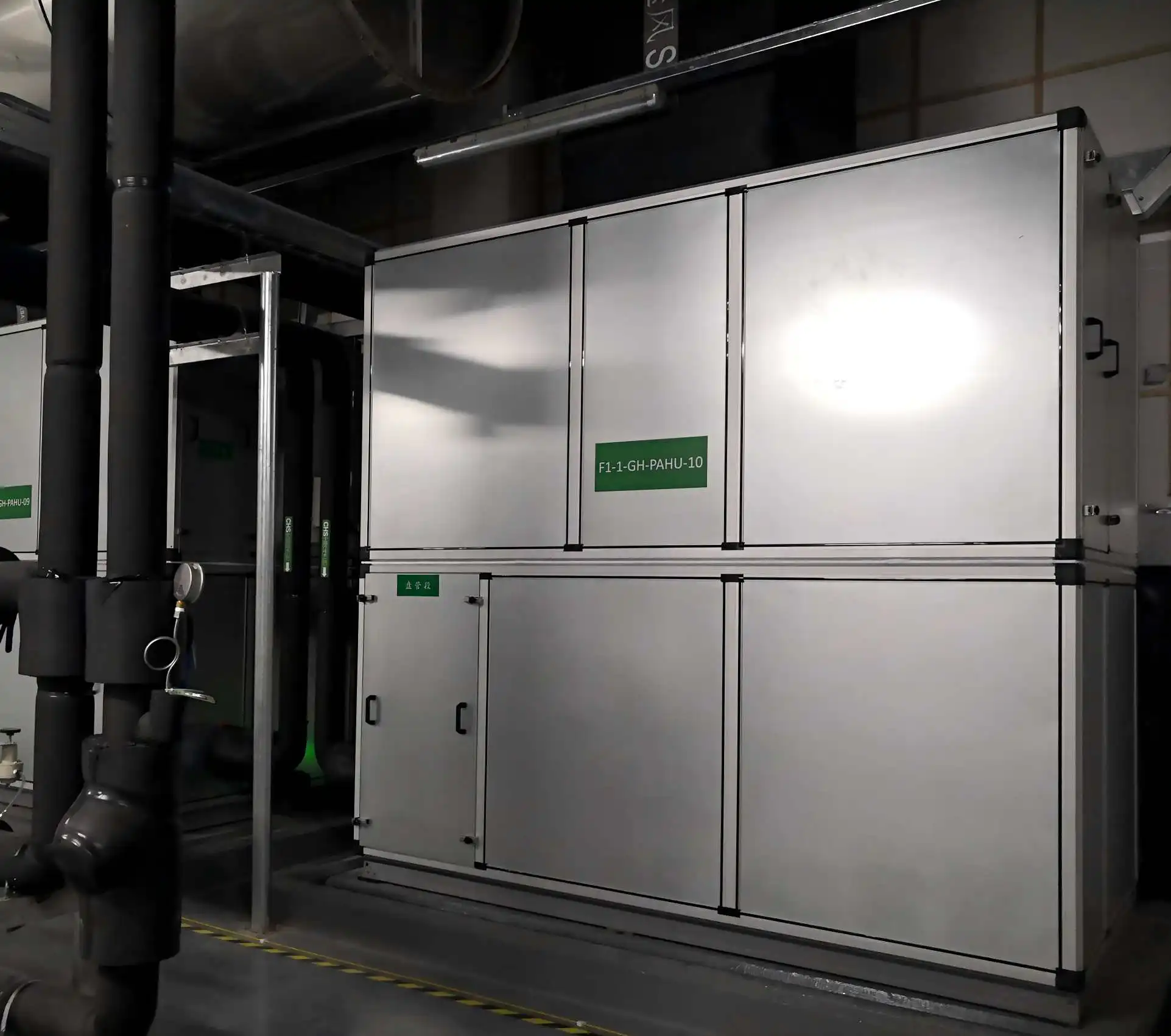

Our Worldwide Successful Cases
Foxconn-India Bengaluru Park
EVE Energy Industrial Park
TIANMA Xiameng Park
Our Team and Exhibitions
Packing & Delivery
For Shipment: The unit is wrapped with anti-collision foam and film, or packed in a wooden case.
FAQ
1: What is the lowest dew point achievable with your rotary desiccant dehumidifier? Our Low Dew Point Rotary Desiccant Dehumidifier can achieve dew points as low as -20°C, and in some configurations, it can go as low as -70°C, making it ideal for environments requiring precise humidity control. 2: How energy-efficient is this dehumidifier? Our rotary desiccant using energy -saving motor and fan ,also the famous rotary wheel ,minimal energy compared to traditional refrigerant-based dehumidifiers. It operates continuously while maintaining stable performance, reducing overall energy consumption. 3: Can the dehumidifier be customized to meet specific airflow and capacity requirements? Yes, our dehumidifiers are customizable to meet specific airflow and dehumidification needs. We offer different sizes and configurations, with airflow capacities ranging up to 10,000 m³/h or more, depending on your requirements.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $8000 / set
- 5–9 set: US $7500 / set
- 10+ set: US $7000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial desiccant dehumidifier?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
