This industrial greenhouse ventilation fan is published with the manufacturer’s full specification — 380V/220V/Customized, power source Electric. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Greenhouse Ventilation Fan
- Model Number: BST1380C
- Power Source: Electric
- Power: 1100w
- Voltage: 380V/220V/Customized
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 1270mm |
|---|---|
| Voltage | 380V/220V/Customized |
| Speed | 13m/s |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | BOOST |
| Model Number | BST1380C |
| Product Name | Butterfly ventilation cone fan animal husbandry cone exhaust fan |
| Size | 1380*1380*1300mm |
| Belt | Japanese Mitsuboshi |
| Frame Material | Galvanized Sheet/Stainless Steel |
| Motor Brand | China motor/Siemens motor/WEG motor/ABB motor |
| Balde Rpm | 439rpm |
| Application | Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop |
| Power | 1100w |
| Opening Device | Cone fan |
| Selling Units | Single item |
| Single Package Size | 50X60X50 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Product Description

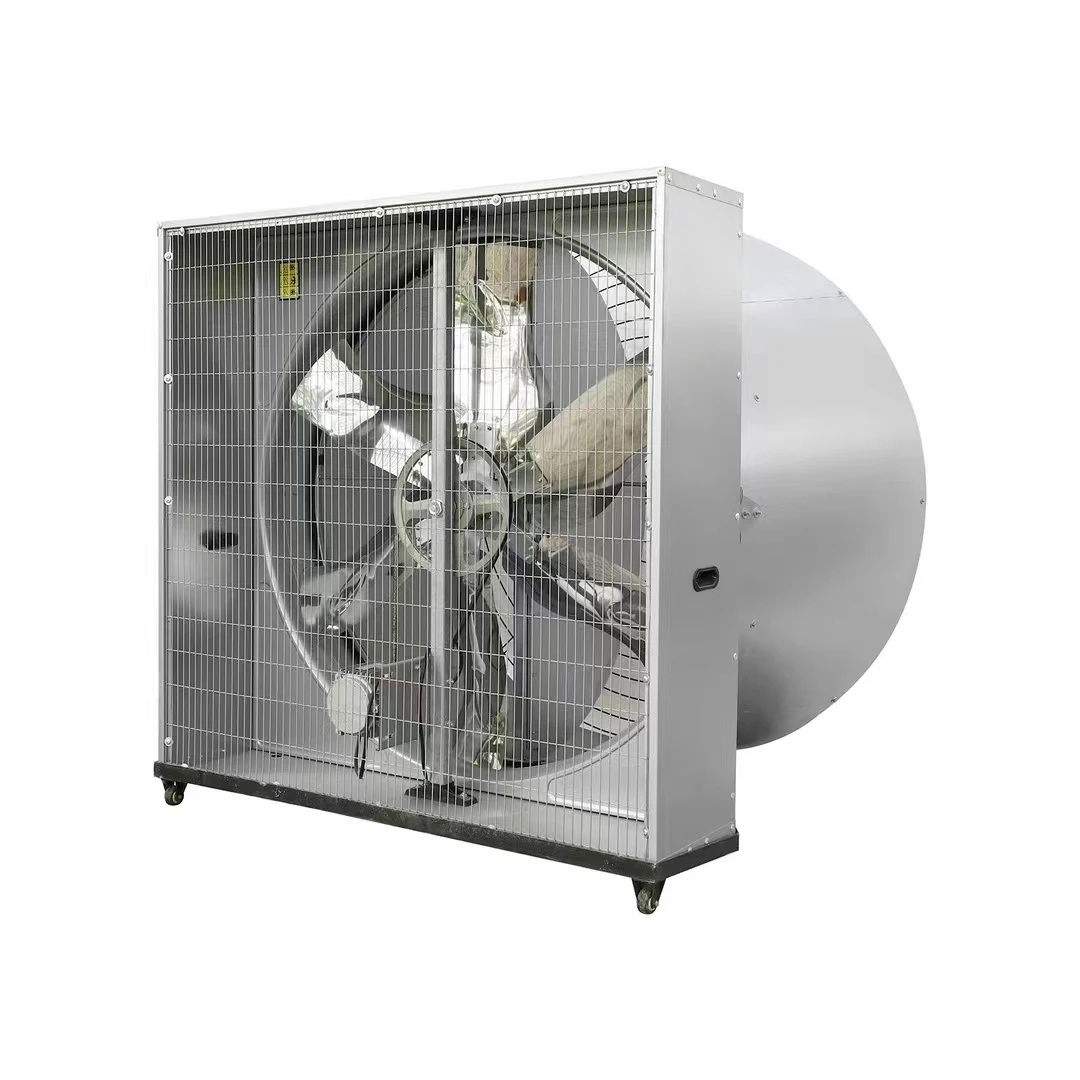

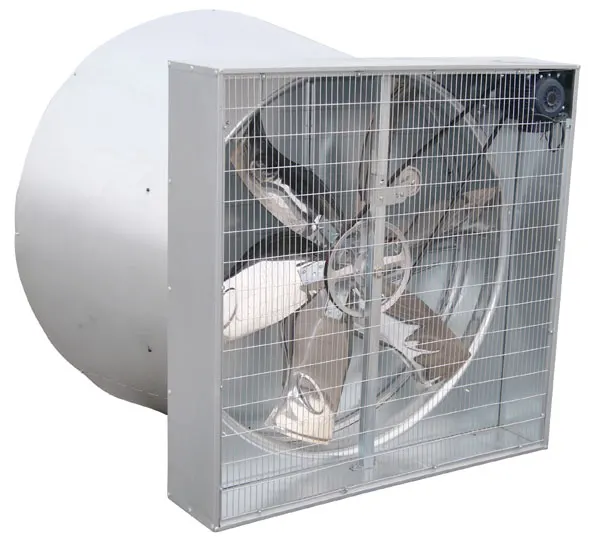

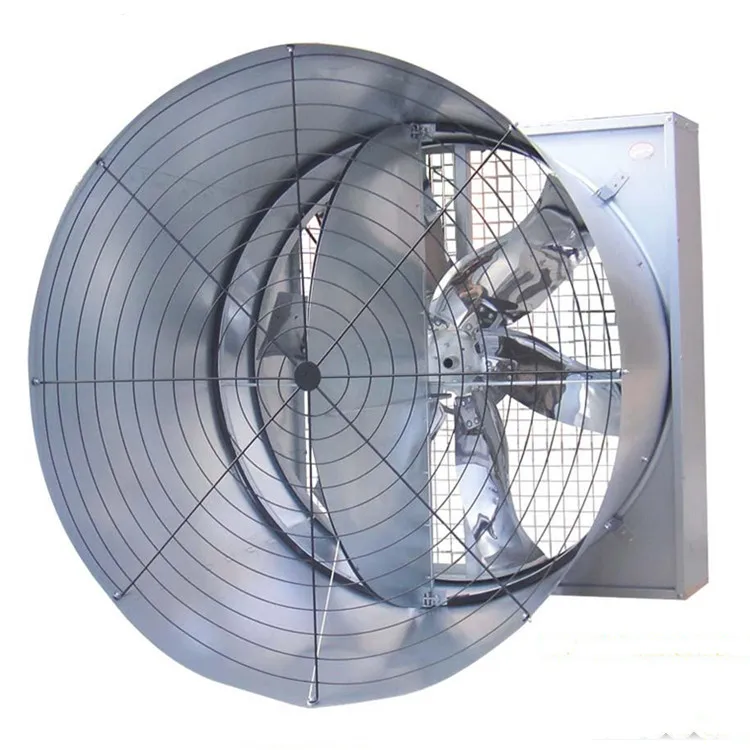

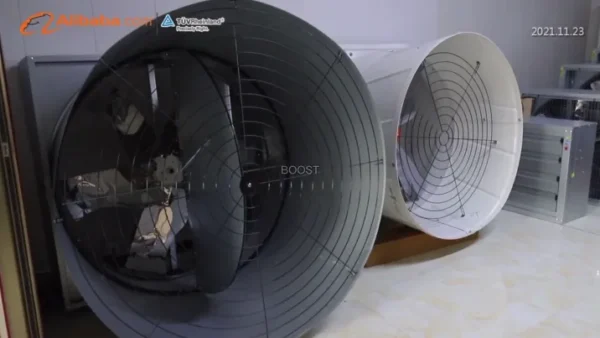

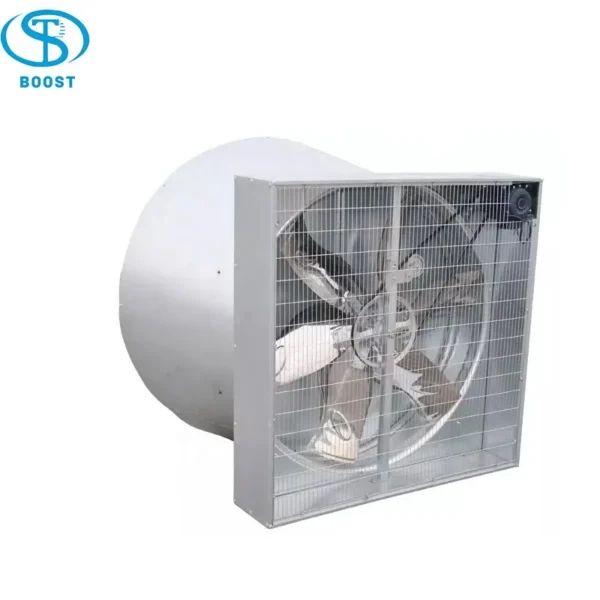

50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow m³/hr | Input power (W) | Noise(db) |
BST1000C | Belt | 900 | 610 | 1400 | 28000 | 750 | ＜65 |
BST1100C | Belt | 1000 | 600 | 1400 | 36000 | 750 | ＜65 |
BST1380C | Belt | 1270 | 439 | 1400 | 51020 | 1100 | ＜65 |

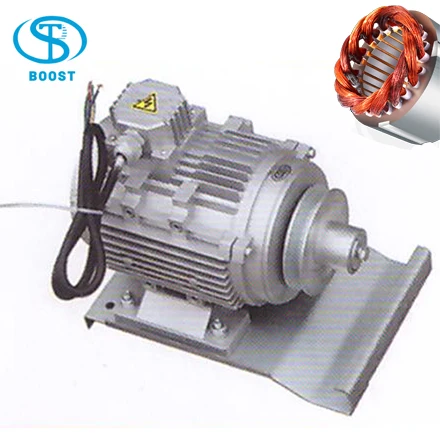

Motor
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Brand: Chinese motor and Siemens motor Certificate: CCC
Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

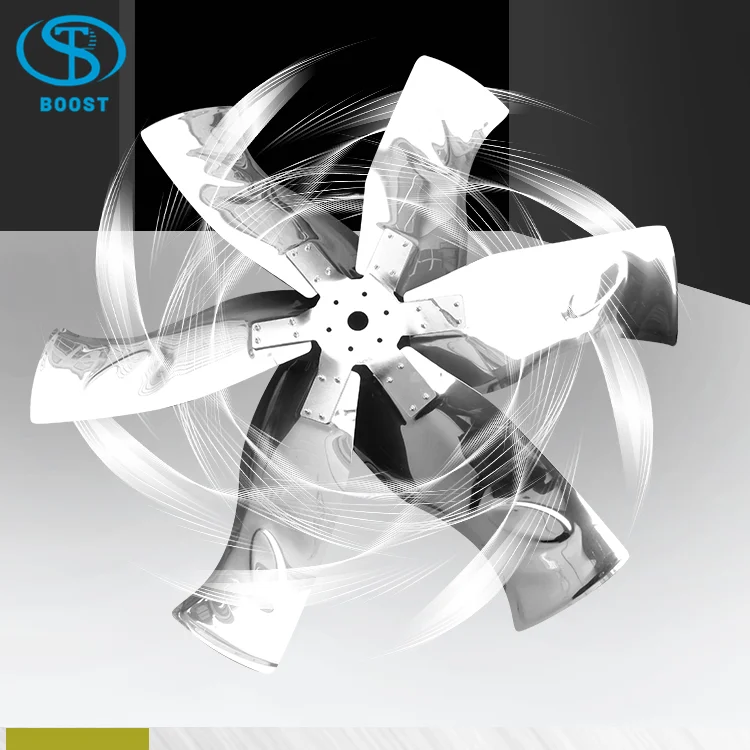

Fan blade which punching formed
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

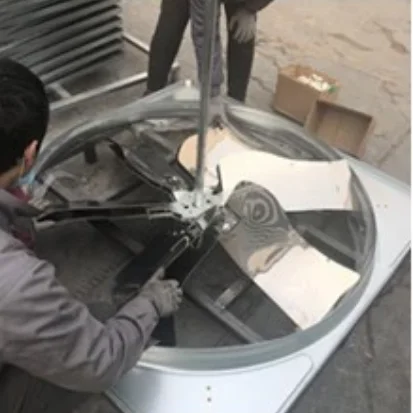

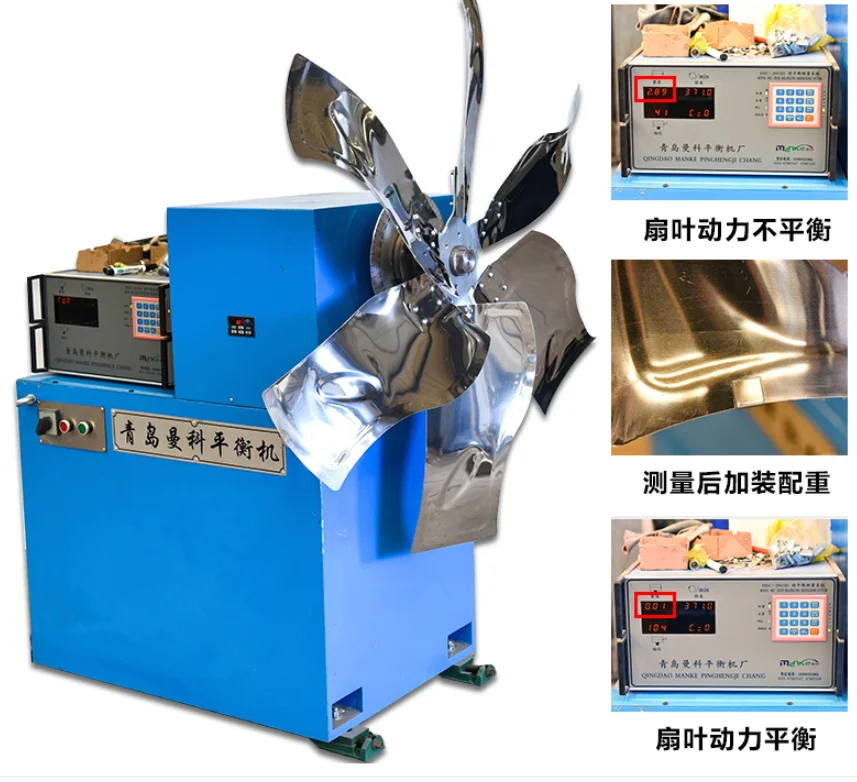

Italligent Dynamic-Fan balance Tester
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.

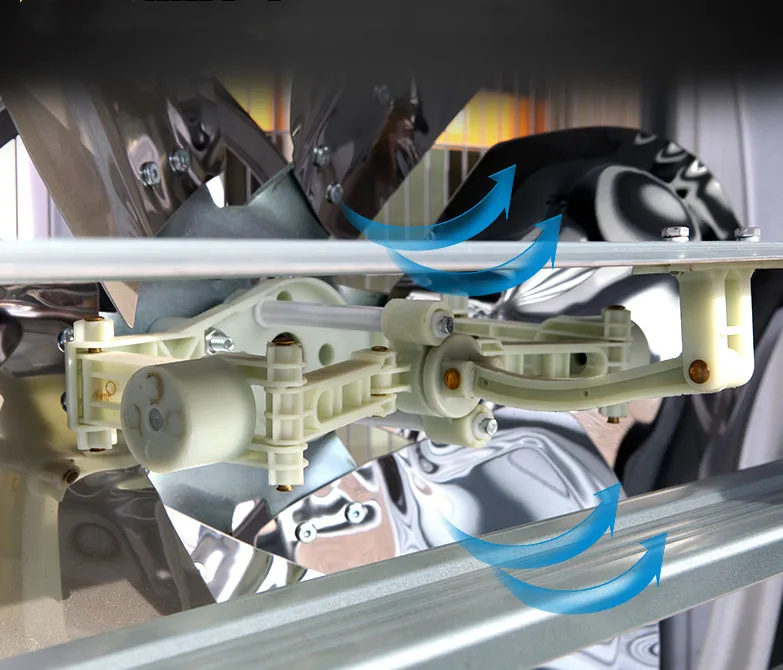

Opening system-Centrifugal System
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:

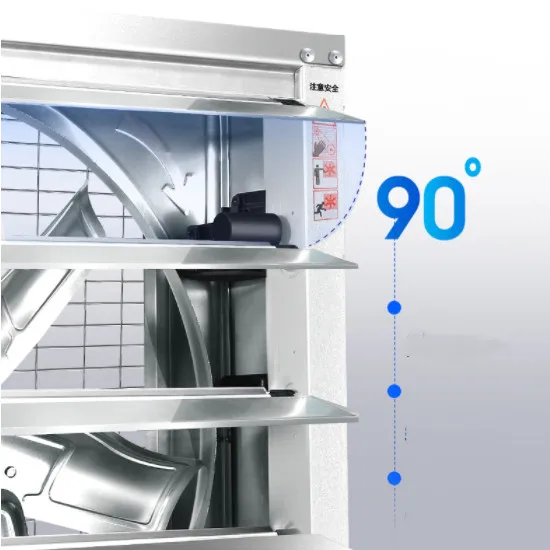

It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
When it is close,the tight sealing can efficiently block light and wind into the poultry house.The fasteners of centrifugal system are copper rivets,wearresisting,no rust,and flexible.Nylon oriented pole is made of stainless steel,ensuring the high strength and reducing frication,rust-resistant.
Fan blade which punching formed
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan

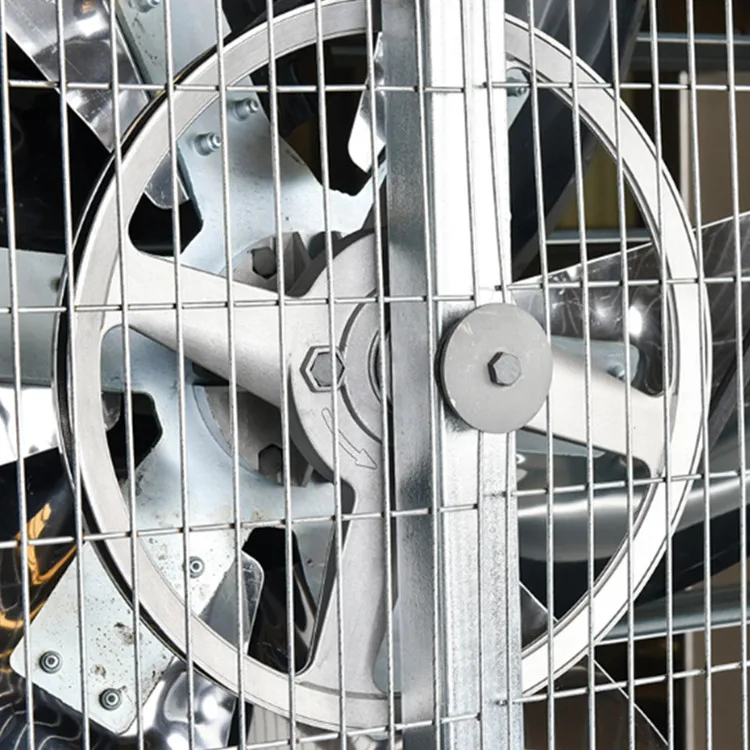

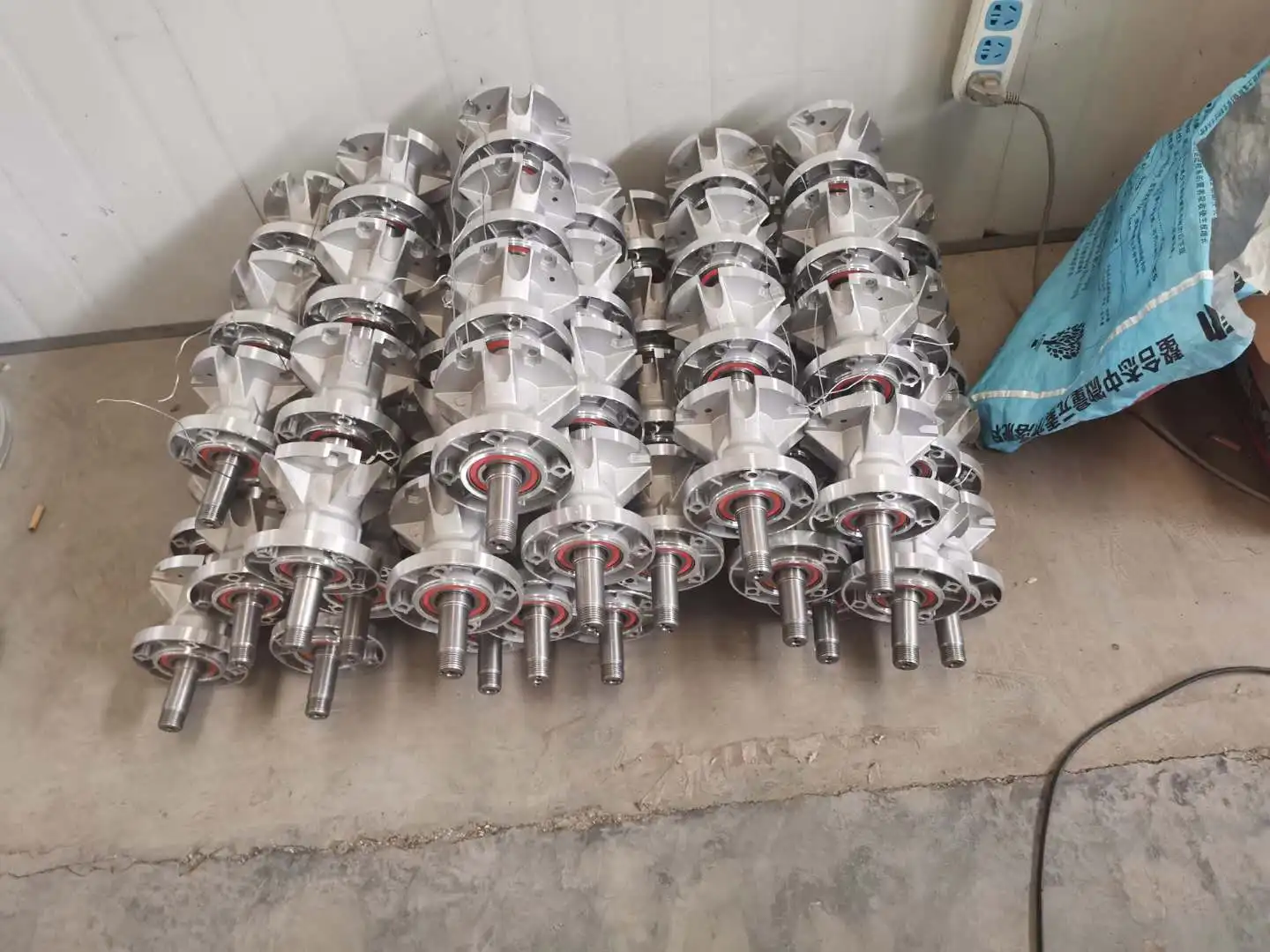

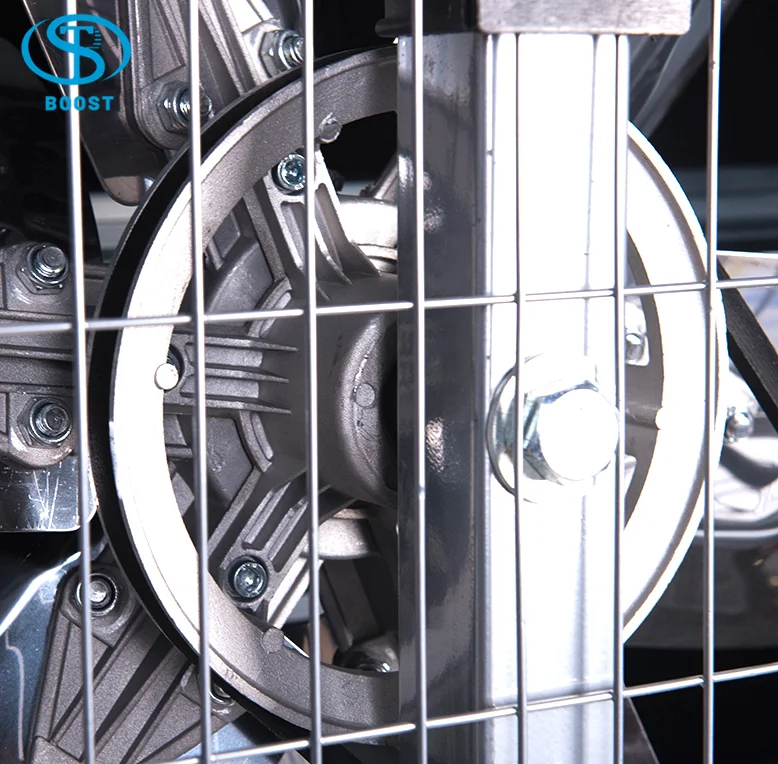

Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.

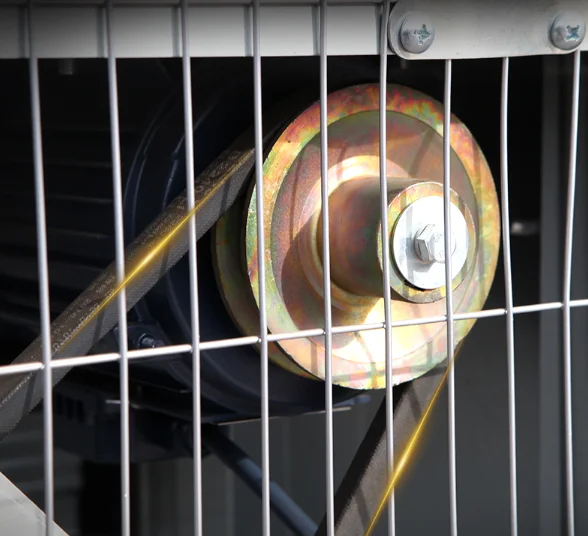

Belt
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A

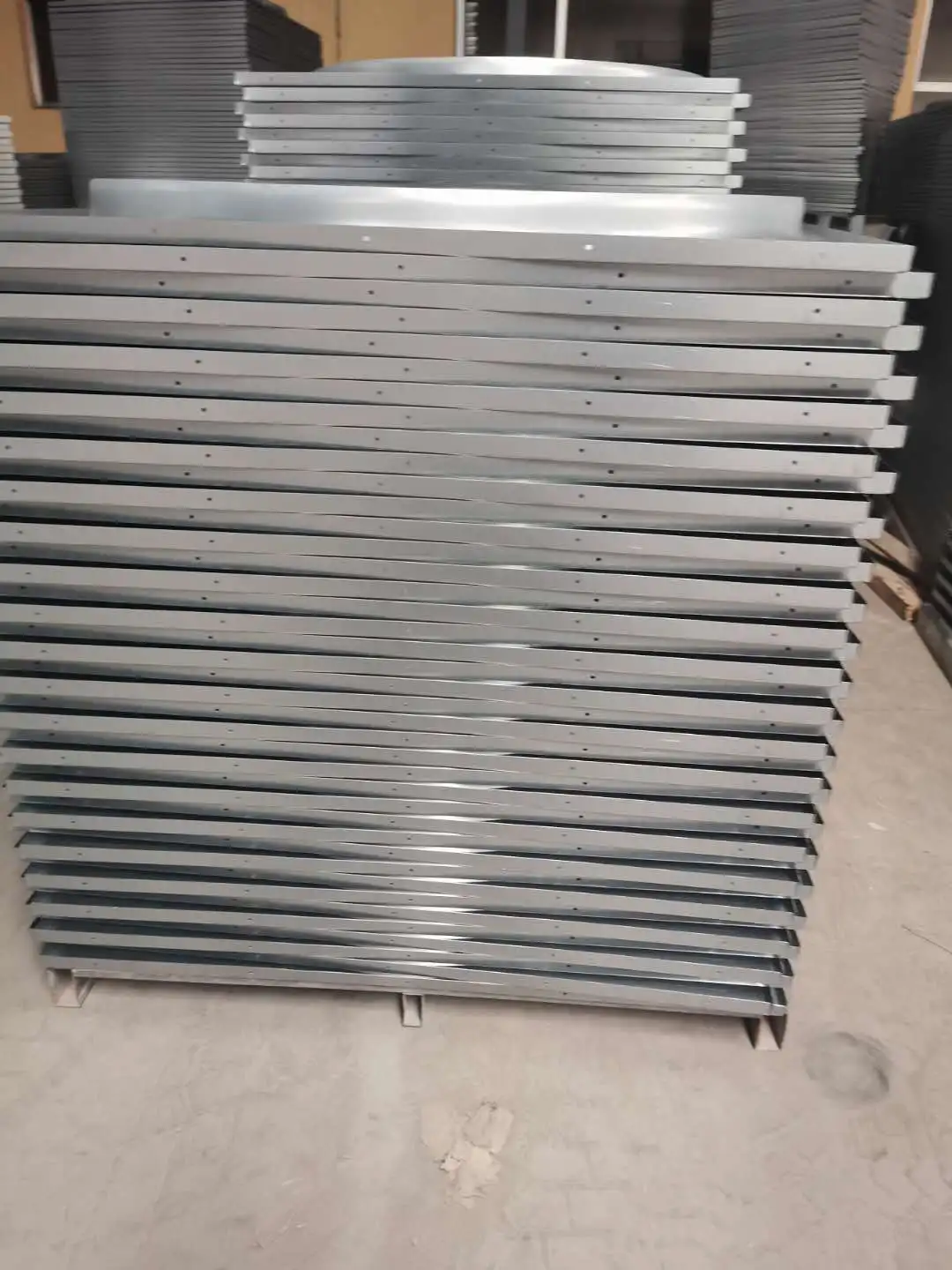

Frame: Thicken galvanized sheet
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan

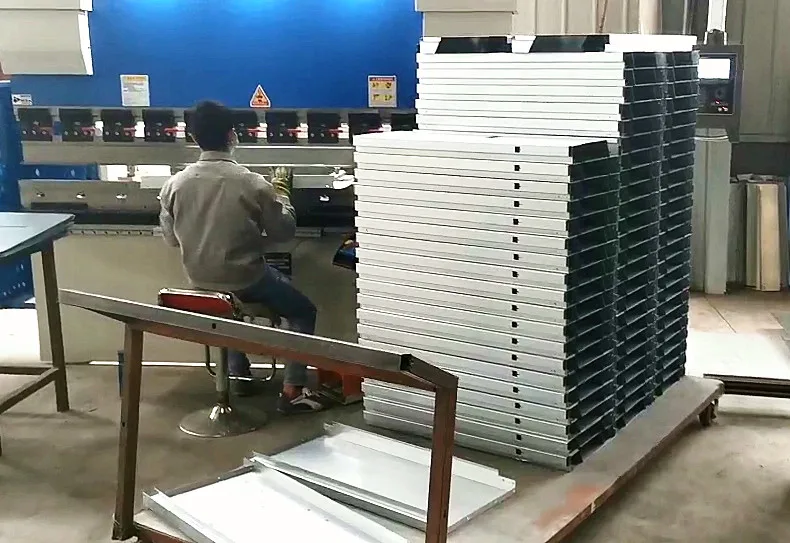

We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance

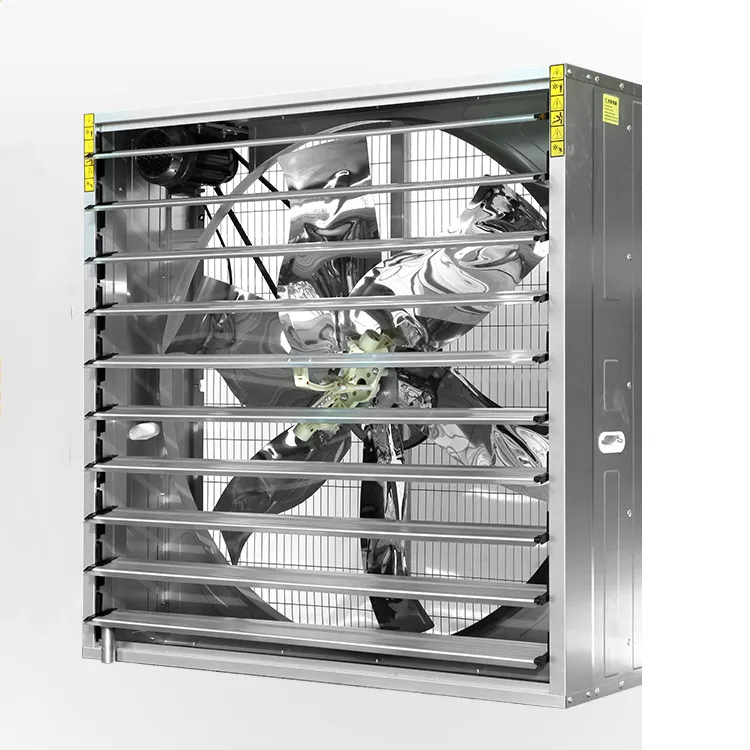

Shutters open/close automatically
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
No electricity ventilation,Pull ring for assiatence the Heavy Hammer,then Shutters can open and close automatically.
Advantage:
Windproff ,Rainproff

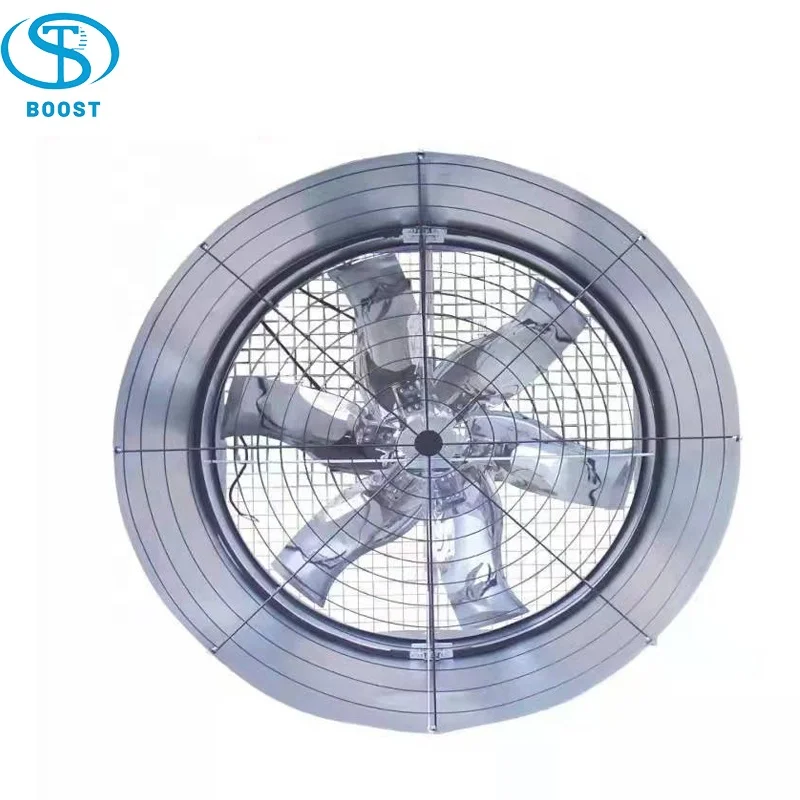

Fan safe net
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
50'' inch butterfly ventilation cone fan animal husbandry cone exhaust fan
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
rusty.Attractive and durable.
Detailed Images

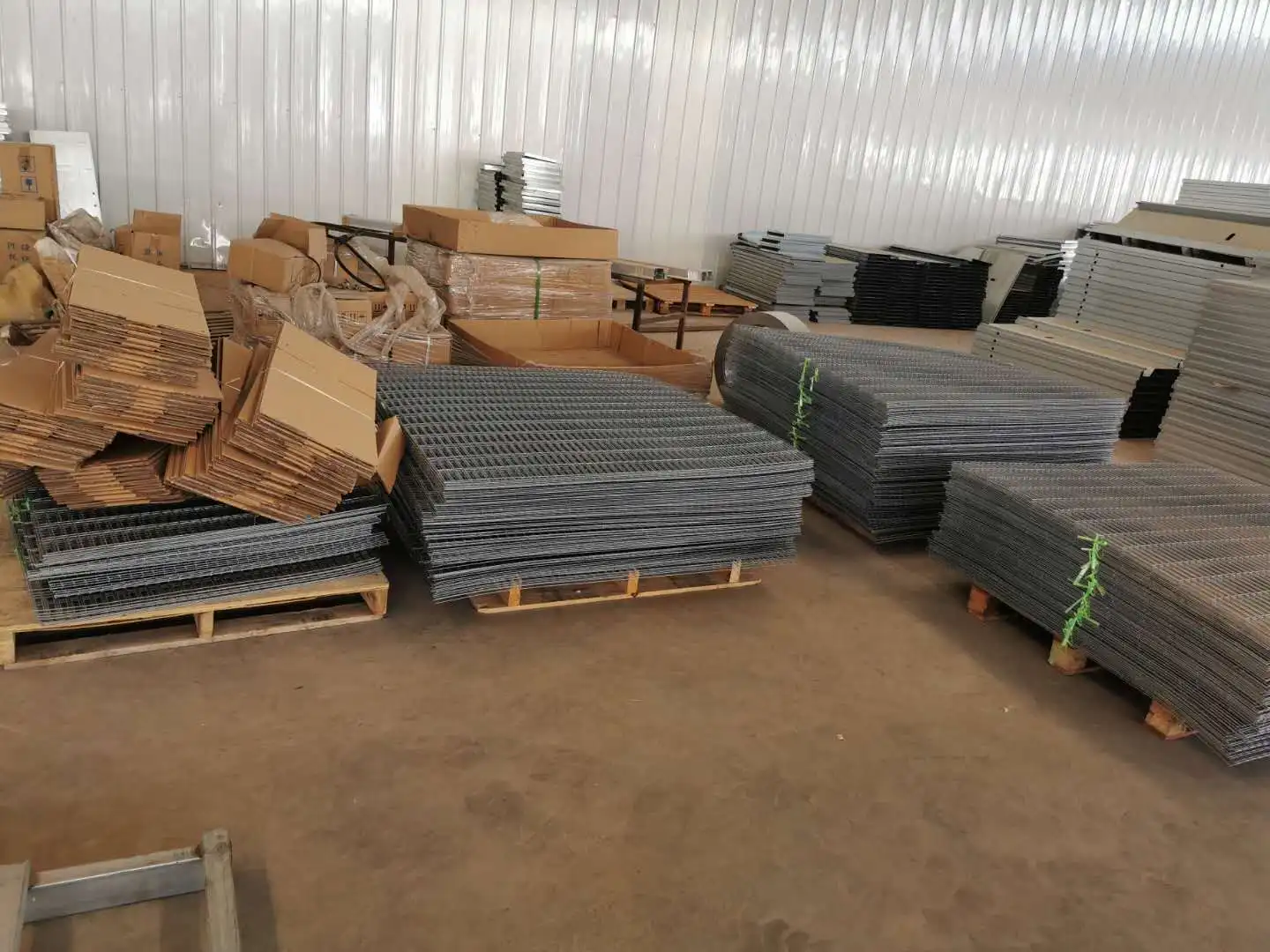

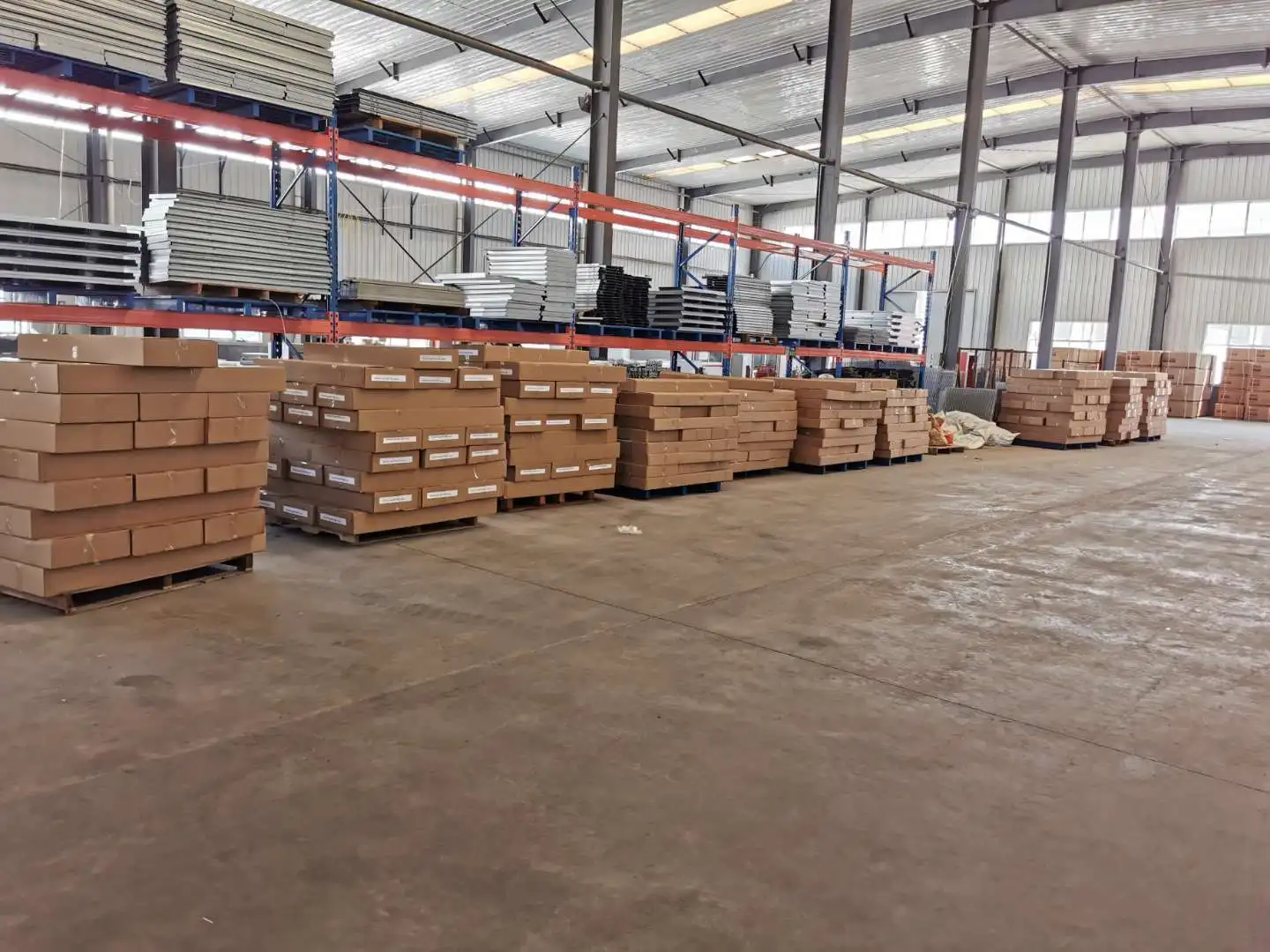

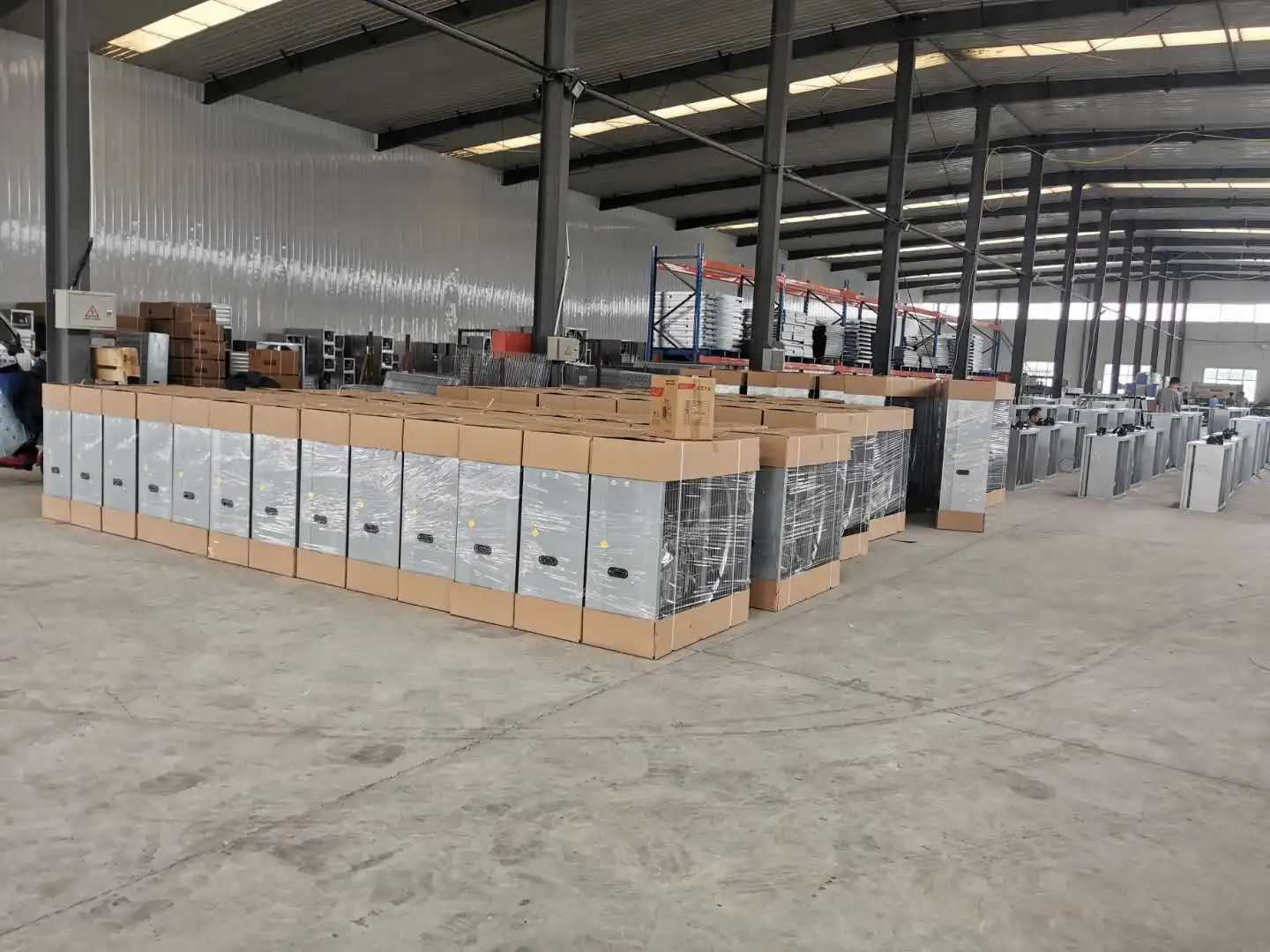

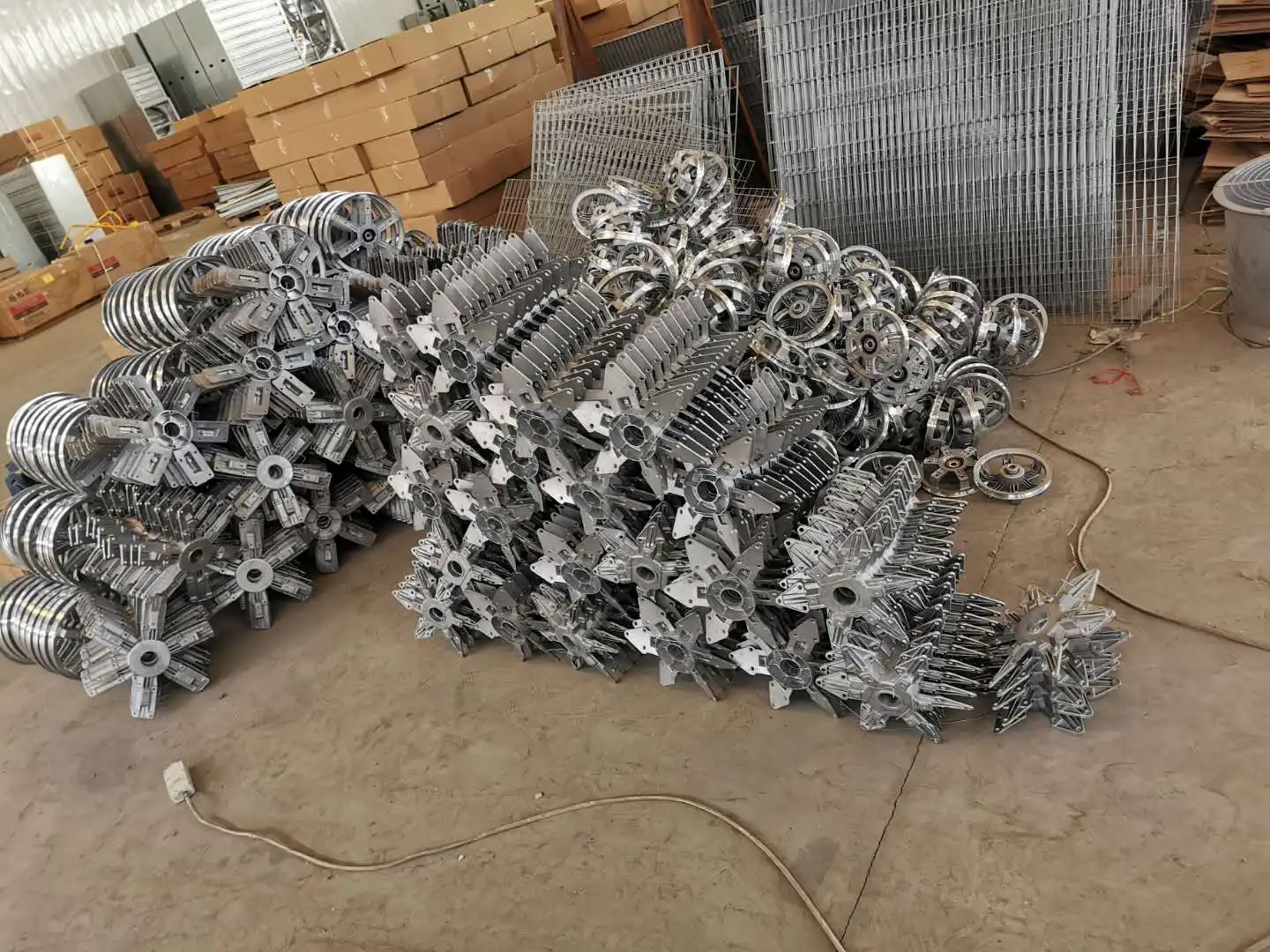

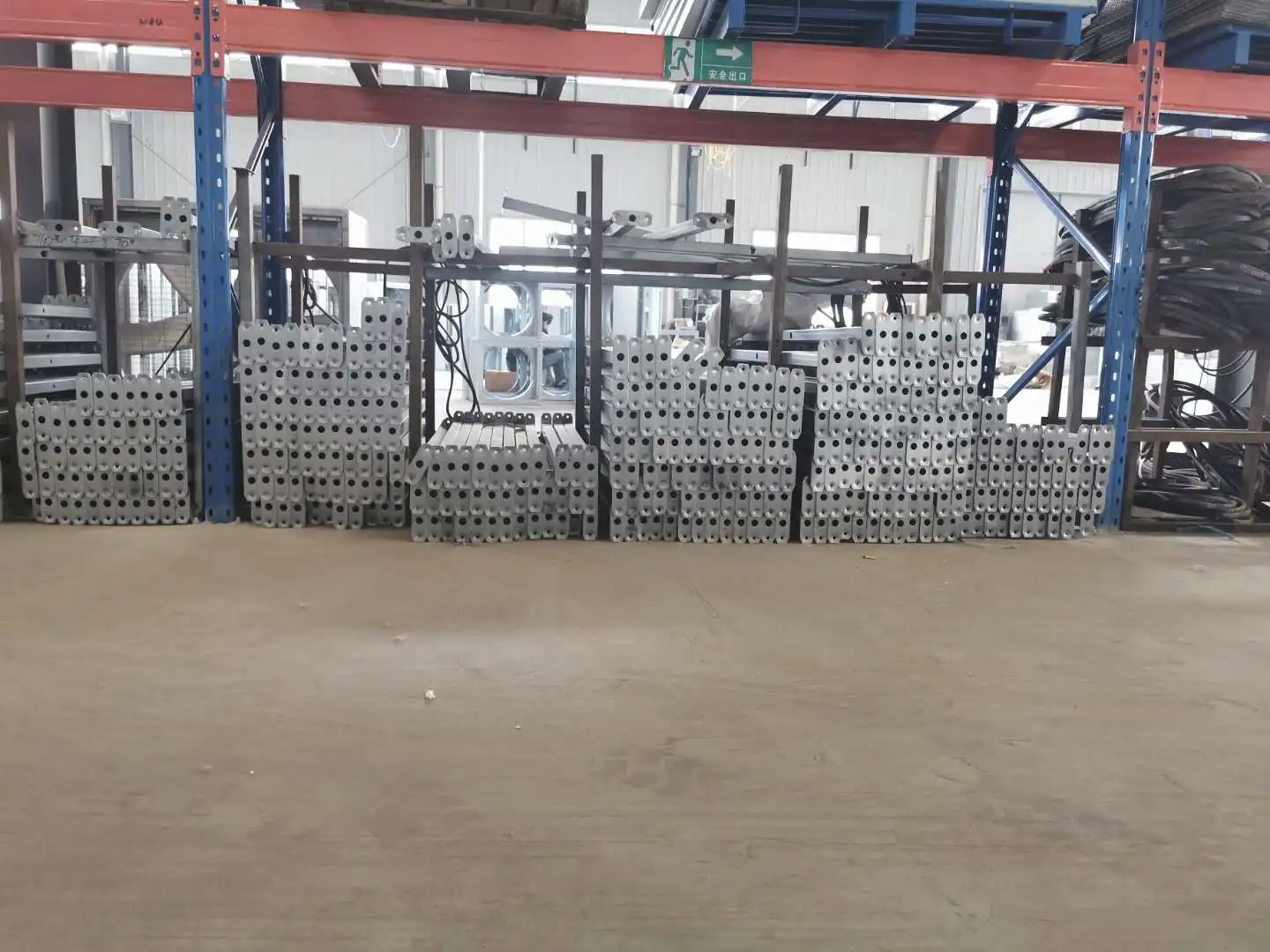

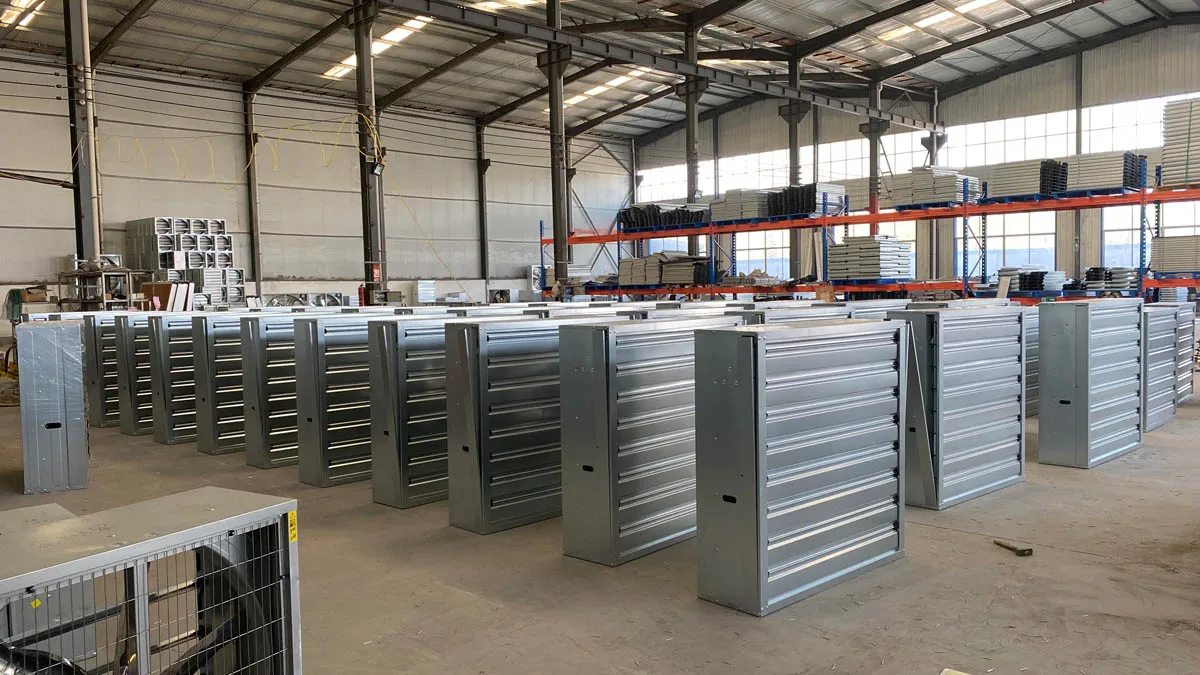

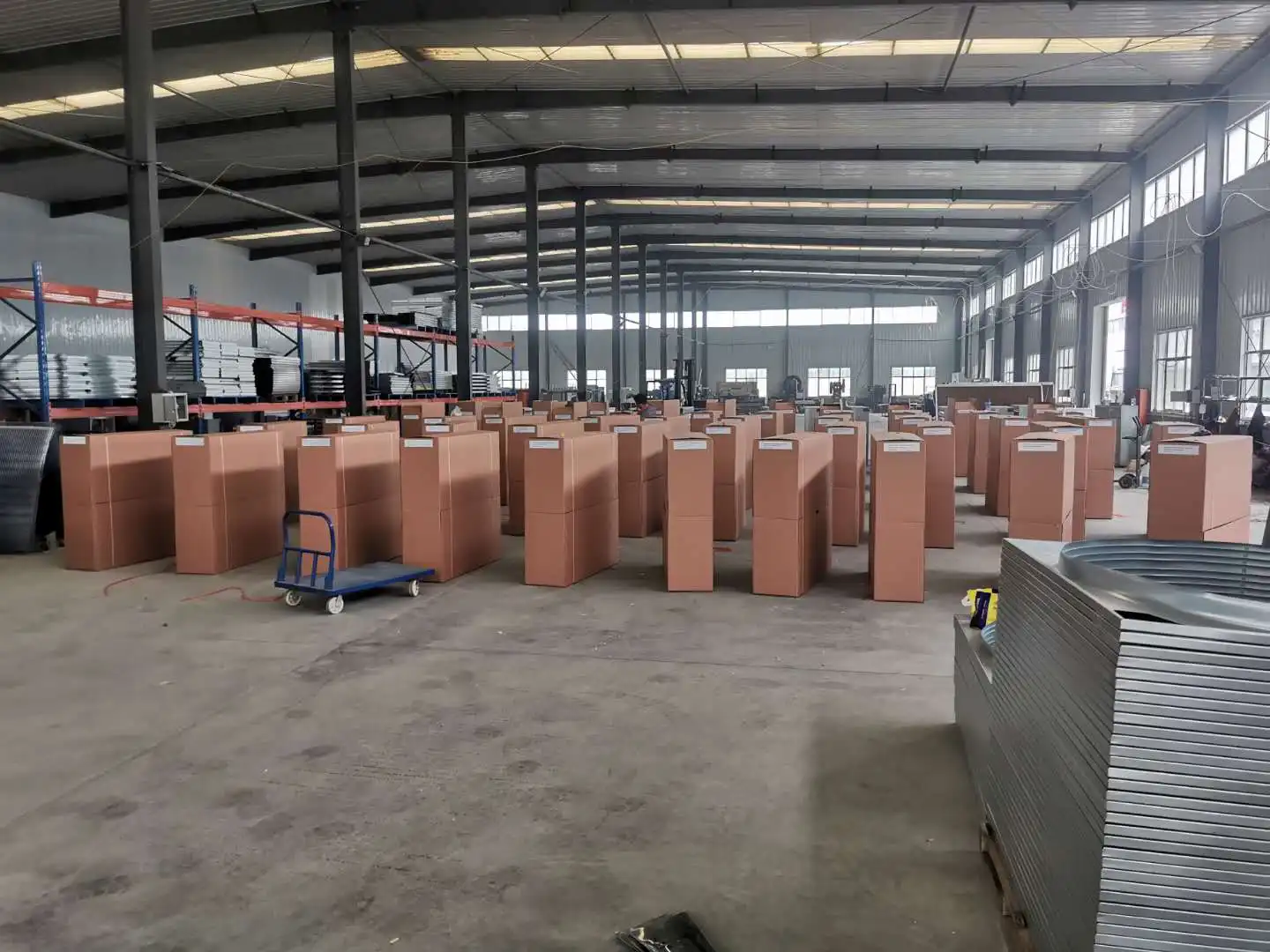

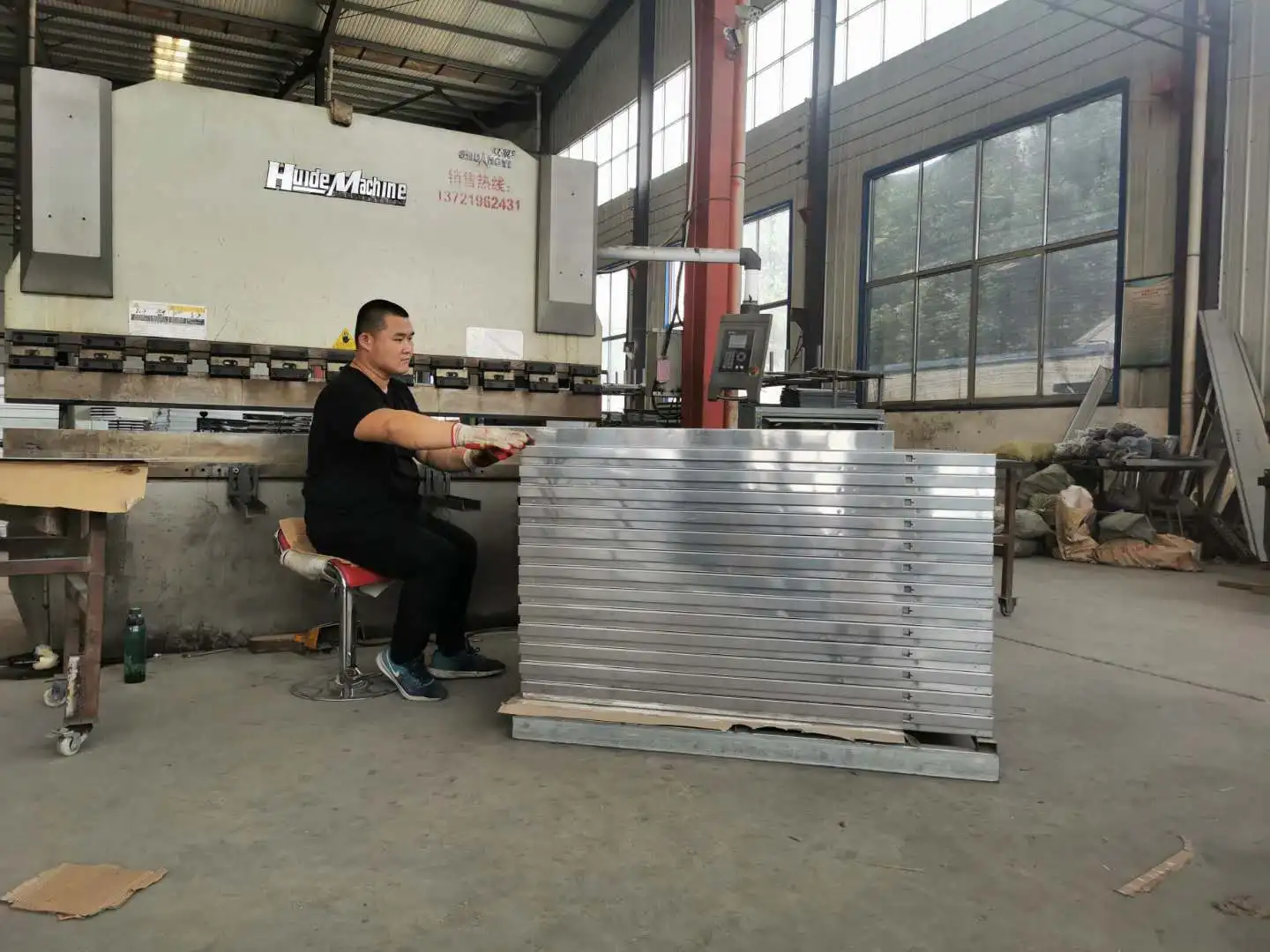

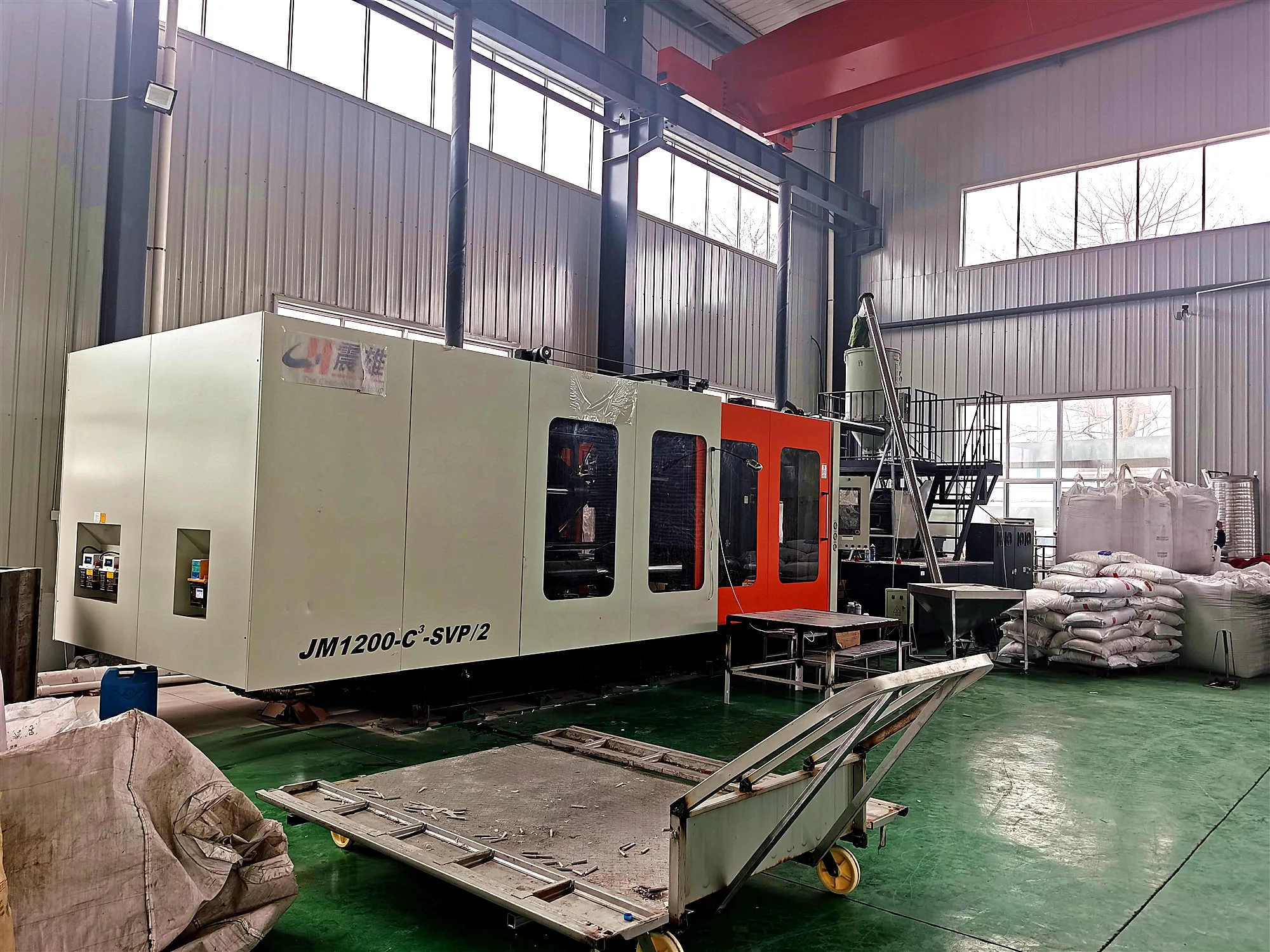

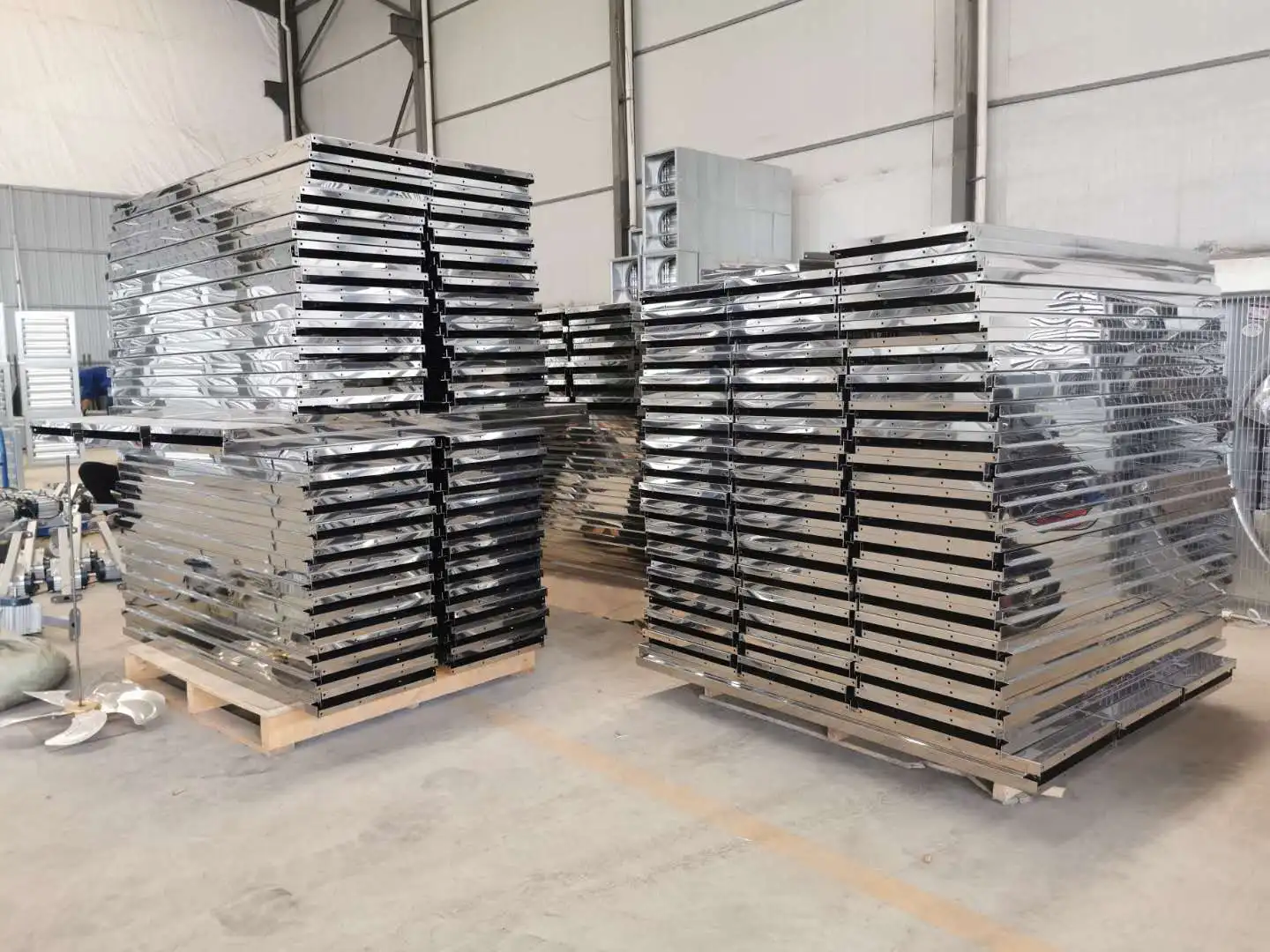

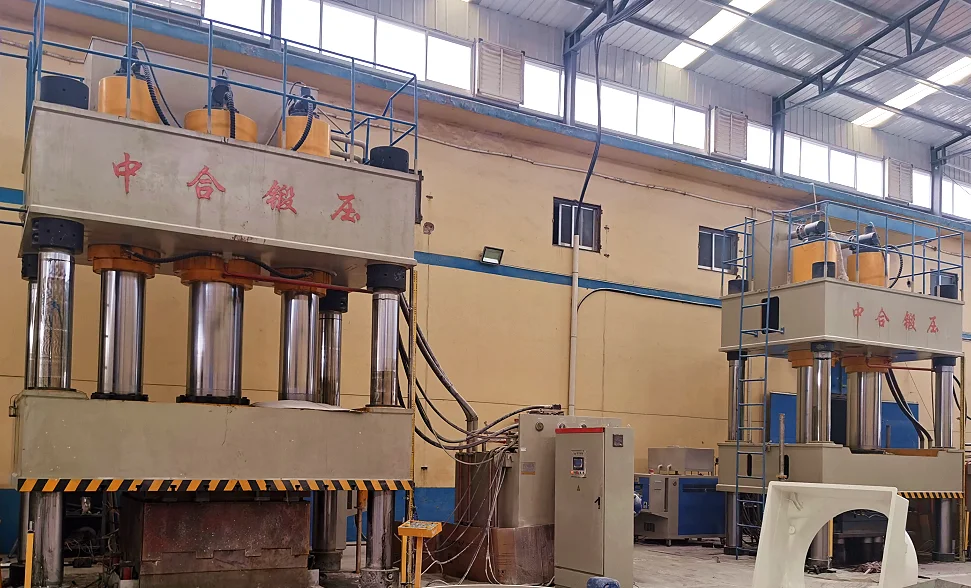

Factory&Workshop
WHY choose BOOST?

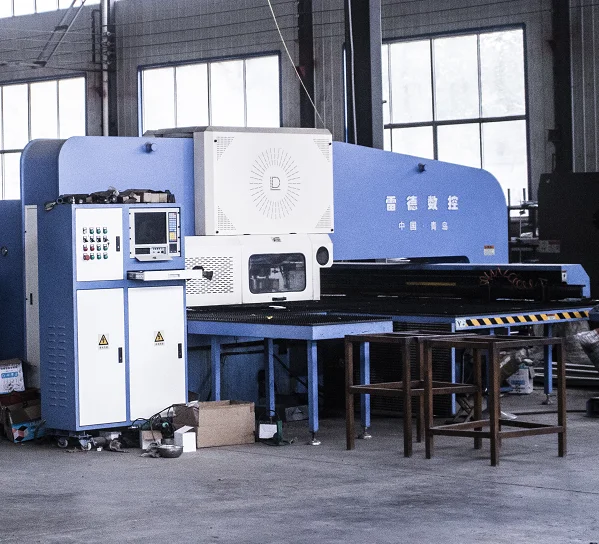

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

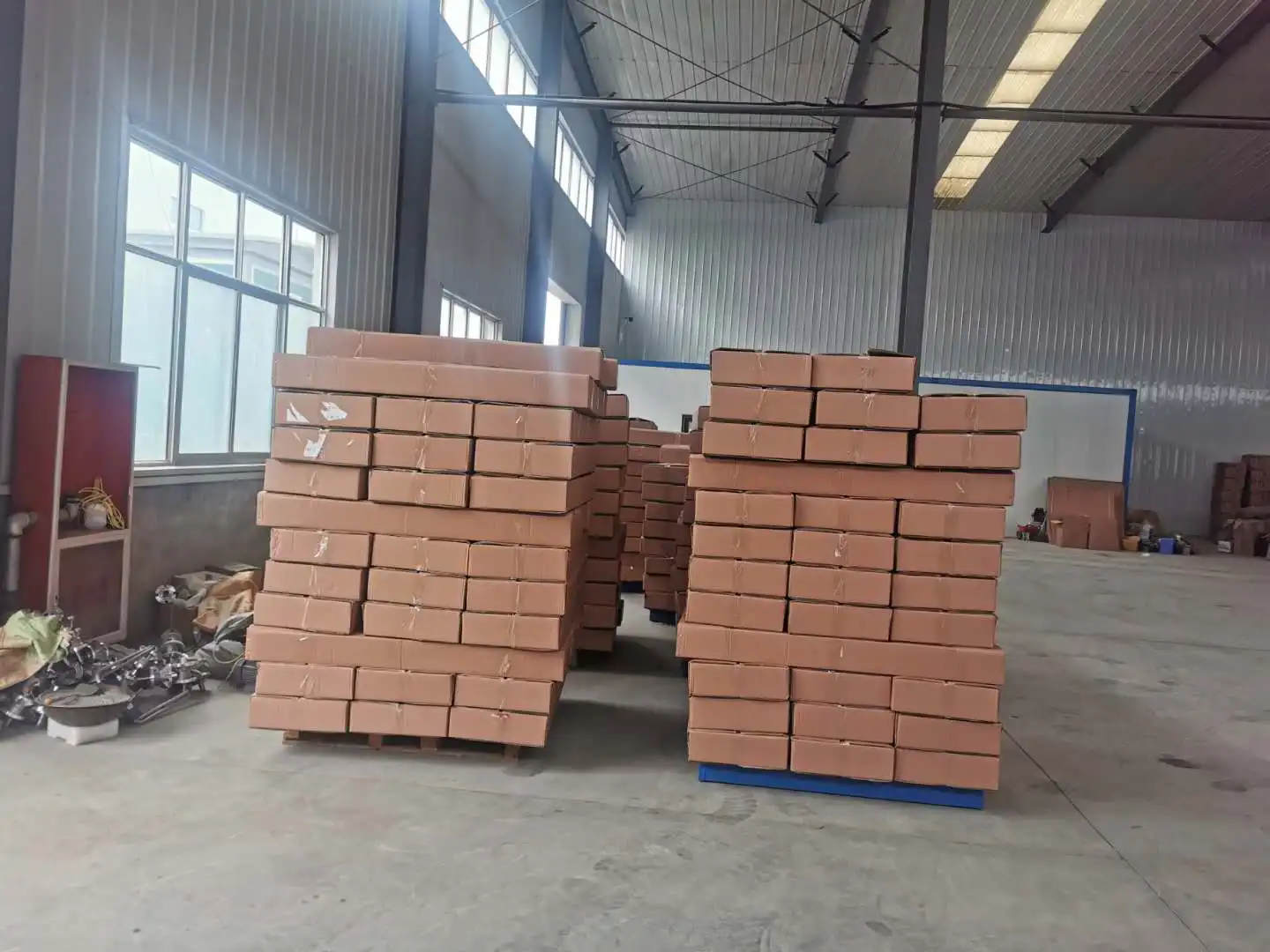

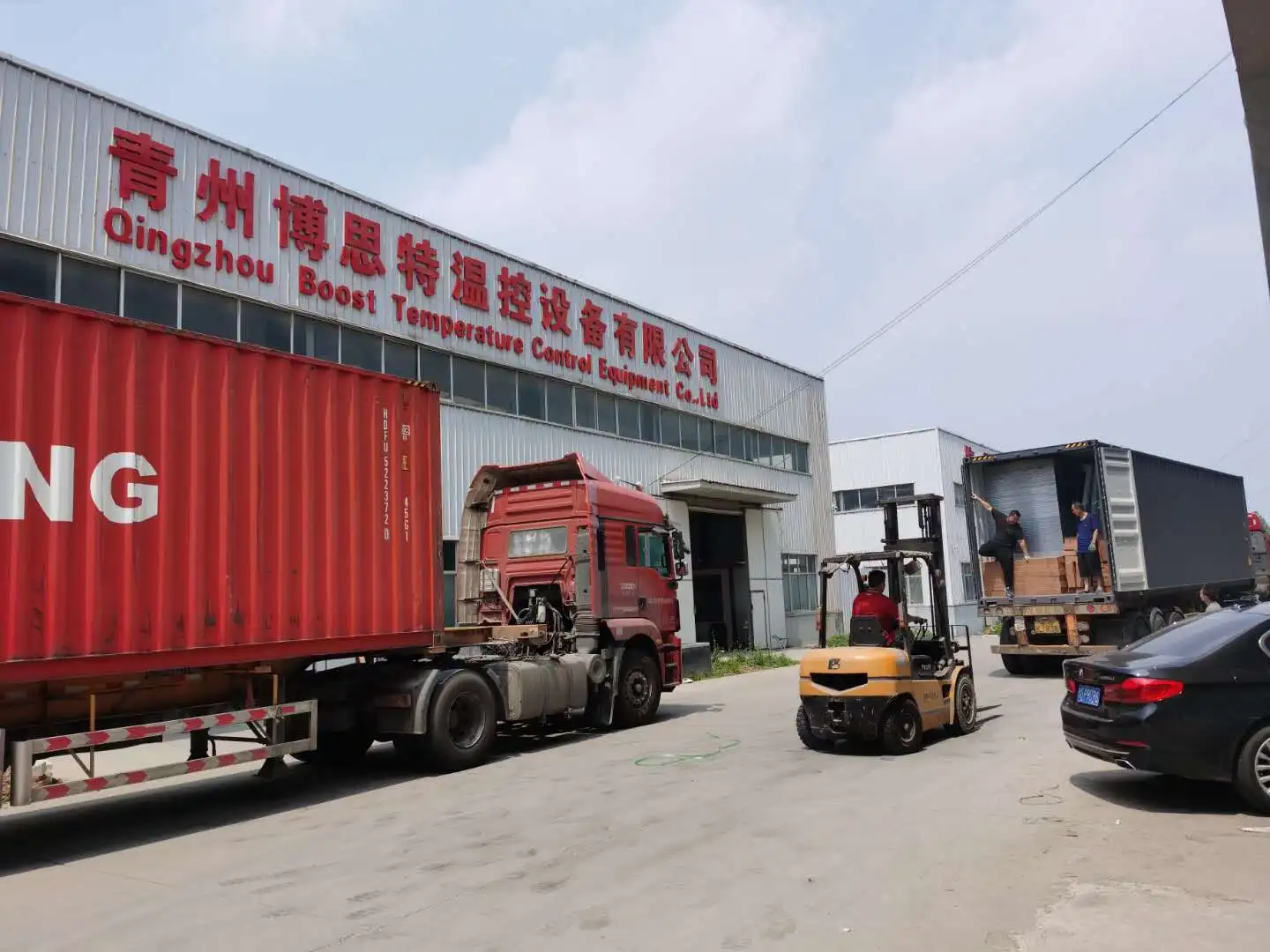

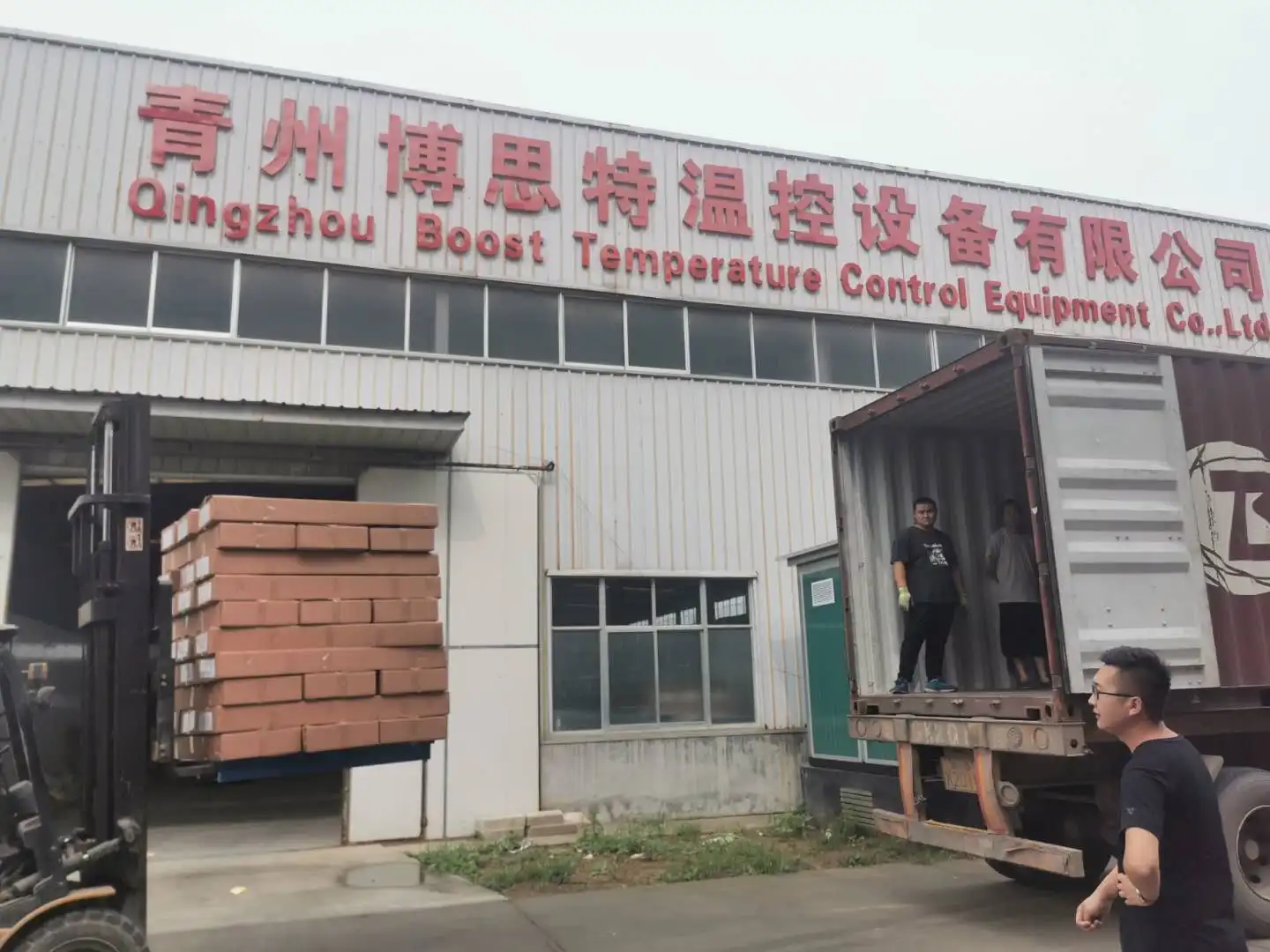

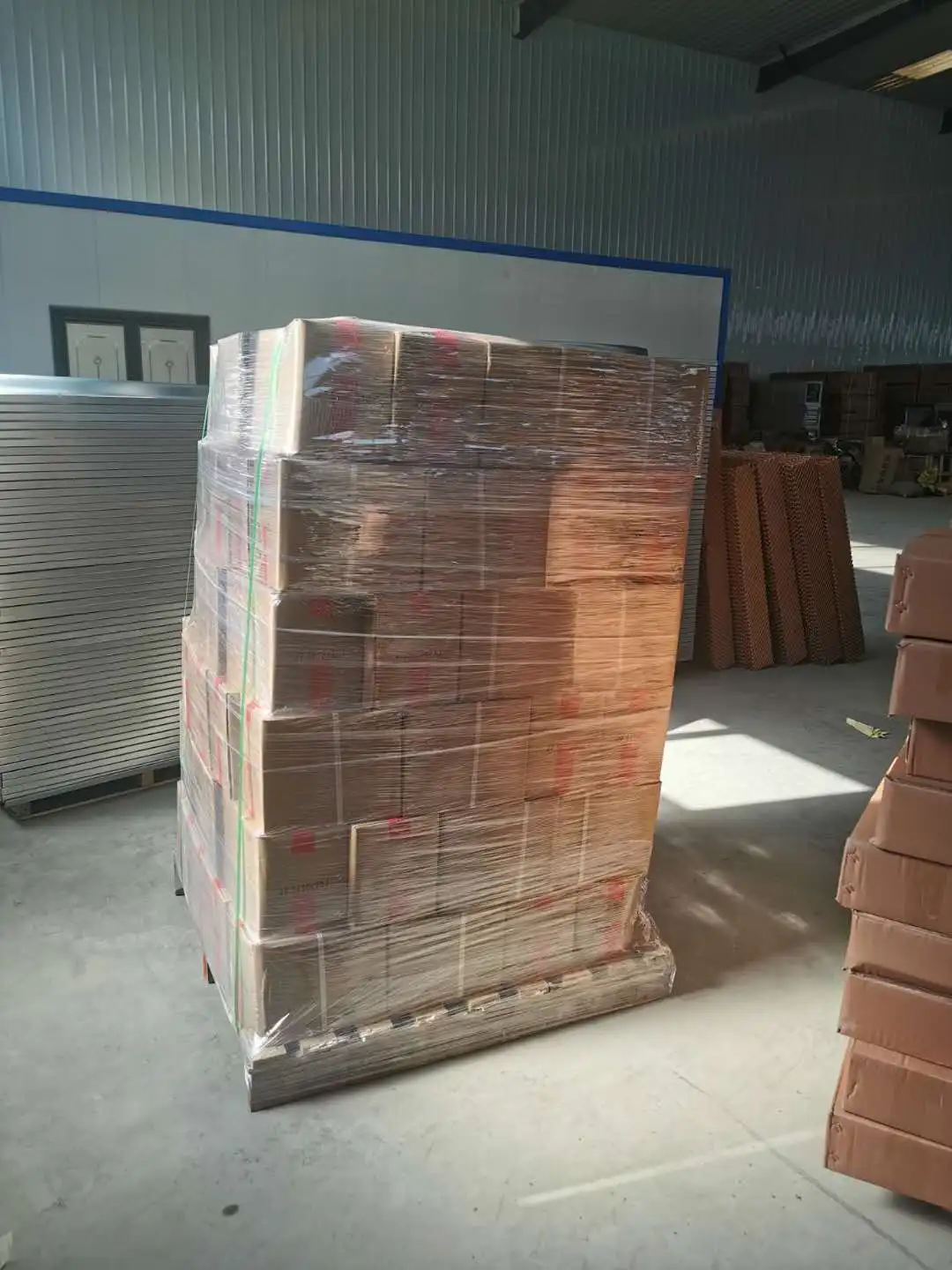

Packing&Shipping
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
FAQ
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?

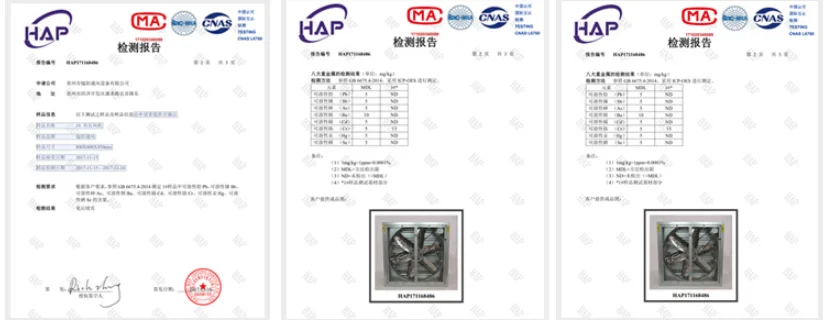

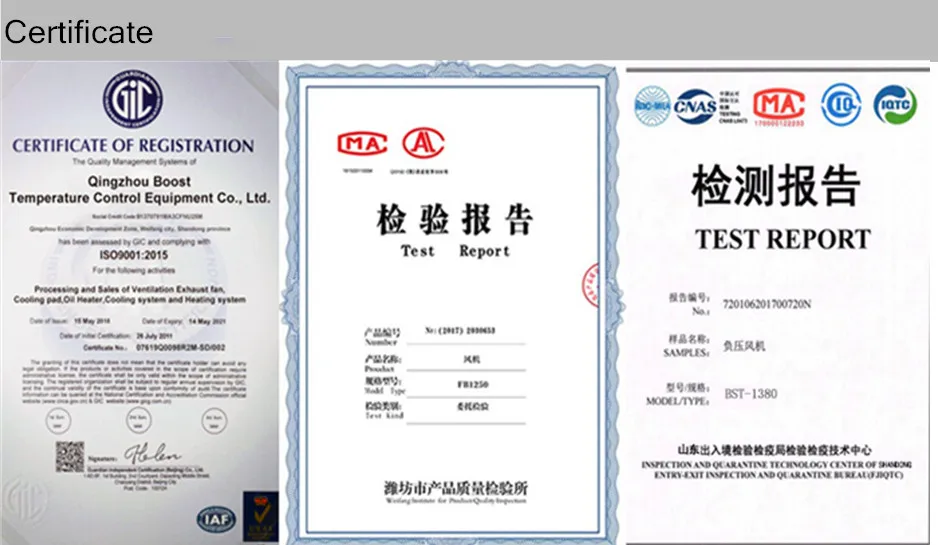

A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
24hours Service
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $330 / set
- 50+ set: US $200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial greenhouse ventilation fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial greenhouse ventilation fan be supplied for my local voltage?
The standard configuration is 380V/220V/Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
