Key specification for this durable motor: 220V, 380V, Customized, power source Electric. Everything below is reproduced from the factory data sheet. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Durable Motor
- Model Number: BST1380
- Power Source: Electric
- Power: 1100W
- Voltage: 220V, 380V, Customized
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 1270mm(50in) |
|---|---|
| Voltage | 220V, 380V, Customized |
| Speed | 13m/s(42.65ft/s) |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | BOOST |
| Model Number | BST1380 |
| Product Name | BOOST heavy hammer greenhouse fan for poultry farm |
| Size | 1380*1380*400mm |
| Belt | Japanese Mitsubishi |
| Frame Material | Galvanized Sheet/Stainless Steel |
| Motor Brand | China motor/Nosch xizi motor /WEG motor/ABB motor |
| Blade Rpm | 439rpm |
| Motor Rpm | 1400rpm |
| Opening Device | Swung drop hammer system |
| Power | 1100W |
| Selling Units | Single item |
| Single Package Size | 40X40X50 cm |
| Single Gross Weight | 40.0 kg |
Product Details
VR
Products Description

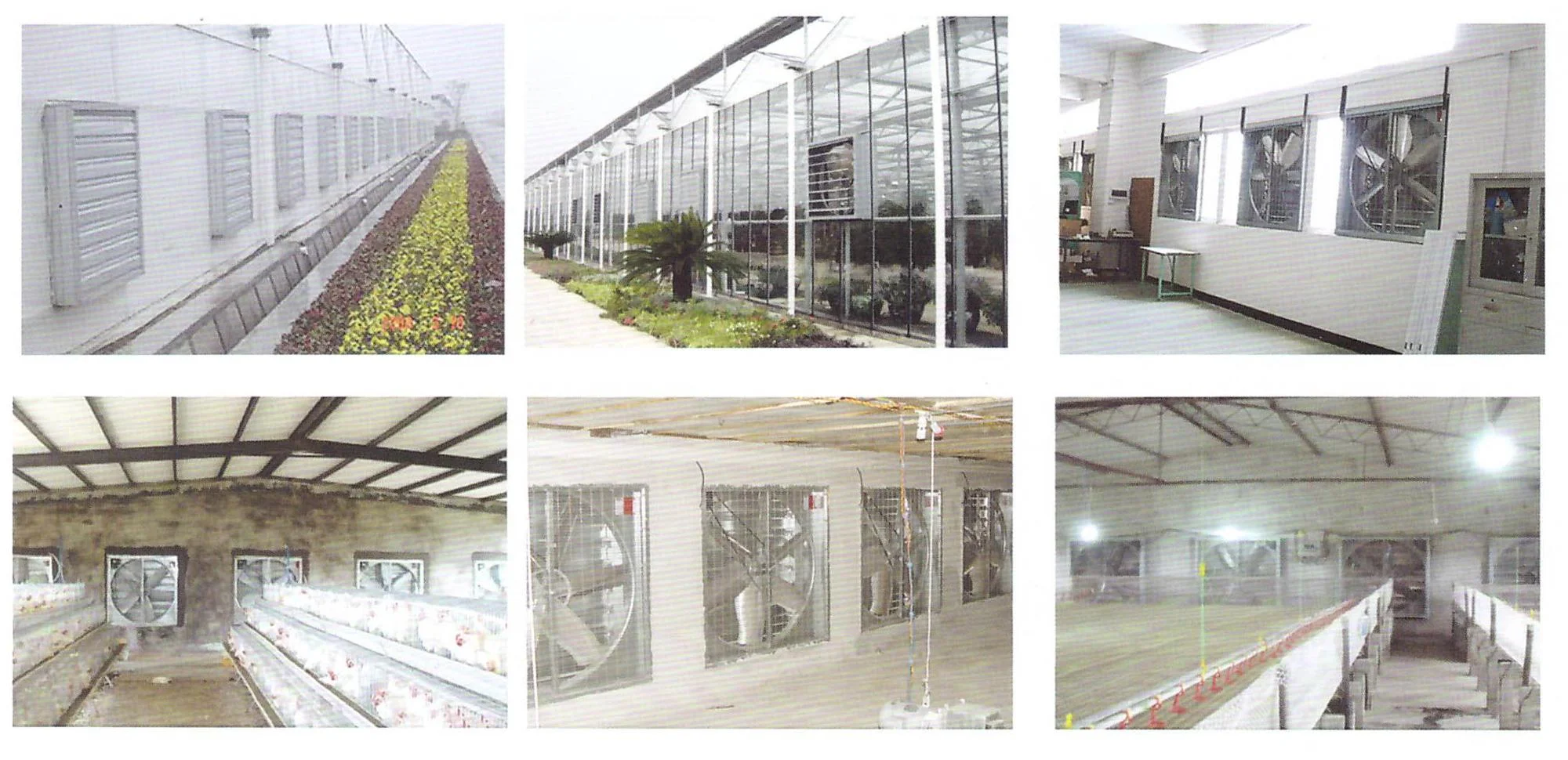

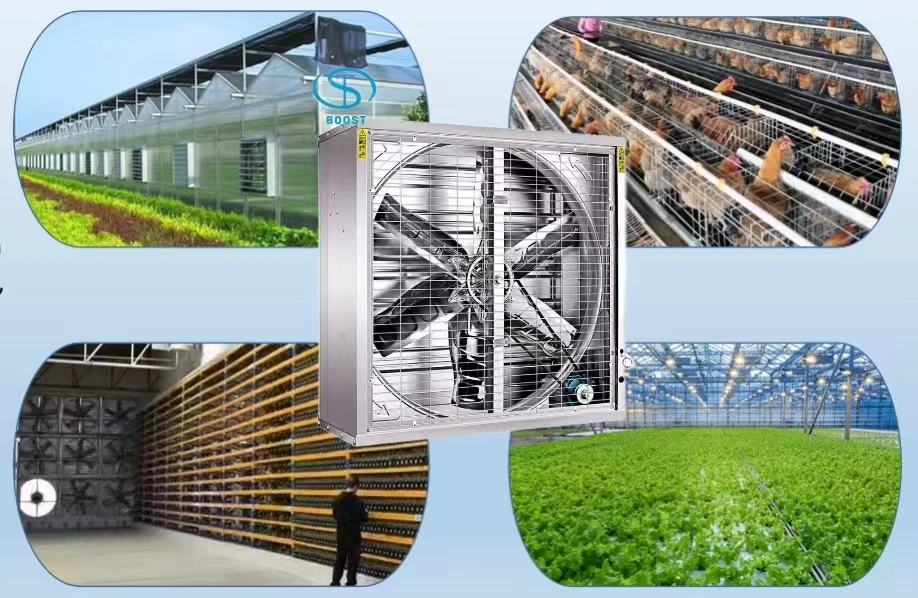

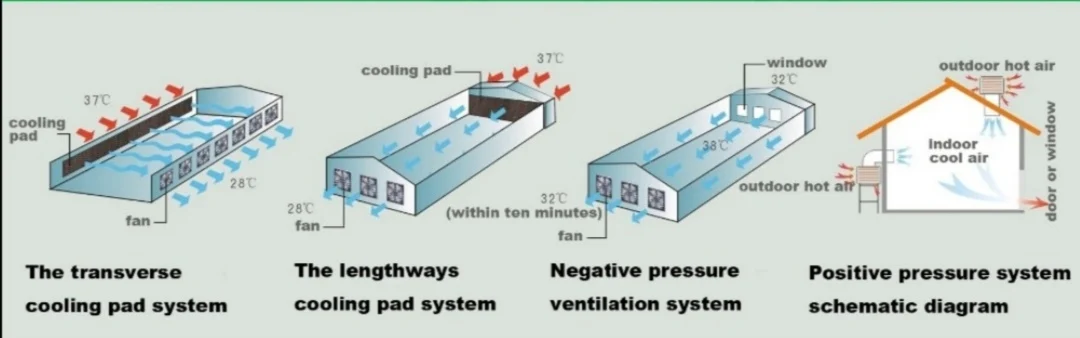

Application

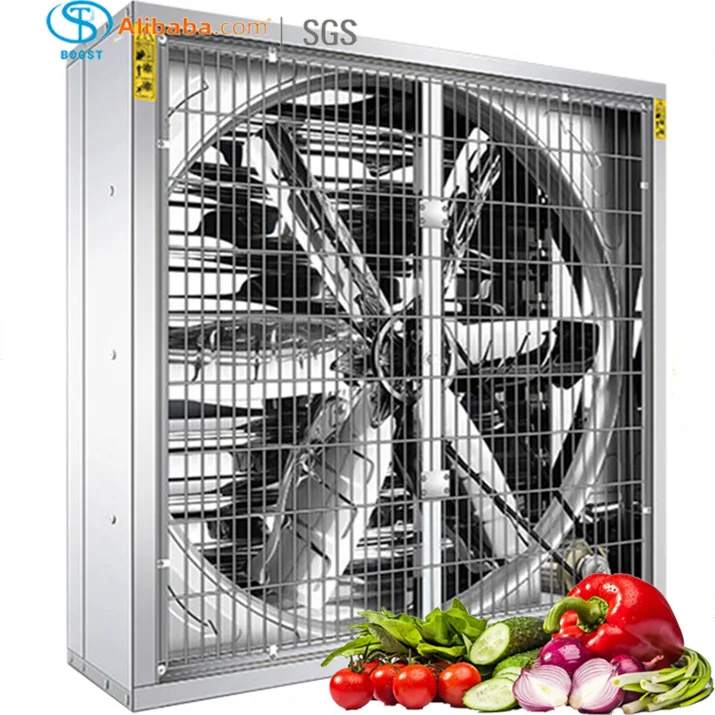

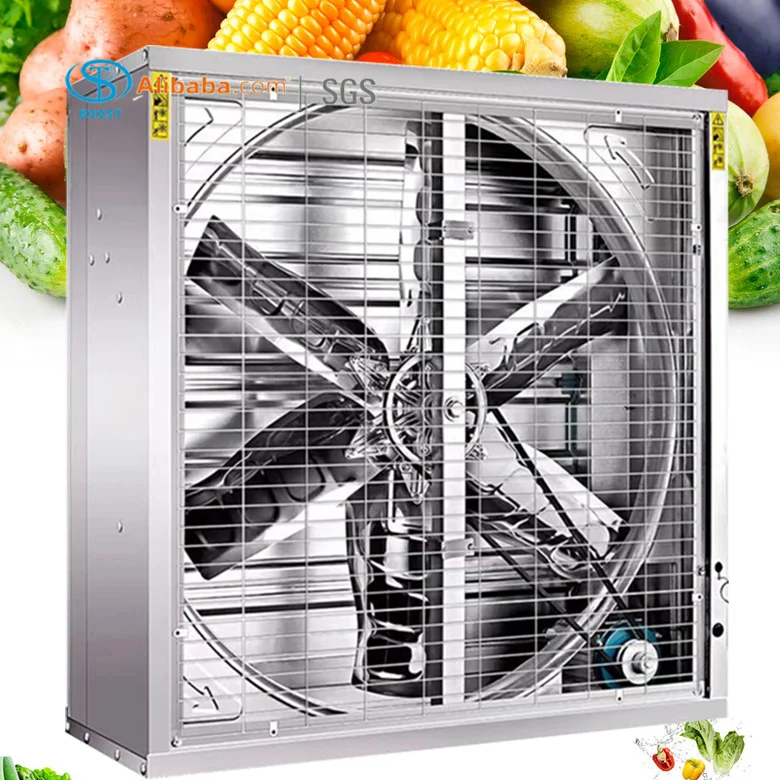

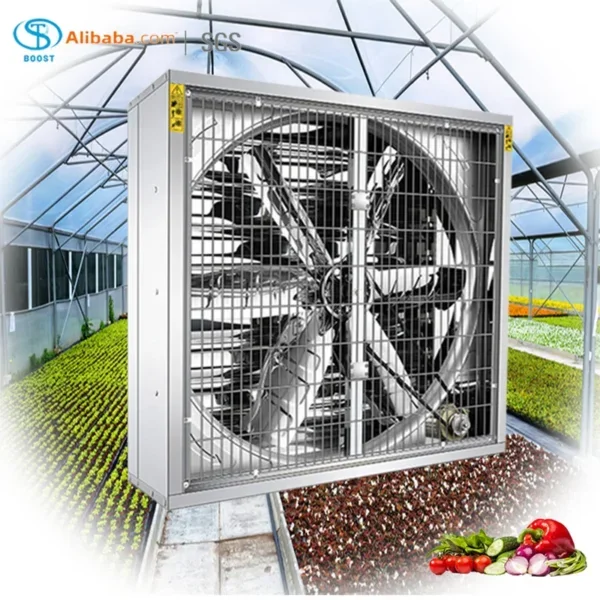

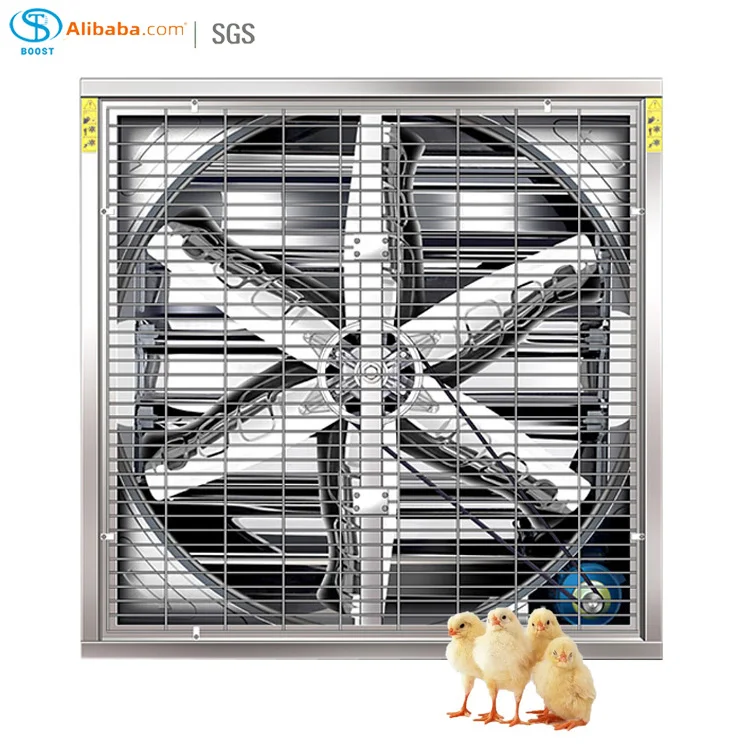

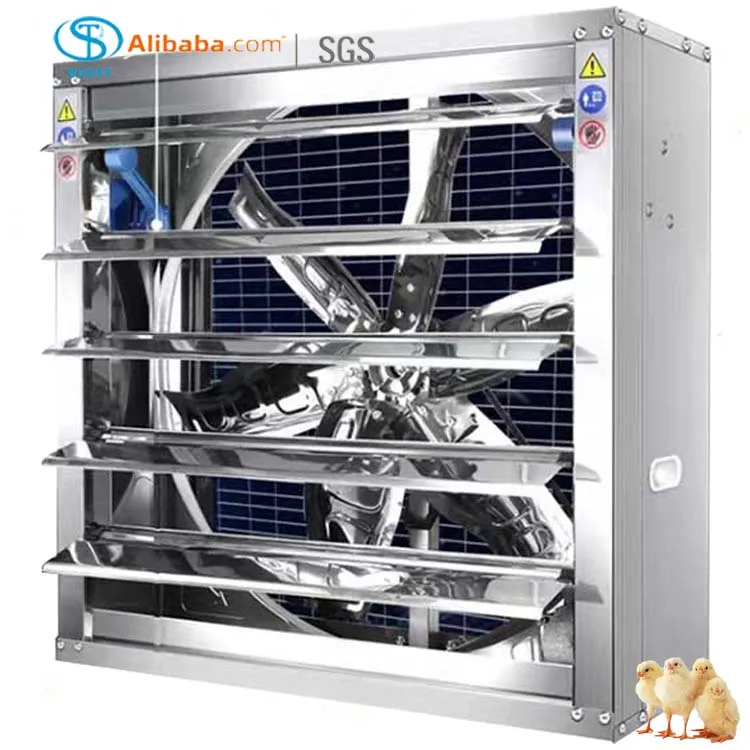

BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
New type of plant ventilation and cooling equipment.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping malls,and supermarkets,medicine,food,tea, vegetables,wooding ,and other industries.
BOOST Exhaust fan are widely used in Agriculture,flowers,animal husbandry,factories,textiles,and mining,coal,chemical,shopping malls,and supermarkets,medicine,food,tea, vegetables,wooding ,and other industries.
Model | BST1380 |
Blade diameter | 1250mm |
Blade rpm | 439rpm |
Motor rpm | 1400rpm |
Air flow | 44000m³/h |
Input power | 1100W |
Rated power | 220V/380V/Customized |
Size | 1380*1380*400mm |
Noise | <64 |
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed(rpm) | Air flowm³/h | Input power(W) | Noise(db) |
BST480 | Direct | 380 | 1400 | 1400 | 3000 | 180 | < 70 |
BST600 | Direct | 500(20inch) | 1400 | 1400 | 5700 | 370 | < 70 |
BST800 | Belt | 710(28inch) | 660 | 1400 | 18000 | 370 | < 65 |
BST900 | Belt | 750(30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900(36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000(40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100(44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
⭐BST1380 | Belt | 1250(50inch) | 439 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400(56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Product Specifications
Motor
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
Brand: Chinese motor and Siemens motor
Certificate: CCC
Protectionclass: IP55 grade
Insulation class: F grade
Volt and frequency:Customized
Insulation class: F grade
Volt and frequency:Customized
Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Advantage:
Pure copper wire,High-efficiency,Energy-saving.

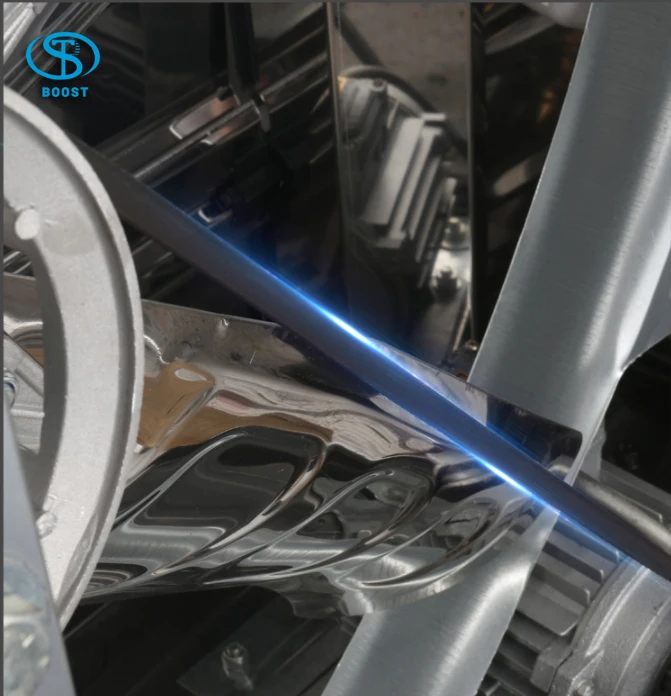

Belt
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
We have Chinese belt and Japanese Mitsubishi brand belt for customer choice.
Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A
Modified B type belt,so that service life increase 3 times than Type A

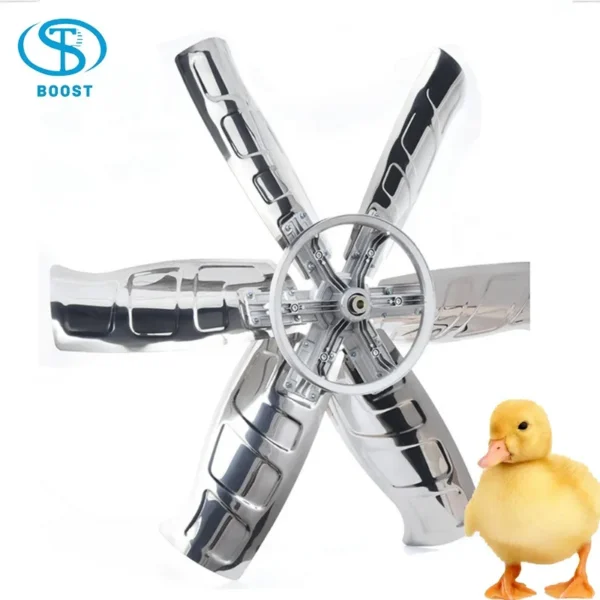

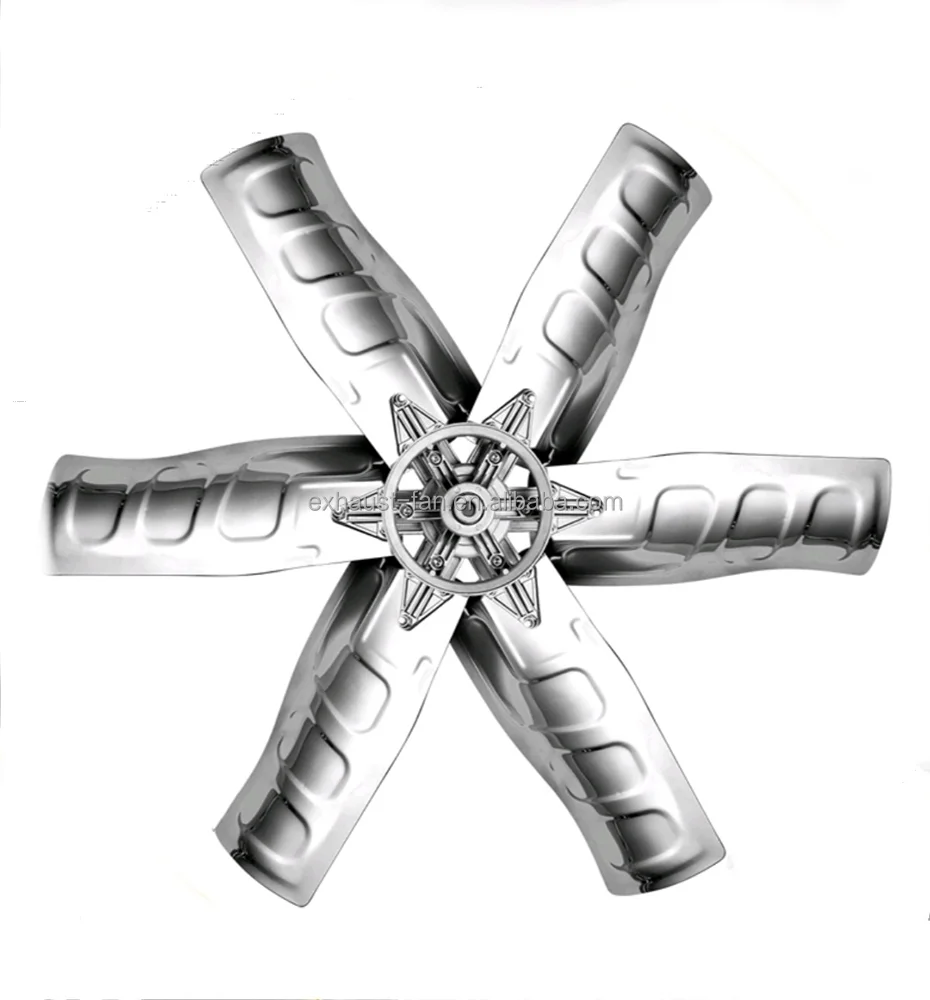

Fan blade which punching formed
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
1. Material : Krupp 430 stainless steel,
thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

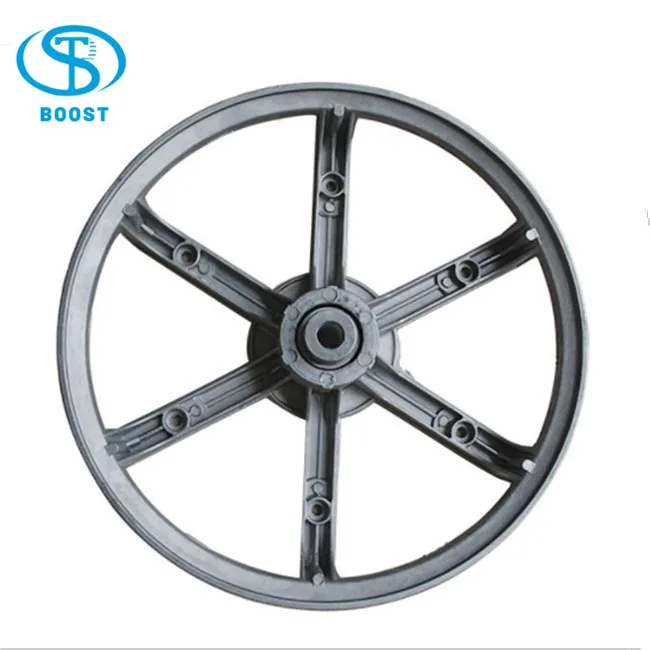

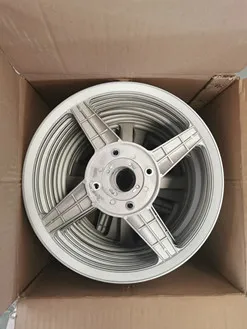

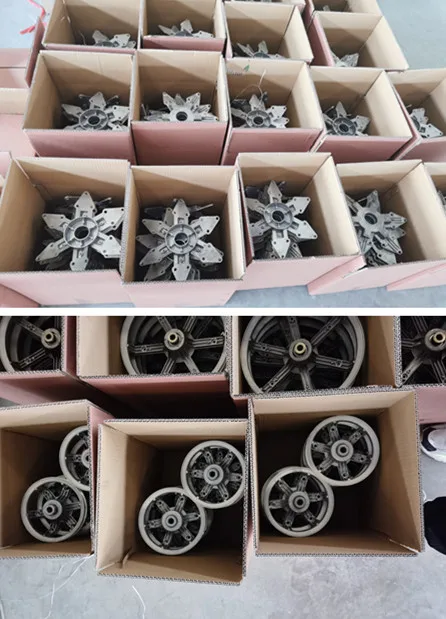

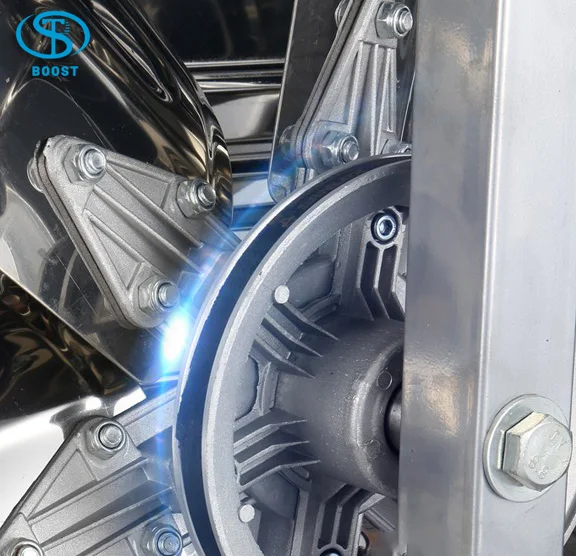

Fan belt pulley
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight.
Especially to reinforcing rib to increased strength.
No broken . Long service life.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
The angle of blade hub is designed after double tested which can be fix with blade exactly.
Advantage:
Small wind resistance,Large air flow, attractive and durable.
Small wind resistance,Large air flow, attractive and durable.

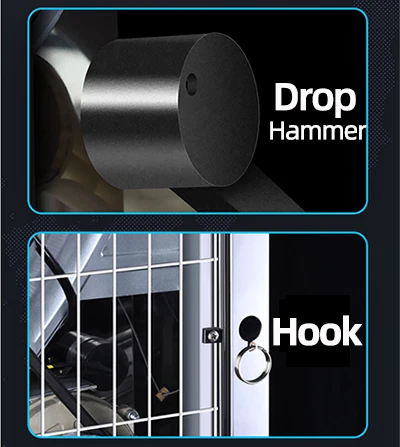

Opening system-Hammer Heavy
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
1.Material: High quality Nylon PA66
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for asistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
2.Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for asistance the Heavy Hammer
2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

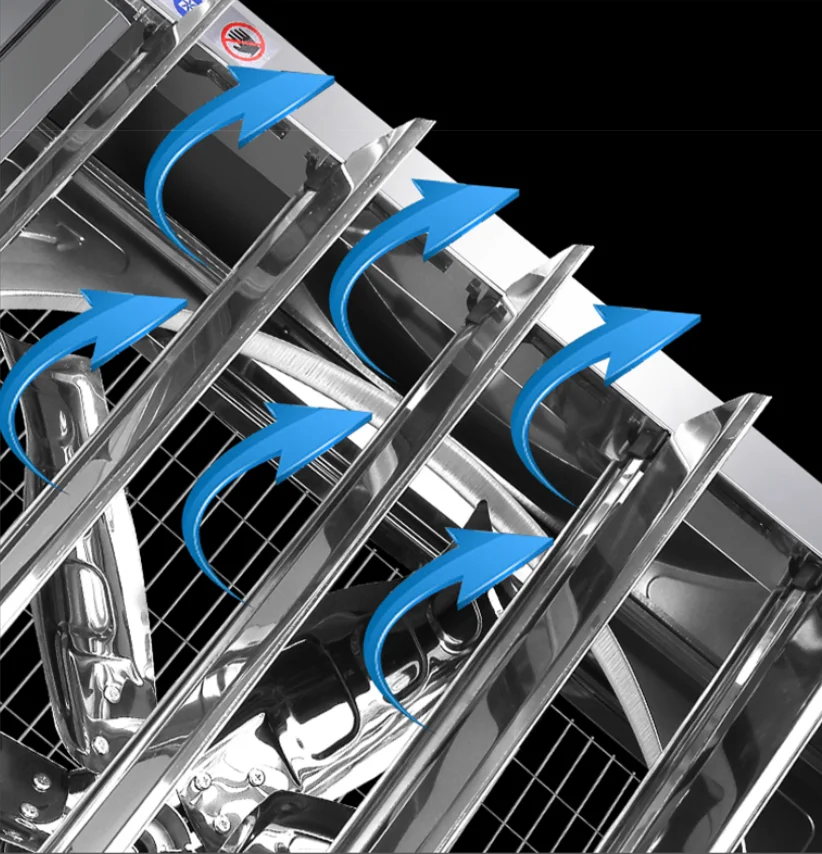

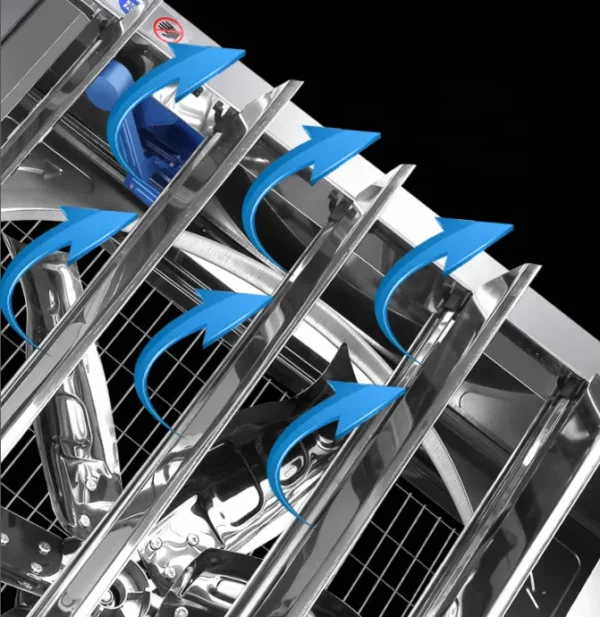

Shutters open/close automatically
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
No electricity ventilation，
Pull ring for assistance the Heavy Hammer,
then Shutters can open and close automatically.
Advantage:
Windproof ,Rainproof
Advantage:
Windproof ,Rainproof

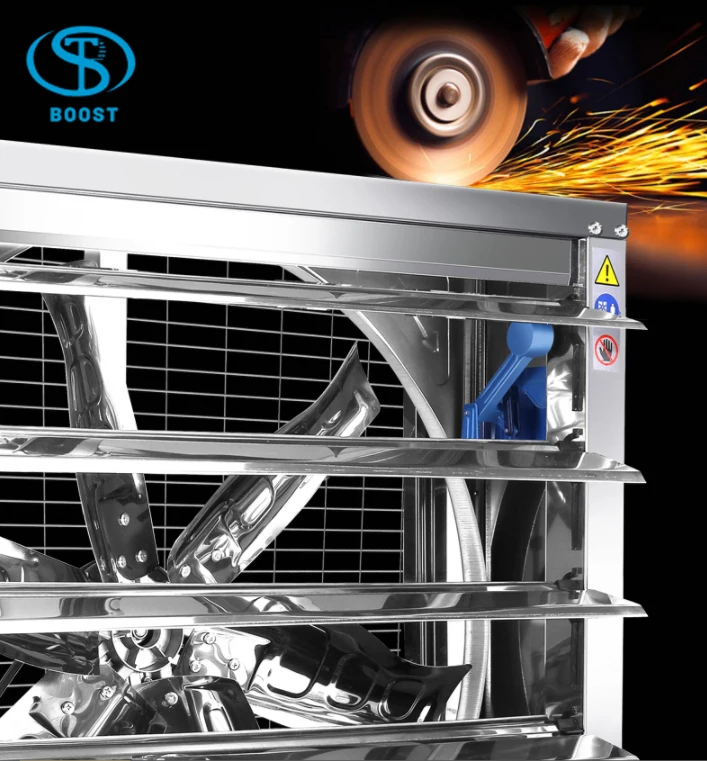

Frame: Thicken galvanized sheet
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
We has advanced production technology with automatic equipment. professional production line, NC-based professional equipment.Auto punching and bending.
Highly-accurate.
Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Advantage:
High strength,Strong corrosion resistance

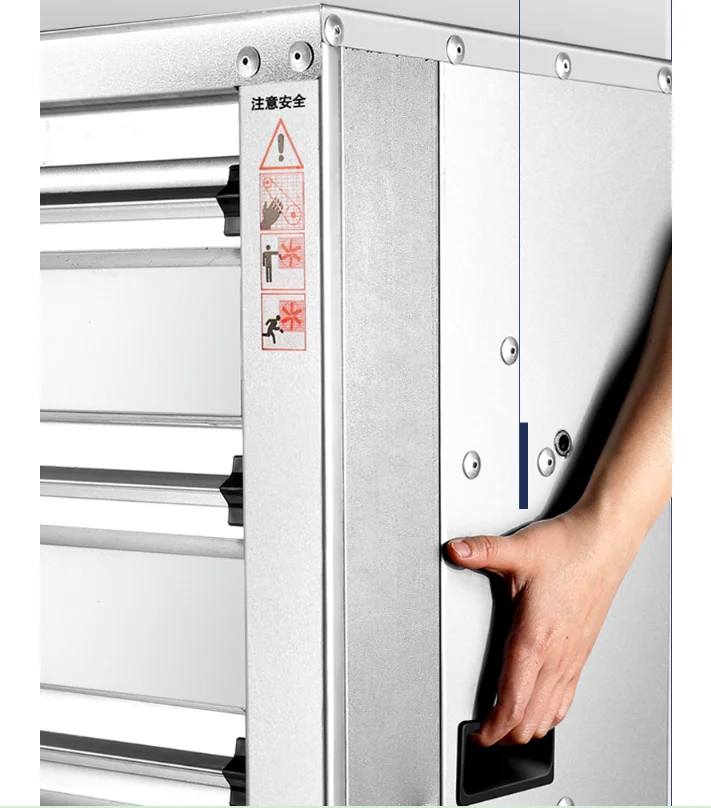

Handle design
BOOST 50 inch Siemens motor Poultry Solar Fans Industrial Exhaust fan for livestock pig farm/greenhouse
More humanized design
Easy to move
Not to be broken
Easy to move
Not to be broken
Detail Images

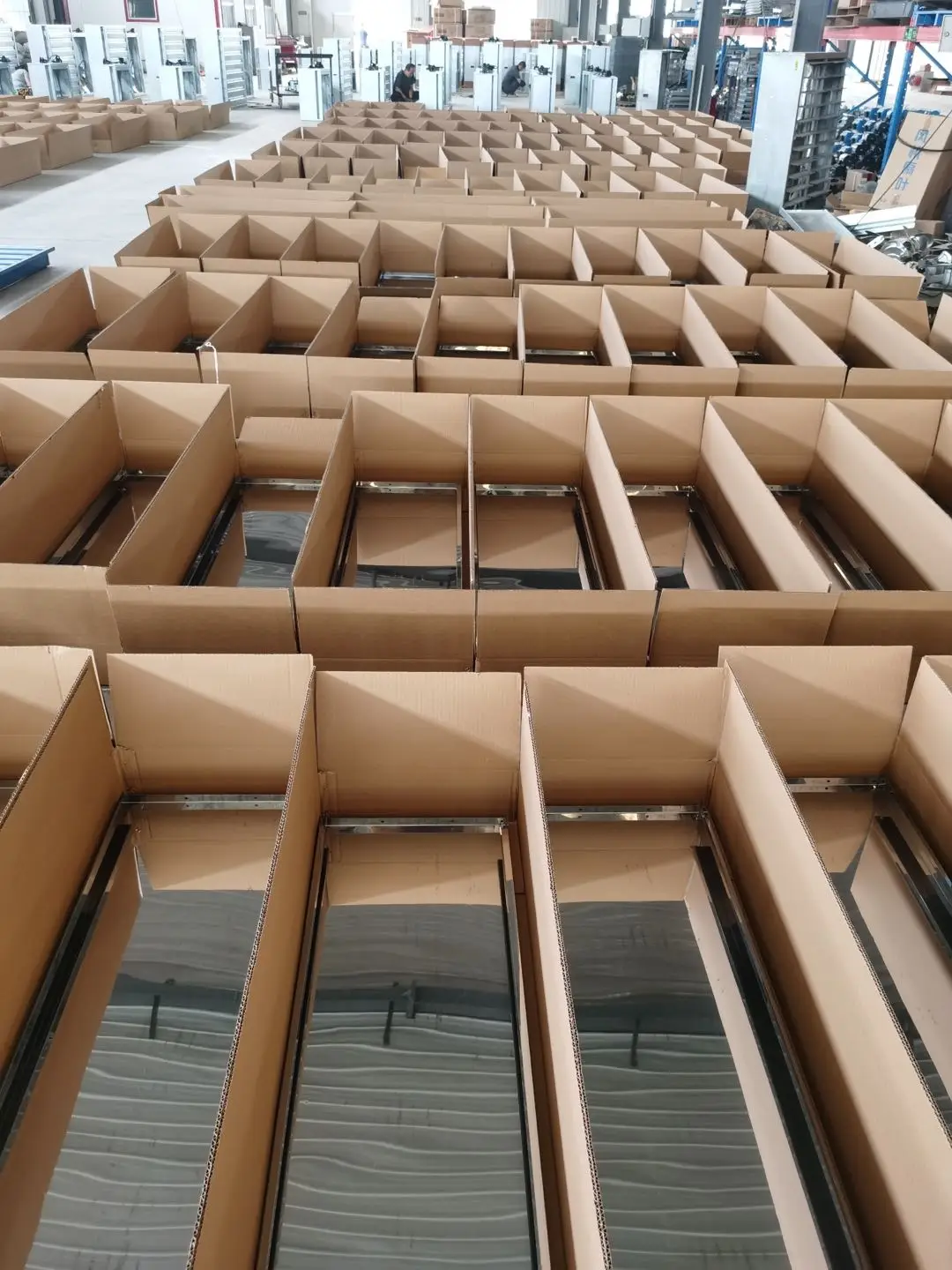

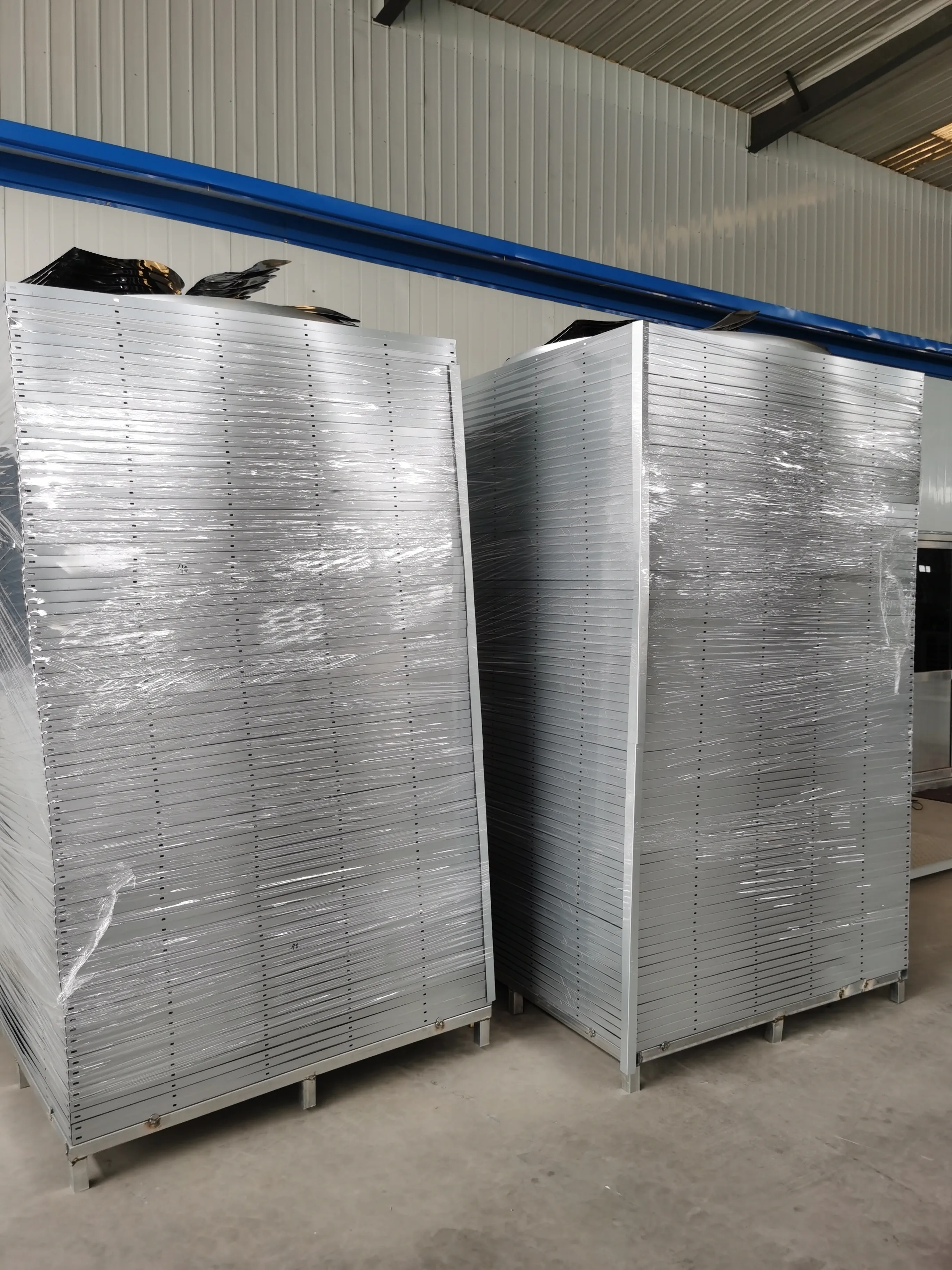

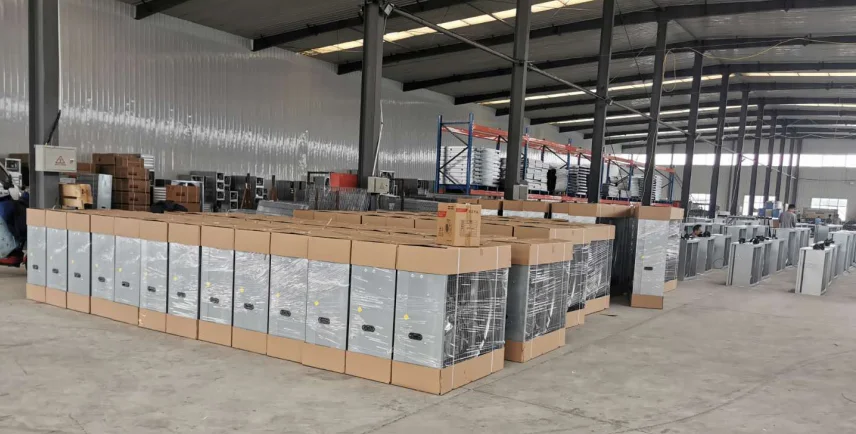

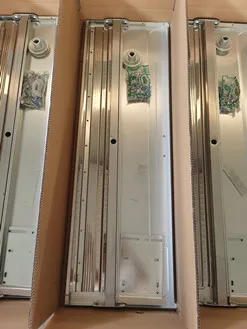

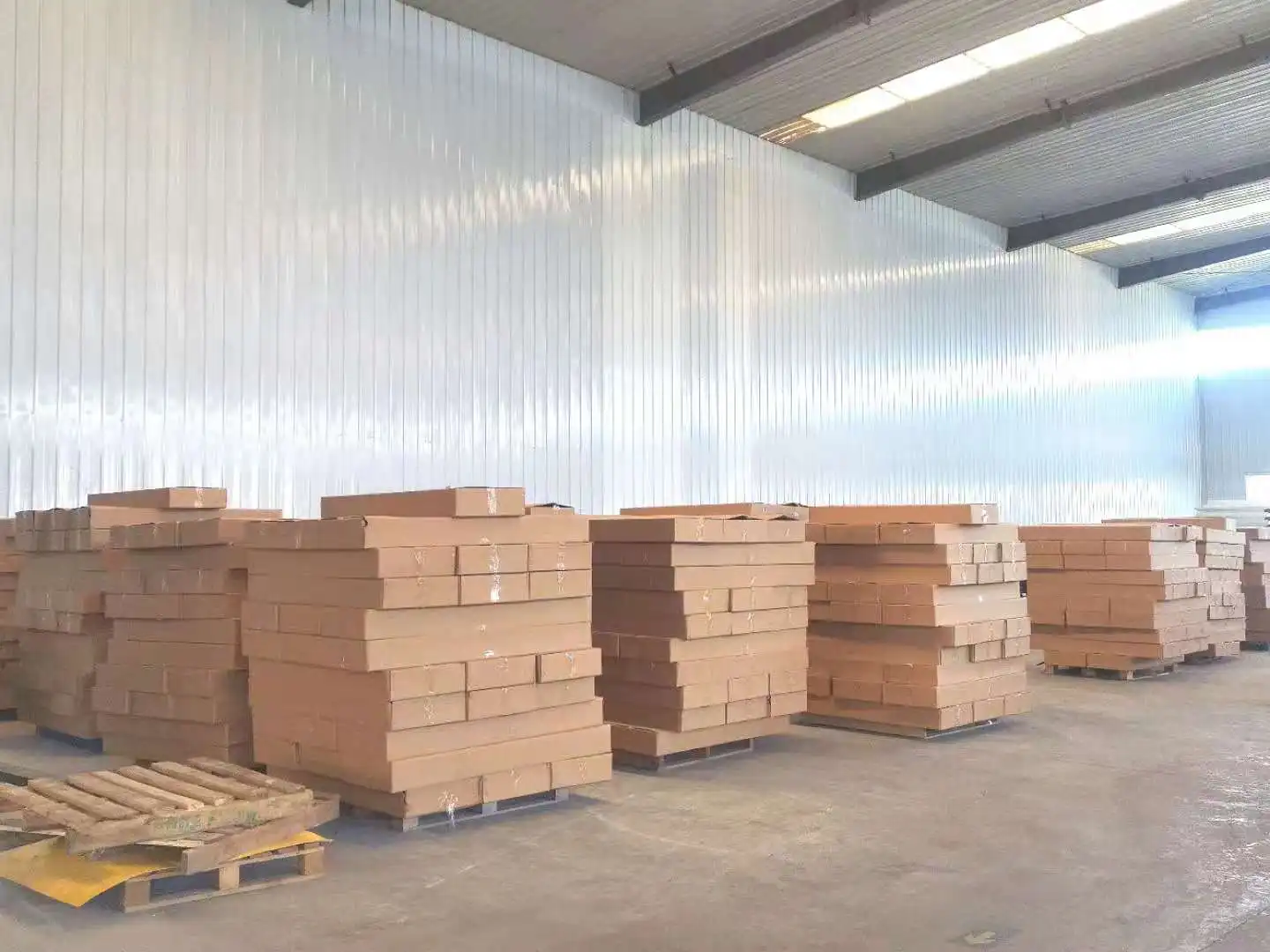

Packaging&Shipping

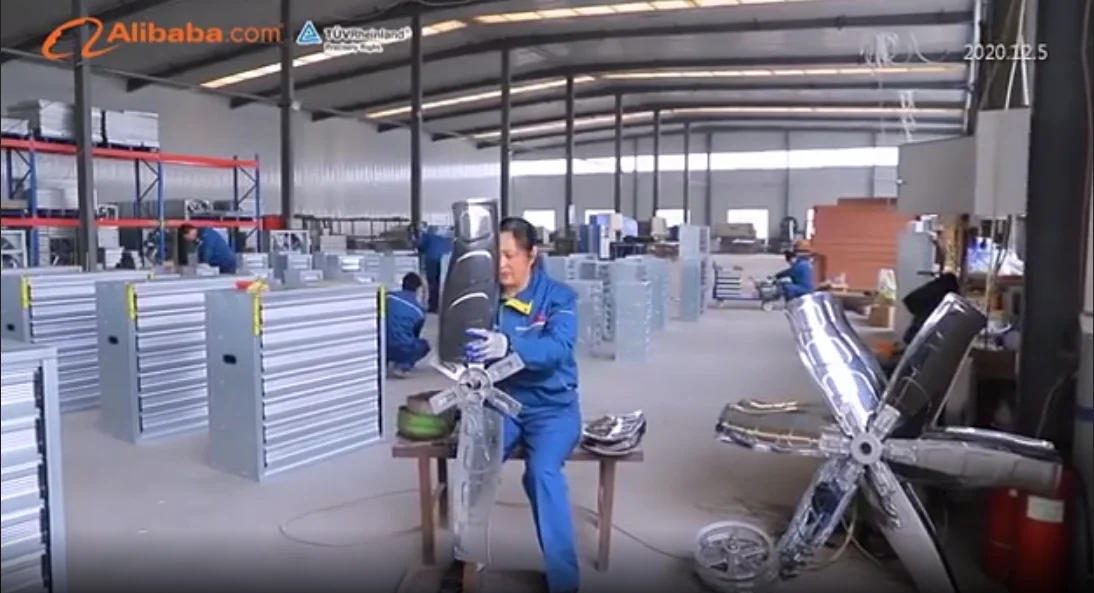

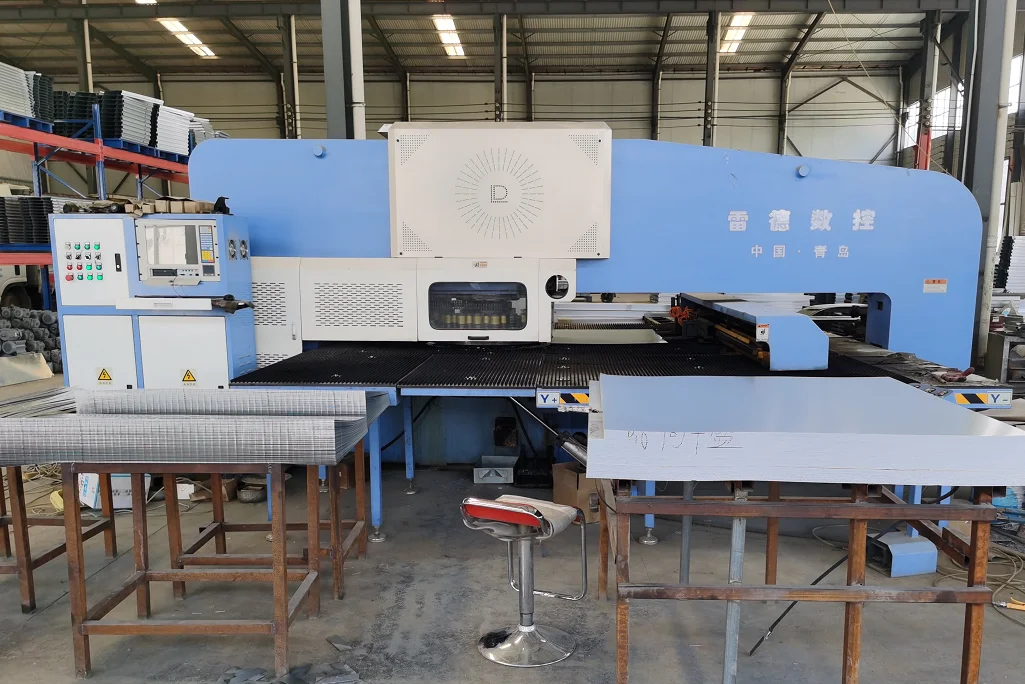

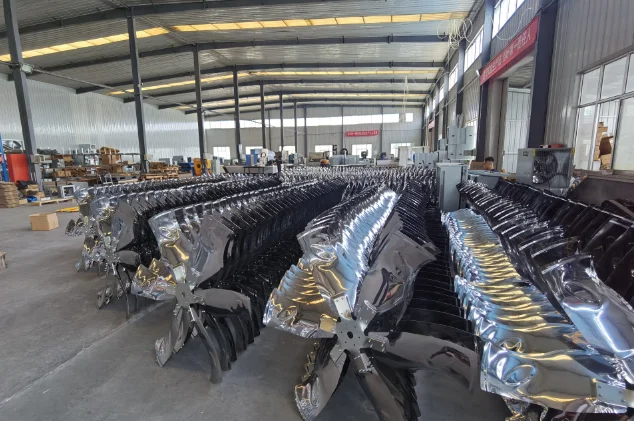

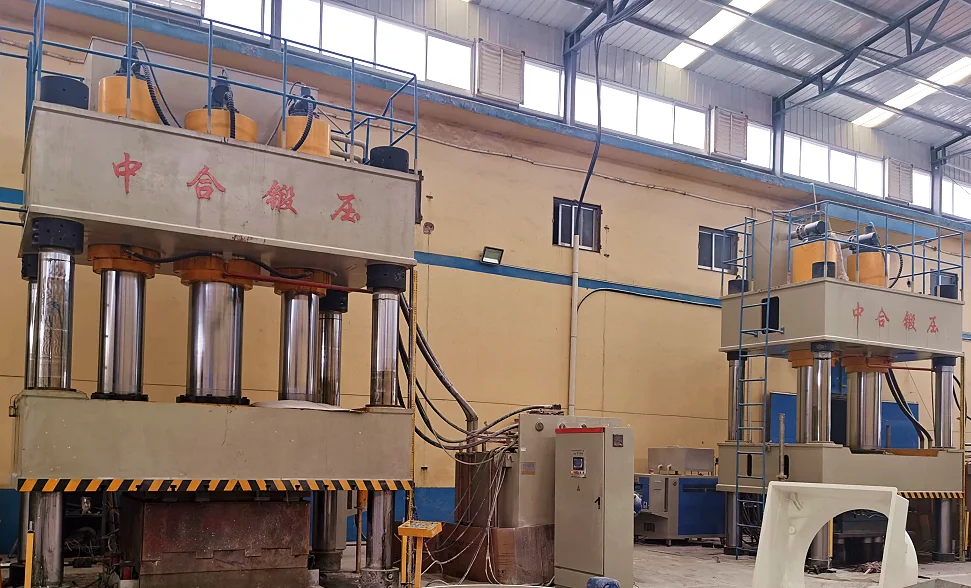

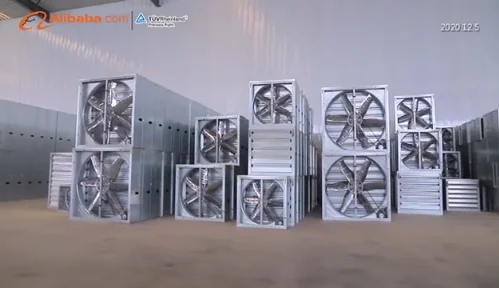

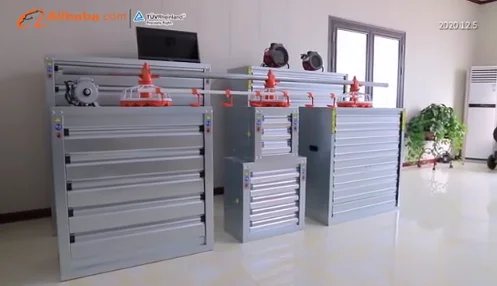

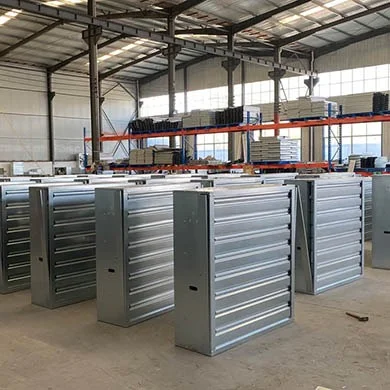

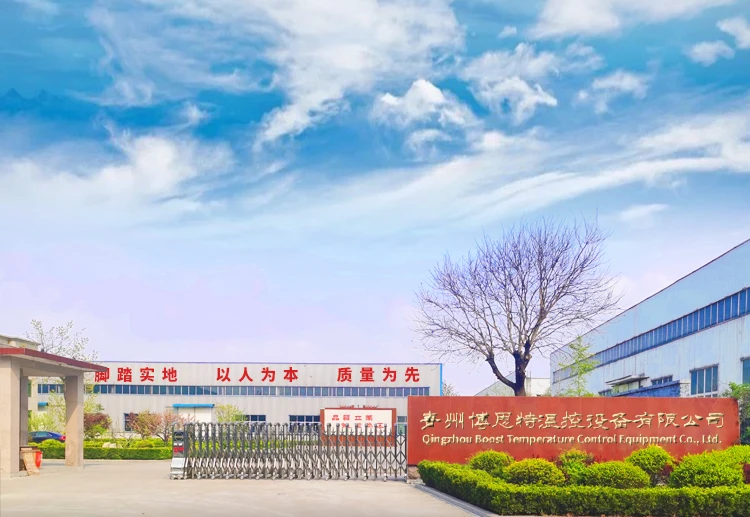

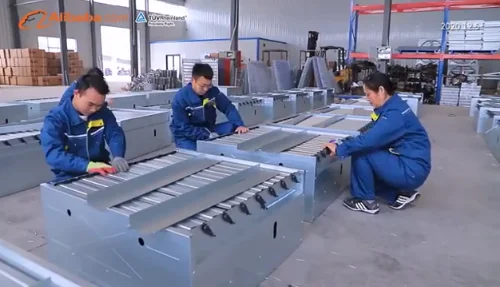

Factory&Workshop
WHY CHOOSE BOOST?

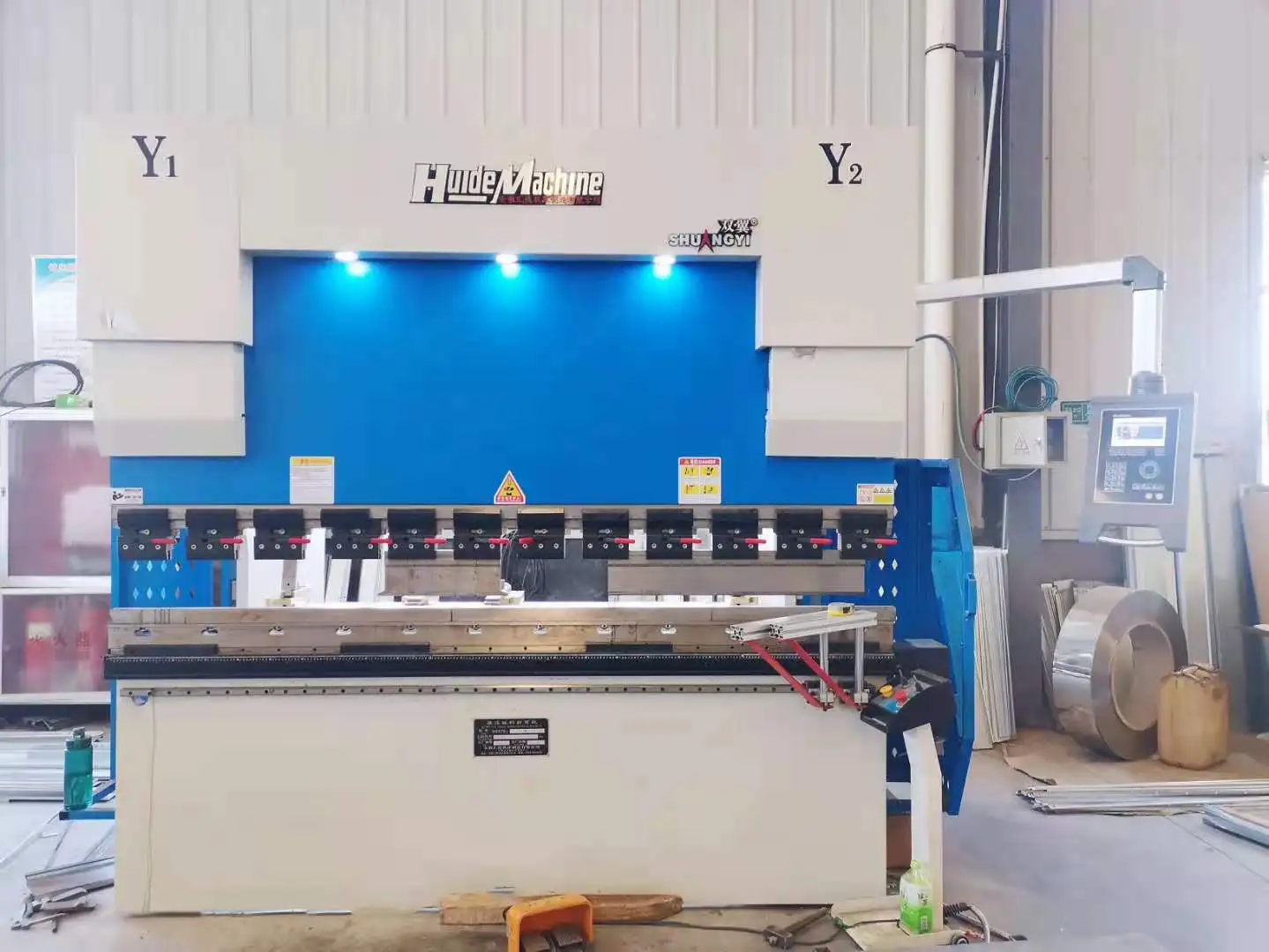

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

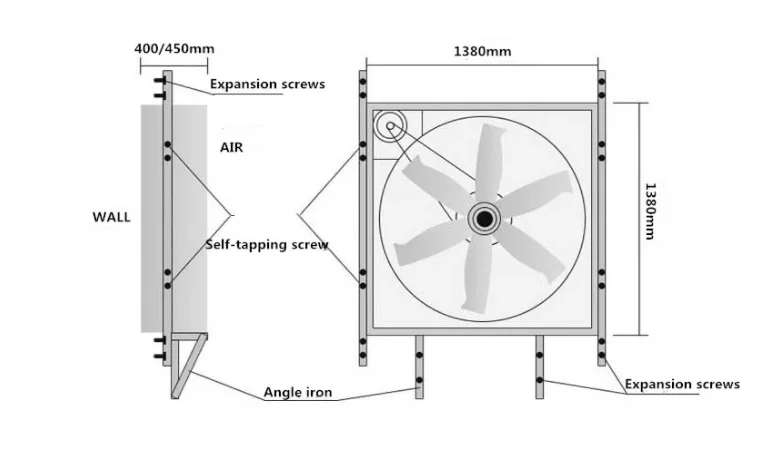

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .

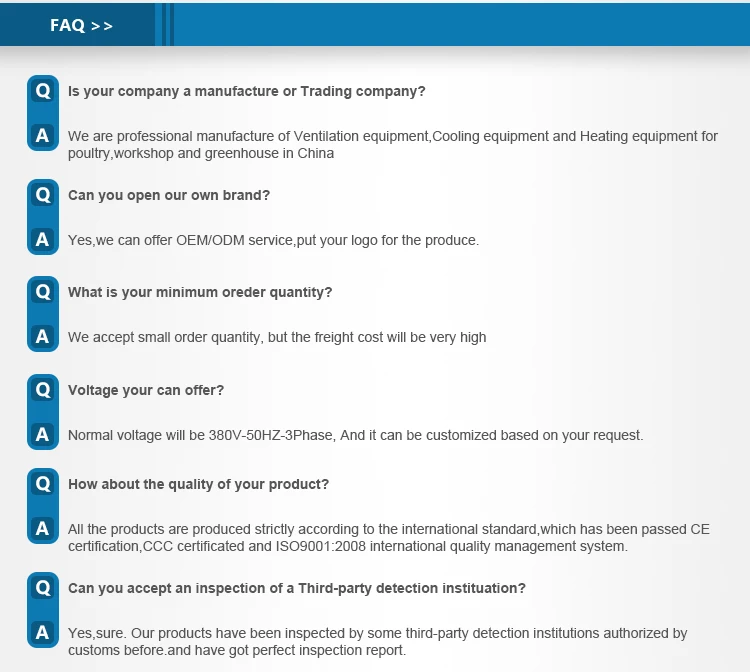

FAQ
After-sales service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the
machine.
* Engineers are available to service machinery overseas
* Engineers are available to service machinery overseas
Ordering and Pricing
- Minimum order quantity: 15 set
- Volume pricing:
- 15–49 set: US $120 / set
- 50+ set: US $100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this durable motor?
The standard minimum order quantity is 15 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the durable motor be supplied for my local voltage?
The standard configuration is 220V, 380V, Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
