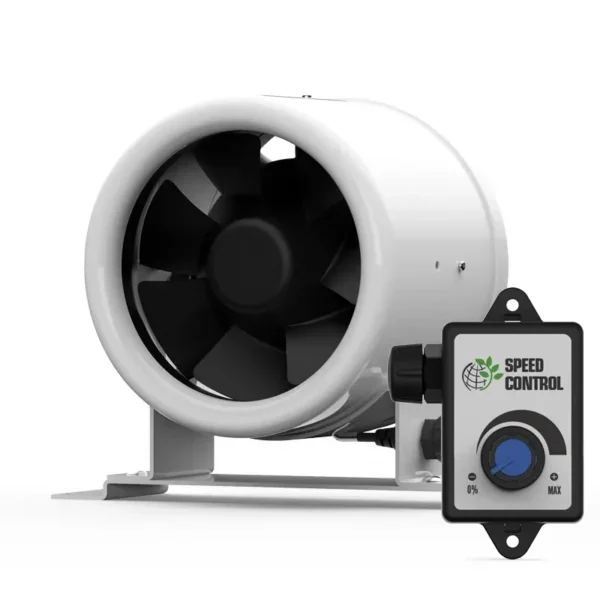

Key specification for this inline duct fan: 110V/220v, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Shengshida Electronics Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inline Duct Fan

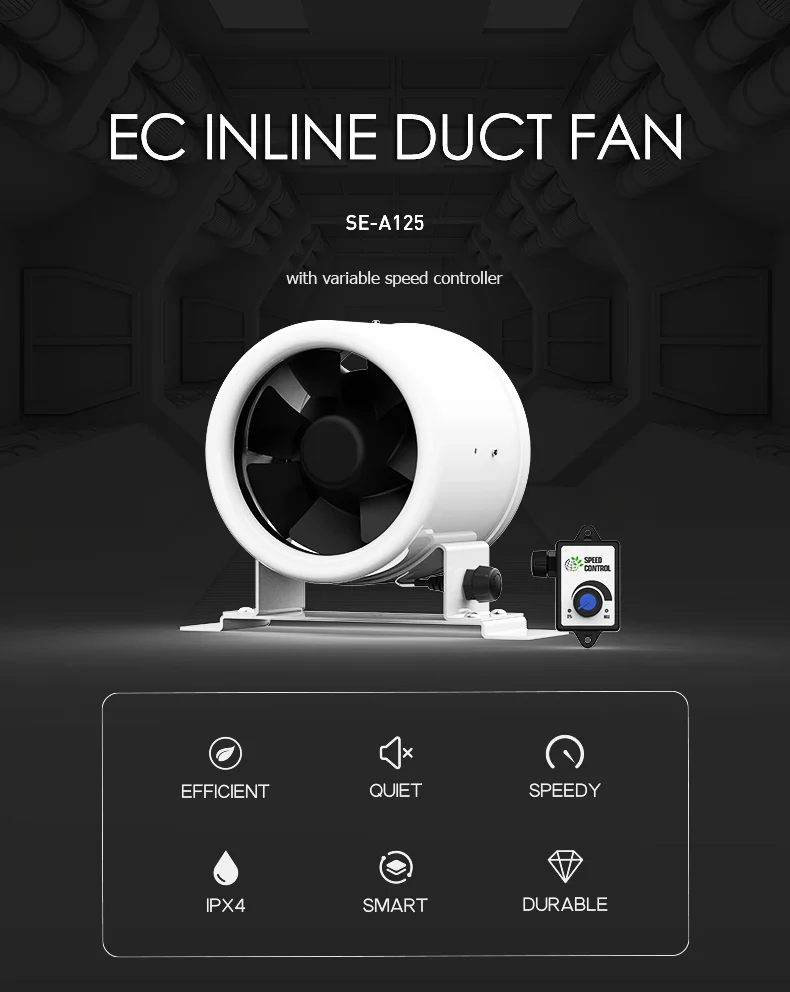

- Model Number: SE-A125
- Voltage: 110V/220v
- Blade Material: Plastic
- Warranty: 3 Years
- Certification: CCC, CE, RoHS
- Place Of Origin: Guangdong, China

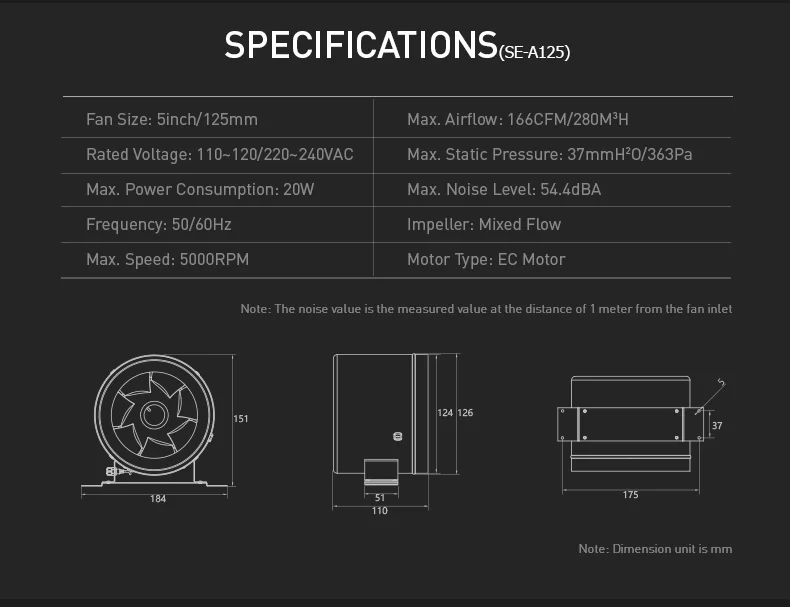

Technical Specifications
| Voltage | 110V/220v |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | AC |
| Mounting Type | Duct Fan |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | Sensdar |
| Model Number | SE-A125 |
| Color | white |

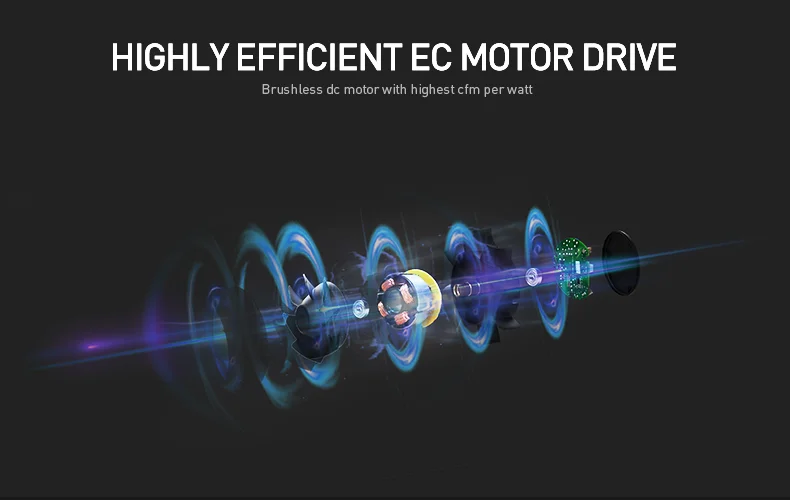

| Motor Type | EC Motor |
| Certification | CCC, CE, RoHS |
| Packaging Details | 1/1 Carton Box |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 23X22X21 cm |
| Single Gross Weight | 3.0 kg |
| Supply Ability | 2000 pieces per Month |
Product Details
Q2: Is there any difference between Sensdar with other exhaust fan?

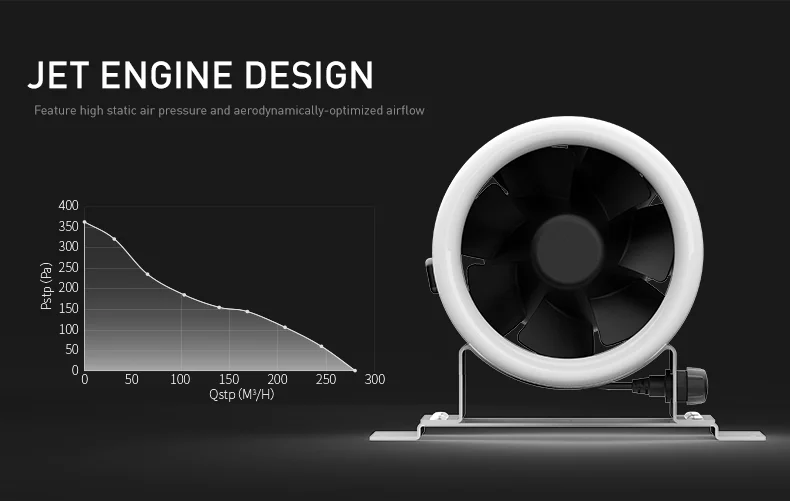

A2: Traditional exhaust fan with ceiling styles is smaller CFM, lower static pressure. Static pressure is a important factor on fans sucking speed. If there is strong wind outside, traditional exhaust fan may not work perfectly. But our EC inline duct fan,Max speed 5000 RPM with 500 Pa static pressure, no matter what the outside environment and pipe length is, 100% data CFM and sucking rate.
Q3: Why would I buy your duct fan not from others? There are also many styles duct fan in China.
A3: EC motor is an unique technology which is belonged to our company exclusive patent. At the same size, we have larger airflow,higher air pressure and only half of energy cost than other duct fan. What's more, intelligent controller can help you to control our products with various ways. 8 level speed control match all the speed demands and thermal controller ensure the 24 hours auto using.
Q4: Sensdar noise level is so high, I am afraid of its sound will influence people inside the room.

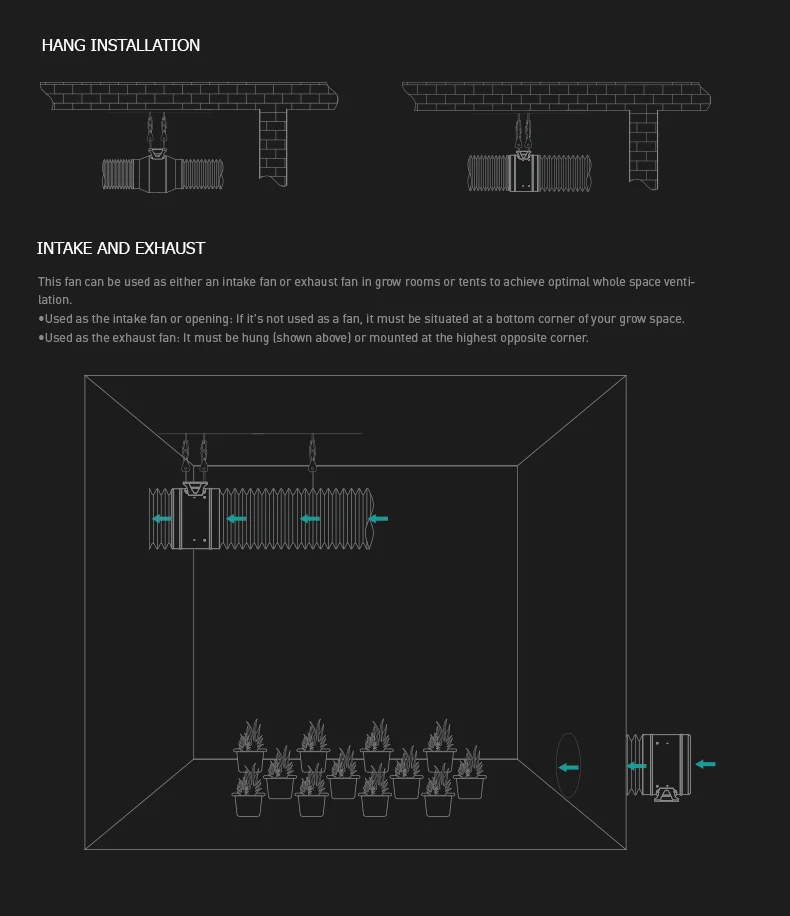

A4: Our noise test obey the international test standard, taking one meter test without the pipe. So it may show high level. When you are using in reality, duct fan usually connected with pipe and set up on the attic or ceiling. In this way, people will not influence by this sound. Besides, we do have silenced model for your choice.

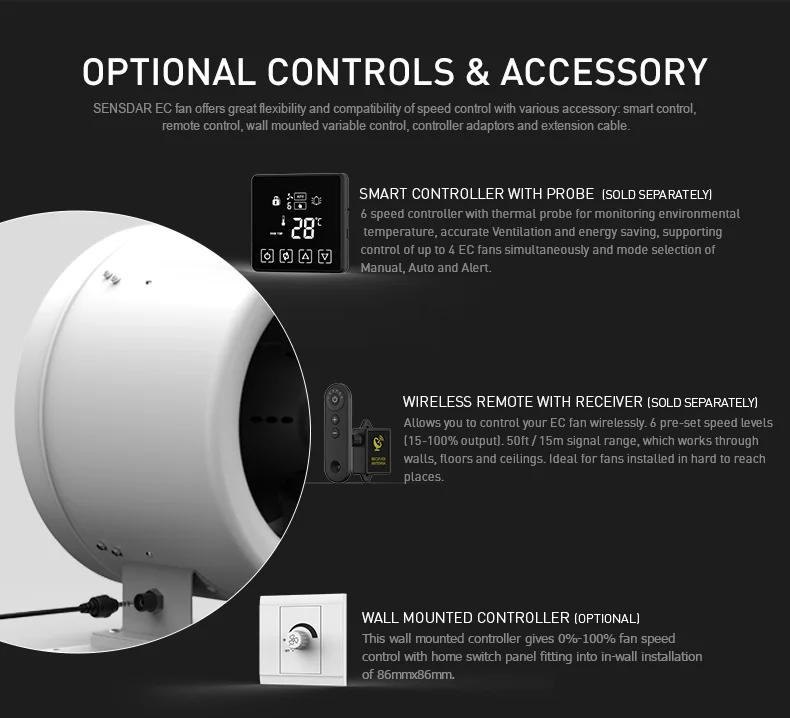

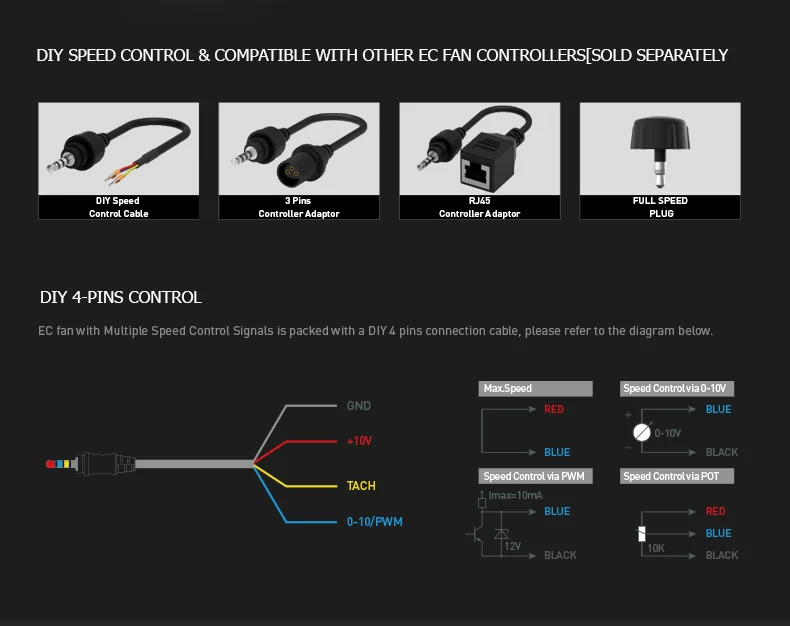

Q5: Is it supported if I want to change a controller?
A5: There is no doubt it is ok. Just using another controller connect with the duct fan. Our duct fan support all three styles controller.
Q6: Can I visit your factory?
A6: We are glad to invite you to check our factory if you have time. I can also take photo or video for your reference.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–20 piece: US $55 / piece
- 21–99 piece: US $45 / piece
- 100+ piece: US $42 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with CCC, CE, RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 110V/220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Shengshida Electronics Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Shengshida Electronics Co., Ltd. range on HVACR Nexus.
