Inline Duct Fan, CCC, ROHS, SAA, PSE

Key specification for this inline duct fan: voltage AC 220V~240V, airflow 2206m³/h. Everything below is reproduced from the factory data sheet. Made by Shenzhen Hongguan Mechatronics Co., Ltd. (14 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Inline Duct Fan

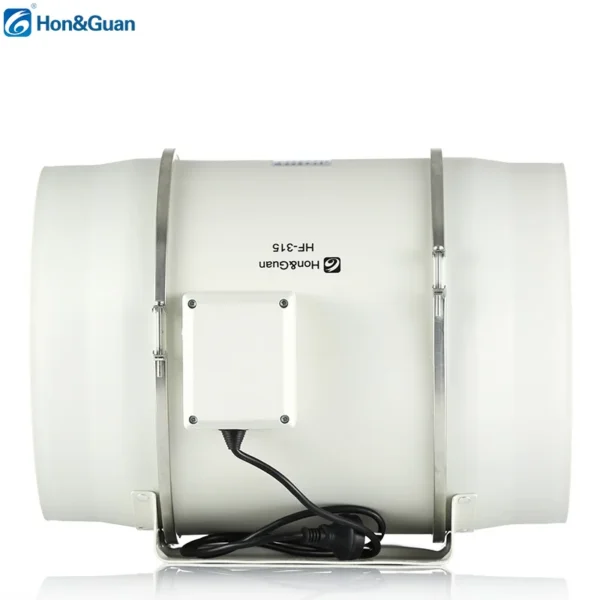

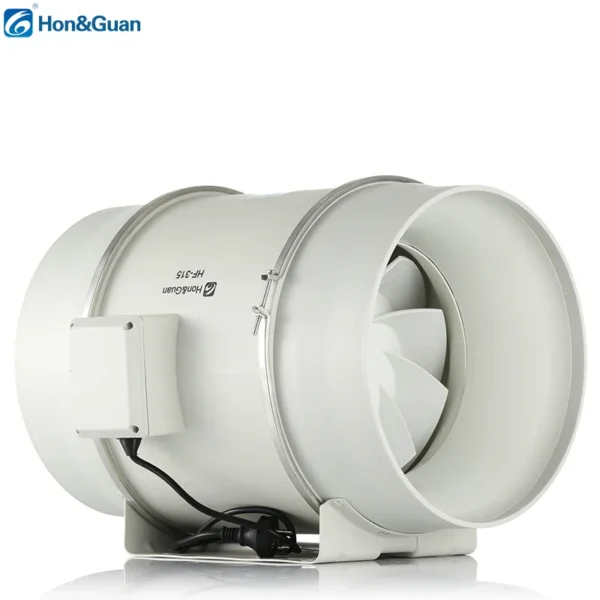

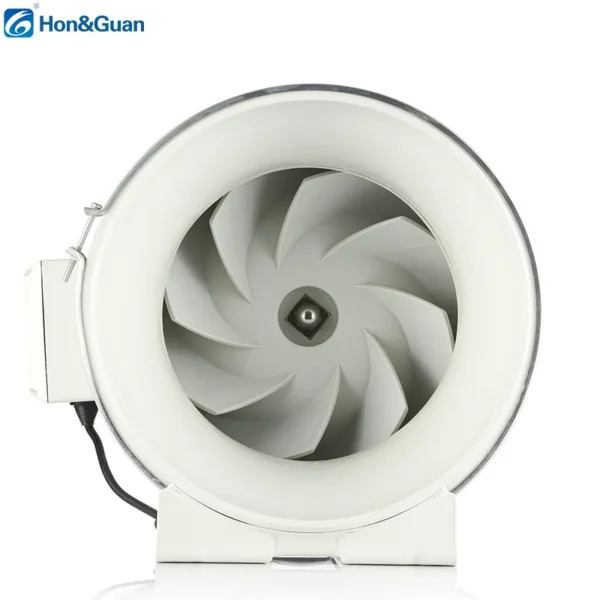

• Model Number: HF-315P
• Power Source: Electric
• Power: 390w
• Voltage: AC 220V~240V
• Airflow: 2206m³/h
• Material: Plastic

Technical Specifications

Product Details

Product Description

Product Features

1.PP material,anti-acid and alkali.

2.Big airflow and air pressure.

3.Double NMB ball bearings,long working life-over 50000 hours.

4.Easy installation.

5.Protection grade:IP44

6.Operation temperature range:-20℃~60℃.

7.Perfect for office,meeting room,public place,hotel,apartment,hospital,ktv,etc.

Optional Functions:

1.Three-speed motor(high,middle,low)

2.Timer

3.Temperature,humidity sensor.

CCC CE CB SAA UL ERC

Please send us a message informing us of the customized plug specifications you need !

Why Choose Us

1. 产品材料质量保证 我们的产品材料比其他制造商的产品更先进、更耐用，使用的是环保塑料。 2. 产品生命周期长 我们的风机使用寿命超过 50000 小时，采用日本 NMB 轴承。 3. 节能环保 我们的产品具有低能耗、低噪音、有效减少空气污染等节能环保优势。 4. 定制服务 定制服务的优势在于可根据客户需求定制风量、电压等。 5. 安全可靠 如果产品具有较高的安全性和可靠性，如采用特殊的防腐、防爆材料或优质部件。

AC controller

Please send a message to contact us, which controller do you need to match !

Wireless intelligent switch

Wireless intelligent controller No punching, no screws, just double-sided adhesive.

Wireless intelligent controller

Air volume regulation, humidity control switch, delayed start stop, VOC induction setting. Manual automatic mode selection

Wired intelligent controller

Delayed shutdown, temperature sensing, wind speed regulation,

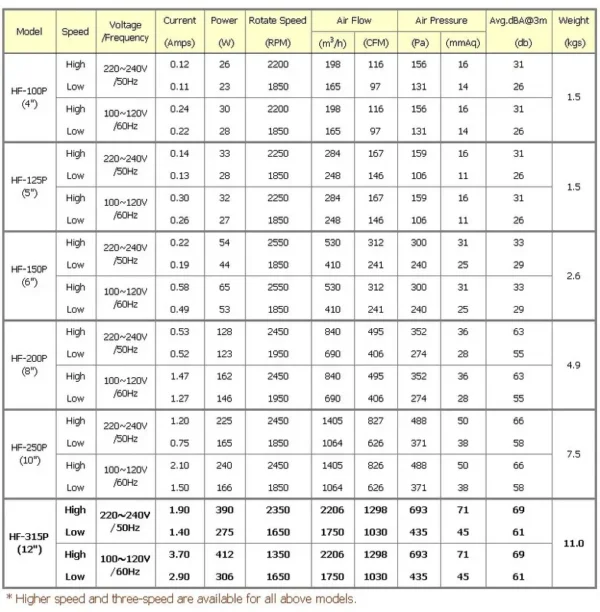

Specification

Model No.	Speed	Voltage/ Frequency     (V/Hz)	Current(Amps)	Power(W)	Speed(RPM)	Airflow(m³/h)	Air Pressure    (Pa)	Noise  (dB)	Net Weight (kgs)
HF-100P	H	220~240/50	0.12	26	2200	198	156	31	1.5
			L		0.11	23	1850	165		131	26
		H	100~120/60	0.31	35	2200	198	156		31
		L			0.28	30	1850	165		131	26
HF-125P	H	220~240/50	0.14	33	2250	284	159	32	1.5
			L		0.13	28	1850	248		106	26
		H	100~120/60	0.35	38	2250	284	159		32
		L			0.31	32	1850	248		106	26
HF-150P	H	220~240/50	0.22	54	2550	530	300	33	2.6
			L		0.19	44	1850	410		240	29
		H	100~120/60	0.55	62	2550	530	300		33
		L			0.45	49	1850	410		240	29
HF-200P	H	220~240/50	0.53	128	2450	840	352	63	4.9
			L		0.52	123	1950	690		274	55
		H	100~120/60	1.60	165	2450	840	352		63
		L			1.3	135	1950	690		274	55
HF-250P	H	220~240/50	1.2	225	2450	1405	488	66	7.5
			L		1.75	165	1850	1064		371	58
		H	110~120/60	2.6	290	2450	1405	488		66
		L			1.8	210	1850	1064		371	58
HF-315P	H	220~240/50	1.9	390	2350	2206	693	69	11.0
			L		1.4	275	1650	1750		435	61
		H	110~120/60	3.7	412	2350	2206	693		69
		L			3	330	1650	1750		435	61

OEM Service

Can I customize other parameter specifications?

Please send us an inquiry and let us know the specifications you need. We are a factory that accepts customization. OEM/ODM.

About us

HongGuan pursues the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. The products have many properties, such as nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are favored by customers. They are very popular in Europe, North America and South Asia. Our products are widely used in computer information industry, network communication industry, industrial production equipment, medical equipment, home appliance, etc.

HongGuan advocates and tries to practice the modern enterprise management idea, to own the most advanced production and testing equipment, to build the first-class management, research and development and sales teams, and to achieve the goal of "a great variety of goods, reliable quality, timely delivery and good service".

HongGuan regards "Quality First" as the management policy, and always adhere to the idea of "Customers First and Service First" to build HongGuan Mecchatronics brand. Your satisfaction is always HonGuan's pursuit.

HongGuan's service tenet: Good faith cooperation to create interest. Your satisfaction is our pursuit.

3D Showroom

VR

Packing & Delivery

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Oceania(10.00%),Western Europe(10.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Ventilation Fans,Duct Fans,Exhaust Fans,Fresh Air System

4. Why should you buy from us not from other suppliers?
Leading manufacturer of fans, including inline duct fan, ac fan and dc fan. The in line duct fan has been patented.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $100 / piece
  • 50–99 piece: US $88 / piece
  • 100+ piece: US $86 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline duct fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the inline duct fan be supplied for my local voltage?

The standard configuration is AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
