Inline Duct Fan, HI-75SD, ABS, Plastic, 24V

Inline duct fan — 24V, power source Electric. The complete factory specification follows. Made by Shenzhen Hongguan Mechatronics Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Inline Duct Fan

• Model Number: HI-75SD
• Power Source: Electric
• Voltage: 24V
• Material: Plastic
• Blade Material: Plastic
• Speed: 12000r/min, 9500r/min

Technical Specifications

Product Details

Product Description

                        uD83DuDC46Note：HI-75SD

                        uD83DuDC46Note：HI-100SD

                        uD83DuDC46Note：HI-150SD

                        uD83DuDC46Note：HI-200SD

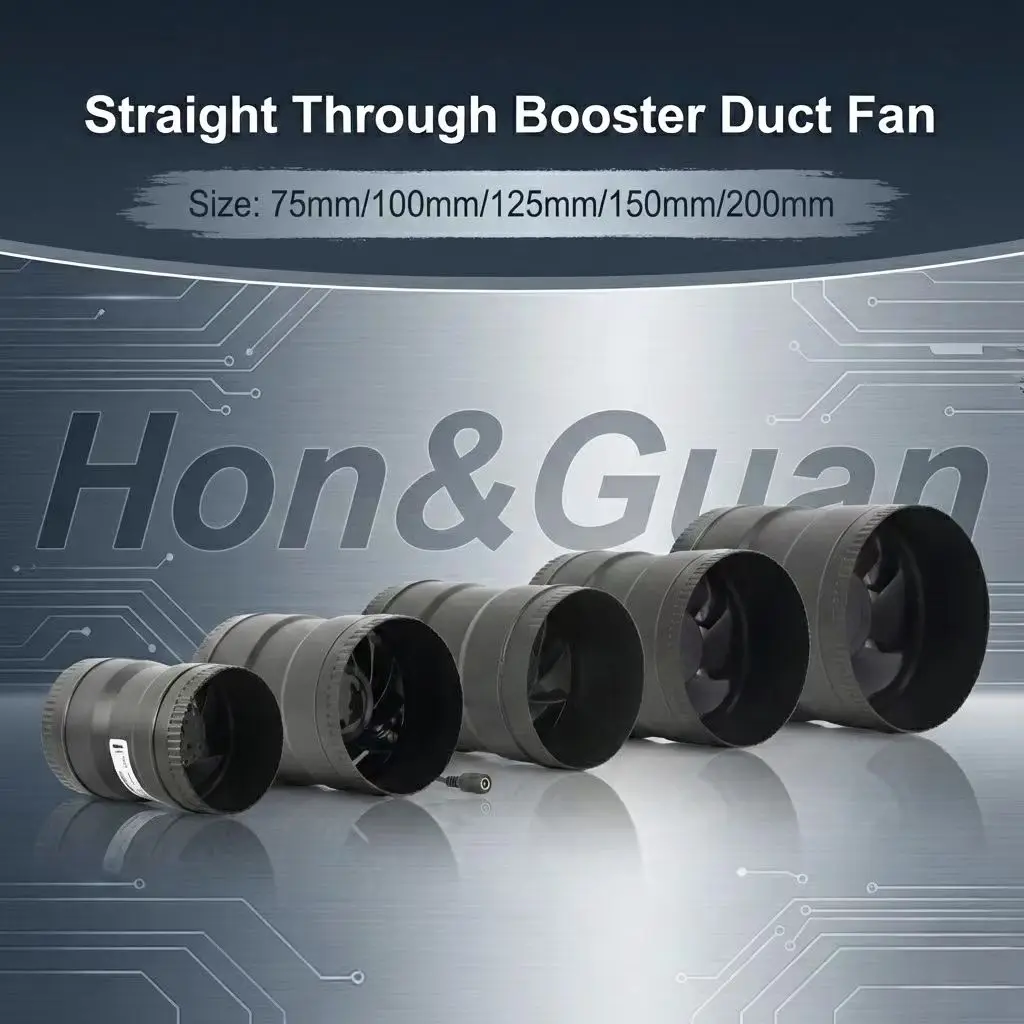

Straight through duct fan

1.All models incorporate strong EC brush less

motor for free speed control and lower

energy consumption.

2.Low profile and light weight:the fan casings

are manufactured from pure ABS with

straight design, it's double insulation.

3.High performance: small fan body with big

airflow and air pressure.

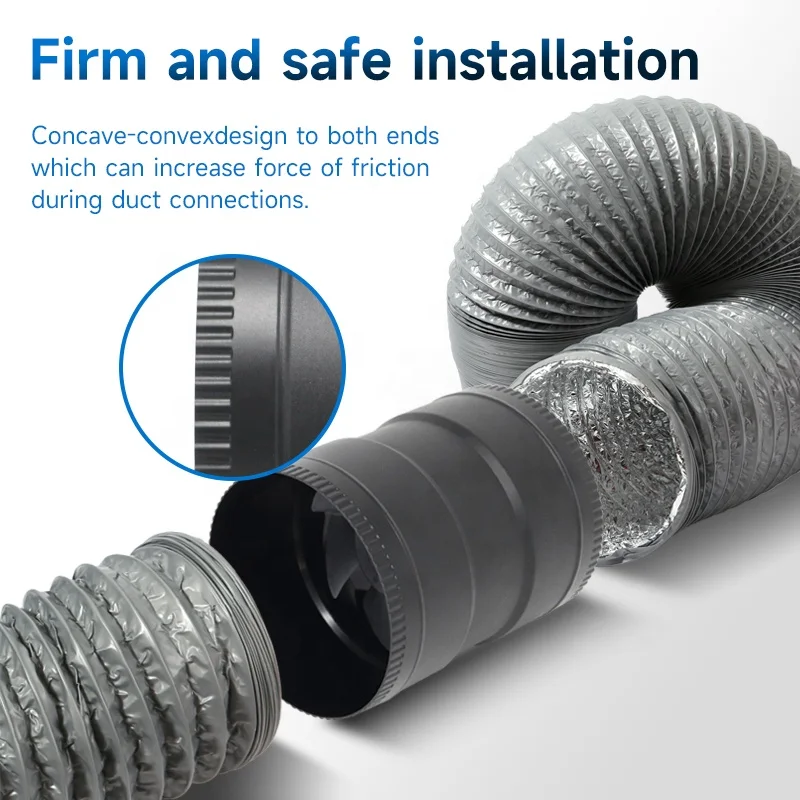

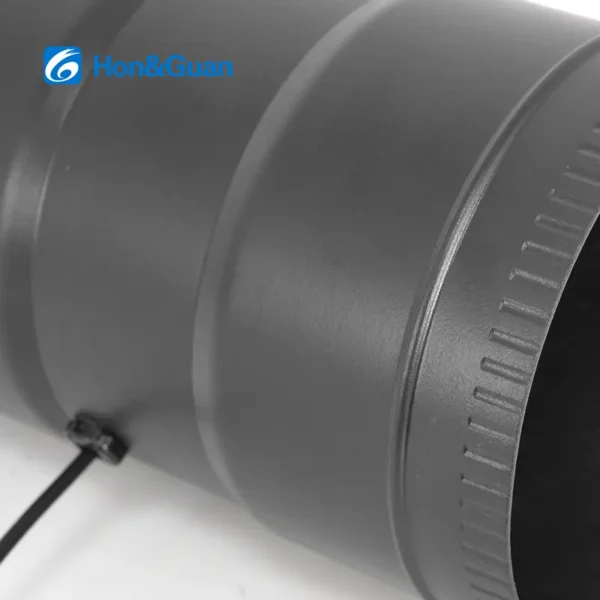

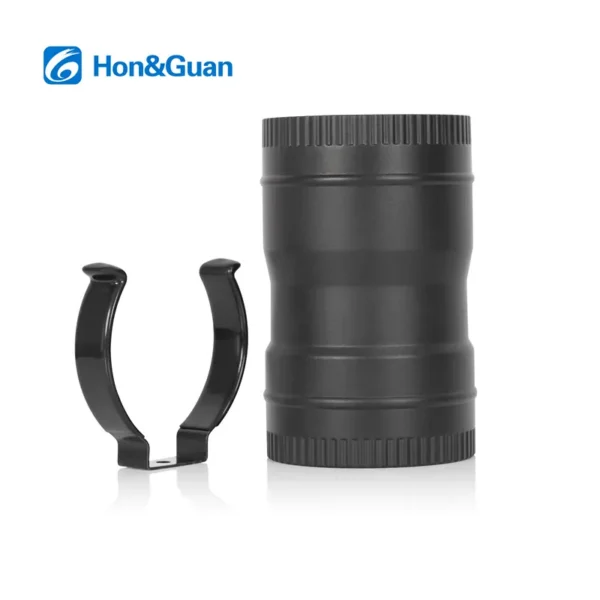

4.Firm and safe installation: concave-convex

design to both ends which can increase

force of friction during duct connections.

5.Working temperature range:-20℃-60℃.

Adapted to any circumstance where strong ventilation is requested, such as metallurgy, light industry, chemical industry, food factory, medical equipment, mechanical equipment or residential, commercial buildings; It's also adapted to air cooling systems.

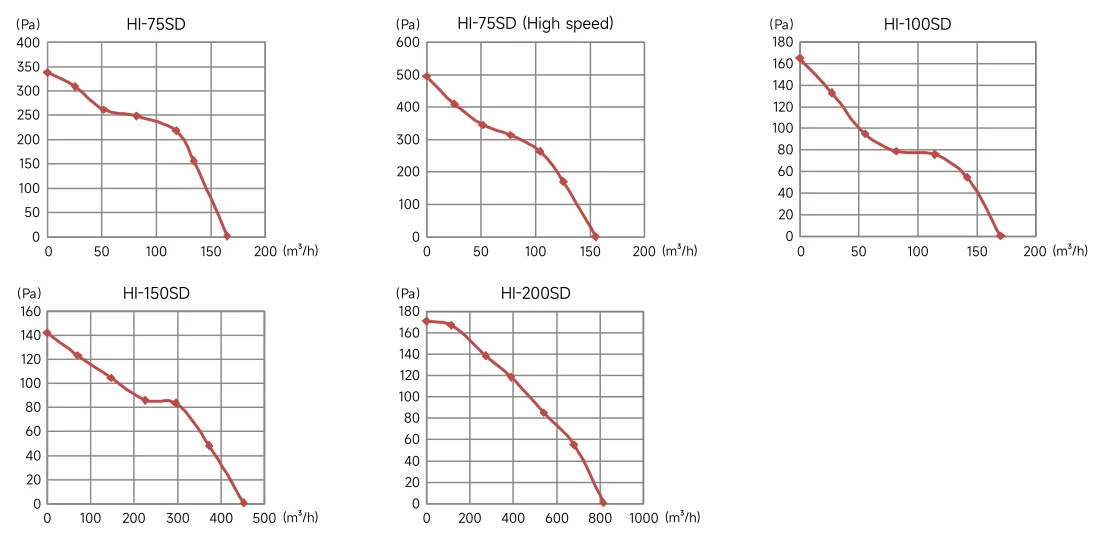

Product Parameters

Model No	Voltage (V)	Current (Amps)	Power (W)	Speed (RPM)	Airflow (m³/h)	Air Pressure (Pa)	Net Weight (kgs)
HI-75SD	24	0.9	21.6	9500	165	338	0.28
				0.8	19.2	12000		155	495
HI-100SD	24	0.25	6	4500	170	165	0.35
HI-150SD	24	0.8	20	3300	452	142	0.5
HI-200SD	24	1.85	44.4	2500	816	171	1.2

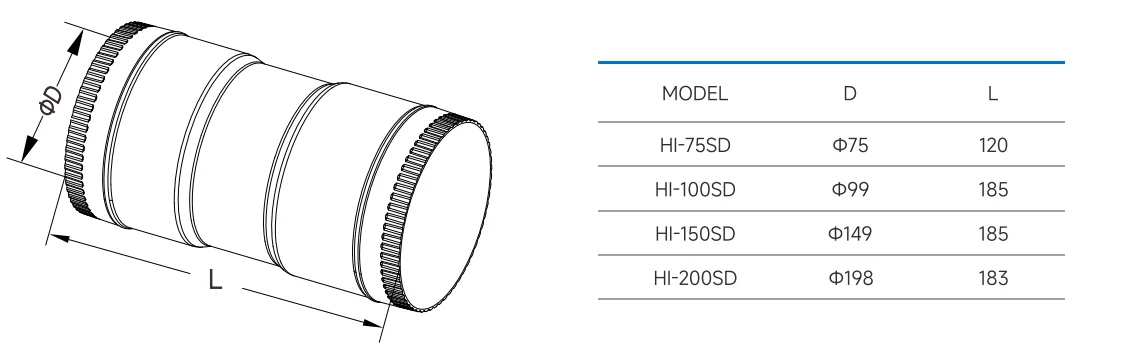

Note: mm

Why Choose Us

1. Product Material Quality Assurance

Our product materials are more advanced or durable than other manufacturers' products, using environmentally friendly plastic. 2. Long product life cycle Our fan has a service life of over 50000 hours, Japanese NMB bearing. 3. Energy conservation and environmental protection Our products have the advantages of energy conservation and environmental protection, such as low energy consumption, low noise, and effective reduction of air pollution. 4. Customization The advantage of customized services is to customize air volume, voltage, etc. according to customer needs.

OEM Service

Can I customize other parameter specifications?

Please send us an inquiry and let us know the specifications you need. We are a factory that accepts customization. OEM/ODM.

About us

HongGuan pursues the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. The products have many properties, such as nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are favored by customers. They are very popular in Europe, North America and South Asia. Our products are widely used in computer information industry, network communication industry, industrial production equipment, medical equipment, home appliance, etc.

HongGuan advocates and tries to practice the modern enterprise management idea, to own the most advanced production and testing equipment, to build the first-class management, research and development and sales teams, and to achieve the goal of "a great variety of goods, reliable quality, timely delivery and good service".

HongGuan regards "Quality First" as the management policy, and always adhere to the idea of "Customers First and Service First" to build HongGuan Mecchatronics brand. Your satisfaction is always HonGuan's pursuit.

HongGuan's service tenet: Good faith cooperation to create interest. Your satisfaction is our pursuit.

3D Showroom

VR

Packing & Delivery

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(55.00%),North America(15.00%),Eastern Europe(10.00%),Oceania(10.00%),Western Europe(10.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Ventilation Fans,Duct Fans,Exhaust Fans,Fresh Air System

4. Why should you buy from us not from other suppliers?
Leading manufacturer of fans, including inline duct fan, ac fan and dc fan. The in line duct fan has been patented.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 50 piece
• Volume pricing:
  • 50+ piece: US $20 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inline duct fan?

The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the inline duct fan be supplied for my local voltage?

The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
