The inline duct fan listed here carries voltage 220-240V, 100-120V, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangdong Hongguan Electric Appliance Co., Ltd. (1 year on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.

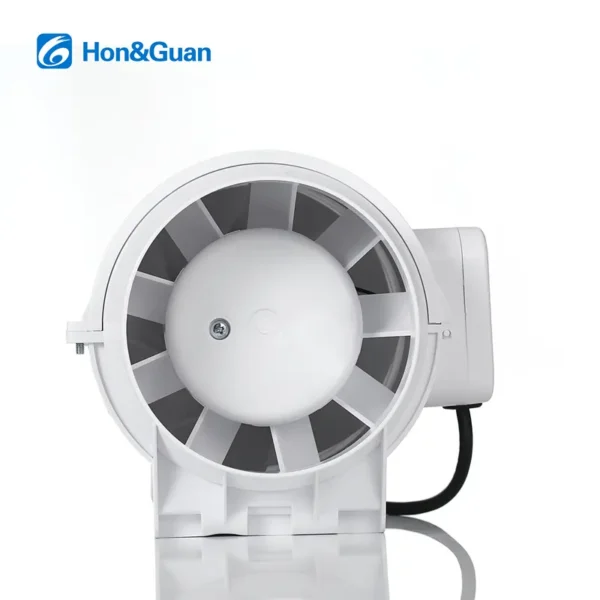

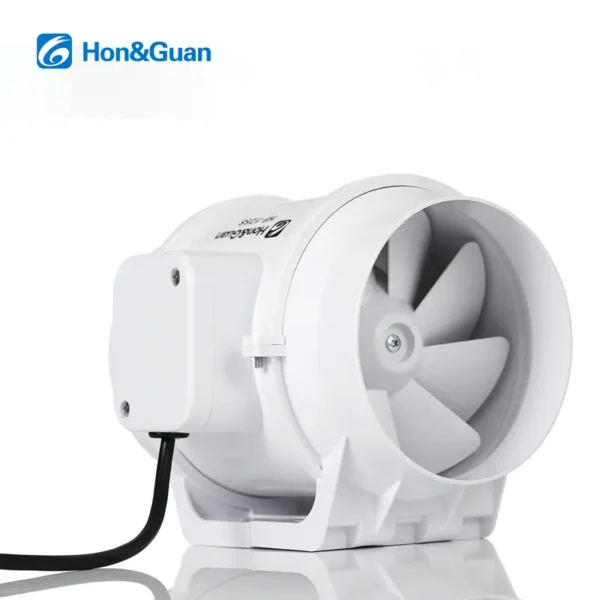

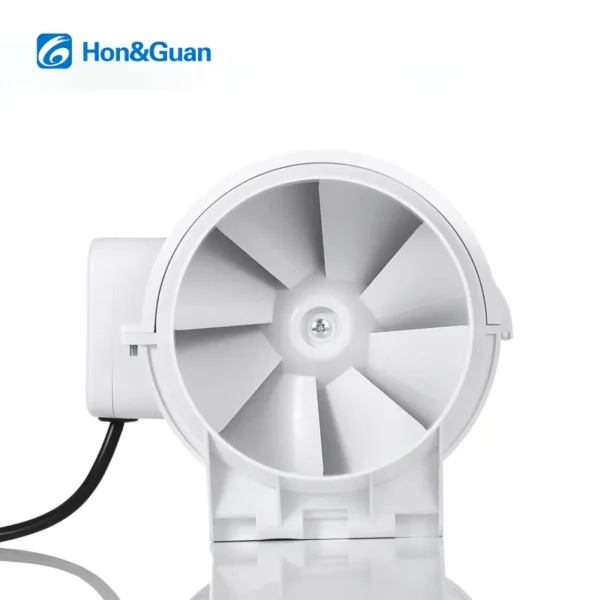

Key Features of This Inline Duct Fan

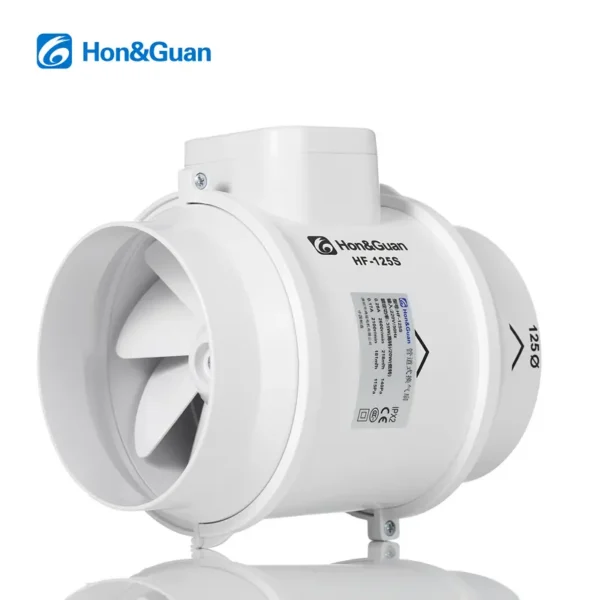

- Model Number: HF-125S
- Power Source: Electric
- Voltage: 220-240V, 100-120V
- Material: Plastic
- Blade Material: Plastic
- Speed: 2100 RPM, 2600RPM
Technical Specifications
| Voltage | 220-240V, 100-120V |
|---|---|
| Speed | 2100 RPM, 2600RPM |
| Type | Duct Axial Fan |

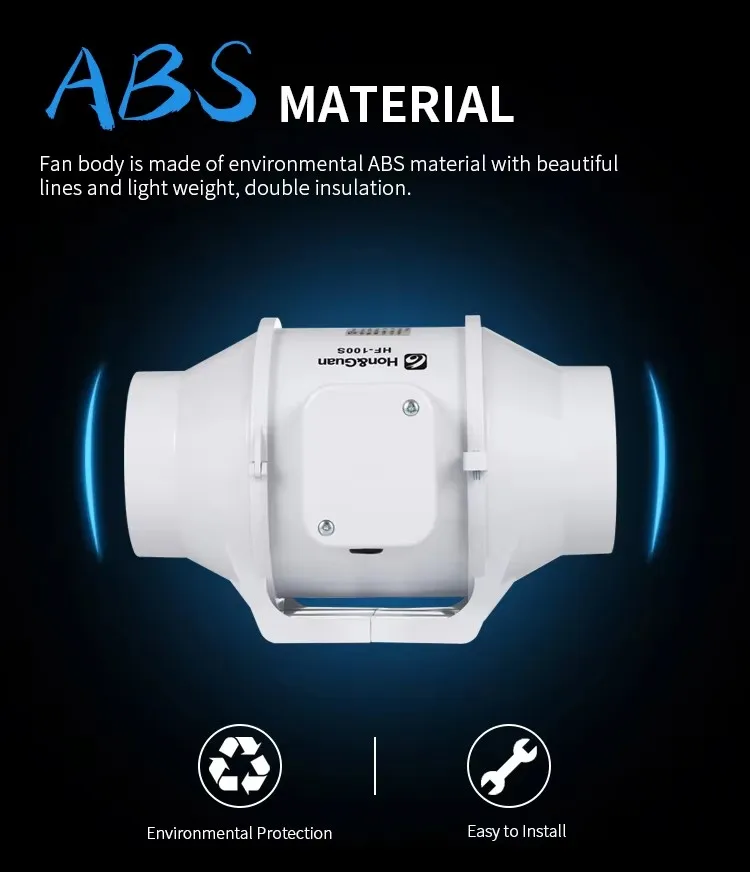

| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Hon&Guan |
| Model Number | HF-125S |

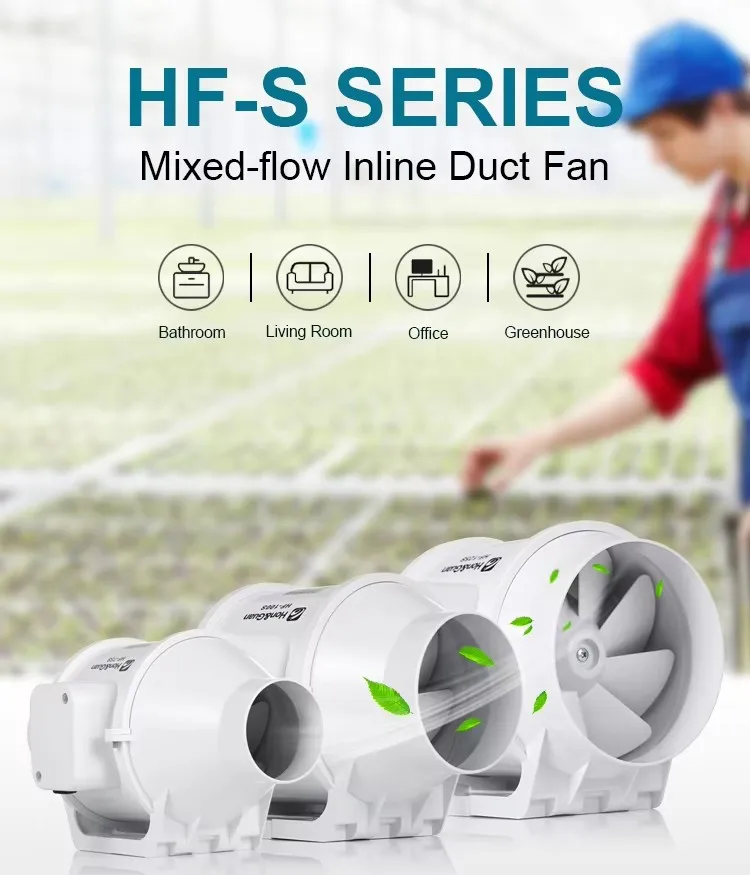

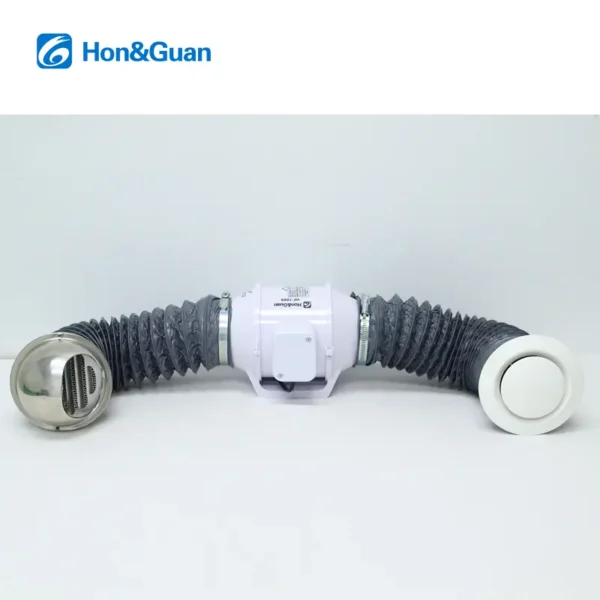

| Application | Kitchen, bedroom, bathroom and etc. |
| Optional Size | 3"4"5" |
| Color | White or OEM |
| Air Pressure | As required |
| Certification | CCC, CE |

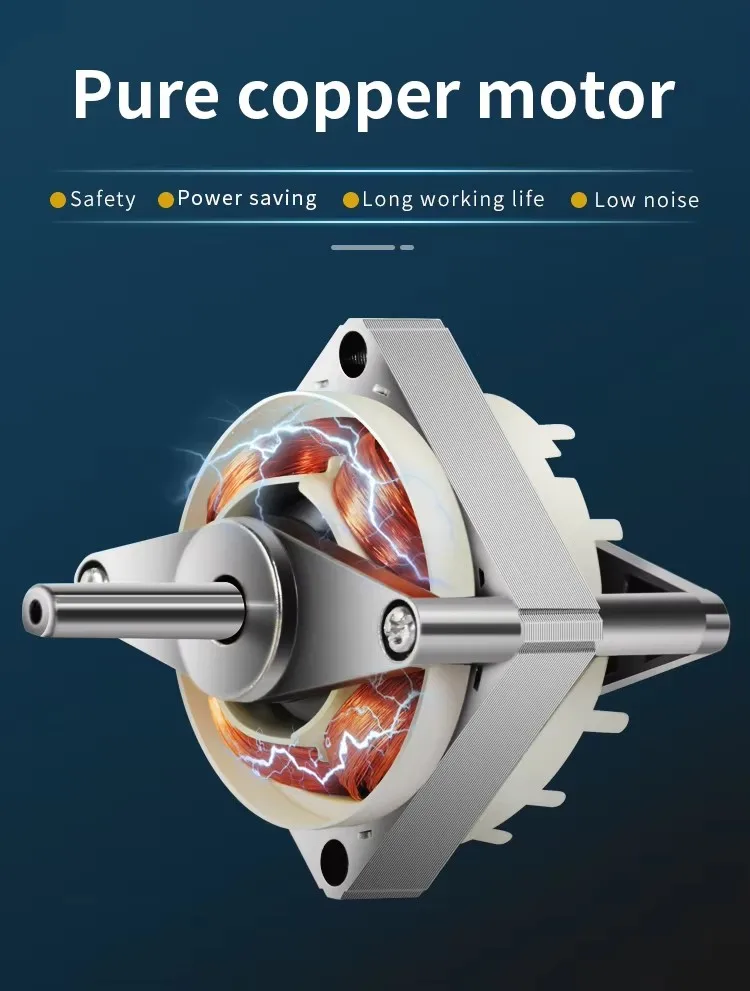

| Motor | AC Motor |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

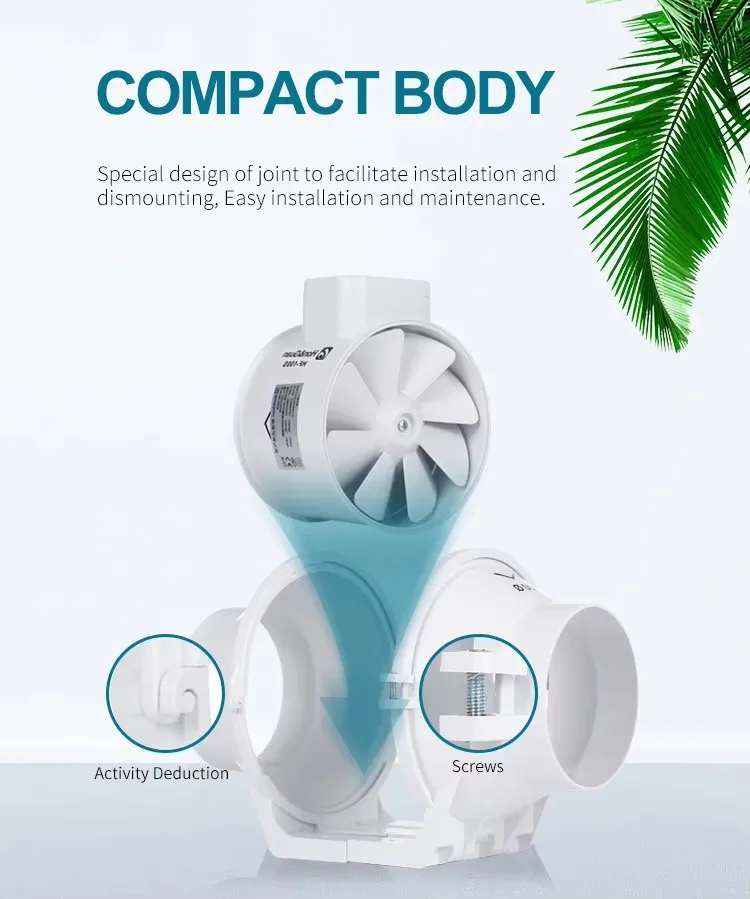

2. Easy installation and maintenance
3. Protection grade: IP44.
4. Operation temperature range: -20℃~60℃.
Model | Speed | Voltage /Frequency (V/Hz) | Current (Amps) | Power (W) | Airflow （m³/h） | Air Pressure (Pa) | Air Pressure (Pa) | Noise (dB) | Net Weight (kgs) |
HF-75S | H L | 220-240/50 | 0.27 0.12 | 30 16 | 2700 2550 | 46 43 | 129 114 | 26 21 | 1.4 |
H L | 100-120/60 | 0.50 0.42 | 29 25 | 2700 2550 | 46 43 | 129 114 | 26 21 | ||
HF100S | H L | 220-240/50 | 0.26 0.15 | 35 20 | 2600 2100 | 170 133 | 125 105 | 31 26 | 1.3 |
H L | 100-120/60 | 0.55 0.45 | 38 30 | 2600 2100 | 170 133 | 125 105 | 31 26 | ||
HF125S | H L | 220-240/50 | 0.28 0.17 | 35 20 | 2600 2100 | 218 181 | 140 115 | 31 26 | 1.3 |
H L | 100-120/60 | 0.58 0.47 | 40 31 | 2600 2100 | 218 181 | 140 115 | 31 26 |
We are based in Guangdong, China, start from 2010, sell to Domestic Market(66.20%), Oceania(7.00%), Northern Europe(6.00%), Western Europe(3.50%), North America(3.00%), South Asia(3.00%), South America(3.00%), Central America(3.00%), Africa(2.00%),Southern Europe(2.00%), Eastern Asia(0.40%), Eastern Europe(0.30%), Mid East(0.30%), Southeast Asia(0.30%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Ventilation fans, Fresh Air System, Duct fans, Exhaust fans and etc.
4. Why should you buy from us not from other suppliers?
Guangdong Hongguan Electrical Appliance Co.,Ltd. is specialized in design and manufacture of ventilation fans and fresh air system.we have won many invention patents,appearance patents and utility model patents of its own products.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES；
Accepted Payment Currency: USD, EUR, AUD, HKD, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $20 / piece
- 50–99 piece: US $16 / piece
- 100+ piece: US $15 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with CCC, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 220-240V, 100-120V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Hongguan Electric Appliance Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Hongguan Electric Appliance Co., Ltd. range on HVACR Nexus.
